Turbulent transport coefficients in spherical wedge dynamo simulations of solarlike stars
^{1} MaxPlanckInstitut für Sonnensystemforschung, JustusvonLiebigWeg 3, 37077 Göttingen, Germany
email: warnecke@mps.mpg.de
^{2} ReSoLVE Centre of Excellence, Department of Computer Science, Aalto University, PO Box 15400, 00 076 Aalto, Finland
^{3} Physics Department, Gustaf Hällströmin katu 2a, PO Box 64, 00014 University of Helsinki, Finland
^{4} LeibnizInstitut für Astrophysik Potsdam, An der Sternwarte 16, 14482 Potsdam, Germany
^{5} Nordita, KTH Royal Institute of Technology and Stockholm University, Roslagstullsbacken 23, 10691 Stockholm, Sweden
^{6} Department of Astronomy, AlbaNova University Center, Stockholm University, 10691 Stockholm, Sweden
^{7} JILA and Department of Astrophysical and Planetary Sciences, Box 440, University of Colorado, Boulder, CO 80303, USA
^{8} Laboratory for Atmospheric and Space Physics, 3665 Discovery Drive, Boulder, CO 80303, USA
Received: 14 January 2016
Accepted: 4 July 2017
Aims. We investigate dynamo action in global compressible solarlike convective dynamos in the framework of meanfield theory.
Methods. We simulate a solartype star in a wedgeshaped spherical shell, where the interplay between convection and rotation selfconsistently drives a largescale dynamo. To analyze the dynamo mechanism we apply the testfield method for azimuthally (φ) averaged fields to determine the 27 turbulent transport coefficients of the electromotive force, of which six are related to the α tensor. This method has previously been used either in simulations in Cartesian coordinates or in the geodynamo context and is applied here for the first time to fully compressible simulations of solarlike dynamos.
Results. We find that the φφcomponent of the α tensor does not follow the profile expected from that of kinetic helicity. The turbulent pumping velocities significantly alter the effective mean flows acting on the magnetic field and therefore challenge the flux transport dynamo concept. All coefficients are significantly affected by dynamically important magnetic fields. Quenching as well as enhancement are being observed. This leads to a modulation of the coefficients with the activity cycle. The temporal variations are found to be comparable to the timeaveraged values and seem to be responsible for a nonlinear feedback on the magnetic field generation. Furthermore, we quantify the validity of the ParkerYoshimura rule for the equatorward propagation of the mean magnetic field in the present case.
Key words: magnetohydrodynamics (MHD) / turbulence / dynamo / Sun: magnetic fields / Sun: rotation / Sun: activity
© ESO, 2018
1. Introduction
The magnetic field in the Sun undergoes a cyclic modulation with a reversal typically every eleven years. One of the prominent features indicating the corresponding activity variation are sunspots visible on the solar surface. In the beginning of the cycle they occur predominantly at higher latitudes, but appear progressively at lower latitudes as the cycle unfolds. This is likely to be caused by a dynamo mechanism operating in the convection zone below the surface, where, due to the interaction of highly turbulent flows and rotation, a largescale magnetic field is generated which propagates from high latitudes to the equator over the course of the cycle. Increasing computing power and access to highly parallelized numerical codes has made it possible to reproduce some of the features of the equatorward propagating solar magnetic field in global threedimensional convective dynamo simulations (e.g., Ghizaru et al. 2010; Käpylä et al. 2012; Warnecke et al. 2014; Augustson et al. 2015; Duarte et al. 2016; Guerrero et al. 2016; Käpylä et al. 2016a). However, none of these are operating in the parameter regime of the Sun. The ratios of advective (or inductive) and diffusive terms in the evolution equations of fluid velocity, magnetic field, and specific entropy in the Sun are several orders of magnitude larger than even in the highest resolution simulations available today. Nevertheless, these simulations are able to provide fundamental insights into the dynamo mechanisms acting in them and therefore possibly also in the Sun and solarlike stars.
As the flows in the solar convection zone are highly turbulent, a large number of turbulence effects are able to operate. For example, differential rotation is believed to be generated by turbulent redistribution of angular momentum and heat (see e.g., Rüdiger 1989). Meanfield theory has been successful in describing largescale dynamos operating in the Sun and other astrophysical objects (e.g., Brandenburg & Subramanian 2005). Here, smallscale contributions to the magnetic field evolution are parameterized in terms of the mean magnetic field via turbulent transport coefficients (e.g., Krause & Rädler 1980), giving rise to, for example, the wellknown α effect (Steenbeck et al. 1966). Using this approach made it possible to reproduce and understand some of the key magnetic features observed in the Sun (e.g., Choudhuri et al. 1995; Dikpati & Charbonneau 1999; Käpylä et al. 2006b). However, we can only obtain an order of magnitude estimate for the turbulent diffusion coefficient from solar observations. This means that the turbulent transport coefficients are therefore drastically simplified and/or adjusted so that the resulting meanfield solutions reproduce the observed properties of the largescale magnetic field.
Combining the global convective dynamo simulations with the descriptive and potentially predictive power of the meanfield approach is a promising path towards identifying and understanding astrophysical dynamo mechanisms. The first steps in determining the α coefficient and the turbulent pumping velocity from local convection simulations with an imposedfield method were made some time ago (Brandenburg et al. 1990; Ossendrijver et al. 2001, 2002; Käpylä et al. 2006a). The coefficients computed in the latter work have also been used in global meanfield models (Käpylä et al. 2006b). The main caveat of the imposedfield method is that it only allows the α tensor and the pumping velocity to be obtained, but no higherorder terms such as turbulent diffusion. Furthermore, the mean magnetic field needs to be uniform to allow a unique determination of these quantities which is violated by the fact that the interaction of the imposed field with the flow leads to additional mean constituents. This can be avoided by resetting the magnetic field before significant gradients develop (Ossendrijver et al. 2002; Hubbard et al. 2009). Otherwise the values of the α coefficient can be very misleading (Käpylä et al. 2010, and references therein).
As an alternative, yielding also the turbulent diffusivity tensor, Brandenburg & Sokoloff (2002) and Kowal et al. (2006) used a multidimensional regression method which exploits the timevarying property of the mean fields. A simplified version of it, which does not yield the turbulent diffusivity tensor, and employs the singular value decomposition, was used first by Racine et al. (2011) and later also by, for example, Simard et al. (2013) and Augustson et al. (2013). Simard et al. (2016) have recently relaxed this simplification.
Schrinner et al. (2005, 2007) developed a general and accurate method to determine the full tensorial representation of the turbulent transport coefficients for arbitrary velocity fields, in particular those from global convective dynamo simulations, using socalled test fields. This testfield method proved very successful in determining the dynamo mechanisms in simulations of planetary interiors (Schrinner et al. 2005, 2007, 2012; Schrinner 2011), Cartesian convection (e.g., Käpylä et al. 2009), accretion discs (e.g., Brandenburg 2005b; Gressel & Pessah 2015), Roberts flows (e.g., Tilgner & Brandenburg 2008; Devlen et al. 2013), and other setups (see Sur et al. 2008; Brandenburg et al. 2008a, 2010, and references therein). In Schrinner et al. (2011), the method was applied to analyze the induction mechanisms in stellartype oscillatory dynamos found in a Boussinesq model. Remarkably, it was shown that the Ω effect does not fully explain the existence of a dynamo wave as the α tensor alone already gives rise to one. However, the α tensor alone produces an equatorward migration, whereas the addition of an Ω effect leads to poleward migration of the mean magnetic field.
In this work we apply the testfield method to fully compressible solarlike global convective dynamo simulations determining full tensorial expressions of the transport coefficients.
2. Model and setup
For the simulations performed here, the solar convection zone was modeled as a spherical wedge defined in spherical polar coordinates by 0.7 R ≤ r ≤ R, 15° ≤ θ ≤ 165° and 0° ≤ φ ≤ 90°, where r is the radial coordinate (with R being the radius of the star), θ is the colatitude and φ is the longitude. We solve the compressible magnetohydrodynamic (MHD) equations for the density ρ, the velocity u, the magnetic field B = ∇ × A in terms of the vector potential A, and the specific entropy s. The pressure is defined via the ideal gas equation p = (c_{p}−c_{V})ρT, where c_{p} and c_{V} are the specific heats at constant pressure and constant volume, respectively, and T is the temperature. We employ stressfree conditions for the flow on the latitudinal and radial boundaries. For the magnetic field, perfect conductor conditions are applied on the lower radial and both latitudinal boundaries, but radial field conditions B_{θ} = B_{φ} = 0 on the upper radial boundary. The thermal properties of the systems are constrained by prescribing the energy flux on the lower radial boundary and setting vanishing energy fluxes on the latitudinal boundaries. At the upper radial boundary, we apply a blackbody condition for the temperature at r = R. All quantities are assumed to be periodic in the φ direction. The details of the models and their initial conditions can be found in Käpylä et al. (2013) and Warnecke et al. (2014, 2016a) and will not be repeated here.
Our simulations are controlled by the fluid and magnetic Prandtl numbers , Pr = ν/χ_{m} , and Pr_{M} = ν/η, respectively, where ν is the kinematic viscosity, χ_{m} = K(r_{m}) /c_{P}ρ_{m} is the thermal diffusivity, ρ_{m} is the density, and is the subgrid scale (SGS) heat diffusivity, the latter three evaluated at r = r_{m} ≡ 0.85 R. Furthermore, η is the magnetic diffusivity, the Taylor number is given by Ta = (2Ω_{0}Δr^{2}/ν)^{2}, with Ω_{0} being the rotation rate of the star, and the Rayleigh number by evaluated for the thermally equilibrated hydrostatic state (hs) where G is Newton’s gravitational constant, M is the mass of the star, and Δr = 0.3 R is the depth of the convection zone. Important diagnostic parameters of our simulations are the Coriolis number, Co = 2Ω_{0}/u_{rms}k_{f}, along with the fluid and magnetic Reynolds numbers, Re = u_{rms}/νk_{f} and Re_{M} = u_{rms}/ηk_{f}, respectively. Here, k_{f} = 2π/ Δr ≈ 21 /R is the wavenumber of the largest vertical scale in the convection zone and is the rms velocity without the φ component, which is dominated by the differential rotation. The 3/2 factor is employed so as to have a diagnostic parameter comparable to that of earlier work (e.g., Sur et al. 2008).
Summary of runs.
Our model is similar to Run I of Warnecke et al. (2014), except that there Pr_{SGS} = 2.5 instead of 2. The run is therefore almost identical to Runs B4m and C1 of Käpylä et al. (2012) and Käpylä et al. (2013), respectively. A very similar run was also discussed in Warnecke et al. (2016a; their Run A1) and Käpylä et al. (2017; their Run D3), with slightly different stratification. We also refer to the hydrodynamic counterpart of our model labeled as HD (instead of MHD). An overview of the parameters of the runs is shown in Table 1. A comparison of typical parameters of solarlike dynamo simulations by other authors can be found in Appendix A of Käpylä et al. (2017). For the saturated state of the run, the radial profiles of θφaveraged temperature T, density ρ, and turbulent rms velocity can be found in Fig. 1 of Warnecke et al. (2014; with Run I). On average, the density contrast between bottom and top is roughly 22. The slightly lower Pr_{SGS} compared to Run I of Warnecke et al. (2014) does not have a strong influence on differential rotation and magnetic field evolution (Warnecke et al. 2016a). Even a simulation with Pr_{SGS} = 1 as in Käpylä et al. (2016a) shows no significant qualitative difference. The adopted Rayleigh number of 4.2 × 10^{7} is around 100 times the critical value for convection.
Throughout this paper, we will invoke the meanfield approach, within which we decompose quantities such as B and u into mean and fluctuating parts, and as well as and , respectively. We define the mean as the azimuthal (i.e., φ) average. Thus, as is well known, dynamos with azimuthal order m ≥ 1, as found in Cole et al. (2014), cannot be described by such averaging. Here we often use additional temporal or spatial averages denoted as ⟨ . ⟩ _{ξ}, with ξ = t,r,θ. One important quantity defined this way is the meridional distribution of the turbulent velocity which takes all velocity components into account. When presenting the results, we often use a normalization for the transport coefficients motivated by the firstordersmoothing approximation (FOSA), employing and with an estimate of the convective turnover time , where is the pressure scale height and α_{MLT} is the mixing length parameter chosen here to have the value 5/3. We note that these normalization quantities depend on radius and latitude.
The results below are either presented as normalized quantities or in physical units by choosing a normalized rotation rate , where Ω_{⊙} = 2.7 × 10^{6}s^{1} is the solar rotation rate, and assuming the density at the base of the convection zone (r = 0.7 R_{⊙}) to have the solar value ρ = 200 kg m^{3}; see more details and discussion about the relation of the simulations to real stars in Käpylä et al. (2013, 2014), Warnecke et al. (2014) and Käpylä et al. (2016a). The simulations were performed with the Pencil Code^{1}, which uses a highorder finite difference method for solving the compressible equations of MHD.
3. Testfield method
3.1. Theoretical background
We consider the induction equation in the meanfield approach (1)where (2)is the mean (or turbulent) electromotive force arising from the correlation of the fluctuating velocity and magnetic fields. We note that Eq. (1) is an exact equation in MHD, where no assumptions have been made except that the average must obey the Reynolds rules, which the azimuthal average does. At this stage no scale separation is required. The ℰ can be expanded in terms of the mean magnetic field , (3)where in the following we truncate the expansion after the firstorder spatial derivatives of and disregard any temporal derivatives. This, however, does require scale separation, hence only the effects of the magnetic field at the larger scales will be captured by this approach. Likewise, a proper representation of ℰ by Eq. (3) can be expected only for slowly varying mean magnetic fields. We emphasize that this is not a principal restriction and that it has been relaxed in earlier applications of the testfield method (Brandenburg et al. 2008b; Hubbard & Brandenburg 2009; Chatterjee et al. 2011; Rheinhardt & Brandenburg 2012). In Eq. (3), a and b are tensors of rank two and three, respectively. Dividing these, as well as the derivative tensor into symmetric and antisymmetric parts, we can rewrite Eq. (3) as (neglecting higher order terms indicated by ...) (4)where α is the symmetric part of a giving rise to the α effect (Steenbeck et al. 1966), γ_{i} = −ϵ_{ijk}a_{jk}/ 2 characterizes the antisymmetric part of a and describes changes of the mean magnetic field due to an effective velocity γ (also: “turbulent pumping”) (e.g., Ossendrijver et al. 2002), β is the symmetric part of the rank two tensor acting upon , which characterizes the turbulent diffusion, δ quantifies its antisymmetric part and enables what is known as the Rädler effect (Rädler 1969), is the symmetric part of the derivative tensor and κ is a rankthree tensor, whose interpretation has yet to be established. Detailed descriptions of these tensors are provided in Sects. 4.1, 4.3 and 4.4.
Calculating these transport coefficients will enable the identification of the physical processes which are responsible for the evolution and generation of the mean magnetic field. The testfield method (Schrinner et al. 2005, 2007, 2012) is one way to calculate these coefficients from global dynamo simulations. To compute ℰ, we solve (5)for with a chosen test field , while taking and u^{′} from the global simulation (the “main run”), and employ Eq. (2). By choosing nine linearly independent test fields, we have a sufficient number of realizations of Eq. (3) to solve for all coefficients of Eq. (4). A detailed description and discussion, in particular for spherical coordinates, can be found in Schrinner et al. (2005, 2007).
The testfield method in the presented form is only valid in the absence of a “primary magnetic turbulence”, that is, if the magnetic fluctuations b^{′} vanish for . However, for sufficiently high magnetic Reynolds numbers, a smallscale dynamo may exist which creates magnetic fluctuations also in the absence of . For the simulation considered here, this can be ruled out: a test run, where has been removed in each time step shows no magnetic field growth.
3.2. Implementation
The implementation of the testfield method follows the lines described in Schrinner et al. (2005, 2007): the nine test fields were specified such that each has only one nonvanishing spherical component and is either constant or depends linearly on r or θ, see Table 1 of Schrinner et al. (2007). We note that some of these fields are not solenoidal or become irregular at the axis, and that none of them obey the boundary conditions posed in the main run, but these properties have been shown by the same authors not to exclude the suitability of such fields. Clearly, they form a linearly independent function system. The nine test problems resulting from Eq. (5) are integrated along with the main run while simultaneously forming the mean electromotive forces ℰ out of their solutions and inverting nine disjoint equation systems of rank three to obtain three of the 27 transport coefficients by each. At higher Re_{M}, some of the eigensolutions of the homogeneous parts of the test problems can become unstable. To suppress their influence, the test solutions are reinitialized to zero in regular time intervals (Mitra et al. 2009; Hubbard et al. 2009). Their length is typically chosen to be at least 30 turnover times. As the transport coefficients are also required to reflect the temporal changes in the turbulence due to the magnetic cycle, an upper bound is set by a sufficiently small fraction (say, one tenth) of the cycle period. To obtain the coefficients , and in the noncovariant relation, (6)we filter out the initial, transient epochs and those contaminated by the unstable eigensolutions, and perform a reliability check of statistical (quasi) stationarity. The (covariant) coefficient tensors in Eq. (4) are then obtained from the noncovariant ones employing the relations (18) of Schrinner et al. (2007). We note that their sign conventions for α and γ are different from ours. The implementation has been validated using a simple model of a forced turbulent dynamo and comparing it with a corresponding meanfield model; see Appendix B. We have also verified it using a stationary laminar flow; see Appendix C.
4. Results
In Sects. 4.1–4.4 we focus on the analysis of the timeaveraged transport coefficients, for simplicity and compactness leaving out ⟨ ·⟩ _{t} indicating time averaging, while in Sect. 4.5 we discuss the variations in time. In Sects. 4.6 and 4.7 we investigate the magnetic quenching and cyclic variation of the transport coefficients due to the mean magnetic field. In Sect. 4.8 we discuss the mean magnetic field propagation by applying a similar technique as in Warnecke et al. (2014). Finally, in Sect. 4.9 we compare the results from the testfield method with results obtained from the multidimensional regression method used by Brandenburg & Sokoloff (2002) and later by, for example, Racine et al. (2011), Augustson et al. (2015), and Simard et al. (2016).
Fig. 1
Components of α and α_{K,M}, normalized by , and normalized differential rotation Ω/Ω_{0}; all quantities are time averaged. Numerals at the bottom right of each panel: overall parity , see Eq. (8).

Open with DEXTER
Fig. 2
Timeaveraged maindiagonal components of α (a–c) together with α_{K}, α_{K} + α_{M} (d) and the parity P(α_{rr}) (see Eq. (8)) (e) over latitude 90°−θ in the northern hemisphere and for three different radii: r = 0.98 R (black), r = 0.84 R (red), r = 0.72 R (blue). Solid and dashed lines in d: α_{K} and α_{K} + α_{M}, respectively. Values in a–d are normalized by .

Open with DEXTER
4.1. Meridional profiles of α
In Fig. 1 we plot the time averages of all components of α. All three diagonal components of α are mainly positive in the north and negative in the south, but have a sign reversal in the lower layers of the convection zone (except α_{rr}). This behavior is similar to that of α for isotropic and homogeneous turbulence in the lowdissipation limit (Pouquet et al. 1976) via (7)where α_{K} and α_{M} are the kinetic and magnetic α coefficients, respectively, ω′ = ∇ × u^{′} is the fluctuating vorticity, is the smallscale kinetic helicity, j′ = ∇ × b^{′}/μ_{0} is the fluctuating current density, is the smallscale current helicity, and is the mean density. For a direct comparison we plot the meridional distributions of α_{K} and α_{M} in Fig. 1 as well as the latitudinal profiles of the diagonal components of α together with those of α_{K} and α_{K}+α_{M} at three different depths in Fig. 2.
It turns out that α_{rr} is the strongest of all components of α, in particular in concentrations near the surface at low latitudes; see Figs. 1 and 2. The same has been found previously for Cartesian shear flows using both multidimensional regression methods (Brandenburg & Sokoloff 2002; Kowal et al. 2006) as well as the testfield method (Brandenburg 2005b). Unfortunately, a comparison with Käpylä et al. (2009), where transport coefficients for convection in a Cartesian box have been obtained by the testfield method, is not possible as α_{rr} was not determined there. In the middle of the convection zone, α_{rr} is much weaker than above and below; but compared to the other components of α the values are still high or similar (α_{φφ}). The latitudinal dependency shows a steep decrease from low to high latitudes.
Next, α_{θθ} is around six and two times weaker than α_{rr} and α_{φφ}, respectively, and shows multiple sign reversals on cylindrical contours; see Fig. 1. A region of negative (positive) α_{θθ} at midlatitudes in the northern (southern) hemisphere coincides with a local minimum of the rotation rate as seen in Fig. 1 and a maximum of negative radial and latitudinal shear (∂_{r}Ω < 0, ∂_{θ}Ω < 0); see bottom row of Fig. 3. In the results of Schrinner et al. (2007, 2012) and Schrinner (2011), α_{rr} and α_{θθ} have opposite signs in comparison to the present work. In their results, the rr and θθ components are negative (positive) near the surface in the northern (southern) hemisphere and positive (negative) deeper down and therefore do not show a pattern similar to α_{φφ} and α_{K} as in our work. Furthermore, their α_{rr} and α_{θθ} are around four times weaker than α_{φφ}, whereas in our work α_{rr} is the largest.
Further, α_{φφ} shows concentrations at low and mid to high latitudes near the surface, but also in deeper layers, where its sign is opposite to that near the surface. This sign reversal with depth is most pronounced in α_{φφ}, but also visible in α_{θθ}. The meridional profile of α_{φφ} is roughly similar to that of α_{K}, although its strength is smaller, see Figs. 1 and 2. This is consistent with the finding of Schrinner et al. (2007), where α_{φφ} was similar to α_{K}. Therefore a meanfield model using α_{K} was not able to reproduce the magnetic field, while a model using α_{φφ} was. The latitudinal dependencies of α_{φφ} and α_{K} follow neither a typical cosine distribution as found by, for example, Käpylä et al. (2006a) for moderate rotation, nor a sinθcosθ distribution as often assumed in BabcockLeighton dynamo models (e.g., Dikpati & Charbonneau 1999). In Käpylä et al. (2009), an increase of α_{θθ} and α_{φφ} from the equator to the poles was found, but the functional form is not clear.
The offdiagonal components of α have strengths similar to α_{θθ} and α_{φφ} and are therefore significantly weaker than α_{rr}. Though of opposite sign, α_{rθ} and α_{θφ} have similar equatorially symmetric profiles, with positive and negative values, respectively, in the upper ≳75% of the convection zone – in particular below midlatitudes. Finally, α_{rφ} is similar to α_{θθ}, but the sign reversal in the region of minimum Ω at midlatitudes is more pronounced in α_{rφ} and at high latitudes the sign is the same. While α_{rθ} and α_{θφ} have the same sign, α_{rφ} has the opposite sign compared to Schrinner et al. (2007). In general, the coefficients obtained in the present paper are less “cylindrical” than in the work of Schrinner et al. (2007, 2012) and Schrinner (2011), probably because in our simulation, rotation is slower and convection is more supercritical.
Inspection by eye already suggests that the components of α are almost fully equatorially symmetric or antisymmetric^{2}. In order to study these symmetries quantitatively we define the pointwise parity of a quantity, for example, α_{ij}, as (8)where are the equatorially symmetric and antisymmetric parts of α_{ij}, respectively. In the bottom panel of Fig. 2, we exemplarily plot P(α_{rr}). As expected, its value is in most of the meridional plane −1, corresponding to antisymmetry. This is particularly valid near the surface (black line). The locations, where the parity is different coincide with values of α_{rr} being close to zero, and are of low significance. All other α components show the same small deviations from the pure parity state P(α_{rθ}) = P(α_{θφ}) = 1 and P(α_{θθ}) = P(α_{φφ}) = P(α_{rφ}) = −1. To describe the overall parity of a coefficient by a single number , we also employed Eq. (8) with additional volume integrations in numerator and denominator; see Figs. 1, 4, 7, 9, and 16 for these values. For α we have which is consistent with the almost pure overall equatorial symmetry of the velocity field^{3}: , , and .
4.2. Magnetic field generators
Fig. 3
The dominant effects in the mean magnetic field evolution. Top row, from left to right: Ω effect , toroidal α effect , toroidal turbulent diffusion , mean radial and latitudinal field , . White: Field lines of mean poloidal field . Middle row: radial and latitudinal α effect , radial and latitudinal turbulent diffusion , mean toroidal field . Bottom row: components of rsinθ∇Ω. We note that the effects are computed with at the halfway point of a typical activity cycle with positive (cf. Fig. 13, top), but with the timeaveraged transport coefficients (see Sect. 4.2).

Open with DEXTER
To investigate the relative importance of the main contributions to mean magnetic field evolution in detail, we plot those from the Ω and α effects as well as from the turbulent diffusion in Fig. 3 along with the components of and the shear. Contributions from the meridional circulation have turned out to be significantly weaker; see the dynamo number calculations in Käpylä et al. (2013) and Käpylä et al. (2016a). We also do not show the contributions related to γ, δ or κ. Here, α, β and shear have been timeaveraged over all cycles in the saturated stage. For we first constructed a typical magnetic cycle by folding all magnetic cycles on top of one another and averaging. Then we selected the instant at the half of the activity cycle with positive toroidal magnetic field near the surface at low latitudes and used the corresponding for the calculations.
We employ here the poloidaltoroidal decomposition of the mean magnetic field with , and being the unit vector in the direction i. The Ω effect shears the mean poloidal field, generating mean toroidal field via (top row of Fig. 3). At mid latitudes we find two distinct contributions: outside the tangent cylinder^{4} the negative radial shear (see bottom row of Fig. 3) generates a negative toroidal field from the positive radial field. Further away from the tangent cylinder the sign of the radial shear changes and it produces positive toroidal field. These two regions of field production coincide well with those of strong as shown in the middle row of Fig. 3. Inside the tangent cylinder, the positive latitudinal shear generates positive toroidal field again, but weaker than the radial shear does, and we find a corresponding region of positive toroidal field. Beside these pronounced regions, there is also negative toroidal field production near the surface due to radial shear at high latitudes. However, for these regions, there seems to be no clear relation to toroidal field concentrations at this instant of the cycle.
At the same time, the α effect can also generate toroidal magnetic field via ; see the top row of Fig. 3. This involves radial derivatives of and latitudinal derivatives of . One finds that the α effect generates toroidal field of the same sign as the Ω effect at mid latitudes just outside the tangent cylinder, therefore enhancing its negative toroidal field production. However, the contribution from α has only one third of the strength of the Ω effect. Directly next to this region, further away from the tangent cylinder, the α effect generates positive toroidal field similar to the Ω effect, but again weaker. Additionally, the α effect is strong close to the surface, producing positive toroidal field at mid to high latitudes (at high latitudes mostly opposite to the Ω effect). Close to the surface at high latitudes it is comparable to the Ω effect, while at low latitudes in the upper half of the convection zone it is locally stronger. This is suggestive of an α^{2} dynamo being dominant near the surface, while the α^{2}Ω dynamo dominates in deeper layers which is supported by phase relation measurements of Käpylä et al. (2013): equatorward migration is explained by an α^{2}Ω dynamo wave in the bulk of the convection zone (Warnecke et al. 2014), while near the surface the phase relation is consistent with an α^{2} dynamo. Here, Käpylä et al. (2012) found a highfrequency dynamo mode in addition to the main mode as discussed in detail in Warnecke et al. (2014) and Käpylä et al. (2016a) for similar runs. However, the hypothetical α^{2} dynamo has to be verified in a meanfield model. This result seems to be consistent with the conclusion presented in Schrinner et al. (2011), where the authors show that α_{rr} also has a strong contribution to the magnetic field evolution and actually sets the cycle period. However, in our simulation, the main generator of toroidal magnetic field is still the Ω effect, in particular for the equatorward migrating field. The toroidal α effect also shows negative contributions at high latitudes in the upper half of the convection zone, where it takes part in the generation of toroidal field; see top and middle rows of Fig. 3.
In the third panel of the top row of Fig. 3 we plot the toroidal contribution of the turbulent diffusion using the full β, which is discussed in detail in Sect. 4.4. It has roughly the same strength as the main toroidal field generators, but shows the opposite sign in the midlatitude regions of strong field production. However, it exhibits far stronger spatial variations than the corresponding Ω and α effects and thus does not match up well with the production terms. The structures at small spatial scales can be taken as indications of poor scale separation between mean and fluctuating quantities, pointing to the need of scaledependent transport coefficients; see Sect. 3.1. We note here that a simplified treatment with yields excess values by a factor of three and an incorrect distribution.
We also investigated the α effect generating from via ; see middle row of Fig. 3. The α effect contribution to the poloidal field seems to be weaker than that of the Ω effect to the toroidal one giving an indication of the weaker poloidal than toroidal field at mid and lower latitudes. However, in the deeper convection zone at mid to high latitudes, is comparable with . The positive radial contribution of the α effect fits well with the positive radial field at mid latitudes outside the tangent cylinder. However, it generates negative radial field slightly toward higher latitudes, which has no correspondence in the radial field. At high latitudes the radial α effect shows strong spatial variations producing mostly positive radial field. At low latitudes, one finds small patches of positive and negative radial field generation.
The latitudinal α effect also shows field generation at midlatitudes outside the tangent cylinder coinciding well with positive latitudinal field there. Interestingly, the latitudinal α effect is particularly pronounced close to the surface, similar to the azimuthal α effect. This might be an indication of a possible α^{2} dynamo operating in these regions. However, the radial α effect does not show such a profile. For the poloidal field, we also calculated the turbulent diffusion; see middle row of Fig. 3. As for the toroidal field, the diffusion shows strong spatial variations. At the surface the latitudinal diffusion seems to counteract the latitudinal α effect. The production sites of toroidal field seem to match with the contributions shown in Fig. 3, but there are still some differences. The poloidal field production, however, cannot be linked directly to the shown production and diffusion terms, due to the phaseshift between and as shown in Warnecke et al. (2014). That is why the latitudinal α effect produces negative latitudinal field, where this is positive. Furthermore, there are additional effects in the mean electromotive force (Sects. 4.3–4.7), which together with the meridional flow affect the mean field.
Fig. 4
Components of γ normalized by . White streamlines: meridional pumping velocity . Numerals at the bottom right of each panel: overall parity , see Eq. (8).

Open with DEXTER
Fig. 5
Top, from left to right: timeaveraged radial and effective radial flow , , latitudinal and effective latitudinal flow , . Bottom: azimuthal flow , γ_{φ}, effective azimuthal flow and effective differential rotation . Solid lines in top row with arrows: flow lines of , .

Open with DEXTER
4.3. Turbulent pumping
In Fig. 4, we plot the timeaveraged components of the turbulent pumping velocity γ. The latitudinal component γ_{θ} is the strongest with extrema of around 30% of the turbulent velocity . The other components have a half (γ_{r}) and a third (γ_{φ}) of the values. Hence all components are comparable to the offdiagonal components of α, while being three (γ_{θ}) to ten (γ_{φ}) times weaker than α_{rr}.
For γ_{r} there are two distinct regions: Inside and close to the tangent cylinder, γ_{r} is mainly negative (except at high latitudes in the middle of the convection zone), whereas further outside it is mainly positive. Close to the surface, at low and midlatitudes, γ_{r} is positive indicating outward pumping of magnetic field. This is at odds with downward pumping found in local simulations of the nearsurface layers (e.g., Nordlund et al. 1992; Ossendrijver et al. 2002), but in agreement with what is expected from SOCA or even earlier calculations, where the pumping is proportional to the negative gradient of the turbulence intensity (γ ≈ −∇η_{t}/ 2) (e.g., Kichatinov 1991). In a study using scaledependent onedimensional test fields in Cartesian convection simulations, Käpylä et al. (2009) found that downwards pumping occurs only for uniform (k = 0) mean fields and outward pumping for all other field scales (k> 0). We find, however, that at high latitudes near the surface downward radial pumping dominates. The difference between high and low latitudes can be due to rotational influence. The negative extrema of γ_{r} occur near the bottom of the convection zone close to the tangent cylinder. The positive extrema seem to be correlated with negative radial shear (bottom row of Fig. 3) or appear close to the surface in the equatorial region. With overall parity , the equatorial symmetry of γ_{r} is close to perfect.
The latitudinal component γ_{θ} is antisymmetric with respect to the equator (). It is negative (positive) in the northern (southern) hemisphere in the lower half of the convection zone, with extrema close to the tangent cylinder, while in the upper half of the convection zone its sign is mostly opposite. This means that turbulent pumping is poleward in the lower half of the convection zone and equatorward in the upper half, as also indicated by the streamlines of in Fig. 4. Interestingly, the pumping is strongly equatorward in the same region where equatorward migration of the toroidal field is caused by the negative shear; see Figs. 1, 3 and 4 and compare with Figs. 3 and 4 of Warnecke et al. (2014).
The azimuthal component γ_{φ} is close to being equatorially symmetric (). It is positive near the surface at low to mid latitudes as well as near the tangent cylinder at low latitudes, otherwise negative with minima just inside the latter (see Fig. 5 for γ_{φ} in physical units). All components show strong similarity with the turbulent pumping coefficients presented in Schrinner et al. (2007, 2012); only in the upper half of the convection zone and in particular near the surface do we find a different behavior.
To understand the effects of the offdiagonal components of α, Kichatinov (1991), Ossendrijver et al. (2002) and, for example, Käpylä et al. (2006a) have advocated a view of componentwise pumping in which three different pumping velocities , acting on the Cartesian component fields^{5}, are identified. Under the condition that the latter are all solenoidal and the former are spatially constant, it can be shown that each component field is advected as . In the present context, however, neither of the stated conditions is satisfied. Given that the poloidal and toroidal constituents of are solenoidal, we consider their evolution separately focussing on the terms related to turbulent pumping and mean velocities (9)Thus, in the absence of all other effects, both and are frozen into (but not advected by) the “effective” mean poloidal velocity , while the toroidal field is, in addition, subject to the source term , , representing the windingup of the poloidal field by the simultaneous effect of differential rotation and toroidal pumping .
We show the temporally averaged effective mean velocities in comparison to alone in Fig. 5. For (upper row), turbulent pumping has a significant impact: at high (low) latitudes its radial component is dominated by the strong downward (upward) pumping such that there, , while at the tangent cylinder, , and the equatorward flow in the upper half of the convection zone is also significantly enhanced. Close to the surface the effective velocity has a strong equatorward component. As a consequence, the whole meridional circulation pattern, as shown by the streamlines in Fig. 5 is changed: The three meridional flow cells aligned with the rotation vector outside the tangent cylinder are no longer present in . We note that, while at least is solenoidal, no such constraint applies to and, hence, neither to . Nearsurface patches of poloidal flux may, in principle, be able to reach the bottom of the convection zone when transported by the meridional circulation , albeit on a rather involved route. However, this can hardly be accomplished by the effective meridional circulation mainly due to its massive deviations from solenoidality. Consequently, the flux transport dynamo paradigm seems to be inconsistent with the presented simulations. Even if helioseismic inversion were to determine accurately the meridional circulation inside the solar convection zone, the effective meridional velocity would still be unknown, because one cannot measure γ inside the Sun.
The azimuthal flow and hence the differential rotation is only marginally modified by γ_{φ} (see Fig. 5, bottom row). However, at the surface it affects the radial shear significantly, as shown in Fig. 6, where we plot the radial derivatives of the rotation rate Ω and its effective counterpart . At low latitudes, the effective radial derivative becomes negative whereas at mid latitudes it is weakly enhanced. We note that simulations of the type employed here do not produce a negative radial derivative as found in the Sun (Käpylä et al. 2013; Warnecke et al. 2016a) where near the surface ∂ln Ω /∂ln r = −1 (e.g., Barekat et al. 2014) being possibly responsible for the equatorward migration of the toroidal field (e.g., Brandenburg 2005a). Also, at this location the toroidal turbulent pumping can modify the effective radial shear and thus the magnetic field generation. Schrinner et al. (2012) concluded that their radial and latitudinal turbulent pumping show a strong influence on the magnetic field generation. This effect was reported to become stronger for faster rotation. However, the authors did not consider the effect of azimuthal turbulent pumping, which can modify the Ω effect.
Fig. 6
Double logarithmic radial gradient of timeaveraged rotation rate, ∂ln Ω /∂ln r (solid), and effective rotation rate, ∂ln Ω^{eff}/∂ln r (dashed), at 5° (black), 15° (red) and 30° (blue) latitude.

Open with DEXTER
Fig. 7
Timeaveraged components of β and δ, normalized by . Numerals on the bottom right of each panel: overall parity , see Eq. (8).

Open with DEXTER
4.4. Turbulent diffusion β, δ effect, and κ term
In Fig. 7 we plot all components of the timeaveraged β and δ tensors. All diagonal components of β are mostly positive. Overall, the values of β are significantly smaller than the turbulent diffusivity estimate η_{t0} with the exception of β_{φφ} reaching 1.37η_{t0} at the tangent cylinder near the surface. These regions are also pronounced in β_{rr}, but its values are only around half as large. With values still five times smaller than β_{φφ}, β_{θθ} is strongest at high latitudes. The apparent dominance of β_{φφ} amongst the diagonal components is partly an artefact of the ambiguity in defining the tensors in Eq. (4) based on those in Eq. (6); see Schrinner et al. (2005). Effectively, β_{rr} and β_{θθ} should be multiplied by a factor of two for comparison with β_{φφ}; see the discussion of κ at the end of this section. The overall parities of the diagonal components approach the ideal value (), while those of the offdiagonal components are still close () with β_{rθ} and β_{θφ} being close to antisymmetric and β_{rφ} close to symmetric. In the northern hemisphere, β_{rθ} is negative in the lower half of the convection zone and positive in the upper half. The contours of β_{θφ} are approximately aligned with the rotation axis, showing a clear sign reversal outside the tangent cylinder such that the sign of β_{θφ} is anticorrelated with that of the latitudinal shear; see bottom row of Fig. 3. β_{rφ} is particularly strong (positive) only near the equator. In the geodynamo model of Schrinner et al. (2007), the diagonal β components show a strong alignment and concentration near the tangent cylinders, while in our work the components are most prominent at high latitudes and around the local minimum of Ω. Of the nondiagonal components, (β_{θφ}) is similar outside the tangent cylinder, (β_{rθ}) is similar in the lower half of the convection zone, and (β_{rφ}) shows the opposite sign with a similar pattern.
Fig. 8
Third root of the product of the three eigenvalues of the timeaveraged turbulent diffusivity tensor β, , normalized by η_{t0}. Solid lines: zero level.

Open with DEXTER
For inspecting the energetics of the system, it is interesting to study whether or not β is positive definite, that is, whether or not the effect of the term onto is exclusively dissipative. We note that such a study was not performed in previous works (Schrinner et al. 2007, 2011, 2012). To this end, we calculated the eigenvalues of β and depict the third root of their product in Fig. 8. It is predominantly positive, adopting negative values only at lower latitudes, and with less than half the moduli compared to the maximum. We note that this finding is not contradictory to any basic principle as negative turbulent diffusivities have been conclusively demonstrated to exist, albeit in laminar model flows only (Devlen et al. 2013). Comparison with the field generators in Fig. 3 suggests that a possible generative effect from the negative definite β is most likely weak.
The coefficient δ is known to parameterize the “Ω × J effect” appearing already in homogeneous anisotropic nonhelical turbulence (Rädler 1969, 1976) when the preferred direction is given by that of the global rotation. δ may also contain a contribution from the “shearcurrent effect” which occurs already in homogeneous nonhelical turbulence under the influence of largescale shear (see, e.g., Rogachevskii & Kleeorin 2003, 2004). We note that the major physical difference between turbulent diffusion and the δ effect is that the latter does not lead to a change in mean field energy as .
Fig. 9
Timeaveraged components of κ, normalized by . Symmetric and irrelevant components are not shown. Numerals on the bottom right of each panel: volume averaged parity , see Eq. (8).

Open with DEXTER
The coefficient δ shows no preferred sign for any of its components; δ_{r} has the same pattern as β_{θφ} (contours aligned with the rotation axis, sign reversal), but opposite values. δ_{θ} is strongest close to the equator with negative values near the bottom and the upper part of the convection zone and positive values in between and near the surface. δ_{r} and δ_{θ} are around two times larger than δ_{φ}< 0.1η_{t0}, which is mostly negative (positive) in the northern (southern) hemisphere outside the tangent cylinder and positive (negative) inside. The overall parities of δ () are comparable with those of the offdiagonal components of β with δ_{θ} being symmetric and δ_{r} and δ_{φ} antisymmetric. We find that the contribution of the δ effect on the generation and amplification of the magnetic field is small compared to the other terms discussed in Sect. 4.2. Similarly as for β, all δ components are consistent with previous studies (Schrinner et al. 2007); δ_{r} is similar outside the tangent cylinder, while δ_{θ} and δ_{φ} are only similar in the lower half of the convection zone.
The components of the rankthree tensor κ can be reduced from 27 to 15 independent components^{6}; see Fig. 9 for the results of the current simulation. All components are below η_{t0} with the most dominant ones being κ_{rrr}, κ_{rrθ}, κ_{rθθ}, κ_{rθφ}, κ_{θθθ}. Several of the profiles show alignment with the rotation axis. The parity of all components of κ () is similar to those of the offdiagonal components of β. We note here that considerable dissipative effects are “hidden” in the κ term. This can be seen by exploiting the freedom in defining the components b_{μνφ}; see Eq. (3): they can be chosen such that β_{rr} and β_{θθ} adopt twice their values. One can even go further and employ a choice by which all offdiagonal components of β disappear. The corresponding value of λ_{β} has then a maximum; of 1.7 instead of 0.495 (cf. Fig. 8), indicating that the turbulent diffusion is actually stronger by a factor ≈ 3.4. Of course, changes in the choice of the b_{μνφ} influence, in general, all transport coefficients.
4.5. Variations in time
The transport coefficients show a strong variability in time and can hence be divided into a constant (=timeaveraged) part and a part with temporal average zero, called variation (indicated by superscript v), such as (10)In Fig. 10, we plot the rms values of the variations, defined as (11)(we emphasize the capital V in the symbol). For all shown coefficients these are stronger at lower than at higher latitudes. Near the surface (r = 0.98) the variations have their maxima around ± (10...15)° latitude. This distribution indicates a strong influence of the mentioned poleward migrating highfrequency constituent. However, in the middle of the convection zone (r = 0.84) the maxima are around the equator, where the highfrequency constituent is not present (Käpylä et al. 2016a). In addition, at mid to high latitudes, the variations also show significant values. The variations of α_{ii} and γ_{i} are roughly equal to their time averages near the surface, but significantly bigger in the middle of the convection zone near the equator. Furthermore, and are significantly stronger than ⟨ β_{rr} ⟩ _{t} and ⟨ β_{θθ} ⟩ _{t}, respectively, but is only about one half of ⟨ β_{φφ} ⟩ _{t}. The variations of the δ_{i} also exceed their timeaverages by several times. In his Ph.D. Thesis, Schrinner (2005) also presented the standard deviations of the transport coefficients for a timedependent dynamo. There, he found values of a relative strength of 0.4 to 0.7 for the diagonal α components, which is somewhat lower than what we find. However, the convection in his simulation was not as vigorous as in ours. Thus, we can conclude that the time variation of the coefficients may play an important role in the evolution of the magnetic field. Further analysis shows that the variation distributions can be modeled by Lorentzian profiles and are therefore consistent with a random process. However, the variations also have nonrandom contributions, which show tight relations to the mean magnetic field evolution. This is discussed further in Sect. 4.7.
Fig. 10
Latitudinal distribution of the rms values , , and of the transport coefficient variations at r = 0.98 R (solid) and r = 0.84 R (dashed).

Open with DEXTER
Fig. 11
Magnetic quenching of α effect and shear. From top to bottom: from HD, Δα_{rr,φφ} from MHD and HD, radial and latitudinal shear ∂_{r}Ω^{HD}, ∂_{θ}Ω^{HD}/r from HD, Δ∂_{r}Ω, Δ∂_{θ}Ω /r from MHD and HD, (rms over full time series). The Δ quantities contain the sign of the corresponding HD quantities to highlight enhancement (red) and quenching (blue).

Open with DEXTER
4.6. Magnetic quenching
To investigate the alteration of the transport coefficients by the mean field, we first compare the MHD run to the corresponding HD run. In Fig. 11, we show the absolute differences of the timeaveraged dominant diagonal components α_{rr} and α_{φφ}, employing the quantity . Here, multiplying with the sign allows to distinguish between enhancement (red) and quenching (blue). α_{rr} is mostly quenched, in particular at low latitudes. α_{φφ} shows enhancement in the region of strong negative latitudinal shear, and also in the lower half of the convection zone at high latitudes. Strong quenching of α_{φφ} occurs mostly at high latitudes, where the rms value of the mean field is particularly strong; see the last row of Fig. 11.
The other quantities also exhibit alterations due to the presence of the magnetic field (not shown here). The upward pumping γ_{r} near the surface is much stronger in the MHD case compared to the HD one whereas at high latitudes γ_{r} is suppressed. γ_{θ} and γ_{φ} are also suppressed in the region of strong negative radial shear and strong toroidal field at mid and high latitudes. β_{φφ} and β_{rr} are, in general, suppressed compared to the HD case, in particular near the surface at midlatitudes. However, they exhibit enhancement in the regions with strong toroidal field and negative shear at midlatitudes where β_{rφ} and β_{θφ} are suppressed while being enhanced everywhere else. β_{θθ} turns out to be enhanced everywhere. In comparison with the HD case, δ_{r} is suppressed in the proximity of the tangent cylinder and at high latitudes. Similarly to δ_{φ}, δ_{θ} is suppressed near the surface at low latitudes and in the region of negative shear.
As indicated by the quantities Δ(∂_{r,θ} Ω), defined analogously to Δα_{ij}, the shear is also quenched, similar to what is seen in, for example, Brun et al. (2005), Busse & Simitev (2006), Aubert (2005), Gastine et al. (2012) and in particular recently for models of solarlike stars (e.g., Fan & Fang 2014; Karak et al. 2015; Käpylä et al. 2016a, 2017). This means that the quenching of the turbulence by the mean field results in the modification of both the differential rotation generators (Karak et al. 2015) and the mean ℰ. Therefore, along with its direct influence via the fluctuating velocity, the mean field also has a more indirect effect on the transport coefficients via the mean flows.
Fig. 12
Quenching of transport coefficients shown as 2D histograms of α_{rr} (a), γ_{r} (b), β_{rr} (c), α_{φφ} (d), γ_{θ} (e), β_{φφ} (f), normalized by their time averages, over the normalized energy density of the mean field . Data are taken from the entire domain and the whole saturated stage. Red and yellow lines: mean and median, respectively; blue contours: margins of range, in which 50% of the values lay. Green line: . Inlays: average and median in loglog scale for zoomedin range; dotted and dashed green: and , respectively.

Open with DEXTER
Given the strong variability of the mean field both in space and time, we suggest using the corresponding variability of the transport coefficients for deriving their functional dependencies on the mean field, thus opening the gateway to predictive meanfield models. Unfortunately, we have to expect that these dependencies involve complex and nonlocal relations not only with the mean field, but also with its derivatives, for example, the mean current density. Currently, no appropriate mathematical model and hence no numerical scheme identifying these relations is available. However, a starting point could be the model of Rheinhardt & Brandenburg (2012) with  and dependent coefficients in the evolution equation for ℰ. Here we restrict ourselves to establishing a rough relationship between the magnitudes of the transport coefficients and the modulus of the mean field including all points in the domain and all instants in time. Of course we cannot hope to find anything close to unique functional dependencies. Instead, for a certain field strength many different values of a transport coefficient are found across the spatiotemporal domain. Hence, if at all, relationships can only be identified in a statistical sense.
In Fig. 12, we plot 2D histograms of some of the most important coefficients depending on the energy density of the mean field, normalized by its equipartition value . For this, the whole saturated stage (18 activity cycles) was considered, while smoothing the coefficients over six points in space and time (≈a tenth of an activity cycle). We use 200 bins for both the normalized coefficients (in the interval [−10,10 ]) and the normalized field (in the interval [10^{3},40]. Although the scatter is large, in most of the coefficients there is significant quenching detectable where the mean field becomes dynamically important (). The average and median values for weak mean field are slightly below the timeaveraged quantities, but we still use the latter as proxies for the unquenched values.
Fig. 13
Average cycle dependency of selected transport coefficients. Mean azimuthal and radial magnetic field, (top), together with the temporal variation of the diagonal components of α along with γ (left) as well as the diagonal components of β along with δ (right) near the surface (r = 0.98 R) on θt plane. The data is obtained from a typical cycle; see Sect. 4.2. The coefficients are symmetrized according to their theoretical parity for a perfectly equatorially symmetric flow. The color scales are normalized to highlight the patterns.

Open with DEXTER
The coefficient α_{rr} in Fig. 12a is quenched for , with the median following approximately a quadratic characteristic . For stronger fields, median and mean show inconclusive behavior, including both enhancement and quenching, and hence do not follow any simple analytic dependency. For α_{φφ}, Fig. 12d, the behavior is similar, albeit with a median closer to quartic behavior . γ_{r}, Fig. 12b, shows even enhancement until 0.7B_{eq}, but then a decrease in mean and median with a lessthanquadratic and strongerthanquartic characteristic, respectively. The median of the latitudinal pumping γ_{θ}, Fig. 12e, follows a cubic characteristic relatively closely, but with a much shallowerthanquadratic mean. For the turbulent diffusion, Figs. 12c and f, the coefficients are enhanced below and decrease then with quadratic or even cubic decline (in the medians). To summarize, none of the coefficients follow exactly one single analytical quenching formula.
Schrinner et al. (2007) studied the quenching of the turbulent transport coefficients not by comparing with a purely hydrodynamic run or employing a timedependent magnetic field, but used a series of simulations with increasing magnetic field strengths. They found that α_{φφ} and all diagonal β components first increase with growing magnetic field, but decrease when the Lorentz force becomes comparable to the Coriolis force.
4.7. Cyclic variation
Fig. 14
Latitudinal distribution of the rms values , , and of the cyclic variations of the transport coefficients at r = 0.98 R.

Open with DEXTER
As a consequence of the cyclic variation of the mean field, the transport coefficients also vary cyclically. In Fig. 13, we plot the cyclic variations of the diagonal components of α and β, along with γ, δ and the corresponding toroidal and radial mean field for a typical cycle, the definition and computation of which was described in Sect. 4.2. By folding the cycles on top of one another, one basically filters out the variation based on the cyclic magnetic field. To distinguish the cyclic variations from the time variations discussed in Sect. 4.5, we add the superscript “M” to the symbols; for example, . All coefficients show clear cyclic variations with the activity cycle period (=half the magnetic cycle period), owed to the quadratic effect of the mean field on the velocity fluctuations. In many cases, this is clearly visible at high latitudes. α_{θθ} and δ_{φ} seem to be predominantly quenched by the toroidal field, while α_{rr}, γ_{φ}, γ_{r}, γ_{θ},δ_{r} and the shown components of β seem to be predominantly quenched by the radial field as indicated by the pattern at high latitudes. At lower latitudes, the variations exhibit time scales shorter than the activity cycle, which cause a noisy signal when folding the cycles. The fast poleward migrating constituent of near the surface at low latitudes (ghosts of which are visible in Fig. 13), discussed in Warnecke et al. (2014) and Käpylä et al. (2016a), is one candidate for causing such a signal. As discussed in Käpylä et al. (2016a) for a similar run, this highfrequency dynamo mode is highly incoherent over time, that is, cycle length and phase change on short time scales, which could well be the cause of the noisy appearance when averaged over several cycles.
To quantify the variations further, in Fig. 14 we plot their rms values, defined analogously to Eq. (11). For all shown coefficients, the cyclic variations are around four times smaller than the noncyclic variations; they are, however, still comparable with the timeaveraged values. Also here the coefficients vary more strongly at lower than at higher latitudes. The variation in the φφ components of α and β are stronger than in the other components. Otherwise, the behavior and values of all components seem to be similar. Given that the relative cyclic variations in the mean flows are at most around 10% (see the discussion in Käpylä et al. 2016a), we conclude that the backreaction of the mean field onto the terms generating it is predominately via the variation of the transport coefficients.
4.8. Magnetic field propagation
Fig. 15
Panel a: Radial α effect together with radial shear and at r = 0.9 R between 25° and 40° latitude. Black solid: . Red: . Purple: . Blue: . Black dashed: . Black dotted: . Panels b and c: Latitudinal propagation direction of the mean field as predicted by the ParkerYoshimura rule (12), using α_{φφ} (b) and (c, see Sect. 4.9), together with as black contours for 3 (solid) and 3.5 kG (broken). The color scale is truncated between −1 and 1 to emphasize the sign of . The dashed white lines indicate r = 0.9 R.

Open with DEXTER
As discussed in Warnecke et al. (2014), the occurrence of the equatorwardpropagating magnetic field found in Käpylä et al. (2012) can be well explained by the ParkerYoshimura rule (Parker 1955; Yoshimura 1975) using α_{K} + α_{M} as the relevant scalar α. For the rule to be applicable, the Ω effect must be dominant over the toroidal α effect, and the poloidal α effect must be expressible with a single (possibly positiondependent) scalar by . Having now all transport coefficients at hand allows us to investigate why the ParkerYoshimura rule provides such a good description. To show this, we focus on the midlatitude region where the shear is negative, causing the generation of equatorward migrating toroidal field . There, the contribution to the Ω effect dominates the generation of the toroidal field. So the radial component is the important part of the poloidal field in the dynamo wave. In Fig. 15a we plot the contributions to the radial α effect , named , , and and defined in the caption. The latitudinal α effect shows a similar behavior. Obviously, the contribution related to α_{φφ} (, red line) is indeed dominant in the region where the toroidal field and the negative shear are strong. Consequently, we now use α_{φφ} to determine the equatorward propagation direction: (12)Figure 15b shows that the result is consistent with the actual propagation direction^{7}. Using α_{K} + α_{M} instead of α_{φφ} works for this run only by chance as their signs are the same in the region of interest. However, in general, the ParkerYoshimura rule using α_{φφ} will not always work as other components of α may give more important contributions. Parker dynamo waves have also been found in numerous Boussinesq (e.g., Busse & Simitev 2006; Schrinner et al. 2012) and anelastic dynamo simulations (e.g., Gastine et al. 2012). In particular, in these studies it was found that the oscillation frequency can be well described by a simplified dispersion relation of the Parker dynamo wave. To show that the magnetic field propagation in our simulation is consistent with a Parker dynamo wave, we estimate its period, as described by Parker (1955) and Yoshimura (1975), using a wave ansatz ~exp(ik_{θ}rθ−iωt) which leads to the frequency (13)where we only consider latitudinal propagation. With k_{θ}r ≈ 1, we obtain periods of two to four years in the region of interest, which is close to the actual period of around five years. As investigated in detail by Käpylä et al. (2016a) and Olspert et al. (2016) for a similar run, the main dynamo mode, present in the upper and middle part of the convection zone, shows a strongly variable cycle period that remains coherent only over two to five cycles, with values of between four and eight years. The value of k_{θ} is a lower limit and a higher one might be more reasonable, which would lead to a shorter period, while still retaining the correct order of magnitude. Taking into account the strong simplifications leading to Eq. (13), for example the neglect of anisotropic contributions to α, the predicted period fits the actual one rather well.
4.9. Comparison with multidimensional regression method
In Brandenburg & Sokoloff (2002), a method for determining the transport coefficients has been used which is based on the temporally varying mean magnetic field of the dynamo (the main run) alone (called BS method in the following). Instead of solving additional test problems with predefined mean fields as described in Sect. 3, the method exploits the fact that at different times at a given position has, in general, different directions. So using sufficiently many time instants, the underdetermination of Eq. (6) can be overcome. One can go further and employ any available instant ending up with a (usually heavily) overdetermined system which can be solved approximately by the leastsquares technique or singular value decomposition. An intrinsic problem emerges when reaches dynamically relevant strengths: then the transport coefficients become dependent on and would be determined in a temporally averaged sense where, however, it remains unclear to which strength of their values correspond. Clearly, the BS method does not allow to obtain information on the time evolution of the transport coefficients. Furthermore, some of the coefficients calculated in Brandenburg & Sokoloff (2002) have turned out not to be in agreement with testfield results. This especially concerns the components of the turbulent diffusivity tensor acting on currents along and perpendicular to the shear, which are correctly obtained only with the testfield method (Brandenburg 2005b).
Fig. 16
α and γ determined via the reduced BS method as in Racine et al. (2011); see also Fig. 17. We note that in α_{rr} the extrema are actually ten times bigger than indicated in the colorbar. Numerals at the bottom right of each panel: overall parity , see Eq. (8).

Open with DEXTER
Fig. 17
Comparison of α_{ii} and γ_{i} calculated with the testfield method (black solid), the reduced BS method (red dashed), and BS method (blue dashdotted) and plotted against latitude in the northern hemisphere for radii r = 0.98 R (top), r = 0.84 R (middle) and r = 0.72 R (bottom).

Open with DEXTER
In several papers (Racine et al. 2011; Simard et al. 2013; Nelson et al. 2013; Augustson et al. 2013, 2015), the BS method was severely simplified in that in Eq. (6) the contributions with derivatives of were dropped, that is, β, δ and κ were set to zero (called reduced BS method in the following). Such a modeling can hardly be expected to offer any predictive power as already turbulent diffusion is not modeled in a proper way. Accordingly, when employing the coefficients found in this way, one has to add turbulent diffusion by hand in order to obtain reasonable growth rates. With respect to descriptive power, this method must also fail as the individual, interpretable turbulent effects are all subsumed in one tensor. Recently, Simard et al. (2016) used the full BS method and compared the coefficients for one of their simulations with the reduced BS method. They found the α and γ tensors to be nearly the same in both cases and their values of β to be much smaller than their η_{t0}.
Here we demonstrate that indeed the α and γ coefficients derived with the (reduced) BS method do not show correspondences to those derived by the testfield method; see Fig. 16 and for more details Fig. 17. Comparison reveals that in many cases not even the signs are correct, for example, is negative in the northern hemisphere, close to the equator, where α_{rr} is strongly positive; see Fig. 1. We also note the much smaller spatial structures in Fig. 16 compared to Figs. 1 and 4. Furthermore, we also find that the reduced and the full BS give very similar results for the α and γ tensor. This confirms their limited use for modeling and analysis purposes. It also indicates that the significantly smaller values of , compared to η_{t0}, found by Racine et al. (2011) and Simard et al. (2013, 2016) with the setup of Ghizaru et al. (2010; see a comparison in Appendix A of Käpylä et al. 2017), are not due to particularities of the latter, but are a particular outcome of this method. Therefore most of the conclusions derived from and in the papers cited above are to be considered misleading. In particular, the conclusion of Augustson et al. (2015) that their equatorward migrating field is not well explained by the ParkerYoshimura rule is most likely unreliable. As becomes obvious from Fig. 15c, using instead of α_{φφ} in Eq. (12) will lead to an incorrect prediction of the propagation direction.
5. Conclusions
We have determined the full tensorial expressions of the transport coefficients relevant for the evolution of largescale magnetic fields from a solarlike fully compressible global convective dynamo simulation using the testfield method. The simulation used here exhibits a largescale magnetic field with solarlike equatorward propagation similar to the runs of Käpylä et al. (2012, 2013, 2016a, 2017). This behavior can be well explained with the ParkerYoshimura rule of an αΩ dynamo wave, where the negative shear at mid latitudes generates the mean toroidal magnetic field (Warnecke et al. 2014). However, we find indications that, locally, the α effect is comparable to or stronger than the Ω effect in generating toroidal magnetic field. This suggests an α^{2} dynamo operating locally in addition to the αΩ dynamo. This is mostly due to the dominance of α_{rr} among all coefficients of α. The meridional profiles of the α coefficients do not agree with estimates based on helicities or simple cosθ profiles.
The most interesting results come from the turbulent pumping velocities. They significantly alter the effective meridional circulation and shear acting on the mean magnetic field. Most strikingly, the pattern of three meridional flow cells outside the tangent cylinder disappears completely. Furthermore, the radial turbulent pumping at the surface is upward near the equator and downward at higher latitudes and therefore in agreement with testfield results of Cartesian convection (Käpylä et al. 2009) near the equator. This has consequences also for possible dynamo mechanisms in the Sun. Even if helioseismic measurements revealed a meridional circulation pattern in favor of the flux transport dynamo (see e.g., Hazra et al. 2014), the unknown turbulent pumping velocity would be able to completely change the effective meridional circulation, in particular as the effective velocities do not have to obey the conservation of mass. Also the shear is altered by the presence of turbulent pumping, however the effect is not as strong as for the meridional flow.
For the turbulent diffusion, we find that β also has a small negative definite contribution, which can potentially lead to dynamo action. However, in this particular simulation, it seems to play only a minor role. In general, the equatorial symmetry of all timeaveraged coefficients agrees well with what is expected from equatorially symmetric flows.
Fig. 18
Radial dependency of Coriolis number (solid lines, left y axis) and Mach number (dashed lines, right y axis) for latitude 0° (black), 30° (red) and 60° (blue). c_{s} is the longitudinally averaged sound speed.

Open with DEXTER
If we compare the transport coefficients determined in this work with those of previous studies of the geodynamo (Schrinner et al. 2007, 2012; Schrinner 2011), we find that most of the components agree well in the lower part of the convection zone, but disagree in the upper part. We highlight that the timeaveraged α_{rr} and α_{θθ} have the opposite sign and are stronger everywhere. We associate the agreement in the lower part of the convection zone of our simulation with stronger rotational influence and weaker effects of compressibility and stratification than in the upper part and surface region; hence the better fit with the mentioned studies. In Fig. 18 we plot the radius and latitudedependent Coriolis and Mach numbers; this clearly shows the presence of two regimes: For mid and high latitudes, the rotational influence is significantly stronger in the lower part of the convection zone than near the surface. In that region, Coriolis numbers^{8} estimated from Schrinner et al. (2012) fit well with our values for most of their models. Furthermore, the Mach number decreases by about one order of magnitude from the surface to the bottom of the convection zone; see Fig. 18. This indicates that in its lower part, compressibility is less important than near the surface.
The coefficients are altered by the presence of the magnetic field. Comparison with a nonmagnetic simulation reveals a quenching for most of the coefficients and for the differential rotation. However, there exist also enhancements at some localized regions for some of the coefficients. In the magnetic simulation itself, we found that the coefficients are altered at the locations where the magnetic field is dynamically important. Most of the coefficients are quenched for strong magnetic fields, but for example γ_{r} and β_{φφ} also show enhancements, when the field is in equipartition with the turbulent flow. No simple algebraic expression that depends on the magnetic field strength would be able to reproduce this kind of behavior. Furthermore, we find a clear cyclic modulation of all coefficients, in particular at high latitudes where the magnetic field is the strongest. Some of the coefficients seem to be quenched predominantly via the toroidal magnetic field (e.g., α_{θθ}, α_{φφ}) and others via the radial field (e.g., α_{rr}, γ_{r}, γ_{θ}, γ_{φ}, β).
The overall strength of the temporal variations is comparable with or even larger than the timeaverages of the quantities, suggesting a strong contribution to the magnetic field evolution via these variations; they are predominantly random, but also show some response to the activity cycle, that is, the cyclic change in the magnetic field. These cyclic variations are significantly stronger than those of the mean flows indicating that the nonlinear feedback occurs predominantly via the transport coefficients and not via the mean flows.
The finding of Warnecke et al. (2014, 2016a) that the ParkerYoshimura rule can well predict the propagation direction of the magnetic field can be verified because (1) the radial Ω effect dominates the toroidal field generation; (2) α_{φφ} has the strongest contribution to the radial α effect; and (3) α_{K} has the same sign as α_{φφ} in the region of interest. However, we find that the latitudinal derivative of α_{φφ} also plays a significant role. Therefore, a detailed analysis for every simulation is necessary.
We also compare the testfield method with the one used by Racine et al. (2011) and Simard et al. (2013), which is based on a multidimensional regression method introduced by Brandenburg & Sokoloff (2002). Their method gives incorrect results leading to, for example, the opposite sign of α_{rr} and the incorrect propagation direction from the ParkerYoshimura rule.
For followup work, we plan to use the determined transport coefficients in meanfield simulations to investigate in detail their effect and their descriptive power for the magnetic field evolution. We also plan to investigate how the coefficients, and therefore the dynamo mechanism, change by changing rotation, stratification and magnetic, fluid, and entropy diffusivities. Furthermore, it would be interesting to study the effects of a realistic treatment of the outer magnetic boundary (Warnecke et al. 2011, 2012, 2013a, 2016a) as well as the effect of the spontaneous formation of magnetic flux concentrations (e.g., Brandenburg et al. 2013; Warnecke et al. 2013b, 2016b; Käpylä et al. 2016b).

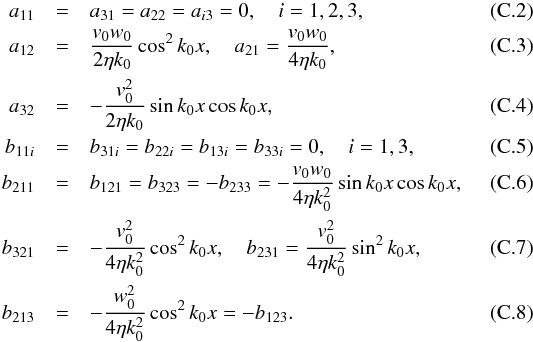

For the special solutions of the full MHD problem in a model with only rdependent coefficients, given by equatorially symmetric velocity, density and entropy with an either symmetric or antisymmetric magnetic field, it can be shown that the main diagonal components of α, as well as α_{rφ} are antisymmetric, all other components symmetric.
We use Co = l_{p}/π^{2}Ro_{l} with l_{p} and Ro_{l} from Schrinner et al. (2012). This gives Co = 74,24,24,20 for their models 4, 29, 31, and 34.
