A nonLTE radiative transfer model to study ionized outflows and disks. The case of MWC349A
^{1}
Centro de Astrobiología (CSICINTA), Ctra de Torrejón a Ajalvir, km 4, 28850 Torrejón de
Ardoz, Madrid,
Spain
email: baezra@cab.intacsic.es; jmartin@cab.intacsic.es
^{2}
Instituto de Radio Astronomía Milimétrica (IRAM),
Avenida Divina Pastora, 7, Núcleo
Central, 18012
Granada,
Spain
email: thum@iram.es
^{3}
Observatorio Astronómico Nacional (IGN),
Alfonso XII 3,
28014
Madrid,
Spain
email: p.planesas@oan.es
Received:
26
June
2012
Accepted:
18
March
2013
Context. The best example of a massive star with an ionized outflow launched from its photoevaporating disk is MWC349A. The large amount of reported radiocontinuum and radiorecombination line (RRL) observations toward this galactic UCHII region offers a unique possibility to build a model of the ionized envelope of this source.
Aims. To understand the physical conditions and kinematics of the ionized region of the circumstellar disk and also of the outflow of MWC349A.
Methods. We compared the bulk of radiocontinuum maps, RRL profiles, and the H30α centroid map published to date with the predictions of our nonLTE 3D radiative transfer model, MOdel for REcombination LInes (MORELI), which we describe here in detail.
Results. Our nonLTE 3D radiative transfer model provides new evidence that the UCHII region of MWC349A is composed of an ionized circumstellar disk rotating in Keplerian fashion around a star of 38 M_{⊙}, and an ionized outflow expanding with a terminal velocity of 60 km s^{1} and rotating in the same sense as the disk. The model shows that while maser amplification is the dominant process involved for Hnα RRL emission with quantum numbers n < 41, stimulated emission is relevant for the emission of RRLs with n > 41 up at least the H76α line.
Conclusions. For the first time, we present a model of MWC349A which satisfactorily explains the vast amount of reported observational data for a very wide range of frequencies and angular resolutions.
Key words: stars: massive / masers / HII regions / stars: winds, outflows / accretion, accretion disks
© ESO, 2013
1. Introduction
Although massive stars (with masses higher than about 8 M_{⊙}) play a key role in the evolution of the Universe, their late stages of evolution as well as the mechanisms that lead to their formation and early evolution are still poorly known (Zinnecker & Yorke 2007). Massive stars ionize their surroundings at the early stages of their evolution and also at some evolved stages (such as supergiant B[e] stars) forming UltraCompact HII regions (UCHII). Statistical analysis of the number of UCHII regions has shown that these objects seem to be confined for longer times than those derived from their crossing times, if it is assumed that they constantly expand at the speed of sound (Churchwell et al. 1990). This raises the question of why highpressure HII regions do not quickly expand into their surrounding environments of lower pressure.
Hollenbach et al. (1994) proposed that the long lifetime of UCHII regions can be explained if they are formed by photoevaporation of the neutral material from the rotating accretion disk left after star formation. This hypothesis would be consistent with two observational results: i) the substantial fraction of UC HII regions (~30%) characterized by broad hydrogenradio recombination lines (with linewidths of 70−200 km s^{1}), which are interpreted as arising from low velocity ionized outflows associated to neutral disks (Jaffe & MartínPintado 1999); and ii) the high spatial resolution observations of massive protostars, which have shown that massive star formation seems to proceed, at least in some cases, through accretion of material from a circumstellar disk (Nielbock et al. 2007; JiménezSerra et al. 2009; Kraus et al. 2010; Davies et al. 2010; Preibisch et al. 2011). Evidence of circumstellar disks have also been found toward evolved massive stars such as supergiant B[e] stars (Miroshnichenko et al. 2005). However, the kinematics of circumstellar disks and ionized envelopes around pre and postmain sequence massive stars are still poorly understood.
Since its discovery, the UCHII region of MWC349A has turned out to be a key object for the study of the physical and kinematical properties of these regions thanks to its peculiar characteristics. The star MWC349A is the most intense radiocontinuum source at centimeter wavelengths (Braes et al. 1972) and also one of the most intense sources in the NIR and midIR (Tafoya et al. 2004). The position of this source in the HR diagram clearly corresponds to a massive star (Kraus 2009). According to its spectral features, it is classified as a B[e] star, which are characterized by their forbidden emission lines ([Fe II] and [O I]) in the optical spectrum and its NIR excesses (Lamers et al. 1998). Nevertheless, its evolutionary stage, as often happens with B[e] stars, is under dispute because of the difficulty caused by the overlap of the pre and postmain sequence B[e] evolutionary tracks in terms of effective temperature and luminosity (Marston & McCollum 2008) and the lack of optical absorption lines (Hamann & Simon 1988; Andrillat et al. 1996). However, it is one of the few massive stars with a wellestablished circumstellar disk (White & Becker 1985; Danchi et al. 2001) and an ionized outflow expanding at nearly constant velocity (Olnon 1975; Tafoya et al. 2004).
The most peculiar characteristic of MWC349A that allows us to study in detail the kinematics of its ionized regions is that, until the detection toward η Carinae (Cox et al. 1995), Cepheus A HW2 (JiménezSerra et al. 2011) and MonR2IRS2 (JiménezSerra et al. 2013), it was the only known celestial source with hydrogen radiorecombination line (RRL) masers at millimeter wavelengths (MartínPintado et al. 1989a). The strong maser amplification of mm and submm RRLs and the strong radiocontinuum emission of MWC349A offer a unique possibility to obtain spectra and images with a high spectral and spatial resolution, down to 5 mas (Planesas et al. 1992; MartínPintado et al. 2011). The comparison of the H30α radiorecombination maser line profile, the H30α centroid map and the freefree radiocontinuum emission with the predictions from a nonlocal thermodynamic equilibrium (nonLTE) 3D radiative transfer MOdel for REcombination LInes (MORELI), has provided stringent constraints on the disk and outflow kinematics of MWC349A as well as its electron temperature and electron density distribution (MartínPintado et al. 2011). The observations were explained by assuming two kinematical components, a thin virtually edgeon Keplerian ionized disk around a massive star (~30−60 M_{⊙}), responsible for the maser spikes observed in the H30α, and a rotating and expanding ionized wind with a terminal velocity of about 70 km s^{1}. It also led to the remarkable conclusion that the outflow seems to be launched from the Keplerian disk at a radius of ≤20 AU from the star. Magnetic wind models (both Xwind models, Shu et al. 1994; and disk wind models, Blandford & Payne 1982) seem to be the most suitable to explain the region where the wind emerges and accelerates up to its terminal velocity. These results are extremely important since they provide clues on the origin of ionized winds from massive stars with circumstellar disks at very small spatial scales.
This paper gathers all the centimeter, millimeter, submillimeter, and farinfrared observations of the continuum and RRLs toward MWC349A to establish, for the first time, a model that reproduces the bulk of the observed features found over this wide frequency range. We carried out a thorough analysis of all the data by using a 3D nonLTE radiative transfer model to constrain the structure, physical conditions, and the kinematics. In Sect. 2, we discuss the basic physics incorporated in the MORELI radiative transfer model required for the interpretation of both the continuum and RRL emission. In particular, we describe the line formation under nonLTE conditions and the effects of saturation of masers. In Sect. 3, we describe the different geometries, physical and kinematical structure included in MORELI. Then, in Sect. 4, we report the first model for MWC349A that consistently explain most of the observational data available to date. Also, in Sect. 4, we show how the main parameters of the ionized gas were constrained by comparing the observations with the predictions of MORELI. While in Sect. 4 we focus on the H30α centroid map and its line profile, as well as the integratedline intensities of RRLs from cm to the midIR wavelengths, in Sect. 5 we show the fit of our predictions for the rest of RRLs observed so far. Finally, conclusions are drawn in Sect. 6.
2. NonLTE radiative transfer model
2.1. Radiative transfer integration
The resulting spectrum for every lineofsight is obtained by discretizing the sources in regular 3D grid cells with sizes of dx, dy, and dz, where the z axis refers to the axis along the lineofsight (with the observer toward negative z values), x the revolution symmetry axis projected into the plane of the sky, and y the axis orthogonal to the x − z plane. Thus, this discretization observed in the plane of the sky, (x,y), is equivalent to a mesh of points. We solve the radiative transfer equation for every cell along the lineofsight by assuming constant properties in the whole cell volume (1)where I_{ν} is the specific radiation intensity at the frequency ν, S_{ν} is the source function, and τ_{ν} is the optical depth (defined as dτ_{ν} = κ_{ν}dl, with κ_{ν} the absorption coefficient of the cell with physical length l).
We consider, as an approximation, that the electron density of the source is large enough to assume that the diffuse radiation is locally absorbed leading to a subsequent photoionization, the socalled onthespot approximation (Osterbrock 1989). The outgoing radiation of cell i for a given frequency, ν, is then given by (2)where I_{ν,i − 1} is the background emission (which is given by the cosmic microwave background radiation at the rear side of the source where i = 1), B_{ν}(T_{e}) the source function (given by Planck’s law for a black body with electron temperature T_{e}), and τ_{ν,i} the optical depth from the cell i.
2.1.1. Continuum emission

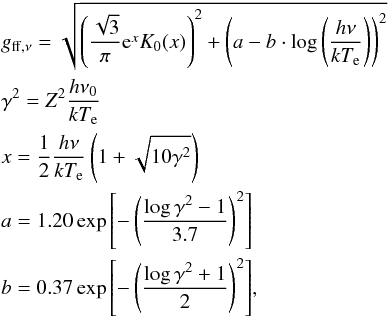

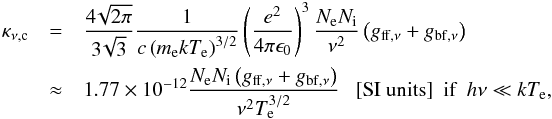

The optical depth for the freefree continuum radiation is calculated by using the absorption coefficient (3)where m_{e} and e are the electron mass and charge, h and k the Boltzmann and Planck constants, c the speed of light, ϵ_{0} the vacuum permittivity, N_{e} and N_{i} the electron and ionic densities and g_{ff,ν} and g_{bf,ν} the Gaunt factors for freefree and boundfree transitions, respectively (see Appendix A).
2.1.2. LTE RRL emission

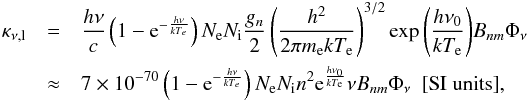

In the formation of RRLs, one has to simultaneously consider the contribution of both the continuum and line emission. According to the quantum theory of the radiation, spontaneous emission, stimulated emission, and absorption are the three basic processes through which photons and atoms interact (Einstein 1916). The probability per unit time for an electron to spontaneously decay from the upper level m to the lower level n is given by the Einstein coefficient of spontaneous emission, A_{mn} (Towle et al. 1999). On the other hand, we use the spectral energy density, u_{ν}, to define the Einstein Bcoefficients. The transition probability per unit time for absorption and stimulated emission are P_{a} = u_{ν}B_{nm} and P_{st} = u_{ν}B_{mn}, respectively, where u_{ν} is related to I_{ν}(4)and where Ω is the solid angle.
Using the Einstein coefficients described previously and treating the stimulated emission as a negative absorption, the line absorption coefficient depends on the electron population of the involved levels, N_{m} and N_{n}, according to the expression (5)where B_{nm} is the Einstein coefficient for absorption, g_{n} and g_{m} are the statistical weights of the electronic levels n and m respectively (with g_{k} = 2k^{2} for k = n,m), and Φ_{ν} the line profile (see Appendix B).
The values of N_{m} and N_{n} are determined by solving the equation system of statistical equilibrium considering all the processes involved in the excitation of electronic levels. Under LTE conditions, collisions dominate over the radiative processes and the electronic levels are populated according to the SahaBoltzmann distribution. In this case, Eq. (5) yields: (6)where B_{nm} is estimated according to the Dirac theory described by Towle et al. (1999).
2.1.3. NonLTE RRL emission
The absorption coefficient discussed in the previous section must be modified for the case of nonLTE since the electron population departs from that given by the SahaBoltzmann distribution as a result of radiative transitions dominating over collisional transitions. To account for this one introduces for each electronic level, n, a correction factor known as the departure coefficient, b_{n}, that relates the electron population in the nonLTE case, N_{n}, with the LTE case, , (7)These departure coefficients depend on both collisional and radiative processes. They have been computed independently by several authors taking into consideration different ranges of electron density and electron temperature. To date, the two most extensive b_{n} coefficient tables are those reported by Storey & Hummer (1995) and Walmsley (1990). In Fig. 1 we show their values for an ionized gas of 10 000 K for different electron density ranges. The MORELI code incorporates the parametrization of the b_{n} values obtained in both studies for the case of an optically thin HIIregion for all RRLs except for the Lyman lines. We remark that this procedure will give us approximate results since the departure coefficients would actually depend on the radiation field for our particular assumed geometry and physical structure, which will differ from those assumed in the models used in Storey & Hummer (1995) and Walmsley (1990).
Fig. 1 Estimated departure coefficients, b_{n}, for Hnα lines, an electron temperature of 10 000 K, and different electron densities by Walmsley (1990) and Storey & Hummer (1995).

Open with DEXTER
As described by Dupree & Goldberg (1970), the RRL absorption coefficient can be then expressed as in the nonLTE case, where β_{mn} is defined (8)For certain combinations of n, T_{e}, and N_{e} found in some UCHII regions (i.e. in MWC349A and Cep A HW2), the level populations can be inverted and, subsequently, the second term of the latter equation can be larger than unity. It implies that β_{mn} < 0 and, therefore, the incident radiation is amplified. We can see in Fig. 2 that this is the case for an ionized gas with electron density of 10^{7} cm^{3} and electron temperature of 10 000 K as found in MWC349A.
Fig. 2 Estimated β_{mn} coefficients, b_{n} for an ionized gas with electron density of 10^{7} cm^{3}, and electron temperature of 10 000 K. The solid red line shows the β_{mn} values derived by Walmsley (1990) for Hnα transitions, while the solid and dashed blue lines show the values derived by Storey & Hummer (1995) for Hnα and Hnβ transitions, respectively. The observed zigzag for the β_{mn}Storey & Hummer (1995) coefficients for n > is due to the numerical error in deriving them from Eq. (8). This error increases for increasing n since the relative difference between the b_{m} and b_{n} decreases as observed in Fig. 1.

Open with DEXTER
Using the above mentioned departure coefficients, it is possible to derive the nonLTE source function. And from the latter, by integrating the radiative transfer equation, one obtains the brightness temperature at the center of the line (Dupree & Goldberg 1970) (9)where T_{bg} is the background temperature respectively. This equation reduces to Eq. (2) for the LTE case (b_{n} = 1).
2.2. Stimulated and maser emission
Soon after the discovery of RRLs, it was noticed that for the typical physical conditions found in ionized regions, the RRLs should be emitted under nonLTE conditions (Goldberg 1966), mainly stimulated emission. This type of emission is due to the amplification of the background continuum and line emission when the optical depth is negative but larger than − 1, that is, − 1 < τ_{ν,c} + τ_{ν,l} < 0. Nevertheless, if the pumping mechanisms producing the inversion of population in the ionized gas are intense enough, the amplification of the radiation can become very intense, τ_{ν,c} + τ_{ν,l} ≪ −1. This is referred to as maser amplification. In this case, the line intensity (Eq. 9) would have an approximately exponential dependence on optical depth and, therefore, on physical conditions (electron density and electron temperature) (10)Nevertheless, the exponential growth of the intensity along a line of sight with the required physical conditions for maser amplification cannot continue indefinitely. This is because the efficiency for stimulated emission reaches an upper limit when each pump event results in the release of a maser photon (Strelnitski et al. 1996b). In this case the intensity increases linearly with the optical depth and it is referred to as a saturated maser.
2.3. Saturation effects
The full treatment of saturation effects should take into account the changes in the electron populations (the b_{n} coefficients) induced by the maser radiation from all directions. This full treatment is clearly out of the scope of this paper. As a first approximation, we can estimate the saturation effects by considering only the changes in b_{n} coefficients caused by the incident radiation in the lineofsight. From the resolution of the equations of statistical equilibrium under a particular set of approximations, we obtain the absorption coefficient for the saturated case (Strelnitski et al. 1996b) (11)where κ_{ν} is the absorption coefficient for the unsaturated regime (J_{ν} ≪ J_{ν,sat}), J_{ν} is the intensity averaged over the whole solid angle (), and J_{sat} is the saturation intensity, which is defined as (12)with C_{t} the collisional coefficient from the maser levels to other levels and C_{mn} the collisional coefficient between the two involved maser levels. The sum C_{t} + C_{mn} is derived from Table B.1 (C_{t} + C_{mn} = Δν_{l}/^{(}2π^{)}).
For strong maser emission (J_{ν} ≫ J_{ν,sat}), the absorption coefficient given in Eq. (11) becomes κ_{ν,sat} ≈ κ_{ν}J_{ν,sat}/J_{ν}. Substituting this into the radiative transfer Eq. (1) results in an equation whose integration gives a linear dependence of the outgoing intensity with the optical depth (13)where τ_{ν,l, sat} is the line optical depth taking into account the saturation effects (see Eq. (11)) and T_{sat} the saturation temperature.
To estimate the saturation effects, we use MORELI to compute the saturation degree, J_{ν,sat}/J_{ν}, assuming a solid angle for the maser beam, Ω_{m}.
3. Physical structure and kinematic considerations for the source model
3.1. Geometry
The MORELI code offers the possibility to consider different source geometries for the wind, such as a sphere, a cylinder (specified by its radius and length), a doublecone (specified by the semiopening angle, θ_{w}, and length) or a hyperboloid (specified by its minimum width, semiopening angle and length). In all cases MORELI incorporates the possibility that the strong radiative pressure coming from the central star has swept up all the ionized gas in the region within a radius r_{min}. For all the different geometries except for the sphere, one also needs to specify the inclination angle, θ_{i}, of the revolution axis with respect to the plane of the sky.
Although physically an unbounded ionized wind could be extended virtually to infinity, with no well definite boundaries, our model limits the size to a maximum radius, r_{max}, for all the geometries. This radius is one of the critical parameters in our model to adequately sample most of the flux in the RRLs tracing the outer regions of the ionized outflow. The MORELI code allows this radius to be introduced by the user or to be estimated from the effective radius, R_{eff}, defined to contain a specific percentage of the freefree radioemission produced for an isothermal spherical ionized wind isotropically expanding at constant velocity with electron density distribution given by (see Sect. 3.4). Since we do not consider only this particular wind structure for the UCHII regions, we essentially trace all the emission by considering that the source has a size n_{R} times that of the effective radius, that is (14)For a partially optically thick wind, the derived effective radius containing half of the freefree radiocontinuum flux is given (Panagia & Felli 1975) (15)where μ is the main atomic weight per electron and Ṁ the mass loss rate in units of M_{⊙}/year. Instead, for an optically thick wind, the effective radius containing the percentage p of the freefree radiocontinuum flux results (see Appendix C) (16)While the cylinder geometry is adequate to model sources with very collimated radiojets (i.e. CRL618; MartínPintado et al. 1988), the doublecone and the hyperboloid geometries are adequate to model sources with wide ionized bipolar outflows.
3.2. Modelling of the kinematics
3.2.1. Disk kinematics
For the particularly interesting case of a source with a neutral disk and an expanding ionized outflow represented by a doublecone geometry, the model allows us to consider a kinematic component consisting in an ionized Keplerian rotating layer located next to the neutral disk. The ionized layer will be specified by its opening angle relative to the conical surface of the doublecone, θ_{d} (see Fig. 3), and the radius up to which the Keplerian rotation extends, r_{d}. Hereafter, we will refer to this layer as the ionized Keplerian rotating disk. The velocity rotation component is added to the expansion, being its projection along the lineofsight (see Appendix D.1) given by (17)where V_{Kepler} is the Keplerian velocity at a radius equal to unity (), M the central mass of the star, and G the universal gravitational constant.
Fig. 3 Sketch of the doublecone geometry used for the modelling of MWC349A. The ionized gas is contained in a double cone with its revolution axis perpendicular to the plane of the neutral disk. Each cone has a semiopening angle of θ_{a} and is made up of two ionized regions with different kinematics: i) a rotating and expanding ionized wind contained within the doublecone with semiopening angle θ_{a} − θ_{d}; and ii) a Keplerian rotating ionized layer comprised between the ionized wind and the neutral disk with an opening angle relative to the conical surface of the double cone of θ_{d}. The observer is located toward the negative zaxis. The derived inclination angle θ_{i} is such that the source is tipped up in front.

Open with DEXTER
3.2.2. Outflow kinematics
The model also considers different possibilities for the kinematics of the ionized gas depending on the geometry and on the features of the source to model. For all geometries it is possible to consider the kinematics given by the Hollenbach model (Hollenbach et al. 1994). It is included in a simplified way considering two discontinuous kinematic components, a Keplerian rotating disk confined in its gravitationally bounded ionized atmosphere, and a rotating and expanding wind at the terminal velocity, v_{0}, outside. The radius at which the discontinuity occurs (known as gravitational radius, R_{g}) is defined as the distance at which the most likely thermal velocity equals the orbital velocity of the Keplerian disk due to the star’s gravitational potential. Subsequently, this radius is given by the expression (Hollenbach et al. 1994) (18)The required value for R_{g} to explain the observations can be also considered as a free input parameter in the model. The procedure applied is an approximation since there is not a specific radius from which the ionized gas can escape, but a continuous range of radii where the different individual ions with different velocities reach the escape velocity.
Final input parameters for the best fit to the continuum and RRL data of MWC349A.
Another possibility incorporated in MORELI is to consider a constant acceleration for the wind, reaching its terminal velocity at a radius r_{a}. This is the case of the modelling of Cep A HW2 (JiménezSerra et al. 2011).
The projected velocity along the lineofsight for those radii where the wind has reached its terminal velocity (r > r_{a}) or for the case when it is assumed that the wind reaches the terminal velocity suddenly at r_{a} = 0 is given by (19)While for those radii where the wind is still being accelerated (r < r_{a}) the expression results (see Appendix D.2) (20)%Finally, we note that in addition to the expansion, we can also consider another kinematic component for the ionized outflow: its rotation following a Keplerian law similar to that of the disk.
3.3. Electron temperature and electron density distribution
The MORELI code provides the possibility of considering electron temperature, T_{o}, and electron density, N_{e}, gradients specified by powerlaw with indices, b_{t} and b_{d} respectively. The values of T_{o} and N_{e} are specified in the model at a particular radius. Moreover, for the case of the doublecone geometry, we also incorporate a possible dependence of the electron density on the angle with respect to the revolution axis of the cone, θ (see Fig. 3), since physically we expect the higher density close to the neutral disk if it is photoevaporating. Thus, the electron density distribution assumed in the model is given by (21)where θ_{a} ≡ θ_{w} + θ_{d} is the semiopening angle of the whole ionized gas, θ_{a} − θ is the angle between an ionized gas cell and the conical surface of the neutral disk (see Fig. 3) and θ_{0} is a free dimensionless input parameter used to model the angular electron density dependence (θ_{0} = ∞ if one assumes there is no dependence of N_{e} on the angle).
Although Eq. (21) refers to both the ionized outflow and ionized circumstellar disk located next to the neutral disk, the model also considers the possibility that this disk has a different electron density, N_{e,d}, and/or electron temperature, T_{d}, than the ionized wind to account for the possible difference in cooling due to its higher electron density.
The geometry of the source, and the electron density and electron temperature distributions are constrained by fitting the radiocontinuum images and the observed spectral energy distribution (SED).
4. The case of MWC349A
In the following sections we describe in detail how the different observations have been used to constrain the values of the input parameters of the model for the ionized gas in MWC349A. Table 1 shows the parameters that fit best the overall data set available to date at the radio and millimeter wavelengths. The results presented in this paper have been derived by assuming a doublecone geometry with two kinematical components (ionized outflow and ionized circumstellar disk) and with sudden acceleration of the ionized wind. Since the outflow is partially optically thick, we have assumed the effective radius derived by Panagia & Felli 1975 (see Sect. 3.1). Although the distance for MWC349A is under debate (Meyer et al. 2002), we have considered the typically assumed distance of 1.2 kpc (Cohen et al. 1985).
The best fit was obtained by using the b_{n} coefficients reported by Storey & Hummer 1995 (see Sect. 4.2).
Fig. 4 Modelled (left) and observed (right panel, by Tafoya et al. 2004) radiocontinuum maps for 1.3 cm (top) and 7 mm (bottom). Contours are − 5, − 4, 4, 5, 6, 8, 10, 12, 14, 16, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100, and 110 times the rms of the observational VLA image (727 and 859 μJy beam^{1} for the 1.3 cm and 7 mm images, respectively). The modelled maps were obtained by the convolution of the original data with a box of the same size as the HPBW of the observations) and rotating the image by 8° anticlockwise.

Open with DEXTER
4.1. Constraining the physical structure and geometry of MWC349A on the basis of the SED and radiocontinuum images
The radiocontinuum maps obtained with the best angular resolution (at 7 mm, see Fig. 4) clearly show a bipolar morphology; there is a prominent dark lane in the EastWest direction with a position angle of 8° (measured counterclockwise from East). The lack of freefree emission is interpreted as being caused by a neutral circumstellar disk. This interpretation is also supported by the dust emission from the disk in the nearinfrared (Danchi et al. 2001) and its polarization perpendicular to the disk (Aitken et al. 1990; Yudin 1996). The radiocontinuum emission shows an ionized bipolar structure arising above and below the neutral disk. The geometry of the ionized outflow has been modelled by considering a doublecone. The radiocontinuum images are used to constrain the semiopening angle of the double cone, θ_{a} (Fig. 3), to ~57°. This opening angle is consistent with that found with a semianalytical model of ionized winds around sgB[e] stars (Kraus & Lamers 2003). The radiocontinuum maps also show that for a given radius, the intensity is larger close to the neutral disk. In the isothermal case, this fact indicates that the electron density decreases from the edge of the ionized disk toward the revolution axis (0 < θ_{0} < ∞).
Next we have constrained the physical structure of MWC349A by considering the whole set of continuum measurements available to date for the spectral range covering from radiofrequencies to the midIR range, where there is a clear excess of emission with respect to that expected from the freefree emission of the wind (ν ~ 6000−10 000 GHz as shown in Fig. 5). For simplicity we have assumed an isothermal wind expanding at nearly constant velocity in order to explain its radiocontinuum spectral index of 0.62 (Fig. 5).
The best fits to the radiocontinuum images and SED (see Figs. 4 and 5, respectively) were obtained by considering the values of n_{R}, b_{d}, T_{e}, N_{e}^{(}r = 1,θ = θ_{a}^{)}, and θ_{0} shown in Table 1. The value derived for θ_{0} is consistent with that obtained by White & Becker (1985). Based on the SED, which is rising until at least 5.8 THz (Fig. 5), we derive an inner radius of the ionized wind of r_{min} = 3 AU or smaller, since larger r_{min} would imply optically thin freefree emission at ν < 5.8 THz. We note that the quality of the fit is not very sensitive to the consideration of a thin layer of ionized material located next to the neutral disk with different electron temperature, T_{d} (e.g. 9450 K obtained by the fit of the RRL profiles). Although the set of input parameters that best fit the SED is not unique, the fit to the radiocontinuum maps breaks this degeneracy. Figure 4 shows that our radiocontinuum predictions are in very good agreement with the maps reported by Tafoya et al. (2004). We also note that the constraints on the parameters that are affected by some uncertainties were improved by using the RRL observations as described below.
Fig. 5 Observed (vertical bars) and modelled (dashed lines) SEDs for MWC349A. The black and red dashed lines represent the predictions for ionized stellar winds extending down to r_{min} = 3 and 0.05 AU, respectively. The red solid line shows the linear fit to the observational intensities (with ν < 5.77 THz), yielding a spectral index of 0.62. Observational data were obtained from Allen (1973); Altenhoff et al. (1994); Beichman (1988); Harvey et al. (1979); Lee (1970); MartínPintado et al. (1989a); MartínPintado et al. (1994); Planesas et al. (1992); Sandell et al. (2011); Schwartz (1980); Simon & Dyck (1977); and Tafoya et al. (2004). All the observational data available so far was concisely compiled by Lugo et al. (2004).

Open with DEXTER
4.2. Constraining the orientation, kinematics, and physical structure of MWC349A on the basis of the H30α centroid map and profile
MartínPintado et al. (2011) explained the H30α RRL emission obtained with the Plateau de Bure Interferometer by considering a model with two kinematic components made up of an expanding outflow and an ionized Keplerian rotating disk (as represented in Fig. 3). Besides the explanation of the velocity peak separation of the maser spikes, the biggest achievement of the quoted model was to explain the behaviour of the H30α RRL centroid map. Its interpretation is not straightforward since β_{mn} < 0 holds for a wide range of electron density and electron temperature values (Strelnitski et al. 1996b) and, therefore, the stimulated amplification is not produced in a small region with very specific physical conditions, but in an extended region (see bottom panels of Fig. 7). Thus, in the case of RRL maser emission, the centroid map must be interpreted as the averaged position where the emission for every radial velocity is produced.
MartínPintado et al. (2011) have shown that the centroid map of the H30α (see Fig. 6) for radial velocities comprised between the two maser spikes (at − 16 km s^{1} and 32 km s^{1}, respectively) is well fitted to a straight line. This behaviour suggests that the emission between these radial velocities mainly arises from the Keplerian ionized layer. This is also supported by the spatial distribution of the emission predicted by our model (see Fig. 7).
Fig. 6 Model prediction for the relative centroid positions of the H30α emission (solid and dashed thick lines for the cases with rotating and nonrotating outflow) in the velocity range between − 64 km s^{1} and 58 km s^{1} superimposed on the observed data as blue and red thin lines for MWC349A. The positions of the line velocity channels are shown as crosses labeled by their LSR velocities. The blueshifted and redshifted maser spikes (− 16 and 32 km s^{1}, respectively) peak at the blue and red circles. The associated errors are shown by horizontal and vertical bars. The offsets are in milliarcseconds (mas) relative to the continuum centroid (, δ_{J2000} = 40°39′36.8′′).

Open with DEXTER
The physical reason for the emission from the maser spikes to originate mainly in the ionized Keplerian disk is because the electron densities in this region are close to that optimum for maser amplification of the H30α RRL. For example, an electron density of 4.0 × 10^{7} cm^{3} (the optimum density for an electron temperature of 10^{4} K; Strelnitski et al. 1996b) is reached at the border between the ionized and the neutral disk at a radius ~50 AU according to the results of our model.
On the other hand, the emission at larger radial velocities mainly arises from a region farther away from the star and located outside of the ionized circumstellar disk. Although the overall H30α centroid map clearly constrains the kinematic features of the outflow (MartínPintado et al. 2011), it leaves open some uncertainties due to the high number of input parameters required for the modelling. However, the RRL profiles lead to strong constraints on their values.
Fig. 7 Predicted intensity line emission (Δv_{r} = 1 km s^{1}) of the H30α at radial velocities of 32 (top left), − 16 (top right), 63 (bottom left), and − 45 km s^{1} (bottom right). Contour levels are 0.5, 1.5, 2.5, 4.0, 6.0, 8.0, 20.0 and 80.0 mJy. The contour level of 80.0 mJy (corresponding to an optical depth of − 3.6) of the upper panels (red contour levels) contain ~80% of the total emission, while the contour level of 4.0 mJy (corresponding to an optical depth of − 0.8) of the bottom panels (red contour levels) contain ~50 and 70% of the total emission (left and right, respectively). It shows that at the radial velocities of the spikes (upper panels), the emission mainly originates at points located close to the projection of the ionized disk (whose edges are represented as straight lines for θ_{i} = 0) into the source’s plane of symmetry perpendicular to the lineofsight.

Open with DEXTER
In particular, the H30α RRL profile shows two different spectral features (see Fig. 8), a narrow doublepeak maser emission at radial velocities of ~− 16 and 32 km s^{1} arising from the ionized Keplerian disk, and two broader features at slightly larger radial velocities, ~− 45 and ~71 km s^{1}, showing a clear asymmetry (hereafter wing humps). Although the two components could be confused, the model shows that while the features of the narrow maser spikes depend on the kinematics of the Keplerian layer, the wing humps depend on the characteristics of the outflow. As described in Sect. 4.2.1, these two maser components arising from two different regions with different kinematics were used to constrain some of the input parameters of the model.
Figure 8 shows that while the computed profile obtained by using the set of b_{n} coefficients provided by Walmsley (1990) reproduces the main features of the observational profile, it clearly fails to predict its intensity. Neither set of parameters (with an electron temperature larger than 4000 K) can explain the intensities of the observed spikes. On the contrary, the Storey & Hummer (1995) departure coefficients with the input parameters given in Table 1 are able to reproduce much better both the features of the profile and its peak intensity. Thus we have assumed the Storey & Hummer (1995) departure coefficients in the model in order to significantly improve the fit of the maser spike intensities. Unlike the profile, the modelled H30α centroid map remains similar for both set of coefficients.
Fig. 8 Observed (histogram) and modelled profiles (lines) of the H30α. The red dashed line is the best profile obtained by using the Walmsley departure coefficients (with the input parameter values as given in MartínPintado et al. 2011), while the solid red line is the modelled profile obtained with the set of input parameters shown in Table 1 and by using the Storey & Hummer b_{n} coefficients. The derived amplification assuming the Walmsley coefficients is lower because of their lower negative β_{mn} values (see Fig. 2). The arrow indicates the wing hump at the blueshifted velocities.

Open with DEXTER
We note that the observational profile of both the H30α and the rest of doublepeaked lines (see Sect. 5) show significant differences between the intensities of the blue and redshifted peaks, while our model predicts roughly the same intensities for both spikes. However, as we can see in Fig. 8, the maser peak intensities are strongly dependent on the set of departure coefficients assumed by MORELI. On the other hand, since most of the emission of the maser spikes comes from very small regions (see Fig. 7) and it is strongly dependent on optical depth, clumps with slightly different electron temperatures or electron densities would produce significant changes in the peak intensities. Thus, differences in the electron temperature and electron density of clumps located in the blue and redshifted regions of MWC349A, together with the uncertainties in the departure coefficient values (see Sect. 2.1.3 and Fig. 2), could explain the observed asymmetries between the two maser peaks. Likewise, the presence of different clumps with slightly different physical conditions over time would also explain the rapid time variations of maser RRLs (MartínPintado et al. 1989b). This variability is seen in time scales as short as 30 days (Thum et al. 1992).
Fig. 9 Observational (black histogram) and predicted H30α profiles varying different input parameters: a) predicted H30α profiles for terminal velocities of the ionized wind of 40, 60, 80, and 100 km s^{1} (red, blue, green, and cyan). It is clearly shown that the wing humps are shifted to larger radialvelocities with increasing terminal velocities. b) predicted H30α profiles for opening angles for the Keplerian ionized layer, θ_{d}, of 4.5° and 15° (blue and red lines). c) predicted H30α profiles for electron temperatures for the ionized outflow, T_{o}, of 10 000 and 12 000 K (red and blue lines). d) predicted H30α profiles for electron temperatures for the Keplerian ionized layer, T_{d}, of 8500 and 12 000 K (red and blue lines).

Open with DEXTER
To explain the H30α maser peaktopeak separation (see Table 4), we have considered a central mass for MWC349A of 38 M_{⊙}, unlike the ~60 M_{⊙} obtained if we use the Walmsley (1990)b_{n} coefficients (MartínPintado et al. 2011). As thoroughly discussed by Kraus (2009), the location of MWC349A in the HR diagram is subjected to a high uncertainty, particularly because of poor determination of its luminosity (log T_{eff} = 4.37 ± 0.07, log (L/L_{⊙}) = 5.7 ± 1.0). This makes its location in the HR diagram consistent with the evolutionary tracks of a wide range of central masses of rotating and nonrotating massive stars (Schaller et al. 1992; Meynet et al. 1994). Nevertheless, if we take into account just the estimated central values of the effective temperature and luminosity (log T_{eff} = 4.37, ), we derive a mass for the star of ~38 M_{⊙}. This value is consistent with our results. These results seem to suggest again that the Storey & Hummer departure coefficients provide a better description of the stimulated amplification of the radiation in MWC349A.
For a 38 M_{⊙} central mass, the best fit for both the H30α centroid map (Fig. 6) and the RRL profiles was obtained by considering the following input parameter values: i) outflow terminal and turbulent velocities of ~60 and 15 km s^{1}, respectively; ii) Keplerian rotation velocity component for the the outflow (see Fig. 6) in the same sense as the ionized disk; iii) a Keplerian rotating ionized disk layer with an opening angle of 6.5° located next to the neutral disk and extended from 0.05 AU to 130 AU; iv) an electron temperature of 9450 K for the ionized Keplerian disk; and v) inclination angle of the disk axis with respect to the plane of the sky of 8°, where the frontside is tipped up. Next, we discuss how changes in the value of these parameters affect the fitting of the observational data.
4.2.1. Dependence of the modelled H30α centroid map and RRL profiles on the input parameters
4.2.1.1. Inclination angle, θ_{i}
The inclination angle of the disk axis is the key parameter that makes the emission asymmetric with respect to the eastwest plane. Therefore, it is responsible for the northsouth loops of the H30α centroid map shown in Fig. 6. The larger the inclination angle, the larger the asymmetry, with larger heights for the loop peaks at high radial velocities (~50 km s^{1}), which correspond to the emission of the outflow. Thus, the inclination angle is clearly constrained between 4.5° and 15°, with the front side of the disk tipped up with respect to the line of sight. Thus, we explain that the redshifted and blueshifted loops (see Fig. 6) occur north and south of the disk respectively.
4.2.1.2. Terminal velocity, v_{0}
The model also shows that the radial velocity range where the maser emission of the outflow is produced depends on its terminal velocity. Thus, we can rule out terminal velocities larger than 100 km s^{1} since then the peaks of the wing humps would be located at larger radial velocities, clearly distinguished as highvelocity shoulders (see Fig. 9a). In contrast, a too low terminal velocity would imply that the wing hump emission would appear at nearly the same radial velocities as the maser spikes and, therefore, we would not be able to distinguish the contribution of the two different kinematic components (ionized disk and outflow). Thus, we conclude that the terminal velocity must be comprised between 40 and 100 km s^{1}. This is also supported by the way in which the predicted H30α centroid map changes with this velocity. However, the fit to the linewidths of the H41α and H76α RRLs (cf. Sect. 5.1) provided the strongest constraint on the outflow terminal velocity. Thus, finally we considered a value of 60 km s^{1}.
4.2.1.3. Turbulent velocity, v_{tu}
Turbulent motions in the ionized wind are needed in order to explain the lack of a doublepeaked profile observed for the H66α line profile (see Sect. 5). We note that the two observed peaks would be due to stimulated emission from the ionized outflow and not from the disk, opposite to that found in mm RRLs. Thus, we need to consider a turbulent velocity. We conclude that the best choice for the turbulent velocity to explain the line profiles and the centroid map is v_{tu} ~ 15 km s^{1}, which is comparable to the sound speed for 12 000 K. Larger turbulent velocities would increase the predicted linewidths.
4.2.1.4. Opening angle of the Keplerian ionized layer, θ_{d}
Given a semiopening angle for the ionized wind (θ_{a} ~ 57° as constrained from radiocontinuum maps, Sect. 4.2), the contribution of the emission arising within the ionized Keplerian ionized disk is determined by the opening angle of this disk, θ_{d} = θ_{a} − θ_{w} (see Sect. 3.2). The larger the opening angle of the disk, the lower the flux arising from the outflow and, therefore, the weaker the wing hump intensities. Thus, too low opening angles for the disk would significantly increase the wing hump intensities compared to observed levels. In addition, in this case the asymmetry between the red and blueshifted wing humps would also increase. We conclude that our model is very dependent on θ_{d} for angles smaller than 6°. In particular, we rule out that θ_{d} could be smaller than 4.5° (see Fig. 9b). Likewise, if one considers a larger angle (i.e. 15°), the wing hump intensities would decrease and the maser peak intensities would increase above the observed values (see Fig. 9b). Taking into account the aforementioned considerations, we conclude that the opening angle of the Keplerian ionized layer must be between 4.5° and 15°.
4.2.1.5. Electron temperatures
Regarding the electron temperature of the ionized outflow and of the ionized Keplerian disk, our model shows that the centroid map is less sensitive to changes in the electron temperature than the line profiles. We consider an electron temperature of 12 000 K for the outflow to adequately fit the radiocontinuum data (Sect. 2) and the intensities of the wing humps. If we considered lower values, the maser effect would increase and, consequently, also the wing hump intensities as shown in Fig. 9c.
On the other hand, we have considered a different electron temperature for the Keplerian ionized disk, T_{d}, from that of the ionized outflow to increase the intensity of the maser spikes. Since the maser intensities depend strongly on the temperature (as shown in Fig. 9d), we constrain the electron temperature in the Keplerian ionized disk between 8500 and 11 000 K. We adopt T_{d} = 9450 K as the final value for the Keplerian ionized layer.
4.2.1.6. Size of the disk, r_{d}
In the equatorial region located beyond the circumstellar disk, the observed radiocontinuum emission at cm wavelengths (Tafoya et al. 2004) must be due to the ionization of the gas by the dustscattered ionizing radiation. This is because we observe emission in the equatorial region for radii larger than that of the beam for the 2, 3.6, 6, and 20 cm radiocontinuum images (White & Becker 1985; Rodríguez & Bastian 1994; Cohen et al. 1985; Tafoya et al. 2004). From the beam sizes and the constrained semiopening angle for the ionized gas, θ_{a}, we derive an upper limit to the radius of ~130 AU. This upper limit is consistent with the derived size of 75 AU from the 3.8 μm image (Danchi et al. 2001). On the other hand, since the Keplerian rotating ionized disk is formed by the photoevaporation of the neutral disk, we assume that it reaches at least the same radius as the neutral disk. Thus, we have assumed a radius for the Keplerian ionized disk of 130 AU. We have to stress that the results of the model are only very sensitive to the disk size for a radius smaller than 60 AU (50 mas) since the bulk of the mmwavelengths RRL emission (for which the maser emission is mainly produced in the ionized disk) comes from a region within this radius (i.e. as happens in the H30α line seen in Fig. 7).
4.3. Fit to the lineintegrated intensities
Using the structure and physical properties derived in previous sections, we carry out the modelling of the integrated intensity of RRLs to study the frequency range where the maser emission is taking place. For that purpose, we predict the Hnα integrated line intensities both for the nonLTE and LTE cases for the quantum numbers from n = 4 to n = 80 as shown in Fig. 10. For the nonLTE case, we show the predictions using both the Walmsley (1990) and the Storey & Hummer (1995) departure coefficients.
Fig. 10 Integrated line intensities for the whole range of quantum numbers n of the observed Hnα RRLs. Open squares refer to the observational data, while the lines show the LTE (blue line) and nonLTE prediction of our model (dashed and solid red lines for the cases of the Walmsley and the Storey & Hummer b_{n} coefficients respectively). With green dashed lines we show the limits among the different wavelength ranges. References for the observational data: H4α to H15α Thum et al. (1998); H21αThum et al. (1994b); H26α and H30α Thum et al. (1994a); H30α MartínPintado et al. (1989a); H35α and H38αMartínPintado et al. (1994); H41α MartínPintado et al. (1989a); H66α Loinard & Rodríguez (2010); H66α MartínPintado et al. (1993); H76α Escalante et al. (1989).

Open with DEXTER
Firstly, we see that the two integrated line flux predictions obtained under the nonLTE assumption for the two sets of departure coefficients converge for Hnα lines at low frequencies (with n ≳ 41). The nonLTE predictions agree extremely well with the observations and show a constant offset with respect to the LTE prediction. This is a clear sign that RRL emission is stimulated at lowfrequencies as claimed by MartínPintado et al. (1993) and as supported by the analysis of RRLs profiles described in Sect. 5.
For RRLs with quantum numbers smaller than 41, we can see that the predicted integrated intensities for the nonLTE case become much larger than the LTE prediction, especially for RRLs with n < 30. This is what one expects since the lower the electronic level, n, the larger the importance of the mechanisms causing the electron population inversion, as in agreement with the departure coefficients (Strelnitski et al. 1996b). Only the nonLTE case is able to explain the large increase of the observed integrated line intensities. The large dependence of the integrated line intensity on the quantum numbers for 21 ≤ n ≤ 41 is proof that the dominant process of amplification of the emission at such RRLs is maser.
Likewise, it is remarkable that the predictions obtained with the Storey & Hummer (1995) coefficients are different from those derived using the Walmsley (1990) coefficients. This allows us to discriminate which set of departure coefficients is the best to describe the maser amplification under the physical conditions of MWC349A. For RRLs with n ≥ 30, we clearly see that the Storey & Hummer (1995) departure coefficients are more appropiate since their integrated line intensities agree extremely well with the published data for 30 ≤ n < 41.
Thus, we conclude that the maser emission at such frequencies is consistent with the physical conditions and the kinematics that we have deduced based on the radiocontinuum and RRLs profiles. This supports the proposed kinematic model and the estimated physical parameters. Nevertheless, the integrated line intensity predictions increase very strongly with the frequency compared to that observed for n < 30, as one expects from an exponential increase of the brightness temperature with the optical depth (Sect. 2.3). It indicates that saturation effects in the masers play an important role for n < 30. Assuming an equivalent maser beam solid angle, 4π/Ω_{m}, of 60 (Thum et al. 1994a), we have checked that the degree of saturation, J_{ν,sat}/J_{ν}, strongly increases from the H30α to the H26α, and especially for the H21α. Table 2 displays the radius, electron density, temperature of saturation, brightness temperature and degree of saturation derived from MORELI in those pixels where the upper limit for the degree of saturation is maximum. We clearly see that the degree of saturation for the H26α and, above all, for the H21α are large enough to significantly contribute to the decrease of the maser amplification of the radiation in at least some of the pixels.
Magnitude values in the pixels with maximum degree of saturation.
Finally, the model shows that the nonLTE effects dominate the emission of RRLs down to n = 7, while RRLs with smaller quantum numbers seems to be formed under LTE conditions as discussed by Thum et al. (1998).
5. Analysis for RRL profiles toward MWC349A
In the following we will use the inferred kinematic properties of the ionized wind and disk for MWC349A to show that the predicted results of our model are also consistent with the observation of RRLs other than H30α. First of all, we will focus in the RRLs with quantum numbers n > 30. Since these RRLs trace outer regions characterized by gas with smaller electron density than those traced by the H30α RRL, their maser emission is expected to be weaker (MartínPintado et al. 1989a). Thus, the modelling of their profiles is less sensitive to the set of departure coefficients considered and to small variations of the input parameters. Furthermore we will also study the profiles of RRLs with n < 30, which trace the kinematics of the innermost regions of the disk.
The predicted profiles should explain the change from the doublepeaked profile observed for the H35α (as for the H30α) into an apparently simple component for the H41α and also the large change in the peak intensities of these RRLs. This behaviour and the linewidths are perfectly predicted by the model as shown in Fig. 11 and in Tables 3 and 4. The observed change in the RRL profiles is expected since RRLs at lower frequencies have larger continuum optical depths (see Eq. (3)) and trace outer regions where the electron density in the Keplerian ionized layer is lower than the optimum values for maser amplification (i.e. 6.3 × 10^{6} cm^{3} for H40α and 1.4 × 10^{7} cm^{3} for H35α; Table 1 in Strelnitski et al. 1996b). For this reason, the H41α emission is mainly dominated by the outflow with little contribution from the disk and, therefore, its profile shows just a single peak.
Fig. 11 Observed (histogram, unpublished data from C. Thum) and predicted (solid line) RRL profiles for the H35α and H41α shown in blue and red, respectively.

Open with DEXTER
Comparison between the observed and predicted peak intensities for singlepeaked Hnα RRLs toward MWC349A.
We stress that under LTE conditions, we clearly underestimate the peak intensities for all RRLs by factors of two for the H76α and H66α lines, and by larger factors for the rest of the RRLs for which the stimulated emission is stronger. Thus, we rule out the possibility that even apparently singlepeaked profiles like that of the H41α line could be formed in LTE.
Comparison between the observed and predicted peak intensities and velocity peaktopeak separations for Hnα RRLs toward MWC349A assuming a central mass of 38 M_{⊙}.
5.1. Lowfrequency radio recombination lines. The outflow
Quantitatively, we see that the predicted peak intensities under nonLTE conditions for apparently singlepeaked RRL profiles agree very well with those reported in the literature (see Table 3), with the exception of the only spatiallyresolved cmwavelength RRL to date, the H66α. We predict its zerointensity linewidth (Δv ~ 100 km s^{1}), although we clearly underestimate the peak intensity reported by Loinard & Rodríguez (2010) even for nonLTE emission (i.e. peak intensity of 9.0 mJy for the LTE case versus the 16.3 mJy predicted in the nonLTE case, and the 24.9 mJy observed by Loinard & Rodríguez 2010). Thus, we conclude that even at this low frequency, the stimulated amplification of the radiation is still significant as was also claimed by MartínPintado et al. (1993). This is also supported by the available RRL profile with the lowest frequency, the H76α line. Its asymmetric profile is a clear indication that stimulated emission plays a key role for this RRL (Escalante et al. 1989). In this case, our nonLTE prediction matches quite well with the reported RRL profile, while the LTE prediction greatly underestimates its peak intensity and it is not able to explain the asymmetry in the profile (see Fig. 12). The larger intensity of the blueshifted peak is due to the existence of a larger background continuum emission to be amplified by the foreground ionized material approaching us. Thus, we conclude that even at 2 cm, the consideration of nonthermal emission is essential to explain the observations.
Fig. 12 Observed (black histogram, Escalante et al. 1989) and predicted H76α profile in the nonLTE (blue lines) and LTE case (red line). For the nonLTE case, we have plotted the predicted profiles for two different outflow terminal velocities, 60 and 80 km s^{1} (solid and dashed lines, respectively). We clearly see that the line width is only explained if one assumes 60 km s^{1}.

Open with DEXTER
5.2. Highfrequency radiorecombination lines. The inner disk: a distorted Keplerianrotation
For RRLs with quantum numbers n ≥ 30, our model accurately predicts both the peak intensities (see Table 4) and the maser peaktopeak velocity separations, (v_{red} − v_{blue})_{obs}, which does not depend so strongly on the physical conditions but on the kinematics of the region traced by the RRLs. Table 4 shows that the predicted change of (v_{red} − v_{blue}) from H30α to H39α is consistent with the observations when one assumes the Storey & Hummer departure coefficients. Since the maser peaks mainly trace the Keplerianrotating ionized disk, we conclude that the derived central mass for the source is consistent with the reported (v_{red} − v_{blue})_{obs}.
The kinematics of the innermost region of the ionized circumstellar disk can only be studied by using the RRLs at higher frequencies since the continuum becomes optically thinner with increasing frequency, tracing the innermost parts. At present there are velocityresolved observations for three transitions with frequencies higher than that of the H30α. These are the H27α, H26α, and H21α. Table 4 shows the predicted peak intensity for the three maser lines are clearly overestimated in the unsaturated case, especially for the H21α which is roughly 10^{14} times more intense than that observed (Thum et al. 1994b). Thus, as discussed, saturation effects could prevent the maser intensity from increasing with an exponential dependence.
Table 4 shows that our modelling is not able to explain the observed maser peaktopeak velocity separations, (v_{red} − v_{blue}). The predicted peaktopeak velocity separation increases with the frequency of the RRL, as expected from the assumption that the disk follows a Keplerian rotation, while observations show that it remains approximately constant from the H30α to the H21α line.
Comparison between the observed and predicted peak intensities for Hnβ RRLs toward MWC349A.
This fact could be explained if the submm RRL maser emission occured in the same regions as for the H30α. This would be the case if there was a lack of ionized material inside the region where the bulk of the H30α emission arises or an inner rarefication of the disk as claimed by Kraus et al. (2000). Nevertheless, in such a case, it would not be possible to explain the radiocontinuum spectral index of 0.62 up to the frequency of the H21α line. On the other hand, saturation effects of interaction between masing transitions could explain that the maser lines are produced in the same region (Strelnitski et al. 1996b). Hengel & Kegel (2000) studied the effects of the radiation field on the electronic level population by using a radiative transfer model for a spherically symmetric source. They derived the ranges of electron density and quantum numbers where maser emission arises. While the optimum electron density values for unsaturated maser amplification are very sensitive to the quantum numbers of the RRLs (Fig. 6 in Strelnitski et al. 1996b), the saturation of the maser lines counteract this behaviour such that the optimum electron density of the bulk of maser lines are contained in a small range of electron densities and quantum numbers (Fig. 4 in Hengel & Kegel 2000). Thus, saturated maser lines would arise from regions with similar electron densities, i.e. from regions of similar radial distance and thus similar radial velocities. In such a case, the peaktopeak velocity separation for saturated lines would not increase with the RRL frequency but would remain constant as observed for n < 30. This provides good evidence that RRLs with n < 30 are saturated and, therefore, our model is not able to reproduce these lines.
A third possibility to explain the constant peaktopeak velocity separation from the H30α to submm RRLs results from the inner regions of the disk not following the Keplerian rotation of the outer parts. The kinematic discontinuity could likely be because of disturbances in the kinematics of the ionized circumstellar disk in the region where the outflow is launched.
5.3. Fit of the Hnβ radiorecombination lines
Finally, we have used the Hnβ transitions to further constrain the physical parameters derived from our modelling. The predicted Hnβ line intensities for LTE and nonLTE assumptions are shown in Table 5. The physical structure and the departure coefficients assumed by MORELI predict a significant amplification for Hnβ lines, but much weaker than for the Hnα lines due to their lower  β_{mn} . However, contrary to what was found in the Hnα transitions, the Hnβ transitions can be best explained by assuming LTE emission. The difference between the observed and predicted LTE intensities are within ~4 times the rms noise of the data. The good fit obtained for the observed Hnβ transitions could represent another proof that supports the quantitative parameter values obtained by our modelling, but only if the Hnβ lines are not amplified.
However, the amplification predicted by our model for the Hnβ lines is unclear. A possible explanation could be related to the fact that RRLs sample the physical conditions where the continuum emission is optically thin. Thus, pairs of Hnα and Hn′β transitions with similar frequencies arise from regions with similar electron densities. For a certain electron density, the b_{n} coefficients might represent roughly the electronic population for a range of quantum numbers (Hnα lines), but not for higher quantum numbers (Hn′β lines) for which the electronic levels are closer to thermalization. As an example, we can consider the H30α and H38β pair at similar frequencies mainly sample regions with electron densities of ~10^{7} cm^{3}. However, we can see in Fig. 13 that the β_{mn} coefficients for H30α and H38β significantly differ. In particular, the β_{mn} coefficients for H38β are close to zero while for H30α we find β_{mn} = −4. As we can also see in Fig. 2, the numerical error in the estimation of the β_{mn} coefficients increases when β_{mn} gets close to thermalization. If the electronic levels actually thermalize faster when there is high electron density than when the model predictions are considered, then the β_{mn} coefficients for the Hnβ lines would be closer to zero than our model assumes and the amplification would be negligible. In this case the H38β line would appear to be emitted under LTE conditions as observed. Thus, the uncertainty for the β_{mn} when the electronic population approaches thermalization might explain why the Hnβ are not amplified as expected from our model.
Fig. 13 Estimated β_{mn} coefficients for an ionized gas with electron temperature of 10^{4} K for electron densities between 10^{2} and 10^{12} cm^{3}. The solid and dashed lines show the β_{mn} values derived by Storey & Hummer (1995) for H30α and H38β transitions, respectively. We note that the H38β lines thermalize at electron densities lower than for H30α lines.

Open with DEXTER
6. Conclusions
This paper describes the MORELI 3D radiative transfer model to predict RRL emission under LTE and nonLTE conditions in a variety of geometries, physical structures, and kinematics. Previous versions of this model were used in order to study different UCHII regions: CRL618 (MartínPintado et al. 1988), MWC349A (MartínPintado et al. 1989a, 2011), Cepheus A HW2 (JiménezSerra et al. 2011), and MonR2IRS2 (JiménezSerra et al. 2013). In this paper, we used MORELI to explain the continuum and RRL data observed in MWC349A in a coherent way. This is the first complete modelling of MWC349A, which not only constrains the model parameters from a subset of RRL data but also for the whole set of observed RRL. Thus, our new results for the geometry, struture, and kinematics of MWC349A provide the best description of the characteristics of the ionized wind and outflow in this source, and of the central mass of the source.
Mainly on the basis of the explanation of the complex behaviour of the H30α centroid map and its RRL profile, we have strongly constrained the geometry, disk inclination, physical conditions, and kinematics of MWC349A. These results were also derived with a systematic study of the whole set of radiocontinuum and RRL observations. We found that the set of departure coefficients b_{n} provided by Storey & Hummer (1995) describes much better the intensities of mm and submm masers than those given by Walmsley (1990) for the physical structure and geometry derived for MWC349A. With these coefficients we are able to explain for the first time intensities of the maser spikes as well as the peaktopeak separation between the spikes of mm RRLs.
Thus, our modelling is supported by the fact that they explain the bulk of the different observational data available (SED, radiocontinuum emission maps, RRL profiles, and velocityintegrated line intensities for RRLs) at very different wavelengths (from mm to cm wavelengths). In addition, our model provides a general view of the dominant processes involved in the amplification of RRLs for the different frequency ranges. While maser amplification seems to dominate for Hnα RRLs with n < 41, stimulated amplification is still important even up to frequencies as low as that of the H76α, 15 GHz. However, our model does not reproduce the peak intensities, peaktopeak velocity separation, and velocityintegrated line intensities for submm and infrared RRLs with n < 30. Thus, one of the open issues to be addressed in the future is taking into account the saturation effects. High spatial resolution and velocityresolved studies by using highfrequency RRLs (with n < 30) are also required to establish the kinematics of inner regions.
The main difficulty found for our nonLTE modelling is to predict the observed peak intensities for the Hnβ line. While we expected the Hnβ lines to be out of LTE and with significant amplification, their observational peak intensities agree very well with the predictions for LTE emission. High spatial resolution observations of Hnβ should be perfomed in order to explain this puzzling behaviour. However, precise calculations of the b_{n} coefficients for the geometry and physical conditions in MWC349A might explain these discrepancies.
In summary, we have used MORELI to better constrain the characteristics of both ionized components on MWC349A, disk and outflow, as proved by the large amount of observational data explained by our modelling. Further progress depends on observations which combine high angular and high velocity resolution, like those possible with ALMA.
Acknowledgments
This work has been partially funded by MICINN grants AYA201021697C0501, FIS201239162C0601, and AstroMadrid (CAM S2009/ESP1496). Alejandro BáezRubio acknowledges support from grant JAE predoct (2009), CSIC, Spain. We would also like to thank Josefina Torres for providing Fig. 3 and L.F. Rodríguez for providing the observational radiocontinuum images of MWC349A (Fig. 4) and the H76α RRL profile (Fig. 12). Finally, we are also grateful to the anonymous referee and Malcom Wamsley for very valuable comments.
References
 Aitken, D. K., Smith, C. H., Roche, P. F., et al. 1990, MNRAS, 247, 466 [NASA ADS] [Google Scholar]
 Allen, D. A. 1973, MNRAS, 161, 145 [NASA ADS] [Google Scholar]
 Altenhoff, W. J., Thum, C., & Wendker, H. J. 1994, A&A, 281, 161 [NASA ADS] [Google Scholar]
 Andrillat, Y., Jaschek, M., & Jaschek, C. 1996, A&AS, 118, 495 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Beichman, C. A., Neugebauer, G., Habing, H. J., et al. 1988, Infrared Astronomical Satellite (IRAS) Catalogs and Atlases, 1: Explanatory Supplement, NASA Washington, DC [Google Scholar]
 Blandford, R. D., & Payne, D. G. 1982, MNRAS, 199, 883 [NASA ADS] [CrossRef] [Google Scholar]
 Braes, L. L. E., Habing, H. J., & Schoenmaker, A. A. 1972, Nature, 240, 230 [NASA ADS] [CrossRef] [Google Scholar]
 Brocklehurst, M., & Seaton, M. J. 1972, MNRAS, 157, 179 [NASA ADS] [CrossRef] [Google Scholar]
 Brussaard, P. J., & Van de Hulst, H. C. 1962, Rev. Mod. Phys., 34, 507 [NASA ADS] [CrossRef] [Google Scholar]
 Churchwell, E. 1990, A&ARv, 2, 79 [NASA ADS] [CrossRef] [Google Scholar]
 Cohen, M., Bieging, J. H., Welch, W. J., et al. 1985, ApJ, 292, 249 [NASA ADS] [CrossRef] [Google Scholar]
 Cox, P., MartínPintado, J., Bachiller, R., et al. 1995, A&A, 295, L39 [NASA ADS] [Google Scholar]
 Danchi, W. C., Tuthill, P. G., & Monnier, J. D. 2001, ApJ, 562, 440 [NASA ADS] [CrossRef] [Google Scholar]
 Davies, B., Lumsden, S. L., Hoare, M. G., et al. 2010, MNRAS, 402, 1504 [NASA ADS] [CrossRef] [Google Scholar]
 Dupree, A. K., & Goldberg, L. 1970, ARA&A, 8, 231 [NASA ADS] [CrossRef] [Google Scholar]
 Einstein, A. 1916, Verh. Deutsch Phys. Ges. 18, 318 [Google Scholar]
 Escalante, V., Rodríguez, L. F., Moran, J. M., et al. 1989, Rev. Mex. AA, 17, 11 [NASA ADS] [Google Scholar]
 Gee, C. S., Percival, I. C., Lodge, J. G., & Richards, D. 1976, MNRAS, 175, 209 [NASA ADS] [CrossRef] [Google Scholar]
 Goldberg, L. 1966, ApJ, 144, 1225 [NASA ADS] [CrossRef] [Google Scholar]
 Gronenschild, E. H. B. M., & Mewe, R. 1978, A&AS, 32, 283 [NASA ADS] [Google Scholar]
 Hamann, F., & Simon, M. 1988, ApJ, 327, 876 [NASA ADS] [CrossRef] [Google Scholar]
 Harvey, P. M., Thronson, H. A., & Gatley, I. 1979, ApJ, 231, 115 [NASA ADS] [CrossRef] [Google Scholar]
 Hengel, C., & Kegel, W. H. 2000, A&A, 361, 1169 [NASA ADS] [Google Scholar]
 Hollenbach, D., Johnstone, D., Lizano, S., et al. 1994, ApJ, 428, 654 [NASA ADS] [CrossRef] [Google Scholar]
 Jaffe, D. T., & MartínPintado, J. 1999, ApJ, 520, 162 [NASA ADS] [CrossRef] [Google Scholar]
 JiménezSerra, I., MartínPintado, J., RodríguezFranco, A., et al. 2007, ApJ, 661, L187 [NASA ADS] [CrossRef] [Google Scholar]
 JiménezSerra, I., MartínPintado, J., Caselli, P., et al. 2009, ApJ, 703, L157 [NASA ADS] [CrossRef] [Google Scholar]
 JiménezSerra, I., MartínPintado, J., BáezRubio, A., et al. 2011, ApJ, 732, L27 [NASA ADS] [CrossRef] [Google Scholar]
 JiménezSerra, I., BáezRubio, A., Rivilla, V. M., et al. 2013, ApJ, 764, L4 [NASA ADS] [CrossRef] [Google Scholar]
 Karzas, W. J., & Latter, R. 1961, ApJS, 6, 167 [NASA ADS] [CrossRef] [Google Scholar]
 Kielkopf, J. F. 1973, J. Opt. Soc. Amer. B., 63, 987 [NASA ADS] [CrossRef] [Google Scholar]
 Kraus, M. 2009, A&A 494, 253 [Google Scholar]
 Kraus, M., & Lamers, H. J. G. L. M. 2003, A&A 405, 165 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Kraus, M., Krügel, E., Thum, C., & Geballe, T. R. 2000, A&A 362, 158 [NASA ADS] [Google Scholar]
 Kraus, S., Hofmann, K., Menten, K. M., et al. 2010, Nature 466, 339 [NASA ADS] [CrossRef] [MathSciNet] [PubMed] [Google Scholar]
 Lamers, H. J. G. L. M., Zickgraf, F.J., de Winter, D., et al. 1998, A&A 340, 117 [NASA ADS] [Google Scholar]
 Lee, T. A. 1970, PASP, 82, 765 [NASA ADS] [CrossRef] [Google Scholar]
 Leitherer, C., & Robert, C. 1991, A&A 377, 629 [NASA ADS] [CrossRef] [Google Scholar]
 Loinard, L., & Rodríguez, L. F. 2010, ApJ, 722, L100 [NASA ADS] [CrossRef] [Google Scholar]
 Lugo, J., Lizano, S., & Garay, G. 2004, ApJ, 614, 807 [NASA ADS] [CrossRef] [Google Scholar]
 Marston, A. P., & McCollum, B. 2008, A&A, 477, 193 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 MartínPintado, J., Bujarrabal, V., Bachiller, R., et al. 1988, A&A, 197, L15 [NASA ADS] [Google Scholar]
 MartínPintado, J., Bachiller, R., Thum, C., et al. 1989a, A&A, 215, L13 [NASA ADS] [Google Scholar]
 MartínPintado, J., Bachiller, R., & Thum, C. 1989b, A&A, 222, L9 [NASA ADS] [Google Scholar]
 MartínPintado, J., Gaume, R., Bachiller, R., et al. 1993, ApJ, 418, L79 [NASA ADS] [CrossRef] [Google Scholar]
 MartínPintado, J., Neri, R., Thum, C., et al. 1994, A&A, 286, 890 [NASA ADS] [Google Scholar]
 MartínPintado, J., Thum, C., Planesas, P., et al. 2011, A&A, 530, L15 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Meyer, J. M., Nordsieck, K. H., & Hoffman, J. L. 2002, AJ, 123, 1639 [NASA ADS] [CrossRef] [Google Scholar]
 Meynet, G., Maeder, A., Schaller, G., et al. 1994, A&AS, 103, 97 [NASA ADS] [Google Scholar]
 Mezger, P. G., & Hoglund, B. 1967, ApJ, 147, 490 [NASA ADS] [CrossRef] [Google Scholar]
 Miroshnichenko, A. S., Bjorkman, K. S, Grosso, M., et al. 2005, A&A, 436, 653 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Nielbock, M., Chini, R., & Hoffmeister, V. H. 2007, ApJ, 656, L81 [NASA ADS] [CrossRef] [Google Scholar]
 Olnon, F. M. 1975, A&A, 39, 217 [NASA ADS] [Google Scholar]
 Osterbrock, D. E. 1989, Astrophysics of Gaseous Nebulae and Active galactic Nuclei (Mill Valley: University Science Books) [Google Scholar]
 Panagia, N., & Felli, M. 1975, A&A, 39, 1 [NASA ADS] [Google Scholar]
 Planesas, P., MartínPintado, J., & Serabyn, E. 1992, ApJ, 386, L23 [NASA ADS] [CrossRef] [Google Scholar]
 Preibisch, T., Ratzka, T., Gehring, T., et al. 2011, A&A, 530, A40 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Rodríguez, L. F., & Bastian, T. S. 1994, ApJ, 428, 324 [NASA ADS] [CrossRef] [Google Scholar]
 Sandell, G., Weintraub, D. A., & Hamidouche, M. 2011, ApJ, 727, 26 [NASA ADS] [CrossRef] [Google Scholar]
 Schaller, G., Schaerer, D., Meynet, G., et al. 1992, A&AS, 96, 269 [NASA ADS] [Google Scholar]
 Schwartz, P. R. 1980, PASP, 92, 534 [NASA ADS] [CrossRef] [Google Scholar]
 Shu, F., Najita, J., Ostriker, E., et al. 1994, ApJ, 429, 781 [NASA ADS] [CrossRef] [Google Scholar]
 Simon, T & Dyck, H. M. 1977, AJ, 82, 725 [NASA ADS] [CrossRef] [Google Scholar]
 Storey, P. J., & Hummer, D. G. 1995, MNRAS, 272, 41 [NASA ADS] [CrossRef] [Google Scholar]
 Strelnitski, V., Haas, M. R., Smith, H. A., et al. 1996a, Science, 272, 1459 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
 Strelnitski, V. S., Ponomarev, V. O., & Smith, H. A. 1996b, ApJ,470, 1118 [NASA ADS] [CrossRef] [Google Scholar]
 Tafoya, D., Gómez, Y., & Rodríguez, L. F. 2004, ApJ, 610, 827 [NASA ADS] [CrossRef] [Google Scholar]
 Thum, C., MartínPintado, J., & Bachiller, R. 1992, A&A, 256, 507 [NASA ADS] [Google Scholar]
 Thum, C., Matthews, H. E., MartínPintado, J., et al. 1994a, A&A, 283, 582 [NASA ADS] [Google Scholar]
 Thum, C., Matthews, H. E., Harris, A. I., et al. 1994b, A&A, 288, L25 [NASA ADS] [Google Scholar]
 Thum, C., Strelnitski, V. S., MartińPintado, J., et al. 1995, A&A, 300, 843 [NASA ADS] [Google Scholar]
 Thum, C., MartínPintado, J., Quirrenbach, A., et al. 1998, A&A, 333, L63 [NASA ADS] [Google Scholar]
 Towle, J. P., Feldman, P. A., & Watson, J. K. G. 1996, ApJS, 107, 747 [NASA ADS] [CrossRef] [Google Scholar]
 Walmsley, C. M. 1990, A&A, 82, 201 [NASA ADS] [Google Scholar]
 White, R. L., & Becker, R. H. 1985, ApJ, 297, 677 [NASA ADS] [CrossRef] [Google Scholar]
 Yudin, R. V. 1996, A&A, 312, 234 [NASA ADS] [Google Scholar]
 Zinnecker, H., & Yorke, H. W. 2007, ARA&A, 45, 481 [NASA ADS] [CrossRef] [Google Scholar]
Appendix A: Gaunt factors
In this appendix we show the equations used by MORELI to estimate the Gaunt factors. In the literature we find different approximations for the freefree Gaunt factor for different frequency and temperature regimes. MORELI uses the analytic approximation given by Gronenschild & Mewe (1978), which reproduces the computational results of Karzas & Latter (1961) with an accuracy of 10% in the frequency and electron temperature ranges where 10^{2} < hν/^{(}kT_{e}^{)} < 10^{3}: (A.1)where K_{0} is the modified Bessel function of the second kind, Z the effective charge of the ionized gas, and ν_{0} the hydrogen ionization frequency. This approximation is equivalent to that of Leitherer & Robert (1991) in the RayleighJeans regime (hν ≪ kT_{e}) provided that the frequency exceeds the plasma resonance frequency, ν ≫ ν_{p} (where ν_{p} = N_{e}e^{2}/^{(}πm_{e}^{)}^{1/2}). Thus, the Gronenschild & Mewe expression can be used in a broader range of frequencies than the previous one.
In the absence of dust, freefree continuum emission is the dominant process for wavelengths λ ≳ 10 μm, while at NIR and optical wavelengths for which g_{bf,ν} ≃ 1, the boundfree processes become significant. This is shown in Fig. A.1, where we plot the relative contribution of the boundfree and freefree Gaunt factors. The boundfree Gaunt factor is calculated by using the expression given by Brussaard & Van de Hulst (1962)(A.2)where g_{n}(ν) is approximated to 1 for all the frequencies. This approximation yields results with an accuracy of ~10−20%.
Fig. A.1 Gaunt factor values for freefree and boundfree transitions and total Gaunt factor (g_{ff}, g_{fb} and g_{ff} + g_{fb} respectively) for frequencies between 10 and 4 × 10^{6} GHz. We assumed a temperature of 10 000 K.

Open with DEXTER
Appendix B: Radiorecombination line profiles
The RRL profiles of UCHII regions are due to the combination of different broadening mechanisms whose convolution gives the observed profile. In Sect. 3.2 we have shown the largescale motions that give as a result the broadening of the profile. However, even in every cell of the model (Sect. 2), there is a profile broadening caused by the microscopic motions of the ionized gas, such as turbulent and thermal motions.
Regarding the thermal motions, one can consider the approximation that the ionized gas is well described by the Maxwell velocity distribution. It subsequently produces a Gaussian profile because of the Doppler shifting. Likewise, the turbulent motions can be also described by a Gaussian distribution governed by a parameter known as turbulent velocity, v_{tu}. Thus, the velocity halfwidth at halfmaximum height, Δv_{g}, of the Gaussian profile due to both contributions can be estimated using the expression (Mezger & Hoglund 1967) (B.1)Additionally, there is a contribution due to the broadening of the electronic levels in regions with high electron density. This is known as pressure broadening and it produces a Lorentzian profile. This broadening can be specified by the halfwidth at halfmaximum height, Δv_{l}, which has been computed numerically using analytic expressions that approximate the results derived from classical and semiclassical theory (Gee et al. 1976) for the different quantum number ranges of the RRLs (see Table B.1).
Analytic approximations of the pressure broadening for different ranges of electronic levels.
The convolution of the aforementioned Gaussian and Lorentzian distributions results in a Voigt profile, which can be expressed as a function of Δν_{l} and Δν_{g} (where ) by (B.2)This integral is numerically computed in MORELI following the formulation of Kielkopf (1973) to describe the RRL emission in every cell of the source. Besides the intrinsic line profile, the projection of the largescale motions (modelled in Sect. 3.2) along the lineofsight gives rise to a dynamical broadening of the different RRL profiles.
Appendix C: Effective radius for an optically thin wind

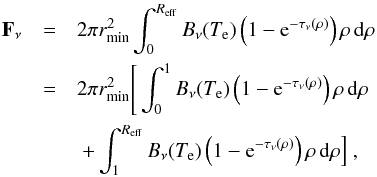

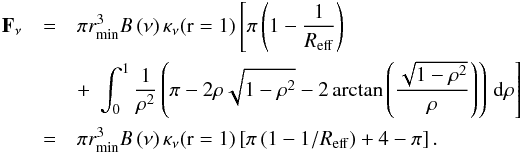

The total freefree continuum flux for a spherical outflow in the circular region in the plane of the sky of radius R_{eff} is given by (C.1)where ρ and R_{eff} are in units of the radius of the central hole without ionized gas, r_{min}, with and R_{eff} > 1.

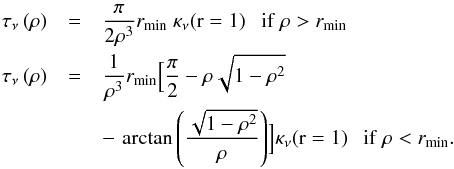

The optical depth along the lineofsight located at a radius ρ from the center of the source, τ_{ν}(ρ), for the spherical wind isotropically expanding at constant velocity, is given by (C.2)By using the optical depths given above, the integration of Eq. (C.2) in a circumference of radius R_{eff} for the optically thin case, 1−e^{− τν(ρ)} ≈ τ_{ν}(ρ), results as (C.3)If we define R_{eff} as the radius containing a given percentage, p, of the total continuum flux, it results from Eq. (C.3) the following effective radius in units of r_{min}: (C.4)
Appendix D: Kinematics
Appendix D.1: Disk kinematics
In this appendix, we derive Eq. (18) (Sect. 3.2.2) describing the velocity component along the z axis for a Keplerian rotating ionized disk. We assume that the only disk velocity component is the rotation around the revolution axis specified by the x_{d} axis. Thus, in order to describe its velocity, the cylindrical polar system of coordinates unit vectors (e_{ρ},e_{ϕ},e_{xd}) and coordinates (ρ,ϕ,x_{d}) is the most suitable. In this case the velocity is given by (D.1)Describing Eq. (D.1) in a Cartesian coordinate system with the same polar axis and unit vector (y_{d},z_{d},x_{d})^{1}, and assuming a Keplerian rotation velocity, Eq. (D.1) results as (D.2)where .
Since in the general case, the disk could be tilted with respect to the lineofsight with an angle θ_{i} (see Fig. 3), we apply a rotation of coordinates around the axis y_{d} to lead to the Cartesian coordinate system with unit vectors (e_{y},e_{z},e_{x}) orientated as described in Sect. 2. Such a coordinate transformation is given by the equations (D.3)In this coordinate system, Eq. (D.2) is (D.4)where , y_{d} = y, and z_{d} = cos(θ_{i})z − sin(θ_{i})x.
Thus, the velocity component along the lineofsight (the z axis) yields (D.5)For a nearly edgeon disk (θ_{i} ≪ 1), Eq. (D.5) can be approximated as (D.6)
Appendix D.2: Outflow acceleration
In this appendix, we derive Eq. (19) (Sect. 3.2.2) describing the velocity component along the z axis for an outflow expanding radially away from the central star reaching a terminal velocity of v_{0} at a radius r_{a}. The total radial velocity of the ionized gas at r < r_{a} is given by . Thus, its projection along the z axis of the Cartesian coordinate system with the unit vector (y_{d},z_{d},x_{d}) described in (D.1) is (D.7)where θ is the polar angle and ϕ the azimuthal angle.
Thus, we obtain the velocity projected to the zaxis (D.8)
All Tables
Final input parameters for the best fit to the continuum and RRL data of MWC349A.
Comparison between the observed and predicted peak intensities for singlepeaked Hnα RRLs toward MWC349A.
Comparison between the observed and predicted peak intensities and velocity peaktopeak separations for Hnα RRLs toward MWC349A assuming a central mass of 38 M_{⊙}.
Comparison between the observed and predicted peak intensities for Hnβ RRLs toward MWC349A.
Analytic approximations of the pressure broadening for different ranges of electronic levels.
All Figures
Fig. 1 Estimated departure coefficients, b_{n}, for Hnα lines, an electron temperature of 10 000 K, and different electron densities by Walmsley (1990) and Storey & Hummer (1995).

Open with DEXTER
In the text
Fig. 2 Estimated β_{mn} coefficients, b_{n} for an ionized gas with electron density of 10^{7} cm^{3}, and electron temperature of 10 000 K. The solid red line shows the β_{mn} values derived by Walmsley (1990) for Hnα transitions, while the solid and dashed blue lines show the values derived by Storey & Hummer (1995) for Hnα and Hnβ transitions, respectively. The observed zigzag for the β_{mn}Storey & Hummer (1995) coefficients for n > is due to the numerical error in deriving them from Eq. (8). This error increases for increasing n since the relative difference between the b_{m} and b_{n} decreases as observed in Fig. 1.

Open with DEXTER
In the text
Fig. 3 Sketch of the doublecone geometry used for the modelling of MWC349A. The ionized gas is contained in a double cone with its revolution axis perpendicular to the plane of the neutral disk. Each cone has a semiopening angle of θ_{a} and is made up of two ionized regions with different kinematics: i) a rotating and expanding ionized wind contained within the doublecone with semiopening angle θ_{a} − θ_{d}; and ii) a Keplerian rotating ionized layer comprised between the ionized wind and the neutral disk with an opening angle relative to the conical surface of the double cone of θ_{d}. The observer is located toward the negative zaxis. The derived inclination angle θ_{i} is such that the source is tipped up in front.

Open with DEXTER
In the text
Fig. 4 Modelled (left) and observed (right panel, by Tafoya et al. 2004) radiocontinuum maps for 1.3 cm (top) and 7 mm (bottom). Contours are − 5, − 4, 4, 5, 6, 8, 10, 12, 14, 16, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100, and 110 times the rms of the observational VLA image (727 and 859 μJy beam^{1} for the 1.3 cm and 7 mm images, respectively). The modelled maps were obtained by the convolution of the original data with a box of the same size as the HPBW of the observations) and rotating the image by 8° anticlockwise.

Open with DEXTER
In the text
Fig. 5 Observed (vertical bars) and modelled (dashed lines) SEDs for MWC349A. The black and red dashed lines represent the predictions for ionized stellar winds extending down to r_{min} = 3 and 0.05 AU, respectively. The red solid line shows the linear fit to the observational intensities (with ν < 5.77 THz), yielding a spectral index of 0.62. Observational data were obtained from Allen (1973); Altenhoff et al. (1994); Beichman (1988); Harvey et al. (1979); Lee (1970); MartínPintado et al. (1989a); MartínPintado et al. (1994); Planesas et al. (1992); Sandell et al. (2011); Schwartz (1980); Simon & Dyck (1977); and Tafoya et al. (2004). All the observational data available so far was concisely compiled by Lugo et al. (2004).

Open with DEXTER
In the text
Fig. 6 Model prediction for the relative centroid positions of the H30α emission (solid and dashed thick lines for the cases with rotating and nonrotating outflow) in the velocity range between − 64 km s^{1} and 58 km s^{1} superimposed on the observed data as blue and red thin lines for MWC349A. The positions of the line velocity channels are shown as crosses labeled by their LSR velocities. The blueshifted and redshifted maser spikes (− 16 and 32 km s^{1}, respectively) peak at the blue and red circles. The associated errors are shown by horizontal and vertical bars. The offsets are in milliarcseconds (mas) relative to the continuum centroid (, δ_{J2000} = 40°39′36.8′′).

Open with DEXTER
In the text
Fig. 7 Predicted intensity line emission (Δv_{r} = 1 km s^{1}) of the H30α at radial velocities of 32 (top left), − 16 (top right), 63 (bottom left), and − 45 km s^{1} (bottom right). Contour levels are 0.5, 1.5, 2.5, 4.0, 6.0, 8.0, 20.0 and 80.0 mJy. The contour level of 80.0 mJy (corresponding to an optical depth of − 3.6) of the upper panels (red contour levels) contain ~80% of the total emission, while the contour level of 4.0 mJy (corresponding to an optical depth of − 0.8) of the bottom panels (red contour levels) contain ~50 and 70% of the total emission (left and right, respectively). It shows that at the radial velocities of the spikes (upper panels), the emission mainly originates at points located close to the projection of the ionized disk (whose edges are represented as straight lines for θ_{i} = 0) into the source’s plane of symmetry perpendicular to the lineofsight.

Open with DEXTER
In the text
Fig. 8 Observed (histogram) and modelled profiles (lines) of the H30α. The red dashed line is the best profile obtained by using the Walmsley departure coefficients (with the input parameter values as given in MartínPintado et al. 2011), while the solid red line is the modelled profile obtained with the set of input parameters shown in Table 1 and by using the Storey & Hummer b_{n} coefficients. The derived amplification assuming the Walmsley coefficients is lower because of their lower negative β_{mn} values (see Fig. 2). The arrow indicates the wing hump at the blueshifted velocities.

Open with DEXTER
In the text
Fig. 9 Observational (black histogram) and predicted H30α profiles varying different input parameters: a) predicted H30α profiles for terminal velocities of the ionized wind of 40, 60, 80, and 100 km s^{1} (red, blue, green, and cyan). It is clearly shown that the wing humps are shifted to larger radialvelocities with increasing terminal velocities. b) predicted H30α profiles for opening angles for the Keplerian ionized layer, θ_{d}, of 4.5° and 15° (blue and red lines). c) predicted H30α profiles for electron temperatures for the ionized outflow, T_{o}, of 10 000 and 12 000 K (red and blue lines). d) predicted H30α profiles for electron temperatures for the Keplerian ionized layer, T_{d}, of 8500 and 12 000 K (red and blue lines).

Open with DEXTER
In the text
Fig. 10 Integrated line intensities for the whole range of quantum numbers n of the observed Hnα RRLs. Open squares refer to the observational data, while the lines show the LTE (blue line) and nonLTE prediction of our model (dashed and solid red lines for the cases of the Walmsley and the Storey & Hummer b_{n} coefficients respectively). With green dashed lines we show the limits among the different wavelength ranges. References for the observational data: H4α to H15α Thum et al. (1998); H21αThum et al. (1994b); H26α and H30α Thum et al. (1994a); H30α MartínPintado et al. (1989a); H35α and H38αMartínPintado et al. (1994); H41α MartínPintado et al. (1989a); H66α Loinard & Rodríguez (2010); H66α MartínPintado et al. (1993); H76α Escalante et al. (1989).

Open with DEXTER
In the text
Fig. 11 Observed (histogram, unpublished data from C. Thum) and predicted (solid line) RRL profiles for the H35α and H41α shown in blue and red, respectively.

Open with DEXTER
In the text
Fig. 12 Observed (black histogram, Escalante et al. 1989) and predicted H76α profile in the nonLTE (blue lines) and LTE case (red line). For the nonLTE case, we have plotted the predicted profiles for two different outflow terminal velocities, 60 and 80 km s^{1} (solid and dashed lines, respectively). We clearly see that the line width is only explained if one assumes 60 km s^{1}.

Open with DEXTER
In the text
Fig. 13 Estimated β_{mn} coefficients for an ionized gas with electron temperature of 10^{4} K for electron densities between 10^{2} and 10^{12} cm^{3}. The solid and dashed lines show the β_{mn} values derived by Storey & Hummer (1995) for H30α and H38β transitions, respectively. We note that the H38β lines thermalize at electron densities lower than for H30α lines.

Open with DEXTER
In the text
Fig. A.1 Gaunt factor values for freefree and boundfree transitions and total Gaunt factor (g_{ff}, g_{fb} and g_{ff} + g_{fb} respectively) for frequencies between 10 and 4 × 10^{6} GHz. We assumed a temperature of 10 000 K.

Open with DEXTER
In the text
Current usage metrics show cumulative count of Article Views (fulltext article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 4896 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
