Calibrating the fundamental plane with SDSS DR8 data^{⋆}
^{1} European Southern Observatory, Alonso de Córdova 3107, Vitacura, Casilla 19001, Santiago, Chile
email: csaulder@eso.org; smieske@eso.org
^{2} Department of Astrophysics, University of Vienna, Türkenschanzstraße 17, 1180 Vienna, Austria
email:
werner.zeilinger@univie.ac.at
^{3} Smithsonian Astrophysical Observatory, HarvardSmithsonian Center for Astrophysics, 60 Garden St. MS09 Cambridge, MA 02138, USA
email:
igor.chilingarian@cfa.harvard.edu
^{4} Sternberg Astronomical Institute, Moscow State University, 13 Universitetski prospect, 119992 Moscow, Russia
Received: 13 March 2013
Accepted: 27 May 2013
We present a calibration of the fundamental plane using SDSS Data Release 8. We analysed about 93 000 elliptical galaxies up to z < 0.2, the largest sample used for the calibration of the fundamental plane so far. We incorporated uptodate Kcorrections and used GalaxyZoo data to classify the galaxies in our sample. We derived independent fundamental plane fits in all five Sloan filters u, g, r, i, and z. A direct fit using a volumeweighted leastsquares method was applied to obtain the coefficients of the fundamental plane, which implicitly corrects for the Malmquist bias. We achieved an accuracy of 15% for the fundamental plane as a distance indicator. We provide a detailed discussion on the calibrations and their influence on the resulting fits. These recalibrated fundamental plane relations form a wellsuited anchor for largescale peculiarvelocity studies in the nearby universe. In addition to the fundamental plane, we discuss the redshift distribution of the elliptical galaxies and their global parameters.
Key words: galaxies: distances and redshifts / galaxies: elliptical and lenticular, cD / galaxies: fundamental parameters / galaxies: statistics / galaxies: structure
Table 1 and Appendices are available in electronic form at http://www.aanda.org
© ESO, 2013
1. Introduction
The fundamental plane is an empirical relation between three global parameters of elliptical galaxies: the central velocity dispersion σ_{0}, the physical effective radius R_{0}, and the mean surface brightness μ_{0} within the effective radius. The last parameter is usually expressed as I_{0}, which is a renormalised surface brightness (see Eq. (17)). The functional form of the fundamental plane reads (1)Historically, the fundamental plane of elliptical galaxies was first mentioned in Terlevich et al. (1981). It was defined and discussed in more detail in Dressler et al. (1987) and Djorgovski & Davis (1987). As part of an extensive study on elliptical galaxies (Bernardi et al.2003a–d), the first work on the fundamental plane using SDSS data was done in Bernardi’s paper (Bernardi et al. 2003c). Afterwards considerable work was done on the fundamental plane by a wide range of scientists, e.g. D’Onofrio et al. (2008), La Barbera et al. (2008), Gargiulo et al. (2009), Hyde & Bernardi (2009), La Barbera et al. (2010a), FraixBurnet et al. (2010), and Magoulas et al. (2012).
The central velocity dispersion as well as the mean surface brightness are distanceindependent quantities. Consequently, one can use the fundamental plane as a distance indicator by comparing the predicted effective radius with the observed one. We plan to use this standardcandle property of the fundamental plane in future work on the peculiarvelocity field in the nearby universe.
According to Bernardi et al. (2003c), a direct fit is the most suitable type of fit to obtain the fundamental plane coefficients if one plans on using them as a distance indicator, because it minimises the scatter in the physical radius R_{0}. Other types of fits also have their advantages when using the fundamental plane for different applications (such as investigating the global properties of elliptical galaxies). In Table 1, we collect the results for the fundamental plane coefficient of previous literature work. As Bernardi et al. (2003c) already pointed out, the coefficients depend on the fitting method. Table 1 shows that the coefficient a is typically smaller for direct fits than for orthogonal fits.
On theoretical grounds, it is clear that virial equilibrium predicts interrelations between the three parameters R_{0}, σ_{0}, and I_{0}. The coefficients of the fundamental plane can be compared with these expectations from virial equilibrium, and a luminosityindependent masstolight ratio (M/L) for all elliptical galaxies. Virial equilibrium and constant M/L predicts a = 2 and b = −1. Any deviation (usually lower values for a and higher values for b) of these values is referred to as tilt in the literature. From Table 1 it is clear that the actual coefficients of the fundamental plane deviate from these simplified assumptions (e.g. a ~ 1 instead of 2). The physical reasons that give rise to this deviation are obviously a matter of substantial debate in the literature since it provides fundamental information about galaxy evolution (Ciotti et al. 1996; Busarello et al. 1997, 1998; Graham & Colless 1997; Trujillo et al. 2004; D’Onofrio et al. 2006; Cappellari et al. 2006) or its environment dependence (Lucey et al. 1991; Jorgensen et al. 1996; Pahre et al. 1998; de Carvalho & Djorgovski 1992; La Barbera et al. 2010b). The empirical relation as such is very well documented and is often used as a distance indicator.
There are several twodimensional relations that can be derived from the fundamental plane: the FaberJackson relation (Faber & Jackson 1976) between the luminosity and the velocity dispersion, and the Kormendy relation (Kormendy 1977) between the luminosity and effective radius and the D − σrelation (Dressler et al. 1987), which connects the photometric parameter D with the velocity dispersion σ.
In this paper, we provide a calibration of the fundamental plane for usage as a distance indicator, using a sample of about 93 000 elliptical galaxies from the eighth data release of the Sloan Digital Sky Survey (SDSS DR8, Aihara et al. 2011). This doubles the sample of the most extensive FP calibration in the present literature (Hyde & Bernardi 2009). We assumed a ΛCDM cosmology with a relative darkenergy density of Ω_{Λ} = 0.7 and and a relative matter density of Ω_{M} = 0.3 as well as a presentday Hubble parameter of H_{0} = 70 km s^{1} Mpc^{1}. One can use the parameter h_{70} to rescale the results for any other choice of the Hubble parameter.
2. Sample
2.1. Definition
Our starting sample consisted of 100 427 elliptical galaxies from SDSS DR8 (Aihara et al. 2011). These galaxies were selected by the following criteria, as also summarised in Table 2:
Selection criteria given in the language of the SDSS CASjob queries.
The redshift z has to be between 0 and 0.5. Furthermore, to ensure that the redshift measurements were trustworthy, the SpecObj.zWarning flag had to be 0. For the morphological selection we made use of the citizen science project GalaxyZoo (Lintott et al. 2008), in which volunteers on the internet classify SDSS galaxies in a simplified manner (no scientific background required). The results of these visual classifications (Lintott et al. 2011) were integrated into the SDSS query form. To obtain a reasonable sample of elliptical galaxies with only a small number of misclassification, we demanded that the probability that a galaxy is an elliptical is greater than 0.8 and that at least ten GalaxyZoo users classified it. This probability is the fraction of all users who classified the given galaxy as elliptical. It would make no sense to set the parameter to 1 in the query because this would exclude too many galaxies since many users occasionally misclassify a galaxy by accident or trolling. Based on criterion, GalaxyZoo provided 170 234 candidates for elliptical galaxies within the given redshift range of 0 and 0.5.
To reduce the number of misqualifications and to ensure the quality of our data set, we applied the following criteria. The signaltonoise ratio of the spectra had to be higher than 10 and the central velocity dispersion of every galaxy in our sample had to be higher than 100 km s^{1} and lower than 420 km s^{1}. In general, velocity dispersion measurements of SDSS are only recommended to be used if they are between 70 and 420 km s^{1}. Our choice of 100 km s^{1} as lower limit is an additional precaution to avoid contamination of our sample by misclassification, because we found that a significant number of galaxies with a low central velocity dispersion (<100 km s^{1}) are misclassified as elliptical galaxies by GalaxyZoo, although most of them actually are bulgedominated spiral galaxies, as we found be taking a small random sample and visually inspecting the imaging and spectroscopic data. Furthermore, the spectrum has to be identified by the SDSS pipeline to be of a galaxy, and the likelihood of a de Vaucouleurs fit on a galaxy has to be higher than the likelihood of an exponential fit, in all five SDSS filters. We also demanded the axis ratio derived from the de Vaucouleurs fit to be higher than 0.3 (which excludes all earlytype galaxies later than E7) in all filters, thereby removing very elongated elliptical and lenticular galaxies from our sample. In Figs. 1 and 2, randomly selected SDSS colour thumbnails of our selected sample are shown. Their morphologies are all consistent with being ellipticals (some artificial apparent green/red granulation can occur in the colour composite), without obvious spiral/disk patterns, and overall smoothness. We thus conclude that our sample is sufficiently clean. For redshifts higher than 0.2, our set of criteria still yields a pretty clean sample as one can see in Fig. 3. However, in Sect. 2.2 that our criteria create an additional bias at redshifts higher than 0.2, because an increasing fraction of galaxies is rejected due to uncertain classification.
Fig. 1 Randomly selected subsample of 12 galaxies of our selected sample with a redshift lower than 0.1. All of them were classified to be elliptical galaxies by our selection criteria, which is confirmed by their morphology.

Open with DEXTER
Fig. 2 Randomly selected subsample of 12 galaxies of our selected sample with a redshift range of [0.1,0.2]. All of them were classified to be elliptical galaxies by our selection criteria, which is confirmed by their morphology.

Open with DEXTER
Fig. 3 Randomly selected subsample of 12 galaxies of our extended sample (limited to a redshift lower than 0.2 for our main analysis) with a redshift higher than 0.2. All of them were classified to be elliptical galaxies by our selection criteria, which is confirmed by their morphology. Note that for some of the sources with the smallest angular extent, the SDSS colourcomposite image becomes imprecise, causing the apparent rainbowlike colour structure.

Open with DEXTER
There are 100 427 galaxies in SDSS DR8 that fulfil all these requirements; they form our basic sample ^{1}. We downloaded the galactic coordinates PhotoObj.b and PhotoObj.l, the redshift SpecObj.z and its error SpecObj.zErr, the central velocity dispersion SpecObj.veldisp and its error SpecObj.veldispErr, the axis ratio of the de Vaucouleurs fit PhotoObj.deVAB_filter, the scale radius of the de Vaucouleurs fit PhotoObj.deVRad_filter and its error PhotoObj.deVRadErr_filter, the model magnitude of the de Vaucouleurs fit PhotoObj.deVMag_filter and its error PhotoObj.deVMagErr_filter, the magnitude of the composite model fit PhotoObj.cModelMag_filter and its error PhotoObj.cModelMagErr_filter, the scale radius of the Petrosian fit PhotoObj.petroRad_filter and its error PhotoObj.petroRadErr_filter, the model magnitude of the Petrosian fit PhotoObj.petroMag_filter and its error PhotoObj.petroMagErr_filter and the extinction values PhotoObj.extinction_filter, which are based on Schlegel maps (Schlegel et al. 1998), for all five SDSS filters (if a parameter is available for different filters, the wild card filter is placed there, which can stand for either u, g, r, i, or z) and all galaxies in our basic sample. The SDSS filters have a central wavelength of 355.1 nm for u, 468.6 nm for g, 616.6 nm for r, 748.0 nm for i, and 893.2 nm for z (Stoughton et al. 2002).
In Fig. 4, we consider the overall redshift distribution of our basic sample. In this Fig. 4, we use redshifts corrected for the Milky Way’s motion relative to the cosmic microwave background (CMB), but note that the impact of the correction on the figure is insignificant. Figure 4 shows that there are no galaxies in our sample with redshifts greater than 0.3. Furthermore, the number density decreases rapidly after a redshift of 0.15. We adopt a final cut at redshift of 0.2, since beyond that the sample is heavily biased towards only the most luminous galaxies. Quantitative motivation for the cut at a redshift of 0.2 comes from considering the Malmquist bias in detail, see Sect. 4.1. Moreover, we introduced a lower cut at a redshift of 0.01 to remove the galaxies for which peculiar velocities can notably distort the Hubble flow. The limitation of our sample to a redshift interval of [0.01, 0.2] reduces the number of galaxies by roughly 5000. Furthermore, excluding some objects, with unreasonably large or small absolute magnitudes or physical radii removes a handful galaxies more. We also introduce a colour cut by demanding that the galaxies in our sample lie on the red sequence (Chilingarian & Zolotukhin 2012), which is a narrow region in the colour−magnitude diagram where earlytype galaxies are located. Since our sample was already relatively clean at this stage, we fitted a secondorder polynomial to it in the colour−magnitude diagram. For this end, we used the g − r colours of the apparent magnitudes and the absolute magnitude in the z band. The results of these fits are shown in Figs. B.67 to B.69 with their fitting parameters in Table C.6. Using these fits, we perform a 3σ clipping to remove outliers. Less than 1% (the exact ratio depends on the choice of the photometric fits, i.e., the composite model, de Vaucouleur or Petrosian (see Sect. 4 for details on these fits), of the sample is removed by the colour cut. For comparison, applying the same colour cuts on the sample classified only via GalaxyZoo, about 4.5% are removed. The remaining ~95 000 galaxies were used for the fundamental plane calibrations and form our selected sample. During the fitting process another about 2000 galaxies were excluded as outliers, which leaves a sample of 93 000 galaxies for our final analysis. A set of comparative colour−magnitude diagrams (see Fig. 5) illustrates the cleaning process of our sample all the way from the 852 173 SDSS galaxies with proper spectroscopic data to our selected sample of about 95 000 galaxies.
Fig. 4 Redshift distribution of the basic sample. The green vertical lines at z = 0.01 and z = 0.2 indicate the limitation of the selected sample that was used for fitting the fundamental plane.

Open with DEXTER
Fig. 5 Selection of our sample illustrated using colour−magnitude diagrams. This set of g − r colour versus z band absolute magnitude diagrams shows that with our constraints only the red sequence remains in the selected sample (top left panel) of about 95 000 galaxies, which is used to fit the fundamental plane. The basic sample (top right panel), which consists of 100 427 galaxies, is already relatively clean by itself. The 170 234 candidates of elliptical galaxies from GalaxyZoo can be found in the bottom left panel. The bottom right panel shows 852 173 unclassified galaxies with proper spectroscopic data from the SDSS database and in this plot, other structures in the colour magnitude diagram, such as the blue cloud, are clearly visible as well. The colourcoding in the plots is always relative to the maximum number density per pixel. Red indicates the maximum number density (which can vary from figure to figure) per pixel. Colours between red and orange cover number densities between the maximum and 2/3 of the maximum. Shades from yellow to green cover the range between ~2/3 and ~1/3 of the maximum number density. Shades from cyan to blue indicate less than ~1/3 of the maximum number density. White pixels contain no objects. The same colour scheme is used for all other density map plots in this paper as well.

Open with DEXTER
2.2. Substructure in the redshift distribution
In this section we discuss the redshift substructure in our sample, identifying three peaks in redshift at which galaxies cluster.
Consider Fig. 4 again, in which one may immediately notice two peaks in the galaxy counts. The first one, which appears to be most prominent at z = 0.08 in this plot, is associated with the Sloan Great Wall, which is located at a redshift of 0.073 (Gott et al. 2005). The other peak is around a redshift of 0.13 and has been reported previously in Bernardi et al. (2003b), though it was not discussed in detail afterwards.
In the following we describe how we corrected the redshift histogram in Fig. 4 for completeness and sampling effects to investigate the redshift substructure of our sample in more detail. First of all, for a volumelimited sample one expects the number of galaxies to increase with the third power of the distance (which is in firstorder approximation linearly related to the redshift). Then, due to magnitude limitation, one looses the less luminous part of the sample starting at a certain redshift, and number counts will decrease towards zero at very large distances. The combination of volume sampling and magnitude limitation yield a function that grows as a function of redshift from zero to a peak, and then decreases afterwards to zero again. Our sample in Fig. 4 has this overall peak at about z = 0.1, close to the two putative subpeaks.
It is therefore important to remove the signature of magnitude limitation from this histogram, which will allow a clean assessment of the existence of those possible subpeaks. As a first step (Fig. 6), we thus considered the galaxy count per comoving volume instead of the absolute numbers, dividing the number of galaxies in each redshift bin by the comoving volume of the bin. The following equations define the comoving volume of such a redshift bin V_{C}(z_{1},z_{2}):

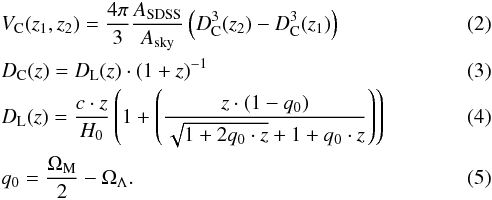

The comoving volume V_{C}(z_{1},z_{2}) is derived from the comoving distance D_{C}(z) and the spectroscopic sky coverage of SDSS DR8 A_{SDSS}, which is 9274 deg^{2}, normalised to the total size of the sky A_{sky}, which is ~41 253 deg^{2}. The comoving distance D_{C} itself is derived from the luminosity distance D_{L}, which is given in Eq. (4). We assumed a Hubble parameter H_{0} of 70 km s^{1} Mpc^{1} for our calculations, which can be rescaled to any measured Hubble parameter using h_{70}. The subscript 70 emphasises that this scaling parameter is relative to our chosen value of the Hubble parameter. c denotes the speed of light and q_{0} the deceleration parameter of the universe, which is − 0.55 for a universe with a relative matter density of Ω_{M} = 0.3 and relative darkenergy density of Ω_{Λ} = 0.7 according to Eq. (5).
Fig. 6 Redshift distribution of the number density of elliptical galaxies in our sample. The measured density of elliptical galaxies is given by the red solid line of the histogram. We divided our sample into redshift bins with a width of 0.01. The blue dashed line represents our bestfit model to the data. The green dashed vertical lines indicate the limits of the sample, which were used for the fundamental plane fitting.

Open with DEXTER
In the next step, we corrected for the magnitude limitation. We assumed that we have the same functional shape of the luminosity function of giant elliptical galaxies in every volume element of the universe. For this, we adopted a Gaussian luminosity function with a mean luminosity slowly evolving (evolution parameter Q) as linear function of the redshift, and assumed that the standard deviation σ_{M} is the same for all redshifts and volume elements. The Gaussian shape of the luminosity function of large elliptical galaxies is discussed in detail in Sect. 4.2. Although the bulk of the dwarf elliptical galaxies are already too faint at the minimum redshift of our sample, there are still a few bright dwarf elliptical galaxies that do not fall below the magnitude limit. However, these galaxies are not part of the sample, because their light profiles are more exponential than elliptical and therefore, they are already excluded by the sample selection.
Fig. 7 Redshift distribution of the relative number density of elliptical galaxies. The red solid line shows the relative overdensity of the galaxies in our sample compared with the model predictions. Two known largescale structures are indicated by the green and blue dashed vertical lines. The thin lines are the lower and upper limit of these structures, while the thick line indicates their median redshift. The green lines denote the CfA2 Great Wall and the blue lines denote the Sloan Great Wall.

Open with DEXTER
Our sample is limited by a fixed apparent magnitude m_{limit} (basically the spectroscopy limit of SDSS), which will cut into the elliptical galaxy luminosity function more and more as redshift/distance increases, biasing our sample towards intrinsically brighter luminosities at high distances. This effect is also known as Malmquist bias.
We can now express the expected space density of ellipticals in our sample with Eq. (6):
In these equations, we defined a new parameter , which denotes the difference between limit magnitude m_{limit} and the mean luminosity of the luminosity function at redshift zero . To represent the Malmquist bias we made use of the distance modulus (see Eq. (7)), which defines the difference between the apparent magnitude m_{app} and the absolute magnitude M_{abs} in dependence on the luminosity distance D_{L}.
We then fitted this 4parameter function for the observed galaxy density ρ_{obs}(z) to the redshift distribution in Fig. 6. The four varied parameters are the density of elliptical galaxies ρ_{0}, the evolution parameter Q, the standard deviation of the luminosity function σ_{M}, and the parameter Δm. We used a modified simplex algorithm to perform the first fit to obtain the galaxy densities. After inverting the error function in Eq. (6), we used a leastsquares fit to obtain the other parameters. For mathematical reasons, we had to exclude the first five bins, which form the plateau of the function, for the leastsquares fit. However, since the height of the plateau was already fixed by the simplex fit, which uses these bins, no information is lost. The results of this fit are shown as a dashed (green) line in Fig. 6. Our best fit yields an average density of elliptical galaxies in the universe ρ_{0} (which fulfil the requirements of our sample) of 7 × 10^{4} galaxies per . Furthermore, we derived a mild redshift evolution Q of 1.07 mag (per z). Our values for Δm and σ_{M} are (38.3 − 5·log _{10}(h_{70})) mag and 0.89 mag, respectively.
To analyse overdensities, we subtracted the fit function from our data in Fig. 6 and normalised it to the fit function’s values. The result of this exercise is shown in Fig. 7. One notices three overdensities, two of which can be identified with known largescale structures. There are the CfA2Great Wall between a redshift of 0.0167 and 0.0333 with a median redshift of 0.029 (Geller & Huchra 1989) and the Sloan Great Wall between a redshift of 0.0509 and 0.0876 with a median redshift of 0.073 (Gott et al. 2005). Furthermore, we found another (so far not investigated) overdensity between 0.12 and 0.15 with a peak around 0.13. This overdensity was previously mentioned in Bernardi et al. (2003b), who noticed two overdensities in their (SDSSbased) sample of elliptical galaxies: one at a redshift of 0.08 (their paper was published before the Sloan Great Wall was discovered at a similar redshift) and another one at 0.13, which we can now confirm. Identifying any largescales structures, which might be associated with this overdensity, would exceed the scope of this paper and is left open for future investigations.
When looking at Fig. 7, one will also notice some significant underdensities at very low and at relatively high redshifts. The underdensity at low redshifts is due to a selection effect in SDSS and GalaxyZoo. Very nearby galaxies are sometimes not included in the SDSS spectroscopic sample because they are too bright. Previously wellclassified nearby galaxies were not included in GalaxyZoo as well. These two selection effects cause the apparent deficiency of elliptical galaxies at low redshifts. At high redshifts (z > 0.2), we encounter a similar problem. Galaxies at this distance are already rather small and difficult to classify. Therefore, we excepted fewer galaxies that were clearly identified as ellipticals by GalaxyZoo. These two findings strengthen our previous considerations to cut our sample at redshifts lower than 0.01 and higher than 0.2 before using them for the fundamental plane fitting.
3. Method
The fitting procedure of fundamental plane coefficients was performed individually for each SDSS filter to derive independent results. The first matter that needs to be taken into account is galactic extinction: (8)We corrected the SDSS model magnitudes m_{sdss} for extinction A_{Schlegel} according to the Schlegel maps (Schlegel et al. 1998). The values for extinction were obtained from the SDSS database, in which they can be found for every photometric object based on its coordinates.
We also applied a Kcorrection to m_{extcor}, to correct for the effect of the redshift on the spectral profile across the filters,
The Kcorrection is calculated using the (extinctioncorrected) colour m_{f1} − m_{f2} and the redshift z of the galaxy. We used the recent model of Chilingarian et al. (2010) with updated coefficients as shown in Tables C.1 to C.5. This Kcorrection model uses a twodimensional polynomial with coefficients B_{ij} that depend on the filter. One obtains the Kcorrected apparent magnitude by a simple subtraction of the Kcorrection term K(z,m_{f1} − m_{f2}). The subscripts f_{1} and f_{2} stand for two different filters, which one can choose for calculating the correction.
The next step was to renormalise the measured model radius from the SDSS data r_{sdss} to take into account the different ellipticities of the elliptical galaxies in our sample, (11)This can be done according to Bernardi et al. (2003c) by using the minor semiaxis to mayor semiaxis ratio q_{b/a} from SDSS. The corrected radius r_{cor} enables us to directly compare all types of elliptical galaxies.
The velocity dispersions also need to be corrected for. Because SDSS uses a fixed fibre size, the fibres cover different physical areas of galaxies at different distances. This affects the measured velocity dispersion. Suitable aperture corrections for earlytype galaxies were calculated by Jorgensen et al. (1995) and Wegner et al. (1999), see the following equation: (12)The radius of the SDSS fibres r_{fiber} is 1.5 arcsec for all releases up to and including DR8 ^{2}. σ_{0} is typically about 10% higher than the measured value σ_{sdss}.

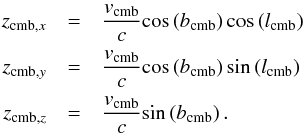

We also corrected the measured redshifts z for the motion of our solar system relative to the CMB, because we intend to calculate redshiftbased distances afterwards. The corrected redshift z_{cor} for the CMB rest frame can be calculated using some basic mathematics as demonstrated in Appendix A.
Since we need distances to obtain the physical radii R_{0} of our elliptical galaxies, we calculated angular diameter distances D_{A}(z_{cor}): (13)They are derived from the luminosity distances D_{L}, which have been defined in Eq. (4). The physical radius is given in Eq. (14): (14)Another aspect needs to be considered, the passive evolution of elliptical galaxies (15)The K and extinctioncorrected apparent of a sample of elliptical galaxies changes as a function of lookback time due to stellar evolution. We corrected for this effect using an evolutionary parameter Q. This parameter was derived by fitting Eq. (6) to the overall redshift distribution of our sample, as done in Sect. 2.2. The fit assumes a passive evolution of the elliptical galaxies that is linear and proportional to the redshift within the sample’s redshift range. Using this parameter, one can calculate the fully (extinction, K, and evolution) corrected apparent magnitude m_{app}.

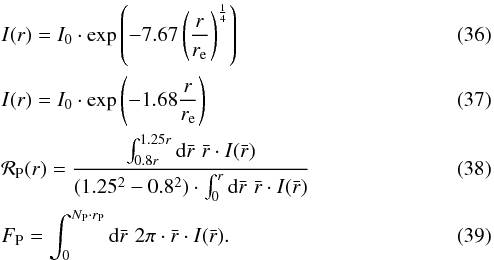

A final correction was applied to the measured surface brightness: (16)The mean surface brightness μ_{0} within the effective radius r_{cor} is defined by the equation above. The last term corrects for cosmological dimming of surface brightnesses, which is proportional to (1 + z_{cor})^{4} in any FriedmannLemaîtreRobertsonWalker metricbased universe (Tolman 1930; Hubble & Tolman 1935; Sandage & Perelmuter 1990a,b, 1991; Pahre et al. 1996). (17)To be consistent with Bernardi et al. (2003c), we used instead of the surface brightness, although they only differ by a factor.
In the final step, we used the angular diameter distance to determine the physical radius R_{0} of the galaxies in our sample. With this, we have all parameters at hand that are required for the fundamental plane.
We now briefly discuss our options for fitting it. One first has to take into account is the Malmquist bias. There are several methods to correct for it, and first we tried to use a maximumlikelihood method to fit the fundamental plane, as done in Bernardi et al. (2003b,c). We found that the extrema landscape of the likelihood function of the multivariate Gaussian (see Bernardi et al. 2003b, for more details) is unsuitable for the method, since small variations in the initial conditions of our simplex fit led to significantly different results. Other more advanced methods for minimising the likelihood function were considered, but rejected because of their unreasonably high computational costs.
As a consequence, we decided to use a less complex, yet efficient method to account for the Malmquist bias: volumeweighting (Sheth & Bernardi 2012). One assigns statistical weights to the galaxies based on the volume in which a galaxy with its luminosity is still visible. To do this, one has to know the exact limits imposed by the bias on one’s sample: Owing to the nature of the bias, one expects a linear cut in the sample when plotting the logarithm of the luminosity distance D_{L} versus the absolute magnitude M_{abs}. The fit parameter d_{fit} is directly connected to the limiting magnitude m_{limit} of the sample. We can perform a simple linear fit (see Eq. (18)) to this cut, but since we know that it originates in a Malmquist bias, we are able to fix the slope k_{fit} to − 0.2 and only have to vary the offset d_{fit}. This is done in a way that 99.7% (equivalent to 3σ) of the data points are located on one side of the fitted line. The fit parameter d_{fit} is directly connected to the limiting magnitude m_{limit} of the sample (Eq. (19)). In the next step, we used this fit to determine the maximum distance D_{L,limit} at which a galaxy with a certain absolute magnitude is still visible. Subsequently, we transformed this luminosity distance into a comoving distance D_{C} (see Eq. (3)) for which we derived the redshift z_{limit} from the limiting luminosity distance D_{L,limit}. An inversion of Eq. (4) yields,
Fig. 8 Malmquist bias affecting the magnitudedistance distribution of our sample. Taking the example of the r band for the dV model parameters, one can see a deviation of the pure Malmquist bias (indicated by the black solid line) at large distances. The red solid line indicates a distance corresponding to a redshift of 0.2, which is the limit of our selected sample.

Open with DEXTER

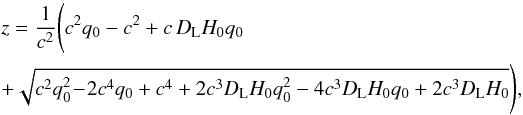

(20)which can be used to derive the limiting redshift to determine the limiting comoving distance and consequently the corresponding comoving volume V_{C} (see Eq. (2)), (21)The normalised volume weights w_{vol,i} for every galaxy i are defined by Eq. (21) according to Sheth & Bernardi (2012). With the volume weights at hand, one can compute the coefficients a, b, and c of the fundamental plane (see Eq. (1)) using a multiple regression based on weighted leastsquares. These volume weights correct for the Malmquist bias (see Fig. 8), which affects our magnitudelimited sample. One has to solve the following set of equations: (22)with

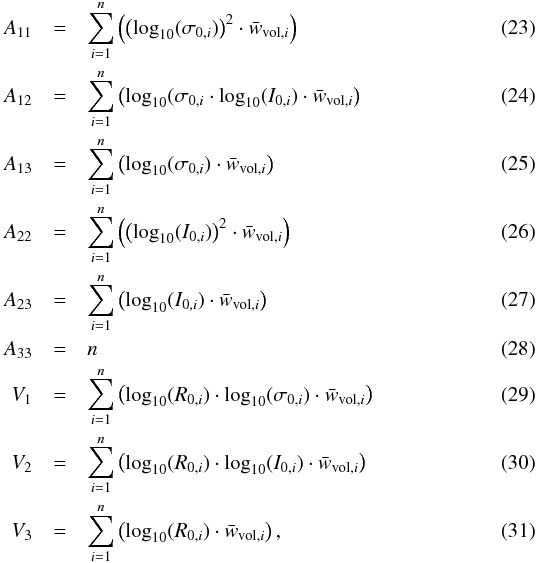

which is done using Cramer’s rule. It should be noted that are renormalized volume weights that were only multiplied by the number of galaxies n used for the fit.

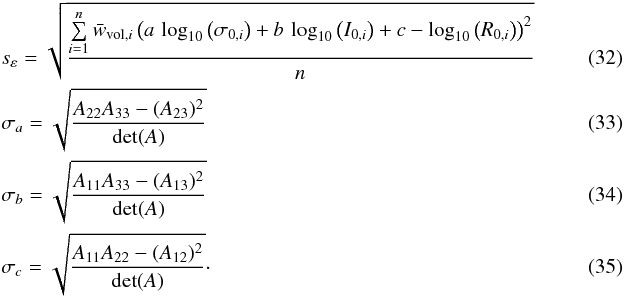

We also computed the root mean square s_{ε} and the standard errors σ_{a}, σ_{b}, and σ_{c} of the coefficients a, b, and c, where A denotes the matrix from Eq. (22).
We performed an iterative 3σclipping after the fitting process, which was repeated until all outliers were eliminated. With the entire set of calibration and tools at hand, we then determined the coefficients of the fundamental plane.
4. Results
For the photometric parameters of our model galaxies we used the three available sets of models in SDSS: the c model, the dV model, and the p model. The c model uses cModelMag^{3} and deVRad (since SDSS does not provide a composite scale radius fit). The dV model uses deVMag and deVRad. The p model uses petroMag and petroRad, and all filters independently.
The following equations define the various parameters:
The cModelMag are based on a simple weighted adding (depending on the likelihood of the two fits) of the fluxes from de Vaucouleurs fits (see Eq. (36)) and the pure exponential fit (see Eq. (37)). The deVMag are the magnitudes derived directly from the de Vaucouleurs fit given in Eq. (36). The Petrosian magnitudes petroMag are slightly more complicated. Firstly, one has to calculate the Petrosian ratio ℛ_{P}(r) according to Eq. (38), where I(r) stands for the azimuthally averaged surface brightness profile. The Petrosian radius r_{P}, which is denoted with petroRad, is the radius for which the Petrosian ratio ℛ_{P}(r_{p}) is equal to a defined value (0.2 for the SDSS). The Petrosian flux F_{P} is given by Eq. (39), where the parameter N_{P} is defined to be 2 (for the SDSS). SDSS also provides fibreMag, but since they are by definition calculated for fixed apertures (diameter of the SDSSfibre), we found them not to be useful for studying a sample of galaxies at different distances. Therefore, we did not construct a model based on them.
4.1. Malmquist bias
The first stop on our way to proper results is quantifying the Malmquist bias in our sample (see Fig. 8). Owing to the physical nature of this bias, it is best to plot the logarithm of the luminosity distance D_{L} versus the absolute magnitude for the sample. Then one fits a straight line to the cut, which is introduced by the Malmquist bias, in the distribution (see Figs. B.1 to B.15). This fit is given by Eq. (18), and its result is listed in Table 3. Since the parameter d_{fit} is directly connected to the limiting magnitude m_{limit}, which has a higher physical significance than the fit parameter itself, by Eq. (19), we display this limiting magnitude in Table 3. It is assuring to see that the limiting magnitude is almost independent of the model and only depends on the filter. Because spectroscopic data are required for every galaxy in our sample, the limiting magnitudes from Table 19 are driven by the spectroscopic limit of SDSS, which is the (uncorrected) Petrosian magnitude in the r band of 17.77 (Strauss et al. 2002). This value is almost the same limiting magnitude for the same model and filter, as we found. It is not surprising that the limiting magnitude is fainter in the bluer filter than in the redder ones, since elliptical galaxies are more luminous in the red, as one can see in Sect. 4.2.
The fit results shown in Table 3 were used to calculate the volume weights (see Eq. (21)) to correct for the Malmquist bias in our analysis. We found that our sample is affected by an additional bias for redshifts z ≳ 0.2, which is consistent with our previous findings in Sect. 2.2 (especially Figs. 6 and 7): when we extend our plots beyond the luminosity distance corresponding to a redshift of 0.2, there is slight shortage of galaxies just above the fitted line (see Fig. 8). This happens for all filters and all models, which is another motivation for removing galaxies above redshift of 0.2 from our sample. A useful review on the Malmquist bias in general can be found in Butkevich et al. (2005).
4.2. Luminosity function
Additional information obtained from the preparations of the calibration of the fundamental plane are the luminosity functions of the galaxies in our sample. We note that the faintluminosity limit of our sample of M_{r} = ( − 18.66 + 5 log _{10}(h_{70})) mag (corresponding to a 3σ of the mean luminosity of the sample’s galaxies in this filter, see Table 4) is brighter than the apparent spectroscopic limit of the SDSS, which is 17.77 Petrosian magnitudes in the r band (Strauss et al. 2002), at the lower redshift limit z = 0.01 (distance modulus m_{app} − M_{abs} = (33.16 − 5 log _{10}(h_{70})) mag). The reason for this is the overall surface brightness limit of SDSS (omitting dwarf galaxies), and the restriction of our sample to galaxies that are better fit by a de Vaucouleurs profile than an exponential. The former profile is characteristic of giant ellipticals, whereas an exponential profile corresponds to fainter, mostly dwarf, galaxies. We hereby conclude that our sample is not contaminated by dwarf ellipticals.
We calculated the absolute magnitudes of the galaxies using the distance modulus (see Eq. (7)) and redshiftbased distances (see Eq. (4)). Since the sample is affected by a Malmquist bias, the luminosity function in different redshift bins is not the same, but shifted to higher luminosity with higher redshift. To analyse the luminosity function, we split the data into 0.2 mag bins. We show the resulting luminosity distributions in Fig. 9 here as well as in Figs. B.16 to B.29.
We also calculated the mean luminosity and its standard deviation for every model and filter. We used these values and the mean galaxy density ρ_{0} obtained in Sect. 2.2 to calculate the expected luminosity function assuming that our sample would not suffer from a Malmquist bias (see Figs. 9 and B.16 to B.29). In this case, we would have almost 416 000 galaxies in our selected sample (between a redshift of 0.01 and 0.2), compared to the about 95 000 that we actually found. The magnitude limitation of the SDSS data set thus reduced the number of galaxies by about 80% for the full redshift range 0.01 < z < 0.2, compared to an extrapolated volume limited sample. With the volume weights, we then calculated a biascorrected mean absolute magnitude and a standard deviation σ_{filter} for every filter of every model. The results are listed in Table 4. The standard deviations are very similar between all filters and models. The mean absolute magnitude also depends almost entirely on the filter. This again shows that the completeness is entirely constrained by the spectroscopic survey limit, not by photometric limits.
Bias and evolutioncorrected absolute magnitudes and the corresponding standard deviation σ_{filter} for all models and all filters.
Fig. 9 Luminosity function for our sample in the r band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is complete at the luminous end, but we miss many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
4.3. Parameter distribution
In this subsection, we discuss the properties of the different parameters that define the fundamental plane and their observables. The parameters of the fundamental plane are derived from three observables: the apparent corrected radius r_{cor}, the extinction and Kcorrected apparent magnitude m_{app}, and the central velocity dispersion σ_{0}, which is already corrected for the fixed aperture size of the SDSS fibres. The three parameters of the fundamental plane are the logarithm of the physical radius log _{10}(R_{0}), the logarithm of the central velocity dispersion log _{10}(σ_{0}), and the mean surface brightness μ_{0} in lieu of which as a convention, the parameter log _{10}(I_{0}) is used in the fitting process, which only differs by a factor of − 2.5.
Fig. 10 Distribution of the apparent corrected radius r_{cor} is displayed in different filters for the dV model and the c model (the radii are the same is both models). The vast majority of the measured radii are smaller than 5 arcsec.

Open with DEXTER
The distribution of the radii r_{cor} is shown in Figs. 10 and B.33. The apparent radius is typically in the order of couple of arcseconds (with its peak about 1.5−2 arcsec for the c and dV models and aroung 3−4 arcsec for the p model), but in the case of the SDSS u band, they can be moved to much larger radii (especially for the Petrosian model) because of the known problems with this filter (see the SDSS website^{4}). It has been reported in Fathi et al. (2010) that the SDSS fitting algorithm tends to prefer certain sets of values for de Vaucouleurs and exponential fits. We found that this happens for the Petrosian fits as well and that it even is much more prominent there, especially in the u and z band. One can already see some grouping in the plots of the corrected apparent radius r_{cor} against the apparent magnitudes m_{app} (see Figs. B.62 and B.64 and compare them with Fig. B.63, which is for the r band and does not show any peculiarities). It becomes more prominent in plots of the log _{10}(R_{0}) versus redshift, in which one can clearly see bandlike structures (see Figs. B.65 and B.66). Furthermore, the average apparent radii in all filters are larger for the Petrosian model than for the de Vaucouleurs model (the c model also uses de Vaucouleurs radii). There are some tiny differences (too small to be seen in a plot) between the de Vaucouleurs model and the composite model, which are created by the selection of galaxies (because of limits in the magnitudes and the 3σ clipping).
In Table C.8, the averages and standard deviations of all previously mentioned parameters are displayed for all filters and all models. For the p model, there is a suspiciously high standard deviation for the u band and for the z band though to a smaller extent there. There is obviously a problem with the measured radii in the u band, which is most likely due to the known problem of scattered light in this filter, and it is much worse for Petrosian fits, for which the z band is also affected. The distribution of the apparent magnitude m_{app} for different models is displayed in Figs. B.36 to B.38. The distributions show very steep cutoffs around the limiting magnitudes, which is exactly the expected behaviour for a magnitudelimited sample.
In Figs. B.34 and B.35, one can see that the corrected central velocity dispersion barely depends on the filter. This is not surprising since the correction (see Eq. (12)) only mildly depends on the apparent corrected radius r_{cor}, which is different for different filters. Therefore, as a spectroscopic observable, one will not notice any significant differences depending on the model either.
Fig. 11 Distributions of the logarithm of the physical radius log _{10}(R_{0}) in different filters for the dV model can be well described by sharp Gaussian with their peaks almost exactly at the same value. Only the u band shows some digressive behaviour. In this case the peak is smaller and set apart from the other. Furthermore, the distribution is wider and it shows a small bump at the larger end.

Open with DEXTER
The three parameters log _{10}(R_{0}), log _{10}(σ_{0}), and log _{10}(I_{0}) enter directly into the fit of the fundamental plane. Therefore, the distribution of these parameter is especially important. The distribution of the logarithm of the physical radius R_{0} is shown in Figs. 11, B.41, and B.42. They show for almost all filters in all models sharp Gaussians with their peaks very close together for almost all filters and with comparable standard deviations (see Table C.8 for details). Nevertheless, the problems in u band, which we already encountered for the apparent corrected radius r_{cor}, are propagated and are even more striking here. In the case of the c model (Fig. B.41) and the dV model (Fig. 11), the distribution of log _{10}(R_{0}) is widened in the u band compared with the other filters. Moreover, its peak is shifted and the distribution shows a clear deviation from a Gaussian shape at its high end. For the p model (Fig. B.42), one can clearly see a two peaked distribution for the u band and also for the z band to some smaller extent. For these particular models and filters, one has to introduce a cut (or another method) to handle the second peak during the leastsquares fitting to avoid unwanted offsets.
Since the mean surface brightnesses μ_{0} are derived from r_{cor} (see Eq. (16)), one expects similar problems from them. Indeed, there are similar sharp Gaussians for all filters, but for the u for all models and for the p model, one may notice a doublepeaked distribution for the z band as well (see Figs. 12, B.39 and B.40).
Fig. 12 Distribution of the surface brightness μ_{0} in different filters for the dV model is close to a Gaussian shape. For the u band, the distribution is wider and shows a small bump at the faint end.

Open with DEXTER
Fig. 13 Distributions of the logarithm of the central velocity dispersion log _{10}(σ_{0}) in different filters for the c model and the dV model are almost exactly the same for all filters.

Open with DEXTER
The logarithm of the central velocity dispersion σ_{0} shows the same behaviour as the central velocity dispersion itself, as one can see in Figs. 13 and B.43. The shape of the distribution of log _{10}(σ_{0}) is not a perfect Gaussian, in contrast to the distributions of the previous parameters, but this does not have to be the case for the velocity dispersion distribution. Yet, the distributional shape is sufficiently regular (no double peaks or other strange features) to be used in a leastsquares fit without concerns.
Results of the best fits for the fundamentalplane coefficients in all filters and for all models using redshift evolution, volume weights, and 3σ clipping.
4.4. Coefficients of the fundamental plane
We performed a volumeweighted leastsquares fit in three dimensions (see Eq. (22)) to obtain the coefficients a, b, and c of the fundamental plane. The results for all parameters, filters, and models, are shown in Table 5. By definition (see Eq. (1)), the fundamental plane relates the logarithm of the physical radius log _{10}(R_{0}), the logarithm of the central velocity dispersion log _{10}(σ_{0}), and the renormalized surface brightness log _{10}(I_{0}) (see Eq. (17) for the relation between I_{0} and the surface brightness μ_{0}). We determined its coefficients and their standard errors as well as the root mean square s_{ε}. Furthermore, we determined an upper limit for the average distance error σ_{dist} by comparing the distances obtained with the fundamental plane to the redshiftbased calibration distances.
The error obtained by this comparison is a combination of the true average distance error σ_{dist}, a scatter afflicted by peculiar motions, and the finite measurement precision. Consequently, is an upper limit to the average distance error, with the true distance error expected to be up to a few percent lower. To estimate the contribution of peculiar motions to the average distance error, we made use of additional data. The catalogue of Tempel et al. (2012) provides redshifts to galaxies in groups and clusters, which are corrected for the FingerofGod effect. We picked a subsample that overlaps with our sample and in which every (elliptical) galaxy that we used, is in a group of at least 20 members to have a solid corrected redshift. By comparing the average distance errors of this subsample of 5013 galaxies, once using the redshifts of Tempel et al. (2012) and once the ones from SDSS, we noticed that there is no difference in the relevant digits between the fits using the FingerofGod corrected redshifts and those from SDSS. This agrees with a simple estimate one can make using the mean redshift of our entire sample, which corresponds to a velocity of about 34 000 km s^{1}. The typical peculiar velocities of galaxies are on the order of 400 km s^{1} (Masters et al. 2006). The average scatter on the sample inflicted due to peculiar motions is on the order of 1%. Using the propagation of uncertainty, this 1% does not significantly contribute to the overall ~15% error in the distance measurement.
For the fitting we used a recursive 3σ clipping to optimise the results. This reduced the number of galaxies in our selected sample by about 2000 galaxies to 92 994 for the c Model, to 92 953 for the dV Model and to 92 801 for the p model. Because of the problem with double peak in the distribution of the physical radii in the u and z band for the p model, we refitted the coefficients using a cut at log _{10}(R_{0}) of 1.5. This value corresponds to a physical radius R_{0} of slightly more than 30 kpc and is motivated by the bimodal distribution in Fig. B.42. The results of these refits are given in Table 5. As a consequence of this cut, we only used 73 914 galaxies for the u band and 91 187 galaxies for the z band.
Fig. 14 Comparison of the coefficients a (upper left panel), b (upper right panel), and c (lower left panel) and the root mean square s_{ε} (lower right panel) of the fundamental plane for all models and wavelengths. There are two additional data points for the p model, because we included the refitted coefficients after a cut in log _{10}(R_{0}) to remove wrong data points caused by problems discussed earlier in this paper. In general, the behaviour of the coefficients is similar for all models and only depends on the wavelength (notable exception the z band of the p model).

Open with DEXTER
A general comparison of the fit parameters and the distance error in Table 5 shows that the c model and the dV model are clearly better than the p model. Moreover, the upper limit of the average distance error is almost exactly the same for the c model and the dV model, and so are the fitting parameters a, b, and c. We found only small differences beyond the relevant digits. Furthermore, we found that though the root mean square s_{ε} is smallest in the i band, the average distance error decreases with longer wavelengths and is smallest in the z band. In addition to that, the coefficients of the fundamental plane show clear tendencies correlated with the wavelength. The coefficient a increases with long wavelengths, while the other coefficients b and c in general decrease with longer wavelengths. These dependencies are illustrated for all models in Fig. 14 and hold quite well, save for the two problematic filters u and z in the p model. Figures 15, 16, and B.44 to B.56 show projections of the fundamental plane for all filters and all models. In Fig. B.52, one can see a split distribution of two clouds, which is also due to the problems with the p model and the u filter as well. A similar, but smaller, problem occurs for the z filter of the p model (see Fig. B.56), too.
Fig. 15 Projection of the fundamental plane for the i band of the dV model. The root mean square is smallest for this particular filter and model.

Open with DEXTER
Fig. 16 Projection of the fundamental plane for the z band of the dV model. The averaged distance error is smallest for this particular filter and model.

Open with DEXTER
5. Discussion
5.1. Comparison with alternative fits
In addition to the main fit (for the resulting coefficients see Table 5), which considered redshift evolution and made use of volume weights to correct for the Malmquist bias and a recursive 3σ clipping, we performed additional fits to test features of the code and assumptions we made. A visual comparison of the different fundamental plane fits of the i band for the dV model is shown in Fig. 17.
Fig. 17 Results for the fundamental plane in the i band for the dV model using our alternatives fits. The plot in the topleft panel does not include the Malmquist bias. We did not perform a 3σ clipping for the plot in the topmiddle panel. The plot in the topright panel excludes the redshift evolution. The results of the volumelimited sample (z < 0.0513) can be found in the centralleft panel. The centralmiddle panel contains a plot of the default i band fit for the dV model for comparison. We are considering the surface brightness evolution instead of the redshift evolution derived form galaxy number densities in the centralright panel. In the bottomleft panel, the results are shown for an extended sample up to z = 0.3. The fundamental plane plotted using the coefficients of Bernardi et al. (2003c), but with our sample data is displayed in the bottommiddle panel. A similar plot using the coefficients of Hyde & Bernardi (2009) can be found in the bottomright panel.

Open with DEXTER
We provide in Table C.9 the fitting results obtained without a 3σ clipping. The change in values of the coefficient is marginal, and the quality of the fit (not surprisingly) is a little poorer than with clipping. Removing outliers is important for the calibrations, because we do not want our coefficients to be influenced by them.
We also considered the case without corrections for the Malmquist bias: Table C.10 shows the results of the fitting process with the volume weights turned off. Although the root mean square decreases and the fundamental plane appears to be narrower, its quality as a distance indicator clearly decreases when not correcting for the Malmquist bias. It can be seen in Fig. 17 that the fit of the fundamental plane lies directly in the centre of the cloud of data points, if the Malmquist bias is not corrected for by volume weights, while in all other cases (except in the volumelimited sample, which is not affected by a Malmquist bias by definition) the best fit is always slightly above the centre of the cloud.
To test the Malmquistbias correction further, we calculated the fundamentalplane coefficients for a volumelimited subsample that does not require any corrections. Making use of Eq. (6) and the results of the corresponding fit, we calculated the redshift distance for which our sample is still to ~95.45% complete (corresponding to 2σ). This is the case up to a redshift of z = 0.0513, which significantly reduces the number of galaxies in the sample. The c model contains only 7259 galaxies after fitting the fundamentalplane coefficients, the dV model only 7257, and the p model only 7267. We note that the average distance error is by about 2.5 percentage point larger than for the main fit. Although the best fit is going through the centre of the cloud of data points in the same way as for the Malmquistbiased fit (see Fig. 17), the coefficients (see Table C.14) are clearly less tilted than those of the Malmquist biased fit (see Table C.10). In fact, the coefficients of the volumelimited sample are relatively close (though in general slightly less tilted) than those of the main fit using the Malmquist bias correction (see Table 5). This correspondence suggests that the Malmquist bias is handled well by the correction, and therefore our magnitudelimited sample can be used with the correction like a volumelimited sample.
In contrast to the smaller volumelimited sample, we extended our sample to a redshift of 0.3, despite the additional bias beyond z = 0.2, which we found in Sect. 4.1. We used 97 341 galaxies for the c model, 97 309 for the dV model, and 97 050 for the p model. The results of the fit are listed in Table C.15. We found that the quality of this fit is only marginally poorer than of the main fit (sometimes beyond the relevant digits). However, since the number of additional galaxy in the redshift range between 0.2 and 0.3 is rather small (slightly more than 4000) compared with the sample size, and because these galaxies are the most luminous part of the sample and therefore have relatively small statistic weights, it is not surprising that the differences between the main fit and this are so small, in spite of the additional bias.
The correction for the redshift evolution that we used for the main fit simply takes the evolutionary parameter Q, whose value was derived in Sect. 2.2. This is 1.07 mag per z, and this value is only based on the redshift distribution of the observed galaxy number density. Therefore, it is independent of any filter. However, we investigated how the coefficients of the fundamental plane and the quality of the fit changed without considering redshift evolution. The results are listed in Table C.11. We found that the upper limit of the average distance error is about one percentage point higher for the nonevolutioncorrected fit than for the main fit. However, the coefficients of the fundamental plane are less tilted for the nonevolutioncorrected fit, therefore it is possible that the details of handling the passive evolution of elliptical galaxies might contribute to the slightly less tilted coefficients (compared with our main fit) in the literature (see Table 1).
We also considered an alternative method of deriving the redshift evolution. For this, we analysed the redshift distribution of the surface brightness in our sample. The surface brightness (if properly corrected for the cosmological dimming) should be a distance, and consequently redshiftindependent quantity. However, if the galaxies evolve, one expects different mean surface brightnesses in different redshift bins. We performed a Malmquistbiascorrected fit to the redshift distribution of the (nonevolutioncorrected) surfaces brightness in all filters and for all models. The results are listed in Table C.13, and a set of graphic examples of the redshift evolution (for the dV model) is shown in Figs. B.57 to B.61. These evolutionary parameters are surface brightnesses per redshift and not magnitudes per redshift, but they enter the calibration at a point at which these two are mathematically equivalent. The numeric value of these new Q parameters is at least twice as high as of the one derived by galaxy number densities, since this evolution does not only take into account changes of the absolute magnitude of the galaxies over time, but also possible changes in the radial extension of the galaxies. Furthermore, these values are different for every filter, which is more realistic because one may expect some changes not only in the luminosities, but in the colours of the galaxies. The results of the fundamental plane fit using these Q parameters from Table C.13 can be found in Table C.12. We found that the coefficient of this fit indicates a slightly more tilted fundamental plane than for the main fit. However, the average distance error is smaller by about half a percentage point for all filters and models for the surface brightness evolution fit.
5.2. Comparison with the literature
We compared our results with those from the literature. To this end, we used our selected sample of about 95 000 galaxies and the derived fundamentalplane parameters log _{10}(R_{0}), log _{10}(σ_{0}), and log _{10}(I_{0}) and see how well the fundamental plane with coefficients from the literature fits them. We used the directfit coefficients from the two works that best match our own, which are Bernardi et al. (2003c) and Hyde & Bernardi (2009), and derived the root mean square s_{ε} and the distance error from our sample and their coefficients. The results of this analysis can be found in Table C.7. Our newly derived coefficients are shown to provide a by a distance estimate couple of percentage points better than the previous ones. We point out that we used the same redshift evolutions for their samples as were given in the references. Furthermore, one can see in Fig. 17 that the location of the fundamental plane in Bernardi et al. (2003c) and Hyde & Bernardi (2009) is similarly slightly above the centre of the cloud of data points, as in our fits. As already mentioned before, this is due to the Malmquistbias correction.
An overall visual comparison between the different fits of the fundamental plane performed by us can be found in Fig. 17. Furthermore, we compare the upper limit of the average distance error of each fit or recalculation (Bernardi et al. 2003c and Hyde & Bernardi 2009 coefficients) in Fig. 18.
In addition to the fits of the fundamental plane, we studied the redshift distribution of the elliptical galaxies. We found a comoving number density of elliptical galaxies in the universe of 7 × 10^{4} per , which is about 35% of the value derived in Bernardi et al. (2003b), who reported (2.0 ± 0.1) × 10^{3} per . We attribute this difference to the different underlying selection functions of the two samples. If we were to accept all 170 962 candidates for elliptical galaxies obtained from GalaxyZoo as true ellipticals, our average comoving number density would increase by about 85% to 1.3 × 10^{3} per (Mpc h^{1})^{3} in Fig. 6, which is closer to, albeit still clearly below, the value of Bernardi et al. (2003b). When comparing the fractions of SDSS galaxies with spectroscopic data that are classified as ellipticals, our overall selection criteria including GalaxyZoo are slightly stricter than those of Bernardi et al. (2003a). Our selected sample consists of ~95 000 galaxies taken from a total of ~852 000 SDSS DR8 galaxies with proper spectroscopic data. This yields a fraction of about 11%, somewhat lower than the about 14% obtained by Bernardi et al. (2003a), who classified ~9000 galaxies as ellipticals of a total of ~65 000 galaxies, for which spectroscopic and photometric data was provided by SDSS at that time. We thus conclude that differences in selection strictness work towards closing the gap between the higher density estimate by Bernardi et al. (2003b) and our data, even though they cannot directly explain the full difference. We note that our value is consistent with the luminosity function analysis in Sect. 4.2.
Fig. 18 Comparison of the upper limits of the average distance error for all performed fits for all filters of the dV model.

Open with DEXTER
We found the same overdensities in the number counts by redshift as Bernardi et al. (2003b). We identify one as being associated with the CfA2Great Wall around a redshift of 0.029 (Geller & Huchra 1989) and another related to the Sloan Great Wall around a redshift of 0.073 (Gott et al. 2005). In addition to that, we confirm a peak in the number count of elliptical galaxies around 0.13, which has previously been reported in Bernardi et al. (2003b), but was not investigated in detail. Another result we obtained by analysing the redshift distribution of sample is the evolution parameter Q. The parameter derived just from the galaxy number densities within the sample should be an averaged estimate for all bands. Our fit yields a Q of 1.07 mag (per z), which is similar to the values of Bernardi et al. (2003b). In an alternative approach on deriving the redshift evolution, we used the redshift distribution of the surface brightnesses of the galaxies in our sample, which yielded significantly higher values (see Table C.13) than our first approach and the values of Bernardi et al. (2003b) and Hyde & Bernardi (2009).
5.3. Correlations of the residuals
The fundamental plane was fitted independently in every filter. One does not necessarily expect any correlation between the residuals Δ_{f} (see Eq. (40) for the definition) of the fundamental plane for different filters f due to our methodology. However, a significant correlation between the residuals of different filters may still exist if the thickness of the fundamental plane is mainly caused by real deviations of the parameters and not by errors in the measurement of these parameters, (40)The strength of the correlation between the residuals of the fundamental plane in different filters is strikingly important, especially when one plans on using the fundamental plane as distance indicator. If the correlation between the residuals in different filters is found to be low, one will be able to treat the distances obtained by the fundamental plane in different filters as independent measurements and will be able to achieve a better distance estimate by combining them than by using just data from one filter. We can quantify the correlation strength by calculating the linear correlation coefficients r_{f1,f2} for all possible combinations of filters. (41)The linear correlation coefficient r_{f1,f2} for the two filters f_{1} and f_{2} can be calculated using the residuals of the fundamental plane Δ_{f} and their averages of the corresponding filters f. For perfectly linearly correlated data points, the coefficient r_{f1,f2} is equal to one and for totally uncorrelated data points, it is zero. We found that the residuals of the fundamental plane of different filters are strongly correlated, as illustrated in Fig. 19 using the example of the i and z band residuals of the dV model. The corresponding plots for all other combinations of filters for the same model are displayed in Figs. B.70 to B.78. The linear correlation coefficients for all filters and models are listed in Table 6. The values are very close to one, which indicates tight correlations. The correlations are slightly weaker, yet very strong for the p model, because the parameters of the fundamental plane have a larger scatter in this model and consequently the larger random errors dampen the correlation somewhat. The same is true for the correlation between the u band and any other filter. Therefore, relative values of the linear correlation coefficients agree with our previous findings about the u band and the p model parameters.
Fig. 19 Tight correlation between the residuals of the fundamental plane in the i band Δ_{i} and of those in the z band Δ_{z} can be easily seen in this plot. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Furthermore, the correlation coefficients decrease with greater differences in the wavelength of two filters, which is not surprising, because one may expect lower correlation the more different the bands are. We found that the correlation between the filters is too strong to enhance the quality of the distance measurement by combining different filters. In fact, every possible combination of the fundamental plane distances obtained by two and more filters yields a greater average distance error than using the best filter (z band) alone. This means that on average, if the parameters of a galaxy are located away from the fundamental plane in one filter, they are most likely similarly displaced in all other filters as well. This shows that the width of the fundamental plane does not primarily originate in measurement uncertainties of the required parameter, but in the intrinsic properties of the elliptical galaxies. The origin of this scatter is widely discussed in the literature. The theoretical derivation of the fundamental plane assumes a primary pressuresupported system. Nevertheless, it is known that elliptical galaxies are partially rotationsupported (Burkert et al. 2008), too, and a variation in the fraction of pressure and rotational support can lead to inaccuracies in the mass estimates, which finally manifest themselves in the scatter of the fundamental plane. However, this effect alone does not seem to be sufficient to explain the entire scatter (Prugniel & Simien 1996; Oñorbe et al. 2005). Other explanations or contributing factors are the age (Forbes et al. 1998) and variations in the stellar population parameters (Gargiulo et al. 2009), which are also considered as an explanation for the tilt of the fundamental plane by some authors (La Barbera et al. 2008; Trujillo et al. 2004), and the merger history (Hopkins et al. 2008). An extensive study on the details of the origin of the scatter and the tilt of the fundamental plane is beyond the scope of this paper.

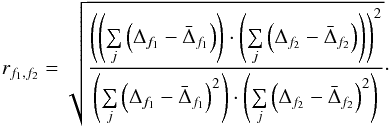

Linear correlation coefficients of the fundamentalplane residuals for all possible combinations of the five SDSS filters.
6. Summary and conclusions
We analysed a sample of about 93 000 elliptical galaxies taken from SDSS DR8. It forms the largest sample used for the calibration of the fundamental plane so far (roughly twice as large as the previous largest sample of Hyde & Bernardi 2009). Furthermore, we used the highquality Kcorrections by Chilingarian et al. (2010). We also used GalaxyZoo data (Lintott et al. 2011) to classify SDSS galaxies. A direct fit using a volumeweighted leastsquares method was applied to obtain the coefficients of the fundamental plane because we plan on using the fundamental plane as a distance indicator in the subsequent work. We achieved an accuracy in the distance measurement of about 15%. In addition to the fundamental plane, we studied the redshift distribution of the elliptical galaxies and the distribution of their global parameters such as the luminosity function. All data files and the source code to reproduce our results are available upon request from the authors.
We found a comoving number density of 7 × 10^{4} per for elliptical galaxies that qualify for our sample. Furthermore, in the analysis of the redshift distribution of the galaxies in our sample, we detected the same overdensities in the number counts by redshift as Bernardi et al. (2003b). One was identified as being associated with the CfA2Great Wall (Geller & Huchra 1989) and another is related to the Sloan Great Wall (Gott et al. 2005). In addition to these two wellknown overdensities, we confirm a peak in the number count of elliptical galaxies around 0.13, which has previously been reported in Bernardi et al. (2003b), but was not investigated in detail. Moreover, we derived an evolution parameter Q for elliptical galaxies of 1.07 mag (per z), which is similar to the values of Bernardi et al. (2003b).
In addition to the results of our main fit, which are listed in Table 5, we provided a detailed analysis of the calibrations we made and their influence on the quality of the fitting process. We studied the effects of neglecting the Malmquistbias correction, the 3σ clipping, or the redshift evolution correction. We also investigated changes in the parameters after using an alternative redshift evolution, a volumelimited sample, or an extended sample.
To compare our calibrations with the literature, we calculated the root mean square and the upper limit of the average distance error using the coefficients and evolution parameters of Bernardi et al. (2003c) and Hyde & Bernardi (2009), but with the galaxies and parameters of our sample. We picked these two papers, because their work is the most similar to our own. The results can be found in Table C.7, and one can easily see that our main fit (see Table 5) provides a better distance indicator by a couple of percentage points.
We investigated the correlation between the fundamentalplane residuals and found that they correlated too strongly to use a combination of the five independent fits (one for every filter) to reduce the overall scatter by combining two or more of them.
We found that in general the quality of the fundamental plane as a distance indicator increases with the wavelength, although the root mean square has its minimum in the SDSS i band. The upper limit of the average distance error is in general lowest in the z band, as one can see in Fig. 18. Furthermore, we found that the tilt of the fundamental plane (for the c and dV model) becomes smaller in the redder filters, as illustrated in Fig. 14. In our analysis, we learned that the dV model did best when considering the root mean square and the average distance error. It uses the pure de Vaucouleursmagnitudes and radii. The c model (using composite magnitudes of a de Vaucouleurs and an exponential fit) only performed insignificantly worse, which indicates that the galaxies in our sample are very well described by de Vaucouleurs profiles. This finding is an expected feature of elliptical galaxies and tells us that our sample is very clean (the contamination by nonelliptical galaxies is insignificantly low). By comparing them to the results of the p model, we can instantly see that the Petrosian magnitudes and radii in SDSS provide poorer fits and cause a larger scatter. Therefore, we recommend only using the pure de Vaucouleurs magnitudes and radii together with our coefficients for them (see Table 5) and, if possible, the z or the i band for applications of the fundamental plane. Moreover, we strongly discourage the use of the u band due to known problems and the resulting lower quality of the results for this filter.
We also found that our coefficients are similar to other direct fits of the fundamental plane of previous authors (see Table 1) (though the a coefficient is slightly lower in our case, therefore the fundamental plane is more tilted), but due to our larger sample, we managed to achieve a yet unmatched accuracy.
In future work, we plan on using the fundamental plane to obtain redshiftindependent distances for a large sample of elliptical galaxies from the SDSS. We will use those distances in combination with redshift data to derive peculiar velocities, which will form the basis of a cosmological test outlined in Saulder et al. (2012). We will investigate the dependence of the Hubble parameter of individual galaxies or clusters on the line of sight mass density towards these objects, and compare this with predictions of cosmological models.
Afterwards the SDSStelescope was refitted with new smaller (1 arcsec radius) fibres for BOSS (Ahn et al. 2012).
Actually PhotoObj.cModelMag_filter, to be consistent with Sect. 2.1, but we use this short notation and similar abbreviations here.
Acknowledgments
Funding for SDSSIII has been provided by the Alfred P. Sloan Foundation, the Participating Institutions, the National Science Foundation, and the US Department of Energy Office of Science. The SDSSIII web site is http://www.sdss3.org/. SDSSIII is managed by the Astrophysical Research Consortium for the Participating Institutions of the SDSSIII Collaboration including the University of Arizona, the Brazilian Participation Group, Brookhaven National Laboratory, University of Cambridge, Carnegie Mellon University, University of Florida, the French Participation Group, the German Participation Group, Harvard University, the Instituto de Astrofisica de Canarias, the Michigan State/Notre Dame/JINA Participation Group, Johns Hopkins University, Lawrence Berkeley National Laboratory, Max Planck Institute for Astrophysics, Max Planck Institute for Extraterrestrial Physics, New Mexico State University, New York University, Ohio State University, Pennsylvania State University, University of Portsmouth, Princeton University, the Spanish Participation Group, University of Tokyo, University of Utah, Vanderbilt University, University of Virginia, University of Washington, and Yale University. C.S. acknowledges the support from an ESO studentship. I.C. acknowledges the support from the Russian Federation President’s grant MD3288.2012.2. This research made use of the “Kcorrections calculator” service available at http://kcor.sai.msu.ru/. I.C. acknowledges kind support from the ESO Visitor Program. The publication is supported by the Austrian Science Fund (FWF).
References
 Ahn, C. P., Alexandroff, R., Allen de Prieto, C., et al. 2012, ApJS, 203, 21 [NASA ADS] [CrossRef] [Google Scholar]
 Aihara, H., Allen de Prieto, C., An, D., et al. 2011, ApJS, 193, 29 [NASA ADS] [CrossRef] [Google Scholar]
 Bernardi, M., Sheth, R. K., Annis, J., et al. 2003a, AJ, 125, 1817 [NASA ADS] [CrossRef] [Google Scholar]
 Bernardi, M., Sheth, R. K., Annis, J., et al. 2003b, AJ, 125, 1849 [NASA ADS] [CrossRef] [Google Scholar]
 Bernardi, M., Sheth, R. K., Annis, J., et al. 2003c, AJ, 125, 1866 [NASA ADS] [CrossRef] [Google Scholar]
 Bernardi, M., Sheth, R. K., Annis, J., et al. 2003d, AJ, 125, 1882 [NASA ADS] [CrossRef] [Google Scholar]
 Burkert, A., Naab, T., Johansson, P. H., & Jesseit, R. 2008, ApJ, 685, 897 [NASA ADS] [CrossRef] [Google Scholar]
 Busarello, G., Capaccioli, M., Capozziello, S., Longo, G., & Puddu, E. 1997, A&A, 320, 415 [NASA ADS] [Google Scholar]
 Busarello, G., Lanzoni, B., Capaccioli, M., et al. 1998, Mem. Soc. Astron. It., 69, 217 [NASA ADS] [Google Scholar]
 Butkevich, A. G., Berdyugin, A. V., & Teerikorpi, P. 2005, MNRAS, 362, 321 [NASA ADS] [CrossRef] [Google Scholar]
 Cappellari, M., Bacon, R., Bureau, M., et al. 2006, MNRAS, 366, 1126 [NASA ADS] [CrossRef] [Google Scholar]
 Chilingarian, I. V., & Zolotukhin, I. Y. 2012, MNRAS, 419, 1727 [NASA ADS] [CrossRef] [Google Scholar]
 Chilingarian, I. V., Melchior, A., & Zolotukhin, I. Y. 2010, MNRAS, 405, 1409 [NASA ADS] [CrossRef] [Google Scholar]
 Ciotti, L., Lanzoni, B., & Renzini, A. 1996, MNRAS, 282, 1 [NASA ADS] [CrossRef] [Google Scholar]
 Colless, M., Saglia, R. P., Burstein, D., et al. 2001, MNRAS, 321, 277 [NASA ADS] [CrossRef] [Google Scholar]
 de Carvalho, R. R., & Djorgovski, S. 1992, ApJ, 389, L49 [NASA ADS] [CrossRef] [Google Scholar]
 Djorgovski, S., & Davis, M. 1987, ApJ, 313, 59 [NASA ADS] [CrossRef] [Google Scholar]
 D’Onofrio, M., Valentinuzzi, T., Secco, L., Caimmi, R., & Bindoni, D. 2006, New Astron. Rev., 50, 447 [NASA ADS] [CrossRef] [Google Scholar]
 D’Onofrio, M., Fasano, G., Varela, J., et al. 2008, ApJ, 685, 875 [NASA ADS] [CrossRef] [Google Scholar]
 Dressler, A., LyndenBell, D., Burstein, D., et al. 1987, ApJ, 313, 42 [NASA ADS] [CrossRef] [Google Scholar]
 Faber, S. M., & Jackson, R. E. 1976, ApJ, 204, 668 [NASA ADS] [CrossRef] [Google Scholar]
 Fathi, K., Allen, M., Boch, T., Hatziminaoglou, E., & Peletier, R. F. 2010, MNRAS, 406, 1595 [NASA ADS] [Google Scholar]
 Forbes, D. A., Ponman, T. J., & Brown, R. J. N. 1998, ApJ, 508, L43 [NASA ADS] [CrossRef] [Google Scholar]
 FraixBurnet, D., Dugué, M., Chattopadhyay, T., Chattopadhyay, A. K., & Davoust, E. 2010, MNRAS, 407, 2207 [NASA ADS] [CrossRef] [Google Scholar]
 Gargiulo, A., Haines, C. P., Merluzzi, P., et al. 2009, MNRAS, 397, 75 [NASA ADS] [CrossRef] [Google Scholar]
 Geller, M. J., & Huchra, J. P. 1989, Science, 246, 897 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
 Gibbons, R. A., Fruchter, A. S., & Bothun, G. D. 2001, AJ, 121, 649 [NASA ADS] [CrossRef] [Google Scholar]
 Gott,III, J. R., Jurić, M., Schlegel, D., et al. 2005, ApJ, 624, 463 [NASA ADS] [CrossRef] [Google Scholar]
 Graham, A., & Colless, M. 1997, MNRAS, 287, 221 [NASA ADS] [CrossRef] [Google Scholar]
 Guzman, R., Lucey, J. R., & Bower, R. G. 1993, MNRAS, 265, 731 [NASA ADS] [CrossRef] [Google Scholar]
 Hinshaw, G., Weiland, J. L., Hill, R. S., et al. 2009, ApJS, 180, 225 [NASA ADS] [CrossRef] [Google Scholar]
 Hopkins, P. F., Cox, T. J., & Hernquist, L. 2008, ApJ, 689, 17 [NASA ADS] [CrossRef] [Google Scholar]
 Hubble, E., & Tolman, R. C. 1935, ApJ, 82, 302 [NASA ADS] [CrossRef] [Google Scholar]
 Hudson, M. J., Lucey, J. R., Smith, R. J., & Steel, J. 1997, MNRAS, 291, 488 [NASA ADS] [CrossRef] [Google Scholar]
 Hyde, J. B., & Bernardi, M. 2009, MNRAS, 396, 1171 [NASA ADS] [CrossRef] [Google Scholar]
 Jorgensen, I., Franx, M., & Kjaergaard, P. 1995, MNRAS, 276, 1341 [NASA ADS] [Google Scholar]
 Jorgensen, I., Franx, M., & Kjaergaard, P. 1996, MNRAS, 280, 167 [NASA ADS] [CrossRef] [Google Scholar]
 Kelson, D. D., Illingworth, G. D., van Dokkum, P. G., & Franx, M. 2000, ApJ, 531, 184 [NASA ADS] [CrossRef] [Google Scholar]
 Kormendy, J. 1977, ApJ, 218, 333 [NASA ADS] [CrossRef] [Google Scholar]
 La Barbera, F., Busarello, G., Merluzzi, P., et al. 2008, ApJ, 689, 913 [NASA ADS] [CrossRef] [Google Scholar]
 La Barbera, F., de Carvalho, R. R., de La Rosa, I. G., & Lopes, P. A. A. 2010a, MNRAS, 408, 1335 [NASA ADS] [CrossRef] [Google Scholar]
 La Barbera, F., Lopes, P. A. A., de Carvalho, R. R., de La Rosa, I. G., & Berlind, A. A. 2010b, MNRAS, 408, 1361 [NASA ADS] [CrossRef] [Google Scholar]
 Lintott, C. J., Schawinski, K., Slosar, A., et al. 2008, MNRAS, 389, 1179 [NASA ADS] [CrossRef] [Google Scholar]
 Lintott, C., Schawinski, K., Bamford, S., et al. 2011, MNRAS, 410, 166 [NASA ADS] [CrossRef] [Google Scholar]
 Lucey, J. R., Bower, R. G., & Ellis, R. S. 1991, MNRAS, 249, 755 [NASA ADS] [Google Scholar]
 Magoulas, C., Springob, C. M., Colless, M., et al. 2012, MNRAS, 427, 245 [NASA ADS] [CrossRef] [Google Scholar]
 Masters, K. L., Springob, C. M., Haynes, M. P., & Giovanelli, R. 2006, ApJ, 653, 861 [NASA ADS] [CrossRef] [Google Scholar]
 Müller, K. R., Freudling, W., Watkins, R., & Wegner, G. 1998, ApJ, 507, L105 [NASA ADS] [CrossRef] [Google Scholar]
 Oñorbe, J., DomínguezTenreiro, R., Sáiz, A., Serna, A., & Artal, H. 2005, ApJ, 632, L57 [NASA ADS] [CrossRef] [Google Scholar]
 Pahre, M. A., Djorgovski, S. G., & de Carvalho, R. R. 1996, ApJ, 456, L79 [NASA ADS] [CrossRef] [Google Scholar]
 Pahre, M. A., Djorgovski, S. G., & de Carvalho, R. R. 1998, AJ, 116, 1591 [NASA ADS] [CrossRef] [Google Scholar]
 Prugniel, P., & Simien, F. 1996, A&A, 309, 749 [NASA ADS] [Google Scholar]
 Sandage, A., & Perelmuter, J.M. 1990a, ApJ, 350, 481 [NASA ADS] [CrossRef] [Google Scholar]
 Sandage, A., & Perelmuter, J.M. 1990b, ApJ, 361, 1 [NASA ADS] [CrossRef] [Google Scholar]
 Sandage, A., & Perelmuter, J.M. 1991, ApJ, 370, 455 [NASA ADS] [CrossRef] [Google Scholar]
 Saulder, C., Mieske, S., & Zeilinger, W. W. 2012 [arXiv:1211.1926] [Google Scholar]
 Schlegel, D. J., Finkbeiner, D. P., & Davis, M. 1998, ApJ, 500, 525 [NASA ADS] [CrossRef] [Google Scholar]
 Scodeggio, M., Gavazzi, G., Belsole, E., Pierini, D., & Boselli, A. 1998, MNRAS, 301, 1001 [NASA ADS] [CrossRef] [Google Scholar]
 Sheth, R. K., & Bernardi, M. 2012, MNRAS, 422, 1825 [NASA ADS] [CrossRef] [Google Scholar]
 Smith, R. J., Lucey, J. R., Schlegel, D. J., et al. 2001, MNRAS, 327, 249 [NASA ADS] [CrossRef] [Google Scholar]
 Stoughton, C., Lupton, R. H., Bernardi, M., et al. 2002, AJ, 123, 485 [NASA ADS] [CrossRef] [Google Scholar]
 Strauss, M. A., Weinberg, D. H., Lupton, R. H., et al. 2002, AJ, 124, 1810 [NASA ADS] [CrossRef] [Google Scholar]
 Tempel, E., Tago, E., & Liivamägi, L. J. 2012, A&A, 540, A106 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Terlevich, R., Davies, R. L., Faber, S. M., & Burstein, D. 1981, MNRAS, 196, 381 [NASA ADS] [CrossRef] [Google Scholar]
 Tolman, R. C. 1930, Proc. Nat. Acad. Sci., 16, 511 [NASA ADS] [CrossRef] [Google Scholar]
 Trujillo, I., Burkert, A., & Bell, E. F. 2004, ApJ, 600, L39 [NASA ADS] [CrossRef] [Google Scholar]
 Wegner, G., Colless, M., Saglia, R. P., et al. 1999, MNRAS, 305, 259 [NASA ADS] [CrossRef] [Google Scholar]
Online material
List of previous publications (we do not claim completeness) of fundamental plane coefficients, based on the list of Magoulas et al. (2012), which is itself based on the lists of Bernardi et al. (2003c) and Colless et al. (2001).
Appendix A: Redshift correction for the motion relative to the CMB
The observed redshift z is in the rest frame of our solar system, but for cosmological and extragalactic application, one requires a corrected redshift z_{cor}, which is in the same rest frame as the CMB. (A.1)The solar system moves into the direction of l_{cmb} = 263.99° ± 0.14°b_{cmb} = 48.26° ± 0.03° (galactic coordinates) with a velocity of v_{cmb} = (369.0 ± 0.9) km s^{1} (Hinshaw et al. 2009). The first step required for this correction is to calculate the redshift space vector of our motion relative to the CMB . (A.2)Then we translate the coordinates (l, b, z) of the observed galaxies into Cartesian coordinates into redshift space . In the next step, we perform a vector addition,
Now we project the vector onto the line of sight and obtain the corrected (for our motion relative to the CMB) redshift z_{cor}. The corrected redshifts z_{cor} are in the same rest frame as the CMB and can be used to calculate distances using the Hubble relation.
Appendix B: Additional figures
Fig. B.1 Malmquist bias in the u band for the c model parameters is indicated by the black solid line of our fit. Due to the larger scatter in the u band, the fit is not as tight as for the other filters.

Open with DEXTER
Fig. B.2 Malmquist bias in the g band for the c model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.3 Malmquist bias in the r band for the c model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.4 Malmquist bias in the i band for the c model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.5 Malmquist bias in the z band for the c model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.6 Malmquist bias in the u band for the dV model parameters is indicated by the black solid line of our fit. Due to the larger scatter in the u band, the fit is not as tight as for the other filters.

Open with DEXTER
Fig. B.7 Malmquist bias in the g band for the dV model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.8 Malmquist bias in the r band for the dV model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.9 Malmquist bias in the i band for the dV model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.10 Malmquist bias in the z band for the dV model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.11 Malmquist bias in the u band for the p model parameters is indicated by the black solid line of our fit. Due to the larger scatter in the u band, the fit is not as tight as for the other filters.

Open with DEXTER
Fig. B.12 Malmquist bias in the g band for the p model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.13 Malmquist bias in the r band for the p model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.14 Malmquist bias in the i band for the p model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.15 Malmquist bias in the z band for the p model parameters is indicated by the black solid line of our fit.

Open with DEXTER
Fig. B.16 Luminosity function for our sample in the u band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.17 Luminosity function for our sample in the g band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.18 Luminosity function for our sample in the r band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.19 Luminosity function for our sample in the i band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.20 Luminosity function for our sample in the z band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.21 Luminosity function for our sample in the u band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.22 Luminosity function for our sample in the g band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.23 Luminosity function for our sample in the i band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.24 Luminosity function for our sample in the z band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.25 Luminosity function for our sample in the u band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.26 Luminosity function for our sample in the g band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.27 Luminosity function for our sample in the r band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.28 Luminosity function for our sample in the i band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.29 Luminosity function for our sample in the z band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
Fig. B.30 Comparison of the luminosity functions in different filters for the c model. Although their shapes stay approximately the same, the peaks move to higher luminosities with redder filters. The short lines in the upper part of the plot indicate the Malmquistbiascorrected mean magnitudes of our sample in the corresponding filters.

Open with DEXTER
Fig. B.31 Comparison of the luminosity functions in different filters for the dV model. Although their shapes stay approximately the same, the peaks move to higher luminosities with redder filters. The short lines in the upper part of the plot indicate the Malmquistbiascorrected mean magnitudes of our sample in the corresponding filters.

Open with DEXTER
Fig. B.32 Comparison of the luminosity functions in different filters for the p model. Although their shapes stay approximately the same, the peaks move to higher luminosities with redder filters. The short lines in the upper part of the plot indicate the Malmquistbiascorrected mean magnitudes of our sample in the corresponding filters.

Open with DEXTER
Fig. B.33 Distribution of the apparent corrected radius r_{cor} is displayed in different filters for the p model. The measured radii of this model are clearly larger than those of the dV model. Furthermore, the distribution is extremely spread out in the u band due to known problems in this filter.

Open with DEXTER
Fig. B.34 Central velocity dispersion σ_{0} for different filters (only slightly different in all of them due to the small correction for the fixed fibre diameters) for the c and the dV model. One can clearly see the cutoff of at 100 km s^{1}, which has been introduced to avoid the contamination of our sample.

Open with DEXTER
Fig. B.35 Central velocity dispersion σ_{0} for different filters (only slightly different in all of them due to the small correction for the fixed fibre diameters) for the p model. One can clearly see the cutoff of at 100 km s^{1}, which has been introduced to avoid the contamination of our sample.

Open with DEXTER
Fig. B.36 Distribution of extinction and Kcorrected apparent magnitudes m_{app} in different filters for the c model, showing a steady increase in numbers until the steep cutoff at the sample’s limiting magnitudes, which are listed in Table 3.

Open with DEXTER
Fig. B.37 Distribution of extinction and Kcorrected apparent magnitudes m_{app} in different filters for the dV model, showing a steady increase in numbers until the steep cutoff at the sample’s limiting magnitudes, which are listed in Table 3.

Open with DEXTER
Fig. B.38 Distribution of extinction and Kcorrected apparent magnitudes m_{app} in different filters for the p model, showing a steady increase in numbers until the steep cutoff at the sample’s limiting magnitudes, which are listed in Table 3.

Open with DEXTER
Fig. B.39 Distribution of the surface brightness μ_{0} in different filters for the c model showing an almost Gaussian shape. For the u band, the distribution is wider and shows a small bump at the faint end.

Open with DEXTER
Fig. B.40 Distribution of the surface brightness μ_{0} in different filters for the p model shows some peculiar features in the u band and to some smaller extent in z band as well. In these two filters, one can see a clear second peak on the faint side of the main Gaussian.

Open with DEXTER
Fig. B.41 Distributions of the logarithm of the physical radius log _{10}(R_{0}) in different filters for the c model are well described by sharp Gaussian with their peaks almost exactly at the same value. Only the u band shows some digressive behaviour. In this case the peak is smaller and set apart from the other. Furthermore, the distribution is wider and shows a small bump at the larger end.

Open with DEXTER
Fig. B.42 Distributions of the logarithm of the physical radius log _{10}(R_{0}) in different filters for the p model are well described by sharp Gaussian with their peaks almost exactly at the same value. However, the u band shows a peculiar second peak aside the consequently smaller (in comparison to the other filters) main one. In addition to this deviation, the z band distribution has a small bump at its larger end.

Open with DEXTER
Fig. B.43 Distributions of the logarithm of the central velocity dispersion log _{10}(R_{0}) in different filters for the p model are almost exactly the same for all filters. They show an general abundance (compared with a perfect Gaussian) of galaxies at the lower end, which might indicate some residual contamination of the sample.

Open with DEXTER
Fig. B.44 Projection of the fundamental plane for the u band of the c model.

Open with DEXTER
Fig. B.45 Projection of the fundamental plane for the g band of the c model.

Open with DEXTER
Fig. B.46 Projection of the fundamental plane for the r band of the c model.

Open with DEXTER
Fig. B.47 Projection of the fundamental plane for the i band of the c model.

Open with DEXTER
Fig. B.48 Projection of the fundamental plane for the z band of the c model.

Open with DEXTER
Fig. B.49 Projection of the fundamental plane for the u band of the dV model.

Open with DEXTER
Fig. B.50 Projection of the fundamental plane for the g band of the dV model.

Open with DEXTER
Fig. B.51 Projection of the fundamental plane for the r band of the dV model.

Open with DEXTER
Fig. B.52 Projection of the fundamental plane for the u band of the p model.

Open with DEXTER
Fig. B.53 Projection of the fundamental plane for the g band of the p model.

Open with DEXTER
Fig. B.54 Projection of the fundamental plane for the r band of the p model.

Open with DEXTER
Fig. B.55 Projection of the fundamental plane for the i band of the p model.

Open with DEXTER
Fig. B.56 Projection of the fundamental plane for the z band of the p model.

Open with DEXTER
Fig. B.57 Redshift evolution of the surface brightness in the u band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
Fig. B.58 Redshift evolution of the surface brightness in the g band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
Fig. B.59 Redshift evolution of the surface brightness in the r band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
Fig. B.60 Redshift evolution of the surface brightness in the i band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
Fig. B.61 Redshift evolution of the surface brightness in the z band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
Fig. B.62 Corrected angular radii plotted against the apparent magnitudes, showing some grouping in the u band for the p model.

Open with DEXTER
Fig. B.63 Corrected angular radii plotted against the apparent magnitudes, not showing any peculiar features in the r band for the p model.

Open with DEXTER
Fig. B.64 Corrected angular radii plotted against the apparent magnitudes, showing some small grouping in the z band for the p model.

Open with DEXTER
Fig. B.65 Logarithm of the physical radii against the redshift, clearly showing bandlike structures in the u band for the p model.

Open with DEXTER
Fig. B.66 Logarithm of the physical radii against the redshift, showing bandlike structures in the z band for the p model.

Open with DEXTER
Fig. B.67 Colourmagnitude diagram of the red sequence for the c model. The solid black line represents our best fit and the two solid red lines indicate the 3σ confidence limits beyond which we clipped the sample.

Open with DEXTER
Fig. B.68 Colourmagnitude diagram of the red sequence for the dV model. The solid black line represents our best fit and the two solid red lines indicate the 3σ confidence limits beyond which we clipped the sample.

Open with DEXTER
Fig. B.69 Colourmagnitude diagram of the red sequence for the p model. The solid black line represents our best fit and the two solid red lines indicate the 3σ confidence limits beyond which we clipped the sample.

Open with DEXTER
Fig. B.70 Tight correlation between the residuals of the fundamental plane in the r band Δ_{r} and of those in the z band Δ_{z}. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Fig. B.71 Strong correlation between the residuals of the fundamental plane in the g band Δ_{g} and of those in the z band Δ_{z}, however the correlation is visible weaker than for previous plots, due to the larger difference in the wavelength between the two filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Fig. B.72 Correlation between the residuals of the fundamental plane in the u band Δ_{u} and of those in the z band Δ_{z}. Due to the larger scatter in the u band, the correlation is significantly weaker than for all other filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Fig. B.73 Tight correlation between the residuals of the fundamental plane in the r band Δ_{r} and of those in the z band Δ_{i}. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Fig. B.74 Strong correlation between the residuals of the fundamental plane in the g band Δ_{g} and of those in the i band Δ_{i}. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Fig. B.75 Correlation between the residuals of the fundamental plane in the u band Δ_{u} and of those in the i band Δ_{i}. Due to the larger scatter in the u band, the correlation is significantly weaker than for all other filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Fig. B.76 Strong correlation between the residuals of the fundamental plane in the g band Δ_{g} and of those in the r band Δ_{r}. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Fig. B.77 Correlation between the residuals of the fundamental plane in the u band Δ_{u} and of those in the r band Δ_{r}. Due to the larger scatter in the u band, the correlation is significantly weaker than for all other filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Fig. B.78 Correlation between the residuals of the fundamental plane in the u band Δ_{u} and of those in the g band Δ_{g}. Due to the larger scatter in the u band, the correlation is significantly weaker than for all other filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
Appendix C: Additional tables
Coefficients for the Kcorrection in the u band using u − r colours.
Coefficients for the Kcorrection in the g band using g − r colours.
Coefficients for the Kcorrection in the r band using g − r colours.
Coefficients for the Kcorrection in the i band using g − i colours.
Coefficients for the Kcorrection in the z band using g − z colours.
Coefficients and the root mean square of the best fit for the red sequence using our sample.
Quality of the fundamental plane as a distance indicator using our selected sample of 94 922 elliptical galaxies, but with the directfit coefficients of Bernardi et al. (2003c) or Hyde & Bernardi (2009), respectively (the coefficients are listed in Table 1 of this paper).
Mean values and standard deviations of several different parameters that have to be calculated or measured for the calibration of the fundamental plane.
Best fits for the fundamentalplane coefficients in all filters and for all models with the 3σ clipping disabled.
Best fits for the fundamentalplane coefficients in all filters and for all models with the volume weights disabled.
Best fits for the fundamentalplane coefficients in all filters and for all models with the correction for redshift evolution completely disabled.
Best fits for the fundamentalplane coefficients in all filters and for all models with volume weights and 3σ clipping and a filterdependend redshift evolution derived from the redshift evolution of the surface brightness (see Table C.13).
Redshift evolution derived from changes in the surface brightness using nonevolutioncorrected magnitudes.
Fundamentalplane coefficients in all filters and for all models derived from the volumelimited subsample, which is to 95,45% (2σ) completed.
Fundamentalplane coefficients in all filters and for all models derived from an extended sample up to a redshift of 0.3.
All Tables
Bias and evolutioncorrected absolute magnitudes and the corresponding standard deviation σ_{filter} for all models and all filters.
Results of the best fits for the fundamentalplane coefficients in all filters and for all models using redshift evolution, volume weights, and 3σ clipping.
Linear correlation coefficients of the fundamentalplane residuals for all possible combinations of the five SDSS filters.
List of previous publications (we do not claim completeness) of fundamental plane coefficients, based on the list of Magoulas et al. (2012), which is itself based on the lists of Bernardi et al. (2003c) and Colless et al. (2001).
Coefficients and the root mean square of the best fit for the red sequence using our sample.
Quality of the fundamental plane as a distance indicator using our selected sample of 94 922 elliptical galaxies, but with the directfit coefficients of Bernardi et al. (2003c) or Hyde & Bernardi (2009), respectively (the coefficients are listed in Table 1 of this paper).
Mean values and standard deviations of several different parameters that have to be calculated or measured for the calibration of the fundamental plane.
Best fits for the fundamentalplane coefficients in all filters and for all models with the 3σ clipping disabled.
Best fits for the fundamentalplane coefficients in all filters and for all models with the volume weights disabled.
Best fits for the fundamentalplane coefficients in all filters and for all models with the correction for redshift evolution completely disabled.
Best fits for the fundamentalplane coefficients in all filters and for all models with volume weights and 3σ clipping and a filterdependend redshift evolution derived from the redshift evolution of the surface brightness (see Table C.13).
Redshift evolution derived from changes in the surface brightness using nonevolutioncorrected magnitudes.
Fundamentalplane coefficients in all filters and for all models derived from the volumelimited subsample, which is to 95,45% (2σ) completed.
Fundamentalplane coefficients in all filters and for all models derived from an extended sample up to a redshift of 0.3.
All Figures
Fig. 1 Randomly selected subsample of 12 galaxies of our selected sample with a redshift lower than 0.1. All of them were classified to be elliptical galaxies by our selection criteria, which is confirmed by their morphology.

Open with DEXTER
In the text
Fig. 2 Randomly selected subsample of 12 galaxies of our selected sample with a redshift range of [0.1,0.2]. All of them were classified to be elliptical galaxies by our selection criteria, which is confirmed by their morphology.

Open with DEXTER
In the text
Fig. 3 Randomly selected subsample of 12 galaxies of our extended sample (limited to a redshift lower than 0.2 for our main analysis) with a redshift higher than 0.2. All of them were classified to be elliptical galaxies by our selection criteria, which is confirmed by their morphology. Note that for some of the sources with the smallest angular extent, the SDSS colourcomposite image becomes imprecise, causing the apparent rainbowlike colour structure.

Open with DEXTER
In the text
Fig. 4 Redshift distribution of the basic sample. The green vertical lines at z = 0.01 and z = 0.2 indicate the limitation of the selected sample that was used for fitting the fundamental plane.

Open with DEXTER
In the text
Fig. 5 Selection of our sample illustrated using colour−magnitude diagrams. This set of g − r colour versus z band absolute magnitude diagrams shows that with our constraints only the red sequence remains in the selected sample (top left panel) of about 95 000 galaxies, which is used to fit the fundamental plane. The basic sample (top right panel), which consists of 100 427 galaxies, is already relatively clean by itself. The 170 234 candidates of elliptical galaxies from GalaxyZoo can be found in the bottom left panel. The bottom right panel shows 852 173 unclassified galaxies with proper spectroscopic data from the SDSS database and in this plot, other structures in the colour magnitude diagram, such as the blue cloud, are clearly visible as well. The colourcoding in the plots is always relative to the maximum number density per pixel. Red indicates the maximum number density (which can vary from figure to figure) per pixel. Colours between red and orange cover number densities between the maximum and 2/3 of the maximum. Shades from yellow to green cover the range between ~2/3 and ~1/3 of the maximum number density. Shades from cyan to blue indicate less than ~1/3 of the maximum number density. White pixels contain no objects. The same colour scheme is used for all other density map plots in this paper as well.

Open with DEXTER
In the text
Fig. 6 Redshift distribution of the number density of elliptical galaxies in our sample. The measured density of elliptical galaxies is given by the red solid line of the histogram. We divided our sample into redshift bins with a width of 0.01. The blue dashed line represents our bestfit model to the data. The green dashed vertical lines indicate the limits of the sample, which were used for the fundamental plane fitting.

Open with DEXTER
In the text
Fig. 7 Redshift distribution of the relative number density of elliptical galaxies. The red solid line shows the relative overdensity of the galaxies in our sample compared with the model predictions. Two known largescale structures are indicated by the green and blue dashed vertical lines. The thin lines are the lower and upper limit of these structures, while the thick line indicates their median redshift. The green lines denote the CfA2 Great Wall and the blue lines denote the Sloan Great Wall.

Open with DEXTER
In the text
Fig. 8 Malmquist bias affecting the magnitudedistance distribution of our sample. Taking the example of the r band for the dV model parameters, one can see a deviation of the pure Malmquist bias (indicated by the black solid line) at large distances. The red solid line indicates a distance corresponding to a redshift of 0.2, which is the limit of our selected sample.

Open with DEXTER
In the text
Fig. 9 Luminosity function for our sample in the r band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is complete at the luminous end, but we miss many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. 10 Distribution of the apparent corrected radius r_{cor} is displayed in different filters for the dV model and the c model (the radii are the same is both models). The vast majority of the measured radii are smaller than 5 arcsec.

Open with DEXTER
In the text
Fig. 11 Distributions of the logarithm of the physical radius log _{10}(R_{0}) in different filters for the dV model can be well described by sharp Gaussian with their peaks almost exactly at the same value. Only the u band shows some digressive behaviour. In this case the peak is smaller and set apart from the other. Furthermore, the distribution is wider and it shows a small bump at the larger end.

Open with DEXTER
In the text
Fig. 12 Distribution of the surface brightness μ_{0} in different filters for the dV model is close to a Gaussian shape. For the u band, the distribution is wider and shows a small bump at the faint end.

Open with DEXTER
In the text
Fig. 13 Distributions of the logarithm of the central velocity dispersion log _{10}(σ_{0}) in different filters for the c model and the dV model are almost exactly the same for all filters.

Open with DEXTER
In the text
Fig. 14 Comparison of the coefficients a (upper left panel), b (upper right panel), and c (lower left panel) and the root mean square s_{ε} (lower right panel) of the fundamental plane for all models and wavelengths. There are two additional data points for the p model, because we included the refitted coefficients after a cut in log _{10}(R_{0}) to remove wrong data points caused by problems discussed earlier in this paper. In general, the behaviour of the coefficients is similar for all models and only depends on the wavelength (notable exception the z band of the p model).

Open with DEXTER
In the text
Fig. 15 Projection of the fundamental plane for the i band of the dV model. The root mean square is smallest for this particular filter and model.

Open with DEXTER
In the text
Fig. 16 Projection of the fundamental plane for the z band of the dV model. The averaged distance error is smallest for this particular filter and model.

Open with DEXTER
In the text
Fig. 17 Results for the fundamental plane in the i band for the dV model using our alternatives fits. The plot in the topleft panel does not include the Malmquist bias. We did not perform a 3σ clipping for the plot in the topmiddle panel. The plot in the topright panel excludes the redshift evolution. The results of the volumelimited sample (z < 0.0513) can be found in the centralleft panel. The centralmiddle panel contains a plot of the default i band fit for the dV model for comparison. We are considering the surface brightness evolution instead of the redshift evolution derived form galaxy number densities in the centralright panel. In the bottomleft panel, the results are shown for an extended sample up to z = 0.3. The fundamental plane plotted using the coefficients of Bernardi et al. (2003c), but with our sample data is displayed in the bottommiddle panel. A similar plot using the coefficients of Hyde & Bernardi (2009) can be found in the bottomright panel.

Open with DEXTER
In the text
Fig. 18 Comparison of the upper limits of the average distance error for all performed fits for all filters of the dV model.

Open with DEXTER
In the text
Fig. 19 Tight correlation between the residuals of the fundamental plane in the i band Δ_{i} and of those in the z band Δ_{z} can be easily seen in this plot. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.1 Malmquist bias in the u band for the c model parameters is indicated by the black solid line of our fit. Due to the larger scatter in the u band, the fit is not as tight as for the other filters.

Open with DEXTER
In the text
Fig. B.2 Malmquist bias in the g band for the c model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.3 Malmquist bias in the r band for the c model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.4 Malmquist bias in the i band for the c model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.5 Malmquist bias in the z band for the c model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.6 Malmquist bias in the u band for the dV model parameters is indicated by the black solid line of our fit. Due to the larger scatter in the u band, the fit is not as tight as for the other filters.

Open with DEXTER
In the text
Fig. B.7 Malmquist bias in the g band for the dV model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.8 Malmquist bias in the r band for the dV model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.9 Malmquist bias in the i band for the dV model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.10 Malmquist bias in the z band for the dV model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.11 Malmquist bias in the u band for the p model parameters is indicated by the black solid line of our fit. Due to the larger scatter in the u band, the fit is not as tight as for the other filters.

Open with DEXTER
In the text
Fig. B.12 Malmquist bias in the g band for the p model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.13 Malmquist bias in the r band for the p model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.14 Malmquist bias in the i band for the p model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.15 Malmquist bias in the z band for the p model parameters is indicated by the black solid line of our fit.

Open with DEXTER
In the text
Fig. B.16 Luminosity function for our sample in the u band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.17 Luminosity function for our sample in the g band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.18 Luminosity function for our sample in the r band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.19 Luminosity function for our sample in the i band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.20 Luminosity function for our sample in the z band for the c model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.21 Luminosity function for our sample in the u band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.22 Luminosity function for our sample in the g band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.23 Luminosity function for our sample in the i band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.24 Luminosity function for our sample in the z band for the dV model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.25 Luminosity function for our sample in the u band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.26 Luminosity function for our sample in the g band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.27 Luminosity function for our sample in the r band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.28 Luminosity function for our sample in the i band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.29 Luminosity function for our sample in the z band for the p model. We split it into different subsamples (within different redshift bins) and compared the expected unbiased luminosity function and the total observed luminosity function. Our sample is almost complete at the luminous end, but we are missing many of the fainter galaxies due to the Malmquist bias.

Open with DEXTER
In the text
Fig. B.30 Comparison of the luminosity functions in different filters for the c model. Although their shapes stay approximately the same, the peaks move to higher luminosities with redder filters. The short lines in the upper part of the plot indicate the Malmquistbiascorrected mean magnitudes of our sample in the corresponding filters.

Open with DEXTER
In the text
Fig. B.31 Comparison of the luminosity functions in different filters for the dV model. Although their shapes stay approximately the same, the peaks move to higher luminosities with redder filters. The short lines in the upper part of the plot indicate the Malmquistbiascorrected mean magnitudes of our sample in the corresponding filters.

Open with DEXTER
In the text
Fig. B.32 Comparison of the luminosity functions in different filters for the p model. Although their shapes stay approximately the same, the peaks move to higher luminosities with redder filters. The short lines in the upper part of the plot indicate the Malmquistbiascorrected mean magnitudes of our sample in the corresponding filters.

Open with DEXTER
In the text
Fig. B.33 Distribution of the apparent corrected radius r_{cor} is displayed in different filters for the p model. The measured radii of this model are clearly larger than those of the dV model. Furthermore, the distribution is extremely spread out in the u band due to known problems in this filter.

Open with DEXTER
In the text
Fig. B.34 Central velocity dispersion σ_{0} for different filters (only slightly different in all of them due to the small correction for the fixed fibre diameters) for the c and the dV model. One can clearly see the cutoff of at 100 km s^{1}, which has been introduced to avoid the contamination of our sample.

Open with DEXTER
In the text
Fig. B.35 Central velocity dispersion σ_{0} for different filters (only slightly different in all of them due to the small correction for the fixed fibre diameters) for the p model. One can clearly see the cutoff of at 100 km s^{1}, which has been introduced to avoid the contamination of our sample.

Open with DEXTER
In the text
Fig. B.36 Distribution of extinction and Kcorrected apparent magnitudes m_{app} in different filters for the c model, showing a steady increase in numbers until the steep cutoff at the sample’s limiting magnitudes, which are listed in Table 3.

Open with DEXTER
In the text
Fig. B.37 Distribution of extinction and Kcorrected apparent magnitudes m_{app} in different filters for the dV model, showing a steady increase in numbers until the steep cutoff at the sample’s limiting magnitudes, which are listed in Table 3.

Open with DEXTER
In the text
Fig. B.38 Distribution of extinction and Kcorrected apparent magnitudes m_{app} in different filters for the p model, showing a steady increase in numbers until the steep cutoff at the sample’s limiting magnitudes, which are listed in Table 3.

Open with DEXTER
In the text
Fig. B.39 Distribution of the surface brightness μ_{0} in different filters for the c model showing an almost Gaussian shape. For the u band, the distribution is wider and shows a small bump at the faint end.

Open with DEXTER
In the text
Fig. B.40 Distribution of the surface brightness μ_{0} in different filters for the p model shows some peculiar features in the u band and to some smaller extent in z band as well. In these two filters, one can see a clear second peak on the faint side of the main Gaussian.

Open with DEXTER
In the text
Fig. B.41 Distributions of the logarithm of the physical radius log _{10}(R_{0}) in different filters for the c model are well described by sharp Gaussian with their peaks almost exactly at the same value. Only the u band shows some digressive behaviour. In this case the peak is smaller and set apart from the other. Furthermore, the distribution is wider and shows a small bump at the larger end.

Open with DEXTER
In the text
Fig. B.42 Distributions of the logarithm of the physical radius log _{10}(R_{0}) in different filters for the p model are well described by sharp Gaussian with their peaks almost exactly at the same value. However, the u band shows a peculiar second peak aside the consequently smaller (in comparison to the other filters) main one. In addition to this deviation, the z band distribution has a small bump at its larger end.

Open with DEXTER
In the text
Fig. B.43 Distributions of the logarithm of the central velocity dispersion log _{10}(R_{0}) in different filters for the p model are almost exactly the same for all filters. They show an general abundance (compared with a perfect Gaussian) of galaxies at the lower end, which might indicate some residual contamination of the sample.

Open with DEXTER
In the text
Fig. B.44 Projection of the fundamental plane for the u band of the c model.

Open with DEXTER
In the text
Fig. B.45 Projection of the fundamental plane for the g band of the c model.

Open with DEXTER
In the text
Fig. B.46 Projection of the fundamental plane for the r band of the c model.

Open with DEXTER
In the text
Fig. B.47 Projection of the fundamental plane for the i band of the c model.

Open with DEXTER
In the text
Fig. B.48 Projection of the fundamental plane for the z band of the c model.

Open with DEXTER
In the text
Fig. B.49 Projection of the fundamental plane for the u band of the dV model.

Open with DEXTER
In the text
Fig. B.50 Projection of the fundamental plane for the g band of the dV model.

Open with DEXTER
In the text
Fig. B.51 Projection of the fundamental plane for the r band of the dV model.

Open with DEXTER
In the text
Fig. B.52 Projection of the fundamental plane for the u band of the p model.

Open with DEXTER
In the text
Fig. B.53 Projection of the fundamental plane for the g band of the p model.

Open with DEXTER
In the text
Fig. B.54 Projection of the fundamental plane for the r band of the p model.

Open with DEXTER
In the text
Fig. B.55 Projection of the fundamental plane for the i band of the p model.

Open with DEXTER
In the text
Fig. B.56 Projection of the fundamental plane for the z band of the p model.

Open with DEXTER
In the text
Fig. B.57 Redshift evolution of the surface brightness in the u band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
In the text
Fig. B.58 Redshift evolution of the surface brightness in the g band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
In the text
Fig. B.59 Redshift evolution of the surface brightness in the r band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
In the text
Fig. B.60 Redshift evolution of the surface brightness in the i band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
In the text
Fig. B.61 Redshift evolution of the surface brightness in the z band of dV model indicated by the solid black line. The solid red line shows the Malmquistbiascorrected average value of the surface brightness for this particular filter and model.

Open with DEXTER
In the text
Fig. B.62 Corrected angular radii plotted against the apparent magnitudes, showing some grouping in the u band for the p model.

Open with DEXTER
In the text
Fig. B.63 Corrected angular radii plotted against the apparent magnitudes, not showing any peculiar features in the r band for the p model.

Open with DEXTER
In the text
Fig. B.64 Corrected angular radii plotted against the apparent magnitudes, showing some small grouping in the z band for the p model.

Open with DEXTER
In the text
Fig. B.65 Logarithm of the physical radii against the redshift, clearly showing bandlike structures in the u band for the p model.

Open with DEXTER
In the text
Fig. B.66 Logarithm of the physical radii against the redshift, showing bandlike structures in the z band for the p model.

Open with DEXTER
In the text
Fig. B.67 Colourmagnitude diagram of the red sequence for the c model. The solid black line represents our best fit and the two solid red lines indicate the 3σ confidence limits beyond which we clipped the sample.

Open with DEXTER
In the text
Fig. B.68 Colourmagnitude diagram of the red sequence for the dV model. The solid black line represents our best fit and the two solid red lines indicate the 3σ confidence limits beyond which we clipped the sample.

Open with DEXTER
In the text
Fig. B.69 Colourmagnitude diagram of the red sequence for the p model. The solid black line represents our best fit and the two solid red lines indicate the 3σ confidence limits beyond which we clipped the sample.

Open with DEXTER
In the text
Fig. B.70 Tight correlation between the residuals of the fundamental plane in the r band Δ_{r} and of those in the z band Δ_{z}. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.71 Strong correlation between the residuals of the fundamental plane in the g band Δ_{g} and of those in the z band Δ_{z}, however the correlation is visible weaker than for previous plots, due to the larger difference in the wavelength between the two filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.72 Correlation between the residuals of the fundamental plane in the u band Δ_{u} and of those in the z band Δ_{z}. Due to the larger scatter in the u band, the correlation is significantly weaker than for all other filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.73 Tight correlation between the residuals of the fundamental plane in the r band Δ_{r} and of those in the z band Δ_{i}. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.74 Strong correlation between the residuals of the fundamental plane in the g band Δ_{g} and of those in the i band Δ_{i}. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.75 Correlation between the residuals of the fundamental plane in the u band Δ_{u} and of those in the i band Δ_{i}. Due to the larger scatter in the u band, the correlation is significantly weaker than for all other filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.76 Strong correlation between the residuals of the fundamental plane in the g band Δ_{g} and of those in the r band Δ_{r}. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.77 Correlation between the residuals of the fundamental plane in the u band Δ_{u} and of those in the r band Δ_{r}. Due to the larger scatter in the u band, the correlation is significantly weaker than for all other filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
Fig. B.78 Correlation between the residuals of the fundamental plane in the u band Δ_{u} and of those in the g band Δ_{g}. Due to the larger scatter in the u band, the correlation is significantly weaker than for all other filters. This plot uses the fundamentalplane fit for the dV model.

Open with DEXTER
In the text
