1. Introduction

The Mg I b₂ line near 5173 Å is a magnetically sensitive line whose core is formed under conditions of non-local thermodynamic equilibrium (NLTE), mainly between 600 and 700 km above the solar surface (e.g., Dorantes-Monteagudo et al. 2022). However, this line covers a large spectral width and thus has contributions from different layers of the solar atmosphere. In particular, the wings of the line have a primarily photospheric origin, while the core of the line can probe heights up to 900 km above the solar surface (Mauas et al. 1988). The latter has been shown to be mainly sensitive around the temperature minimum height in magnetic elements (Briand & Solanki 1998). Therefore, despite its relatively weak polarization signals, especially in linear polarization (e.g., de la Cruz Rodríguez et al. 2010), the Mg I b₂ line offers an opportunity to probe the magnetism of the solar atmosphere in a key region that includes the transition between the photosphere and the chromosphere.

The new generation of 4-m solar telescopes, such as the Daniel K. Inouye Solar Telescope (DKIST; Rimmele 2019) and the European Solar Telescope (EST; Quintero Noda et al. 2022) as well as the third flight of the SUNRISE solar balloon-borne observatory (Korpi-Lagg et al. 2025), will provide spectropolarimetric measurements in a wide range of the solar spectrum, including the Mg I b₂ line in the visible, with greatly improved resolutions. This will allow the magnetic field and the plasma properties to be studied simultaneously in different layers of the solar atmosphere at scales never observed before. On the eve of these unprecedented observations, it is of great importance to gain a better understanding of the main characteristics and capabilities of the Mg I b₂ line. To date, its specific spectral and polarization signatures have not yet been characterized.

In this work, we perform the first survey of the intensity and circular polarization profiles of the Mg I b₂ 5173 Å line over a bipolar magnetic region and its surrounding quiet Sun using high spatial resolution observations. We focus on the classification of the main intensity and polarization signatures with the aim of identifying the full variety of Stokes I and V profile shapes emanating from the observed region. We also analyze the spatial distribution of the signals over specific structures in order to gain a better understanding of the physical processes that give rise to them. The characterization of the observed profiles provides a wealth of information, including aspects about temperature and gradients along the line-of-sight (LOS) in the magnetic field, velocity, and density in the line-forming region, which can be used to improve the performance and speed of NLTE Stokes inversions.

2. Observations

We used spectropolarimetric observations of the Mg I b₂ line at 5173 Å from the CRisp Imaging SpectroPolarimeter (CRISP; Scharmer et al. 2008) at the Swedish 1-meter Solar Telescope (SST; Scharmer et al. 2003). The spectral line was sampled in a total of 14 wavelength points from −500 mÅ to +500 mÅ around the central wavelength in steps of 100 mÅ, except within the line core from −100 mÅ to +100 mÅ, where steps of 50 mÅ were employed, and an additional point closer to the continuum at −700 mÅ.

As described in Siu-Tapia et al. (2025, hereafter Paper I), the dataset consists of four multi-wavelength temporal scans with a cadence of nearly 116 seconds between consecutive maps, which cover a field-of-view (FOV) of ∼55″ × 60″ at a heliocentric angle of ∼26° and with a spatial resolution of 0.057″ per pixel. Four spectral lines were observed, two in polarimetric mode (Fe I 6173 Å and Mg I b₂ 5173 Å) and two in non-polarimetric mode (Ca II 8542 Å and Hα 6563 Å). Further details can be found in Table 1 of Paper I.

The data were reduced using the SSTRED pipeline (de la Cruz Rodríguez et al. 2015), and the multi-object, multi-frame blind-deconvolution (MOMFBD; van Noort et al. 2005) technique was used for image restoration. Subsequently, the data were subject to the usual post-processing steps: residual fringes and polarimetric cross-talk correction, and spectral and spatial gradient correction. The wavelength calibration was done by using the central wavelength of the average intensity profile in the entire dataset as a reference. In this work, we focus only on the morphological analysis of the Mg I b₂ line, but we use the full Stokes information of the Fe I 6173 Å line as photospheric context for performing NLTE inversions.

Finally, the data were convolved with a 3 × 3 low-pass filter kernel, resulting in a reduced polarization noise level of the order of 10⁻³. Nonetheless, most of the observed linear polarization signals, both in Stokes Q and U, remain of the same order of magnitude as σ_Q, U. Therefore, the morphological classification in this work is limited to the Stokes I and V profiles of the Mg I b₂ line.

3. Methods

3.1. Preparation of the dataset

In order to perform the classification, the profiles were subjected to a preparation procedure to allow for a morphological comparison among them. This preparation consisted of three basic steps. (1) In the first step, the Doppler shifts were removed by placing the line core of each intensity profile at the reference position Δλ = 0 and the profiles were interpolated to a common wavelength grid. The line core position was determined analytically as the minimum of a Bezier fit (e.g., Bézier 1968; Farin 2002) around the minimum intensity point. All the polarization profiles were shifted and interpolated accordingly. (2) The second step involved signal normalization. All the intensity profiles were renormalized with respect to their continuum intensity I_c after subtracting their core intensity; in contrast, all the Stokes V profiles were renormalized with respect to their maximum unsigned value as V(λ) = V(λ)/max(|V|). (3) Finally, we performed a polarity adjustment so that all the Stokes V profiles display the same magnetic polarity (positive).

Also, while we considered all 14 observed wavelength points for the classification of the Stokes I profiles, we consider only 13 wavelengths for the classification of the Stokes V profiles, from −500 to 500 mÅ, that is, we neglect the continuum point at −700 mÅ, as its polarization signals are generally weak and of the order of the noise of the observations. Although taking this point into account would not yield an important contribution to the morphology of Stokes V profiles with a high signal-to-noise, it could have a more significant effect for the profiles with a lower signal-to-noise, therefore influencing their classification results.

3.2. Selection of representative profiles

We performed an exhaustive inspection of the Mg I b₂ data using the CRisp SPectral EXplorer¹ (CRISPEX; Vissers & Rouppe van der Voort 2012) tool to visualize and identify the different shapes of the Stokes I and V profiles present in our dataset. We then attempted to identify the different classes of profiles in terms of their morphology by applying unsupervised clustering techniques, such as k-means (e.g., MacQueen 1967; Jain 2010) and principal component analysis (e.g., Wold et al. 1987; Jolliffe & Cadima 2016). However, we noticed that the unsupervised methods failed to identify all the different morphologies observed during the visual inspection conducted with CRISPEX, likely due to the fact that some of the differences between classes are rather subtle but also likely because the unsupervised methods were applied to a random selection of 10 000 profiles in order to speed up the computations. Therefore, to avoid underestimating or overestimating the number of classes, we manually selected the representative profiles according to the CRISPEX visual inspection. In this process, we took extra care to avoid redundancy, and the representative profiles were chosen to capture the most distinctive signatures among the broad variety of shapes that were observed.

For the classification of the Stokes V profiles, we considered only those pixels displaying signals above 5σ, which correspond to ∼23% of the total number of pixels in the FOV. Most of them are associated with the magnetic regions. For the Stokes I profiles, we employed all the pixels within the FOV. Panels in Figure 1 show the pixels considered in each case on the continuum intensity maps normalized to the quiet Sun continuum intensity I_c/I_QS and the location of the selected representative profiles, nine for the circular polarization, V_R, and 16 for the intensity profiles, I_R.

Fig. 1. Location of the nine representative profiles for Stokes V (left) and of the 16 representative profiles for Stokes I (right) on the Mg intensity maps normalized to the mean quiet Sun value IQS (at −700 mÅ). The left panel shows only regions where the circular polarization signals are above the 5σ level.

Figure 2 shows the nine selected V_R profiles before (top) and after (bottom) the preparation of the dataset as described in the previous subsection: V_R 0 is a normal profile displaying nearly anti-symmetric lobes; V_R 1 is also a nearly anti-symmetric profile with wider lobes; V_R 2 is a narrower profile with strong signals in the wings that increase in amplitude away from the line core; V_R 3 is a narrow profile with strong signals in the wings displaying a convergent trend toward zero; V_R 4 is also a narrow profile with non-zero wing signals but which remain rather constant as |Δλ| increases; V_R 5 is a narrow profile with negligible signals in the wings; V_R 6 is a narrow profile with apparent extra-lobes given that the signal changes sign in the wings; V_R 7 is a profile with a large positive amplitude asymmetry (i.e., the blue-lobe peak is stronger than the red-lobe peak); and V_R 8 is a profile with a large negative amplitude asymmetry (i.e., the blue-lobe signal is weaker than the red-lobe signal). Although we also found profiles that resemble single-lobed profiles (with either a blue or a red lobe only) as those commonly observed in typical photospheric lines, they are considered as extreme cases of classes 7 and 8 profiles, respectively.

Fig. 2. Nine Stokes V representative profiles from the Mg dataset. The top panels show the profiles normalized to IQS (at −700 mÅ). The gray dashed lines were placed at zero and the blue dotted lines show the ±5σ level. The bottom panels show the representative profiles after Doppler-shift removal, renormalization, and polarity adjustment as explained in the main text.

Likewise, Figure 3 shows the 16 selected I_R profiles before and after the preparation of the dataset. While I_R 0 closely resembles the average quiet Sun profile, I_R 1 is slightly narrower, and I_R 2 is slightly broader. I_R 3 and I_R 4 both exhibit a normal line core but feature bright wings, likely due to emission, with the effect being more pronounced in the latter. I_R 5 displays a normal core but wider wings that might indicate some level of enhanced absorption. I_R 6 is a narrow profile with bright wings, while I_R 7 has normal wings but a narrower line core, likely due to emission in the inner wings. Likewise, I_R 8 and I_R 9 are very narrow profiles exhibiting emission across both wings, with a stronger effect in the latter where the emission surpasses the continuum intensity. Finally, I_R 10 to I_R 15 display different types and degrees of wing asymmetries, which are somehow denoted by the line bisectors: I_R 10 shows emission in the inner blue-wing as well as in the outer red wing, I_R 11 to I_R 13 exhibit different degrees of blueward asymmetry, and I_R 14 and I_R 15 show varying levels of redward asymmetry.

Fig. 3. Sixteen Stokes I representatives from the Mg dataset. Same format as in Fig. 2. The dotted lines show the average profile of the quiet Sun. The blue symbols in the bottom panels show the line bisectors from 10% to 70% of the normalized continuum intensity.

In Sections 6 and 7, the Stokes V and Stokes I profile classes are further grouped into families based on shared morphological characteristics, physical properties, and spatial distribution.

3.3. Classification of the profiles

After the preparation of the profiles and the selection of the representatives, we computed the Euclidean distance, eud, of each profile in our dataset, P_i, with respect to the representative profile P_R as

$$\begin{array}{c}\hfill \mathit{eud}(P_i,P_R)=\sqrt{{\displaystyle \sum _k}{(P_i({\lambda }_k)-P_R({\lambda }_k))}^2},\end{array}$$(1)

where P is either Stokes V or Stokes I, k spans over Δλ = ±500 mÅ for the V profiles and over the full wavelength range for the I profiles; i over the number of pixels considered in each case, and R over the number of representatives. Each profile P_i was finally classified according to its closest representative, that is, with the P_R that has the smallest eud.

4. Analysis

4.1. Spectro-polarimetric proxies and classical inferences

In order to analyze the properties of the different classes, we inspected some spectral and polarization quantities from the observed profiles, such as the total linear and circular polarization, TLP and TCP respectively, which were computed for a spectral window around the line core (around ±100 mÅ) as follows:

$$\begin{array}{cc}& \mathrm{TLP}={\displaystyle {\int }_{-0.1\mathrm{\AA }}^{+0.1\mathrm{\AA }}}\sqrt{Q^2(\lambda )+U^2(\lambda )}\mathrm{d}\lambda ,\hfill \end{array}$$(2)

$$\begin{array}{cc}& \mathrm{TCP}={\displaystyle {\int }_{-0.1\mathrm{\AA }}^{+0.1\mathrm{\AA }}}|V(\lambda )|\mathrm{d}\lambda ,\hfill \end{array}$$(3)

where Q, U, and V are normalized to the quiet Sun continuum intensity, I_QS; and dλ = 50 mÅ in the line core spectral window.

We also inspected the asymmetries of the Stokes V profiles by computing their area and amplitude asymmetries, δAr and δAm respectively, as follows:

$$\begin{array}{cc}& \delta \mathrm{Ar}=s\frac{{\displaystyle {\int }_{-0.5\mathrm{\AA }}^{+0.5\mathrm{\AA }}}V(\lambda )\mathrm{d}\lambda }{{\displaystyle {\int }_{-0.5\mathrm{\AA }}^{+0.5\mathrm{\AA }}}|V(\lambda )|\mathrm{d}\lambda },\hfill \end{array}$$(4)

$$\begin{array}{cc}& \delta \mathrm{Am}=V_{\mathrm{b}}-Vr.\hfill \end{array}$$(5)

In Equation (4), the symbol s refers to the sign of the Stokes V blue lobe. In Equation (5), V_b and V_r are the unsigned amplitudes of the blue and red lobe, respectively, normalized to the maximum signal of Stokes V. In this way, positive values of δAr (δAm) indicate a larger area (amplitude) in the blue lobe than in the red lobe and vice versa.

From the observed intensity profiles, we computed LOS velocities by considering the Doppler shift of the line core, Δλ_lc:

$$\begin{array}{c}\hfill v_{\mathrm{D}}=\frac{c\mathrm{\Delta }{\lambda }_{\mathrm{lc}}}{{\lambda }_0},\end{array}$$(6)

where c is the speed of light, λ_lc is the line core wavelength position determined by the analytic minimum of a Bezier fit. The reference wavelength for zero velocity is taken from the average intensity profile in the dataset (see Paper I), and λ₀ = 5172.68 Å for the Mg line.

The line bisectors I_bis were calculated at different intensity levels using linear interpolation of the observed profiles. In addition, we obtained the equivalent width EW and the line depth LD of the intensity profiles as follows:

$$\begin{array}{cc}& \mathrm{EW}={\displaystyle {\int }_{-0.5\mathrm{\AA }}^{+0.5\mathrm{\AA }}}(1-I(\lambda )/I_{\mathrm{c}})\mathrm{d}\lambda ,\hfill \end{array}$$(7)

$$\begin{array}{cc}& \mathrm{LD}=1-(I_{\min }/I_{\mathrm{c}}),\hfill \end{array}$$(8)

where I_c refers to the continuum intensity, and I_min to the minimum intensity value in the profile.

We computed the longitudinal component of the magnetic field by applying the weak-field approximation (WFA; Landi Degl’innocenti & Landi Degl’innocenti 1973) in three different spectral windows within the Mg line: ±500 mÅ, ±300 mÅ, and ±100 mÅ, which progressively sense higher layers in the solar atmosphere (see Paper I for a more detailed discussion). Thus, this method provides information about the gradients with height of the magnetic field. Finally, we performed a one-component LTE inversion of the Fe I 6173 Å line in the full dataset using the Stokes Inversion based on Response functions (SIR; Ruiz Cobo & del Toro Iniesta 1992) code in order to get information about the physical parameters in the photosphere for the observed FOV. The detailed configuration of these inversion are described in Paper I.

4.2. NLTE inversions of representative profiles

We used the Departure coefficient aided Stokes Inversion based on Response functions (DeSIRe; Ruiz Cobo et al. 2022) code to perform inversions of the four Stokes profiles simultaneously in the Fe I 6173 Å line (which is treated in LTE) and the Mg I 5173 Å line (treated fully in NLTE) for some representatives of the Stokes I and of the Stokes V classes of Mg in order to compare the resulting stratifications with those inferred with the classical methods, as well as to get information on the temperature in the low chromosphere. For simplicity, we refer to these two-line inversions as NLTE inversions. However, we emphasize that only the Mg line is treated in NLTE, while the Fe line is inverted under LTE conditions.

Since the Mg pseudo-continuum wavelength at Δλ = −700 mÅ is not an actual continuum wavelength, the inverted representative profiles were previously normalized to a continuum intensity value estimated from the Fourier Transform Spectrometer (FTS) atlas (Neckel & Labs 1984). The inversions used the 13-level atomic model of Mg (Quintero Noda et al. 2018) and applied opacity fudge (Bruls et al. 1992) while inverting all cycles under a full NLTE treatment (approach that proved to perform better for the Mg I b₂ line in the tests presented in Paper I despite being computationally slower).

We are interested in understanding the physics producing the different shapes of the representative profiles. However, we could not find a general initial inversion setup that would properly reproduce the distinctive features of all the representative profiles. Thus, the inversions were made separately according to the individual needs. Through trial and error we found the number of cycles, weight distribution for the Stokes parameters, and the number of nodes in the atmospheric parameters that provide reasonably good fits to the selected representatives. Such configurations are indicated in Tables A.1 and A.2 for the V_R’s and I_R’s, respectively. While we inverted all nine sets of Stokes profiles for the V_R’s, we only inverted 13 out of 16 sets for the I_R’s, although ensuring that all Stokes I families are represented.

In most of the cases, the inversions were performed by assigning larger weights to Stokes I and V than to Stokes Q and U, as the latter are generally near the noise level, particularly for the Mg line. Likewise, in most of the cases the inversion initial setup considers a simple one-component model atmosphere (i.e., ff = 1 and the stray light is assumed to be zero) whose temperature stratification between photosphere and chromosphere is based on the FALC model (Fontela et al. 1993). The exceptions are the set of profiles corresponding to I_R 10 to I_R 15, and those for V_R 7 and V_R 8, whose asymmetries could only be fitted using a two-components atmosphere with different initial magnetic field and velocity values. The spectral point-spread-function (PSF) of the CRISP prefilters are taken into account during the inversions by using Gaussians with a full width at half maximum of 25 and 50 mÅ for the Mg and Fe lines, respectively.

Although the core of the Mg I b₂ line is most sensitive to the low chromosphere, our input model extends beyond that, up to log(τ) = − 6.2. Nonetheless, the resulting stratifications can only be trusted within the line sensitivity height range – see response functions (RFs) in Figure A.1 which peak near log(τ) = − 4.3 in the core of the Mg 5173 line and do not extend beyond log(τ) = − 5. Finally, error bars are not provided by DeSIRe. Thus, we calculated the uncertainties by iteratively adding random noise to the observed profiles (of the same order as the estimated noise in the observations) and performing 100 inversions of these profiles with the exact same input model. The standard deviation given by the 100 retrieved atmospheres are taken as an estimation of the uncertainties of the parameters at each optical depth.

5. Results

Figure 4 shows normalized continuum intensity maps for the Fe line (at +532 mÅ from its core) and for the Mg line (at −700 mÅ from its core). The maps display noticeable differences, such as the size of the granules being smaller in the Fe map and the presence of bright structures or plage in the Mg map that appear with smaller sizes or are completely absent in the Fe map. These differences are due to the fact the wavelength point at −700 mÅ from the Mg line core still lies within the far blue-wing of the spectral line and is not an actual continuum value, although we refer to it as such for simplicity. Therefore, the Mg continuum map actually portrays a higher layer of the solar atmosphere, while the Fe map shows the low photosphere.

Fig. 4. Spectral and polarization properties of the Mg I b2 line. Top: Reference continuum intensity in Fe (at +532 mÅ) normalized to its mean QS value I+532/IQS+532, continuum intensity in Mg (at −700 mÅ from the line core) normalized to its mean QS value I−700/IQS−700, and maps of TLP and TCP. Bottom: EW, LD, δAr, and δAm. The regions with Stokes V signals smaller than 5σ have been masked in the maps of the Stokes V asymmetries. Dashed contours are placed at I−700 = 0.5IQS−700 of the Mg line to highlight the pore locations, and the orange arrow in the first panel points toward the disc center.

The spectro-polarimetric proxies computed for the Mg line are displayed in Fig. 4. They show that the pores and the bright magnetic structures observed in the FOV exhibit considerably larger TCP values than the quiet Sun granulation. In contrast, the TLP does not stand well above the noise over most of the FOV. However, there is still some linear polarization signal near the pores, observed over an asymmetrical canopy-like region around the pores, which is stronger and more extended toward the limb side. This result is understood to be due to a projection effect, given that the observations were made at a moderate heliocentric angle. The surrounding plage regions also contain strong signals of circular polarization, while faint traces of TLP are detected in these sites.

The maps of δAr and δAm display generally lower asymmetries in the pores and the centers of the bright structures, but they show an overall increase toward the edges of those magnetic regions, probably reflecting the presence of canopy-like structures around them (Martínez González et al. 2012). Fig. 4 also reveals that the Mg I b₂ line exhibits substantially narrower and shallower intensity profiles within the magnetic regions (with EW < 400 mÅ and LD < 0.8) compared to the quiet Sun. The granules show wide and deep intensity profiles (with EW > 500 mÅ and LD > 0.85), while the profiles are slightly narrower in the inter-granular regions (EW ∼ 450 mÅ and LD ∼ 0.83).

The Doppler velocity map of Mg, displayed in Figure 5, showcases a flow structure typical of the high-photosphere/low-chromosphere, featuring strong flows directed toward the pores along canopy-like fibrils. Additionally, the figure presents the LOS velocities resulting from the SIR inversions of the Fe 6173 line. These results depict the convective granulation pattern characteristic of the lower photosphere, with upflows in the centers of the granules and downflows in the intergranular lanes.

Fig. 5. Estimation of the LOS velocities and of the unsigned longitudinal magnetic field from classical methods. From left to right: vLOS from SIR inversions of the Fe line, vD from the Mg line core Doppler shifts, |BLOS| from SIR inversions of the Fe line, and |BLOS| from the WFA applied to the Mg line core spectral region (±100 mÅ). The velocity maps were corrected from cavity errors.

The unsigned photospheric and chromospheric longitudinal magnetic field maps from SIR and the WFA, respectively, are also displayed in Fig. 5. These maps reveal that the strongest magnetic fields in the FOV are concentrated inside the pores, although the bright structures in the plage region are also moderately magnetized. Notably, these magnetic regions all appear more compact in the photosphere and exhibit an enlarged area in the high-photosphere/low-chromosphere, indicating a rapid opening of the magnetic field with height (e.g., Buehler et al. 2015).

6. Stokes V classification

Figure 6 presents the spatial distribution of the nine classes of Stokes V profiles identified in our Mg data, based on the eud classification. The distribution of these classes remains remarkably consistent across the four temporal scans, demonstrating the robustness of the Euclidean distance classification method. This consistency is expected, as the main magnetic structures (such as pores and plage) are unlikely to undergo significant changes within the short temporal scales of our observations (approximately 2 minutes between scans). Therefore, the shape of the Stokes V profiles and the class assignments should not vary substantially between scans, unless influenced by very fast-evolving processes.

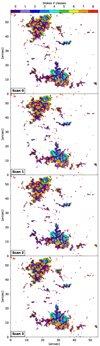

Fig. 6. Spatial distribution of the nine classes of Stokes V profiles of the Mg I b2 line found in the four scans of our dataset according to the eud classification. The images show the full FOV.

Furthermore, as shown in the first column of Figure 7, the mean profiles of the classes (red lines) closely resemble the corresponding representatives (blue lines) and preserve the main spectral features. This further validates the robustness of the eud classification. This consistency holds even in cases where there is a significant variation among the individual profiles within the same class, as indicated by the shaded areas for classes 2, 6, and 8. These classes are also the smallest groups, respectively representing 0.40%, 0.20%, and 1.86% of the total pixel sample (see Table 1). However, the method does not perfectly capture the spectral signatures of some profiles. For instance, some of the farthest profiles in class 8 show a positive δAm, unlike the representative, which is characterized by a negative δAm. Nonetheless, these profiles represent only a small fraction of the class, as depicted in the distribution of amplitude asymmetry in the last column of Fig. 7.

Fig. 7. Polarization and magnetic properties of the Mg I b2 Stokes V classes. From left to right: Representative profiles VR (blue) and mean class profiles (red), with shaded areas indicating the range of variation of the profiles within the classes; histograms of the |BLOS| distribution from the SIR inversions (black) and from the WFA applied to the core of the Mg line (green); the photospheric to chromospheric |BLOS| ratio; and the amplitude (orange) and area (maroon) asymmetries. Letters in column 1 and frame colors highlight different families.

6.1. Family A

As indicated in Table 1, the largest group corresponds to class 0 (dark purple in Figure 6), with approximately 40% of the selected profiles falling into this category. Profiles in class 0 span over a broad range of magnetic field strengths, as shown by the histograms in the second column of Fig. 7, each portraying a different height in the atmosphere (Paper I). The photospheric field (black distribution) covers a range of values larger than the chromospheric magnetic field (green) and seems to display a bimodal distribution, with a population of weak magnetic fields peaking at around 100 G, and a second population at moderate field strengths (from approximately 400 G, where the distribution presents a rebound) displaying a tail that extends beyond kiloGauss values. Such bi-modal behavior is observed for most of the classes in both the photospheric and chromospheric magnetic field distributions, except in classes 7 and 8 where only one peak is distinguishable. The two magnetic field populations are largely separated in the classes from 2 to 6, by more than 1000 G in the photosphere, while for the chromospheric field this separation is smaller (see also Table 1). In classes 0 and 1, the separation between the two populations of the chromospheric field is presumable very small, making them barely distinguishable. These results indicate that, regardless of the profiles’ amplitude scale, the morphology of Stokes V can be similar across different magnetic field regimes, allowing for a given Stokes V class to be observed in various solar situations. This is shown in the examples of Figure 8. Class 0 profiles in example (a) are located within the core of a bright magnetic patch, they surround class 1 profiles in a pair of magnetic points in (b), they spread over the plage near a pore in (d), and around class 1 profiles in bright magnetic structures of irregular shapes, such as in examples (c) and (e). These examples display different magnetic field values at the location of class 0 profiles. However, they all share common characteristics, including moderate-to-low velocity and magnetic field gradients between the photosphere and chromosphere (with a |B_LOS| ratio around 1), mild-to-zero Stokes V asymmetries, and the presence of bright magnetic structures in the Mg intensity maps. This excess brightness is often not observed in the Fe intensity maps or appears with lower contrast.

Fig. 8. Examples of different structures and their associated Stokes V classes and physical properties. From left to right: eud classification of Mg Stokes V, Fe continuum intensity (at +532 mÅ) normalized to its mean QS value, Mg continuum intensity (at −700 mÅ) normalized to its mean QS value, photospheric LOS velocity from the SIR inversions of the Fe line, Doppler velocity of the Mg line core, unsigned LOS magnetic field from the SIR inversions and from the WFA in the Mg ±100 mÅ spectral window, the photospheric to chromospheric |BLOS| ratio, and the amplitude asymmetries of the Mg Stokes V profiles. All the examples show a ∼6″ × 6″ sub-field. For each row, the contours enclose the V class specified in the intensity maps.

Class 0 profiles frequently occur alongside and around the less abundant class 1 profiles (approximately 10% of the sample, as shown in Table 1). Both classes, 0 and 1, are composed mainly of anti-symmetric profiles with low δAm and δAr values, and display strikingly similar distributions in Fig. 7, a characteristic that allows us to categorize these two classes into a single family for further simplification (Family A). There are subtle differences though, such as the width of the lobes being larger for class 1 profiles. Additionally, although the peak of the photospheric to chromospheric |B_LOS| ratio distribution is located near 1 in both classes (indicating nearly constant fields), it is slightly shifted toward values greater than 1 in class 1. This shift indicates a dominance of magnetic fields that decrease with height, as expected to occur in the central core of the magnetic structures where class 1 profiles are largely observed.

Figure 9 presents the results of the NLTE inversions of the Stokes V representatives, along with the estimated uncertainties. Generally, the uncertainties in temperature, velocity, and magnetic field increase with height, as expected, due to the lack of sensitivity above log(τ) = − 5, as indicated by the response functions in Figure A.1. However, in cases requiring a larger number of free parameters (see Table A.1), the uncertainties can be significant at all optical depths.

Fig. 9. NLTE inversions of Stokes V representatives. From left to right: Observed Stokes profiles (black markers) in the pair of Mg I 5163 and Fe I 6173 lines normalized to their mean QS continuum intensity (the Mg continuum intensity was estimated from the FTS atlas profile), and their best fits (red lines). The blue tick-marks in the Q/IQS, U/IQS, and V/IQS panels indicate the σ levels for each spectral line. The resulting temperature stratifications are shown in the fifth column (red lines), overlaid on the initial FALC model (black dashed line), followed by the retrieved LOS velocity, magnetic field intensity, and magnetic field inclination. The blue lines in the last two rows show the stratifications for a second atmospheric component, with filling factors ff indicated in the temperature panel. The uncertainties are indicated by the shaded areas. For comparison, labels in the last three columns indicate the results obtained with the classical methods. Vertical green and black dotted lines in the panels of T, vLOS, B, and γ indicate the height of maximum response to changes in the given parameter within the Mg and Fe lines core, respectively, according to the response functions displayed in Figure A.1 (these heights are only valid for VR 0, but are shown as a reference for all representative profiles). Letters in column 4 and frame colors highlight the different families.

The NLTE inversions for the representatives of Family A, V_R 0 and V_R 1 (whose locations in the FOV are specified in Fig. 1), result in temperature profiles that are substantially hotter than the FALC model above log(τ) = − 0.7, the height corresponding to the maximum response of Stokes I to changes in temperature within the core of the Fe line. Below this height, the temperatures are close to the FALC profile, since the Fe continuum intensities take values around I_QS in these profiles, as in most bright structures seen in Mg as mentioned above. The height stratification of v_LOS, B, and γ remains fairly constant for V_R 0, while V_R 1 shows a small gradient in the magnetic field. However, the magnetic field values for V_R 1 are similar at the heights of maximum response of the cores of the Mg and Fe lines to changes in the magnetic field (log(τ) = − 4.3 and log(τ) = − 0.8, respectively), with values near 500 G. As indicated in the corresponding panels of the figure, the estimations made with the classical methods for V_R 0 and V_R 1 are in agreement, within the errors, with the NLTE inversion results for the velocity and the magnetic field configuration, except for the SIR inversions inferring magnetic field inclinations that are about 20° more vertical than those inferred by DeSIRe in the low photosphere.

6.2. Family B

Another family is formed by classes 2 and 3 (Family B). Both classes consist of narrow profiles with strong signals in the wings of Stokes V whose shapes are either diverging or converging. They are clearly associated with two very different magnetic regimes, as indicated by their |B_LOS| histograms in Fig. 7. Although they mostly appear agglomerated inside and around the periphery of the pores, they also occur further out in regions with weaker magnetic fields (see different examples in Fig. 8). This dual occurrence also explains the double-peaked distributions in the photospheric to chromospheric |B_LOS| ratio histograms. The peak at values greater than 1 corresponds to the pores and their periphery, where the magnetic field decreases with height (see example (d) in Fig. 8), while the peak at values less than 1 corresponds to regions outside the pores, where the magnetic field increases with height due to the opening of the magnetic field around the pores. The asymmetries of the profiles and the inferred velocity gradients are also small for this family. However, the strong wing signals in class 2 profiles produce a moderate negative tail in the δAm and δAr distributions.

As shown in Fig. 1, the representative profiles for classes 2 and 3 stem from the periphery and the interior of pores. These regions exhibit the strongest TLP of the Mg line in the observed FOV (see Fig. 4). However, the Stokes Q and U signals are not well above the noise level even in these regions. This is shown for the representative profiles V_R 2 and V_R 3 in Fig. 9, which display linear polarization signals in Mg near the noise level, although they do show strong linear polarization signals in the Fe line. The NLTE inversions of these profiles yield temperature stratifications that are substantially cooler than the FALC model, particularly in the lower layers of the atmosphere (see Fig. 9). This aligns with their low intensities and shallow Stokes I profiles. The results also indicate that the temperatures exceed the FALC model higher up for V_R 2, above log(τ)∼ − 2.5, unlike V_R 3 which displays very low temperatures above this height, where the estimated uncertainties become very large. The results for the magnetic field strength differ from those of the WFA and the SIR inversions by a few hundred Gauss. Nonetheless, both classical and NLTE results are qualitatively in agreement, as they both estimate rather oblique kiloGauss magnetic fields in the photosphere and in the chromosphere, with the field strength decreasing with height while displaying fairly constant field inclinations and mild LOS velocities.

6.3. Family C

Family C consists of classes 4, 5, and 6. These classes all exhibit narrow profiles with generally weak signals in their wings, with class 4 exhibiting nearly constant although non-zero wing signals, class 5 showing nearly zero wing signals, and with class 6 profiles displaying small extra lobes of opposite polarity. These classes are found inside and outside the pores, as illustrated in example (d) of Fig. 8. Therefore, both classes display double-peaked distributions for |B_LOS| and the |B_LOS| ratio, as shown in Fig. 7. However, the second population is very small for class 5, indicating that this class is more common outside the pores. In contrast, class 6 profiles are mostly found inside pores and, as indicated in Table 1, they exhibit the strongest decrease in the magnetic field strength with height among all the classes (average |B_LOS| ratio = 2.18, but reaching values as high as 27 in some regions within the pores’ center). The presence of strong extra lobes in some class 6 profiles produces large asymmetries, as shown by the δAm and δAr histograms. Additionally, class 6 profiles are typically associated with very shallow intensity profiles that exhibit some emission in the wings. These characteristics might affect the estimation of the LOS velocities with the employed methods and could be responsible for the large velocity gradients observed in example (d) of Fig. 8 for class 6 inside the pore.

The representative profiles V_R 4, V_R 5, and V_R 6 come from the interior of a pore, as indicated in Fig. 1, so that they all display low continuum intensity and very shallow Stokes I profiles. The NLTE inversions shown in Fig. 9 retrieve low temperatures in the photosphere for all three representatives, reaching values down to 5200 K, 4900 K and 4500 K, respectively. However, while the temperature profile of V_R 4 exceeds the FALC model above log(τ)∼ − 2.5, the temperature profiles of V_R 5 and V_R 6 remain rather flat, although they show a small temperature increase near log(τ) = − 2 that overcomes the FALC model up to log(τ)∼ − 4 to reproduce the apparent emission observed in the inner wings of their Mg intensity profiles. The NLTE inversions infer largely oblique and vertical magnetic fields, respectively, with intensities above 1 kG that either decrease with height or remain nearly constant between the heights of maximum response of the core of the spectral lines, and low-to-moderate LOS velocities. Such velocities and magnetic field configuration are compatible with those inferred by the classical methods for V_R 4 and V_R 5, whose results fall within the estimated uncertainties of the NLTE inversions. However, the methods differ by a few hundred Gauss in the case of V_R 6 and show a discrepancy in the estimated v_LOS of about 1 km s⁻¹.

6.4. Family D

Family D is composed of classes 7 and 8, both containing asymmetric Stokes V profiles. Class 7 profiles, which exhibit positive amplitude asymmetry, are predominantly found at the edges of bright magnetic structures. This is illustrated in examples (a), (b), (c), and (e) of Fig. 8, where they appear surrounding classes 0 and 1. Additionally, class 7 profiles are observed in some areas outside the pores, as shown in example (d). As indicated in Table 1, class 7 is the second-largest group, accounting nearly 29% of the profiles in the sample. The distribution of amplitude asymmetry for class 7 in Fig. 7 shows a clear tendency toward large positive values, as expected. In contrast, the area asymmetry distribution is nearly zero-centered because these profiles typically display a blue lobe with larger amplitude than the red lobe, while the red lobe tends to have a larger width, reducing the area asymmetries. The magnetic field distributions for class 7 show a single peak and cover larger field strengths in the chromosphere than in the photosphere, with tails that do not extend beyond 1 kG. The |B_LOS| ratio is less than 1 for the majority of the profiles in this class, confirming that the longitudinal magnetic field increases with height around the magnetic structures. These results are consistent with a low-lying magnetic canopy that forms in the high-photosphere/low-chromosphere, indicating a rapid opening of the magnetic field with height at the edges of bright magnetic structures. This is not surprising since such a magnetic configuration gives rise to strong magnetic field gradients along the LOS, which has been proven to favor the formation of amplitude asymmetries in the circular polarization of some photospheric spectral lines (Martínez González et al. 2012), similar to the asymmetric Stokes V profiles of the Mg line in class 7. In the vicinity of pores, class 7 profiles appear further out from the magnetic core compared to the bright structures. This might indicate a difference in the height at which the magnetic canopy is formed, suggesting that it is placed at higher layers in the case of the pores due to the stronger magnetic fields they host.

Class 8 profiles, which exhibit negative amplitude asymmetry, also display a distinct distribution of δAm and δAr in Fig. 7, with a clear tendency toward large negative values, as expected. These profiles are much less abundant than those in class 7, as indicated in Table 1, and are typically found in the core or at the edges of bright magnetic structures that display strong downflows in the chromosphere, as illustrated in examples (c) and (e) of Fig. 8. They show a single peak in the |B_LOS| distributions, with tails that do not extend beyond 1 kG. The |B_LOS| ratio distribution peaks near 1 and exhibits an extended tail toward larger values, indicating the presence of strong gradients where the magnetic field decreases with height, as in the core of magnetic structures. Although not depicted in Fig. 7, the v_LOS and Δv_LOS distributions for class 8 suggest the presence of significant velocity gradients (up to 10 km s⁻¹) between the photosphere and the chromosphere. This is predominantly due to strong downflows in the chromosphere that become notably weaker in the photosphere. Large velocity gradients are evident in examples (c) and (e) of Fig. 8 at the locations of class 8 profiles and likely contribute to the observed negative amplitude asymmetries.

The asymmetries in V_R 7 and V_R 8 were fitted in NLTE using two atmospheric components. For V_R 7, two components with similar filling factors (ff) but different temperatures and LOS velocities were retrieved, see Fig. 9. The cold component is non-magnetic and nearly at rest, while the hot component displays a velocity gradient with downflows in the lower layers and upflows higher up. The hot component exhibits a magnetic field that increases with height, starting near zero in the photosphere and reaching approximately 800 G at the height of the Mg line core maximum sensitivity, where it becomes more horizontal. Such a magnetic configuration is consistent with the existence of a canopy around bright magnetic structures.

For V_R 8, the generally hotter component is slightly dominant, with ff = 0.57, and resembles the stratification of Family A for bright magnetic elements. It displays a nearly constant velocity stratification with v_LOS ∼ 1.5 km s⁻¹ and a magnetic field that reaches up to 500 G near the Mg line core maximum sensitivity height. The second component is cooler in the lower and higher layers, with a weaker magnetic field, and shows a strong velocity gradient with a complex velocity profile, indicating downflows in the photosphere, upflows in the mid-layers, and downflows above log(τ)∼ − 4. The NLTE inversion results support the scenario of both velocity and magnetic field gradients in a bright magnetic element as sources of large negative amplitude asymmetries in the Mg line Stokes V profiles. In these two cases of Family D, both the WFA and SIR results for the magnetic field strength are consistent with the weighted average of the two magnetic components.

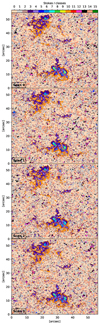

Fig. 10. Spatial distribution of the 16 classes of Stokes I profiles of the Mg I b2 line found in the four scans of our dataset, according to the eud classification. The maps show the full FOV.

7. Stokes I classification

The maps in Figure 10 show the results of the eud classification for the 16 classes of Stokes I profiles identified in our Mg dataset. Similar to the Stokes V case, most of the Stokes I classes exhibit a consistent spatial distribution among the four different scans, except for the classes from 11 to 15, which appear in different locations over time. These classes correspond to very asymmetric profiles that are likely associated with transient structures or rapid events. As with the Stokes V classes, we grouped the Stokes I classes into different families based on their common characteristics.

7.1. Family A

Classes 0, 1, and 2 are the largest groups in the Stokes I classification (∼39%, 17%, and 19% of the total sample, respectively; see Table 2) and display a clear spatial correlation with the granular edges, intergranular lanes, and bright granular centers, respectively. They are all fairly symmetric profiles, as indicated by their nearly centered line bisectors. However, mild deviations become noticeable at increasing intensity levels for all three classes (see blue markers in the first column of Figure 11). These deviations are slightly blueward in classes 0 and 2, reflecting the photospheric upflows present in the granules – which are stronger in the granule center and nearly fade toward their edges – while they are slightly redward in class 1 due to the photospheric downflows in the intergranular lanes. This is consistent with their histograms of the photospheric LOS velocity, which peaks nearly at zero for class 0, at positive values for class 1, and at negative values for class 2; see also Table 2. The Mg line-core Doppler velocities follow a similar pattern but with reduced contrast, indicating that the photospheric velocity pattern of the quiet Sun remains present, though weaker, in the low chromosphere.

Fig. 11. Spectral and physical properties of the 16 different classes of Stokes I profiles. From left to right: the IR’s (blue) and the mean class profiles (red), their distributions for the unsigned longitudinal magnetic field, the LOS velocities, the equivalent width, the line depth, and the normalized continuum intensities in the Mg line (I−700/IQS−700) and in the Fe line (I+532/IQS+532). Dotted profiles in the first column correspond to the mean QS, and the blue markers show the line bisectors of the IR’s at different intensity levels. Similar format as in Fig. 7.

The spectral characteristics and associated physical quantities in the histograms of Fig. 11 and in Table 2 present rather subtle differences between these classes, so we group them together and classify them as Family A. The main morphological difference is the equivalent width which covers smaller values in class 1 than in class 0, whilst it is slightly larger in class 2, consistent with their representative profiles I_R and with the expected different temperatures of the associated structures. Something similar happens with their normalized continuum intensity distributions, whose average values are in both Mg and Fe lines near 1 for class 0, but are slightly lower for class 1 and slightly higher for class 2. Likewise, classes 0 and 2 have slightly deeper profiles than those in class 1. The |B_LOS| distributions for these three classes display a single peak near zero, which indicates that the LOS field strength is generally weak both in the photosphere and the chromosphere as expected in most quiet Sun areas. The average longitudinal magnetic field strength in the photosphere is 18 G for class 0, 19 G for class 1, and 14 G for class 2. In the chromosphere, the average values are 44 G, 39 G, and 53 G, respectively. However, in the quiet Sun, polarization signals are mostly well below the noise level in both spectral lines, rendering these magnetic field estimates less reliable and potentially influenced by noise. Some of these characteristics can also be seen in Figure 12, which shows in examples (a) and (b) a zoomed-in portion of the quiet Sun granulation and highlights the location of classes 1 (intergranules) and 2 (granule centers), respectively.

Fig. 12. Examples of different structures and their associated Stokes I classes and physical properties. For examples (a)–(f) panels show, from left to right: the eud classification of Mg Stokes I, Fe continuum intensity (at +532 mÅ) normalized to its mean QS value, Mg continuum intensity (at −700 mÅ) normalized to its mean QS value, photospheric LOS velocity from the SIR inversions of the Fe line, Doppler velocity of the Mg line core, unsigned LOS magnetic field from the SIR inversions and the WFA in the Mg ±100 mÅ spectral window, the equivalent width, and the line depth of the Mg Stokes I profiles. All the examples show a ∼6″ × 6″ sub-field. For each row, the contours enclose the Stokes I class specified in the intensity maps. Columns in examples (g)–(j) are similar to those in examples (a)–(f), except for the second column which displays the associated Stokes V classes in the magnetic structures. Also, examples (a)–(f) use a smaller magnetic field scale than examples (g)–(j), allowing for the visualization of weaker magnetic field regions.

Figure 13 presents the results of the NLTE inversions for the representative profiles I_R’s in this family. As indicated in Table A.2, profiles in Family A required a relatively low number of free parameters to achieve a good fit. The resulting stratification of the physical parameters is consistent with the typical quiet Sun structure in the photosphere: upflows and temperatures slightly higher than the FALC model in the low photosphere for I_R 2 (granule center), weaker upflows and temperatures similar to FALC for I_R 0 (granule border), and downflows with temperatures slightly cooler than FALC for I_R 1 (intergranule). The temperature difference between I_R 1 and I_R 2 is nearly 200 K at log(τ) = − 0.7. In the mid-to-upper photosphere, above log(τ) = − 1.4, we observe an inverse granulation pattern in the temperature, with the granule centers becoming about 100 K cooler than the intergranules. The temperature difference between I_R 1 and I_R 2 increases higher up, and becomes of the order of 500 K at log(τ) = − 4.4. For all three cases, the inversions retrieve weak and rather horizontal magnetic fields, in agreement with the WFA and SIR inversions. However, these values are likely not meaningful, given that the polarization signals in both lines are extremely weak and essentially at the noise level.

Fig. 13. NLTE inversions of selected symmetric Stokes I representatives as indicated in the legends on the first column. The family is indicated in the left bottom corner of the panels in the first column. Same format as in Fig. 9.

7.2. Family B

Family B is formed by classes 3 and 4. Both classes consist of narrow profiles with bright wings which are found over the bright magnetic structures, either in the plage regions around the pores or in isolated bright magnetic elements. These regions are referred to as bright because of their appearance in the Mg continuum intensity, but they are not consistently seen bright in the continuum of the Fe line. Class 4 profiles tend to appear in the core of these structures and are surrounded by class 3 profiles which concentrate around the magnetic core of the bright structures where the continuum intensities are slightly lower, such as in examples (g) to (j) of Fig. 12. This explains why the photospheric |B_LOS| and the continuum intensity distributions for class 4 in Fig. 11 reach higher values than those for class 3. Also, class 4 profiles generally display brighter wings, which results in smaller equivalent widths than class 3 profiles and are associated with faster downflows in the photosphere.

Family B of Stokes I is morphologically correlated with family A of Stokes V. The slight differences in wing brightness between Stokes I classes 3 and 4 explain, within the weak field regime, the mild variations in lobe width observed between Stokes V classes 0 and 1. Although the spatial correlation between these classes is not strictly one-to-one, both families are consistently observed at the core of bright magnetic regions.

The NLTE inversions of I_R 4 profiles retrieve hot atmospheres and magnetic fields of several hundred Gauss, with inclinations that are largely oblique (see Fig. 13). These results are expected, considering that I_R 4 belongs to a bright magnetic element. However, the temperatures around log(τ) = 0 are nearly the same as the FALC model. This is consistent with these structures displaying continuum intensities in the Fe line comparable to that of granules, while the excess brightness observed in the Mg pseudo-continuum at −700 mÅ indicates that these magnetic structures start being hotter than their surroundings slightly higher in the atmosphere, above log(τ) = − 0.5. The resulting LOS velocity and magnetic field strength from the classical methods fall within the errors of the inversions and are consistent with the NLTE stratifications.

7.3. Family C

Family C is formed by classes 5 and 6, which appear associated with both magnetic and non-magnetic regions, as portrayed by the |B_LOS| histograms in Fig. 11. This is similar to Family B classes and, as in the case of most Stokes V classes, indicates that some of the intensity profiles can display similar morphology across different physical scenarios. However, class 5 exhibits a binomial distribution of EW, with a population peaking at EW ∼ 315 mÅ and a second peak near 500 mÅ (see Fig. 11 and Table 2). This could be attributed to the eud method’s inability to separate the different features of I_R 5, which exhibits both a narrow line core and wider wings – a peculiar morphology that may result from emissions in the inner wings of the line or enhanced absorption in the outer wings. Consequently, this class contains both narrow and wide intensity profiles. The narrower profiles in class 5 are primarily located at the outer boundary of pores (see examples (h) and (i) in Fig. 12), and are thus associated with the stronger field population in the |B_LOS| histogram and with the lower continuum intensity populations. On the other hand, the wider profiles in class 5 are situated in quiet Sun regions, specifically within certain intergranular lanes that appear notably dark in the Mg continuum image, as shown by example (c) in Fig. 12, although they are still brighter than the pores. This second population is thus associated with the weaker fields and with the relatively brighter profiles of this class. Nonetheless, the majority of profiles in class 5 exhibit a morphology similar to that of the representative profile, as reflected in the average class profile (see red profiles in Fig. 11).

Although not a perfect match, there is some spatial correlation between this family and family B of Stokes V at the periphery of the pores. In particular, Stokes I classes 5 and 6 correspond to Stokes V classes 2 and 3, respectively. This alignment is expected since, in the weak-field regime Stokes V is proportional to the derivative of Stokes I. Therefore, the different wing shapes observed in Stokes I classes 5 and 6 would naturally result in diverging and converging Stokes V wing signals, as seen in Stokes V classes 2 and 3, respectively. However, in the pore regions the Mg line may not be entirely in the weak-field regime (see, e.g., Paper I), meaning the one-to-one correspondence between Stokes I and Stokes V is not always strictly satisfied.

The representative I_R 5 belongs to the periphery of a pore, and the NLTE inversions in Fig. 13 recover an atmosphere that displays a complex temperature profile which rapidly cools down in the low photosphere but slightly rises again above log(τ)∼ − 2 and shows a second decrease at log(τ)∼ − 3 (fluctuations that might not be significant due to the large uncertainties estimated at these heights) before steeply rising in the higher layers, where it reaches values larger than ten thousand Kelvin. The retrieved atmosphere displays a magnetic field that increases with height from about 300 G at log(τ) = 0 to ∼800 G at log(τ) = − 4.3, in agreement with the WFA and the SIR inversions. These results are consistent with the formation of a magnetic canopy around pores.

Fig. 14. NLTE inversions of asymmetric Stokes I representatives. Classes from 10 to 15 are displayed from top to bottom (see legends in the first column). Same format as in Fig. 9.

7.4. Family D

Family D is formed by classes 7, 8, and 9 of Stokes I profiles, which are all located within the pores, as illustrated in examples (h) and (i) of Fig. 12. Unlike family C, these classes are exclusively found inside the pores, which explains why their |B_LOS| distributions only display one population of kiloGauss magnetic fields. Family D contains the classes with the narrowest profiles in the sample (with average EW of 300, 240, and 223 mÅ, respectively) and also the shallowest (with average LD of 0.69, 0,65, and 0.63, respectively). They also exhibit the lowest continuum intensities in both spectral lines, along with a significant degree of emission in their wings. As indicated by the histograms of Fig. 11, the estimated LOS velocities for some profiles in these classes are notably high, particularly in the photosphere. However, such estimations are not reliable due to the rather flat intensity profiles that both spectral lines typically exhibit in these classes, especially in the Fe line (see, for example, I_R 8 in Fig. 13). Such flat profiles significantly affect the performance of the SIR inversions to properly fit the Fe line.

The Stokes I classes 7, 8, and 9 in this family spatially and morphologically correlate with Stokes V classes 4, 5, and 6 in family C, which are all found inside the pores. This is consistent with the WFA, which predicts nearly constant non-zero Stokes V wing signals (as seen in Stokes V class 4) for intensity profiles with a constant wing slope (Stokes I class 7), nearly zero Stokes V wing signals (Stokes V class 5) for intensity profiles displaying wing emissions close to the continuum level (Stokes I class 8), and opposite polarity Stokes V signals (Stokes V class 6) for strong wing emissions exceeding the continuum intensity (Stokes I class 9). However, due to the strong magnetic fields inside the pores, the WFA is not always strictly applicable to the Mg line. As a result, the correlation between individual classes is not always one-to-one but is better preserved at the family level (see examples (h) and (i) in Fig. 12).

The NLTE inversions of I_R 7 and I_R 8 in Fig. 13, which belong to the interior of a pore, retrieve very low temperatures in the lower layers of the atmosphere (down to approximately 4500 K for I_R 7 and around 3700 K for I_R 8) and temperatures hotter than the FALC model above log(τ)∼ − 2, where the estimated errors become considerably large partly due to the large number of nodes used for the temperature in order to reproduce the observed profiles. The resulting magnetic field decreases with height and is largely vertical for I_R 7, as expected in pores and in agreement with the LTE methods, although there is a discrepancy of various hundred Gauss between the methods. In contrast, there is not good agreement between the NLTE and the classical inferences of v_LOS, B, and γ for I_R 8. Despite the NLTE inversions succeeded in reproducing the observed profiles of I_R 8, the estimated uncertainties are considerably large even in the lower layers, which means that the NLTE results could have a large error for these parameters at all heights. However, the temperature below log(τ) = − 2 seems to be better determined and displays the lowest temperatures among all the inverted I_R’s, which is consistent with the very low intensity levels measured in both spectral lines that emerge from the core of a pore. Such overly low intensities and very shallow observed profiles, in combination with the presence of some emission in the wings of the Mg line, also impact the performance of the classical methods used to infer the LOS velocities and the magnetic field in the photosphere and in the chromosphere. In particular, the SIR inversions deliver unusually large photospheric LOS velocities of −23 km s⁻¹, values that are not reliable since such inversions failed to produce a reasonable fit in this pixel (not shown in Fig. 13).

7.5. Family E

We group all asymmetric profiles in classes 10 to 15 into Family E. Class 10 profiles display asymmetric wing brightness and appear agglomerated at the borders of the bright magnetic structures. They spatially correlate with the asymmetric Stokes V profiles in class 7 and display similar physical properties to Stokes I family B found within the bright structures, although exhibiting slightly darker intensities and magnetic fields that increase from the photosphere to the chromosphere (see Table 2). In particular, the blue-wing asymmetry of I_R 10 was reproduced using two atmospheric components with the same ff (see Figure 14). One component is nearly non-magnetic and displays a temperature profile similar to the FALC model. The second component has a hotter temperature profile up to log(τ) = − 4.4 and shows a magnetic field that increases with height from ∼500 G in the photosphere to ∼750 G at log(τ) = − 4.3, becoming more horizontal. These results are consistent with the WFA and SIR inversions, considering the associated uncertainties. These atmospheres also reproduce the mild amplitude asymmetry of the Mg I b₂ Stokes V profile (which corresponds to Stokes V class 7). Again, for I_R 10 profiles, the results support the existence of a low-lying magnetic canopy around the bright magnetic structures due to the opening of the magnetic field with height. This configuration can be modeled as two different atmospheric components along the LOS: component 1 (red model) represents the quiet Sun or stray light within the pixel, while component 2 (blue model) represents the magnetic canopy of the bright structure. Together, these components successfully reproduce the observed asymmetries in the Stokes I and V profiles.

Class 11 profiles exhibit the largest blueward asymmetries and are associated with the largest downflows inferred for the low chromosphere, as reflected in the v_D distributions of Fig. 11 and Table 2 (average v_D of 1.47 km s⁻¹), while in the photosphere, class 12 profiles are mostly associated with upflows (average v_LOS = −0.26 km s⁻¹). This suggests the presence of large velocity gradients along the LOS. These profiles are observed at the edges or within some bright magnetic structures, as shown in example (j) of Fig. 12. The |B_LOS| distributions display moderate values but do not expand beyond 1 kG. This is the smallest group in the classification, and their associated Stokes V profiles display very large negative asymmetries (i.e., they belong to class 8 in the Stokes V classification).

Classes 12 and 13 both exhibit blueward asymmetries, as highlighted by the line bisectors (blue markers in Fig. 11). However, histograms in Fig. 11 and Table 2 show that class 13 profiles are slightly wider, brighter, and deeper profiles, with larger asymmetries than class 12 profiles. The histograms reveal a preference for upflows in the photosphere in both classes, although they are faster in class 13 than in class 12. In the chromosphere, both classes show a preference for downflows, which are in average faster for class 12. Nonetheless, class 13 suggests larger velocity gradients between photosphere and chromosphere than class 12. Both classes tend to appear together, as seen in example (d) of Fig. 12, which depicts a small granule surrounded by dark integranular lanes, with class 12 located toward the edges of such granule and class 13 in the center. In this example, continuum intensities and EW maps display characteristics typical of intergranules at the location of class 12, but the v_LOS maps indicate weak photospheric upflows. These structures, due to their small size and slightly brighter appearance in the photosphere than in the chromosphere, are likely newly emerging granules. This scenario is expected to generate velocity gradients with height and possibly multiple atmospheric components with different temperatures, thus explaining the profile asymmetries and their varying spatial distribution across different scans.

Classes 14 and 15 contain profiles with large redward asymmetries, with class 15 profiles exhibiting a more extreme asymmetry and being less abundant compared to class 14. The different degrees of asymmetry are illustrated by the bisectors of the representative profiles in Fig. 11 and the average profiles in each class. The v_LOS distributions in both classes indicate a preference for downflows in the photosphere, generally faster in class 11, and upflows in the higher layers with larger velocity gradients in class 15 than in class 14. Example (e) of Fig. 12 shows class 14 profiles located above the junctions of two or more granules with weak upflows in the chromosphere and weak downflows in the photosphere. The faint dark lanes observed in the Mg continuum intensity at the junctions of these granules are not well defined in the maps of equivalent width and line depth. These structures might correspond with granules undergoing splitting or the formation of a new intergranular lane. Such processes likely occur over shorter periods than the temporal cadence of our dataset, which could explain the different locations of class 14 throughout the four scans. The splitting of granules likely occurs first at photospheric levels, which might explain the lower continuum intensities in Fe than in Mg. Class 15 profiles are usually surrounded by class 14 profiles, also at the junctions of various granules, as in example (f) of Fig. 12. The larger redward asymmetries of their wings suggest stronger photospheric downflows and likely correspond to a later stage of the splitting process, which could also explain the lower continuum intensity distributions for this class.

Figure 14 presents the NLTE results for the representatives I_R’s in Family E. These profiles are located in complex sites, and the cadence of our observations might not be sufficient to fully understand their nature, as their origin might be associated with faster events. Notwithstanding, the asymmetries were successfully reproduced by using two atmospheric components, each with initially distinct LOS velocities. Furthermore, all physical parameters in both atmospheres were allowed to vary, as indicated in Table A.2, thus requiring a substantial number of free parameters. The resultant two-component atmospheres show different and intricate gradients with height in all cases. Additionally, the estimated errors for this family are somewhat large across the entire height range of the atmospheres, making the interpretation of the results and the comparison with the classical methods not straightforward.

8. Discussion and conclusions

Although various classifications of Stokes V profiles exist in the literature for photospheric spectral lines (e.g., Sigwarth et al. 1999; Sigwarth 2001; Khomenko et al. 2003; Dominguez Cerdeña et al. 2003; Viticchié & Sánchez Almeida 2011; Bellot Rubio & Orozco Suárez 2019), the diversity of polarization shapes in chromospheric spectral lines has been studied to a lesser degree, often using semi-empirical approaches (e.g., Quintero Noda et al. 2018, 2019; Carlin 2019). In this study, we performed a detailed morphological classification of the Stokes I and V profiles of the Mg I b₂ line at 5173 Å, using high-resolution spectropolarimetric observations of a portion of the solar atmosphere containing a bipolar magnetic region (pores and plage), which was surrounded by quiet Sun granulation. Our classification, based on the careful selection of a small number of representative profiles and the Euclidean distance method, has provided insights into various solar magnetic structures, their physical properties, and the processes occurring at different heights in the solar atmosphere.

The Euclidean distance method proved to be an effective approach for classifying Mg I b₂ profiles, as evidenced by the strong resemblance between the average profiles in each class and their respective representative profiles. This ensures that the majority of the profiles were morphologically classified correctly. However, our approach required an extensive visual inspection of the dataset and the manual selection of the representative profiles – a task that is both demanding and time-consuming. Nonetheless, this step was necessary, as our primary goal was to identify all distinct morphological variations present in the observed solar scenery, regardless of their Doppler shifts and amplitudes. Unsupervised methods, such as k-means clustering, offer an alternative approach and have been widely applied in solar studies (e.g., Sainz Dalda et al. 2019; Kuckein et al. 2020; Moe et al. 2023). These methods are computationally efficient and robust, but their performance depends on selecting an optimal number of clusters (k), which must be specified as an input parameter. Moreover, they may struggle to distinguish subtle yet important differences between profiles. While these limitations can lead to an underestimation or overestimation of the number of classes – which is crucial for the purposes of this study – unsupervised methods remain valuable for other purposes, such as identifying dominant features in the dataset or to speed up inversions.

Understanding the variety of shapes and polarization signatures of the Mg I b₂ line at 5173 Å provides valuable information about the physics of the solar atmosphere and the magnetic field configuration in the region where the line is formed, namely, the layers between the photosphere and the chromosphere comprising the so-called “temperature minimum” region. Since the line forms under NLTE conditions (e.g., Lites et al. 1988; Quintero Noda et al. 2018), a proper interpretation of the underlying physics, with emphasis on the thermodynamic properties, requires a formal NLTE approach.

Nonetheless, in this work, some of the physical properties, such as the longitudinal magnetic field and the LOS velocities, were inferred using classical methods on the Mg line. This choice was driven by the significant computational time required for the NLTE spectropolarimetric inversions to process the entire dataset, which consisted of nearly 4 × 10⁶ profiles. Instead, we applied the WFA (e.g., Landi Degl’innocenti & Landolfi 2004) to the Mg line core to infer the magnetic field configuration, and the Doppler shift of the Mg line core to estimate LOS velocities in the low chromosphere. Additionally, SIR inversions (Ruiz Cobo & del Toro Iniesta 1992) of the Fe line in LTE were performed to obtain complementary information about the photosphere.

The validity of these methods on the Mg line, despite its NLTE nature, was addressed in Paper I, where we found that both the WFA and the Doppler shift method provide qualitatively reliable results that can be used as a statistical reference for the longitudinal field and the LOS velocities in the low chromosphere, respectively, while significantly reducing the computation time when dealing with large datasets (e.g., Vukadinovic et al. 2022). However, special care must be taken when dealing with profiles that exhibit large asymmetries and peculiar shapes, as the results from these classical methods may not be accurate, given that they do not account for height gradients within the line formation region.

Additionally, the WFA becomes unreliable in regions of strong magnetic fields, such as the magnetic cores of pores where the chromospheric |B_LOS| can exceed 1400 G in a number of pixels. According to Vukadinovic et al. (2022), the LOS magnetic field retrieved by the WFA in the Mg line remains reliable up to 1400 G, even in the presence of moderate velocity gradients. In Paper I, we found that the results from the WFA and NLTE inversions disagree by less than 100 G in weak field regions of the low chromosphere, but the discrepancy increases to about 300−400 G for |B_LOS|> 1400 G in the NLTE scheme, with the WFA generally estimating weaker fields than the NLTE inversions. However, the NLTE inversions presented in Paper I were performed with a simplified setup to reduce computational time. While this setup provided good fits for most of the FOV, the fits were notably poorer in the cores of the pores. Additional sources of error in the NLTE results may include the use of a simplified atomic model and the spectral sampling of the observations, which, if insufficient, could directly affect the performance of the inversions, particularly in the core of the line.

We also performed NLTE inversions of selected representative profiles using the full Stokes information from both spectral lines, Mg and Fe, with the DeSIRe inversion code (Ruiz Cobo et al. 2022), treating the Fe line in LTE and the Mg line fully in NLTE. The inversion setups were individually tailored to the complexity of each representative profile, providing the code with sufficient degrees of freedom to closely reproduce the observed spectral and polarization features. This approach allowed us to achieve good-quality fits, generally yielding reliable information on the temperature stratification from the photosphere to the chromosphere, associated with the different profile morphologies. To our knowledge, this is the first time that the Mg I b₂ line at 5173 Å has been inverted using a full NLTE treatment on high-resolution spectropolarimetric observations. The results of these inversions agree with those from Paper I and suggest that in strong field regions, such as in the magnetic core of the pores (see, for example, I_R 7 and I_R 8 in Fig. 13), the WFA underestimates the longitudinal component of the magnetic field with respect to the NLTE scheme by a few hundred Gauss. However, the estimated uncertainties for the NLTE inversions are quite substantial in these cases, making it difficult to accurately determine the magnetic field configuration.

The selection of representative profiles was done manually, using as fewer classes as possible to capture the broad range of variation in the spectra of the Mg line. We identified nine distinct classes of Stokes V profiles within the magnetic regions and 16 classes of Stokes I profiles across the entire FOV of the observations. These classes were grouped into families, not only because they tend to appear clustered spatially and temporally, but also because they share morphological characteristics and similar physical properties.

In the magnetic regions, we identified nine Stokes I classes that morphologically correspond to the nine Stokes V classes, as expected in the weak-field regime, where Stokes V profiles are proportional to the derivative of Stokes I (e.g., Landi Degl’innocenti & Landolfi 2004). However, while a strong spatial correlation exists between these classes, it is not always strictly one-to-one at the pixel level, with the correspondence being more consistent at the family level in most cases. Several factors could contribute to this discrepancy, including the higher noise level in Stokes V, which influences its morphology and affects the classification, particularly at the edges of magnetic structures where the signal-to-noise ratio approaches the 5σ threshold value. Additionally, as discussed in Paper I, the Mg I b₂ line may not fully satisfy the weak-field approximation in the pores, leading to deviations from the expected proportionality between Stokes V and the derivative of Stokes I in strong-field regimes.

Thus, we described four families of Stokes V classes (A–D) and five families of Stokes I classes (A–E), each primarily associated with specific solar features as follows:

• (i)

  In the quiet Sun granulation (granules and intergranules), no Stokes V classification was performed due to the very weak signals detected in these regions, which fall well below the 5σ threshold value selected for the classification. This is expected, given the typically weak magnetic fields present in the quiet Sun chromosphere (e.g., Quintero Noda et al. 2018; Bellot Rubio & Orozco Suárez 2019). We found that the average longitudinal field strength in these areas is below 100 G, both in the photosphere and the chromosphere. However, on average, it is approximately 2 − 4 times stronger in the chromosphere. This could be due to the presence of different magnetic canopies that expand into the low chromosphere above the granules and intergranules, originating from nearby photospheric magnetic field concentrations, such as isolated magnetic points embedded within the intergranular lanes (e.g., Martínez González & Bellot Rubio 2009) or from larger structures such as plage and pores. However, as the polarization signals measured in both spectral lines are generally at the noise level in the quiet Sun, the inferred magnetic field values in the photosphere and chromosphere are not robust. We also found that the intensity profiles are generally deep and largely symmetric in the quiet Sun areas (Family A of Stokes I), although the line bisectors show small deviations from the central wavelength close to the continuum level as a result of the moderate LOS velocities associated with the photospheric convective flows, similar to what is typically observed in most photospheric spectral lines (e.g., Bellot Rubio et al. 2006; González Manrique et al. 2020). The NLTE inversions of the representative profiles return larger temperature differences between granules and intergranules in the low chromosphere than in the photosphere, and the temperature reversal occurs at log(τ) = − 1.4, which is consistent with previous observations and simulations of the reverse granulation pattern of the upper photosphere (e.g., Ruiz Cobo et al. 1996; Borrero & Bellot Rubio 2002; Cheung et al. 2007). We also found largely asymmetric Stokes I profiles in different sites of the quiet Sun (classes 12 to 15 contained in Family E), which were reproduced using two-component NLTE inversions that display strong and complex velocity gradients. These profiles are rare (∼9% of the total sample) and cannot clearly be associated with specific structures. To understand the nature of these profiles we need higher-cadence observations with better spatial and spectral resolutions. Therefore, this might be a suitable study to be addressed with DKIST (Rimmele et al. 2020) and EST (Quintero Noda et al. 2022).

• (ii)

  The bright magnetic structures, as seen in the Mg pseudo-continuum, include bright isolated magnetic points and plage that are generally not seen as bright structures in the low photosphere. We found that the Mg line displays pretty symmetric Stokes V (Family A) and Stokes I profiles (Family B) in their magnetic cores, which are associated with several hundred Gauss to nearly kiloGauss photospheric fields that either weaken with height or remain nearly constant in the low chromosphere. The intensity profiles are narrow due to enhanced brightness in the wings which, according to the NLTE inversions, indicate enhanced temperatures in the upper layers of the atmosphere, but quiet Sun temperatures in the low photosphere. Further out, near the edges of these magnetic structures we found larger asymmetries in both Stokes V (class 7 in Family D) and I profiles (class 10 in Family E), which were reproduced with two atmospheric components of different temperatures and magnetic fields that are consistent with the presence of low-lying magnetic canopies, where the magnetic field opens rapidly with height producing strong gradients along the LOS. This agrees with the work of Kuckein (2019), who found similar canopy effects and asymmetries in the Stokes I and V profiles of the Si I 10827 Å line around magnetic bright points that were reproduced with two-component inversions. Another type of asymmetric Stokes V profiles (with negative amplitude asymmetries – class 8 in Family D) were also observed in the vicinity of bright magnetic structures and were associated with largely asymmetric Stokes I profiles (class 11 in Family E). These asymmetries all portray strong chromospheric downflows producing large gradients along the LOS, and were reproduced by the NLTE inversions with two components displaying complex velocity profiles.

• (iii)

  The periphery and the interior of pores display narrow profiles in both Stokes V (Families B and C) and Stokes I (Families C and D), associated with kiloGauss longitudinal fields in the photosphere, which decrease with height to nearly kiloGauss strengths in the low chromosphere. The intensity profiles become gradually shallower and flatter as the magnetic core of the pores is approached, indicating progressively cooler photospheric temperatures up to the order of 4000 − 4500 K in agreement with previous studies (e.g., Sobotka 2003; Thomas & Weiss 2004; Sobotka et al. 2012). Moreover, the wings display some emission in the core of the pores. This characteristic is reproduced by the NLTE inversions with an increase in the temperature profile in the higher layers of the atmosphere, with temperatures that exceed 5000 K in the low chromosphere. The Stokes V profiles also display different signatures and signal levels in the wings, generally decreasing as approaching the magnetic core of the pores and even changing signs in the very core of the pores as a consequence of the prominent emissions in the wings of the Stokes I profiles observed on these sites (see, e.g., set of profiles for V_R 6 in Fig. 9). As explained by Carlin (2019), different wing signals can also be generated in the presence of strong magnetic fields, NLTE effects, and atomic polarization, so that it is possible that the different classes of Stokes V profiles observed in the pores are due to dichroism and magneto-optical effects.

We aim to extend this analysis by including observations of the Mg I b₂ line in other solar structures such as sunspot umbrae, penumbral filaments, and light bridges, among others. This will allow us to provide a more complete morphological classification of the intensity and circular polarization profiles of this line and to better understand the physics of the temperature minimum region of the solar atmosphere. A full characterization must also include the linear polarization profiles, Stokes Q and U, to account for the horizontal configuration of the magnetic field in the low chromosphere. These studies will soon be addressed with data from the recently completed SUNRISE III mission (e.g., Barthol et al. 2011), DKIST (Rimmele et al. 2020), and the upcoming high-resolution observations of EST (Quintero Noda et al. 2022).

Acknowledgments

We would like to thank the anonymous referee for important suggestions that greatly improved the content of this work. We also thank Edgar Carlin for valuable discussions and useful suggestions on this work and Mats G. Löfdahl for his assistance during the data reduction. A.S.T. has been funded by Consejería de Transformación Económica, Industria, Conocimiento y Universidades from Junta de Andalucía through grant POSTDOC-21-00832. This work was supported by the Spanish Ministry of Science and Innovation through the project PID2021-125325OB-C51. The authors acknowledge financial support from the Severo Ochoa grant CEX2021-001131-S funded by MICIU/AEI/10.13039/501100011033. R.G. acknowledges the support by Fundação para a Ciência e a Tecnologia (FCT) through the research grants UIDB/04434/2020 and UIDP/04434/2020. The Swedish 1 m Solar Telescope is operated on the island of La Palma by the Institute for Solar Physics of Stockholm University in the Spanish Observatory del Roque de los Muchachos of the Instituto de Astrofísica de Canarias. The Institute for Solar Physics is supported by a grant for research infrastructures of national importance from the Swedish Research Council (registration number 2017-00625).

References

Appendix A: Additional material

Fig. A.1. Top: Response functions to temperature (left), LOS velocity (middle), and magnetic field strength (right) of the Mg I 5173 Å and Fe I 6173 Å lines computed for VR 0 with DeSIRe, using the model resulting from the NLTE inversions displayed in Fig. 9. All the cases are normalized to the maximum of the RF of Stokes I to changes in the temperature. Green dotted lines delimit a spectral window of ±100 mÅ around the core of the Mg line, while black dotted lines enclose the core of the Fe line in the spectral range ±56 mÅ. Bottom: Average of the unsigned RFs within the spectral windows containing the core of the Mg line (green) and the core of the Fe line (black) lines as defined in the upper plots. The vertical dashed lines are placed at the optical depths of maximum average response in each case.
