1. Introduction

The recent results from the Planck satellite support cosmological reionization scenarios that are almost compatible with astrophysical models for the evolution of structure, galaxy, and star formation. On the other hand, the full understanding of the reionization and thermal history of the Universe since the recombination epoch is still far from consolidated, and it is important to distinguish among the various models that are compatible with current data. The radio- to sub-millimetre background provides a very important window for studying this process in a global approach and achieving a complete comprehension of the involved photon and energy sources. We mainly focus here on the information encoded at radio frequencies, where the redshifted 21 cm line from neutral hydrogen offers a tomographic view of the process, and the diffuse free-free (FF) emission provides a fundamental information integrated over the relevant epochs. Furthermore, the precise understanding of the radio extragalactic background is linked to the comprehension of these signals.

The peculiar motion of an observer with respect to an ideal reference frame, set at rest with respect to the cosmic microwave background (CMB), produces boosting effects in the anisotropy patterns at low multipoles, in particular in the dipole, with frequency spectral behaviour related to the spectrum of the corresponding monopole emission. The possibility of studying the dipole anisotropy spectrum to extract information on the CMB spectral distortions has originally been proposed (Danese & de Zotti 1981) with the aim of constraining energy dissipations that may have occurred in the cosmic plasma at different epochs, focussing on Bose-Einstein-like and Comptonization distortions. This topic has recently been investigated in the context of future CMB anisotropy missions (Balashev et al. 2015), including the possibility of better constraining the cosmic infrared background (CIB) spectrum (De Zotti et al. 2016), and considering both these topics including instrumental performance as well as limitations by foregrounds and relative calibration uncertainties, also through numerical simulations (Burigana et al. 2018). The possibility of applying this differential approach to the analysis of the redshifted 21 cm line has been advanced by Slosar (2017), while Deshpande (2018) proposed to exploit the corresponding diurnal pattern in drift-scan observations.

In this work we present the predictions for the diffuse cosmic dipole, mainly at radio frequencies, but in some cases also in the microwave and sub-millimetre domain, from four types of imprints and their combinations expected from (or associated with) cosmological reionization: the diffuse FF emission and the coupled Comptonization distortion, the redshifted 21 cm line, and the radio extragalactic background for a set of models that spans currently plausible possibility ranges.

In Sect. 2 we present and discuss the models we adopted for the monopole spectra, including different extragalactic residual radio backgrounds from source contribution subtractions at different detection thresholds. In Sect. 3 we briefly describe the adopted basic formalism of the differential approach. Our main results for each specific type of signal are presented in Sect. 4, and those regarding the dipole spectra expected from combinations of these imprints are described in Sect. 5. Finally, in Sect. 6 we draw our main conclusions.

2. Monopole models

2.1. Joint free-free diffuse emission and Comptonization distortion

The cosmological reionization process associated with the primeval formation phases of bound structures, which are sources of photon and energy production, generates coupled Comptonization distortions because of electron heating (Zel’dovich et al. 1972) and FF distortions. The key parameters for characterizing these effects as functions of time are the Comptonization parameter,

$$\begin{array}{c}\hfill u(t)={\displaystyle {\int }_{t_{\mathrm{i}}}^t}[(\varphi -{\varphi }_{\mathrm{i}})/\varphi ](k{T}_{\mathrm{e}}/m{c}^2)n_{\mathrm{e}}{\sigma }_{\mathrm{T}}c\mathrm{d}t,\end{array}$$(1)

and the FF distortion parameter y_B(t, x),

$$\begin{array}{cc}\hfill y_B(t,x)& ={\displaystyle {\int }_{t_h}^t}(\varphi -{\varphi }_i){\varphi }^{-3/2}{g}_B(x,\varphi )K_{0B}\mathrm{d}t\hfill \\ \hfill & ={\displaystyle {\int }_z^{z_h}}(\varphi -{\varphi }_i){\varphi }^{-3/2}{g}_B(x,\varphi )K_{0B}{t}_{\exp }\frac{\mathrm{d}z}{1+z},\hfill \end{array}$$(2)

where z is the redshift, T_e the electron temperature, t_exp the cosmic expansion time, and K_0B(z) = K_B(z)/ϕ^−7/2, where K_B(z) is expressed by

$$\begin{array}{cc}\hfill K_B(z)& =\frac{8\pi }{3}\frac{e^6{h}^2{n}_{\mathrm{e}}(n_{\mathrm{H}}+4n_{\mathrm{He}})}{m{(6\pi mk{T}_{\mathrm{e}})}^{1/2}{(k{T}_{\mathrm{e}})}^3}\hfill \\ \hfill & \sim 2.6\times {10}^{-25}{\varphi }^{-7/2}{(T_0/2.7\mathrm{K})}^{-7/2}{(1+z)}^{5/2}{{\widehat{\mathrm{\Omega }}}_b}^2{\chi }_{\mathrm{e}}^2{\sec }^{-1}.\hfill \end{array}$$(3)

In the above equations x = hν/(kT_r) and T_r = T₀(1 + z) are the redshift invariant dimensionless frequency and the redshift-dependent effective temperature of the CMB, g_B(x, ϕ) is the Gaunt factor, ϕ = T_e/T_r and ${\widehat{\mathrm{\Omega }}}_{\mathrm{b}}={\mathrm{\Omega }}_{\mathrm{b}}{h}_{50}^2$, with h₅₀ = H₀/(50 km sec⁻¹ Mpc⁻¹), H₀ is the Hubble constant, and Ω_b is the baryon density parameter. Here, T₀ = (2.72548 ± 0.00057) K (Fixsen 2009) is the current effective temperature of the CMB in the blackbody spectrum approximation, that is, such that $a{T}_0^4$ gives the current CMB energy density. In Eqs. (1) and (3), n_e is the density of free electrons. A mixture of hydrogen and helium with densities in the ionized state n_H and n_He is assumed for simplicity in the first equality of Eq. (3), while the approximation in the second equality of Eq. (3) denotes the dependence on the ionization degree, χ_e. A more accurate formula according to the convention adopted to define χ_e should include the atom fractions in different ionization states (see e.g. Trombetti & Burigana 2014), but this is not relevant in the context of this paper. In the above equations, k and h are the Boltzmann and Planck constant, m is the electron mass, c the speed of light, σ_T the Thomson cross section, and ϕ_i = ϕ(z_i) = (1 + Δϵ/ε_i)^−1/4 ≃ 1 − u is the ratio between the equilibrium matter temperature and the radiation temperature at the beginning of the heating process (i.e. at z_i).

The distorted photon occupation number is well approximated by

$$\begin{array}{c}\hfill {\eta }^{\mathrm{FF}+\mathrm{C}}\simeq {\eta }_{\mathrm{i}}+u\frac{x/{\varphi }_{\mathrm{i}}\exp (x/{\varphi }_{\mathrm{i}})}{{[\exp (x/{\varphi }_{\mathrm{i}})-1]}^2}(\frac{x/{\varphi }_{\mathrm{i}}}{\tanh (x/2{\varphi }_{\mathrm{i}})}-4)+\frac{y_B(x)}{x^3},\end{array}$$(4)

where η_i is the initial photon occupation number (i.e. before the beginning of the dissipation process). In the following, η_i is assumed to have a Planckian distribution. At low frequencies η^FF + C can be approximated by the expression:

$$\begin{array}{c}\hfill {\eta }^{\mathrm{FF}+\mathrm{C}}\simeq {\eta }_{\mathrm{i}}+\frac{y_B(x)}{x^3}-\frac{2u}{x/{\varphi }_{\mathrm{i}}}\simeq \frac{1-3u}{x}+\frac{y_B(x)}{x^3}·\end{array}$$(5)

Equations (1), (2), and (4) hold at any redshift, provided that the two distortion parameters y_B and u are integrated over the corresponding redshift interval. Performing the integral over the relevant cosmic times and in the limit of small energy injections (according to current limits), we obtain the relation between u and the global fractional energy exchange between matter and radiation in the cosmic plasma: u ≃ (1/4)Δε/ε_i.

Defining the thermodynamic temperature, T_th(ν), as the temperature of the blackbody having the same η(ν) at the frequency ν,

$$\begin{array}{c}\hfill T_{\mathrm{th}}(\nu )=\frac{h\nu }{k}\frac{1}{ln(1+1/\eta (\nu ))},\end{array}$$(6)

the CMB spectrum can be approximated at low frequencies by the relation

$$\begin{array}{c}\hfill T_{\mathrm{th}}^{\mathrm{FF}+\mathrm{C}}(x)\simeq (\frac{y_B(x)}{x^2}-2u{\varphi }_i+{\varphi }_i)T_{\mathrm{r}},\end{array}$$(7)

and

$$\begin{array}{c}\hfill \frac{\mathrm{\Delta }{T}_{\mathrm{exc}}^{\mathrm{FF}}}{T_{\mathrm{r}}}\simeq \frac{y_B(x)}{x^2}\end{array}$$(8)

quantifies the relative excess over T_r due to the FF diffuse emission.

In the above equations a uniform medium is assumed. This is not critical for the global Comptonization distortion because it depends linearly on matter density, but it introduces a significant underestimation of the FF distortion in the presence of substantial intergalactic medium (IGM) matter density contrast because bremsstrahlung depends quadratically on matter density.

A separation approach, resulting in agreement with numerical simulations (Ponente et al. 2011), has been adopted to take into account inhomogeneities in matter density (Trombetti & Burigana 2014). In principle, we could also include higher order corrections from inhomogeneities in the medium temperature and differences in the inhomogeneities of free electrons and atoms in different ionization states. These terms are expected to be significantly smaller than the leading correction considered here, however. This approach allows a versatile modelling of thermal and ionization histories for different underlying cosmological models. Defining the density as the sum of a mean term and a small perturbation and averaging over a volume representative of the Universe, a time-dependent clumping factor, (1 + σ²), accounts for inhomogeneities in the bremsstrahlung rate by replacing ${\mathrm{\Omega }}_{\mathrm{b}}^2(z)={\mathrm{\Omega }}_{\mathrm{b},\mathrm{homog}}^2(1+{\sigma }^2(z))$, where ${\mathrm{\Omega }}_{\mathrm{b},\mathrm{homog}}^2$ defines the homogeneous case. The baryonic matter variance, σ²(z), is influenced by the nature of the dark matter (DM) particles, especially at high wavenumbers k̂, while the large-scale structure distribution is almost independent of the model (Gao & Theuns 2007). The intrinsic thermal velocities of warm DM particles imply a suppression of small-scale structure formation, which is efficient below their free-streaming scale, with a delay of the growth of structures (Viel et al. 2005). This loss of power in warm DM models can be approximated by a cold DM model with a suitable cut-off, k_max, in the typical range ≃(20 ÷ 10³), according to the thermal properties of the particles. Thus, σ²(z) mainly depends on two crucial parameters: the amplitude and the cut-off of perturbations.

As examples, we considered two pairs of different FF and Componization distortion models. We first adopted the FF model described in Trombetti & Burigana (2014) for the ionization history of Gnedin (2000), resulting in a Thomson optical depth τ that is well consistent with recent Planck results, and a fixed cut-off value k_max = 100. We coupled it with two different levels of Comptonization distortion, characterized by u = 10⁻⁷, which is very close to that derived in Burigana et al. (2008) for the Gnedin (2000) model and corresponds to an almost minimal energy injection that is consistent with the current constraints on τ, and by u = 2 × 10⁻⁶, a value that accounts for possible additional energy injections by a broad set of astrophysical phenomena. While larger FF distortions (up to a factor of about 1.5–2) derive from higher values of k_max or from ionization histories with slightly higher values of τ, the FF diffuse emission from an ensemble of ionized halos at substantial redshifts is expected to generate much stronger signals. Remarkably, the model by Oh (1999) predicts a very strong global (i.e. integrated over the ensemble of halos) FF signal, corresponding to y_B ∼ 1.5 × 10⁻⁶ at ν ∼ 2 GHz. We rescaled the above FF model to y_B(2 GHz) = 1.5 × 10⁻⁶, coupled with Comptonization distortions with u = 10⁻⁷ or 2 × 10⁻⁶. We note that this level of global FF diffuse emission was found by Oh (1999) by integrating the number counts of FF emitters over the whole astrophysical range, i.e. without any subtraction of signals by individual ionized halos. Applying a subtraction of FF emitters down to faint detection thresholds, as is feasible with high-resolution and deep surveys such as the Square Kilometre Array (SKA), the residual FF diffuse emission will be significantly lower. These four models likely identify a plausible range of possible distortions. The studied range for Comptonization and FF distortions lies well within the current observational constraints on u, |u| ≤ 1.5 × 10⁻⁵ (at 95% CL), which mainly come from the Far Infrared Absolute Spectrophotometer (FIRAS; Fixsen et al. 1996) on board the Cosmic Background Explorer (COBE), and on y_B, which is derived including previous low-frequency measurements as well (Salvaterra & Burigana 2002) and the TRIS data (Gervasi et al. 2008a), which set −6.3 × 10⁻⁶ <  y_B <  12.6 × 10⁻⁶ (at 95% CL), and, obviously, within the relaxation of y_B limits, |y_B|< 10⁻⁴ (Seiffert et al. 2011), which are mainly due to the excess (Singal et al. 2011) at ≃3.3 GHz in the second generation of the Absolute Radiometer for Cosmology, Astrophysics, and Diffuse Emission (ARCADE 2) data (if not explained by a population of faint radio sources; see also Sect. 2.3). The models are shown in Fig. 1 after the current CMB spectrum in the blackbody approximation at its effective temperature is subtracted, both in terms of equivalent thermodynamic temperature and antenna temperature,

$$\begin{array}{c}\hfill T_{\mathrm{ant}}(\nu )=\frac{h\nu }{k}\eta (\nu ).\end{array}$$(9)

Fig. 1. Monopole signal for the considered combined Comptonization and diffuse FF distortion models after subtracting the current CMB spectrum in the blackbody approximation at the effective temperature T0. Solid and three dots-dashed lines refer to positive and negative values, respectively. Free-free distortions are evaluated for a reionization model compatible with Planck results and for an extreme model involving a population of ionized halos. Comptonization distortions are evaluated for u = 2 × 10−6 and u = 10−7, representative of imprints by astrophysical or minimal reionization models. For comparison with previous works that focussed on the CMB, they are also displayed, other than in terms of antenna temperature (left panel), which is typically used at radio frequencies, in terms of equivalent thermodynamic temperature (right panel); the differences appear above ≃40 GHz. See also the legend and the text.

We note the change from positive to negative values, which is predicted at a frequency ranging from a few GHz to several tens of GHz, according to the amplitude of FF emission and the value of u. Almost independently of the – Comptonization – distortion level, a well-known change from negative to positive values occurs at ≃280 GHz. We note that for global distortions and referring to the current, i.e. after heating, directly observable CMB effective temperature T₀, this change of sign occurs at a frequency slightly higher than ≃220 GHz that holds for the thermal Sunyaev-Zel’dovich effect on a galaxy cluster.

At extremely low frequencies, Eq. (4) should be replaced by a more accurate formula (see e.g. Eq. (33) in Burigana et al. 1995) for the bremsstrahlung process because the extremely high efficiency of the process implies the achievement of a blackbody spectrum at electron temperature. On the other hand, the simple representation in terms of y_B expressed by Eqs. (4) and (7), which predicts a continuous equivalent thermodynamic temperature increase at decreasing frequency, well approximates the exact solution in the observable frequency range (see Appendix A).

At low frequencies, y_B can be approximated by a power law,

$$\begin{array}{c}\hfill y_B(\nu )\simeq A_{\mathrm{FF}}{(\nu /\mathrm{GHz})}^{-\zeta },\end{array}$$(10)

with ζ ≃ 0.15, and A_FF ≃ 7.012 × 10⁻⁹ or 1.664 × 10⁻⁶ for the two considered models.

2.2. 21 cm redshifted line

A precise measure and mapping of the redshifted 21 cm line signal with current and next-generation radio telescopes is likely the best way to investigate the evolution and distribution of neutral hydrogen (HI) in the Universe from the dark ages to the reionization history (epoch of reionization, EoR).

This 21 cm line corresponds to the spin-flip transition in the ground state of neutral hydrogen. In cosmology, the 21 cm signal, usually expressed in terms of antenna temperature, is described as the offset of the 21 cm brightness temperature from the CMB temperature, T_CMB, along the observed line of sight at frequency ν and is given by (Furlanetto et al. 2006)

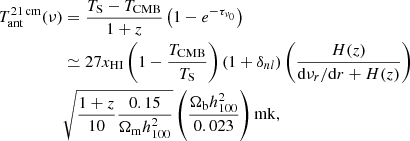

$$\begin{array}{cc}\hfill T_{\mathrm{ant}}^{21\mathrm{cm}}(\nu )& =\frac{T_{\mathrm{S}}-T_{\mathrm{CMB}}}{1+z}(1-e^{-{\tau }_{{\nu }_0}})\hfill \\ \hfill & \simeq 27x_{\mathrm{HI}}(1-\frac{T_{\mathrm{CMB}}}{T_{\mathrm{S}}})(1+{\delta }_{\mathit{nl}})\left(\frac{H(z)}{\mathrm{d}{\nu }_r/\mathrm{d}r+H(z)}\right)\hfill \\ \hfill & \sqrt{\frac{1+z}{10}\frac{0.15}{{\mathrm{\Omega }}_{\mathrm{m}}{h}_{100}^2}}\left(\frac{{\mathrm{\Omega }}_{\mathrm{b}}{h}_{100}^2}{0.023}\right)\mathrm{mk},\hfill \end{array}$$(11)

where T_S is the gas spin temperature, which represents the excitation temperature of the 21 cm transition, x_HI is the neutral hydrogen fraction, τ_ν0 is the optical depth at the 21 cm frequency ν₀, H(z) is the Hubble function, Ω_m is the (non-relativistic) matter density parameter, h₁₀₀ = H₀/(100 km s⁻¹ Mpc⁻¹), ${\delta }_{\mathit{nl}}(\mathit{x},z)\equiv \rho /\overline{\rho }-1$ is the evolved (Eulerian) density contrast, dν_r/dr is the comoving gradient of the line-of-sight component of the comoving velocity, and all the terms are computed at redshift z = ν₀/ν − 1. The CMB is assumed as a back light, thus if T_S <  T_CMB, the gas is seen in absorption, while if T_S >  T_CMB, it appears in emission. More in general, T_CMB should include not only the CMB (blackbody) background defined by T_r, but also potential distortions and other possible radiation backgrounds that are relevant at radio frequencies. Equation (11) shows a dependence on the IGM temperature and ionization evolution, as well as on fundamental cosmological parameters.

Because the 21 cm signal is a line transition, its frequency redshifts from each specific cosmic time during the EoR up to the current time into a well-defined frequency. The signal detected at a given frequency then refers to a particular redshift, implying that the 21 cm analysis constitutes a unique tomographic observation of the cosmic evolution.

Different models predict different gas ionization fraction and spin temperature evolutions and, correspondingly, different predictions for the global 21 cm background signal, $T_{\mathrm{ant}}^{21\mathrm{cm}}(\nu )$, related to the underlying astrophysical emission sources and feedback mechanisms. A wide set of models has been considered in Cohen et al. (2017), resulting in an envelope of possible predictions for $T_{\mathrm{ant}}^{21\mathrm{cm}}(\nu )$.

Recent limits on the global 21 cm background signals have been set by Bernardi et al. (2016), who applied a fully Bayesian method to a 19 min-long observation from the Large aperture Experiment to detect the Dark Ages (LEDA) to identify the faint signal from the much brighter foreground emission. They found a signal amplitude between −890 and 0 mK (at 95% CL) in the frequency range 100 >  ν >  50 MHz, corresponding to a redshift range 13.2 <  z <  27.4. These data set limits on the 21 cm signal from the cosmic dawn before or at the beginning of the increase in electron ionization fraction and constrains structures and IGM thermal history in connection with heating sources.

Surprisingly, a pronounced absorption profile with an almost symmetric U-shape centred at (78 ± 1) MHz has recently been found by Bowman et al. (2018), who analyzed a set of observational campaigns that started in August 2015 and were carried out with low-band instruments of the Experiment to Detect the Global Epoch of Reionization Signature (EDGES). The amplitude of the absorption feature was found to be $0.5_{-0.2}^{+0.5}$ K, which is more than a factor of two greater than those predicted by the most extreme astrophysical models (Cohen et al. 2017) that cannot account for such a deep signature. The spread of the profile has a full width at half-maximum of ${19}_{-2}^{+4}$ MHz. The low-frequency edge supports the existence of an ionizing background by 180 million years after the Big Bang, and the high-frequency edge indicates that the gas was heated to above the radiation temperature less than 100 million years later (Bowman et al. 2018).

We considered six models (displayed in Fig. 2): the first is the analytical representation of the EDGES absorption profile, and the other five fall in the region of the $\nu -T_{\mathrm{ant}}^{21\mathrm{cm}}$ plane that was identified in Cohen et al. (2017). One model was presented in Schneider et al. (2008) for the ionization history of Gnedin (2000), which we also considered for the FF diffuse emission in Sect. 2.1, another is the standard case model in Cohen et al. (2017). The other three models, which were also taken into account in the study for the Square Kilometre Array (SKA) by Subrahmanyan et al. (2015) and are labelled here SKA, SKA1, and SKA2, come from Pritchard & Loeb (2010), who exploited the dependence of 21 cm signal on the X-ray emissivity (f_X = 0.01 and f_X = 1), and from Burns et al. (2012; the case of a model without heating). Figure 2 shows that the spectral shapes predicted for the global signal of the redshifted 21 cm line present substantial differences from one model to another. In particular, different models predict signals with sign changes or vanishing values at different frequencies. We note that, since the effect is important at low frequencies, antenna and equivalent thermodynamic temperatures are typically similar, but not for small values of T_ant (below some tens of mK) and particularly when it vanishes or tends to vanish. The differences between the redshifted 21 cm line models are again different from the ones derived for the combined Comptonization and FF distortion, which at least to a good approximation simply rescales according to two global parameters. The six models considered here do not represent the full set of possibilities, but span a wide range of behaviours and amplitudes. They are exploited in the next sections to illustrate the expected types of diffuse dipole signal. We note also that they are predicted to be relevant in a limited range of frequencies. In this range, the amplitudes of the combined FF diffuse emission and of the global signal of the redshifted 21 cm line span a similar and model-dependent range, but their spectral shapes are very different.

Fig. 2. Monopole signal in terms of antenna temperature for the models of redshifted 21 cm line. The depth of the EDGES profile is greater by a factor of ≃3 than that of the standard case model in Cohen et al. (2017). See also the legend and the text.

2.3. Extragalactic background

The signals discussed in Sects. 2.1 and 2.2, which are tightly related to the ionization and thermal history of IGM even though they are coupled with clumping and galaxy evolution, are intrinsically diffuse. An important extragalactic background signal is expected from the integrated contribution of discrete sources. A large fraction of it can be resolved through galactic surveys that reach increasingly deeper flux density levels. In spite of this, a residual background that is observationally diffuse comes from the contribution of faint sources below the survey detection limits, and depends on their number counts. This signal is in general very high compared to the fine signatures that directly come from reionization. Other than intrinsically interesting, this extragalactic background needs to be accurately known in order to understand the reionization imprints correctly. Remarkably, these classes of signals may also be tightly related. As shown in Eq. (11), the explanation of the 21 cm redshifted line signal found by EDGES might require a substantial cooling of the IGM gas (at a temperature well below that of the standard adiabatic prediction) or an additional high-redshift extragalactic radio background (much larger than the CMB background for a blackbody spectrum at an equilibrium temperature equal to the temperature observed by FIRAS and rescaled by 1 + z) or a combination of them. The cooling might be driven by interactions between DM and baryons (Barkana 2018; Muñoz & Loeb 2018). A first claim of a notable extragalactic radio background (see also the recent radio data by Dowell & Taylor 2018) was proposed by Seiffert et al. (2011) to explain the signal excess found by ARCADE 2. The spectral shape of this background was too steep to be well accounted for by a fit in terms of FF emission. In principle, this strong extragalactic radio background might be an intrinsic CMB feature (Baiesi et al. 2019) or might be ascribed to a substantial astrophysical contribution. This might be generated by a faint population of radio sources (Feng & Holder 2018), for instance, or by a strong emission, with heavy obscuration or a large radio-loud fraction that are associated with the evolution of black holes and Population III stars at z ≳ 17 and with a growth declining at z <  16 (Ewall-Wice et al. 2018). Another possibility are black hole high-mass X-ray binary microquasars (Mirabel 2019). According to Seiffert et al. (2011), the limits on FF distortion significantly change depending on whether a substantial extragalactic source radio background is assumed.

We exploit several simple analytical representations of the extragalactic radio background. Some of them are adopted in the next sections to illustrate the expected types of dipole signal.

Initially, we assumed the best-fit power-law model

$$\begin{array}{c}\hfill T_{\mathrm{ant}}^{\mathrm{Back}}(\nu )\simeq 18.4\mathrm{K}{(\nu /0.31\mathrm{GHz})}^{-2.57}\end{array}$$(12)

by Seiffert et al. (2011; expressed in terms of antenna temperature).

A careful analysis and prediction of the extragalactic source radio background, also including different source detection thresholds, has been carried out by Gervasi et al. (2008b). We considered their best-fit single power-law model for the extragalactic source background signal (again in terms of antenna temperature),

$$\begin{array}{c}\hfill T_{\mathrm{ant}}^{\mathrm{Back}}(\nu )\simeq 0.88\mathrm{K}{(\nu /0.61\mathrm{GHz})}^{-2.707}.\end{array}$$(13)

The authors provided an empirical analytical fit function of the differential number counts normalized to the Euclidean distribution of sources. With this recipe, we estimated the extragalactic radio background proportional to ${\int }_{{\mathrm{S}}_{\min }}^{{\mathrm{S}}_{\max }}SN\prime (\nu )\mathrm{d}S$, where N′ (ν) are the differential number counts. When a range for the parameters of the fit representation of N′ (ν) is provided, we assumed their central values for simplicity. Because the authors found a reasonable convergence of the integration by extending S_min to 10⁻¹² Jy, we computed the extragalactic radio background assuming that S_max is a single parameter, to be set according to the considered source detection threshold. We fitted the results that were computed in the frequency range between 0.151 GHz and 8.44 GHz that was investigated by the authors for certain values of S_max. We find that a simple power law represents a good approximation, given the current uncertainties on number counts at faint flux densities. As examples of numerical estimates, we assumed S_max = 50 nJy, which almost corresponds to typical detection limits of the ultra deep reference continuum surveys planned for the SKA (Prandoni & Seymour 2015), and S_max = 15 nJy because number counts down to flux densities fainter than the detection threshold can be investigated through P(D) methods (see Vernstrom et al. 2014 for an analysis at 3 GHz; see also Vernstrom et al. 2016). Fitting the results for the extragalactic radio background up to these flux densities, we find

$$\begin{array}{c}\hfill T_{\mathrm{ant}}^{\mathrm{Back}}(\nu )\simeq A{(\nu /\mathrm{GHz})}^{-2.65}\end{array}$$(14)

with A ≃ 2.35 and 1.51 mK. The authors also found an uncertainty from ≃6% to ≃30% from the lowest to highest frequencies in the above estimate. When we assume a ≃10% uncertainty at all frequencies in this characterization, the remaining residual extragalactic radio background is found to be smaller by a factor ≃10 than the above estimate.

The models are shown in Fig. 3 (solid lines). A deeper source subtraction and a better modelling clearly imply that a lower effective extragalactic radio background needs to be taken into account.

Fig. 3. Monopole signal in terms of antenna temperature for the two considered extragalactic background models and various estimates of extragalactic source background signal for different assumptions of source contribution subtraction. The labels “Res Back” and “Res Back P(D)” refer to the choice of A = 2.35 and 1.51 mK in Eq. (14), while the additional label “Uncer” includes a reduction by factor of 10. The dashed lines refer to the same estimates, but derived assuming an increase of a factor of 2 in the differential number counts at faint flux densities. See also the legend and the text.

Recently, the Lockman Hole Project and deep Low Frequency Array (LOFAR) imaging of the Boötes field have indicated a certain flattening of differential number counts at 1.4 GHz below ≈100 μJy (Prandoni et al. 2018) and at 0.15 GHz below ≈1 mJy (Retana-Montenegro et al. 2018). This may suggest an increase in differential number counts of a factor of ∼2 with respect to the estimate of Gervasi et al. (2008b) at the faint flux densities adopted above for computing the integral of SN′ (ν)dS, which is likely related to the emerging of star-forming galaxies and radio-quiet AGNs at fainter flux densities. An extragalactic radio background a factor of ∼2 larger, displayed with dashed lines in Fig. 3, is directly derived in this case.

3. Basic formalism of the differential approach

The peculiar motion of an observer with respect to an ideal reference frame, set at rest with respect to the CMB, produces boosting effects in several observable quantities. The largest effect is the dipole, that is, the multipole ℓ = 1 anisotropy in the solar system barycentre frame.

The peculiar velocity effect on the frequency spectrum can be evaluated on the whole sky using the complete description of the Compton-Getting effect (Forman 1970). This is based on the Lorentz invariance of the photon distribution function. At a given ν, the photon distribution function, η^BB/dist, for the considered type of spectrum needs to be computed with the frequency multiplied by the product (1 − n̂ · β)/(1 − β²)^1/2. This accounts for all the possible sky directions, which are defined by the unit vector n̂, with respect to the peculiar velocity of the observer, which is defined by the vector β. This includes all the orders in β and the link with the geometrical properties induced at each multipole. The notation “BB/dist” stands for a blackbody spectrum or for any type of non-blackbody signal, such as the FF plus Comptonization (C) distortion or the global signal of the 21 cm redshifted line from reionization imprints or the extragalactic radio background or for combinations of them. In terms of equivalent thermodynamic temperature, the observed signal map is given by (Burigana et al. 2018)

$$\begin{array}{c}\hfill T_{\mathrm{th}}^{\mathrm{BB}/\mathrm{dist}}(\nu ,\widehat{n},\mathit{\beta })=\frac{x{T}_0}{\ln (1/{(\eta (\nu ,\widehat{n},\mathit{\beta }))}^{\mathrm{BB}/\mathrm{dist}}+1)};\end{array}$$(15)

Here η(ν, n̂, β) = η(ν′) with ν′ = ν(1 − n̂ · β)/(1 − β²)^1/2.

Equation (15) generalizes the result found by Danese & de Zotti (1981) for the difference in T_th measured in the direction of motion and in its perpendicular direction, expressed by

$$\begin{array}{c}\hfill \mathrm{\Delta }{T}_{\mathrm{th}}=\frac{h\nu }{k}\{\frac{1}{ln[1+1/\eta (\nu )]}-\frac{1}{ln[1+1/\eta (\nu (1+\beta ))]}\},\end{array}$$(16)

whose first-order approximation, given by

$$\begin{array}{c}\hfill \mathrm{\Delta }{T}_{\mathrm{th}}\simeq -\frac{x\beta T_0}{(1+\eta ){ln}^2(1+1/\eta )}\frac{\mathrm{d}ln\eta }{\mathrm{d}lnx},\end{array}$$(17)

underlines the contribution to the spectrum of the dipole that comes from the first logarithmic derivative of the photon occupation number with respect to the frequency. Different spectral shapes of monopole signals under consideration translate into different dipole spectra.

In the next sections we compute the effect at radio frequencies through the Eq. (16) for the various monopole signals described in Sect. 2. In principle, the difference in T_th expressed by Eq. (16) also includes the contributions from multipoles ℓ >  1. They introduce (small) higher order corrections (see e.g. the quadrupole and octupole maps computed in Burigana et al. 2018), however, that we neglected in the numerical computations here. For numerical estimates, we assumed the CMB dipole to be due to velocity effects only and set β = A_dip/T₀ = 1.2345 × 10⁻³, where A_dip = (3.3645 ± 0.002) mK is the nominal CMB dipole amplitude according to Planck 2015 results (Planck Collaboration I 2016; Planck Collaboration V 2016; Planck Collaboration VIII 2016). While the Planck 2018 result obtained by the Low Frequency Instrument (LFI; Planck Collaboration II 2019) is almost identical to the nominal Planck 2015 result, the High Frequency Instrument (HFI) result (Planck Collaboration III 2019) indicates a slightly lower value, A_dip = 3.36208 mK, which is still compatible within the errors.

We focus on the exploitation of the spectral shapes of the considered dipole signals. In general, see Eq. (17), the overall dipole amplitude is proportional to β T₀. As discussed above, this property has been used to determine (under the assumption of a CMB blackbody spectrum) the observer’s motion from CMB surveys, but it can be applied to other types of backgrounds. Remarkably (see Sect. 2), cosmic backgrounds at different frequencies derive from (cosmological or astrophysical) signals that are differently weighted for different redshift shells. Because precise dipole analyses constrain our motion with respect to the background frame, the comparison between the set of our peculiar velocities with respect to different backgrounds can be used to probe the geometry and expansion of the Universe across time and to constrain the intrinsic CMB dipole. This type of analysis could represent a promising way to probe the cosmological principle, similarly to the investigations that are based on the comparison of the CMB dipole with dipoles from ensembles of galaxies and their number counts or distributions (see e.g. Colin et al. 2017; Bengaly et al. 2018, 2019 for studies with radio continuum surveys).

4. Single signal results

In this section we present the dipole spectra behaviours we derived for the signal. Figure 4 illustrates the dipole spectra for the combination of FF and Comptonization distortion. In the plot, we subtract the “reference” dipole spectrum that corresponds to the blackbody at the current temperature T₀. The (positive) FF term dominates at low frequencies, the (negative) Comptonization term at high frequencies. The transition from the FF to the Comptonization regime, which ranges from about 3 GHz to about 100 GHz, depends on the relative amplitude of the two parameters y_B and u. These frequencies are of potential interest both for the CMB missions that extend in frequency below the minimum foreground contamination, and for radio surveys. We note the agreement at high frequencies with the results found in Burigana et al. (2018; see their Fig. 7), where FF emission was neglected. For u ∼ 10⁻⁷ (u ∼ 2 × 10⁻⁶) the FF term dominates at frequencies below about 10 GHz (3 GHz) for almost minimal FF models to about 100 GHz (30 GHz) for extreme FF models.

Fig. 4. Dipole spectrum (in equivalent thermodynamic, or CMB, temperature) expressed as the difference between the dipole spectrum produced in the presence of an FF distortion (dominant at low frequencies) plus a Comptonization distortion (dominant at high frequencies) with monopole spectra in Fig. 1 and the dipole spectrum corresponding to the blackbody at the current temperature T0. Thick solid lines (or three dots-dashes) correspond to positive (or negative) values. See also the legend and the text.

Figure 5 shows the dipole spectra of the 21 cm redshifted line, where we first added (in η) its contribution with the spectrum from the CMB blackbody at the current temperature T₀ (while for the case of FF plus Comptonization distortion, the contribution of the unperturbed CMB spectrum is already included in η), computed the resulting dipole, and then, as before, subtracted the dipole spectrum for the reference blackbody case. For each model, we note that the changes in monopole signal behaviour are reflected in the sign inversions in the dipole spectrum (see Eq. (17)). Clearly, a larger monopole amplitude and shape steepness typically imply a larger dipole amplitude. Their combined effect is remarkable for the EDGES profile. Its dipole spectrum is about one order of magnitude larger than the dipole spectrum for models whose monopole signal is about two or three times smaller (compare Fig. 5 with Fig. 2). The richness of the dipole profile morphology and of its sign changes might be used as diagnostic for probing the underlying model.

Fig. 5. Dipole spectrum (in equivalent thermodynamic, or CMB, temperature) expressed as the difference between the dipole spectrum produced by the 21 cm redshifted line signal (summed in intensity with the CMB blackbody) for the monopole models in Fig. 2 and the dipole spectrum corresponding to the blackbody at the current temperature T0. Thick solid lines (or three dots-dashes) correspond to positive (or negative) values. See also the legend and the text.

In Fig. 6 we display the dipole spectra derived for the radio signals of the extragalactic background with the same convention adopted before. In this representation, the simple monopole power-law dependence of the radio extragalactic background monopole is reflected in the power-law dependence of the dipole spectrum, with a very similar spectral index. This can be simply understood by expanding Eq. (17) to first order in Taylor series for η ≫ 1 and considering that at the frequencies of interest here, the CMB photon occupation number can be approximated as 1/x. We discuss this aspect in the next section in combination with FF plus Comptonization distortions.

Fig. 6. Dipole spectrum (in equivalent thermodynamic, or CMB, temperature) expressed as the difference between the dipole spectrum produced by the radio signals of the extragalactic background (summed in intensity with the CMB blackbody) for the monopole models in Fig. 3 and the dipole spectrum corresponding to the blackbody at the current temperature T0. See also the legend and the text.

We report in Fig. 6 the dipole spectra corresponding to the extragalactic background emission by Seiffert et al. (2011) and to the extragalactic source global radio background by Gervasi et al. (2008b). For simplicity, we only show the dipole spectra that correspond to the minimum and maximum (identified here with the labels Low and High) of the residual monopole signals in Fig. 3 (i.e. from Eq. (14) for A = 4.7 and 0.151 mK) because they scale linearly with A.

5. Signal combination results

We present the dipole spectra for several combinations of signals. The comparison between Figs. 4–6 clearly indicates that at radio frequencies the dipole spectrum from the global extragalactic background (see the two top lines in Fig. 6) is stronger than the spectra from other signals. When we considered signal combinations, we therefore applied source subtractions down to faint fluxes. We are mainly interested in the dipole spectrum at radio frequencies and therefore focus on the case of Comptonization distortion with u = 2 × 10⁻⁶, which is representative of the imprints that are expected in astrophysical models. For lower values of u, the transition from the FF diffuse emission to the Comptonization distortion regime translates into higher frequencies (see Fig. 4).

Figure 7 shows our main results. The panels in the two columns consider the low and high residual extragalactic background signals (see Fig. 6). The label in each panel stands for the adopted 21 cm redshifted line model. Different colours identify different signal combinations. In all panels, the two discussed FF models are exploited.

Fig. 7. Dipole spectrum (in equivalent thermodynamic, or CMB, temperature) expressed as the difference between the dipole spectrum produced by the combinations of signals and the dipole spectrum corresponding to the blackbody at the current temperature T0. Thick solid lines (or thin three dots-dashes) correspond to positive (or negative) values. See also the legend and the text.

The blue (yellow) lines indicate the higher (lower) FF diffuse emission plus Comptonization distortions, the 21 cm redshifted line, and the residual extragalactic background, as derived from Eq. (16) summing in η the corresponding photon occupation numbers, while in the green (violet) lines the residual extragalactic background is not included. For a lower residual background, the dipole from the four-signal combination is almost identical to the dipole derived when the residual background was neglected (the blue lines are masked by the green lines in the left panels). This does not hold in the case of a higher residual background (and the yellow and violet lines are distinguishable in all the panels).

According to the model, the contribution from the 21 cm redshifted line appears as a modulation of the dipole spectrum from signal combinations (see the blue and yellow lines), which affects its approximate (see discussion below) power-law dependence at frequencies between about 60 MHz and 200 MHz. As expected, this feature is more evident for models with stronger and steeper monopole signals, and it is remarkable for the EDGES profile. When we assume that the contribution of the residual background is subtracted, the 21 cm redshifted line modulation is more or less evident over the FF emission dipole spectrum depending on their relative amplitudes (compare the green and violet lines). For a lower FF emission, the dipole sign inversions associated with these modulations are appreciable as well, according to the model, in the combination of all signals and clearly better when the residual background is subtracted (see the yellow and violet lines).

When we assume that the contribution of the FF diffuse emission was also accurately subtracted, the 21 cm redshifted line dipole spectrum emerges. This is shown by the red and light blue lines in Fig. 7, but remarkably, the main features displayed by the light blue lines are also visible in the violet lines, and even in the yellow lines for a lower residual extragalactic background (because they are ideally identical, the red line is masked by the light blue line; the little differences that appear at extremely low values in the case of EDGES are due only to numerical accuracy because the two curves are derived by subtraction starting from the two different global dipole predictions). This leaves room for extracting the contribution of the dipole spectrum of the 21 cm redshifted line that is embedded in the other background dipoles. This extraction is challenging, however.

In a wide radio frequency range, far from the 60–200 MHz interval, the slopes of the dipole spectra of the four-signals combination (blue and yellow lines) are between the steeper one, corresponding to the residual extragalactic background, and the flatter one, corresponding to the FF diffuse emission, according to the different amplitudes of the two types of signals. Equation (17) allows us to derive a suitable approximation for the dipole spectrum from the combination of FF diffuse emission plus Comptonization distortion and extragalactic background in the Rayleigh-Jeans region, where η ≫ 1. According to Eqs. (5), (9), and (10) and Eqs. (12)–(14), we assume

$$\begin{array}{c}\hfill \eta =\frac{1-3u}{x}+b{x}^{-(\alpha +1)}+f{x}^{-(\xi +1)},\end{array}$$(18)

where u quantifies the amplitude of Comptonization distortion, and b and α (or f and ξ) characterize the extragalactic background (or the FF diffuse emission); here α ≃ 2.57−2.707 and ξ = 2 + ζ ≃ 2.15. In the limit η ≫ 1, (1 + η) ln²(1 + 1/η)≃1/η. Eq. (18) implies

$$\begin{array}{c}\hfill \frac{\mathrm{d}ln\eta }{\mathrm{d}lnx}=-\left(1+G\right),\end{array}$$(19)

with

$$\begin{array}{c}\hfill G=\frac{b\alpha x^{-\alpha }+f\xi x^{-\xi }}{(1-3u)+b{x}^{-\alpha }+f{x}^{-\xi }}·\end{array}$$(20)

Finally, considering that for a blackbody spectrum at temperature T₀ we have simply $\mathrm{\Delta }{T}_{\mathrm{th}}^{\mathrm{BB}}=\beta T_0$, after some algebra, Eq. (17) gives

$$\begin{array}{c}\hfill \mathrm{\Delta }{T}_{\mathrm{th}}-\mathrm{\Delta }{T}_{\mathrm{th}}^{\mathrm{BB}}\simeq F_1+F_2+F_3+F_4,\end{array}$$(21)

where

$$\begin{array}{c}\hfill F_1=\beta T_{0}b{x}^{-\alpha }(1+G)\end{array}$$(22)

$$\begin{array}{c}\hfill F_2=\beta T_{0}f{x}^{-\xi }(1+G)\end{array}$$(23)

$$\begin{array}{c}\hfill F_3=\beta T_0(1-3u)G\end{array}$$(24)

$$\begin{array}{c}\hfill F_4=-3\beta T_{0}u.\end{array}$$(25)

The terms F₁ and F₃ with u = 0 and f = 0 give the result considering the extragalactic background alone:

$$\begin{array}{c}\hfill \mathrm{\Delta }{T}_{\mathrm{th}}^{\mathrm{Back}}-\mathrm{\Delta }{T}_{\mathrm{th}}^{\mathrm{BB}}\simeq \beta T_{0}b{x}^{-\alpha }(1+\alpha )=\beta T_{\mathrm{ant}}^{\mathrm{Back}}(1+\alpha ),\end{array}$$(26)

because $b{x}^{-\alpha }=T_{\mathrm{ant}}^{\mathrm{Back}}/T_0$.

Analogously, considering also Eq. (8) (with T_r = T₀), the terms F₂ and F₃ with u = 0 and b = 0 give the result when the FF diffuse emission alone is considered:

$$\begin{array}{c}\hfill \mathrm{\Delta }{T}_{\mathrm{th}}^{\mathrm{FF}}-\mathrm{\Delta }{T}_{\mathrm{th}}^{\mathrm{BB}}\simeq \beta T_{0}f{x}^{-\xi }(1+\xi )\simeq \beta \mathrm{\Delta }{T}_{\mathrm{exc}}^{\mathrm{FF}}(1+\xi ),\end{array}$$(27)

because fx^−ξ = y_B/x².

The term F₄ provides the result for the Comptonization distortion alone.

At low frequencies, Figs. (4) and (6) reflect the above relations. The same holds for Fig. (7), except for the further contribution from the 21 cm redshifted line that is relevant in the ∼60–200 MHz range. As discussed above, the different weights of the processes and the coupling between them, see Eqs. (20)–(25), determine the overall dipole spectrum. The condition F₂ + F₃ + F₄ = 0 with b = 0 and the approximation 1−3u ≃ 1 gives the solution

$$\begin{array}{c}\hfill x_0^{\mathrm{FF},\mathrm{C}}=\left(\frac{h{\nu }_0^{\mathrm{FF},\mathrm{C}}}{k{T}_0}\right)\simeq {\left[\frac{A_{\mathrm{FF}}}{3u}(1+\xi ){\left(\frac{h·1\mathrm{GHz}}{k{T}_0}\right)}^{\zeta }\right]}^{1/\xi }\end{array}$$(28)

for the frequency of the sign change corresponding to the transition from the FF to the Comptonization regime (see Fig. 4). Because we assumed η ≫ 1 and used a simple power-law approximation for y_B, the accuracy of Eq. (28) degrades at increasing frequency. The comparison with Fig. 4, based on Eq. (16) without further approximations, shows that it works well (or overestimates ${\nu }_0^{\text{FF},\text{C}}$) for the lower (or for the higher) FF diffuse emission, compared to the amplitude of Comptonization distortion.

Remarkably, Fig. 7 shows that for the case of a lower FF diffuse emission, the frequency of the sign change (at around 3 GHz in Fig. 4) when the Comptonization distortion begins to dominate moves to higher frequencies because of the contribution from residual extragalactic background (compare the violet and yellow lines). This effect is clearly more evident for a higher residual extragalactic background (compare the left and right panels). An upper limit to this frequency of the sign change can be derived from the condition F₁ + F₃ + F₄ = 0 with f = 0 and the approximation 1−3u ≃ 1. This gives

$$\begin{array}{c}\hfill \left(\frac{{\nu }_0^{\mathrm{Back},\mathrm{C}}}{\mathrm{GHz}}\right)=\left(\frac{k{T}_0}{h}{x}_0^{\mathrm{Back},\mathrm{C}}\right)\lesssim {\left[\frac{A(1+\alpha )}{3T_{0}u}\right]}^{1/\alpha }·\end{array}$$(29)

For a much higher FF diffuse emission this frequency shift becomes almost negligible.

With a wide frequency coverage, it would be possible to appreciate the different shapes of the various dipole signals. Microwave surveys are particularly important for assessing the contribution of the Comptonization distortion to the dipole spectrum, thus improving the modelling of the FF term at lower frequencies. A certain frequency shift to higher values in the transition of the Comptonization distortion regime can also be expected for lower values of u (see Fig. 4) because of the contribution from the residual background. Towards microwave frequencies, extragalactic sources with an almost flat spectrum (that are poorly described by the adopted number counts) become increasingly relevant. They can be directly extracted by analysing CMB maps from the next-generation space missions or using deeper multi-frequency ground-based surveys (see e.g. De Zotti et al. 2018 and references therein for a deeper discussion).

6. Discussion and conclusion

The best way to study the dipole spectrum of cosmic diffuse emissions should be based on the analysis of surveys that cover almost the entire sky or provide very wide coverage. On the other hand, investigations at microwave to sub-millimetre frequencies take advantage from avoiding sky regions that are mostly affected by foreground signals, even though the observed area is partially reduced.

Surveys at radio frequencies are performed through “classical” mapping from single telescopes or with interferometric techniques involving very many telescopes. These surveys are in particular aimed at improving resolution and sensitivity at small scales.

The SKA (see Dewdney et al. 2013 for specifications) frequency coverage jointly offered by the low- (≃0.05−0.35 GHz) and medium- (≃0.35−14 GHz) frequency and survey-mode (≃0.65−1.67 GHz) arrays during the SKA-1 phase is particularly suitable when compared to the frequency location of the 21 cm redshifted line, radio background, and FF signals, and also, depending on the models, of the transition from FF or residual background to Comptonization dominance. Frequency extensions to about 20 GHz that have been studied for the SKA-2 phase and will hopefully be expanded to higher frequencies in a third SKA phase might allow observing this transition even for models with relatively high FF or residual background (that may come from sources with flatter spectra). The combination of SKA resolution and sensitivity will allow us to detect point sources and to probe their number counts down to very faint flux densities (see Sect. 2.3), which will enable substantial subtractions of their contribution to the radio background.

Depending on the implemented configuration (i.e. the adopted baselines), interferometers are intrinsically sensitive to sky signal variations up to certain spatial scales (typically, of several degrees), thus producing a wide area map that essentially independently collects different patches, and preventing the analysis of sky geometrical properties at angular scales larger than the patch. The map might in principle be reconstructed with suitable array designs and observational approaches, such as a compact configuration implementing short baselines and a high uv-space filling factor, mosaicking techniques, and methods such as on-the-fly-mapping for the largest areas. Furthermore, it is possible to recalibrate different sets of interferometric maps over wide area surveys that were taken with classical (single-dish) approaches to recover the information at large scales but keeping interferometric sensitivity and resolution at small scales.

If these approaches that are useful for a broad set of SKA scientific projects work successfully, the analysis of diffuse cosmic dipoles at radio frequencies could be pursued with methods analogous to those suitable for recent CMB surveys and future missions (Burigana et al. 2018). The analysis of these aspects and of the applications of those methods, readapted to the radio domain, as well as the investigation of specific techniques to deal with independent patches from interferometric observations will be the object of a future study.

Conversely, the dipole pattern amplitude might be reconstructed even without coherent mapping up to the largest angular scales. Along a meridian in a reference frame where the z-axis is parallel to the dipole direction, the signal variation at colatitude θ from a dipole pattern with ΔT, see Eq. (16), within a limited sky area of linear size Δθ, has an amplitude |ΔT_Δθ|≃ΔT ⋅ (Δθ/90°) sin θ, with sin θ not far from unit at angles large enough from the poles.

For example, at ν  ∼  (50−100) MHz, we find for the FF and 21 cm signatures that the relevant signals (after the standard CMB blackbody spectrum dipole was subtracted) have amplitudes $\mathrm{\Delta }{T}_{\mathrm{th}}-\mathrm{\Delta }{T}_{\mathrm{th}}^{\mathrm{BB}}\sim 0.1-50$ mK depending on the model. Similar values also hold for the radio extragalactic background when the deepest detection thresholds are considered. Values of about 2 (or 4) orders of magnitude higher are achieved for shallower detection limits (or for the best-fit radio signal of the extragalactic background). Thus, for a patch of size Δθ ∼ 3°, sensitivities to the diffuse signal of about several tens of mK (or in a range from about a few μK to about mK) could allow identifying the extragalactic background (or the reionization imprints on the diffuse radio dipole). All these sensitivity levels can certainly be achieved based on the SKA specifications. Subtracting sources by applying a broad set of detection thresholds would also help to clarify to what extent the radio extragalactic background could be ascribed to extragalactic sources or if it is of intrinsic cosmological or diffuse origin. This would contribute to answering the question about the level and origin of the radio extragalactic background, which is still controversially discussed (see e.g. Subrahmanyan & Cowsik 2013; Hills et al. 2018; Sharma 2018). Clearly, collecting many patches would improve the statistical information.

The comparison of Figs. 1–3 with Figs. 4–6 shows that the dipole amplitude, ΔT_th, that is predicted for each specific signal is significantly smaller (by two or three orders of magnitude) than the corresponding global monopole signal. This shows that its precise absolute measurement does not require significant corrections for dipole effect. In contrast, the different amplitude of the dipole from different types of signal also requires a precise correction for the dipole pattern from stronger signals, in order to achieve a precise absolute determination of the monopole of weaker components. Remarkably, this is the case of the 21 cm redshifted line (compare Fig. 2 with Figs. 4 and 6 at ν ∼ (50−150) MHz). The level of correction depends on the intrinsic amplitude of the stronger (FF or radio background) component and on the capability of subtracting to faint detection thresholds the (ionized halos or extragalactic) sources that are responsible for a large portion of this dominant contribution. Again, a good frequency coverage would allow us to distinguish the different signals by exploiting their different spectral shapes.

In general, an ultra-accurate subtraction of the Galactic foreground emission is the most critical issue for analysing fine cosmological signals. Differently from the Galactic foreground, all the signal variations in the patches from cosmic diffuse dipoles should be described by a well-defined pattern related to the motion of the observer. This would improve a joint analysis.

The study of the dipole spectrum, which links monopole and anisotropy analyses, relies on the quality of interfrequency and relative data calibration. This by-passes the need for precise absolute calibration, which is a delicate task in cosmological surveys and in particular, in the combined analysis of data from different experiments and of maps from radio interferometric facilities. It might therefore also represent a way to complement and cross-check investigations on cosmological reionization, based on the study of the global signal and of the fluctuations projected onto the sphere, or in redshift shells performed with angular power spectrum or power spectrum analyses and higher order estimators.

Acknowledgments

It is a pleasure to thank Gianni Bernardi, Gianfranco de Zotti, and Isabella Prandoni for useful discussions. We also thank the anonymous referee for comments that helped improve the paper. We gratefully acknowledge financial support from the INAF PRIN SKA/CTA project FORmation and Evolution of Cosmic STructures (FORECaST) with Future Radio Surveys, from ASI/INAF agreement n. 2014-024-R.1 for the Planck LFI Activity of Phase E2 and from the ASI/Physics Department of the University of Roma–Tor Vergata agreement n. 2016-24-H.0 for study activities of the Italian cosmology community. TT acknowledges financial support from the research program RITMARE SP3 WP3 AZ3 U02 and the research contract SMO at CNR/ISMAR during the finalization of this work.

References

Appendix A: Estimate of ν_B

We discuss here the frequency range validity of the FF distortion approximation in terms of the parameter y_B (see Eqs. (2), (4), and (7)). It holds at dimensionless frequencies x_B ≪ x ≪ 1 (see Burigana et al. 1995 and references therein), where x_B is such that y_abs, B(x_B) = 1, being

$$\begin{array}{c}\hfill y_{\mathrm{abs},B}(x,\varphi (z),z)={\displaystyle {\int }_1^{1+z}}\frac{t_{\exp }d(1+z\prime )}{t_{\mathrm{abs},B}(1+z\prime )},\end{array}$$(A.1)

where t_abs, B is the bremsstrahlung absorption time

$$\begin{array}{c}\hfill \frac{1}{t_{\mathrm{abs},B}}=K_B(z)\frac{g(x,\varphi )}{{(x/\varphi )}^3}{\mathrm{e}}^{-x/\varphi }({\mathrm{e}}^{x/\varphi }-1).\end{array}$$(A.2)

The expansion time, including the contributions of the different types of energy densities in a Friedmann-Lemaître-Robertson-Walker model, can be expressed by

$$\begin{array}{cc}\hfill t_{\exp }& =\frac{a}{\dot{a}}=\frac{1}{H(z)}\hfill \\ \hfill & =\frac{1}{\left[H_0{\mathrm{\Omega }}_{\mathrm{rel}}^{1/2}{(1+z)}^2\right]{[1+\frac{{\mathrm{\Omega }}_{\mathrm{m}}/{\mathrm{\Omega }}_{\mathrm{rel}}}{1+z}(1+\frac{{\mathrm{\Omega }}_{\mathrm{K}}/{\mathrm{\Omega }}_{\mathrm{m}}}{1+z}+\frac{{\mathrm{\Omega }}_{\mathrm{\Lambda }}/{\mathrm{\Omega }}_{\mathrm{m}}}{{(1+z)}^3})]}^{1/2}},\hfill \end{array}$$(A.3)

where Ω_rel, Ω_K , and Ω_Λ are the relativistic particle (typically radiation plus relativistic neutrinos) density parameter, the curvature density parameter, and the cosmological constant – or dark energy, or vacuum energy – density parameter.

At x ≪ 1, in Eq. (A.2) [g(x, ϕ)/(x/ϕ)³]e^−x/ϕ(e^x/ϕ − 1)≃g(x, ϕ)ϕ²/x². Thus, the condition y_abs, B(x_B) = 1 becomes

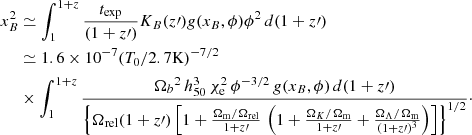

$$\begin{array}{cc}\hfill x_B^2& \simeq {\displaystyle {\int }_1^{1+z}}\frac{t_{\exp }}{(1+z\prime )}{K}_B(z\prime )g(x_B,\varphi ){\varphi }^{2}d(1+z\prime )\hfill \\ \hfill & \simeq 1.6\times {10}^{-7}{(T_0/2.7\mathrm{K})}^{-7/2}\hfill \\ \hfill & \times {\displaystyle {\int }_1^{1+z}}\frac{{{\mathrm{\Omega }}_b}^2{h}_{50}^3{\chi }_{\mathrm{e}}^2{\varphi }^{-3/2}g(x_B,\varphi )d(1+z\prime )}{\{{\mathrm{\Omega }}_{\mathrm{rel}}(1+z\prime )[1+\frac{{\mathrm{\Omega }}_{\mathrm{m}}/{\mathrm{\Omega }}_{\mathrm{rel}}}{1+z\prime }(1+\frac{{\mathrm{\Omega }}_K/{\mathrm{\Omega }}_{\mathrm{m}}}{1+z\prime }+\frac{{\mathrm{\Omega }}_{\mathrm{\Lambda }}/{\mathrm{\Omega }}_{\mathrm{m}}}{{(1+z\prime )}^3})]{\}}^{1/2}}·\hfill \end{array}$$(A.4)
