1 Introduction

While the exact role of magnetic fields in star formation is not clearly understood, they are known to be ubiquitous in the interstellar medium (ISM) and star forming regions. Many correlations between magnetic fields and star forming regions or filamentary structures have been observed in a variety of different surveys (e.g., Planck Collaboration Int. XXXV 2016; Goldsmith et al. 2008). One of the proposed morphologies is that of helical magnetic fields threading molecular clouds/filaments (e.g., Heiles & Robishaw 2009; Heiles 1987; Shibata & Matsumoto 1991; Nakamura et al. 1993; Hanawa et al. 1993; Matsumoto et al. 1994; Johnstone & Bally 1999a; Hoq et al. 2017; Matthews et al. 2001; Fiege & Pudritz 2000a,b,c; Contreras et al. 2013; Stutz & Gould 2016; Schleicher & Stutz 2018), an idea which, so far, has lacked systematic observational confirmation.

Observations of magnetic fields in molecular clouds (MC) have been made using the dust alignment method (Andersson et al. 2015, Palmeirim et al. 2013; Goldsmith et al. 2008; Planck Collaboration Int. XXXV 2016), and Zeeman measurements (Crutcher 1999, 2005; Li et al. 2015). The dust alignment method only provides a component of the magnetic field, which is projected on the plane of sky (perpendicular to the line-of-sight). Thus, observations to obtain the line-of-sight component of magnetic fields (BLOS) are necessary to obtain information about the three-dimensional (3D) structure of magnetic fields in MCs.

Zeeman measurements do provide BLOS, however, there are not enough Zeeman observations of MC available. As a consequence of relatively weak magnetic fields seen in MCs (e.g., 10 s of μG), the splitting happens with very small frequency variations between the right and left circularly polarized components (Troland & Heiles 1982), and even with very high signal-to-noise ratios, the frequency difference can still become masked (Killeen et al. 1992). Zeeman measurements are also very time consuming (Crutcher & Troland 2008), and, specifically, require long telescope integration time in regions with relatively small magnetic fields (Robishaw 2008).

The observed (e.g., Li et al. 2014; Palmeirim et al. 2013; Goldsmith et al. 2008) and theoretical (e.g., Kirk et al. 2015; Pudritz et al. 2014; Van Loo et al. 2014; Khesali et al. 2014; Klassen et al. 2017) links between magnetism and star formation, coupled with the observational difficulties in measuring the magnetic field, point to a need for a new technique for detecting magnetism in star forming regions.

We propose a new method to find BLOS in MCs based on Faraday rotation measurements. We test our method in four relatively nearby MCs: the Orion Molecular Cloud A (OMC-A; the entire southern complex), the Orion Molecular Cloud B (OMC-B; the entire northern complex), the Perseus Molecular Cloud (PMC), and the California Molecular Cloud (CMC) and find good agreement with available Zeeman measurements. We find that the magnetic field morphology in Orion A and California are consistent with a helical (or toroidal) magnetic field.

Faraday rotation

When propagating through a magnetized region with free electrons, the plane of polarization of a linearly polarized electromagnetic wave will undergo Faraday rotation of Ψ [rad], given by (1)

where B [μG] is the magnetic field, λ [m] is the wavelength of the electromagnetic wave, dl [pc] is the path length through the magnetized region, and ne [cm−3] is the electron density of the region. The integral value in brackets defines a quantity known as the rotation measure (RM; e.g., Brown et al. 2008).

Faradayrotation has been widely used to investigate the large-Galactic-scale magnetic field (e.g., Simard-Normandin & Kronberg 1980; Han et al. 2006; Brown et al. 2007; Sun et al. 2008; Van Eck et al. 2011; Ordog et al. 2017), and to study the magnetic field of diffuse low-extinction filaments (Stil & Hryhoriw 2016). Previous attempts to study magnetic fields in high-extinction MCs using Faraday rotation have been performed by a number of authors (Wolleben & Reich 2004a; Reich et al. 2002; Wolleben & Reich 2004b; Yusef-Zadeh et al. 1997). For example, Wolleben & Reich (2004a) utilize the concept of a Faraday screen – an object that can change the polarization angle and intensity of the polarized background – to estimate the field strength within the region. However, their method relies on an imprecise estimate of the distance to the screen, uncertainty in the electron density, and likely an oversimplification of the shape of the screen itself.

To estimate magnetic fields in MCs, we use a slightly different approach that avoids these difficulties by using extinction maps to obtain the total column density, and a chemical evolution code to determine more reasonable estimates of the electron density within MCs. With this, we can then work backwards to determine what the magnetic field must be to create the observed Faraday rotation measurements.

Free electrons in MCs

Free electrons are necessary for Faraday rotation to occur. The photodissociation region (PDR) models (Hollenbach & Tielens 1999, 1995, 1997) predict the existence of free electrons even in dense regions of MCs, and observations support the existence of free electrons in these regions (Harrison et al. 2013; Flower et al. 2007).

Most of the ISM is not illuminated by strong UV fields and this fact had led to the belief that in high column density regions in typical MCs, the UV field is so strongly attenuated that free electrons should be rare. Therefore Faraday rotation was not expected to occur within MCs.

Cosmic rays (CR), however, are known to be an important source of ionization in both diffuse and dense MCs (Bergin et al. 1999; Williams et al. 1998; Padovani & Galli 2013; Padovani et al. 2009; Everett & Zweibel 2011; Morlino & Gabici 2015; Morlino et al. 2015; Bergin et al. 1995; Willacy & Williams 1993; Hasegawa & Herbst 1993) and thus CR ionization is an important source of free electrons in MCs. Calculating the CR ionizing factor, ζ, is not straight forward and this factor may not be linear throughout the entire cloud (Padovani et al. 2016; Morlino et al. 2015; Padovani & Galli 2013). However, for the resolution and the scales that we are interested in, we assume it to be constant2. With the confirmed existence of free electrons in MCs, we can expect that Faraday rotation occurs in MCs, as well as in the rest of the ISM.

2 Data

Our methoduses RMs of extragalactic sources with lines of sight passing near and through individual MCs to extract the strength and direction of magnetic fields in environments local to these MCs. Below we describe the RM data and the extinction maps that we use in our method.

2.1 Rotation-measure catalog

We use the RM values from the Taylor et al. (2009, hereafter TSS09) catalog. They obtain RMs for 37543 polarized radio sources by reanalyzing the NRAO VLA Sky Survey data (NVSS; Condon et al. 1998). For the regions of interest to us, within our specifically defined boundaries, TSS09 has 50 RMs within the OMC-A, 16 in OMC-B, 35 in PMC, and 43 in CMC. Fig. 1 shows the map of RM data points in the PMC and CMC, and Fig. 2 shows the map of RM data points in OMC-A and OMC-B. The diameter of the RM circles is proportional to the magnitude of the RM; blue (red) circles indicate positive (negative) RMs, where the average line-of-sight magnetic field is directed towards (away from) us. The background color image represents the visual extinction map (see Sect. 2.2), with brighter or green color showing greater extinction.

2.2 Extinction map

To map the hydrogen (HI + H2) column density of each MC, we use visual extinction maps (in units of magnitude of visual extinction or AV) provided by Kainulainen et al. (2009, hereafter KBHP09). They obtained near-infrared dust extinction maps using the 2MASS data archive and the NICEST (Lombardi 2009) color excess mapping technique. These maps have been produced with an arbitrary physical resolution of 0.1 pc, which is the Jeans length for a core at T = 15 K and mean particle density of . We use these extinction maps as a proxy for N (as well as for obtaining electron abundances), by applying the Bohlin et al. (1977) conversion factor.

3 Methodology

The RMs in TSS09 are the result of polarized radiation passing through the entire line of sight of the Galaxy, from the source to the receiver (on Earth). Since we wish to recover the component of the RM which is produced by only the MC, we need to decouple the Faraday rotation produced by the Galaxy from that produced within the MC itself.

To accomplish this, we divide the integral in Eq. (1) into two parts: the contribution from the MC (RMMC) and the contribution from everything else along the line of sight (Galactic contribution, RMGal). The Galactic contribution to the RM can be estimated by using RMs from positions that fall near the MC but are far enough away that they are clearly not affiliated with it. We refer to these as OFF positions, and designate their rotation measures as RMOFF.

RMON refers to any rotation measure in the TSS09 catalog that lies directly on or very near the MC (see Fig. 3). Since the angular separation between any RMOFF and RMON is small compared to the angular size of the Galaxy, we assume that RMON and RMOFF are essentially sampling the same path length through the Galaxy.

We can then write RMON as: (2)

Comparing RMOFF with RMGal in Fig. 3 shows that the path length of RMOFF is larger than that of RMGal by a value equal to the path length through the cloud (i.e., a cloud-sized patch of the ISM, which we denote as RMcloud-sized ISM). In theory, we should account for this by subtracting the effects of this patch of the ISM from RMOFF. We could do this by assuming that RMcloud-sized ISM corresponds to a region with the same size as the MC but with the characteristics of the general ISM. However, we suggest that for dense clouds (MCs), RMcloud-sized ISM is negligible compared to RMMC. To compare these two RMs, we examine the average values of ne and B of a typical MC with those of general ISM.

Average electron abundances for a typical MC, with density of around , is roughly 10−4 –10−5 (Harrison et al. 2013). The multiplication of these two yields electron densities of 10−1   cm−3–10−2 cm−3. The average density of the general ISM is (McKee & Ostriker 2007), with an average electron abundance of ≃ 10−2 (Cox 2005), which together provide an average electron density of 10−2 cm−3. Thus, the average electron density of MCs can be between one and ten times that of the general ISM. The magnetic field strengths within MCs are often at least ten times higher than that of the general ISM (Planck Collaboration Int. XXXV 2016). Therefore, the contribution of the MC to the RM along the “ON” line of sight will be roughly 100 times larger than the ISM contribution of a similar size patch. Thus, for simplicity, we neglect the effect of the RMcloud-sized ISM, and assume RMOFF is equal to RMGal. We note, however, that this assumption may not be valid for all Galactic clouds and, in particular, in diffuse clouds RMcloud-sized ISM may have tobe specifically included.

We can therefore obtain the RM produced by the MC alone by subtracting the OFF position from the ON position, that is, (3)

where we have replaced the dot product by using the line-of-sight (LOS) component of the magnetic field within the MC (BLOS). Furthermore, if we assume the magnetic field through the MC is uniform, we can extract BLOS from the integral (4)

Since ∫ nedl is the electron column density in the MC, Ne, we can then write: (5)

Accordingly we can obtain (6)

To find BLOS in the MC we need to determine reasonable values for RMOFF and the electron column density (Ne), for each observed point. This is discussed below.

thumbnail Fig. 1

RM values from the catalog of TSS09 mapped on the extinction map of CMC and PMC. Blue (red) circles indicate positive (negative) RM values. The size of the circles is proportional to the magnitude of the RM. The gray grid provides galactic coordinates, whereas the black grid provides equatorial coordinates. Color image shows the extinction map (AV) in units of magnitudes of visual extinction provided by KBHP09.

Open with DEXTER

3.1 Estimating RMOFF and RMref

We need to find suitable ON and OFF positions such that, when the RMs are subtracted, they isolate the effect of the MC alone. To find the ON positions, we search for RM measurements that visually fall on the MCs of interest (i.e., in higher-column-density regions). To find the OFF positions we hand pick a number of RMs that have low column densities (i.e., AV < 1) and are also far enough away from the cloud that they are clearly not directly related to it. Therefore, in terms of AV and position, the OFF positions are associated with the general Galactic background rather than with the MC of interest.

Since variable Galactic structure can produce different RM values in different OFF positions, we use a number (N) of OFF positions to determine an “average” OFF position, which we call RMref, that is, (7)

While we could use all of the positions in our maps that obey the above criteria to produce RMref, we also wish to examine the magnetic field in the lower column density gas that immediately surrounds the MCs. Therefore, we develop a method to determine the optimal number of OFF positions to incorporate into RMref. This ensures that we have a robust anduseful value for RMref as well as leaving us enough RMs at the lower column density cloud edges to incorporate into our B field analysis.

For this purpose, we investigate how the derived magnetic field strength and direction change as we increase the number of OFF positions from 1 to N. We find that, with few OFF positions, there is a large variance in the strength and direction of the derived magnetic fields. However, as we continue to increase the number of OFF positions, the variations decrease and the B field strengths and directions stabilize to a constant value (see Fig. 4). We choose the optimal number of OFF positions as the point at which the variance is minimized.

From this analysis, we find the optimal number of reference points to be 12 for OMC-A, 5 for OMC-B, 8 for CMC, and 11 for PMC. The resultant values of RMref are 1.4 rad m−2 for OMC-A, 32.3 rad m−2 for OMC-B, 4.0 rad m−2 for CMC, and 31.1 rad m−2 for PMC. Using the “reference” positions in lieu of a single OFF position, Eq. (6) becomes: (8)

thumbnail Fig. 2

RM values from the catalog of TSS09 mapped on the extinction map of Orion. OMC-A is the complex to the south and OMC-B is the complex to the north. Blue (red) circles indicate positive (negative) RM values. The size of the circles is proportional to the magnitude of the RM. The gray grid provides galactic coordinates, whereas the black grid provides equatorial coordinates. Color image shows the extinction map (AV) in units of magnitudes of visual extinction provided by KBHP09.

Open with DEXTER
thumbnail Fig. 3

Schematic illustrating “ON” and “OFF” RM positions, relative to an MC. To find the magnetic field in the MC we need to disentangle the RM produced by the Galaxy from that produced by the MC itself. We do so by subtracting the RM of a nearby point, called the OFF position, from the ON position which has an RM produced by both the MC (MC contribution) and the Galaxy (Galactic contribution). See Sect. 3.1 for details. Additionally, we need to consider the effects of all the layers of the MC from the exterior to the center of the cloud to reach to extinction value of AV, MC= AV −AV, ref. However, since the cloud is symmetrical along the line-of-sight, and is illuminated from both sides byan ambient UV field, we assume the center of the cloud has an extinction of magnitudes.

Open with DEXTER
thumbnail Fig. 4

Magnetic field values in OMC-A using different numbers of OFF positions to calculate the “reference” value (RMref). Results are presented for three different points in Orion A. The x-axis indicates the number of OFF positions used in RMref. The y-axis shows the calculated magnetic field value. As discussed in the text, the magnetic field stabilizes at roughly 12 OFF positions.

Open with DEXTER

3.2 Obtaining the electron column densities

Determining the electron column density (Ne) in MCs requires an assessment of the total column density (N(HI + H2)) through the MC, as well as a determination of the electron abundance as a fraction of total column density (Xe). The former can be estimated from the KBHP09 extinction maps and the latter from a chemical model. These steps will be outlined below.

3.2.1 Determining total column density from the extinction maps

The KBHP09 maps are created by interpolating the measured extinction values onto a regular grid with a physical spacing of 0.1 pc between points. This corresponds to a different angular separation between points for different clouds due to their distances. The RM measurements are not always at one of the precise positions where AV is tabulated. Therefore, for each RMON position we find the closest tabulated extinction point (within a distance of 0.1 pc) and assign it to that RMON. This provides the extinction along the entire path length at each ON position (AV,ON).

Since each chosen OFF position also has an associated AV , after finding the optimum number of OFF positions and the value of RMref for each MC, we also find the average extinction value of the reference position using (9)

The values of AV, ref are 0.45, 0.46, 0.54, and 0.67 for OMC-A, OMC-B, CMC, and PMC, respectively. To find the extinction value of the MC itself, we once again subtract the extinction in OFF position from that in the ON position, that is, (10)

3.2.2 Determining the electron column density

In order to estimate the electron abundance, one requires a chemical model, which incorporates a number of relevant chemical reactions for particular gas conditions (density, temperature, UV field strength, cosmic ray ionization rate, etc.) and finds the abundance of each species as a function of time and depth (or AV) within the cloud. We use an in-house chemical evolution code (see Gibson et al. 2009), which has been rigorously tested against the results of other established codes.

We utilize the UMIST Rate 99 database to obtain the reaction rates (Le Teuff et al. 2000). We use a small network of 229 gas-phase reactions coupling 28 different species including C, C+ , CO, O, O2 , CH, CH+, CO+, H, H2 , H2 O+, H3 O+ , HCO+, O+ , etc. Additionally we include a simple treatment for gas-grain interactions via adsorption, thermal evaporation, CR desorption and photodesorption in manner outlined by Bergin et al. (1995) and Hasegawa & Herbst (1993). It does not include any surface-grain reactions.

Our chemical code assumes that each MC has a constant density and temperature, and is illuminated externally by a constant UV field (parametrized by Go, where Go = 1 is the strength of the average ISM radiation field) and CR ionization rate. For each of our clouds, we obtain the first three parameters from the literature. We assume a constant CR ionization rate of 1.3 × 10−17s−1 for all clouds.

The chemical code takes each cloud to be homogeneous and planar in structure, and is sliced into 100 layers of equal width. Each layer corresponds to a different depth into the cloud and therefore we can calculate the amount of visual extinction (AV) from the exterior (surface) of the cloud to the center of each layer. This controls how the external UV is attenuated as a function of depth, which, in turn, affects the importance of photo-reactions. In each layer, we start with standard cosmic abundances of all species and run our code until we achieve chemical equilibrium. The final outcome is a list of the equilibrium abundance of each species (including free electrons) as a function of extinction (depth) into the cloud.

Even though we use a simple homogeneous, plane-parallel chemical model rather than a more sophisticated hydrodynamic approach (e.g., Seifried et al. 2017; Clark & Glover 2014; Smith et al. 2014; Glover & Clark 2012), our simplified model provides electron abundances that are similar to these more detailed models. For example, we find that our electron abundances are consistent with those of Glover et al. (2010) in densities of 100 cm−3 and 1000 cm−3. This is true even though their initial temperature is different from ours. They, however, incorporate a cooling system that allows the high-extinction parts of the gas to cool down to 10 K, which is close to the temperatures we have for our selected regions. Our electron abundances are also consistent with those from a variety of established PDR/chemical models (see the comparison by Röllig et al. 2007). Thus, in this work, there does not seem to be much to gain from applying a more sophisticated approach to the chemical modeling.

Our chemical model calculates the electron abundance in each layer of the cloud. However, to reach any given layer, we pass through all overlying layers which may have different electron abundances. Consequently, to calculate the electron column density for a position in the MC with a givenAV, one cannot naively assume that the total electron column density is obtained directly from the electron abundance of one single layer multiplied by the total column density of that position (i.e., Ne = Xe ×N(HI+H2)). We must, instead, account for the contribution of each layer separately, since in each layer the electron abundance may be different due to the different UV attenuation.

The total electron column density, Ne, is given by the equation: (11)

where Ne, i is the electron column density in each layer and the sum is performed over all overlying layers from the surface of the cloud to the layer of interest. Ne, i, in turn is given by (12)

where Xe, i is the electron abundance in each layer, and is calculated by the chemical model. Ni (HI + H2) is the hydrogen column density in each overlaying layer. To evaluate Ni (HI + H2) in each layer we first subtract the extinction ofthat layer (AV, i) from the extinction ofthe layer above (AV, i-1) and then use the conversion factor of 2.21 × 1021 by Bohlin et al. (1977) as follows: (13)

Hence, the total electron column density along the line of sight from the surface of the MC to the layer of interest becomes (14)

To assess which layers we must include in Eq. (14), we presume the cloud is symmetrical along the line-of-sight as represented in Fig. 3 and that the UV field is equally illuminating both sides of the cloud. However, the value of AV, MC obtained from the extinction maps is a measure of the extinction through the entire MC (front and back). Accordingly, in an MC with AV, MC = X, the total amount of UV attenuation from surface to center is only X/2.

Our chemical model, however, assumes that the UV field is illuminating only one side of the cloud. Therefore, at a position where we measure AV, MC from the extinction maps, we only perform the sum in Eq. (14) to a layer with AV, MC/2. Subsequently, we multiply the final sum by a factor of two to account for the fact that both the front and back sides of the MC contribute equally to the total Ne through the cloud. Thus, our final solution for Ne is given by: (15)

Using Eqs. 8 and 15, along with the output from our chemical models and the measured ON and reference rotation measures, therefore enables us to calculate the line-of-sight magnetic field strength and direction in MCs.

The following example illustrates how this is done practically. We consider a particular point (for the purposes of this example, Point 22 in Fig. 6 in OMC-A, at α(J2000) = 86.31°, δ(J2000) = −5.49°). In the TSS09 catalog this position has an RM value of 23.5 ± 9.5 rad m−2. From the KBHP09 maps, this position has an extinction value of AV = 2.84 mag.

Using values for density, temperature, UV field strength, and so on, found from the literature (see Sect. 4.1 for details) we run our chemical code to generate a list of abundances as a function of extinction (or depth) into the MC. Since AV, ref for OMC-A is 0.45, AV, MC for the MC at this pointis 2.84 − 0.45 = 2.39. Thus, in the output of the chemical code, we find the electron abundances in all layers from AV, MC = 0 to 1.20. The output of our code contains five layers to reach to this extinction value. These layers are (AV, i, Xe, i) = (0.16, 1.40 × 10−4), (0.46, 1.40 × 10−4), (0.78, 1.41 × 10−4), (1.08, 1.41 × 10−4), and (1.40, 1.42 × 10−4). The last layer, however, does not exactly match 1.20. Therefore, we interpolate between the last two layers, to find the electron abundance for a layer in between with an extinction value of 1.20.

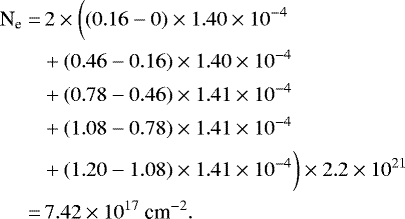

Subsequently, using Eq. (15) we find Ne as follows: (16)

Since the value of RMref for OMC-A is 1.4 rad m−2 (Sect. 3.1), RMON – RMref used in Eq. (8) is 23.5 – 1.4 = 22.1 rad m−2. Finally, BLOS is calculatedfrom Eq. (8) as: (17)

Results of this calculation for all four MCs considered in this paper are provided in Tables 1, 3, 4, and 6 and Figs. 69. Details and discussion for each MC are provided in Sect. 4.

thumbnail Fig. 5

Uncertainties in BLOS due to uncertainties in the input volume density of the chemical evolution code. Top panel: BLOS variationfor a selection of positions in Orion A sampling regions with different AV. The x-axis () indicates therelative (%) changes in input density to the chemical model. The y-axis labels the data points presented and corresponds to the positions labeled in Fig. 6. The z-axis plots the change in the magnetic field strength and direction from that calculated for the fiducial density n0 (104 cm−3). The bottom left panel shows BLOS uncertainties for points with AV < 1. The bottom right panel shows uncertainties in BLOS for a selection ofpoints with AV > 1.

Open with DEXTER
thumbnail Fig. 6

BLOS in OMC-A. Blue (red) circles show magnetic fields toward us (away from us). The size of the circles indicate the magnitude of magnetic field. Black square shows the location of the available Zeeman measurements. Color image is the extinction map (AV). The magnetic fields are dominantly towards us at the eastern side of this filamentary structure and away from us at its western side.

Open with DEXTER

3.3 Uncertainty analysis and sensitivity study

We carry out several analyses to determine how uncertainties in the chosen number of reference points, RM values, chemical code input parameters, positions, and extinction propagate into errors in the derived BLOS. We discuss these below.

Since our BLOS values are obtained using Eq. (8), to estimate the uncertainties in our resultant BLOS , we need to examine the uncertainties induced by both the cataloged RM values and the calculated Ne. Since the uncertainty in Ne depends on our chemical model and its input parameters, we have to investigate the uncertainties that are caused by changing the input temperature and volume density. Additionally, since we positionally overlay the RM catalog and extinction maps, we have to account for any possible mismatches between the RM positions and the grid on which the extinction maps are produced. This mismatch translates into a possible error in the value of AV assigned to any given RM point. Therefore, our BLOS values are a function of the cataloged RM values, AV (which, in itself, is a function of the positional coordinates), and the chemical model input density and temperature. Thus BLOS is parameterized by BLOS (RM, AV, n(HI+H2), T), and has an uncertainty of: (18) (19)

Uncertainty in BLOS from RM

In the RM catalog of TSS09, the source entries include sky position, Stokes I (total intensity), linear polarized intensity, fractional polarization, and RM, with estimated errors for each entry. Accordingly, each RM value in the TSS09 catalog has a corresponding RM uncertainty that we incorporate into our error bars. For the ON positions, we simply take the associated errors listed for those positions. The uncertainty in the RMref measurement, however, is the standard deviation of the RM values of the chosen OFF positions. The BLOS uncertainty from RM for each point is found as follows: (20)

where ΔBRM is the uncertainty in BLOS from RM, δ(RMref) is the standard deviation of the OFF positions, and δ(RMON) is the tabulated uncertainty of the RM of the ON point.

Considering OMC-A as an example once more, we calculate the standard deviation in RMref for OMC-A to be 13.7 rad m−2 (using 12 OFF positions to calculate RMref). Thus, RMref in OMC-A is 1.4 ± 13.7 rad m−2.

We note that the uncertainties in the RMs tabulated in TSS09 and in the reference positions are the dominant source of error in our magnetic field calculation, and are the main reason that the uncertainties listed in Tables 1 to 7 are as large as they are. For instance, the tabulated value of RMON of point 22 used in the example above is 23.5 ± 9.5 rad m−2, which results in large fractional errors in the derived magnetic field values. In the TSS09 catalog there are also points like point 21 (see Table 1) with an RMON value of − 0.3 ± 6.9 rad m−2, which creates enormous relative uncertainty. This is discussed further in Sect. 5.1.

Uncertainty in BLOS from Ne

Uncertainties in the electron column density are caused by uncertainties in our chemical code input parameters, since the density, temperature, and UV field strength may not be well characterized.

To investigate how changes in density affect the electron abundance, we hold all other input parameters constant and change the input volume density, (n(HI+H2)), by ± 1%, ± 2.5%, ± 5%, ± 10%, ± 20%, ± 30%, ± 40%, ± 50% from the cloud fiducial input density, n0. We then rerun the chemical code with the altered density and obtain a new value for the electron abundance. Consequently, we obtain the value of BLOS for each point with the new electron abundances. We then calculate the BLOS differences from the original BLOS value. We denote these uncertainties in BLOS as .

Referring back to OMC-A as an example, Fig. 5 demonstrates how BLOS changes as the input density is varied. The top panel of Fig. 5 shows BLOS deviations for a selection of data points in OMC-A. The z-axis indicates changes in BLOS from the fiducial value (obtained from the fiducial input density n0). The x-axis indicates the relative changes in the cloud initial (fiducial) density, and the y-axis indicates particular data points in OMC-A as mapped in Fig. 6. While we have performed this error analysis for every point, we only display a few select points for clarity. The bottom left panel of Fig. 5 represents variations in BLOS for data points with AV > 1, and the bottom right panel shows the same for data points with AV < 1. These figures show that BLOS variations are largest in the regions with lower visual extinction. The main reason for this behavior is that in low AV regions, the electron fraction is high and so changes in density result in relatively large changes in Ne which, in turn, affects BLOS. On the other hand, in the high AV regions, since we are looking through many cloud layers, changes in Ne are averaged over many layers.

The resultant uncertainties in BLOS caused by changes in Ne are asymmetrical and, therefore, we report magnetic field values in the form of B, and in the case where the two δB are the same, in the form of B ± δB.

We carry out a similar analysis for the input temperature by varying it by ± 5%, ± 10%, and ± 20% from the cloud fiducial input temperature, T0, while holding the other parameters constant. Similarly we obtain the electron abundance and therefore the new magnetic field values for each point. Changes to the input temperature introduce fairly small variations to BLOS. We denote these uncertainties as ΔBT.

Uncertainty in BLOS from extinction and position

Since we have an uncertainty in matching the position between the RM catalog points and the grid on which the extinction maps are calculated (see Sect. 3.2.1), this translates into an error, Δ Bext, coord, in the assumed AV. This arises because, while we take the AV value that lies closest to the RM position, there may be more than one value of AV in a 0.1 pc radius surrounding the RM point. To estimate the influence that this has on our derived magnetic fields, we calculate BLOS for the maximum and minimum AV that falls within a 0.1 pc radius around each RM position.

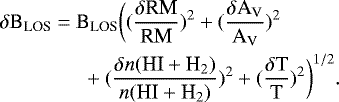

Total BLOS uncertainty

After finding the individual uncertainties, we can find the total uncertainty, by converting Eq. (19) into the following form: (21)

where ΔBRM is the error in B produced by the RM uncertainties for each data point in the TSS09 catalog along with the reference RM, Δ Bext,coord is the error in B produced by the uncertainty in the assumed extinction value, is the error in B produced by the uncertainties in the chemical code input density, and Δ BT is the same due to uncertainties in the input temperature. We believe that we have been quite conservative in estimating the total BLOS error and, therefore, the true error may indeed be smaller than those quoted in Tables 1, 3, 4 and 6.

4 Results

We used themethod described above for each of the four MCs in our sample (OMC-A, OMC-B, PMC, and CMC). We compared the results to existing Zeeman measurements to verify the validity of the method. We discuss our results for each of these regions below.

4.1 Strength and morphology of BLOS in Orion A & B

The OMC is a well-studied, active star forming region with relatively strong magnetic fields (Crutcher 1999; Crutcher et al. 2010). Some prominent regions in OMC are the Orion Nebula Cluster, L1641, NGC2026, and NGC2024 with distances of 388 ± 5 pc, 428 ± 10 pc, 388 ± 10 pc, and roughly 420 pc, respectively (Kounkel et al. 2017).

Orion A and B are the two distinct giant molecular clouds in the OMC complex. OMC-A is located at 80° < α(J2000) < 88° and − 12° < δ(J2000) < −4° , while OMC-B is located at84° < α(J2000) < 95° and − 4° < δ(J2000) < 4°.

For bothregions, we use n(HI+H2) = 104 cm−3 (Castets et al. 1990; Dutrey et al. 1993; Johnstone & Bally 1999a,b), T = 25 K (Mitchell et al. 2001; Johnstone & Bally 2006; Bally et al. 1991; Castets et al. 1990; Schnee et al. 2014; Buckle et al. 2012), and a UV field strength of Go = 104 (where Go = 1 is the strength of the average interstellar UV field) as input to our chemical models.

Using the methodology described above, we calculate BLOS for all the available RM points in OMC-A and B. These results are presented in Figs. 6 and 7. Derived values of BLOS for Orion A & B are provided in Tables 1 and 3. The reason for the large uncertainties was discussed in Sect. 3.3, and is explored in more detail in Sect. 5.1.

To examine the veracity of our method, we compare our derived magnetic field strengths to those determined from other well-known methods, such as Zeeman measurements. For these two regions several Zeeman measurements are available (Troland et al. 1986, 1989; Crutcher et al. 1999a; Crutcher 1999; Crutcher et al. 1999b, 1996; Verschuur 1996; Crutcher et al. 2010), and are graphically represented on Figs. 6 and 7 as black squares.

We note that conventionally the negative sign represents magnetic field towards us in Zeeman measurements and away from us in RM studies. For consistency between discussions of RM and Zeeman measurements, we adopt the convention that –BLOS indicates a magnetic field directed away from the observer and a +BLOS indicates a magnetic field toward the observer.

There are a number of Zeeman measurements in OMC-A, most of which fall in the vicinity of a high-extinction region with approximate coordinates of α(J2000) ≃ 83.81°, δ(J2000) ≃−5.37°. The magnetic fields inferred from these different studies have wildly different values and, often, large error bars; for example, + 360 ± 80 μG (Falgarone et al. 2008; Crutcher 1999; Crutcher et al. 2010), − 79 ± 99 μG (Crutcher et al. 1996), − 40 ± 240 μG (Crutcher et al. 1999b, 2010), + 190 ± 90 μG (Crutcher et al. 1999b), and − 80 ± 100 μG (Crutcher et al. 2010). These studies suggest that the magnetic field in this region (including error bars) might have any strength from + 440 μG to − 280 μG.

In comparison, using our technique we have two data points in this area (sources 13 and 14 in Table 1 and Fig. 6) with magnetic field values of − 23 ± 38 μG and + 15 ± 36 μG, respectively. Given the large error bars in both our technique and the Zeeman measurements, as well as the large dispersion in the Zeeman values, we find it promising that: a) our magnetic field strengths and directions fall within the range of those determined via Zeeman measurements, and b) that our error bars for these positions are, in fact, smaller than those for the Zeeman measurements. Thus, we suggest that there is qualitative agreement between our results and those from Zeeman measurements. Having said that, comparing the two must be done cautiously as we are possibly looking at different regions within the MC (see Sect. 5.3).

Given that there are many more RM observations across the Galaxy than there are Zeeman measurements, our technique can also provide useful insight into the morphology of the line-of-sight magnetic field in MCs. For example, Fig. 6 suggests that the magnetic field on the eastern side of OMC-A is predominantly positive (blue), whereas on the western side it is negative (red). This particular pattern has previously been observed (Heiles 1997), and interpreted as helical magnetic fields (e.g., Johnstone & Bally 1999a; Hoq et al. 2017; Matthews et al. 2001). We discuss this possibility in more detail in Sec. 5.2.

The two available Zeeman measurements in OMC-B are in a high extinction area at α(J2000) ≃ 85.44°, δ(J2000) ≃−1.93°, and have significantly different magnetic field strengths and error bars; for example, − 270 ± 330 μG (Crutcher et al. 1999b) and − 87 ± 5.5 μG (Crutcher et al. 1999a). Our measurements in this proximity are points 1 and 2 (see Table 3 and Fig. 7) with magnetic field values of − 119 ± 25 μG and − 129 ± 28 μG (i.e., both pointing away from us).

As withOMC-A, there is general agreement in both the direction and strength of magnetic field between the two Zeeman measurements and our own results. There are, however, fewer RM points in OMC-B with which to infer the large-scale morphology of the magnetic field.

thumbnail Fig. 7

BLOS in OMC-B. Blue (red) circles show magnetic fields toward us (away from us). The size of the circles indicate the magnitude of magnetic field. Black square shows the location of the available Zeeman measurements. Color image is the extinction map (AV).

Open with DEXTER

4.2 California and Perseus

It is important to test our method in different environmental conditions besides the well-known region of Orion. Thus, we test our method in the PMC and CMC, which have lower density and ambient UV field strengths than Orion.

4.2.1 Strength and morphology of BLOS in the California Molecular Cloud

The CMC occupies a region of roughly 58° < α(J2000) < 70° and 34° < δ(J2000) < 42° (Lombardi et al. 2010). It is part of the Gould Belt and has modest star formation activity (Harvey et al. 2013). Lada et al. (2009) report a distance of 450 ± 23 pc to the cloud. The cloud extends around 80 pc and has a mass of around 105 M.

Considering the results of Kong et al. (2015) and Lada et al. (2009) we take an initial volume density of n(HI+H2) = 450 cm−3, a temperature of T = 10 K, and UV field radiationstrength of G° = 1.0 for the input to our chemical models. Using the same method described in Sect. 3, we then calculate the magnetic field strength and direction in CMC. The results are shown in Fig. 8 with their values listed in Table 4. Our derived values for BLOS in the CMCare not very sensitive to the uncertainties in coordinate and extinction values or to uncertainties in the chemical code input parameters, and their dominant source of uncertainty comes from RM uncertainties.

While there are no Zeeman measurements available for this region to compare with our results, Fig. 8 does exhibit some interesting morphological characteristics; it shows that the magnetic fields on the eastern side of the CMC are pointing away from us, while on the western side they are pointing towards us. This morphology is similar to that seen in OMC-A, and might be an indication of helical magnetic field in this filamentary structure as well.

thumbnail Fig. 8

BLOS in the California MC. Blue (red) circles show magnetic fields toward us (away from us). The size of the circles indicate the magnitude of magnetic field. Color image is the extinction map (AV). The magnetic fields are dominantly towards us at the western side of this filamentary structure and away from us at its eastern side.

Open with DEXTER

4.2.2 Strength and morphology of BLOS in the Perseus Molecular Cloud

The PMC is a well-known star forming region at a position of 50° < α(J2000) < 58° and 28° < δ(J2000) < 34°, and at a distance of about 300 pc from the Sun (Bally et al. 2008). To find the proper input physical parameters to use in our chemical code, we use results found in the literature. Bachiller & Cernicharo (1986) study different regions within Perseus and, for the globule L1455 (=B204, B206), they report a temperature of 12 K. In the position of the NH3 peak they find a density of n(H2) ≃ 1.4 × 104cm−3. Bachiller & Cernicharo (1984) mention that B1, has a mean density of n ≿ 103cm−3 and is connected to the rest of the complex with densities of n ≃ 103 cm−3. Considering this along with Table 2 presented in Bachiller & Cernicharo (1986), we choose 103 cm−3 for the average density and 12 K for the temperature. Additionally, we select a UV field radiation strength of G° = 1.0.

There are several Zeeman measurements available in the well-known B1 molecular core in the PMC (Goodman et al. 1989; Crutcher et al. 1993; Verschuur 1996), which suggest small magnetic fields. For the B1 region (α(J2000) ≃ 51.32°, δ(J2000) ≃ 31.12°), Goodman et al. (1989) obtain a magnetic field of + 27 ± 4 μG, and Crutcher et al. (1993) report + 19.1 ± 3.9 μG. For the same position Verschuur (1996) finds a magnetic field of + 16.7 ± 8.9 μG using the 1665 MHz OH line and − 6.2 ± 8.5 μG using the 1667 OH line. Our closest point to this location is point 4 in Fig. 9 and Table 6, with a value of + 32 ± 101 μG. Our result is in agreement with all of these reported Zeeman measurements. The main source of uncertainty of the magnetic field strength using our method is due to uncertainties in the RMs in the TSS09 catalog.

Fig. 9 seems to suggest that the magnetic fields on the southern side of the PMC are pointing away from us and that those on the northern side are pointing towards us, however, more data points would be required to draw any firm conclusions since there is a paucity of RMs on the southern side of the cloud.

thumbnail Fig. 9

BLOS in the Perseus MC. Blue (red) circles show magnetic fields toward us (away from us). The size of the circles indicate the magnitude of magnetic field. Black square shows the location of the available Zeeman measurements. Color image is the extinction map (AV).

Open with DEXTER

5 Discussion

5.1 Decreasing the uncertainties in BLOS

As mentioned above, our derived magnetic field strengths (see Tables 1, 3, 4, and 6) often have relatively large uncertainties and, in some cases, the error bars are larger than the tabulated value of BLOS. As mentioned in Sect. 3.3, the dominant source of errors in our method is the errors of the RMs as tabulated in TSS09.

The RMs of the TSS09 were calculated using two frequencies in combination with the fractional depolarization as a function of rotation measure. Errors in the calculated RM could be reduced by re-observing the same sources (in addition to more sources) with new generation radio telescopes such as the LOw-Frequency ARray (LOFAR). For example, in their Table 1, Van Eck et al. (2017) compare their RM results using LOFAR with the TSS09 catalog. While the absolute values are in good agreement, the RM uncertainties presented in Van Eck et al. (2017) (0.05 rad m−2) are significantly smaller than those in TSS09 catalog (10 rad m−2). These reductions in RM uncertainties can accordingly improve the error bars associated with our procedure. For example, for point 4 in OMC-B in Table 3, if we were to hold all other values constant and change the RM uncertainty to 0.05 rad m−2, the final BLOS would be 122 ± 50 μG, instead of the currently tabulated 122 ± 125 μG. In addition, in this “new and improved” BLOS value of 122 ± 50 μG, the largest source of error is now from RMref. Errors in RMref could be reduced by improved sensitivity RM observations which could provide additional RMOFF data points to be used in the calculation of RMref. Since the error in RMref is a standard deviation, with additional points, Poisson statistics should decrease its error.

Even with the current uncertainties in RMON, we can improve the robustness of our results by removing from consideration any position that has an uncertainty greater than 100% of the calculated BLOS value. Tables 2, 5, and 7 are subsets of Tables 1, 4, and 6 which contain only the points with error bars less than 100% of the magnetic field strength. Although the uncertainty in the absolute value of BLOS of any point may still be relatively high, the direction of the magnetic field for the points in these tables is fixed. Therefore, these data can still provide us with insight into the large-scale magnetic field morphology in MCs. This is discussed in Sect. 5.2 below.

5.2 Magnetic field morphology: evidence for helical fields?

In OMC-A, Fig. 6, suggests that BLOS on the east sideof OMC-A tends to point away from us, whereas on the west side it tends to point towards us. This holds true even if we only use the BLOS values listed in Table 2, which have error bars small enough that the magnetic field direction is fixed. In fact, our interpretation is more robust using the data in Table 2, since points 21, 28, and 30 on the east side of the cloud and 11, and 16 on the west side of the cloud are removed. Removing these points strengthens the perceived large-scale pattern of the magnetic field by reducing the number of positions with opposing BLOS directions.

This magnetic field configuration has previously been observed in OMC-A (Heiles 1997), and interpreted as a helical magnetic field wrapping around the cloud (Heiles 1987). Other observations have also been indirectly interpreted as indications of a helical magnetic field structure (e.g., Johnstone & Bally 1999a; Hoq et al. 2017; Matthews et al. 2001; Contreras et al. 2013; Stutz & Gould 2016). For example, by using the Virial mass per length obtained by Fiege & Pudritz (2000a) for a cylindrical filament threaded by a helical magnetic field, Buckle et al. (2012) show that the integral shaped filament in OMC-A is too massive for thermal or turbulent support. Thus, they suggest that the mass and morphology of the integral shaped filament (a small region within our OMC-A map) is consistent with a Virial model of a filamentary cloud threaded by a helical magnetic field.

In the CMC (Fig. 8) and PMC (Fig. 9), a first glance at the data seems to suggest the presence of a helical magnetic field. In the CMC this holds true even if we only use the data in Table 5 (with error bars less than 100% of the BLOS value). In the PMC, if we only use the data in Table 7, on the north side of the cloud the remaining points are primarily towards us, but there are too few observations on the southern side of the cloud to truly infer anything about the magnetic field geometry.

This type of magnetic field geometry is also predicted or investigated by a number of numerical simulations or theoretical analysis (Shibata & Matsumoto 1991; Fiege & Pudritz 1999a,b, 2000a,b,c; Schleicher & Stutz 2018; Nakamura et al. 1993, Matsumoto et al. 1994; Hanawa et al. 1993). Shibata & Matsumoto (1991) study the entire Orion Cloud Complex (≃100 pc) and find in their simulations that helically twisted magnetic flux tubes are generated. In addition, Fiege & Pudritz (2000a) and Fiege & Pudritz (2000b) study the fragmentation length-scale, stability, density profile, and mass per length of filamentary MCs, and based on observational constraints, they suggest that many filamentary clouds are likely wrapped by helical magnetic fields.

Additional observations with improved sensitivity and an increased number of RM data points would be required to better map the BLOS morphology in these MCs and confirm or reject our suggestion of helical magnetic field structure. Such observations should be possible with the new/next generation radio telescope facilities (e.g., LOFAR, SKA). In addition, simulations of MCs with the sizes and physical characteristics of the OMC-A and CMC are required to theoretically connect the results in this paper to the presence of helical fields. This will be the subject of a future paper (Tahani et al. in prep, b).

A visual comparison of our results with those of Planck (Planck Collaboration Int. XXXV 2016) suggests that the data are consistent with a helical or toroidal field wrapping the cloud. We will investigate the 3D structure of the magnetic field in this region by comparing these two data sets in a more quantitative fashion in a future paper (Tahani et al. in prep, a).

We should note that our technique utilizes OFF positions that are distributed randomly, based on lowest extinction values, around each cloud. However, it is clear from Figs. 1 and 2 that the pattern of a sign change from one side of a cloud to another can sometimes be seen in the raw RM data itself. Therefore, to investigate whether the observed magnetic field morphology is a result of large-scale Galactic effects or due to the cloud itself, we repeat our analysis this time choosing OFF positions specific to each side of the cloud. More precisely, to calculate magnetic fields on one side of the cloud, we choose OFF positions that are on the same side. For example, for OMC-A, to calculate the magnetic fields on the left side of the cloud where the RMs are predominantly blue (positive), we select OFF positions that are also on the left side of the cloud. We use the same technique for the right side of the cloud, where the RMs are predominantly red (negative).

We implement this method for OMC-A, CMC, and PMC and find that considering both sides of the cloud separately and obtaining RMref for each side results in a maximum change of 5.7 rad m−2, 14.4 rad m−2, and 26.3 rad m−2 from the original RMref for OMC-A, CMC, and PMC, respectively. For both OMC-A and CMC, this maximum change is within the original value of δ(RMref). Therefore, for these two clouds the original and updated values of RMref are indistinguishable within the uncertainties. Consequently, the overall magnetic field morphology (i.e., direction reversals) in OMC-A and the CMC is preserved in our obtained maps, with very minor and negligible differences.

In the PMC, the changes in RMref obtained by using the two sides of the cloud separately are not within the uncertainties. Accordingly the overall magnetic field morphologyin PMC is not preserved and the resultant map does not suggest a magnetic field reversal from one side of the cloud to the other. However, since we do not suggest a particular morphology for this region due to a lack of points on the southern side of the cloud, this does not change our original conclusion.

We believe that the choice of the OFF positions for these clouds does not affect the overall derived magnetic field morphology. The clouds themselves are located at high Galactic latitudes at longitudes towards the Galactic anti-center, but are only 0.5 kpc away. Thus, the Galactic contribution to the RM along the lines of sight will be primarily from the halo, which has an electron density and magnetic field strength each of at least an order of magnitude less than that for the disk, making the RM contribution at least two orders of magnitude less than what would be expected from a similar path length entirely through the disk. This does not, of course, exclude the possibility of reversals induced by more local phenomena (e.g., supernova remnants), but we have tried to minimize the possible effects of Galactic-scale structure through our choice of clouds.

We also note that using the bilateral method leads to higher standard deviations in RMref, that is, higher values of δ(RMref), and therefore higher uncertainties in the resultant magnetic field strengths. This is entirely due to the fact that byrestricting ourselves to half the area, we have fewer OFF positions with which to calculate RMref on each sideof the cloud. Consequently, since our original method has smaller error bars and no appreciable difference in the derived overall magnetic field morphology, we believe that our original choice of reference points with random positions around each cloud is the optimum method to use.

It is very likely that in future studies, with more sensitivity, many more RM points will be available to choose from. A larger dataset would provide smaller statistical errors from a sample of location-specific OFF positions. Therefore, with a larger number of RM points to choose from, it may be preferable to produce RMrefs on different sides of the clouds to ensure that one is subtracting out any large-scale contributions from the Galaxy.

5.3 Comparison with previous measurements: a word of caution

As indicated in Hull et al. (2017), the magnetic field strength and orientation may vary significantly as one moves from higher-extinction (small scale) regions to lower-extinction (larger-scale) regions. For this reason, comparisons between Zeeman measurements and our results must be made with caution, since the two might be probing BLOS from different regions in the MCs. For example, in our technique we assume that BLOS is constant in every cloud layer. Thus, in higher extinction regions where we are looking through many cloud layers, we are effectively measuring an average BLOS along the line of sight (since we use the total electron column density and RM in the MC along the line of sight). In contrast, Zeeman measurements using one particular molecular line tracer may be selectively probing specific regions/depths in the cloud. This may also be why different Zeeman measurements in the high-extinction regions have a large amount of scatter. If different measurements probe different layers, they may also be probing different magnetic field strengths in those layers. In regions withlower extinction, where we are looking through fewer cloud layers, the amount of “smearing” over the line-of-sight should be diminished and we should be more accurately probing the true value of BLOS. Unfortunately, due to the difficulties inherent in the Zeeman measurement technique, there are few Zeeman measurements in the low-column-density regions of MCs against which to compare our results.

Figure 10 shows the average of the absolute values of BLOS versus extinction, in bins that are 0.5 magnitudes wide in AV. The error bars reflect the standard deviation of |BLOS| in each bin. The figure shows a decrease in < |BLOS| > with AV, a trend that seems different from that seen in the previous studies (e.g., Li et al. 2015; Tritsis et al. 2015)that explore the magnetic field strength as a function of column density. However, a closer look at Fig. 1 of Li et al. (2015) shows that in the extinction range of our data points (1 to 4.5), one cannot find a particular trend within their plotted uncertainties. For extinction magnitudes higher than 4.5 there are only four points available. These points are sources 13 and 14 in OMC-A with AV of 19.56 and 21.47 with BLOS of − 23 ± 38 μG and 15 ± 36 μG, respectively. The points with AV higher than 30 are sources 1 and 2 in OMC-B, with an extinction of 37.36 for both, and BLOS of − 119 ± 25 μG and − 129 ± 28 μG.

The interpretation of our results in Fig. 10 should be treated with caution. Since we are looking through many different cloud layers in the highest AV regions, and each layer may have a different value of BLOS, we are essentially providing an average of BLOS through the cloud. This averaging effect may artificially suppress the measured value of BLOS in the highest-column-density regions, less than that in the low-column-density regions where there are fewer layers over which to average.

thumbnail Fig. 10

The average of absolute value of BLOS versus extinction, in bins that are 0.5 magnitudes wide in AV. The error bars reflect the standard deviation of BLOS in each bin. In these data, the average BLOS appears to decrease with AV.

Open with DEXTER

6 Conclusions

We present a new method to measure the line-of-sight magnetic field (BLOS) in molecular clouds. Our technique uses the rotation measures of polarized sources from the catalog of Taylor et al. (2009) that are located behind and nearby molecular clouds. Using these rotation measures, along with an estimate of electron density determined from extinction maps from Kainulainen et al. (2009) and a chemical model, we estimate BLOS in and around molecular clouds.

We apply our method to four test clouds: the Orion A & B cloud complexes, the California molecular cloud, and the Perseus molecular cloud and find good agreement for BLOS (both in magnitude and direction) with estimates from a limited number of Zeeman measurements in these same regions. For example, in Orion A we calculate BLOS = −23 ± 38 μG and + 15 ± 36 μG at two positions near the Zeeman measurements. In the Orion B complex we also find two rotation measure near the reported Zeeman measurements with calculated BLOS = −119 ± 25 μG and − 129 ± 28 μG, respectively. In Perseus, our calculated BLOS at a position nearest the Zeeman measurement is + 32 ± 101 μG.

The advantage of our method over the traditional Zeeman approach is that we can use the plethora of rotation measures made across the Galaxy to also map the line-of-sight morphology of the magnetic field over large scales in molecular clouds. Using this technique, we find that the large-scale morphology of BLOS in the Orion Acomplex and the California cloud is suggestive of helical fields wrapping these clouds. Combined with plane-of-the-sky maps of the magnetic field strength and morphology from dust polarization maps, our technique provides a way to determine the true three-dimensional structure of the magnetic fields in and around molecular clouds (Tahani et al. in prep., a).

We believe that our method holds great promise for future studies of the large-scale magnetic field morphology in molecular clouds for two reasons. First, the magnetic field strengths and directions we calculate are in good qualitative agreement with Zeeman measurements. Second, the inference of helical magnetic field geometries holds true even when we only consider positions with error bars small enough that the direction of BLOS is fixed.

Acknowledgements

We thank the anonymous referee for his/her insightful comments that helped improve this paper. We would like to thank Tim Robishaw for helpful discussions on Zeeman measurements and their directions. MT acknowledges Eyes High International Doctoral Scholarship. This project has received funding from the European Union’s Horizon 2020 research and innovation program under grant agreement No 639459 (PROMISE). We have used LATEX, Python and its associated libraries, PyCharm, SAO Image DS9, and C++ for this work.

References

  1. Andersson, B.-G., Lazarian, A., & Vaillancourt, J. E. 2015, ARA&A, 53, 501 [NASA ADS] [CrossRef] [Google Scholar]
  2. Bachiller, R., & Cernicharo, J. 1984, A&A, 140, 414 [NASA ADS] [Google Scholar]
  3. Bachiller, R., & Cernicharo, J. 1986, A&A, 168, 262 [NASA ADS] [Google Scholar]
  4. Bally, J., Langer, W. D., & Liu, W. 1991, ApJ, 383, 645 [NASA ADS] [CrossRef] [Google Scholar]
  5. Bally, J., Walawender, J., Johnstone, D., Kirk, H., & Goodman, A. 2008, in Handbook of Star Forming Regions, ed. B. Reipurth (San Francisco: ASP), 1, 308 [NASA ADS] [Google Scholar]
  6. Bergin, E. A., Langer, W. D., & Goldsmith, P. F. 1995, ApJ, 441, 222 [NASA ADS] [CrossRef] [Google Scholar]
  7. Bergin, E. A., Plume, R., Williams, J. P., & Myers, P. C. 1999, ApJ, 512, 724 [NASA ADS] [CrossRef] [Google Scholar]
  8. Bohlin, R. C., Savage, B. D., & Drake, J. F. 1977, NASA STI/Recon Technical Report N, 78 [Google Scholar]
  9. Brown, J. C., Haverkorn, M., Gaensler, B. M., et al. 2007, ApJ, 663, 258 [NASA ADS] [CrossRef] [Google Scholar]
  10. Brown, J. C., Stil, J. M., & Landecker, T. L. 2008, Physics in Canada, 64 [Google Scholar]
  11. Buckle, J. V., Davis, C. J., Francesco, J. D., et al. 2012, MNRAS, 422, 521 [NASA ADS] [CrossRef] [Google Scholar]
  12. Castets, A., Duvert, G., Dutrey, A., et al. 1990, A&A, 234, 469 [NASA ADS] [Google Scholar]
  13. Clark, P. C., & Glover, S. C. O. 2014, MNRAS, 444, 2396 [NASA ADS] [CrossRef] [Google Scholar]
  14. Condon, J. J., Cotton, W. D., Greisen, E. W., et al. 1998, AJ, 115, 1693 [NASA ADS] [CrossRef] [Google Scholar]
  15. Contreras, Y., Rathborne, J., & Garay, G. 2013, MNRAS, 433, 251 [NASA ADS] [CrossRef] [Google Scholar]
  16. Cox, D. P. 2005, ARA&A, 43, 337 [NASA ADS] [CrossRef] [EDP Sciences] [MathSciNet] [Google Scholar]
  17. Crutcher, R. M. 1999, ApJ, 520, 706 [NASA ADS] [CrossRef] [Google Scholar]
  18. Crutcher, R. 2005, in The Magnetized Plasma in Galaxy Evolution, eds. K. T. Chyzy, K. Otmianowska-Mazur, M. Soida, & R.-J. Dettmar, 103 [Google Scholar]
  19. Crutcher, R. M., & Troland, T. H. 2008, ApJ, 685, 281 [NASA ADS] [CrossRef] [Google Scholar]
  20. Crutcher, R. M., Troland, T. H., Goodman, A. A., et al. 1993, ApJ, 407, 175 [NASA ADS] [CrossRef] [Google Scholar]
  21. Crutcher, R. M., Troland, T. H., Lazareff, B., & Kazes, I. 1996, ApJ, 456, 217 [NASA ADS] [CrossRef] [Google Scholar]
  22. Crutcher, R. M., Roberts, D. A., Troland, T. H., & Goss, W. M. 1999a, ApJ, 515, 275 [NASA ADS] [CrossRef] [Google Scholar]
  23. Crutcher, R. M., Troland, T. H., Lazareff, B., Paubert, G., & Kazès, I. 1999b, ApJ, 514, L121 [NASA ADS] [CrossRef] [Google Scholar]
  24. Crutcher, R. M., Wandelt, B., Heiles, C., Falgarone, E., & Troland, T. H. 2010, ApJ, 725, 466 [NASA ADS] [CrossRef] [Google Scholar]
  25. Dutrey, A., Duvert, G., Castets, A., et al. 1993, A&A, 270, 468 [Google Scholar]
  26. Everett, J. E.,& Zweibel, E. G. 2011, ApJ, 739, 60 [NASA ADS] [CrossRef] [Google Scholar]
  27. Falgarone, E., Troland, T. H., Crutcher, R. M., & Paubert, G. 2008, A&A, 487, 247 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  28. Fiege, J. D., & Pudritz, R. E. 1999a, ArXiv e-prints [arXiv:astro-ph/9905148] [Google Scholar]
  29. Fiege, J. D., & Pudritz, R. E. 1999b, in New Perspectives on the Interstellar Medium, eds. A. R. Taylor, T. L. Landecker, & G. Joncas, ASP Conf. Ser., 168, 248 [NASA ADS] [Google Scholar]
  30. Fiege, J. D., & Pudritz, R. E. 2000a, MNRAS, 311, 85 [NASA ADS] [CrossRef] [Google Scholar]
  31. Fiege, J. D., & Pudritz, R. E. 2000b, MNRAS, 311, 105 [NASA ADS] [CrossRef] [Google Scholar]
  32. Fiege, J. D., & Pudritz, R. E. 2000c, ApJ, 544, 830 [NASA ADS] [CrossRef] [Google Scholar]
  33. Flower, D. R., Pineau Des, G., & Walmsley, C. M. 2007, A&A, 474, 923 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  34. Gibson, D., Plume, R., Bergin, E., Ragan, S., & Evans, N. 2009, ApJ, 705, 123 [NASA ADS] [CrossRef] [Google Scholar]
  35. Glover, S. C. O., & Clark, P. C. 2012, MNRAS, 426, 377 [NASA ADS] [CrossRef] [Google Scholar]
  36. Glover, S. C. O., Federrath, C., Mac Low, M.-M., & Klessen, R. S. 2010, MNRAS, 404, 2 [NASA ADS] [Google Scholar]
  37. Goldsmith, P. F., Heyer, M., Narayanan, G., et al. 2008, ApJ, 680, 428 [NASA ADS] [CrossRef] [Google Scholar]
  38. Goodman, A. A., Crutcher, R. M., Heiles, C., Myers, P. C., & Troland, T. H. 1989, ApJ, 338, L61 [NASA ADS] [CrossRef] [Google Scholar]
  39. Han, J. L., Manchester, R. N., Lyne, A. G., Qiao, G. J., & van Straten W. 2006, ApJ, 642, 868 [NASA ADS] [CrossRef] [Google Scholar]
  40. Hanawa, T., Nakamura, F., Matsumoto, T., et al. 1993, ApJ, 404, L83 [NASA ADS] [CrossRef] [Google Scholar]
  41. Harrison, S., Faure, A., & Tennyson, J. 2013, MNRAS, 435, 3541 [NASA ADS] [CrossRef] [Google Scholar]
  42. Harvey, P. M., Fallscheer, C., Ginsburg, A., et al. 2013, ApJ, 764, 133 [NASA ADS] [CrossRef] [Google Scholar]
  43. Hasegawa, T. I., & Herbst, E. 1993, MNRAS, 263, 589 [NASA ADS] [CrossRef] [Google Scholar]
  44. Heiles, C. 1987, in Interstellar Processes, eds. D. J. Hollenbach, & H. A. Jr. Thronson, Astrophys. Space Sci. Lib., 134, 171 [NASA ADS] [CrossRef] [Google Scholar]
  45. Heiles, C. 1997, ApJS, 111, 245 [NASA ADS] [CrossRef] [Google Scholar]
  46. Heiles, C., & Robishaw, T. 2009, in Cosmic Magnetic Fields: From Planets, to Stars and Galaxies, eds. K. G. Strassmeier, A. G. Kosovichev, & J. E. Beckman, IAU Symp., 259, 579 [NASA ADS] [Google Scholar]
  47. Hollenbach, D. J., & Tielens, A. G. G. M. 1995, in The Physics and Chemistry of Interstellar Molecular Clouds, eds. G. Winnewisser, & G. C. Pelz, Lecture Notes in Physics (Berlin: Springer Verlag), 459, 164 [NASA ADS] [CrossRef] [Google Scholar]
  48. Hollenbach, D. J., & Tielens, A. G. G. M. 1997, ARA&A, 35, 179 [NASA ADS] [CrossRef] [Google Scholar]
  49. Hollenbach, D. J., & Tielens, A. G. G. M. 1999, Rev. Mod. Phys., 71, 173 [NASA ADS] [CrossRef] [Google Scholar]
  50. Hoq, S., Clemens, D. P., Guzmán, A. E., & Cashman, L. R. 2017, ApJ, 836, 199 [NASA ADS] [CrossRef] [Google Scholar]
  51. Hull, C. L. H., Girart, J. M., Tychoniec, Ł., et al. 2017, ApJ, 847, 92 [NASA ADS] [CrossRef] [Google Scholar]
  52. Johnstone, D.,& Bally, J. 1999a, ApJ, 510, L49 [NASA ADS] [CrossRef] [Google Scholar]
  53. Johnstone, D.,& Bally, J. 1999b, in The Physics and Chemistry of the Interstellar Medium, eds. V. Ossenkopf, J. Stutzki, & G. Winnewisser (Herdecke: GCA-Verlag) [Google Scholar]
  54. Johnstone, D.,& Bally, J. 2006, ApJ, 653, 383 [NASA ADS] [CrossRef] [Google Scholar]
  55. Kainulainen, J., Beuther, H., Henning, T., & Plume, R. 2009, A&A, 508, L35 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  56. Khesali, A., Kokabi, K., Faghei, K., & Nejad-Asghar, M. 2014, Research in Astronomy and Astrophysics, 14, 66 [NASA ADS] [CrossRef] [Google Scholar]
  57. Killeen, N. E. B., Lo, K. Y., & Crutcher, R. 1992, ApJ, 385, 585 [NASA ADS] [CrossRef] [Google Scholar]
  58. Kirk, H., Klassen, M., Pudritz, R., & Pillsworth, S. 2015, ApJ, 802, 75 [NASA ADS] [CrossRef] [Google Scholar]
  59. Klassen, M., Pudritz, R. E., & Kirk, H. 2017, MNRAS, 465, 2254 [NASA ADS] [CrossRef] [Google Scholar]
  60. Kong, S., Lada, C. J., Lada, E. A., et al. 2015, ApJ, 805, 58 [NASA ADS] [CrossRef] [Google Scholar]
  61. Kounkel, M., Hartmann, L., Loinard, L., et al. 2017, ApJ, 834, 142 [NASA ADS] [CrossRef] [Google Scholar]
  62. Lada, C. J., Lombardi, M., & Alves, J. F. 2009, ApJ, 703, 52 [NASA ADS] [CrossRef] [Google Scholar]
  63. Le Teuff, Y. H., Millar, T. J., & Markwick, A. J., 2000, A&AS, 146, 157 [NASA ADS] [CrossRef] [EDP Sciences] [MathSciNet] [PubMed] [Google Scholar]
  64. Li, H.-B., Goodman, A., Sridharan, T. K., et al. 2014, Protostars and Planets VI, eds. H., Beuther, R. S., Klessen, C. P., Dullemond, & T., Henning (Tucson: University of Arizona Press), 101 [Google Scholar]
  65. Li, P. S., McKee, C. F., & Klein, R. I. 2015, MNRAS, 452, 2500 [NASA ADS] [CrossRef] [Google Scholar]
  66. Lombardi, M. 2009, A&A, 493, 735 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  67. Lombardi, M., Lada, C. J., & Alves, J. 2010, A&A, 512, A67 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  68. Matsumoto, T., Nakamura, F., & Hanawa, T. 1994, PASJ, 46, 243 [NASA ADS] [Google Scholar]
  69. Matthews, B. C., Wilson, C. D., & Fiege, J. D. 2001, ApJ, 562, 400 [NASA ADS] [CrossRef] [Google Scholar]
  70. McKee, C. F., & Ostriker, E. C. 2007, ARA&A, 45, 565 [NASA ADS] [CrossRef] [Google Scholar]
  71. Mitchell, G. F., Johnstone, D., Moriarty-Schieven, G., Fich, M., & Tothill, N. F. H. 2001, ApJ, 556, 215 [NASA ADS] [CrossRef] [Google Scholar]
  72. Morlino, G., & Gabici, S. 2015, MNRAS, 451, L100 [NASA ADS] [CrossRef] [Google Scholar]
  73. Morlino, G., Gabici, S., & Krause, J. 2015, ArXiv e-prints [arXiv:1509.05128] [Google Scholar]
  74. Nakamura, F., Hanawa, T., & Nakano, T. 1993, PASJ, 45, 551 [NASA ADS] [Google Scholar]
  75. Ordog, A., Brown, J. C., Kothes, R., & Landecker, T. L. 2017, A&A, 603, A15 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  76. Padovani, M., & Galli, D. 2013, in Cosmic Rays in Star-Forming Environments, eds. D. F. Torres & O. Reimer, Astrophys. Space Sci. Proc., 34, 61 [NASA ADS] [CrossRef] [Google Scholar]
  77. Padovani, M., Galli, D., & Glassgold, A. E. 2009, A&A, 501, 619 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  78. Padovani, M., Marcowith, A., Hennebelle, P., & Ferrière, K. 2016, A&A, 590, A8 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  79. Palmeirim, P., André, P., Kirk, J., et al. 2013, A&A, 550, A38 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  80. Planck Collaboration Int. XXXV. 2016, A&A, 586, A138 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  81. Pudritz, R. E., Klassen, M., Kirk, H., Seifried, D., & Banerjee, R. 2014, Magnetic Fields throughout Stellar Evolution, eds. P. Petit, M. Jardine, & H. C. Spruit, IAU Symp., 302, 10 [NASA ADS] [Google Scholar]
  82. Reich, W., Fürst, E., Reich, P., Wielebinski, R., & Wolleben, M. 2002, in Astrophysical Polarized Backgrounds, eds. S. Cecchini, S. Cortiglioni, R. Sault, & C. Sbarra, AIP Conf. Ser., 609, 3 [NASA ADS] [CrossRef] [Google Scholar]
  83. Robishaw, T. 2008, PhD Thesis, University of California, Berkeley [Google Scholar]
  84. Röllig, M., Abel, N. P., Bell, T., et al. 2007, A&A, 467, 187 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  85. Schleicher, D. R. G., & Stutz, A. 2018, MNRAS, 475, 121 [NASA ADS] [CrossRef] [Google Scholar]
  86. Schnee, S., Mason, B., Di Francesco, J., et al. 2014, MNRAS, 444, 2303 [NASA ADS] [CrossRef] [Google Scholar]
  87. Seifried, D., Walch, S., Girichidis, P., et al. 2017, MNRAS, 472, 4797 [NASA ADS] [CrossRef] [Google Scholar]
  88. Shibata, K., & Matsumoto, R. 1991, Nature, 353, 633 [NASA ADS] [CrossRef] [Google Scholar]
  89. Simard-Normandin, M., & Kronberg, P. P. 1980, ApJ, 242, 74 [NASA ADS] [CrossRef] [Google Scholar]
  90. Smith, R. J., Glover, S. C. O., Clark, P. C., Klessen, R. S., & Springel, V. 2014, MNRAS, 441, 1628 [NASA ADS] [CrossRef] [Google Scholar]
  91. Stil, J. M., & Hryhoriw, A. 2016, ApJ, 826, 202 [NASA ADS] [CrossRef] [Google Scholar]
  92. Stutz, A. M., & Gould, A. 2016, A&A, 590, A2 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  93. Sun, X. H., Reich, W., Waelkens, A., & Enßlin, T. A. 2008, A&A, 477, 573 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  94. Taylor, A. R., Stil, J. M., & Sunstrum, C. 2009, ApJ, 702, 1230 [NASA ADS] [CrossRef] [Google Scholar]
  95. Tritsis, A., Panopoulou, G. V., Mouschovias, T. C., Tassis, K., & Pavlidou, V. 2015, MNRAS, 451, 4384 [NASA ADS] [CrossRef] [Google Scholar]
  96. Troland, T. H., & Heiles, C. 1982, ApJ, 252, 179 [NASA ADS] [CrossRef] [Google Scholar]
  97. Troland, T. H., Crutcher, R. M., & Kazes, I. 1986, ApJ, 304, L57 [NASA ADS] [CrossRef] [Google Scholar]
  98. Troland, T. H., Heiles, C., & Goss, W. M. 1989, ApJ, 337, 342 [NASA ADS] [CrossRef] [Google Scholar]
  99. Van Eck, C. L., Brown, J. C., Stil, J. M., et al. 2011, ApJ, 728, 97 [NASA ADS] [CrossRef] [Google Scholar]
  100. Van Eck, C. L., Haverkorn, M., Alves, M. I. R., et al. 2017, A&A, 597, A98 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  101. Van Loo, S., Keto, E., & Zhang, Q. 2014, ApJ, 789, 37 [NASA ADS] [CrossRef] [Google Scholar]
  102. Verschuur, G. L. 1996, AJ, 112, 2718 [NASA ADS] [CrossRef] [Google Scholar]
  103. Willacy, K., & Williams, D. A. 1993, MNRAS, 260, 635 [NASA ADS] [Google Scholar]
  104. Williams, J. P., Bergin, E. A., Caselli, P., Myers, P. C., & Plume, R. 1998, ApJ, 503, 689 [NASA ADS] [CrossRef] [Google Scholar]
  105. Wolleben, M., & Reich, W. 2004a, A&A, 427, 537 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  106. Wolleben, M., & Reich, W. 2004b, in The Magnetized Interstellar Medium, eds. B. Uyaniker, W. Reich, & R. Wielebinski (Katlenburg-Lindau: Copernicus GmbH), 99 [Google Scholar]
  107. Yusef-Zadeh, F., Wardle, M., & Parastaran, P. 1997, ApJ, 475, L119 [NASA ADS] [CrossRef] [Google Scholar]

2

See Everett & Zweibel (2011) for a history of theoretical studies of CR penetration into MCs.

All Figures

thumbnail Fig. 1

RM values from the catalog of TSS09 mapped on the extinction map of CMC and PMC. Blue (red) circles indicate positive (negative) RM values. The size of the circles is proportional to the magnitude of the RM. The gray grid provides galactic coordinates, whereas the black grid provides equatorial coordinates. Color image shows the extinction map (AV) in units of magnitudes of visual extinction provided by KBHP09.

Open with DEXTER
In the text
thumbnail Fig. 2

RM values from the catalog of TSS09 mapped on the extinction map of Orion. OMC-A is the complex to the south and OMC-B is the complex to the north. Blue (red) circles indicate positive (negative) RM values. The size of the circles is proportional to the magnitude of the RM. The gray grid provides galactic coordinates, whereas the black grid provides equatorial coordinates. Color image shows the extinction map (AV) in units of magnitudes of visual extinction provided by KBHP09.

Open with DEXTER
In the text
thumbnail Fig. 3

Schematic illustrating “ON” and “OFF” RM positions, relative to an MC. To find the magnetic field in the MC we need to disentangle the RM produced by the Galaxy from that produced by the MC itself. We do so by subtracting the RM of a nearby point, called the OFF position, from the ON position which has an RM produced by both the MC (MC contribution) and the Galaxy (Galactic contribution). See Sect. 3.1 for details. Additionally, we need to consider the effects of all the layers of the MC from the exterior to the center of the cloud to reach to extinction value of AV, MC= AV −AV, ref. However, since the cloud is symmetrical along the line-of-sight, and is illuminated from both sides byan ambient UV field, we assume the center of the cloud has an extinction of magnitudes.

Open with DEXTER
In the text
thumbnail Fig. 4

Magnetic field values in OMC-A using different numbers of OFF positions to calculate the “reference” value (RMref). Results are presented for three different points in Orion A. The x-axis indicates the number of OFF positions used in RMref. The y-axis shows the calculated magnetic field value. As discussed in the text, the magnetic field stabilizes at roughly 12 OFF positions.

Open with DEXTER
In the text
thumbnail Fig. 5

Uncertainties in BLOS due to uncertainties in the input volume density of the chemical evolution code. Top panel: BLOS variationfor a selection of positions in Orion A sampling regions with different AV. The x-axis () indicates therelative (%) changes in input density to the chemical model. The y-axis labels the data points presented and corresponds to the positions labeled in Fig. 6. The z-axis plots the change in the magnetic field strength and direction from that calculated for the fiducial density n0 (104 cm−3). The bottom left panel shows BLOS uncertainties for points with AV < 1. The bottom right panel shows uncertainties in BLOS for a selection ofpoints with AV > 1.

Open with DEXTER
In the text
thumbnail Fig. 6

BLOS in OMC-A. Blue (red) circles show magnetic fields toward us (away from us). The size of the circles indicate the magnitude of magnetic field. Black square shows the location of the available Zeeman measurements. Color image is the extinction map (AV). The magnetic fields are dominantly towards us at the eastern side of this filamentary structure and away from us at its western side.

Open with DEXTER
In the text
thumbnail Fig. 7

BLOS in OMC-B. Blue (red) circles show magnetic fields toward us (away from us). The size of the circles indicate the magnitude of magnetic field. Black square shows the location of the available Zeeman measurements. Color image is the extinction map (AV).

Open with DEXTER
In the text
thumbnail Fig. 8

BLOS in the California MC. Blue (red) circles show magnetic fields toward us (away from us). The size of the circles indicate the magnitude of magnetic field. Color image is the extinction map (AV). The magnetic fields are dominantly towards us at the western side of this filamentary structure and away from us at its eastern side.

Open with DEXTER
In the text
thumbnail Fig. 9

BLOS in the Perseus MC. Blue (red) circles show magnetic fields toward us (away from us). The size of the circles indicate the magnitude of magnetic field. Black square shows the location of the available Zeeman measurements. Color image is the extinction map (AV).

Open with DEXTER
In the text
thumbnail Fig. 10

The average of absolute value of BLOS versus extinction, in bins that are 0.5 magnitudes wide in AV. The error bars reflect the standard deviation of BLOS in each bin. In these data, the average BLOS appears to decrease with AV.

Open with DEXTER
In the text

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
