Fig. 10.

Download original image

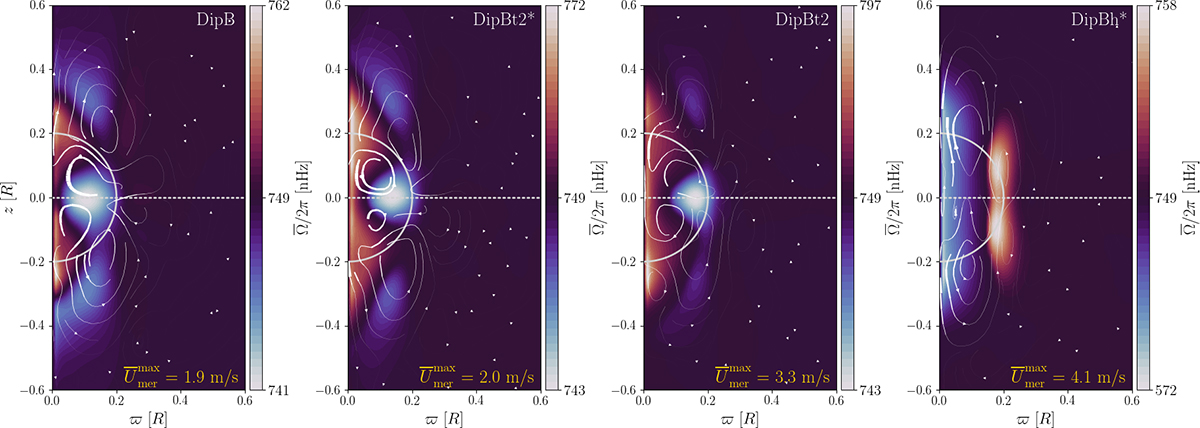

Profiles of the temporally and azimuthally averaged rotation rate of selected runs with Dipole B and Dipole B* (clipped at r = 0.6R). The streamlines indicate the mass flux due to meridional circulation. The maximum meridional flow speed is indicated in the lower right side of the plot. The dashed line at z = 0 represents the equator.
