Fig. 6.


Download original image

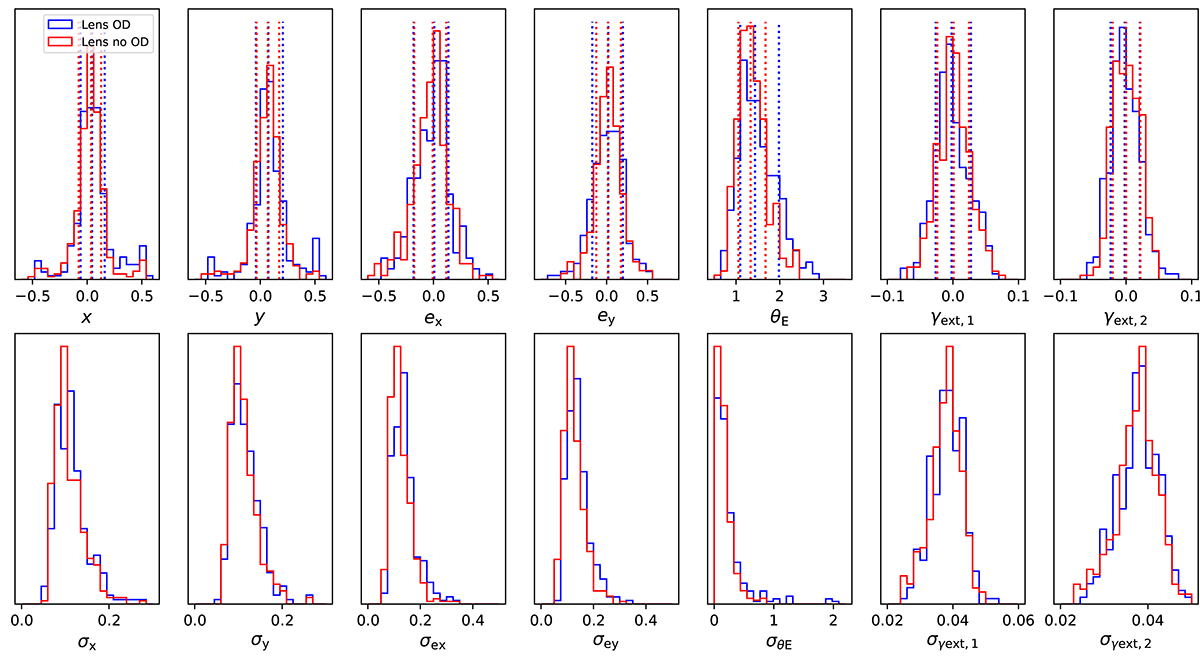

Normalized histograms of the mass model parameter values (top row) with uncertainties (bottom row) predicted by the neural network of Schuldt et al. (2023a). From left to right: Predict values for the SIE profile (lens center, x and y, complex ellipticity, ex and ey, and Einstein radius, θE) and the external shear (γext, 1 and γext, 2). We applied the network to all grade A and B lens candidates identified in C21 and this work, and distinguish between those flagged by any overdensity criteria (blue) and those not (red). The median values and ±1 sigma ranges are indicated by dotted vertical lines for each parameter (see also Table 4).
