Fig. 11.


Download original image

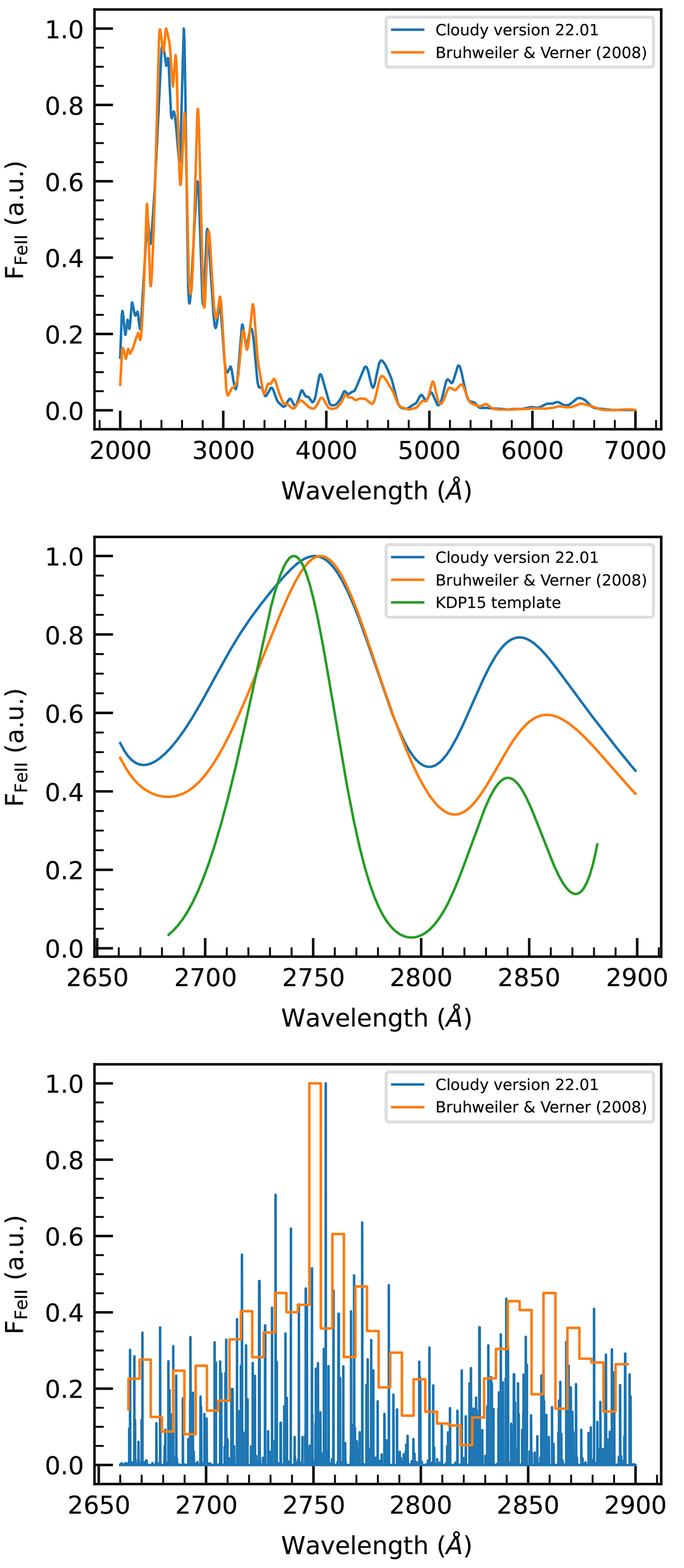

Comparison of Bruhweiler & Verner (2008) template with the CLOUDY C22.01 output for log(ϕ[cm−2s−1]) = 20.5, log nH[cm−3] = 12, the turbulent velocity of 20 km s−1, and the column density of 1024 cm−2. Upper panel: For a wavelength range of 2000–7000 Å with a Gaussian broadening assuming FWHM ∼4200 km s−1. Middle panel: The zoomed-in version of the upper panel in the wavelength range 2650–2900 Å. Here we also add the broadened KDP15 template for comparison (green solid line). Lower panel: The nonbroadened version of the middle panel. Here, the templates are renormalized for a better comparison.
