Fig. A.3

Download original image

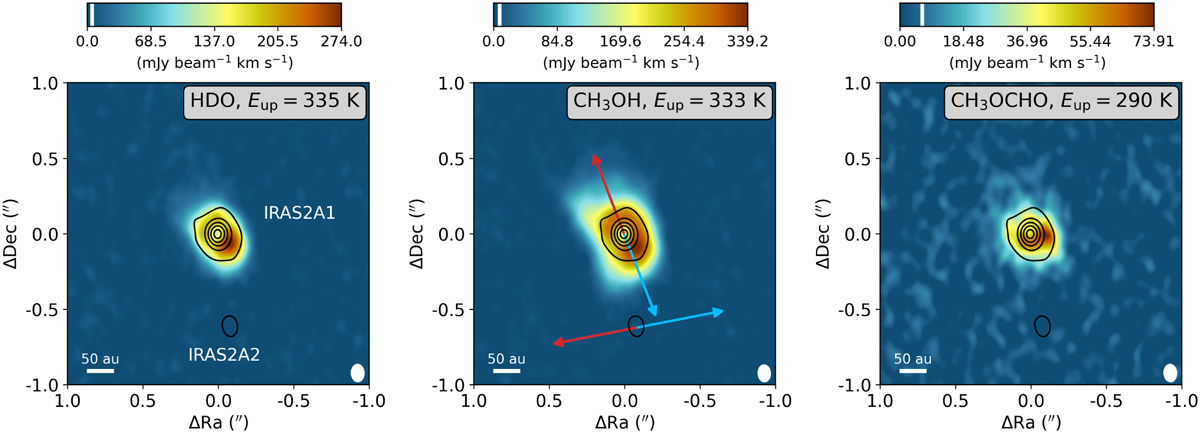

Integrated intensity maps of the HDO 33,1 – 42,2 (Eup = 335 K), CH3OH 161,15 − 152,14 (middle, Eup = 331 K), and CH3OCHO 2710,17 − 2610,16 (right, Eup = 190 K) transitions in color. The images are integrated over [-2,2] km s−1 with respect to the V1sr of 6.7 km s−1. The white vertical bar in the colorbar on top of each image indicates the 3σ threshold. The 0.875 mm continuum is overlaid as black contours. The main continuum peak is associated with IRAS2A1 and the secondary peak toward the south with IRAS2A2. The directions of the two outflows originating from IRAS2A1 and IRAS2A2 are indicated with the colored arrows in the middle panel (Tobin et al. 2015). The size of the beam is shown in the bottom right, and in the bottom left a scale bar is displayed.
