Fig. 5

Download original image

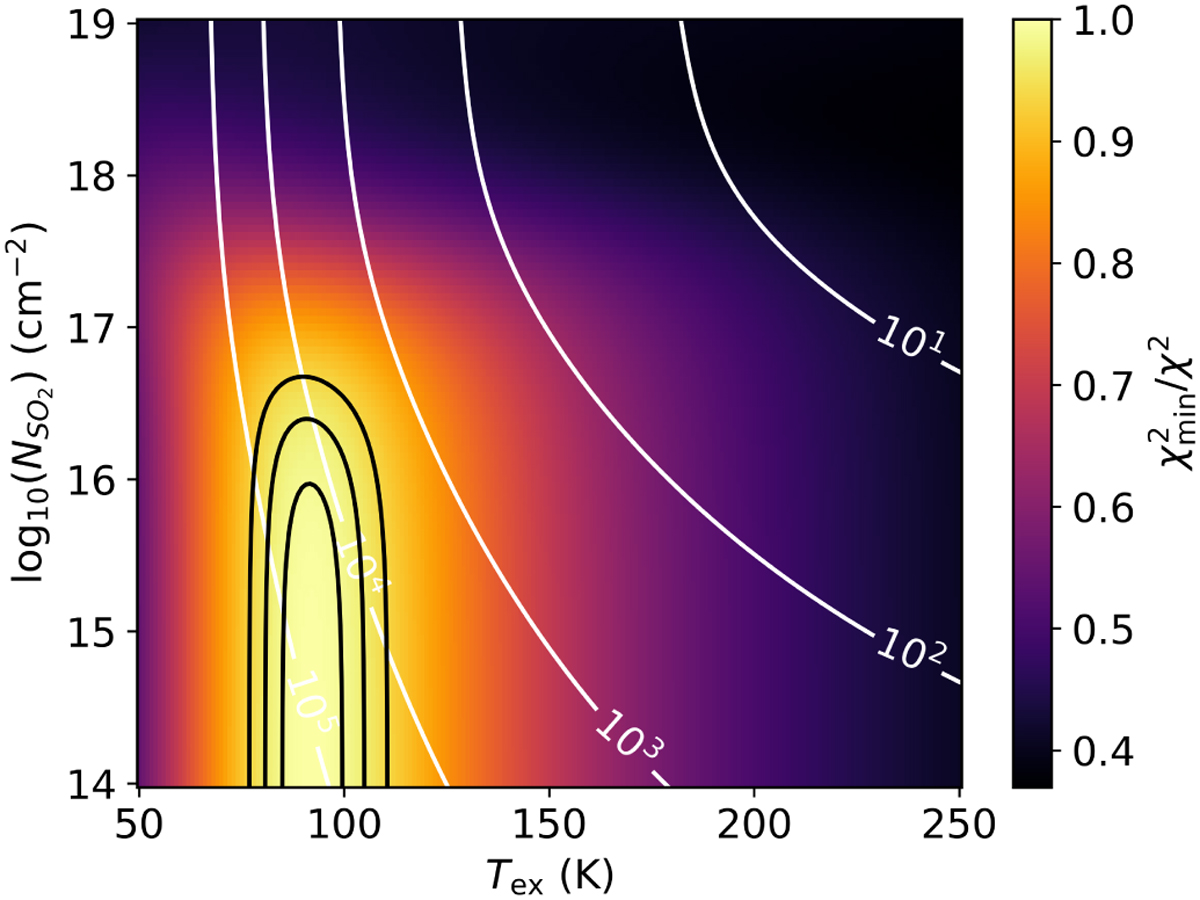

χ2 map of the LTE slab model fit of SO2. The χ2 values are inversely normalized by the minimum χ2 and shown in color. The 1, 2, and 3σ confidence intervals are presented as the black contours. The best-fitting emitting radius, R (in au), is represented by the white contours and is calculated for each grid point by minimizing the χ2 assuming a circular emitting area of πR2. The χ2 map clearly reveals that the SO2 emission is optically thin with an excitation temperature of 92 ± 8 K.
