Fig. 14


Download original image

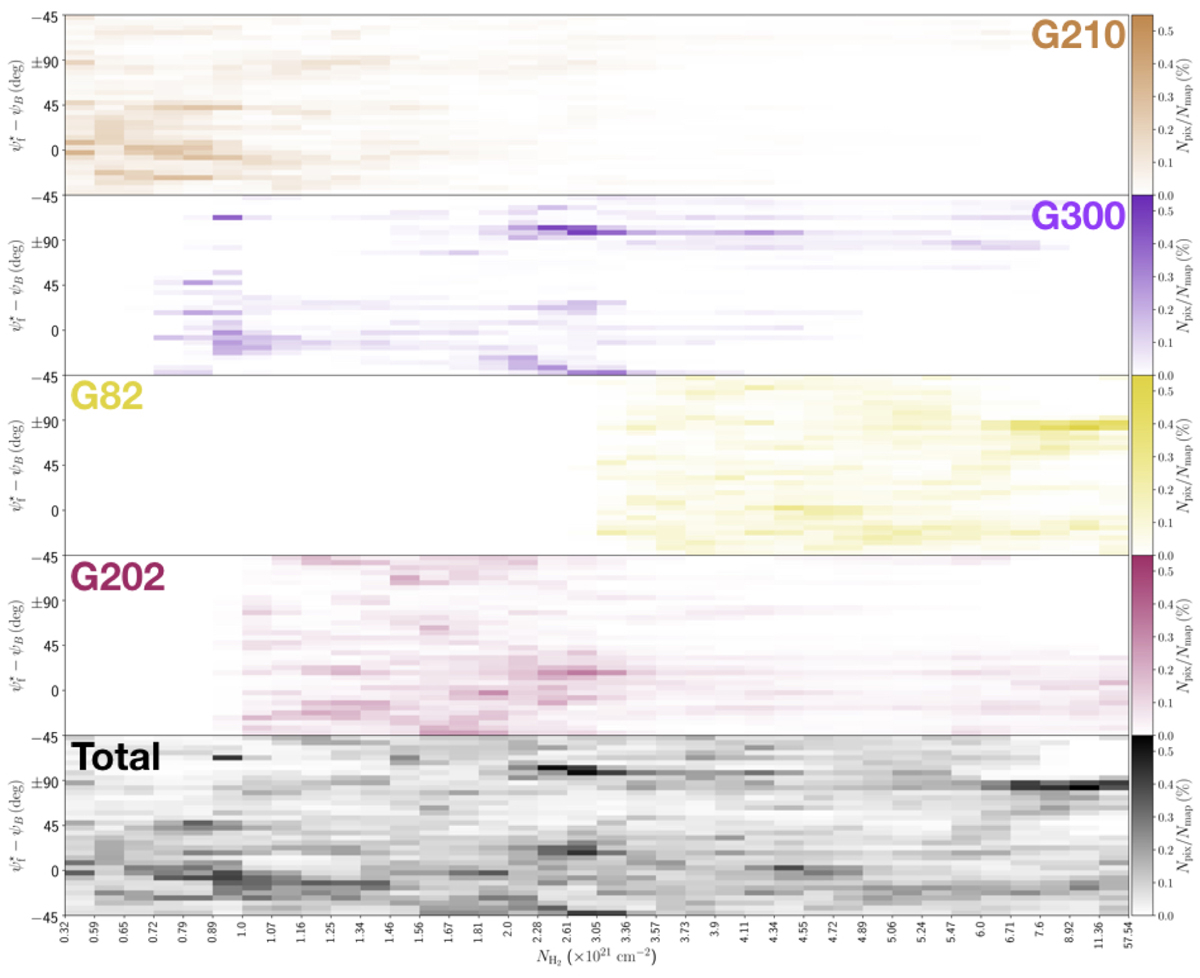

2D histograms of the relative orientation angle between the reconstructed (S, M, and L) filaments and the magnetic field, , as a function of H2 column density, . Top four panels: individual histograms of the four Berschel fields separately. Bottom panel: combined histogram of the four Berschel fields together.
