Fig. 1.

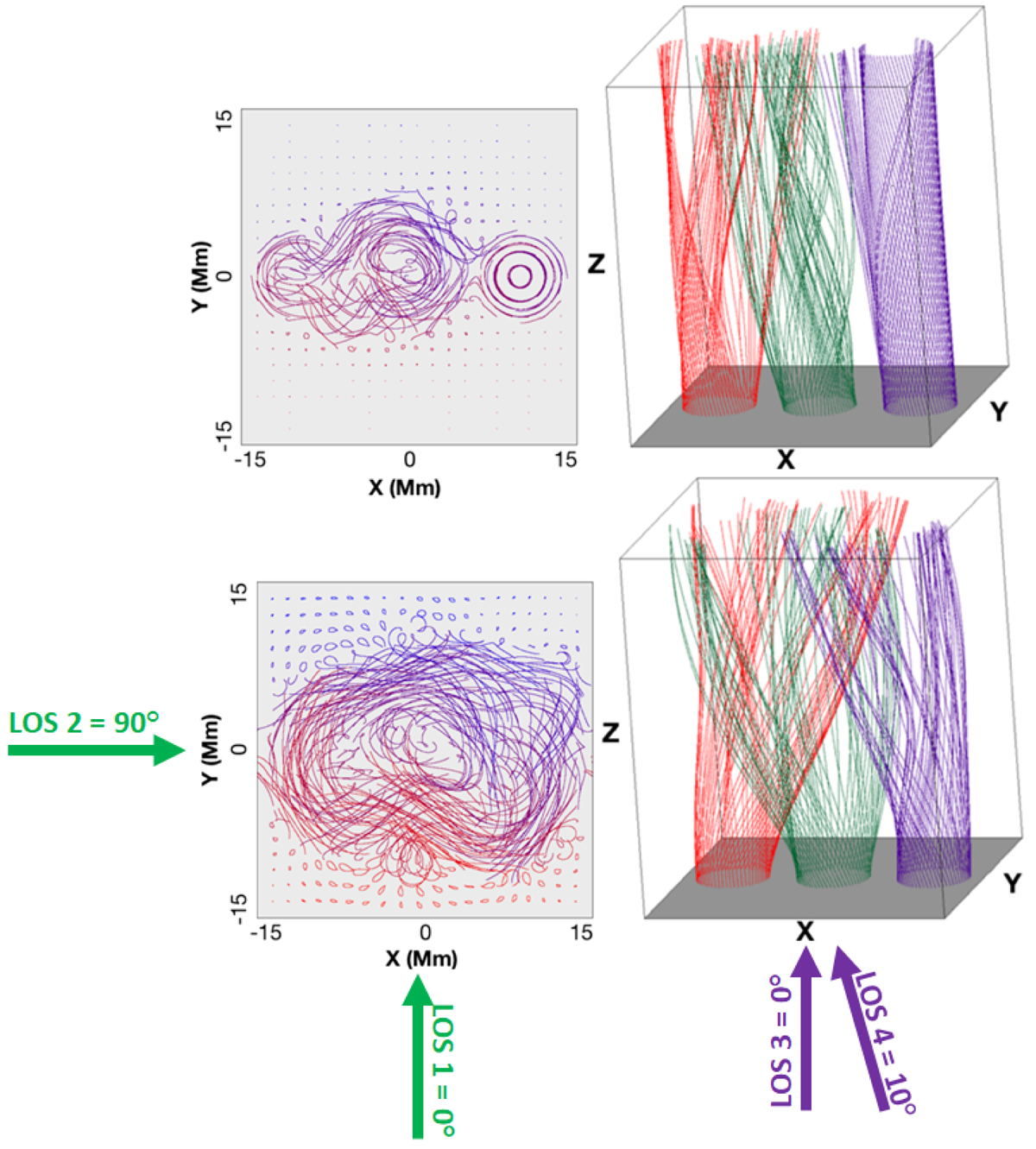

Illustration of the magnetic field line complexity for IC1 (upper row) and IC2 (lower row) showing the projection of the magnetic field lines onto the xy-plane (left column) and the configuration of representative field lines in 3D (right column), modified from Howson et al. (2020). The LOS angles (LOS1, 2, 3 and 4), used in the forward modelling, are green arrows if they are in the xy-plane (left) and purple in the xz-plane (right).
