Fig. 8.

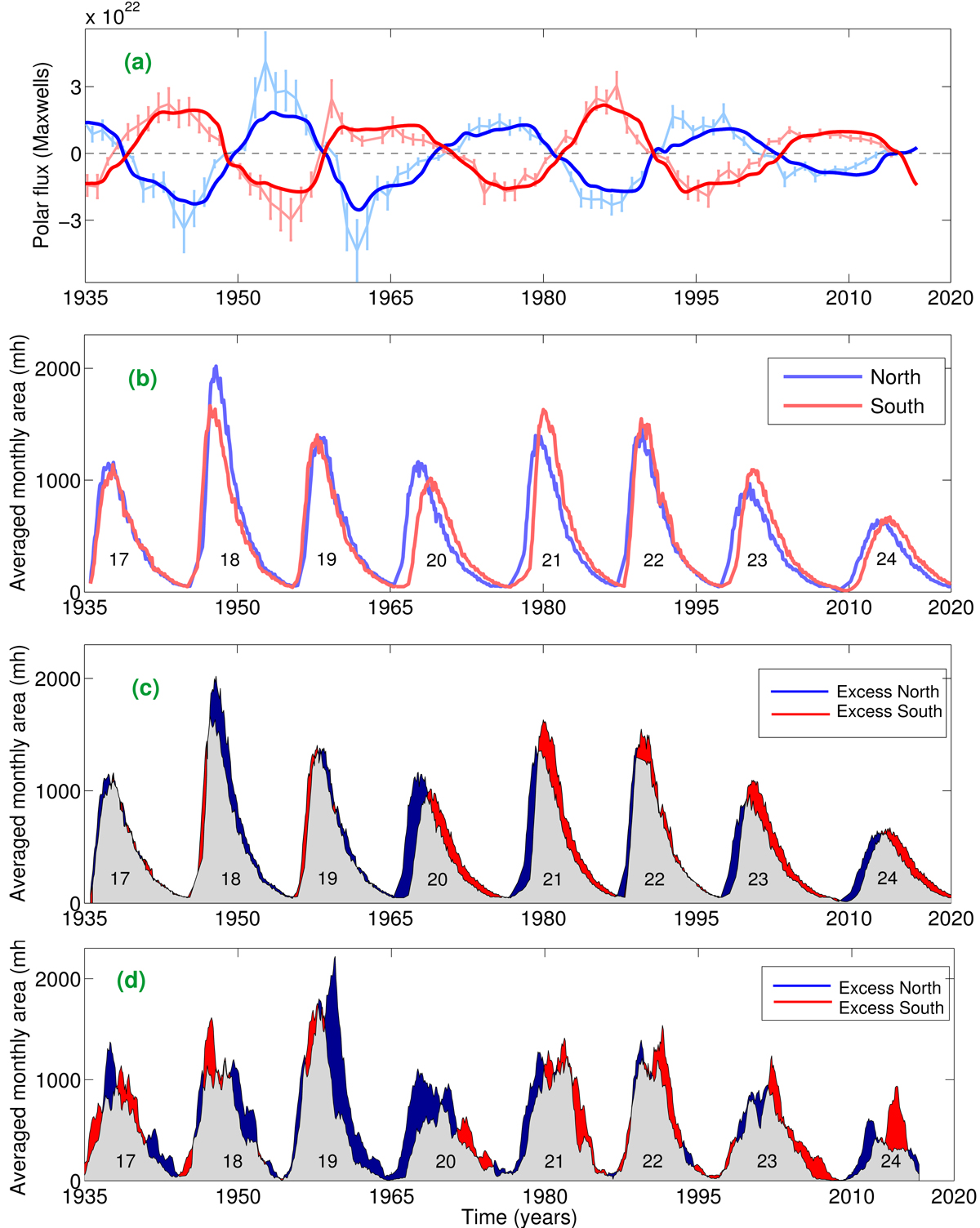

Panel a: time variation of simulated polar flux in northern (blue) and southern (red) hemispheres compared with observed polar flux (north: light blue; south: light red) with error bars. Panel b: time evolution of hemispheric activities in terms of sunspot area (13 months running averaged) obtained from dynamo simulation. Panels c and d: relative activity (in terms of sunspot area in unit micro-hemispheres) between two hemispheres as obtained from dynamo simulation and observation for solar cycles 17–24, respectively.
