1. Introduction

Cool stars with outer convective envelopes ubiquitously show signatures of magnetic activity. Such activity manifests itself in a plethora of observable signatures, such as spots, chromospheric emission lines, emission at X-ray and XUV wavelengths, and many others. On quite a few stars these activity phenomena are more pronounced than what we observe in the Sun, and it is therefore useful to perform activity studies on other, more active stars, both to learn about the underlying physical processes, but also to learn more about the Sun.

One of the best-known measures of activity is the so-called Mount-Wilson S-index SMWO, defined as the ratio of the flux in the center of the Ca ii H and K lines, where activity results in a sometimes very large excess emission, relative to the flux in the continuum on either side of the lines. As we have access to a large number of such observations dating back many years, this S-index is well-suited for long-term activity studies (Duncan et al. 1991). It has, in fact, been used to determine periods for activity cycles and/or rotation in cool stars (Baliunas et al. 1995).

Since the photosphere also contributes in the center of the Ca ii H and K lines, the S-index characterizes not only chromospheric activity, and it becomes difficult to compare stars with different effective temperatures, where these photospheric contributions will vary. To overcome these shortcomings, Linsky et al. (1979) introduced the so-called -index. The photospheric flux is first subtracted from the flux measured in the Ca ii H and K lines, and the remainder subsequently normalized by dividing by . This correction allows a direct comparison of stars of various stellar types, which have different photospheric fluxes. Given Teff, it is possible to convert the measured values of SMWO into (Rutten 1984; Linsky et al. 1979), hence the large amount of archival data for SMWO can directly be used to compare in the -scale.

Both the Gaia mission (Prusti 2012) and CARMENES (Quirrenbach et al. 2014) are expected to provide very large numbers of spectra that can be used for activity studies of stars. The Radial Velocity Spectrometer (RVS) onboard Gaia has a resolution of about 11 500 with a wavelength coverage of 8470–8740 Å, and CARMENES covers the region between 5 500–17 000 Å with a resolution of 82 000. The Gaia RVS is expected to yield spectra down to a magnitude of about 17, which corresponds to 15–16% of the Gaia catalog of presently 1 142 679 769 entries (Gaia Collaboration 2016). CARMENES will yield time series of selected M dwarfs and the total number of spectra in the first three years will be approximately 15 000.

In both cases, the Ca ii H and K lines at 3933.7 Å and 3968.5 Å are not covered, and thus no data to enhance temporal studies of activity can be combined with the existing SMWO data. However, spectra obtained with either of these instruments cover the calcium infrared triplet (IRT), three lines centered at 8498 Å, 8542 Å and 8662 Å. Like the Ca ii H and K lines, the IRT are Ca ii lines, which have been reported to be sensitive to activity as well (Martínez-Arnáiz et al. 2011). In contrast to the Ca ii H and K lines, these IRT lines usually only show a smaller fill-in due to activity, rather than stronger fill-in up to a clear emission core as the Ca ii H and K lines do. While the rather simple indicator of the central depression in the IRT lines correlates well with SMWO (Chmielewski 2000), it is difficult to disentangle the effects from activity on the central depression from those of rotational broadening, which is also known to correlate well with activity (Andretta et al. 2005). Busà et al. (2007) presented a new indicator ΔWIRT, based on the excess flux from the chromosphere, obtained by subtracting a model of the photosphere. Their new indicators turned out to correlate well with , and they were able to obtain a conversion formula from this index to by analyzing the spectra of 42 stars of type F5 to K3.

In this paper, we have adopted a similar approach, but have subtracted the observed spectra of an inactive object with similar stellar parameters. We performed this comparison not only for the calcium lines, but also for Hα, and we also fit a Gaussian to the obtained excess flux to test the feasibility of using such a fit as an activity indicator. We used more than two thousand observations obtained with the TIGRE telescope, which simultaneously records the Ca ii H and K lines, the Ca ii IRT and Hα (see Sect. 2.1). This means that there is no scatter from temporal variation, which can be a rather significant introduced error (Baliunas et al. 1995), and yet we are also able to more accurately quantify the expected derivation simply from inherent differences in the two activity indices.

The plan of our paper is as follows: first, we describe the TIGRE telescope and give an overview of the objects and observations used in this paper. We then describe the method used to determine the excess flux, and show the results for the measured line flux for inactive objects. Then, we show the observed correlations for the excess flux in the lines to other indicators. Finally, we give relations to convert the measured values to other indicators.

2. Observations

2.1. The TIGRE telescope

The Telescopio Internacional de Guanajuato Robótico Espectroscópico (TIGRE) is operated by a collaboration between the Hamburger Sternwarte, the University of Guanajuato and the University of Liège. TIGRE is a 1.2 m telescope stationed at the La Luz Observatory in central Mexico near Guanajuato at a height of about 2400 m. Equipped with the refurbished Heidelberg Extended Range Optical Spectrograph (HEROS), TIGRE takes spectra with a resolution of ~20 000, covering a wavelength range of ~3800–8800 Å, with only a small gap of about 130 Å centered at 5765 Å. This wide wavelength coverage allows to obtain measurements of the Ca ii IRT simultaneously with those taken of the Ca ii H and K lines. TIGRE can be operated both manually and fully automatically, including the selection of the observation time for each object, based on factors such as weather, position, visibility in other nights, and the assigned priority. More detailed information about TIGRE can be found in Schmitt et al. (2014).

After every night the system automatically reduces the data, running a modified version of the REDUCE package (Piskunov & Valenti 2002), as described in Mittag et al. (2010). This reduction pipeline includes flatfielding and the wavelength calibration. Moreover, TIGRE determines its own S-index, defined almost identically to the original Mount-Wilson S-Index SMWO (Vaughan et al. 1978; Duncan et al. 1991), (1)where NH and NK are the countrates in a bandpass with a FWHM of 1.09 Å in the center of the Ca ii H and K line, respectively. In the original definition, this bandpass is triangular, whereas the TIGRE S-Index uses a rectangular bandpass. NV and NR are the countrates in 20 Å-wide continuum bands outside the lines, centered at 3901.07 Å and 4001.07 Å. The factor α ensures that countrates measured by different instruments are in agreement. The TIGRE S-Index can be converted to the SMWO-scale (Mittag et al. 2016).

In this paper, we have measured the S-index “manually” from the spectra for every observation using the same bandpasses as given in the original definition, including the triangular shape in the center of the lines. To determine α correctly for our values, we compare our values to the corresponding TIGRE S-index values converted to SMWO. As shown in Fig. 1, there is a clear linear relation between the two S-indices, allowing us to transform our values to the SMWO-scale. We cannot simply always use the TIGRE-determined S-index, because older versions of the pipeline did not calculate that value. To ensure that we can also use these spectra, but do not introduce systematic errors due to a different approach in calculating the S-index, we have always calculated it manually according to the original definition.

thumbnail Fig. 1

Comparison of our measured value for SMWO with the converted TIGRE S-Index.

Open with DEXTER

2.2. Overview of data used

In this paper, a total of 2807 individual observations of 102 stars were analyzed. Some of these observations were not suitable for the excess flux determination (see Sect. 3.4), so that only 2274 observations of 82 stars were eventually used. The stars with observations used here were not originally selected for this paper, but rather for other science purposes. The largest part of the data was originally taken to determine stellar rotation periods of solar-like stars (Hempelmann et al. 2016). Here, we only look at data from main-sequence stars with BV-colors ranging from 0.4 to 1.2, corresponding to F, G and K stars. The earliest data points are from April 15, 2013, ranging up to the latest from May 4, 2016. We have excluded data points obtained between December 6th, 2014 and May 15th, 2015, since there was a different camera for the red channel in use at that time. Because these objects were observed for different projects, the signal-to-noise-ratio (S/N) and exposure time are not constant in our sample. We only analyzed observations with an average S/N of at least 20, because otherwise their noise level introduces large errors in our sample. Finally, telluric line correction was done using Molecfit (Smette et al. 2015; Kausch et al. 2015). We have used the stellar parameters given in Soubiran et al. (2010) whenever possible. Table 1 shows an overview of the number of analyzed observations for each spectral type, as well as the minimum, median and maximum values for S/N and exposure time in that class. We provide a full list of all objects, with sources for values BV, vsini, log g and [Fe/H] that we used, in Tables A.1 and A.2.

Table 1

Overview of the data used in this paper, categorized by spectral type.

3. Method

3.1. Selecting comparison objects

The changes in the Ca ii IRT lines due to activity are much smaller than those seen in the Ca ii H and K lines. To measure this change, we compared our observations with those from an inactive star. The comparison star must be similar in its parameters to the active star in question, to ensure that the difference in the line profiles stems from activity rather than from differences in the photosphere. Whether a star is considered active or inactive is determined by its value of , defined by Linsky et al. (1979) as: (2)where FHK is the flux measured in the Ca ii H and K lines and FHK,phot the photospheric contribution to that flux. Since this index is normalized to , it is only marginally dependent on BV, and thus, while slightly more difficult to determine, better suited for activity studies. We have used the relation given in Mittag et al. (2013) to convert our measured values for SMWO to . We only study stars with , and define those with smaller as inactive, following the definition by Henry et al. (1996). This threshold value is close to the lower levels of the Sun’s activity. For each potentially active star in question, we select one inactive star as close as possible in stellar parameters and slowly rotating, so that vsini ≤ 5 kms-1. These criteria have been given different weights: a similar value for BV is given the highest priority, followed by similar values for metallicity and then gravity. For each comparison object, the “best” comparison spectrum – defined as the one with the highest S/N – is selected, and visually checked to ensure that no artifacts remain, for example from uncorrected cosmics. Every observation of the star in question is compared to that spectrum, referred to as comparison spectrum in the following.

3.2. Errors from incorrect stellar parameters

The stellar parameters are not always well-determined, and sometimes even a rather large range of possible values is given in the literature. The Ca ii IRT line profiles, especially the wings, are affected quite strongly by changes in metallicity as analyses of model spectra show (Smith & Drake 1987; Erdelyi-Mendes & Barbuy 1991). In Fig. 2, we show the normalized spectra of the first Ca ii IRT line from several interpolated PHOENIX models (Hauschildt et al. 1999), that are based on those from Husser et al. (2013). In these spectra, H i, He i, He ii, Ca i, Ca ii, Ca iii, Fe i and Fe ii were, among others, all calculated in Non Local Thermodynamic Equilibrium (NLTE). The plotted first Ca ii IRT line shows the strongest effects, and allows us to give a “worst-case” estimate. It is obvious that the lines are not very sensitive to gravity, but show a strong dependence on metallicity, confirming the result by Andretta et al. (2005). Temperature also affects the line profile, but values for Teff tend to be determined more reliably.

Most of the stellar parameters we have used are taken from Soubiran et al. (2010), where the authors have compiled the stellar parameters from the literature. The average discrepancy in metallicity for stars that have more than one set of stellar parameters available is given there as 0.08 dex, and the discrepancy in Teff as 1.3%. For our rough determination on the errors introduced in the final excess flux, we ignored the low discrepancy on Teff, as we can confidently say from Fig. 2 that a deviation of ~10 K will have neglibile effects compared to those from the deviation in metallicity. We then considered the conservative case of template and active star to both have incorrectly determined metallicity, and that the real difference between the two is Δ[M / H] = 0.25 dex. We took two model spectra with Teff = 5700 K, log g = 4.40 and [M/H] = 0.25 and [M/H] = 0, respectively, and integrated the flux of those two spectra numerically, across a 1 Å-wide bandpass in the center of the first Ca ii IRT line. The results differ by less than 3%. We therefore conclude that the error from incorrect stellar parameters will not strongly affect our results.

thumbnail Fig. 2

Effects of stellar parameters on the Ca ii IRT lines. Shown here are PHOENIX spectra, degraded to the resolution of TIGRE spectra, with Teff varied in the top plot, log g in the middle, and metallicity in the bottom plot. Unless varied in that plot, stellar parameters were set to Teff = 5700 K, log g = 4.40 and [M / H] = 0.0.

Open with DEXTER

3.3. Comparing active stars to inactive template stars

The Ca ii H and K lines, the Ca ii IRT lines, and Hα were checked individually with a procedure (written in IDL) that worked as follows: for each line, a region was defined that encompasses the line and continuum on either side. Both observation and comparison spectrum were then normalized in this region by finding a linear fit to the upper envelope in small regions defined as continuum. Observation and comparison spectrum were then shifted on top of each other by cross-correlation. In this way, any potential wavelength-shift, no matter the cause, is corrected. Afterwards, the comparison is rotationally broadened to the rotational velocity of the actual star, following the procedure described by Gray (2005), with a limb-darkening coefficient interpolated from the figure given there (their Fig. 17.6, p. 437). As a local normalization, a fit was performed to match the photospheric wings. This can be done, since only the core of the line should be affected by chromospheric activity (Busà et al. 2007). Finally, we subtracted the comparison spectrum from the spectrum, and ended up with the excess flux, thought to come from chromospheric activity. We integrated this excess curve in an 1 Å-wide region for the Ca ii IRT lines and Hα, and a 2 Å-wide region for Ca ii H and K to obtain the resulting excess flux FExc. The larger bandpass for the Ca ii H and K-lines has been purposefully selected to be larger than the expected width of ~1 Å according to the Wilson-Bappu-effect (Wilson & Vainu Bappu 1957), to ensure that all of the flux is included in these rather wide lines.

thumbnail Fig. 3

Comparison of different stars’ spectra (black) with the spectra of inactive stars (gray). For the lowest-activity stars (top), no excess flux can be seen, whereas for higher activity, the observed fill-in increases with activity. The determined excess flux in the first Ca ii line in these three cases are 0.1 × 105 erg s-1 cm-2, 2.0 × 105 erg s-1 cm-2 and 4.4 × 105 erg s-1 cm-2.

Open with DEXTER

In Fig. 3 we show the result of such a comparison for three objects with different levels of activity, i.e., for a star with low activity (SMWO = 0.19), medium activity (SMWO = 0.23) and high activity (SMWO = 0.36). Figure 3 also shows that the observed excess flux in the lines is increased for the more active objects. The excess fluxes shown here correspond to 0.1 × 105 erg s-1 cm-2, 2.0 × 105 erg s-1 cm-2 and 4.4 × 105 erg s-1 cm-2 respectively. In order to assess the error of the excess flux, we use Gaussian error propagation where possible, for example propagation of the errors on the normalization fit, or a Monte Carlo-approach, for example by broadening the line 150 times with the values for vsini varying within its error; in those cases where no error is given, we have assumed a 10% error. The resulting distribution of the values for the integrated excess flux are Gaussian in almost every case, so that we interpret the resulting error as a 1σ-error; see Sect. 3.4 for a description of objects for which the distribution is not Gaussian. A typical example for our procedure is shown in Fig. 4. Since the spectra are normalized to unity, this implies that this excess flux is given in units of the continuum flux. To convert this to a stellar surface flux in units of erg cm-2 s-1 Å-1, we use the relation from Hall (1996) for the continuum flux at different wavelength points. We also fit Gaussians or Lorentzians to the resulting excess flux distribution using the MPFIT routine (Markwardt 2009). These fit parameters can in principle also be used as activity indicators (see Sect. 4.4). The equivalent width has also been determined, but gives less reliable results than the integrated flux. We present a formula to determine the flux of inactive objects in Sect. 4.1, which can be subtracted from a measured flux to estimate the excess flux.

thumbnail Fig. 4

Determination of the excess flux measured for HD 152391 in the second Ca ii IRT line at 8542 Å and resulting distribution of the integrated excess flux after performing the Monte-Carlo-iterations. Top: comparison of the observation (black) with the rotationally broadened comparison spectrum (gray). The resulting excess flux, shifted to find an agreement in the wings, is shown in the lower plot. The dotted vertical lines show the 1 Å-region used for integrating. Bottom: histogram resulting from performing the excess flux determination 150 times, varying rotation and other parameters within their errors. The gray dashed line shows the average excess flux, the gray dotted lines the found 1σ values. Here, we found an excess flux of (7.9 ± 0.09) × 105 erg s-1 cm-2.

Open with DEXTER

In some cases, we obtain a negative value for the excess flux, implying that the comparison star was more active than the star under investigation. Indeed, this only occured for observations that also feature a low value for established activity indicators, as well as a higher noise level. Our procedure is not well suited for these objects, because the change in the line that stems from activity is smaller than the errors introduced from the line profile differences as the stellar parameters of the two objects do not match exactly. A future study that compares the spectra to models will hopefully resolve this.

As mentioned earlier, Busà et al. (2007) introduced a new activity index ΔWIRT, which is obtained in a similar fashion. Two objects studied by Busà et al. (2007) are also in our sample: HD 25998 and HD 82443. A slight change in our calculation allows us to also obtain this parameter from our data. For both objects and all three lines, the values agree to within 1σ.

Table 2

Formulae to estimate the summed up flux in an 1 Å-window in the center of all three Ca ii IRT lines for inactive objects.

In our approach we have chosen to make use of the large sample of available stellar TIGRE spectra, and to compare the spectra of active stars to the spectra of inactive stars. This approach requires no further assumptions on the formation of the spectrum. One advantage of this approach compared to the one of subtracting a model spectrum, as is the case in Busà et al. (2007), is that we remove the basal flux level as well, leaving only the “true” activity related excess flux. An additional advantage is that we avoid errors due to incorrect parameters in the line list, or incomplete or otherwise erroneous line profiles. This error is hard to quantify and likely to be systematic in nature. On the other hand, the observed spectra of inactive stars will have a certain degree of noise in them, which introduces some scatter as well. However, across a large sample, these errors are statistically distributed, and average out.

Since the comparison star has slightly different parameters to the star we compare to, some scatter is introduced as a systematic offset to the determined excess fluxes of that star (see also Sect. 3.2). In fairness, such scatter will also be introduced from an incorrect set of stellar parameters when using a model. It is possible to vary the stellar parameters in use to fit the model spectra so both spectra agree in the wings, this approach can not eliminate those errors completely. The best way to handle these errors is to use as many stars as possible, as those errors will then broaden the distribution, but should not affect the resulting fit by much.

3.4. Outliers

Fifteen objects for which observations were available had to be removed from further analysis as they could not be handled adequately with our approach.

  • HD 114378: the comparison shows that theline shape differs to the one from the comparison spectrum, re-sulting in what appears to be a well-defined excess flux. How-ever, this object has been found to be a binary star (Malkovet al. 2012). The observed linein the spectrum is then a combination of two (shifted) line profileswith different degrees of fill-in depending on their individualactivity. The approach used here – comparing with a spectrum ofa single, main-sequence star – is not appropriate for double starsand thus cannot be expected to yield correct results. For the samereason, we rejected results from other binary systems, such asHD 106516 and HD 133640.

  • HD 6920: this object is often listed as an F8V star (e.g., Hillen et al. 2012), but has also been classified as subgiant, for example Abt (1986), Fuhrmann (1998), Gray et al. (2001), Anderson & Francis (2012). Should the latter classification be correct, it appears reasonable that the line profile differs from that of a main-sequence star to some degree. We have therefore excluded this object from further analysis.

  • HD 25998, HD 111456, HD 115043: these objects all have both a comparatively low value for BV, as well as a high rotational velocity. The latter causes the excess flux to be smeared out across a wider spectral region than normal, which requires a high resolution and a very high S/N to disentangle the chromospheric excess flux from the photospheric contributions. Checking these spectra by eye shows that this could not be done reliably, so we excluded results from these stars. To determine their excess flux, follow-up observations with higher S/N are needed.

Removing these objects and an additional five stars with observations featuring too-low S/N in the lines of interest leaves us with a sample of 82 objects with a total of 2274 observations that are used to determine the conversion. Unfortunately, this leaves a rather small number of F-stars (nine objects with 265 observations in total). The other spectral types are not affected as much, with 46 G-stars (1419 observations) and 27 K-stars (590 observations). The lowest value of BV in the sample is changed to 0.43, the highest value is 1.18. See Table 1 for full details.

4. Results

4.1. Flux of inactive stars

thumbnail Fig. 5

Comparison of the obtained values for the summed-up Flux FIRT,1 Å for rotational velocities 0, 5, 15, 20, 30, 40, and 50, all in km s-1 (flux increases with higher rotational velocity). Dotted lines connect to the name of the inactive object in question. Left: flux in continuum units, or equivalent width in Å. Right: flux converted to erg s-1 cm-2.

Open with DEXTER

Determining the excess flux requires a comparison spectrum to subtract the line flux of an inactive star. However, an observer may not always have a suitable spectrum at hand. In this case an estimate of the excess flux can still be performed, by calculating the inactive line flux. Table 2 shows a list of inactive (), slowly-rotating stars, which we used as comparison. In this paper, we always directly subtracted their normalized spectra from the normalized spectra of the object under investigation, which also allows an independent check on the quality of the comparison by the spectra’s alignment in the wings. However, to determine the excess flux, only the (rotationally broadened) flux in the center of the line is of importance. In Fig. 5, we show the resulting values for the summed-up stellar surface flux FIRT,1 Å in 1 Å-bandpasses for all three lines for the different inactive objects with varying simulated rotational broadening. We provide empirically derived formulae for the summed-up flux in 1 Å-wide bandpasses in the center of all the three Ca ii IRT lines for these inactive objects as a function of rotational velocity vsini. The rotational broadening was performed according to Gray (2005). The relations are second-order polynomials fitted to the artificially rotationally broadened TIGRE spectra with a resolution of roughly 20 000. To use these relations for determining the excess flux in a spectrum with a very different resolution, the “bleeding” of the flux from within the wings due to the finite resolution must be taken into account. These relations can be used to estimate the inactive line flux, and therefore to determine a value for the Ca ii IRT excess flux from the spectrum of an active star. To determine this value from a spectrum, a suitable comparison star from Table 2 must first be found. Then, the value of vsini of the observed star should be plugged into the relation given there. The result will be the summed up flux FInactive,IRT,1 Å of all three Ca ii IRT lines of this best-fitting inactive star broadened by the vsini of the star under consideration, or in other words, the line flux expected if the star under consideration was inactive. This value must then be subtracted from the value obtained from an observation of an active star. We give both a relation for the converted flux FInactive,IRT,1 Å in 106 erg s-1 cm-2, as well as for the flux in “continuum units”, which is the integrated flux of a normalized spectrum in units of Å. Subtracting the flux in continuum units yields an excess flux value that can be compared to ΔWIRT of Busà et al. (2007). Alternatively, this resulting value in Å can then be converted to physical units (erg s-1 cm-2), for example using the relation in Hall (1996), which tends to be more reliable than directly comparing values in erg s-1 cm-2, as no error is introduced due to different values for BV of comparison and analyzed object.

Figure 6 shows a comparison of the values measured for the excess flux using the method described in this paper against the value obtained from simply subtracting the value calculated from Table 2 from the measured line flux (in continuum units) for the 42 active stars with observations where . On average, the discrepancy is about 20 mÅ, determined as the median of the residuals (68% of points differ less than 45 mÅ). It should be noted that the actual measured value is on the order of 1.5 Å, so this error is only about 1.3%. Since the excess flux is the comparatively small difference of two larger values, the relative error is dramatically increased. The calculated values tend to be lower than the measured ones. The likely reason for this is the additional correction of shifting the observed spectrum to reach an agreement in the line wings to the comparison spectrum, and could thus be interpreted as the result of an additional correction for photospheric effects. Adding the aforementioned 20 mÅ to the subtracted value would be a possibility to fix this.

thumbnail Fig. 6

Comparison of the excess flux in continuum units determined using the method described in Sect. 3.3 to the excess flux determined from subtracting the resulting value from a fitting relation from Table 2 to the measured line flux, for the 42 objects with observations displaying a level of activity exceeding . The dashed line corresponds to the identity relation.

Open with DEXTER

thumbnail Fig. 7

Comparison of the measured chromospheric excess flux in the Ca ii H and K-lines to the one calculated from various sources. The dashed line corresponds to the identity relation. Top: comparing to the chromospheric excess flux according to Mittag et al. (2013) for 82 objects. Bottom: comparing for these same stars to the flux given in Rutten (1984) but corrected for photospheric and basal flux contribution, also according to Mittag et al. (2013).

Open with DEXTER

4.2. Measured flux in the Ca II H and K lines

The procedure mentioned was also carried out for the Ca ii H and K lines. While they exhibit strong changes in excess flux amplitude, the shape of these lines is very broad and contaminated by other lines, making the determination of the excess flux more difficult. Nevertheless, we obtain a measured excess flux in the center of the Ca ii H and K lines, by integrating over a 2 Å-wide region. This value can be compared against the flux in the Ca ii H and K lines, which can be calculated from SMWO using one of several available relations in the literature. In the top plot in Fig. 7, we compare our measured excess flux with the one calculated from the relation in Mittag et al. (2013) for the 82 stars in our sample. There, the authors present a relation for the total flux in the Ca ii H and K lines, but they also give relations for just the photospheric flux as well as chromospheric basal flux contribution. Subtracting these from the total flux should in theory result in just the excess flux. Our values are lower than the calculated ones. As a second test, we can correct the fluxes calculated according to Rutten (1984) using the same relations for photospheric and basal flux contributions and compare our measurements to that result. In that comparison, the measured values are higher than the calculated ones. In Mittag et al. (2013), the authors used PHOENIX-models to convert to fluxes in erg s-1 cm-2, whereas in Rutten (1984), the calibration is done using the measured solar flux. It is likely that the discrepancy originates in the different approaches of calibrating the values to physical units. To test this, we compared the total flux in the lines calculated according to Mittag et al. (2013) with the relation in Rutten (1984). We find that the latter relation yields lower values, consistent with Fig. 7. Our measurements and the relations from the literature for the total stellar flux in the Ca ii H and K-lines can be used to find a relation for the photospheric and basal flux for a star of given BV. The relations describe a value for the total flux in the Ca ii H and K-lines, including the photospheric and basal component, as well as the flux from activity, which we measure as excess flux: FHK = Fphot,HK + Fbasal,HK + FExc,HK, as a function of SMWO. Since our measured value is FExc,HK, subtracting the measured from the calculated value leaves us with just the photospheric and basal flux contributions to the line flux. We performed this determination using the relation from Rutten (1984) for the total line flux (shown in Fig. 8). We could then perform a linear fit to the resulting values, and compare this relation to the one in Mittag et al. (2013). While our relation yields lower values, the difference is not significant compared to the scatter in the datapoints for most of the covered range in BV. Only for values BV> 1.0 do the two relations differ from one another. The relation given in Mittag et al. (2013) is defined in a step-wise fashion, and the relation changes for BV> 0.94. From Fig. 8, it appears as if a linear extrapolation of the previous relation would result in a better fit. However, we note that our sample does not reach much further beyond this threshold value in BV. The relation found is: (3)

thumbnail Fig. 8

Comparison of the determined photospheric and basal flux from this work to the relation given in Mittag et al. (2013). Shown are the average measured values for the 82 stars left after removal of the outliers described in Sect. 3.4.

Open with DEXTER

4.3. Comparing measured excess fluxes of different lines

thumbnail Fig. 9

Measured chromospheric excess flux in the Ca ii H and K lines compared with the excess flux in the individual Ca ii IRT lines, as well as the sum of all Ca ii IRT lines (bottom right). These plots include data from 2274 observations of 82 stars.

Open with DEXTER

We obtained 2274 values from 82 stars for the measured chromospheric flux in the Ca ii H, K and IRT lines, as well as Hα, converted to real physical units by interpolating the relations in Hall (1996). The determined excess fluxes do not include any photospheric or chromospheric basal flux contributions, as those have been removed by subtraction of the comparison spectrum. The resulting plots for the three individual lines in the Ca ii IRT, as well as the sum of all three lines, compared to the measured flux in the Ca ii H and K lines are shown in Fig. 9. The second Ca ii IRT line shows both a strong correlation, as well as the largest fill-in, implying that it is the most sensitive line of the three. We obtain a very obvious correlation. We determined the Spearman’s correlation value ρ to be largest (ρ ≈ 0.908) for the correlation between the summed-up excess flux in all three Ca ii IRT lines and the excess flux in the Ca  ii H and K lines.

Hα, another often-used indicator, also shows a correlation (Fig. 10), but the scatter is larger, and therefore we obtain a lower value with ρ ≈ 0.824. It has been shown previously that Hα does not always correlate with the Ca ii H and K line indicators (Cincunegui et al. 2007; Meunier & Delfosse 2009; Gomes da Silva et al. 2014). Many stars in our sample show less variation in the excess fluxes than the errors on the individual measurements, so that they cannot be used to reliably estimate the correlation for an individual star. Using only the 68 stars with five or more observations for which the errors on the excess fluxes are significantly lower than their variation, we found the Spearman correlation to cover the entire range from –1.0 for some stars to 1.0 for others. The median correlation between the two excess fluxes is only ρ ≈ 0.24. In contrast, performing the same analysis for Ca ii excess fluxes, the median correlation is ρ ≈ 0.54, significantly higher. Additionally, the number of stars with a negative correlation between the two excess fluxes is much lower.

The obtained excess fluxes in the Ca ii H and K line correlate very well with each other (ρ ≈ 0.95), and the measured flux in the K line is about 33% higher than in the H line. This is similar to the value of 27% observed by Wilson (1968).

thumbnail Fig. 10

Measured chromospheric excess flux from 2274 observations of 82 stars in the Ca ii H and K lines compared with the excess flux in Hα. Fluxes given in erg s-1 cm-2.

Open with DEXTER

4.4. Fits to the excess

For each observation, we fit Gaussians to the excess flux. We then checked if parameters obtained in this way showed any correlation to known activity indices. The amplitudes of the fitted Gaussians do show a correlation to the integrated flux in the Ca ii H and K lines with ρ ≈ 0.7 after removal of obvious outliers, yet the determined amplitudes have very large errors and are thus less suited for conversion than the integrated flux. Additionally, this method suffers more strongly from high noise in the spectra, as single spikes from noise can dominate the fit. This is the reason for the larger number of outliers. The width of the fitted Gaussian shows no correlation to the integrated flux in the Ca ii H and K lines, or any of the established activity indicators.

5. Conversion relations

Because the excess fluxes in the Ca ii lines and the indices derived from them are well-correlated, we can make use of our comparatively large sample size and find relations to convert one parameter into another. We assume that the two indices we wish to convert into one another follow a linear relation. We do however, allow the coefficients in the conversion to depend on stellar parameters. Here, we use BV, but equivalently Teff could also be used. Letting x be the index to be converted into another index y, we then set out to find the relation: (4)If we assume m and b to be a polynomial, we can perform a regression to determine the coefficients. However, our data is not equally sampled in BV. Therefore, if we perform the regression without taking this fact into consideration, we might find the resulting polynomial to just be optimized for the regions in BV where many stars of our sample lie in. To avoid this, we selected subsets of all datapoints. For fifteen different values of BV, we select only observations of stars close to that value, and then fit Eq. (4)only for the datapoints from that subset of stars, which yields the values m, b only for that specific BV. Since our objects are not evenly distributed in BV, our sampling in BV is not equidistant. Instead, we selected the different values for BV for which we perform this fit so there are datapoints of at least three stars for each subset. On average, a subset includes ~190 observations and seven stars. Finally, we fit a polynomial to the found values m and b, or their logarithm, for each BV sampled to obtain the relations m(BV) and b(BV). For completeness’ sake, we have determined the coefficients with regression as well. The values converted by that approach are of similar quality. In the following, we will discuss the relations found in more detail for some specific pairs of observed indicators.

5.1. Excess flux in the Ca II H and K lines computed from SMWO

thumbnail Fig. 11

Measured excess flux in the Ca ii H and K lines as a function of SMWO. This plot shows data from 2154 observations of 80 stars. For reasons of clarity, we have removed HD 22468 from this plot, as it contributes a number of datapoints clustering around a value of SMWO ≈ 1.25, as well as some observations with a negative value of FExc,HK that is consistent with zero considering its error.

Open with DEXTER

Figure 11 shows our measured excess flux compared with the corresponding value for SMWO, with different symbols again corresponding to different values of BV. It appears that the relation between the two parameters is linear, yet the exact values of the linear fit coefficients depend on BV. As previously described, we obtained relations for slope (m) and intercept (b) for individual values of BV, after removal of 120 observations that were either clearly inaccurate (e.g., negative excess flux values), or too noisy with a strong influence on any linear fit performed (HD 22468), to not have the fit dominated by noisy data. We found a second-order polynomial fit for log m and b respectively to give good results: (5)As this formula was found using data from only F, G and K main sequence stars, it is only valid for those, with a valid BV ranging from ~0.5 to ~1.0. Figure 12 compares the converted value from SMWO to the measured value. We can estimate the error of the converted values from the average of the residuals to be 3.0 × 105 erg s-1 cm-2. This value is not a true 1 σ-value, however, as the distribution is not Gaussian (68% lie within 3.0 × 105 erg s-1 cm-2, 95% within 7.0 × 105 erg s-1 cm-2). The stated error corresponds to an average relative error of about 11%. The quality of the conversion can be estimated from the Pearson correlation coefficient, which is a measure on the linear correlation. Here, we find ρPearson = 0.97, indicating that the conversion worked well, as expected.

thumbnail Fig. 12

Comparison of the measured excess flux in the Ca ii H and K lines to the one converted from SMWO using Eq. (5). The dashed line is the identity (top), or the zero-level (bottom). This plot shows data from 2137 observations of 79 stars. After conversion, the Pearson correlation coefficient is 0.97, indicating a strong linear correlation.

Open with DEXTER

5.2. Flux conversion

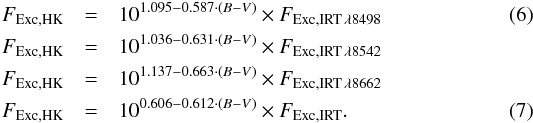

As shown in Sect. 4.3, the excess flux in the Ca ii IRT lines is strongly correlated with the one seen in the Ca ii H and K lines (Fig. 9). From definition of those values, it is apparent that no intercept b is needed here. We find a dependence of the logarithm of the slope m to BV in our dataset. First, due to the different temperatures, the surface flux ratio at the different lines introduces a rather strong dependence, towards higher excess fluxes in the Ca ii H and K lines for lower values of BV. However, when using the excess flux in continuum units, this effect disappears. The resulting BV-dependence now results in the opposite direction, and there is a trend towards higher excess fluxes for higher BV, evident from the different sign in the slope relation below (Eqs. (7)and (8)). Of those two effects, the surface flux ratio at the different points in the continuum is larger and thus dominates. For our sample of stars, relations linear in BV result in a good fit. To convert fluxes in erg s-1 cm-2: And to convert normalized fluxes in continuum units: (8)As before, these relations are, by nature of how they were determined, only valid for F, G and K main-sequence stars with BV ranging from ~0.5 to ~1.0. The Pearson correlation coefficient of the converted to observed values is larger than 0.95 in all cases.

The errors of such a conversion have been estimated from the residuals to be about 4 × 105 erg s-1 cm-2 and 60 mÅ, respectively. In Fig. 13, we compare the converted values from Eq. (7)to the measured values.

We note that the Ca ii IRT lines are well correlated with each other. Therefore, measuring the excess flux in just one allows estimating it in the others from a linear relation. Equations for such a conversion are shown in Table 3. From these parameters, it is evident that the second line is the most sensitive of them, with the largest fill-in observed.

thumbnail Fig. 13

Comparison of the measured values of the excess flux in the Ca ii H and K lines with the one converted from the excess flux in the Ca ii IRT lines using Eq. (7). This plot includes data from 2234 observations of 80 stars. The dashed line corresponds to the identity relation (top), or the zero-level (bottom).

Open with DEXTER

Table 3

Relations to estimate the excess flux in a Ca II IRT line from measurements of another.

5.3. Converting Ca II IRT measurements to known activity indices

We have already shown the activity indices SMWO and , which are both widely used. In Mittag et al. (2013), the authors define an additional index that does not include basal flux contributions: (9)with FHK,basal as the basal chromospheric flux contribution.

Both and show a strong correlation (ρ ≥ 0.9) to our excess flux obtained here.

Since we have already provided relations to convert Ca ii IRT measurements to FExc,HK, converting them to is simply a matter of dividing by . This parameter can be estimated from BV, so it could be included in the fit.

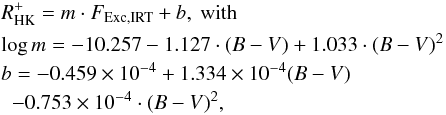

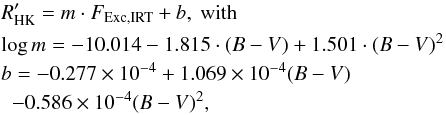

Here, we find the conversion from Ca ii IRT-measurements to the indices in Eqs. (2)and (9), calculated from SMWO using the relation in Mittag et al. (2013). This allows us to compare the equations to convert to and in a more consistent fashion than if we used the measured value FExc,HK, as we have not measured a FHK,chrom that still includes a basal flux contribution. However, and are very close to identical, except for an offset already discussed in Sect. 4.2. We find similar parameters for the formulae when using a value for determined using our measured FExc,HK. Applying the method described in Sect. 5 yields: (10)

(11)with FExc,IRT in erg s-1 cm-2. The error is again estimated from residuals and is roughly 5.5 × 10-6 for both and , corresponding to an average error of ~10%. The relations for slope and intercept are very similar in shape, and in case of the slope m also the actual function values. However, the intercepts b shows a clear offset that stems from the small chromospheric basal flux correction that forms the difference in the two indices. For the determination of this conversion, we have removed 198 datapoints with very different S/N in the red and blue channels. The Pearson correlation coefficient between the converted and observed values is 0.97. Figure 14 compares the converted to the measured values.

To convert Ca ii IRT measurements into SMWO, the following relation can be used: (12)where FExc,IRT has to be entered in erg s-1 cm-2. We estimate the errors from the residuals to be 0.03, a relative error of about 6%. We find a Pearson correlation coefficient of ρPearson = 0.97. The converted values are compared to the measured ones in Fig. 15.

thumbnail Fig. 14

Comparison of the measured value for (top), resp. (bottom) to the one converted from the excess flux in the Ca ii IRT lines, using Eqs. (10)and (11). These plots include data from 2076 observations of 76 stars. The dashed line corresponds to the identity relation (top), or the zero-level (bottom). The Pearson correlation coefficient of converted to observed values is 0.97 in both cases, indicating a good conversion.

Open with DEXTER

thumbnail Fig. 15

Comparison of the measured value for SMWO to the one converted from the excess flux in the Ca ii IRT lines, using Eq. (12). This plot includes data from 2076 observations of 76 stars. The dashed line corresponds to the identity relation (top), or the zero-level (bottom). The Pearson correlation coefficient of converted to observed values is 0.97, indicating a good conversion.

Open with DEXTER

6. Conclusions

We have analyzed more than two thousand spectra of almost a hundred main-sequence stars of type F, G and K obtained by the TIGRE telescope, which simultaneously records the spectral range of the Ca ii H and K-lines, as well as Hα and the Ca ii IRT. By carefully selecting an inactive comparison star of similar spectral type as the target star and artificially broadening the comparison star’s spectrum to the target star’s rotational velocity, we are able to derive a purely-activity related excess flux in the center of these chromospheric lines without any photospheric or basal flux contributions. This excess flux is obtained both in terms of fraction of the continuum and in physical units (i.e., as a flux in erg s-1 cm-2), and it is free from any scatter from temporal variations.

This large sample of data shows that the excess flux in these lines are well correlated, with the Spearman correlation coefficients exceeding ρ = 0.9 for the Ca ii lines, and ρ ≈ 0.8 for the correlation of Hα and the Ca ii lines. Due to this strong correlation, it is possible to convert the observed excess flux of the Ca ii IRT lines into the corresponding excess flux of the other lines, or into activity indices derived from them, despite the lower excess flux and subsquently lower sensitivity.

We provide such conversion relations and the errors on them, estimated directly from the residuals. The relations have been obtained by fitting the relations individually for stars with similar BV, in order to remove any sampling bias. The given relations are valid for stars with 0.5 ≲ BV ≲ 1.0; they can be used to indirectly obtain values for activity indicators such as or SMWO from infrared spectra, for example, those expected from the Gaia mission. This makes it possible to compare these new measurements with the large amount of archival data available for these activity indices, which in turn allows new studies in the temporal behavior of these indices. To obtain the excess flux without an available comparison spectrum, we give empirically derived relations to estimate the photospheric and basal flux in the Ca ii IRT lines in Table 2. Subtracting the value calculated from these relations from the flux measured in the Ca ii IRT lines of the active star in question returns the excess flux value, which can subsequently be converted into other quantities, if so desired.

We hope to increase the BV validity range of the relations when more M-dwarfs have been observed by TIGRE, assuming that the strong correlations between the lines still hold for later types. Spectra taken by CARMENES could then also be used to obtain a value of the activity indices derived from the Ca ii H and K-lines, despite these lines falling outside the spectral range of CARMENES.
