1. Introduction

Clusters as building blocks of the Universe are important objects for astrophysics and cosmology and large-scale surveys across the electromagnetic spectrum have been performed to detect and characterize them in considerable number. The techniques used address different radiation properties of the constituents of a cluster.

In X-rays clusters are seen through the thermal emission of the hot intracluster gas. X-ray observations may provide important information concerning cluster properties such as the temperature, density, and mass. For bright clusters the redshift can also be obtained directly from the X-ray data by measuring the wavelength of emission lines in the X-ray spectrum. For the more typical case with insufficient number of photons, one needs to complement X-ray observations with optical or infrared data, firstly, to confirm the nature of the object as a cluster and also to achieve a reliable redshift determination. Of order ~ 2 × 103 clusters were discovered through their extended X-ray emission. Still most of the X-ray selected clusters are based on ROentgen SATellite (ROSAT) discoveries but XMM-Newton is ramping up thanks to its high sensitivity and despite its comparatively small survey area (see e.g. Clerc et al. 2014; Mehrtens et al. 2012; Takey et al. 2013, 2014).

In the optical and at infrared wavelengths clusters are detected as overdensities of their member galaxies that are orbiting in their dark matter halo. A large suite of techniques were developed to find those overdensities including Voronoi tessellations (Gerke et al. 2012), matched filter algorithms (Postman et al. 1996), and a variety of red sequence techniques (for examples see Koester et al. 2007; Wen et al. 2009; Rykoff et al. 2014, and references therein). The red sequence method requires good photometry in several bands, preferably enclosing the 4000 Å break. This limits the applicability of such a cluster finder when only optical bandpasses are used. However, owing to the unprecedented combination of imaging depth and solid angle, some 50 000 to 100 000 clusters were detected in the Sloan Digital Sky Survey (SDSS; see Rykoff et al. 2014; Wen et al. 2009. Cluster searches based on SDSS are limited to z ≲ 0.55. The method can in principle be improved for higher redshifts if infrared data are included. This is one of the achievements presented in this paper. The Integrated Cluster Finder (henceforth ICF) searches multiple catalogues for overdensities of passive red galaxies in the vicinity of extended X-ray sources. If successful, the ICF confirms X-ray detection is due to a massive dark matter halo with hot gas and galaxies trapped in it, and it measures the cosmological redshift.

In the context of this paper a cluster candidate is regarded as confirmed or a cluster as identified if its cosmological redshift could be measured through a set of concordant redshifts of its likely member galaxies.

At millimeter wavelengths clusters can be detected out to high redshifts via Sunyaev-Zel’dovich (SZ) effect, which is caused by the inverse Compton scattering of cosmic microwave background (CMB) photons with electrons in the hot intra-cluster gas. Just as for X-ray searches SZ clusters are detected as a single objects. An important property of the SZ effect is that the surface brightness of the thermal SZ effect is independent of redshift. The Sunyaev-Zel’dovich surveys became mature only in recent years, and the first Planck-discovered catalogue lists some 1227 entries (Bleem et al. 2015; Planck Collaboration XXIX 2014).

The ICF was developed as part of the Astronomical Resource Cross-matching for High-Energy Studies (ARCHES), which is an EU-FP7 funded small-scale research project; ARCHES aims to develop tools for the correlation of X-ray sources detected by XMM-Newton with multi-wavelength data resources. Two main cases need to be considered, correlations for non-resolved (point-like) and for resolved (extended) X-ray sources. While the former class of sources are primarily active galactic nuclei (AGN) with a growing fraction of stellar objects towards the galactic plane, the latter are clusters of galaxies in the first place.

The basis of the ARCHES project in general and of this subproject in particular is 3XMM, the catalogue of all X-ray sources detected by XMM-Newton over the past 14 yr (Rosen et al. 2016). For each detected X-ray source, many parameters are derived and listed in 3XMM, and two of those are related to the extent of the X-ray source: a likelihood that the profile of the source exceeds the point-spread profile of the X-ray mirror assembly, ext_ml, and the measured extent of an assumed β profile fitted to the sourc. The β profile has the form S(r) = S(0) [1 + (r/rc)2] − 3β + 1/2, where S(0), β and rc are the profile parameters. Mainly these two parameters were used to prepare an input catalogue for cluster identification in this project.

Finding and correlating multi-wavelength counterparts to X-ray point and extended sources is fundamentally different. For X-ray point sources one typically seeks one matching counterpart per external catalogue at a given celestial position. Here positional uncertainties play a very important role. This matching and the corresponding tool will be presented by other participants of the ARCHES (see Pineau et al. 2015; Pineau et al., in prep., and ARCHES web page1). For clusters of galaxies, the X-ray object, hot intergalactic medium, and potential optical or infrared counterparts, member galaxies are completely different entities, and therefore the correlation is more involved. We used the novel ARCHES cross-matching tool in the ICF to obtain magnitudes and photometric redshifts of potential cluster member galaxies from a variety of sources.

A database containing parameters for all X-ray sources and their correlated entries in other catalogues was developed within ARCHES. For confirmed clusters, the likely redshift, a finding chart, a plot of the multiplicity function, and the list of likely members galaxies are stored in the database and made available to the community. The ICF does not attempt to include the SZ signal in the detection process.

The paper is organized as follows: in Sect. 2 we provide a general description of the Integrated Cluster Finder algorithm, in Sect. 3 we present our implementation of the algorithm, in Sect. 4 we report on tests with known clusters, in Sect. 5 we predict completeness and false positives fraction levels of our cluster catalogue. The construction of the catalogue is described in Sect. 6. In Sect. 7 we provide a summary of the results and an outlook.

2. General description

The Integrated Cluster Finder (ICF) implements a red MaPPer-like (see Rykoff et al. 2014) algorithm to search for clusters in the space spanned by the positions and the colours of their member galaxies. A first major difference with respect to the published redMaPPer method is that prior information concerning the position of the cluster from the detected X-ray position is integrated in our method. A further major difference is the inclusion of near- and mid-infrared photometric data whose cross-colours need to be calibrated by a large spectroscopic training set.

In general, the method is based on the fact that luminous red galaxies (LRGs) have (on the average) redshift-dependent colours. One can thus estimate the redshift of the member galaxies from a calibrated redshift-colour relation and the redshift of the cluster via averaging over all potential member galaxies.

Following Rykoff et al. a multiplicity function λ(z) is introduced, which is a measure of the background-corrected number of galaxies in the cluster. This function is calculated on a pre-defined grid of redshifts. Background density of LRGs, their colours, and the colour covariance matrix have to be determined for each redshift value on the grid.

The only input the algorithm takes is a position on the sky, which is the expected cluster position. This is driven by the primary use of this cluster finder, namely the search for, and redshift determination of, X-ray selected galaxy clusters.

The algorithm contains four main steps:

  • 1.

    Calibration of the redshift-colour relation: for a chosen set ofexternal catalogues one obtains average colours andcolour-colour covariance matrices of red galaxies for eachredshift. An alternative version of the ICF that uses pre-fabricatedvalues of photometric redshifts (like those provided with SDSS,Canada-France-Hawaii Telescope Legacy Survey (CFHTLS),or Advance Large Homogeneous Area Medium Band RedshiftAstronomical (ALHAMBRA) catalogues) was also developed.

  • 2.

    Determination of the background density to be incorporated into the determination of a multiplicity at the cluster position.

  • 3.

    Loading and filtering the data on galaxies.

  • 4.

    Cluster search: identification of possible cluster member galaxies and measurement of the cluster redshift.

Steps 1 and 2 need to be carried out only once for each of the optical and infrared catalogues, while steps 3 and 4 need to be performed for every cluster candidate individually.

We acquired data from various optical and infrared catalogues in a circular region of radius R = 8′ around the position of each extended 3XMM source (for a more detailed description of the kind of downloaded data see below). This is a compromise between completeness and detection efficiency and was chosen to limit the size of data to be downloaded and inspected for each position. Owing to this choice, our approach is inefficient for the detection of nearby clusters because clusters appear larger than 8′ on the sky at low redshift. The chosen radius corresponds to 1 Mpc co-moving radius at redshift z = 0.12. However, the restriction to 8′ does not seem to be severe since most nearby clusters are already known and have their redshifts measured. In addition, bright, nearby (hence very extended) clusters are not reliably detected as single entities by the XMM-Newton source detection chain and are thus partially screened away by the filters applied to generate 3XMM.

3. Implementation

We describe step 4 first, as it does not depend on the catalogue chosen. We proceed with the description of steps 1 to 3 as they were implemented in the current version of the ICF.

3.1. The multiplicity function λ(z)

A multiplicity function λ as function of the redshift z is defined in Eq. (1) as sum of cluster membership probabilities for all galaxies in the field of view. This function is calculated as the solution of λ(z)=rang<˜R(z)λ(z)u(z,x)λ(z)u(z,x)+b(z,x),\begin{equation} \label{eq:lambda} \lambda(z) = \sum_{r_{\rm ang} < \tilde{R}(z)} \frac{\lambda(z) u(z, x)}{\lambda(z) u(z, x) + b(z, x)}, \end{equation}(1)where rang is the angular separation between the galaxy and the given position of the extended X-ray source, and ˜R(z)\hbox{$\tilde{R}(z)$} is the minimum between Rs, the distance corresponding to 1 Mpc projected distance at redshift z, and R = 8′.

In this equation the following definitions and quantities are used: x=(rang,m,χ2),pν(χ2)=γ(ν/2,χ2/2)Γ(ν/2),f(t)={\begin{eqnarray} &&x = (r_{\rm ang}, m, \chi^2), \\ && u(z, x) = \Sigma(r_{\rm ang}) \theta(m) p_\nu(\chi^2), \label{eq:u} \\ & p_\nu(\chi^2) = \frac{\gamma(\nu/2, \chi^2/2)}{\Gamma(\nu/2)}, \label{eq:chi2}\\ &&\theta(m) = \exp\left({-10^{-0.4(m - m_*)}}\right), \label{eq:luminosity} \\ &&\Sigma(r_{\rm ang}) = \frac{w}{(r_{\rm ang}/R_{\rm s})^2 - 1}f(r_{\rm ang}/R_{\rm s}), \label{eq:nfw} \\ &&f(t) = \left\{ \begin{array}{l l} 1 - \frac{2}{\sqrt{t^2-1}} \tan^{-1} \sqrt{\frac{t-1}{t+1}}, &t > 1 \\ 0, & t = 1 \\ 1 - \frac{2}{\sqrt{1 - t^2}} \tanh^{-1} \sqrt{\frac{1-t}{t+1}}, & t < 1, \end{array}\right. \end{eqnarray}where m is the main magnitude of the candidate member galaxy (for a definition of “main” magnitude see below) and m is the magnitude of a galaxy with a mass of 2 × 1011M.

The function u(z,x) is the normalized cluster profile. It is the product of a surface density Σ(rang), a luminosity function θ, and a membership probability pν(χ2). A Schechter function with α = −1 was used for the luminosity function θ(m). The function Σ(rang) was described with a NFW universal density profile (NFW: Navarro-Frenk-White; Navarro et al. 1996). Both Σ(rang) and θ(m) are normalized so that their integrals taken over all possible values of rang or m is unity.

The quantity pν(χ2) gives the probability for a given galaxy to be at a given redshift and is calculated as the inverse of the cumulative distribution function (CDF) of the χ2 distribution, where γ is the incomplete gamma function and ν the number of degrees of freedom (equal to the number of colours used). More details on the pν(χ2) definition are given in Appendix A.

A NFW surface density profile was used here with a normalization w chosen to satisfy the equation 0Σ(r)2πrdr=1\hbox{$\int_0^\infty \Sigma(r) 2 \pi r {\rm d}r = 1$}. Equation (6) cannot be calculated numerically for r = Rs, so within r = Rs × (1 ± 0.01) it was approximated by a simple linear function. Also, following Rykoff et al. (2014), a cut-off is imposed to prevent overweighting of the central parts of the cluster, Σ(r) = Σ(r0),if r<r0 = 0.15 Mpc. This allows for an optical-to-X-ray offset, which is typically of the order of 50100 kpc (see, for example, Takey et al. 2013) and does not allow a single central object to dominate the cluster. The offset might appear because of an unrelaxed state of the cluster or errors in the positioning of the X-ray emission peak.

The NFW profile used here (or any other symmetric profile) biases our finding approach towards relaxed symmetric clusters. The strength of this bias is yet to be studied.

In Eq. (1) b is the background density, which is a tabulated function of redshift, magnitude, and pν(χ2), which is derived below in Sect. 3.9.

Two simple critical cases might help to understand the nature of the λ(z) function. If b = 0 then λ = N – simply the number of galaxies in the field of view. If b = const. and u = const. (i.e. all galaxies are exactly the same) then λ = Nb/u. For further properties of the multiplicity function, see Rykoff et al. (2014).

The solution of Eq. (1) is obtained iteratively for each value of z. The procedure gives cluster membership probabilities for all galaxies in the field as pmem(z,x)=λ(z)u(z,x)λ(z)u(z,x)+b(z,x)·\begin{equation} p_{\rm mem}(z, x) = \frac{\lambda(z) u(z, x)}{\lambda(z) u(z, x) + b(z, x)}\cdot\label{eq:pmem} \end{equation}(8)We search for clusters of galaxies at the peaks of the λ(z) function.

3.2. Inclusion of spectroscopic data

Spectroscopic data were used whenever possible. To achieve this, the spectroscopic meta-catalogue (composed of SDSS-III’s Baryon Oscillation Spectroscopic Survey (BOSS) and The VIMOS Public Extragalactic Redshift Survey (VIPERS) catalogues) was used as an extra catalogue for cross-matching. When calculating the function u(z,x) in Eq. (3) pν now depends on z, not on χ2, so the following equation is used in place of Eq. (4) for objects with a spectroscopic counterpart with redshift zsp: pν(z)={1.if|zzsp|<Δzexp0.5(zzsp)2Δz2if|zzsp|Δz,\begin{equation} p_{\nu}(z) = \left\{ \begin{array}{ll} 1. & \textrm{if}\quad |z - z_{\rm sp}| < \Delta z \\ \exp - \frac{0.5(z-z_{\rm sp})^2}{\Delta z^2}& \textrm{if}\quad |z - z_{\rm sp}| \ge \Delta z, \end{array}\right. \end{equation}(9)where Δz equals the step-size of the used redshift grid. This value is chosen to ensure that every galaxy with known spectroscopic redshift contributes to at least two points of the redshift grid. Thus galaxies with spectroscopic redshifts contribute to λ(z) at an interval that is wider than a typical error of spectroscopic redshift. This accounts for the case when the λ(z) peak is offset to a galaxy with spectroscopic redshift, for example, because of photometry uncertainties. If for a given detection there are one or more likely members with known spectroscopic redshift, then we report their average spectroscopic redshift together with the photometric cluster redshift estimate.

3.3. Use of photometric redshifts

For some catalogues used here, namely those from CFHT and ALHAMBRA, photometric redshifts are provided. For such a case, we modified the approach used in Sect. 3.1 by replacing Eq. (4) with pν(z)=1Σphotoz2πσphotoz2exp(zzphot)22σphotoz2,σphotoz2=δzphot2+4Δz2,Σphotoz=erf(Δz2σphotoz2),\begin{eqnarray} && p_{\nu}(z) = \frac{1}{\Sigma_{\rm photoz} \sqrt{2 \pi \sigma_{\rm photoz}^2}} \exp - \frac{(z-z_{\rm phot})^2}{2 \sigma_{\rm photoz}^2}, \\ && \sigma_{\rm photoz}^2 = \delta z_{\rm phot}^2 + 4 \Delta z^2, \\ && \Sigma_{\rm photoz} = \erf\left(\Delta z \sqrt{\frac{2}{\sigma_{\rm photoz}^2}}\right), \end{eqnarray}where zphot and δzphot are the value and error of the photometric redshift of a galaxy. An additional constraint is that | zzphot | < 4Δz should hold, i.e. the galaxy redshift should not be very different from the redshift under consideration. For galaxies outside of this range pν(z) = 0. Therefore we added Σphotoz as a normalization factor, so the integral of pν(z) over all redshifts is one. We used a wider range than for spectroscopic redshifts, as photometric redshift errors are substantially larger.

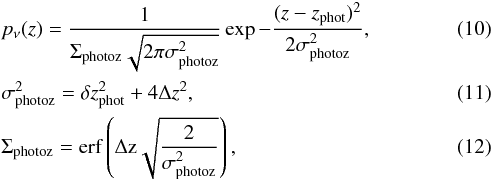

For the photometric redshifts the background function can be simplified. It is defined on a grid of redshifts and magnitudes, that is b(z,m)=Mpν(z)/Δm,\begin{equation} b(z, m) = \sum_{M} p_{\nu}(z)/\Delta m, \end{equation}(13)where Δm is a grid step in magnitudes and the summation subset M is defined as a set of galaxies for which their main magnitude mmain falls into the corresponding bin in the magnitude grid and pν(z) > 0.

If for a galaxy in the photometric redshift catalogue there is a known spectroscopic value, then the latter redshift is used together with its spectroscopic redshift error.

3.4. Peak finding and redshift determination

The multiplicity function λ(z) is calculated for each redshift value on a grid. The grid in z spans from 0.02 to 0.80 with a step-size of 0.01 for the combination of SDSS, UKIRT Infrared Deep Sky Survey (UKIDSS) and AllWISE catalogues, and the upper limit was set to 1.4 (see Sect. 3.5) for the photo-z catalogues. The step size was already chosen to be smaller than an average photometric redshift error with this kind of data over a wide redshift range (see the review of photo-z methods in Abdalla et al. 2011). As the ICF cannot extract more redshift information than is normally provided by photo-z methods, an even smaller step size would not improve the cluster finding reliability and the redshift accuracy.

Next one needs to find significant peaks and determine the most likely cluster redshift from λ(z). Complexities may arise (1) as there might be more than one galaxy assembly along the line of sight and thus λ might show more than one peak; and (2) the rather low precision of λ measurements at higher redshifts due to large photometric errors. Two examples for the graph of the λ(z) function are shown in Fig. 2: one with a single significant peak and a second with two significant peaks.

thumbnail Fig. 1

Peak finding algorithm illustration. Multiplicity function for the input sample is shown as black curves. A subsample of possible members of a cluster is selected. Multiplicity function of this subsample (red curves) is then fitted with a Gaussian (blue curves). Possible members are then removed from the sample and the rest are taken as an input for the next iteration. Upper panel shows the first iteration. Lower panel shows the second iteration with the total multiplicity function shown with a thin dashed line for reference. See text for details.

Peaks in the λ(z) function are determined in an iterative manner. The process is illustrated in Fig. 1. The upper panel shows the first iteration: an initial candidate redshift ˜z0\hbox{$\tilde{z}_0$} is selected as the position of the absolute maximum of the λ function in the whole interval covered by the redshift grid (black line): max(λ(z))=λ(˜z0)=λ0\hbox{${\rm max}(\lambda(z)) = \lambda(\tilde{z}_0) = \lambda_0$}. Then the individual membership probability pmem(˜z0,x)\hbox{$p_{\rm mem}(\tilde{z}_0, x)$} for all galaxies within r<˜R(z)=1Mpc\hbox{$r < \tilde{R}(z) = 1~\textrm{Mpc}$} at redshift ˜z0\hbox{$\tilde{z}_0$} is calculated. This initial list of probabilities is sorted in descending order. From the sorted list the first n members are selected so that i=0npmem(˜z0,xi)0.9λ0\hbox{$\sum_{i=0}^n p_{\rm mem}(\tilde{z}_0, x_i) \ge 0.9 \lambda_0$} and i=0n1pmem(˜z0,xi)<0.9λ0\hbox{$\sum_{i=0}^{n-1} p_{\rm mem}(\tilde{z}_0, x_i) < 0.9 \lambda_0$}. Those selected galaxies give approximately 90% of the total multiplicity. The remaining 10% is contributed by several galaxies with low membership probability. Then the cluster finder is applied again, this time using only the selected galaxies. This gives a new function λ′(z), which needs to be divided by 0.9 since only 90% of the initial multiplicity estimate was used. The revised function λ′(z) (red line) is then fitted with a Gaussian function λfit=λ0exp(zz0)22(Δz0)2\hbox{$\lambda_{\rm fit} = \lambda_0 \exp{\frac{(z - z_0)^2}{2 (\Delta z_0)^2}}$} (blue line). This gives a most likely redshift z0 for the current cluster candidate, which is close to ˜z0\hbox{$\tilde{z}_0$}, a redshift error Δz0, and a multiplicity value λ0. The selected n galaxies are removed from the sample and the cluster finder is re-run. The resulting second iteration is illustrated in the bottom panel of Fig. 1, where we have plotted λ(z) for all galaxies with dashed line for reference (same data was shown with black line in the upper plot). This provides a new λ(z) function with a new candidate redshift ˜z1\hbox{$\tilde{z}_1$} (solid black line). Then we again calculate λ′(z) for members adding up 90% of multiplicity (red line), which is then fitted with a Gaussian function (blue line). On both images the peak position, width, and height of Gaussian fits (blue lines) is nearly the same as for λ′(z) data (red lines).

The procedure of galaxy elimination is repeated as long as λ> 1 for the new cluster candidate at redshift ˜zn\hbox{$\tilde{z}_n$}. In the example we stop after the second iteration because the third peak (a very small bump at around z = 0.08 in Fig. 1) has λ< 1.

The decision for a 90% threshold is a compromise. If the threshold chosen was much higher, then galaxies not regarded as members tend to show up by building a secondary peak close to the main peak, thus producing many spurious cluster detections. If a lower threshold was chosen, it is likely that separate structures were merged into one and, in this way, somehow produced artificially large errors for the redshift of the one detected cluster. We chose to select galaxies adding up 0.9 of the total λ rather than selecting on membership probability pmem because the average value of pmem for cluster members decreases with redshift as the photometry becomes less and less precise. This method of member selection is similar to that used in the redMaPPer algorithm (see Rykoff et al. 2014).

thumbnail Fig. 2

Examples of λ(z) functions for two fields with one (top) and two (bottom) detections. Red crosses and vertical blue lines indicate detections. Values attached to crosses are for the measured λ, in red for non-spurious and in black for spurious detections (see Sect. 5).

thumbnail Fig. 3

Finding charts for two cluster candidates from Fig. 2. Coloured 2 by 2 SDSS images are overlaid with XMM X-ray contours, produced from co-added MOS and PN images in XMM bands 2 and 3. The red circle indicates the extended X-ray source position and extent as provided by 3XMM. The red crosses indicate the positions of point-like X-ray sources. The yellow and light blue circles denote likely cluster members with spectroscopic redshift indicated by purple circle and label where possible. See text for details.

Two examples of peak finding are given in Fig. 2. Red crosses and vertical blue lines indicate possible cluster detections. Values attached to crosses are for the measured λ, in red for reliable and in black for spurious detections (for the definition of a spurious detection see Sect. 5). In the upper panel there is only one reliable detection at z = 0.39 ± 0.05 with λ = 18.8. The secondary peak at z = 0.2 was regarded as spurious. In the lower panel, a more complicated case with two detections is shown: the first at z = 0.1 ± 0.02 with λ = 16.2 and the second at z = 0.56 ± 0.05 with λ = 15.8.

Figure 3 shows finding charts for these two cluster candidates, which identify potential member galaxies and those with spectroscopic redshifts. The spectroscopic redshifts given in the upper image are slightly (by 0.03) different from peak redshift. Spectroscopic redshifts of galaxies in the lower image for the low-redshift multiplicity peak are spread from 0.06 to 0.1 because of the way spectroscopic information was included into the cluster search (see Sect. 3.2). This is an obvious drawback of our method, but it is of importance only at low (z < 0.12) redshifts, where other limitations of our method are also relevant (see Sect. 2). It is of course preferred to use spectroscopic redshift wherever available as they are more precise.

In the lower image, galaxies are indicated for the two mentioned possible detections: those at z = 0.1 with light blue and at z = 0.56 with yellow circles. In this case it is more likely that the X-ray source corresponds to the detection with the higher redshift, as its likely that member galaxies (indicated with yellow circles) show a clear concentration towards the X-ray source, while the galaxies that are contributing to the low-redshift detection obviously do not; this is the case even though some of these galaxies are very close to the X-ray source.

Currently the tool does not provide an automated way to select the cluster of galaxies that appears more likely to be associated with the X-ray source in such cases. It has to be identified manually. Experience tells that in many cases the choice is not difficult, taking into account values of λ, redshift, brightest cluster galaxy (BCG) properties, X-ray extent, and the presence of other extended X-ray sources in the field of view. However, in other cases no decision can be made and X-rays might be emitted by two structures along the line of sight.

3.5. Integrated Cluster Finder project code and data

We developed a code implementing the method described above. It is written mainly in Python, and most numerically intense parts are moved to a FORTRAN-90 library. Data are stored in a PostgreSQL database.

Table 1

List of catalogues currently used by the ICF.

The ICF can in principle use a variety of data sources: catalogue data stored in the ICF database (which so far includes CFHT deep and wide as well as ALHAMBRA photo-z catalogues) and any VizieR2 (or any other Virtual Observatory (VO) compliant catalogue) or output of the new ARCHES cross-matching tool applied to a given catalogue set (Pineau et al. 2015; Pineau et al., in prep.). Several Python classes were implemented in the ICF for different types of data sources, and new classes can be easily added. As of now the ICF is highly efficient; its bottleneck is the response time of VizieR server requests.

The set of external catalogues that are currently available for the ICF are listed in Table 1. The first column of this table shows the common name of the catalogue. The second column list bands provided by the catalogue or photo-z for photometric redshift catalogues, and the third and fourth columns contain the total sky area (in deg2) and total number of objects in the full catalogue, respectively. The fifth column contains the number of sources from the 3XMMe cluster science-case subset (see Sect. 6.1.1) that fall into the catalogue area.

For the current work combined data from three large-scale surveys are used in the first place, the SDSS, the UKIDSS (Large Area Survey, LAS), and AllWISE. We use ugriz model magnitudes from SDSS, YJHK default magnitudes from UKIDSS (LAS) and W1 and W2 magnitudes from AllWISE (W3 and W4 are too shallow to be used for cluster search). As an alternative photometric redshifts from CFHT deep and wide catalogues as well as from ALHAMBRA were also used. The photometric data are supplemented by a spectroscopic meta-catalogue that was built from the combination of SDSS (BOSS) and VIPERS (Garilli et al. 2014) spectroscopic catalogues. Entries in those catalogues are cross-matched with the new ARCHES cross-match tool (Pineau et al. 2015; Pineau et al., in prep.). The output of the tool is the list of possible matches with match probabilities indicated for each combination. The combination of sources from different catalogues with the highest probability was always used for cluster search. There might be confusing cases with two or more combinations having similar match probabilities, but these are rare and are not expected to affect the cluster search.

We use the following criteria to select galaxies from the three main catalogues (in parenthesis we list constraints as used in the VizieR web-masks):

  • SDSS only select primary (mode = 1), good (Q = 3), galaxies (cl = 3) with non-zero and positional errors that are not too large (e_DEJ2000 < 100).

  • UKIDSS select non-duplicate (m = 1) sources with at least one frame (nf > 0).

  • For AllWISE select not very extended (ex <= 1) sources with high signal-to-noise (snr1 > 4) and having non-zero errors in position (eeMaj > 0) and W1 magnitude (e_W1mag > 0). We add a further positional error of 0.01′′ in quadrature to take possible systematic errors into account.

3.6. Calibration of the redshift-colour relation

Passive red galaxies at a given redshift form a so-called red sequence (see e.g. Koester et al. 2007), that is a (linear) relation between a colour and a magnitude of the galaxies. Red sequences were found up to high redshifts, which is a property that qualifies them for cluster identification and redshift measurement over a wide redshift range. Red sequences at a given redshift typically have a small slope that is ignored here. An obvious effect of this omission is that the spread in a given colour of red galaxies at a given redshift (i.e. the diagonal elements of the covariance matrix) is slightly increased.

There are two possible ways to estimate average colours and corresponding colour-colour covariance matrices as functions of redshift.

The first way is to use some model for a passively evolving red galaxy (for example the model from Bruzual & Charlot 2003). This gives a robust estimate of the colour(s). However, colour-colour covariance matrices have to be generated by varying age and metallicity of models to try to fit the observed data. This is difficult to achieve in a consistent way for a wide redshift range. A further problem is the poorly known redshift evolution of the models. This approach is not followed here for the two mentioned limitations.

The alternative way to estimate average colours and corresponding colour-colour covariance matrices as functions of redshift is to extract a redshift-colour relation from available well-calibrated multi-colour data. To this end, we defined a redshift grid ranging from z = 0.02 to z = 0.8 with a step-size of 0.02. After calibration the grid step is reduced to 0.01 and intermediate values are filled by linear interpolation between points. For each redshift value zbin in the grid we collected colours of galaxies with known spectroscopic redshift close to zbin from spectroscopic surveys. We used a Gaussian mixture model (hereafter GMM)3 to separate red and blue galaxy populations. Then we made a first approximation to the mean colour values c(z) ⟩ and the covariance matrix Cint(z) for red galaxies. The functions c(z) ⟩ were additionally smoothed above z = 0.5 by applying spline interpolation.

The next step is to take photometric errors of the calibration data into account. We carried this out by applying the error-corrected Gaussian mixture model (see Hao et al. 2009). This model was only developed for one colour, so it is run for each colour separately here. Colours were taken from a first approximation and then frozen, allowing for different weights for the blue and red populations and for variable dispersions. We then obtained for a colour, Cj, a new dispersion of red galaxies colour δj2\hbox{$\delta_j^2$}. We now have to replace a diagonal element Cint,jj representing the colour dispersion in the covariance matrix with a new value δj2\hbox{$\delta_j^2$}, effectively shrinking the covariance ellipsoid in the jth dimension. This is carried out consistently by multiplying the jth row and the jth column of Cint by δj/Cint,jj\hbox{$\!\!\sqrt{\mathbf{C}_{{\rm int},jj}}$}. As a result of this procedure one obtains the mean colour values c(z) ⟩ and covariance matrices Cint(z).

thumbnail Fig. 4

Redshift-colour relation obtained from the calibration for colours from the SDSS catalogue (upper) and the SDSS-UKIDSS-AllWISE combination (lower). Error bars illustrate the spread in this colour and were derived from diagonal elements of the covariance matrix Cint(z).

For the SDSS-UKIDSS-AllWISE catalogue combination various colours c(z) ⟩ are shown in Fig. 4. It can be seen that at different redshifts, the various redshift-colour relations have different slopes, thus providing different amounts of information concerning the redshift. For example, gr changes rapidly below z < 0.4 but shows little variation above that redshift. The colour ri displays the opposite behaviour. Therefore some authors used gr to estimate redshifts for z < 0.4 and ri for z > 0.4 (Ascaso et al. 2012; Erfanianfar et al. 2013). The lower panel of Fig. 4 shows why optical-to-infrared colours are so useful for the ICF. The colours rY and rW1 change almost linearly over the complete redshift range considered here. The UKIDSS alone (see YK colour) or AllWISE alone (see W1−W2 colour) are not very useful as colours in each catalogue does not change much over the redshift range, but their combination provides the colour YW1 that can be used as it changes monotonically over the redshift range, although the slope is small. For redshifts above z ≈ 0.6 IR colours become more and more important, as the 4000 Å break moves closer to the infrared domain.

In the current implementation it is not necessary for a galaxy to have measured magnitudes for all bands, and thus all colours; a result is generated even with just one colour, with of course lower precision. We cannot however use AllWISE alone on areas not covered by SDSS, for two reasons: first, the W1−W2 colour is not a good redshift proxy in the redshift range that is of interest here, second, as shown below in Sect. 3.8, W2 is not deep enough to give reliable results at z > 0.3.

3.7. Galaxy selection and magnitude cuts

Within a circle of a radius ˜R(z)\hbox{$\tilde{R}(z)$} (the minimum between R = 8′ and Rs – the distance corresponding to 1 Mpc projected distance at redshift z) around a given position, galaxies were selected at each redshift that are in the range m(z)−3 < m < m(z) + 2, where m(z) is the magnitude of a galaxy with a mass of 2 × 1011M. For this selection we used the SDSS r-band magnitude, if the object had SDSS data and the AllWISE W1 magnitude otherwise. The values of m(z) were taken from Bruzual & Charlot (2003). We call the magnitudes of the two chosen bands the “main” magnitudes, and use these for the computation of the Schechter function (see Eq. (5)).

We ran a test to check the sensitivity of our method to the chosen magnitude limits. We took the final ICF sample (see Sect. 6) and ran a modified ICF with magnitude limit set to m(z)−3 < m < m(z) + 1. We missed 19 clusters as compared to the ICF sample (i.e. less than 4%) and detected 9 “new” clusters, mainly at low redshift and with low multiplicity λ.

thumbnail Fig. 5

Fraction of all galaxies in the catalogue brighter than the completeness limit within the range m(z)−3 < m <m(z) + 2 for SDSS (thin solid lines), UKIDSS (dashed lines), and AllWISE (dotted lines) bands. Thick lines show fractions of galaxies with at least 2 bands (i.e. at least 1 colour) for SDSS alone (blue) and all 3 catalogues combined (red).

3.8. Limitations of catalogues

Figure 5 shows fractions of all galaxies in the range m(z)−3 <m<m(z) + 2 in the catalogue that are at the same time brighter than the completeness limits for SDSS, UKIDSS, and AllWISE as a function of redshift. A magnitude limit was used for UKIDSS instead of a completeness limit (Eisenstein et al. 2011; Lawrence 2013; Cutri et al. 2014), and the 90% completeness limit should be smaller, thus the dashed curves should move to the left. Thick lines show fractions of galaxies with at least two bands (i.e. at least one colour) for SDSS alone (blue) and all three catalogues combined (red). In the absence of UKIDSS data, in fact, we cannot go much deeper than the SDSS alone, as the AllWISE W2 band is relatively shallow. Nevertheless, there is still an advantage to using AllWISE data, as one gets more colours and thus a better redshift estimate at intermediate redshifts. We decided to place an upper redshift limit for the cluster search for SDSS-UKIDSS-AllWISE at z = 0.8. Photo-z catalogues used here are much deeper than SDSS, so an upper limit was placed at z = 1.4.

It was decided not to correct for the incompleteness as the exact fraction of missed galaxies is uncertain for UKIDSS and AllWISE; their depth varies from point to point on the sky.

3.9. Determination of the background galaxy density

The background function b(z,x) is defined as the distribution of background galaxies in magnitude mmain and pν for each value of redshift z. As mentioned above, for the SDSS-UKIDSS-AllWISE combination of data two “main” magnitudes are used, and hence two background functions were determined for each value of z, magnitude mmain and probability pν.

For the determination of the background maps 4000, circular fields with 8 radii were analysed at positions that were randomly chosen in the SDSS area. These fields were treated with the cluster finder in the same manner as if they were X-ray sources. The only difference was that rather than using galaxies within the certain radius ˜R(z)\hbox{$\tilde{R}(z)$} (see Sect. 3.1), all galaxies within a radius of 8 from the chosen position were used. The number of galaxies in each bin of mmain,pν was divided by the total area of the selected background fields, which is 4000 × π(8′)2.

For photometric redshift catalogues, we built the background function b(z,x) as the distribution of all galaxies in the catalogue in magnitude mmain for each value of redshift z, divided by the total catalogue area.

4. Tests of the tool

4.1. Influence of infrared data

thumbnail Fig. 6

Mean redshift error as a function of redshift for optical data alone (red curve) and combined optical-infrared data (black curve). See text for details.

We explored the impact of the use of the infrared data by comparing redshift accuracies of cluster redshifts that were obtained with and without the infrared catalogues. We used our ICF catalogue for this test (see Sect. 6). Detected clusters were grouped into ten bins in the range 0 <z< 0.7. The result is shown in Fig. 6, in which we plot average redshift error for each redshift bin. The red curve corresponds to redshifts obtained with SDSS data alone, and the black curve to redshift obtained with the SDSS-UKIDSS-AllWISE combination. The error bars indicate a spread in redshift errors within each bin. The small horizontal offset was added to the red line for clarity. Redshift errors were found to be approximately 20 percent smaller when we included infrared data.

4.2. Dependence on method parameters

We tested how stable our method is in two ways. First we started changing the extraction radius Rs (see Sect. 3.1) from 0.2 to 2 Mpc (the value used by the ICF is fixed to 1 Mpc). We took 50 clusters from the reference catalogue (Takey sample of clusters) for which two conditions are satisfied: 0.3 <z< 0.45 and λ> 10. We took this redshift range so that all our clusters were at comparable distances, so the linear scale would not change much. The result of the test is shown in Fig. 7, where we show average values of λ normalized to the default value with Rs = 1 Mpc. It can be seen that changing Rs between 0.7 and 1.3 only has a little impact on λ. Outside this range the measured λ is systematically lower. If Rs is much smaller than the actual cluster size, then real cluster members far from the cluster centre are not detected. If Rs is larger than the actual cluster size then we include too much background, thus decreasing λ.

Our second test checked how sensible the ICF is to the chosen input position of the cluster. We started changing the assumed cluster positions for the above sample within ± 3.5′. The result of the test is shown in Fig. 8. It can be seen that the method is stable within ± 1.5′ offsets, which corresponds to 300500 kpc within the selected redshift range. If the offset is larger than 1.5′ then the fraction of still detected clusters and their λ values decrease rapidly. Therefore we can conclude that our method works best if the offset between the optical cluster and input position is less than 1.5′.

thumbnail Fig. 7

Average λ/λ1 Mpc as a function of Rs for 50 clusters within 0.30 <z< 0.45 and λ1 Mpc> 10.

thumbnail Fig. 8

Average λ/λ0 as a function of offset (black line) and fraction of clusters still detected with a given offset (red line).

4.3. Comparison with reference catalogues

The performance of the ICF was tested using cluster samples that are available in the literature. We were mainly interested in the recovery rate of clusters drawn from various reference catalogues, i.e. the fraction of clusters for which the redshift measured by the ICF is consistent with the redshift provided in the catalogue. The reference catalogues used for this exercise are listed in Table 2. They represent a mix of optical and X-ray selected cluster catalogues with redshifts measured either from SDSS data (photometric redshifts in most cases) or from dedicated optical follow-up (ROSAT-ESO Flux-Limited X-Ray, REFLEX). The reference catalogues were chosen with the expectation that the clusters to be identified as counterparts of 3XMMe extended sources are somehow similar. Therefore some famous catalogues like the Zwicky and Abell catalogues were not used for this recovery exercise. The clusters listed in those catalogues are typically much more extended than those discovered as single and completely covered entities in single XMM-Newton observations.

The ICF was run on positions of clusters listed in the reference catalogues. Initially only SDSS-UKIDSS-AllWISE data were used as input for this run of the ICF. The measured redshifts zICF were compared with reference values zref. A cluster was regarded as recovered if the following condition holds: | zICFzref | <δzICF + 0.01. We added 0.01 (grid step size) to the redshift error to soften the effect of very small ICF redshift uncertainties in some cases. The added constant is much smaller than a typical redshift uncertainty in the reference catalogue. Below we briefly comment the results.

thumbnail Fig. 9

Redshifts estimated by Takey et al. (2013) and in this work (zICF). Colours reflect the value of λ. Shaded area indicates 4% redshift error.

Table 2

List of test or reference cluster catalogues.

For the sake of simplicity, only the first 1000 clusters were used from the MaxBCG catalogue since this was sufficient for a fair comparison of the success rates between the two catalogues. Only clusters in the highest redshift bin provided (0.530.55) were used from the redMaPPer catalogue. The Wen & Han (2011) sample contains clusters selected in the deep fields so it is much deeper than our upper redshift limit (z = 0.8), so the test was restricted to clusters in CFHT-wide area with z< 0.8. We used the SDSS-UKIDSS-AllWISE data for testing, so one should not expect a very good recovery rate even with this restriction.

Takey et al. (2013) compiled a sample of 530 clusters from the common 2XMMi-DR3 and SDSS-DR7 survey area. All those clusters have redshifts (zref) determined from photometric or spectroscopic redshifts of likely member galaxies. All clusters were visually screened so that the resulting catalogue was assumed to be a reliable resource. A subset of those clusters had previously determined redshifts from other surveys (zpub). A cluster was regarded as recovered if the above condition was fulfilled for either zpub or zref. Most galaxies in 15 fields of size 8 arcmin around the Takey et al. clusters did not satisfy the selection criteria given in Sect. 3.5 and these clusters were thus removed from our sample. The result is shown in Fig. 9 in zref versus zICF. Out of 515 input clusters, 491 (95%) were recovered with the above criteria. Discrepancies are caused by the fact that clusters in this catalogue are relatively faint and their redshifts are less certain owing to less photometric information. A concentration of outliers at the lower part of the plot is caused by low-redshift detections made by the ICF. These detections are caused by the presence of a low-redshift cluster in the XMM field that was used by Takey et al. (2013) to search for clusters; such clusters are often the primary observation target. Another example of such a problem is shown in the lower part of image 3 and discussed in detail in Sect. 3.4. This problem is relevant for the ICF cluster search based on 3XMM (see Sect. 6).

As it is shown in Table 2, 95% to 99% of clusters were recovered by the ICF for four out of five reference samples. A lower recovery rate was obtained for Wen and Han sample owing to a much higher average redshift in their catalogue. This cluster catalogue was constructed with CFHTLS data, which are much deeper than SDSS. If we consider only a subsample with z < 0.5 than 88% of clusters were recovered. As a comparison, we tested the same sample using photometric redshifts from CFHT-W catalogue as input. Results are shown in Fig. 10. It is obvious that we improve the recovery rate substantially (up to 84% recovered clusters) by using higher quality data.

The lower recovery rate (96%) for the REFLEX dataset is partially caused by discrepant redshifts in the REFLEX catalogue (this was revealed by comparing REFLEX to MaxBCG and redMapper) or by low redshifts of the reference catalogue. As described above, the ICF performs poorly in detecting clusters at z < 0.12. If the input is restricted to clusters with redshift z > 0.12 161 out of 165 REFLEX clusters (over 97%) are recovered.

thumbnail Fig. 10

Redshifts estimated by Wen & Han (2011) and in this work (zICF). Upper plot was produced with SDSS-UKIDSS-AllWISE data, whereas the lower one was produced with CFHTLS photometric redshifts data. Colours reflect the value of λ. See text for more details.

5. Completeness and false positives fraction

An important step in cluster finding is the estimation of completeness (i.e. what is the fraction of clusters that are not detected) and of the fraction of false positives (i.e. what is the chance of detecting a cluster that does not exist or is not related to an X-ray source).

We define F(r) as the cumulative function of the NFW profile (Eq. (6)). Then we define the inverse cumulative NFW function F-1(t):F-1(F(r)) = r. Now we define rNFW=F-1(i=1nF(ri)n)\hbox{$\rnfw = F^{-1} \left( \frac{\sum_{i=1}^{n} F(r_i)}{n} \right)$}. This value gives a characteristic cluster size. For a purely random set of points, we expect rNFW = 0.5 on the average.

The same 4000 random fields that were used for the background determination (see Sect. 3.9) were used to determine the false positives rate. The ICF was run for these fields (just as if there was an X-ray source). The main goal of this experiment was to estimate the probability of a cluster “detection” in a case when the X-ray source is spurious or not related to a cluster (e.g. two unresolved point sources or a nearby galaxy or similar). These detections were compared to the detections of clusters from the reference sample.

The detections of the two datasets presented above (reference clusters and background fields) are shown in the rNFWλ plane in Fig. 11. Recovered clusters from the reference catalogues (see Sect. 4) are shown with red dots and detections from background fields are indicated with blue dots. The way we choose cluster members (see Sect. 3.4) selects galaxies closer to the centre preferentially, therefore the average rNFW is somewhat smaller than 0.5 even for a spurious detection, as can be seen in the Fig. 11.

The cores of the two datasets are well separated in the plane chosen but they also have some overlap. It may well be that some positions from the randomly selected set might indeed contain a real cluster so that the expected distribution of a pure background non-cluster sample would be confined to smaller values of λ. On the other hand, some of the sources from the reference samples might be spurious and thus be located at rather low values of λ.

Here we want find a separation curve in a way that as many background detections as possible are kept below this curve and as many “real” clusters, i.e. clusters drawn from the reference samples, as possible are above it. Luckily the exact shape of the curve has little impact on the result; after testing exponential, power-law, and linear separation lines we chose the broken-line shape as the most simple, but still reliable, solution.

thumbnail Fig. 11

rNFW vs. λ for MaxBCG, redMapper, Takey and REFLEX clusters (red dots) and background fields (blue dots). Lines indicate constant psp(FOM) with values of 3 and 15 percent.

We want to produce a probability, by means of these separation lines, for a given detection to be spurious as a function of λ and rNFW. This is carried out by introducing a figure of merit (FOM) as: FOM(λ,rNFW)={λrNFW,rNFW<0.254λ,rNFW0.25.\begin{equation} {\rm FOM}(\lambda, \rnfw) = \left\{ \begin{array}{ll} \frac{\lambda}{\rnfw},& \rnfw < 0.25 \\ 4 \lambda, & \rnfw \ge 0.25. \end{array}\right. \label{eq:fom} \end{equation}(14)The case for rNFW ≥ 0.25 is motivated by the fact that there seems to be little dependence of background detections distribution in λ on rNFW, so we can use FOM(λ,rNFW) = FOM(λ,0.25).

We then define psp(FOM) as a fraction of detections from the background fields with FOM′> FOM, i.e. above the line defined by Eq. (14). It can be approximated by the following equation: psp(FOM)=4892(FOM(λ,rNFW)2+287.178)-1.5,\begin{equation} p_{\rm sp}{\rm (FOM)} = 4892 ({\rm FOM}(\lambda, \rnfw)^2 + 287.178)^{-1.5}, \end{equation}(15)where FOM is calculated via Eq. (14). It is not very precise at higher values, and can even produce psp(FOM) > 1, but clusters with high psp(FOM) are rejected anyway as likely to be spurious.

The completeness fcom(x) is defined as the fraction of clusters for which FOM > x and the false positives rate (or the spurious detection fraction) fsp(x) as the fraction of background detections for which FOM > x.

We stress that completeness was derived from a set of catalogues of clusters that can be biased and can contain spurious detections as well. On the other hand, there might be some real clusters, for example a low-redshift, large Abell cluster or a portion thereof, even among background detections. So there still might be some detections in the final catalogue that are not in fact related to the X-ray source used. We adopted a false positives fraction of 15 percent. This does not mean that the contamination of the produced catalogue by cluster detections that are unrelated to the X-ray source are as high because we use the additional information that there is an extended X-ray source at this location.

6. Integrated cluster catalogue

6.1. Cluster catalogue production

6.1.1. Data selection

The input catalogue of cluster candidates used here is based on 3XMM-DR5 (Rosen et al. 2016). Within ARCHES this catalogue was filtered and enriched with flags for possible scientific applications and the column density of cold interstellar matter in the direction of the source. This catalogue version is called 3XMMe, where the “e” stands for “enhanced”4.

X-ray sources other than clusters may appear as X-ray extended and they clearly do not fall under the category to be studied in this paper, namely nearby galaxies, solar system objects, Supernova remnants, and non-resolved blends of point sources. Some extra measures were taken to discriminate between real clusters and the other sources. Solar system objects did not enter 3XMM, supernova remnants were excluded through the selection of high-galactic latitude fields only, and nearby galaxies were discarded through a careful selection of fields case by case (Rosen et al. 2016). There is no safeguard against imperfections of the source detection process itself, which is limited by the X-ray optics and the available photon numbers. Quantifying its abilities and limitations would require intensive simulations that are beyond the scope of this paper. Entries in 3XMM were thus taken at face value.

Several cuts and filters were applied to select cluster candidates:

  • 1.

    Observations with high background, hotspots, and corruptedmosaic mode data were removed.

  • 2.

    Low exposure (<5 ks) observations were removed.

  • 3.

    0 < EP_EXTENT < 80 arcsec. This only considers detections with real extent, that is below the upper limit of 80 arcsec imposed in the source detection step within the standard XMM-Newton pipeline processing.

  • 4.

    EP_EXTENT_ERR< 10. This excludes poorly constrained extent values.

  • 5.

    The galactic latitude must satisfy the constraint |bII| > 20.3 deg.

  • 6.

    EP_9_DET_ML > 10. This demands a minimum detection likelihood value of 10 in band 9 (XID band = 0.54.5 keV).

  • 7.

    SUM_FLAG < 2. This excludes manually flagged detections and also detections with sum_flag = 2; these are generally detections that are extended and close to other sources or within the envelopes of other extended sources.

  • 8.

    4 < offaxis < 12 arcmins. The off-axis angle for the detection is measured, in arcmins, from the spacecraft bore sight for the observation. The lower boundary is intended to mitigate against the inclusion of extended target objects, while the upper cuts away low-completeness regions at the edges of the field of view.

The various selection steps resulted in a preliminary input catalogue of 1704 extended X-ray sources in 3XMMe, which are all regarded as potential clusters of galaxies. On top of the constraints that were applied to construct 3XMMe further constraints were applied for cluster finding with the ICF:

  • 1.

    Select only sources with SDSS coverage; this leaves 1043X-ray sources in the catalogue.

  • 2.

    Remove sources that fall into a field that have bright stars or very bright galaxies (like M31 or Magellanic clouds) in the field of view or the very vicinity; a further 186 sources were thus removed, leaving 857 X-ray positions in the input catalogue.

The SDSS, UKIDSS, AllWISE, and spectral data were retrieved for the fields associated with the remaining X-ray sources. The data were then cross-matched with the new XMatch tool (Pineau et al. 2015, and in prep.). Where possible, we also collected the photometric redshift data from CFHT deep and wide catalogues and ALHAMBRA; this was possible for 135 unique sources, and SDSS data was available for some of these as well.

We removed from the analysis all fields that had less than two-thirds of their area covered by survey; otherwise our data would be highly incomplete and cluster detection would be unreliable. This removed fields with bad photometry or those close to the survey borders. We were thus left with 820 sources with SDSS data. As for photometric redshifts data, 124 fields had proper coverage, but only 10 of these fields were not contained in SDSS.

The ICF was run on all these data. Cluster candidates were considered as detected if psp(λ,rNFW) < 15%. For each detection the following information is stored:

  • X-ray source coordinates;

  • estimated redshift and its error;

  • multiplicity value λ;

  • weighted radius rNFW;

  • probability for the detection to be spurious psp;

  • distance of the BCG from the cluster centre;

  • difference between the magnitude of the BCG and m(z).

We also saved information for all likely members of each cluster in a separate table (id, position, magnitudes in all bands and, if available, spectroscopic redshift).

6.1.2. Duplicates and matches to known clusters

A few further steps need to be performed in constructing the 3XMMe-ICF cluster catalogue.

  • (a)

    The ICF was applied using both options (photoz andcolour-redshift relation) to search for galaxy overdensitiesaround the given input positions. This could have led to more thanone detection of the same source if the positionwas within the CFHT and the SDSS area, forexample. Only one of the detections was chosen and documentedfor the construction of confirmed clusters from 3XMMe. Thedetection with the higher value of λ was always chosen, which typically was the detection from CFHTLS. This contains photometric redshifts for both red and blue galaxies and the multiplicity λ even at the same limiting depth of the input data is expected to be systematically larger. Therefore if cluster is detected in SDSS-UKIDSS-AllWISE and photometric redshift data, then the latter detection is chosen in most cases.

  • (b)

    There are few cases when two or three sources from the input X-ray source list appear close to each other on the sky. We get detections with similar redshifts and multiplicities for most of such pairs or groups. This might be due to one of three possibilities: (1) one of the X-ray sources is in fact not related to the cluster; (2) the clusters detected are in the merger state and have a complex X-ray structure; or c) there are two clusters with different redshifts that are nearly aligned along the line of sight. Such cases are marked in the catalogue and have to be treated with care. In such cases, we select a detection we think is most likely to be related to the X-ray source, and flag all other detections as possible duplicates.

  • (c)

    In order to give reference to possible previous detections and identifications of the same source, a meta-catalogue of clusters is created. It contains more than 50 000 cluster redshifts from the catalogues listed in Table 2. This catalogue was supplemented by the Abell and Zwicky catalogue (see Zwicky et al. 1961) containing 10411 objects. Many clusters are listed there several times, as they were detected in different catalogues. Matching is carried out using the criteria d<R(z) + Rref, where d is the angular distance between the detected and reference clusters, R(z) is the angular size corresponding to 1 Mpc comoving size at cluster redshift z, and Rref is a reference cluster radius (taken from the reference catalogue data whenever possible, and otherwise fixed to 1 Mpc at the cluster redshift). It is important to note that matching entries between the 3XMMe-ICF catalogue and the reference meta-catalogue does not necessarily mean that these are the same clusters. The example discussed in Fig. 3 is typical for such a case; a new XMM-Newton discovered cluster may be located behind an Abell cluster. Hence a simple positional match between catalogue entries is not sufficient but the redshifts have to be compared as well and need to be matching. It is not easy to define a standardized procedure since not all reference catalogues give, for example a redshift error. In any case, we do not change the redshift found by the ICF but document the existence of potentially matching clusters with their redshift from other cluster catalogues.

  • (d)

    Finally the NASA Extragalactic database (NED) database5 is queried to search for known clusters. The search radius was fixed to 8 arcmin. The information that was retrieved from the NED for all found matching clusters is included in the catalogue.

thumbnail Fig. 12

Redshift distribution for detected clusters. The red histogram shows non-duplicate clusters detected with all methods; the blue histogram shows only those detected with SDSS-UKIDSS-AllWISE combination; and the black histogram shows new clusters.

thumbnail Fig. 13

Redshifts for detected clusters from other catalogues: a) Takey et al. (2013); b) Rykoff et al. (2014); c) Koester et al. (2007); and d)Wen & Han (2011). Colour of points indicate data used by ICF to detect clusters. Shaded region corresponds to 4% error in redshift.

thumbnail Fig. 14

Redshift determination with SDSS-UKIDSS-AllWISE and with CFHT or ALHAMBRA photo-z data.

6.2. Integrated Cluster Finder run results

The cluster catalogue contains 708 detections on 488 unique X-ray sources. Of those 348 have at least one member with a spectroscopic redshift measured. Only 38 detections do not have a counterpart in NED or the reference catalogue. The redshift distribution of reliable and unique cluster detections is shown in Fig. 12. Using catalogues with photometric redshifts we get more detections not only at very high but also at intermediate redshifts. This is caused by the fact that λ values for detections based on photometric redshift catalogues are systematically larger and that photometric redshift catalogues cover some parts of the sky observed by XMM-Newton but not covered by SDSS. When the ALHAMBRA catalogues were used in cluster detection they do not reveal any new detection that was not also discovered with the other catalogues.

Figure 13 shows redshift comparisons for ICF detections that enter the catalogues listed in Table 2. As before, it can be seen that ICF sometimes measures a much lower redshift than the redshift provided by a reference catalogue. This is caused in most cases by an overlap with a large nearby cluster, which was the main target of the XMM-Newton observation. In the preparation of this diagram, the following method was used for matching clusters from each of the two catalogues in consideration for each panel. The separation between the cluster position used by the ICF, which is equivalent to the X-ray source position, and cluster position from the reference catalogue was requested to be less than 1 Mpc in comoving distances for redshifts reported by both ICF and the reference catalogue. This ensures that a low-redshift ICF detection is not matched with an offset high-redshift reference cluster and vice versa.

Another test is to compare detections of the same cluster made with SDSS-UKIDSS-AllWISE and with photo-z data. The result for 67 such detections is shown in Fig. 14. Apart from a few disagreements at low redshifts the correlation is very good. Low-redshift outliers are likely caused by the fact that a cluster detected with (more sensitive) photo-z data was simply not detected in SDSS-UKIDSS-AllWISE and, at the same time, another detection with low redshift appeared.

7. Discussion

We have developed a tool to search for galaxy clusters across multiple catalogues involving optical and infrared data as well as photometric and spectroscopic redshifts. The main purpose for the development of the tool was the search for, and the confirmation and the redshift determination of, clusters drawn as extended sources from the 3XMMe X-ray source catalogue. The reliability of the tool was shown by testing its performance against established cluster catalogues in the literature. We also provide means to filter out spurious detections.

Upon acceptance of this paper an open service will be made available to the community that will facilitate running the ICF on arbitrary user-defined positions. It is an on-line tool hosted by the Observatoire Astronomique de Strasbourg to be accessed using the URL http://serendib.unistra.fr/icf.

The cluster catalogue, which is generated on the basis of the final version of the enhanced version of 3XMM called 3XMMe, serves as the starting point for its scientific exploitation. The catalogue is published via the ARCHES database6. It gives information concerning all detected clusters together with a diagram showing the multiplicity λ(z) plots (similar to Fig. 2). Combined SDSS and X-ray finding charts similar to Fig. 3 are provided along with lists of member galaxies. An investigation of this new resource was started to further study the LXTX cluster scaling relation between between the temperature and luminosity of the hot intracluster medium.

We foresee and plan the following extensions and future applications of the tool. Right now full functionality is given in the northern hemisphere only because of the lack of suitable wide-field surveys in the south while developing the ICF. This situation will change in the near future with VO-compliant releases of data from, for example the Dark Energy Survey (DES; Dark Energy Survey Collaboration et al. 2016), the Panoramic Survey Telescope and Rapid Response System (Pan-STARRS; Kaiser et al. 2002), ATLAS (Shanks et al. 2015), and the VISTA Hemisphere Survey (VHS; Cross et al. 2012). Correspondingly new colour-redshift relations need to be calibrated for those data and a new download module needs to be written. The ICF is a tool that on input only needs a position on the sky. In the context of this paper, input positions were those of the extended sources in 3XMMe7 (Rosen et al. 2016), but there is no restriction that would prevent using it with other source input, for example future XMM-Newton data releases or source catalogues of the upcoming extended Roentgen Survey with an Imaging Telescope Array (eROSITA) mission with a huge need for optical follow-up (Merloni et al. 2012).


4

You can find a detailed description of 3XMMe catalogue at http://www.arches-fp7.eu/images/PDF/3XMMe_catalogue_v2.1.pdf

Acknowledgments

This work has made use of data/facilities from the ARCHES project (7th Framework of the European Union No. 313146).

Francisco Carrera acknowledges partial financial support by the Spanish Ministry of Economy and Competitiveness through grants AYA2012- 31447 and AYA2015-64346-C2-1. Funding for SDSS-III has been provided by the Alfred P. Sloan Foundation, the Participating Institutions, the National Science Foundation, and the US Department of Energy Office of Science. The SDSS-III web site is http://www.sdss3.org/. SDSS-III is managed by the Astrophysical Research Consortium for the Participating Institutions of the SDSS-III Collaboration including the University of Arizona, the Brazilian Participation Group, Brookhaven National Laboratory, Carnegie Mellon University, University of Florida, the French Participation Group, the German Participation Group, Harvard University, the Instituto de Astrofisica de Canarias, the Michigan State/Notre Dame/JINA Participation Group, Johns Hopkins University, Lawrence Berkeley National Laboratory, Max Planck Institute for Astrophysics, Max Planck Institute for Extraterrestrial Physics, New Mexico State University, New York University, Ohio State University, Pennsylvania State University, University of Portsmouth, Princeton University, the Spanish Participation Group, University of Tokyo, University ofUtah, Vanderbilt University, University of Virginia, University of Washington, and Yale University. This work is based in part on data obtained as part of the UKIRT Infrared Deep Sky Survey. This publication makes use of data products from the Wide-field Infrared Survey Explorer, which is a joint project of the University of California, Los Angeles, and the Jet Propulsion Laboratory/California Institute of Technology, and NEOWISE, which is a project of the Jet Propulsion Laboratory/California Institute of Technology. WISE and NEOWISE are funded by the National Aeronautics and Space Administration. Based on observations obtained with MegaPrime/MegaCam, a joint project of CFHT and CEA/IRFU, at the Canada-France-Hawaii Telescope (CFHT), which is operated by the National Research Council (NRC) of Canada, the Institut National des Science de l’Univers of the Centre National de la Recherche Scientifique (CNRS) of France, and the University of Hawaii. This work is based in part on data products produced at Terapix available at the Canadian Astronomy Data Centre as part of the Canada-France-Hawaii Telescope Legacy Survey, a collaborative project of NRC and CNRS. Based on data from ALHAMBRA Data Access Service the at CAB (INTA-CSIC).

References

  1. Abbott, T., Abdalla, F. B., et al. (Dark Energy Survey Collaboration) 2016, MNRAS, 460, 1270 [NASA ADS] [CrossRef] [Google Scholar]
  2. Abdalla, F. B., Banerji, M., Lahav, O., & Rashkov, V. 2011, MNRAS, 417, 1891 [NASA ADS] [CrossRef] [Google Scholar]
  3. Ascaso, B., Wittman, D., & Benítez, N. 2012, MNRAS, 420, 1167 [NASA ADS] [CrossRef] [Google Scholar]
  4. Bleem, L. E., Stalder, B., de Haan, T., et al. 2015, ApJS, 216, 27 [NASA ADS] [CrossRef] [Google Scholar]
  5. Böhringer, H., Schuecker, P., Guzzo, L., et al. 2004, A&A, 425, 367 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  6. Bruzual, G., & Charlot, S. 2003, MNRAS, 344, 1000 [NASA ADS] [CrossRef] [Google Scholar]
  7. Clerc, N., Adami, C., Lieu, M., et al. 2014, MNRAS, 444, 2723 [NASA ADS] [CrossRef] [Google Scholar]
  8. Cross, N. J. G., Collins, R. S., Mann, R. G., et al. 2012, A&A, 548, A119 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  9. Cutri, R. M., Wright, E. L., & et al. 2014, Explanatory Supplement to the AllWISE Data Release Products, http://wise2.ipac.caltech.edu/docs/release/allwise/expsup/index.html [Google Scholar]
  10. Eisenstein, D. J., Weinberg, D. H., Agol, E., et al. 2011, AJ, 142, 72 [Google Scholar]
  11. Erfanianfar, G., Finoguenov, A., Tanaka, M., et al. 2013, ApJ, 765, 117 [NASA ADS] [CrossRef] [Google Scholar]
  12. Garilli, B., Guzzo, L., Scodeggio, M., et al. 2014, A&A, 562, A23 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  13. Gerke, B. F., Newman, J. A., Davis, M., et al. 2012, ApJ, 751, 50 [NASA ADS] [CrossRef] [Google Scholar]
  14. Hao, J., Koester, B. P., Mckay, T. A., et al. 2009, ApJ, 702, 745 [NASA ADS] [CrossRef] [Google Scholar]
  15. Kaiser, N., Aussel, H., Burke, B. E., et al. 2002, in Survey and Other Telescope Technologies and Discoveries, eds. J. A. Tyson, & S. Wolff, Proc. SPIE, 4836, 154 [Google Scholar]
  16. Koester, B. P., McKay, T. A., Annis, J., et al. 2007, ApJ, 660, 221 [NASA ADS] [CrossRef] [Google Scholar]
  17. Lawrence, A. 2013, Astrophys. Space Sci. Proc., 37, 271 [NASA ADS] [CrossRef] [Google Scholar]
  18. Mehrtens, N., Romer, A. K., Hilton, M., et al. 2012, MNRAS, 423, 1024 [NASA ADS] [CrossRef] [Google Scholar]
  19. Merloni, A., Predehl, P., Becker, W., et al. 2012, ArXiv e-prints [arXiv:1209.3114] [Google Scholar]
  20. Navarro, J. F., Frenk, C. S., & White, S. D. M. 1996, ApJ, 462, 563 [NASA ADS] [CrossRef] [Google Scholar]
  21. Pineau, F., Boch, T., Derriere, S., & Arches Consortium 2015, in ASP Conf. Ser. 495, eds. A. R. Taylor, & E. Rosolowsky, 61 [Google Scholar]
  22. Planck Collaboration XXIX. 2014, A&A, 571, A29 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  23. Postman, M., Lubin, L. M., Gunn, J. E., et al. 1996, AJ, 111, 615 [Google Scholar]
  24. Rosen, S. R., Webb, N. A., Watson, M. G., et al. 2016, A&A, 590, A1 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  25. Rykoff, E. S., Rozo, E., Busha, M. T., et al. 2014, ApJ, 785, 104 [NASA ADS] [CrossRef] [Google Scholar]
  26. Shanks, T., Metcalfe, N., Chehade, B., et al. 2015, MNRAS, 451, 4238 [NASA ADS] [CrossRef] [Google Scholar]
  27. Takey, A., Schwope, A., & Lamer, G. 2013, A&A, 558, A75 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  28. Takey, A., Schwope, A., & Lamer, G. 2014, A&A, 564, A54 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  29. Wen, Z. L., & Han, J. L. 2011, ApJ, 734, 68 [NASA ADS] [CrossRef] [Google Scholar]
  30. Wen, Z. L., Han, J. L., & Liu, F. S. 2009, ApJS, 183, 197 [NASA ADS] [CrossRef] [Google Scholar]
  31. Zwicky, F., Herzog, E., Wild, P., Karpowicz, M., & Kowal, C. T. 1961, Catalogue of galaxies and of clusters of galaxies, Vol. I [Google Scholar]

Appendix A: Definition of the pν(χ2) function

Here the definition of one of the key functions for the ICF is given. We start from the mean colour values c(z) ⟩ and the covariance matrix Cint(z) at redshift z. If there are n colours, the dimensions of c(z) ⟩ , and Cint(z) are n and n × n, respectively.

We consider a galaxy with magnitudes f1...m and errors δf1..m measured in m frequency bands. It is not necessary that all m magnitudes are measured for each galaxy in the catalogue, i.e. some flux values might be undefined.

We also define a set of index pairs Ii = (I1,i,I2,i), where I1,i,I2,i are two band indices and each pair defines a colour.

For example, we take SDSS-UKIDSS-AllWISE band set (u,g,r,i,z,Y,J,K,W1,W2), then m = 10. We then define n = 9 colours: ug,gr,ri,iz,rY,YK,YW1,rW1,W1−W2. The J band was dropped from the list of colours, as JK changes only little over the desired redshift range. Thus:

I=[(1,2),(2,3),(3,4),(4,5),(3,6),(6,8),(8,9),(3,9),(9,10)]$$ I = [(1, 2), (2, 3), (3, 4), (4, 5), (3, 6), (6, 8), (8, 9), (3, 9), (9, 10)] $$Then for a galaxy the colour offset ci = fI1,ifI2,i− ⟨ c(z) ⟩ i is calculated with i = 1..n, and colour errors δci2=δfI1,i2+δfI2,i2\hbox{$\delta c_i^2 = \delta f_{I_{1,i}}^2+ \delta f_{I_{2,i}}^2$}.

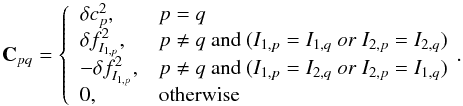

The error covariance matrix C is defined as Cpq={δcp2,p=qδfI1,p2,pqand(I1,p=I1,qorI2,p=I2,q)δfI1,p2,pqand(I1,p=I2,qorI2,p=I1,q)0,otherwise.\appendix \setcounter{section}{1} \begin{equation} \mathbf{C}_{pq} = \left\{ \begin{array}{l l} \delta c_{p}^2, & p = q \\ \delta f_{I_{1,p}}^2, & p \neq q\ {\rm and}\ (I_{1,p} = I_{1,q}\ or\ I_{2,p} = I_{2,q}) \\ -\delta f_{I_{1,p}}^2, & p \neq q\ {\rm and}\ (I_{1,p} = I_{2,q}\ or\ I_{2,p} = I_{1,q}) \\ 0, & {\rm otherwise} \end{array}\right.\!\!. \end{equation}(A.1)

Examples of Cpq matrix elements are as follows:

  • 1.

    C23, i.e. gr versus ri colour correlation coefficient, has r as the second band in gr and as the first band in ri, thus I2,p = ‘r′ = 3 = I1,q and C23=δfr2\hbox{$C_{23} = -\delta f_{r}^2$}.

  • 2.

    C39, i.e. ri versus rW1 colour, has r as the first band in both colours, thus I1,p = “r” = 3 = I1,q and C39=δfr2\hbox{$C_{39} = \delta f_{r}^2$}.

  • 3.

    C33, i.e. simple r-i colour error, C33=δcri2\hbox{$C_{33} = \delta c_{r-i}^2$}.

For each redshift z and one has to calculate χ2(z)=c(Cint(z)+C)-1c.\appendix \setcounter{section}{1} \begin{equation} \chi^2(z) = \mathbf{c} (\covariance + \mathbf{C})^{-1} \mathbf{c} \label{eq:chi} . \end{equation}(A.2)If one or several bands are missing for a given source, then the corresponding elements of c and rows/columns from Cint(z) and C are removed.

If one of the colours is the exact combination of two or more other colours then the covariance matrix defined above is zero. In this case, one of the three colours should be removed. For example, for SDSS-UKIDSS-AllWISE, crY + cYW1 = crW1. If the r, Y, and W1 magnitudes are known for a given galaxy, then only crY,cYW1 should be used. If one of the r, Y, and W1 magnitudes is not known then we are left with only one colour.

The value χj2(z)\hbox{$\chi_j^2(z)$} in Eq. (A.2) is assumed to follow a χ2-distribution. Although colours and colour errors are obviously non-independent variables, it is assumed they would be independent and this issue is neglected here.

All Tables

Table 1

List of catalogues currently used by the ICF.

Table 2

List of test or reference cluster catalogues.

All Figures

thumbnail Fig. 1

Peak finding algorithm illustration. Multiplicity function for the input sample is shown as black curves. A subsample of possible members of a cluster is selected. Multiplicity function of this subsample (red curves) is then fitted with a Gaussian (blue curves). Possible members are then removed from the sample and the rest are taken as an input for the next iteration. Upper panel shows the first iteration. Lower panel shows the second iteration with the total multiplicity function shown with a thin dashed line for reference. See text for details.

In the text
thumbnail Fig. 2

Examples of λ(z) functions for two fields with one (top) and two (bottom) detections. Red crosses and vertical blue lines indicate detections. Values attached to crosses are for the measured λ, in red for non-spurious and in black for spurious detections (see Sect. 5).

In the text
thumbnail Fig. 3

Finding charts for two cluster candidates from Fig. 2. Coloured 2 by 2 SDSS images are overlaid with XMM X-ray contours, produced from co-added MOS and PN images in XMM bands 2 and 3. The red circle indicates the extended X-ray source position and extent as provided by 3XMM. The red crosses indicate the positions of point-like X-ray sources. The yellow and light blue circles denote likely cluster members with spectroscopic redshift indicated by purple circle and label where possible. See text for details.

In the text
thumbnail Fig. 4

Redshift-colour relation obtained from the calibration for colours from the SDSS catalogue (upper) and the SDSS-UKIDSS-AllWISE combination (lower). Error bars illustrate the spread in this colour and were derived from diagonal elements of the covariance matrix Cint(z).

In the text
thumbnail Fig. 5

Fraction of all galaxies in the catalogue brighter than the completeness limit within the range m(z)−3 < m <m(z) + 2 for SDSS (thin solid lines), UKIDSS (dashed lines), and AllWISE (dotted lines) bands. Thick lines show fractions of galaxies with at least 2 bands (i.e. at least 1 colour) for SDSS alone (blue) and all 3 catalogues combined (red).

In the text
thumbnail Fig. 6

Mean redshift error as a function of redshift for optical data alone (red curve) and combined optical-infrared data (black curve). See text for details.

In the text
thumbnail Fig. 7

Average λ/λ1 Mpc as a function of Rs for 50 clusters within 0.30 <z< 0.45 and λ1 Mpc> 10.

In the text
thumbnail Fig. 8

Average λ/λ0 as a function of offset (black line) and fraction of clusters still detected with a given offset (red line).

In the text
thumbnail Fig. 9

Redshifts estimated by Takey et al. (2013) and in this work (zICF). Colours reflect the value of λ. Shaded area indicates 4% redshift error.

In the text
thumbnail Fig. 10

Redshifts estimated by Wen & Han (2011) and in this work (zICF). Upper plot was produced with SDSS-UKIDSS-AllWISE data, whereas the lower one was produced with CFHTLS photometric redshifts data. Colours reflect the value of λ. See text for more details.

In the text
thumbnail Fig. 11

rNFW vs. λ for MaxBCG, redMapper, Takey and REFLEX clusters (red dots) and background fields (blue dots). Lines indicate constant psp(FOM) with values of 3 and 15 percent.

In the text
thumbnail Fig. 12

Redshift distribution for detected clusters. The red histogram shows non-duplicate clusters detected with all methods; the blue histogram shows only those detected with SDSS-UKIDSS-AllWISE combination; and the black histogram shows new clusters.

In the text
thumbnail Fig. 13

Redshifts for detected clusters from other catalogues: a) Takey et al. (2013); b) Rykoff et al. (2014); c) Koester et al. (2007); and d)Wen & Han (2011). Colour of points indicate data used by ICF to detect clusters. Shaded region corresponds to 4% error in redshift.

In the text
thumbnail Fig. 14

Redshift determination with SDSS-UKIDSS-AllWISE and with CFHT or ALHAMBRA photo-z data.

In the text

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
