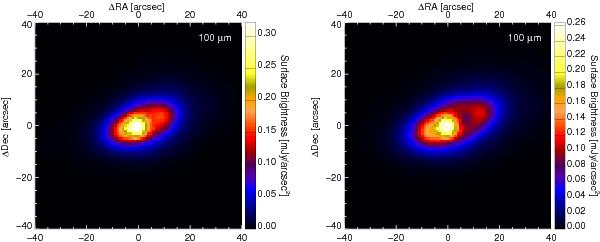

Fig. 12
Synthetic images of Case A (see Table 2) at 100 μm and convolved with the PSF. The parent ring is centred on 100 AU (left) and 130 AU (right), has a width of 5 AU and is seen with an inclination of 65°. The disk total flux is five times the flux measured by Herschel/PACS. The star is at the centre of the image and the flux scale is set to match that of Herschel/PACS image.
