Linking Xray AGN with dark matter halos: a model compatible with AGN luminosity function and largescale clustering properties
^{1} MaxPlanckInstitut für Astrophysik, KarlSchwarzschildStr. 1, 85741 Garching, Germany
email: gert@mpagarching.mpg.de
^{2} Tartu Observatory, 61602 Tõravere, Estonia
^{3} Space Research Institute of Russian Academy of Sciences, Profsoyuznaya 84/32, 117997 Moscow, Russia
Received: 12 April 2013
Accepted: 25 October 2013
Aims. Our goal is to find a minimalistic model that describes the luminosity function and largescale clustering bias of Xrayselected active galactic nuclei in the general framework of the concordance ΛCDM model.
Methods. We assume that a simple populationaveraged scaling relation between the AGN Xray luminosity L_{X} and the host dark matter halo mass M_{h} exists. With such a relation, the AGN Xray luminosity function can be computed from the halo mass function. Using the concordance ΛCDM halo mass function for the latter, we obtain the M_{h} − L_{X} relation required to match the redshiftdependent AGN Xray luminosity function known from Xray observations.
Results. We find that with a simple powerlawscaling M_{h} ∝ L^{Γ(z)}, our model can successfully reproduce the observed Xray luminosity function. Furthermore, we automatically obtain predictions for the largescale AGN clustering amplitudes and their dependence on the luminosity and redshift, which seem to be compatible with AGN clustering measurements. Our model also includes the redshiftdependent AGN duty cycle, which peaks at the redshift z ≃ 1, and its peak value is consistent with unity, suggesting that on average there is no more than one AGN per dark matter halo. For a typical Xrayselected AGN at z ~ 1, our bestfit M_{h} − L_{X} scaling implies low Eddington ratio L_{X}/L_{Edd} ~ 10^{4} − 10^{3} (2–10 keV band, no bolometric correction applied) and correspondingly high massgrowth efolding times, suggesting that typical Xray AGN are dominantly fueled via relatively inefficient “hothalo” accretion mode.
Key words: galaxies: active / Xrays: galaxies / largescale structure of Universe
© ESO, 2013
1. Introduction
That every galaxy of significant size harbors a supermassive black hole (SMBH) (with masses ~10^{6} − 10^{9} M_{⊙}) is probably one of the most remarkable discoveries of modern astrophysics. The growth of SMBHs, as manifested by the active galactic nuclei (AGN), has been observed over a broad range of electromagnetic energies, from radio to hard Xrays and gammarays. The observed AGN Xray emission, believed to stem from the upscattering of softer accretion disk photons via inverse Compton mechanism by the hot electron corona, has proven to be the most effective way of selecting large samples of AGN over large cosmological volumes^{1}. This efficiency comes from the fact that to absorb Xrays one needs significant column densities of absorbing material, which is particularly true in the hard Xray band, where N_{H} ~ 10^{24} cm^{2} is required.
With XMMNewton^{2} and Chandra^{3} Xray observatories, two of the most advanced Xray instruments in existence, more than 20 deep extragalactic Xray surveys have been performed over varying sky areas and limiting sensitivities (Brandt & Hasinger 2005). The most noticeable among these are ~2 Ms Chandra Deep Field North (Alexander et al. 2003) over ≃ 448 arcmin^{2} sky area, ~4 Ms Chandra Deep Field South (Xue et al. 2011) over ≃ 465 arcmin^{2}, and ~3 Ms XMMNewton deep survey covering Chandra Deep Field South (Comastri et al. 2011).
Despite the small sky areas covered by those deep surveys, a relatively large number of detected AGN has allowed reasonably good determination of the AGN luminosity function (LF) and its evolution over cosmic time (Ueda et al. 2003; Hasinger et al. 2005; Aird et al. 2010). Even though these narrow survey geometries are not very suitable for measuring the spatial clustering properties of AGN, somewhat wider and shallower surveys like XBoötes, XMMLSS, AEGIS, and XMMCOSMOS have allowed measuring the twopoint clustering statistics (Murray et al. 2005; Gandhi et al. 2006; Coil et al. 2009; Gilli et al. 2009; Allevato et al. 2011), albeit with relatively large uncertainty on large scales. The largescale clustering measurements are expected to improve significantly with the upcoming SpectrumXGamma/eROSITA^{4}^{5} space mission (Predehl et al. 2010), which is planned to cover entire sky down to the limiting sensitivity of ~10^{14} erg/s/cm^{2} in the 0.5 − 2 keV band (Merloni et al. 2012; Kolodzig et al. 2013b). A good summary of the current status and future prospects for the Xrayselected AGN clustering can be found in Cappelluti et al. (2012); Krumpe et al. (2013).
Even though the evolution of AGN over cosmic time is an interesting subject on its own, the remarkable discoveries of correlations between SMBH masses and host galaxy properties (see, e.g., Kormendy & Richstone 1995; Ferrarese & Ford 2005, for reviews), hinting at the underlying AGNgalaxy coevolution mechanisms, have significantly broadened the importance and actuality of those topics in the astronomical community. Although controversial in terms of observational data (e.g., Ferrarese 2002; Kormendy & Bender 2011), in currently favored cold dark matter (CDM) cosmologies, where the structure grows in a hierarchical fashion starting from the smallest scales (i.e., the bottomup scenario), one may expect that SMBH masses M_{BH} should also correlate with the masses of the host dark matter halos M_{h}. Indeed, this is what one commonly finds in semianalytic AGNgalaxy coevolution models, e.g., Fanidakis et al. (2012). There is a significant scatter in the M_{BH}–M_{h} relation, suggesting that there are other important parameters beyond M_{h} that determine M_{BH}, for example, the merger history of the dark matter halo. However, it is still reasonable to use M_{h} as a single proxy for M_{BH}, linking the latter to the quantities for which we have good theoretical predictions available, such as halo mass function (MF) and clustering bias. The black hole mass alone does not determine the AGN luminosity, since the particular process that fuels the black hole is also important. However, in some circumstances, for example in the “hothalo” fueling model, the latter may lead to a tight correlation between AGN luminosity and the host halo mass.
Future widefield Xray surveys like eROSITA promise to give us very precise AGN clustering bias measurements as a function of redshift and luminosity (Kolodzig et al. 2013a). Since clustering bias provides direct information on how AGN populate dark matter halos, this also helps in determining the dominant Xray AGN fueling mode: “hothalo” vs. “coldgas” accretion. As an example, semianalytic models of Fanidakis et al. (2012) suggest that the hothalo fueling mode has quite strong a dependence between the AGN Xray luminosity and host halo mass, with brighter AGN populating preferably higher mass (and thus more strongly biased) halos. For the cold gas accretion, on the other hand, which is presumably responsible for most of the quasar activity, the host halo mass and AGN luminosity are only weakly dependent, with most of the activity occurring in somewhat lower mass halos.
Studies combining the AGN LF and their clustering strength have been carried out by several authors using mostly optically selected quasars (QSOs), such as Martini & Weinberg (2001); Haiman & Hui (2001); Wyithe & Loeb (2005); Lidz et al. (2006); Wyithe & Loeb (2009); Bonoli et al. (2010); Shankar et al. (2010b); Shankar et al. (2010a); Conroy & White (2013). The major differences between Xray selected AGN and optically selected QSOs is that QSOs represent the brightest and the rarest end of the AGN population, while the Xrayselected AGN, as detected in the deep Xray surveys, are much more numerous and thus more typical examples of AGN. The other important difference is that despite QSOs being much rarer, their clustering strength is somewhat lower than the clustering amplitudes typically obtained for the Xray selected AGN: QSO clustering is compatible with being practically independent of luminosity and having a similar strength as the dark matter halos with masses ~ 10^{12} h^{1} M_{⊙}, while the clustering bias of Xray selected AGN suggests that they populate groupsized halos with typical masses of ~10^{13} h^{1} M_{⊙}. Furthermore, the QSO activity is compatible with being driven by mergers of lower mass dark matter halos with plenty of available cold gas or by the accretion disk instabilities.
There is evidence that AGN clustering strength might scale with Xray luminosity (Krumpe et al. 2012; Koutoulidis et al. 2012). The same trend is also seen in semianalytical galaxy–AGN coevolution models of Fanidakis et al. (2012), where in the “hothalo” AGN fueling mode they find quite a tight correlation between dark matter halo mass (and thus clustering bias) and AGN luminosity. It should be mentioned, however, that other authors analyzing similar samples of Xray detected AGN, such as Coil et al. (2009) and Mountrichas et al. (2013), find no evidence of such luminosity dependence of AGN clustering. This is not surprising given the rather poor accuracy of clustering measurements in the Xray band. Indeed, currently available samples of Xrayselected AGN typically contain between a few hundred and a few thousand objects.
Motivated by these ideas, we assume that a relation exists between the dark matter halo mass and the AGN Xray luminosity it harbors, and therefore, the Xray luminosity function of AGN can be computed from the mass function of dark matter halos. In comparison to the QSO samples with typical sizes of ~100 000 objects, the currently available Xrayselected samples are about two orders of magnitude smaller, which which suggests that these models should be kept from being too complex. Thus, we initially assume that the M_{h} − L_{X} scaling is given by a simple deterministic relation. The search for the functional form of this relation that is consistent with the concordance ΛCDM halo mass function and the observed Xray AGN LF is presented in Sect. 2. It turns out that this way we indeed obtain an acceptable fit to the Xray AGN LF and, as a bonus, automatically obtain a prediction about Xray AGN clustering properties, which seems to agree with available observational data. This and other consequences of our simple model are discussed in Sect. 3. In Sect. 4 we investigate how an increased level of the model complexity influences our previous results. In particular, we extend our model by allowing a scatter in the M_{h} − L_{X} scaling relation and luminosity dependence of the AGN duty cycle. We bring our conclusions in Sect. 5.
Throughout this paper we assume a flat ΛCDM cosmology with Ω_{m} = 0.27, Ω_{b} = 0.045, h = 0.70, and σ_{8} = 0.80.
2. Mapping halo MF to Xray AGN LF
In the recent semianalytic galaxy–AGN coevolution model of Fanidakis et al. (2012), the authors consider two main AGN fueling modes: “hothalo” and “starburst” mode. Some of the results produced by these models, which were presented in Koutoulidis et al. (2012), are plotted in Fig. 5. Here the darkshaded stripe represents the “hothalo” mode, while the lightshaded region corresponds to for the sum of “starburst” and “hothalo” modes. The starburst mode, where the SMBH fueling is induced by mergers or disk instabilities and where there is a lot of cold gas available, is arguably the one responsible for the QSO activity. On the other hand, once SMBH gets incorporated into group or clustersized dark matter halo, which is filled with hot low density gas, the AGN fueling takes on a different character. In this case, in addition to metallicity, the gas cooling rate is largely dictated by the gas density and temperature, which under the assumption of hydrostatic equilibrium are directly related to the host dark matter halo mass. The gas cooling must in practice be moderated by the feedback effects from the SMBH. Thus, in the “hothalo” fueling mode the mass of the host halo plays an important role in determining the amount of available fuel and its accretion rate, leading to the existence of a rather tight relation between the host dark matter halo mass and AGN luminosity, as illustrated by Fig. 5.
Motivated by these considerations, we start by assuming that there is a following simple scaling relation between the halo mass and AGN Xray luminosity (1)where we take L_{0} = 10^{41} erg/s. Having the above scaling relation, we can immediately write for the AGN Xray LF: (2)where dn/dM_{h} is the concordance ΛCDM model halo MF and f_{duty} the “duty cycle”, in our case defined as a fraction of halos that contain AGN in its active state. For the halo MF we use the analytic form given by Sheth & Tormen (1999) and the hard band (2 − 10 keV) measurements from Aird et al. (2010) for the Xray AGN LF. The Aird et al. (2010) LF data points in nine redshift bins are shown in Fig. 3. We assume, somewhat simplistically, that LF measurements in all luminosity bins are statistically independent with the errors following Gaussian distribution; i.e., the likelihood function gets factorized and has a simple analytic form. To sample the parametric likelihood function we used Markov chain Monte Carlo (MCMC) methods, in particular the MetropolisHastings algorithm (Metropolis et al. 1953; Hastings 1970). For finding the maximum likelihood point in parameter space we used the downhill simplex method as described in Press et al. (1992).
Fig. 1 Best fitting duty cycle values f_{duty}(z_{i}) (upper panel) and power law indices Γ(z_{i}) from Eq. (1) (lower panel) in nine redshift bins, shown with red crosses. In the upper panel the power law index is assumed to be in parametric form Γ(z) = c_{4} + c_{5}z while the amplitude factors in each redshift bins are assumed to be free parameters, i.e., including M_{0} the fitting problem has 12 free parameters in total. With solid black line we show the best fitting three parameter analytic function with the detailed form as specified in the legend. In the lower panel f_{duty}(z) is fixed to the above analytic form while the power law indices in each redshift bin Γ(z_{i}) are allowed to vary freely, i.e., this time we have 13 free parameters. Solid black and gray lines show linear and quadratic polynomial approximations to best fitting Γ(z_{i}). The dotted lines and gray shaded regions represent best fit values along with 1σ intervals in case all Γ(z_{i}) and f_{duty}(z_{i}) are all allowed to be free (19 free parameters).

Open with DEXTER
Fig. 2 Marginalized 2D error ellipses representing 1σ and 2σ confidence levels along with 1D marginalized probability distributions (top panels in each of the columns) for all the free parameters of unconstrained Model II. The black dots and red crosses show the maximum likelihood points for unconstrained and constrained (i.e., f_{duty} ≤ 1) Model II, respectively.

Open with DEXTER
Best fitting parameter values for Models I and II. Both constrained and unconstrained cases.
To gain an idea of the acceptable analytical form for Γ(z) and f_{duty}(z), we initially allow these quantities to have free values in all of the redshift bins: Γ(z_{i}), f_{duty}(z_{i}), i = 1...9. Thus, including M_{0} we have 19 free parameters in total. Figure 1 shows best fit values along with 1σ regions for Γ(z_{i}) and f_{duty}(z_{i}) obtained from out MCMC calculations. We see that Γ(z_{i}) are quite well fitted by a simple linear form.
As a next step, we fix Γ(z) to have a linear redshift dependence Γ(z) = c_{4} + c_{5}z and allow f_{duty}(z_{i}) to remain free parameters, so our free parameters are M_{0}, c_{4}, c_{5}, f_{duty}(z_{i}) (i = 1...9), i.e. 12 in total. The best fit values for f_{duty}(z_{i}) are shown with red crosses in the upper panel of Fig. 1. It turns out that these points can be approximated reasonably well with the analytic form, (3)i.e., a Lorentzian profile multiplied by z and a constant offset c_{3} added^{6}.
To check for the selfconsistency of the above analytic description we now fix f_{duty}(z) to have form as given in Eq. (3), but allow the power law indices in all nine redshift bins to be free parameters, i.e., in this case we have 13 free parameters: M_{0}, c_{1}, c_{2}, c_{3}, Γ(z_{i}) (i = 1...9). The best fit values for Γ(z_{i}) are plotted as red crosses in the lower panel of Fig. 1, where with solid lines we also show the best linear and quadratic approximations. Even though the linear approximation for Γ(z) seems to capture the redshift dependence of the power law index quite well, the quadratic form with its one extra parameter, as it turns out, is statistically well justified.
Fig. 3 Best fitting Xray AGN LFs in nine redshift bins along with observational data from Aird et al. (2010). In addition to our constrained Model II fits we also show the best fitting PLE, LADE, and LDDE models with the corresponding analytic forms taken from Aird et al. (2010).

Open with DEXTER
Thus, our analytic MFtoLF mapping is given by Eqs. (2), (1), and (3). In the following we call the models with linear and quadratic approximation for Γ(z) Model I and Model II, respectively. We considered models with f_{duty} constrained by the condition f_{duty} ≤ 1, as well as unconstrained models, with f_{duty} allowed to take any positive values. Obviously, constrained models correspond to the case when there is at most one AGN per dark matter halo which is turned on with a probability given by f_{duty}, whereas in the unconstrained models an arbitrary number of AGN per dark matter halo is allowed. It is interesting that in unconstrained models, f_{duty} does not reach values much above unity, as illustrated by the shaded region in the upper panel of Fig. 1.
Overall performance of various fitting forms.
In Table 1 we show the best fitting values for all the parameters of Models I and II, with and without an additional constraint on f_{duty}. The calculated χ^{2} values along with expectations are given in Table 2, where we also show results for empirical models used to describe observed Xray LFs, namely pure luminosity evolution (PLE), luminosity and density evolution (LADE), and luminositydependent density evolution (LDDE) models, with their analytic forms taken from Aird et al. (2010). To perform a fair comparison between different analytic fitting forms, we have recalculated the best fit models for the latter using the same fitting machinery as for our models. It can be seen that, except for PLE, all of those models provide statistically valid descriptions of the observational data. Even though our MFtoLF mapping does not provide as good a fit as LADE or LDDE models, it is quite remarkable that this more physically motivated model indeed seems to work. As a bonus, once MFtoLF mapping is fixed, our models make several other predictions, which are discussed in the next section.
To illustrate resulting parameter uncertainties, we show in Fig. 2 1σ and 2σ marginalized error regions along with 1D probability distribution functions for all the seven parameters of unconstrained Model II. The black dots and red crosses mark the maximum likelihood points for unconstrained and constrained (i.e., f_{duty} ≤ 1) cases, respectively. We see that all the model parameters seem to be sufficiently well determined. The strongest degeneracy is seen between parameters c_{5} and c_{6}, which might leave some doubts about the usefulness of the quadratic term in Γ(z). However, as seen from the results shown in Table 2, the need for parameter c_{6} is statistically justified, at a confidence level corresponding to ~2.5σ.
In Fig. 3 we plot the LFs in nine redshift bins for the best fitting PLE, LADE, LDDE models, and for our constrained Model II. Original data points with error bars, as determined by Aird et al. (2010), are also shown. Our model slightly but systematically overshoots the highest luminosity data point at high redshifts. This is discussed in more detail in the following section.
Fig. 4 Upper panel: comoving Xray AGN number densities as a function of redshift for three 2 − 10 keV band luminosity ranges as shown in the legend. The luminosity is increasing from top to bottom. Along with our constrained Model II we have also plotted the results arising from the LF models of Ueda et al. (2003) and Aird et al. (2010). Lower panel: comparison of bias parameters from the constrained Model II with the observational data from Allevato et al. (2011). The four lines assume different effective photon indices (Γ = 1.4,1.6,1.8,2.0) for the approximate transformation between soft and hard Xray bands.

Open with DEXTER
3. Implications and shortcomings of the model
In this section we investigate some of the consequences of the MFtoLF mapping models presented above.
3.1. Comoving AGN density
We start by investigating the comoving number density of hardband selected Xray AGN and its dependence on redshift. In the upper panel of Fig. 4 we have plotted comoving number density for three Xray luminosity intervals as specified in the legend. Here the highest (lowest) group of curves correspond to the lowest (highest) luminosities. Along with constrained Model II results, for comparison we have also plotted number densities resulting from Ueda et al. (2003) and Aird et al. (2010) LF fits. In the case of Ueda et al. (2003) we directly use their best fit LF parameters, whereas for the Aird et al. (2010) LDDE model, we used best fit parameters obtained in the previous section. The comparison of our results with Aird et al. (2010) LDDE parameterization should give some idea about the possible level of uncertainty in the soobtained n(z), since both of the models give statistically valid fits to LF data.
This type of figure is often used to illustrate the antihierarchical growth of SMBHs (as manifested by the AGN activity) where the peak in number density moves toward lower redshifts as one considers intrinsically less luminous AGN. However, at least in the case of Aird et al. (2010) LF data, the conclusion about the behavior of the maximum in n(z) curve may depend on the particular choice of the functional form used to fit the Xray LF data. Indeed, in our LF model, the n(z) maxima for the lowest luminosity bins stay almost at the same position, while for the highest luminosity bin we see gradual movement toward higher redshifts. This does not seem to be entirely incompatible with the pattern of the original LF data points in Fig. 10 in Aird et al. (2010). Furthermore, in our model the rate of change of n(z) has quite a strong dependence on luminosity, with the lowest luminosity AGN having the fastest rise in number density going from high redshifts down to z ~ 1, the AGN in the intermediate luminosity bin having only very mild increase and the highest luminosity bin showing a mild drop in the volume density with the redshift. The latter is related to the model behavior at high luminosity and redshift, discussed below.
3.2. A possible shortcoming of the model
A careful examination of Fig. 3 reveals that our model overpredicts the numbers of most luminous objects at high redshift (see the three lower panels in Fig. 3). This may point at the shortcoming of the model. Such a shortcoming could be caused by several reasons. One possible cause is the lack of proper treatment of the Eddington luminosity limit. The Eddington ratio analysis later on in this section suggests that this factor may become important in the halo mass range log M_{h} ≳ 13.5 − 14.5 at the redshift z ≳ 2 − 3. On the other hand, it may also be an indication of the shortcoming of the underlying halo mass function, somewhat overpredicting the abundance of massive halos at high redshifts.
Another possible reason may be a failure of the simple powerlaw scaling between the luminosity and halo mass, Eq. (1), at high halo masses and redshifts. Indeed, due to obvious considerations of time available for the black hole growth, the most massive halos at high redshifts may harbor somewhat less massive black holes than implied by Eq. (1). The parameters of the halo mass–luminosity scaling were determined from the global LF fit that is determined by the bulk of the LF data points and is not very sensitive to the data at the extremities because the contribution of high luminosity points to χ^{2} is relatively small, owing to their small number and also to their relatively larger uncertainties.
Despite this shortcoming, however, the model provides a statistically valid overall description of the Xray LF data (Table 2). Its (possible) failure at the high luminosity end only affects very few of the most massive halos at high redshifts and does not diminish the overall predictive power of the model for the bulk of typical AGN, as discussed in the following sections.
3.3. AGN clustering
Since our model has a fixed scaling relation between the halo mass and AGN Xray luminosity, it can straightforwardly predict the AGN clustering strength.Indeed, the AGN clustering bias can be computed as (4)where the dark matter clustering bias is taken from the analytical model of Sheth et al. (2001), and the L_{X} integration bounds are appropriately adjusted to take the details of how the Xray AGN sample was selected into account. In particular, for a fluxlimited sample , where D_{L}(z) is the luminosity distance to redshift z.
In the lower panel of Fig. 4 we compare the thuscomputed clustering bias as a function of redshift with the AGN clustering data from Allevato et al. (2011). Allevato et al. (2011) used soft band Xray data from COSMOS field, which covers 2.13 deg^{2} and contains a total of 780 AGN with available redshifts, its spectroscopic completeness being ~53%. In their analysis Allevato et al. (2011) applied a magnitude cut I_{AB} < 23 and redshift cut z < 4, resulting in 593 objects in their final sample, with effective spectroscopic completeness of ~65%.
Since the clustering bias in our model depends on AGN luminosity, with more luminous AGN having higher bias parameters, we have to adjust the effective flux limit appropriately in order to make a fair comparison. Since the selection of Allevato et al. (2011) sample was done in the soft band, we transformed their flux limit to the corresponding limit in the hard band. We do this in a simple way by assuming an effective populationaveraged spectral index Γ^{7}. The results for four different values of Γ are shown in the lower panel of Fig. 4. Because in the hard band one starts to see more and more sources that are obscured in the soft band, the effective spectral index around ~1.6 appears to be the most appropriate one. Considering this, we see that except for the highest redshift bin, our predictions for the bias parameter agree reasonably well with the measurements. The highest redshift bin is represented by one point only, and it remains to be seen how significant the deviation is. One has to keep in mind that the measurement of the linear bias parameter, and especially the proper estimation of the errors due to cosmic variance (e.g., accidental superclusters in small fields could significantly influence the results) from the fields as small as ~2 deg^{2}, may be quite a cumbersome task.
Fig. 5 Comparison of the M_{h} − L_{X} scaling relation with the observational data from Koutoulidis et al. (2012). To capture the redshift range of majority of AGN used in this analysis, we have plotted the model scaling relations for three redshifts: z = 0.5,1.0,1.5. The dotted lines with surrounding gray bands display the results from the semianalytic galaxy–AGN coevolution model of Fanidakis et al. (2012), as presented in Koutoulidis et al. (2012), showing their “hothalo” (dark gray region) and “all AGN” case, i.e., the sum of “hothalo” and “starburst” modes (light gray region). The longdashed line shows the M_{h} − L_{X} scaling one obtains once converting the amplitudeadjusted M_{h} − M_{BH} relation of Bandara et al. (2009) by using the fixed Eddington ratio f_{Edd} ≡ L_{X}/L_{Edd}(M_{BH}) = 3 × 10^{4}.

Open with DEXTER
3.4. AGN duty cycle
In both constrained and unconstrained models, the AGN duty cycle (Eq. (2)) peaks at the redshift z ≃ 1 (Fig. 1). Although unconstrained models (when the duty cycle was allowed to take any positive value) result in a somewhat better description of the observed Xray LF data, it is interesting that the peak value of the duty cycle in these models is nevertheless close to unity, with the upper limit of f_{duty} ≲ 1.5 (1σ confidence). This implies that on average there is at most ~one AGN per dark matter halo.
The value for the duty cycle close to unity is a consequence of the fact that at the redshift z ~ 1, the volume density of Xray AGN is comparable to the volume density of the dark matter halos. Indeed, a powerlaw M_{h} − L_{X} scaling relation does not introduce any new scale, therefore the only way to obtain agreement with the observed LF is by matching the MF characteristic mass M_{∗} with a characteristic AGN Xray luminosity L_{∗}. In this MF to LF mapping, the role of the f_{duty} is to tally their volume densities. As it turns out, the comoving number densities of M_{∗} (see Appendix A) and L_{∗} objects are comparable at z ~ 1: ; i.e., there is approximately as many dark matter halos as AGN. Correspondingly, f_{duty} ~ 1. The duty cycle drops to f_{duty} ~ 0.2 at the redshift z = 0 (Fig. 1), a manifestation of the well known paucity of AGN in the local Universe. It is interesting to note that the duty cycle at z = 0 is not as low as predicted by the simple continuity equation models with a fixed Eddington ratio, but is closer to the ones in which the median of the Eddington ratio distribution decreases with redshift.
Fig. 6 Upper panel: average L_{X} − M_{h} relations (Eq. (1)) along with 1σ uncertainties for five different redshifts as given in the legend. Middle panel: amplitudeadjusted M_{BH} − M_{h} scaling relation with 1σ uncertainty from Bandara et al. (2009). Lower panel: Eddington ratios in 2 − 10 keV band for five redshifts arising from L_{X} − M_{h} and M_{BH} − M_{h} relations given in the upper two panels.

Open with DEXTER
3.5. M_{h}–L_{X} scaling relation
As emphasized above, the crucial component in our model is the assumption about the existence of a scaling relation between the halo mass and AGN Xray luminosity. Koutoulidis et al. (2012) have recently attempted to infer this type of scaling by using AGN clustering data from several deep Xray fields: Chandra Deep Field South and North, the AEGIS, the extended Chandra Deep Field South, and the COSMOS field. In Fig. 5 we show their measurements with error bars along with our constrained Model II predictions for redshifts 0.5, 1.0, and 1.5, i.e. approximately covering the redshift range of AGN used in their analysis. The dotted lines with surrounding gray bands display the results from the semianalytic galaxy–AGN coevolution model of Fanidakis et al. (2012) (as presented in Fig. 9 of Koutoulidis et al. 2012), showing their “hothalo” (dark grey region) and “all AGN” case, i.e., the sum of “hothalo” and “starburst” modes (light gray region). Although the uncertainties are rather large, we see that our model is able to capture the major trend where the more luminous AGN tend to populate more massive halos. The quantitative agreement between our M_{h} − L_{X} relation and results of Koutoulidis et al. (2012) is truly remarkable since they are based on totally independent arguments.
The longdashed line in Fig. 5 shows the M_{h} − L_{X} scaling one obtains when converting the M_{h}–M_{BH} relation of Bandara et al. (2009) by assuming a constant Eddington ratio f_{Edd} ≡ L_{X}/L_{Edd}(M_{BH}) of 3 × 10^{4}. In reality, because the Bandara et al. (2009)M_{BH}–M_{h} scaling relation used strong lensing masses derived from the SLACS lens sample with mean redshift z ≃ 0.2, we have adjusted the amplitude of the scaling relation to the redshift z ~ 1, using results from Croton (2009) semianalytic models. In Bandara et al. (2009) the authors obtain with γ = 1.55 ± 0.31, which agrees quite well with the analytic and semianalytic models of Wyithe & Loeb (2003) and Croton (2009), which in turn provide values γ = 5/3 ≃ 1.67 and 1.39, respectively. In Croton (2009) and Wyithe & Loeb (2003) models the amplitude of the scaling relation increases by factors of ~2 and ~4, respectively, while going from z = 0 to z = 1. However, the power law index γ is independent of redshift in both models.
3.6. AGN Black hole masses, Eddington ratios, and the growth of SMBHs
By assuming the M_{BH}–M_{h} scaling of Bandara et al. (2009) with amplitude adjusted according to Croton (2009) semianalytic model, we can convert our L_{X}–M_{h} relation to f_{Edd}–M_{h} scaling relation. This is detailed in Fig. 6 where we have plotted various scalings for five different redshifts. The upper panel gives our results for L_{X}–M_{h} with 1σ uncertainties as determined in Sect. 2 for the constrained Model II. The middle panel shows the amplitudeadjusted Bandara et al. (2009)M_{BH}–M_{h} relation with 1σ uncertainties. In the lower panel we show the Eddington ratios as determined by combining the results from the two uppermost panels. The Xray luminosities and Eddington ratios refer to the 2–10 keV band and no bolometric corrections were applied. For a typical Type I AGN spectrum, the bolometric correction factor should be in the ~5−20 range (Lusso et al. 2012).
As we can see, the Eddington ratios for high redshift (z ≳ 2) AGN are predicted to be steeply rising functions of halo mass, while at redshifts z ~ 1, i.e. close to the peak in Xray AGN number density, the dependence of f_{Edd} on M_{h} flattens out, and at lower redshifts the trend is mildly reversed; i.e., the AGN in less massive halos have somewhat higher Eddington ratios. For z ~ 3, the 2–10 keV band f_{Edd} reaches values of ~0.1 for halo masses ~2 × 10^{13} M_{⊙}; i.e. the bolometric Eddington ratio will approach ~1 at this mass. At higher masses, our M_{h} − L_{X} scaling relation would imply f_{Edd} ≳ 1. Obviously, this is because our simple M_{h} − L_{X} scaling relation does not impose the Eddington luminosity limit. This may be considered as one of the shortcomings of the model, as discussed in Sect. 3.2. One has to note, however, that this does not affect the overall performance of the model, in the major part of the parameter space. Indeed, such massive halos at redshifts z ~ 3 are extremely rare, corresponding to ~4−5σ peaks in the initial fluctuation field. The bulk of the objects are shining at much lower Eddington ratios, ≪1.
Having specified M_{BH}–M_{h} scaling relation, we can also calculate how SMBHs with different masses grow throughout the cosmic time. Taking the duty cycle into account, the populationaveraged efolding time of the SMBH growth is (5)where η is the accretion efficiency, defined as (6)L_{X} refers to the Xray luminosity in the 2–10 keV band used throughout this paper, and f_{bol} ~ 5−20 is the bolometric correction factor for the 2–10 keV band. The efolding time can be expressed further though the Eddington ratio: (7)In the lower panel of Fig. 7 we plot the efolding time in units of the Hubble time, i.e. τH(z), vs redshift for several values of the black hole mass. Shown in the upper panel is the evolution of the population average 2 − 10 keV band Xray luminosity with redshift. AGN harboring black holes with masses less than a ~few× 10^{8} M_{⊙} are too faint at high redshifts and fall outside the luminosity range of the Xray LF data of Aird et al. (2010) used in this study. Therefore they are not directly constrained by the Xray data. At these redshifts we only show with dotted lines the extrapolations of the central model curves and omit the 1σ uncertainty regions.
Fig. 7 The hard band Xray luminosities (upper panel) and SMBH efolding times in units of the Hubble time (lower panel) for various black hole masses as shown in the legend. For the low mass SMBHs at higher redshifts, where they are too faint to be constrained by the observational data, we have shown the extrapolations of the model curves with dotted lines and have omitted the corresponding 1σ uncertainty bands.

Open with DEXTER
We see that the Xray luminosity of more massive SMBHs declines faster with the redshift than for less massive ones. For ~10^{8} M_{⊙} black holes, L_{X} stays almost constant, while for even lower mass SMBHs, the evolutionary trend is slightly reversed; i.e., the objects are getting somewhat brighter as one moves toward lower redshifts. As one might have expected from the results plotted in the bottom panel of Fig. 6, for the typical Xrayselected AGN, the corresponding SMBH efolding times are long in comparison to the Hubble time. With the exception of most massive SMBHs at high redshifts, the typical Xrayselected AGN are not in the rapid mass growth regime in the z ~ 0−3 redshift range.
The crossing of the model curves in the lower panel of Fig. 7 at the redshift of z ~ 0.85 is artificial and does not seem to have any physical meaning. It is driven by the equality of the power law indices of the M_{BH} − M_{h} and M_{h} − L_{X} scaling relations, which leads to the τH being independent of M_{BH} at that particular z.
Thus, with the particular form of the M_{BH}M_{h} scaling relation from Bandara et al. (2009) with amplitude evolution from Croton (2009), our model implies relatively low Eddington ratios, f_{Edd} ~ 10^{4}−10^{3}. In the redshift range z ~ 0−3, for a typical Xrayselected AGN, accretion proceeds in the “hothalo mode” characterized by a relatively low mass accretion rate and long efolding time for SMBH mass growth. Obviously, this conclusion critically depends on the assumed M_{BH} − M_{h} scaling relation. Indeed, as Xray luminosity for the given halo mass is directly determined by our model from the L_{X} − M_{h} mapping, the Eddington ratio scales inversely with the black hole mass, while efolding time is linearly proportional to the black hole mass.
Fig. 8 Analog of Fig. 2 with one additional parameter, c_{8} ≡ σ, describing the scatter in the lognormal distribution.

Open with DEXTER
4. Extensions of the model
The minimalistic model considered in the previous sections has two major simplifications: a deterministic M_{h} − L_{X} relation and a luminosityindependent duty cycle. In this section we lift these assumptions and explore a class of more sophisticated models.

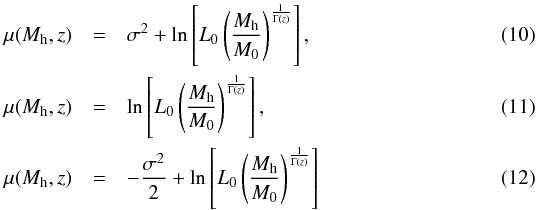

We start with introducing scatter in the M_{h} − L_{X} relation. We assume that scatter can be described by the lognormal probability distribution^{8}: (8)whose width σ is assumed to be independent of M_{h} and z. Eq. (2) for the luminosity function is now replaced by (9)There are several obvious possibilities for μ(M_{h},z), depending on whether one chose the (i) mode; (ii) median; or (iii) mean of the lognormal probability distribution function to obey our previous deterministic M_{h} − L_{X} relation defined by Eq. (1). This gives for the mode, median, and mean, respectively. Since this analysis is largely inspired by comparison with observations, which pick up the most probable objects, it is natural to choose the mode of the distribution, Eq. (10).
Best fitting parameter values and χ^{2} values for various models, discussed in detail in the main text.
Fig. 9 Analog of Fig. 2 with two additional parameters, c_{8} ≡ σ and c_{9} ≡ α, representing the scatter parameter in the lognormal distribution and the power law index for the L_{X}dependent f_{duty}, respectively. For comparison the contours from Fig. 8 are shown with dashed lines.

Open with DEXTER
It is easy to see that in case of small scatter, all the above descriptions are equivalent, and in the limit σ → 0 and we recover the deterministic relation given in Eq. (1).
To calculate the AGN clustering bias, Eq. (4) now generalizes to (13)Similar to Eq. (4), the integration limits for L_{X} have to be adjusted appropriately, taking the ways AGN sample was selected into account.
In Fig. 8, which is the analog of the previous Fig. 2, we show the results of introducing scatter in the M_{h} − L_{X} mapping. The scatter is parametrized via a single parameter – the width of the lognormal distribution σ ≡ c_{8}. All other conventions are exactly the same as in Fig. 2. The best fitting values for all the parameters are given in the first row of Table 3 for the case of unconstrained f_{duty}. As is obvious from Fig. 8 and Table 3, no scatter is required by the Xray LF data, since the bestfit value of σ is close to zero. Correspondingly, the χ^{2} and the best fit values of other parameters are nearly identical to the ones obtained in the deterministic case (cf. Table 1). By comparing with the results shown in Fig. 2, it is interesting to note that after allowing for the scatter in the M_{h} − L_{X} relation, no new strong parameter degeneracies appear and all parameters are as well determined as before.
It is also clear from Fig. 8 (bottom row) that moderate scatter, up to σ ~ 0.5 is still consistent with the LF data, within ~1σ confidence. To investigate models with even greater scatter, we also performed two MCMC runs where the scatter was fixed to 0.25 and 0.50 dex (i.e., σ = 0.25ln10 and σ = 0.50ln10, respectively). The best parameter values for the case of unconstrained f_{duty} for these two runs are shown in the second and third rows in Table 3. It turns out that the data and model are able to comfortably accommodate M_{h} − L_{X} scatter up to ~0.50 dex.
We now investigate the effect of the luminosity dependence of the duty cycle. One possibility of such dependence was suggested by observations (Bundy et al. 2008), as well as by semiempirical models (Merloni & Heinz 2008; Shankar et al. 2013). We consider L_{X}dependence in the power law form: (14)where f_{duty}(z) is given by Eq. (3) and is fixed at erg/s. As before, we consider the case of unconstrained f_{duty}.
Results of these calculations are presented in the last two rows of Table 3, for cases without and with scatter in the M_{h} − L_{X} relation. The confidence contours for the model parameters are shown in Fig. 9, where for comparison we have also plotted our contours from Fig. 8. Introduction of the L_{X} −dependence of the duty cycle dramatically improves the quality of the fit with the χ^{2} reducing by more than ~30−40%. Including the scatter in the M_{h} − L_{X} relation does not lead to significant further improvement, although statistically it is justified at the ~1.5−2σ level. Even though the best fit value of the scatter σ is quite high (~0.6 dex), its 2σ contour includes the null value.
Contrary to what one might have guessed, the best fitting values for α turn out to be positive, i.e., f_{duty} grows with L_{X}^{9}. It is interesting to note that the L_{X}independent part of the duty cycle describing its redshift dependence, f_{duty}(z), (Eq. (3)), is sufficiently robust and insensitive to the details of the model; it is nearly identical in shape and normalization to the f_{duty}(z) in our default model in previous sections. In particular, it is insensitive to the choice of , with changes in mostly absorbed by corresponding changes in other parameters, mostly by the Γ(z) in Eq. (1). Changes in the latter lead to modifying the M_{h} − L_{X} relation, such that the characteristic halo mass M_{∗} is no longer mapped into the characteristic luminosity L_{∗}. For this reason, the overall duty cycle f_{duty}(L_{X},z) can now take values over unity, for example, f_{duty}(L_{X} = 10^{46},z = 1) ~ 6. This should be interpreted as meaning that high mass halos may contain several SMBHs that are in the active state. The robustness and potential implications of this result still need to be explored.
The statements of the previous section regarding the low Eddington ratios of Xrayselected AGN and long mass growth times hold for the extended models, as shown in Fig. 10. Here the solid lines and the shaded areas show distribution medians and regions between 16% and 84% quantiles, respectively. The strong level of asymmetry in these probability distributions can be seen clearly by looking at the dotted lines, which represent the distribution modes.
Fig. 10 Analog of Fig. 6 for the last model in Table 3, i.e., for the model with L_{X}dependent f_{duty} and with scatter in M_{h} − L_{X} scaling relation. The solid lines surrounded by the shaded areas show distribution medians along with regions between 16% and 84% quantiles, respectively. Dotted lines represent modes of the distributions.

Open with DEXTER
The shift of the M_{h} − L_{X} mapping toward higher halo masses in the models with luminositydependent f_{duty}(L_{X},z), leads to an increase in its predictions for the clustering bias at z ≳ 2. This places the new models in somewhat better agreement with the observational data, as demonstrated in Fig. 11. The figure compares predictions of the extended models with our default model and with results of clustering bias measurements. The lowest stripe shows the results from Fig. 4, while the middle and upper ones correspond to the models with luminositydependent f_{duty}(L_{X},z), discussed in this section. While at lower redshifts, z ≲ 1.5 − 2, the behavior of different models is nearly identical and equally consistent with the data. At z ≳ 1.5 they start to diverge, with the extended models in better agreement with the highest redshift data point. This suggests a possible way to distinguish between different models, using the clustering bias measurements at redshifts z ≳ 2.
Comparing the χ^{2} values shown in Tables 2 and 3, we note that models with a luminositydependent duty cycle give a better fit to the hard band Xray AGN LF than do the specifically tailored and commonly used mathematical forms like LADE or LDDE. Therefore these models can be used as an easily calculable analytic representation of the LF. To assist in computing the luminosity function, in Appendixes A and B we give a detailed description of the algorithm and provide easytouse approximation formulae.
Fig. 11 Clustering strength as a function of redshift for different models, as shown in legend and discussed in detail in the main text. The filled stripes cover the range of photon indices Γ = 1.4 − 2.0.

Open with DEXTER
5. Conclusions
Even though dark matter halos are highly nonlinear objects, with the aid of cosmological Nbody simulations along with heuristic analytic models, we now have good knowledge about their redshift dependent MF and clustering bias. In CDM type cosmologies, where structures form from the bottom up, one may expect that the buildup of more massive objects has also been accompanied by the formation of more massive SMBH in their centers. This should also be manifested on average by more luminous AGN. Although there certainly are other key parameters beyond the halo mass, which influence the central SMBH mass, one may expect that M_{h} is one of the main contributors.
In this paper, we assumed that a scaling relation between Xray AGN luminosity and its host halo mass does exist. Assuming further that the dark matter halo mass function is described by the concordance ΛCDM model, we can predict Xray AGN luminosity function. Comparing the latter with the redshiftdependent AGN Xray luminosity function known from observations we can determine the shape and parameters of the M_{h} − L_{X} scaling relation.
Our main conclusions are the following:

We have shown that a simple scaling relation in the form of Eq. (1), where Γ(z) is a linear or quadratic polynomial, allows one to obtain Xray AGN LFs consistent with observational data. The best fitting model parameters along with χ^{2} values are summarized in Tables 1 and 2.

Since the M_{h} − L_{X} scaling establishes a link to the halo MF, our model is certainly more predictive than the usual multiparameter fitting forms tailored to fit the Xray LF data. In particular, our model predicts the redshift and luminosity dependence of the Xray AGN clustering bias, which agrees reasonably with observational data.
Fig. A.1 Comparison of the LF fit from Appendix B with the “new model” and LDDE model of Fig. 3. In addition, with dotted lines we have shown the model with the lowest χ^{2} value obtained throughout this paper, i.e., the model with scatter in M_{h} − L_{X} scaling relation along with L_{X}dependent duty cycle (the last entry of Table 3).
Open with DEXTER
The obtained M_{h}–L_{X} scaling relation is in good agreement with the data presented in Koutoulidis et al. (2012) and with semianalytic galaxy–AGN coevolution models of Fanidakis et al. (2012). Comparison with semianalytical models suggests that for Xray AGN, the dominant accretion mode is the “hothalo mode”, in contrast to the “starburst mode” which is compatible with being a dominant accretion mode for somewhat less clustered but more energetic quasars.

The AGN duty cycle peaks at the redshift z ≃ 1, and its value at the peak is consistent with unity, implying that there is at most one AGN per dark matter halo. The value for the duty cycle close to unity is a consequence of the fact that at the redshift z ~ 1, the volume density of Xray AGN is comparable to the volume density of the dark matter halos: .

We further combined our M_{h}L_{X} relation with the M_{h}–M_{BH} relation from Bandara et al. (2009), along with its redshift evolution taken from Croton (2009), and obtained Eddington ratios f_{Edd} ≡ L_{X}/L_{Edd} ~ 10^{4} − 10^{3} (2–10 keV band, no bolometric correction applied). This result presents another evidence that at the redshifts below z ≲ 3, SMBHs in Xray selected AGN typically grow through “hothalo” accretion mode characterized by low mass accretion rate and a long efolding time. It is also consistent with the fact that according to their clustering strengths, Xray selected AGN populate groupsized dark matter halos and thus are typically embedded in halos of hot low density gas.

We also investigated a class of extended models that include a scatter in the M_{h}–L_{X} scaling relation and a luminositydependent f_{duty}. While the scatter alone is not required by the Xray LF data, including the luminosity dependence of the duty cycle leads to significant improvement of the fit quality. In the new models, the statements regarding the low Eddington ratios of Xrayselected AGN and their long SMBH growth times hold. However, they differ in their predictions regarding the behavior of the clustering bias at redshifts z ≳ 2, with extended models in better agreement with the most recent bias measurements at z ~ 2.2 by Allevato et al. (2011).

In Appendix B, we summarize the formulae that can be used to construct an analytical model of the hardband AGN LF. From the statistical point of view, it provides a better description of the Xray LF data as specially tailored analytical forms commonly used in the literature.
In comparison, the deepest optical spectroscopic surveys typically give a factor of ~ 10 times less AGN per deg^{2}, and only utradeep optical variability studies are able to generate comparable AGN sky densities (e.g., Brandt & Hasinger 2005).
In our earlier paper Hütsi et al. (2012), where we also used the MFtoLF mapping in the form of Eq. (2), we had a different analytic form for f_{duty}(z), which turns out to give somewhat poorer fit to the observed LF.
Not to be confused with the power law index Γ(z) appearing in Eq. (1).
This assumption, along with the power law M_{BH}–M_{h} scaling relation used throughout this paper, leads to an approximately lognormal probability distribution function for the Eddington ratio f_{Edd}, which agrees quite well with the measurements of Lusso et al. (2012). However, once the completeness correction is taken into account, at redshifts z ≲ 1, the f_{Edd} distributions can become closer to a powerlaw shape, instead (see also Aird et al. 2012). Within our model framework the Eddington ratio distribution can be determined once fixing the M_{BH}–M_{h} relation. In this paper we have assumed one particular form for the M_{BH}–M_{h} scaling relation, i.e., a simple power law. In principle, there are quite large observational uncertainties regarding the particular form for this relation, and thus by allowing more freedom here, one should certainly be able to obtain a significantly better match with the claimed power law like f_{Edd} distributions at lower redshifts. However, this more detailed analysis is beyond the scope of the current work.
In fact, we have also performed MCMC runs by explicitly demanding α to be negative along with using several different values for in Eq. (14). In all of these cases we generally find the quality of fits to deteriorate, the more negative α becomes.
Acknowledgments
We thank James Aird for providing the tables of hardband Xray luminosity function measurements and our referee for suggestions that greatly helped to improve the paper.
References
 Aird, J., Nandra, K., Laird, E. S., et al. 2010, MNRAS, 401, 2531 [NASA ADS] [CrossRef] [Google Scholar]
 Aird, J., Coil, A. L., Moustakas, J., et al. 2012, ApJ, 746, 90 [NASA ADS] [CrossRef] [Google Scholar]
 Alexander, D. M., Bauer, F. E., Brandt, W. N., et al. 2003, AJ, 126, 539 [NASA ADS] [CrossRef] [Google Scholar]
 Allevato, V., Finoguenov, A., Cappelluti, N., et al. 2011, ApJ, 736, 99 [NASA ADS] [CrossRef] [Google Scholar]
 Bandara, K., Crampton, D., & Simard, L. 2009, ApJ, 704, 1135 [NASA ADS] [CrossRef] [Google Scholar]
 Bonoli, S., Shankar, F., White, S. D. M., Springel, V., & Wyithe, J. S. B. 2010, MNRAS, 404, 399 [NASA ADS] [Google Scholar]
 Brandt, W. N., & Hasinger, G. 2005, ARA&A, 43, 827 [NASA ADS] [CrossRef] [Google Scholar]
 Bundy, K., Georgakakis, A., Nandra, K., et al. 2008, ApJ, 681, 931 [NASA ADS] [CrossRef] [Google Scholar]
 Cappelluti, N., Allevato, V., & Finoguenov, A. 2012, Adv. Astron., 2012 [Google Scholar]
 Coil, A. L., Georgakakis, A., Newman, J. A., et al. 2009, ApJ, 701, 1484 [NASA ADS] [CrossRef] [Google Scholar]
 Comastri, A., Ranalli, P., Iwasawa, K., et al. 2011, A&A, 526, L9 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Conroy, C., & White, M. 2013, ApJ, 762, 70 [NASA ADS] [CrossRef] [Google Scholar]
 Croton, D. J. 2009, MNRAS, 394, 1109 [NASA ADS] [CrossRef] [Google Scholar]
 Fanidakis, N., Baugh, C. M., Benson, A. J., et al. 2012, MNRAS, 419, 2797 [NASA ADS] [CrossRef] [Google Scholar]
 Fanidakis, N., Georgakakis, A., Mountrichas, G., et al. 2013, MNRAS, 435, 679 [NASA ADS] [CrossRef] [Google Scholar]
 Ferrarese, L. 2002, ApJ, 578, 90 [NASA ADS] [CrossRef] [Google Scholar]
 Ferrarese, L., & Ford, H. 2005, Space Sci. Rev., 116, 523 [NASA ADS] [CrossRef] [Google Scholar]
 Gandhi, P., Garcet, O., Disseau, L., et al. 2006, A&A, 457, 393 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Gilli, R., Zamorani, G., Miyaji, T., et al. 2009, A&A, 494, 33 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Haiman, Z., & Hui, L. 2001, ApJ, 547, 27 [NASA ADS] [CrossRef] [Google Scholar]
 Hasinger, G., Miyaji, T., & Schmidt, M. 2005, A&A, 441, 417 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Hastings, W. 1970, Biometrika, 97 [Google Scholar]
 Hütsi, G., Gilfanov, M., & Sunyaev, R. 2012, A&A, 547, A21 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Kolodzig, A., Gilfanov, M., Hütsi, G., & Sunyaev, R. 2013a, A&A, 558, A90 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Kolodzig, A., Gilfanov, M., Sunyaev, R., Sazonov, S., & Brusa, M. 2013b, A&A, 558, A89 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Kormendy, J., & Bender, R. 2011, Nature, 469, 377 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
 Kormendy, J., & Richstone, D. 1995, ARA&A, 33, 581 [NASA ADS] [CrossRef] [Google Scholar]
 Koutoulidis, L., Plionis, M., Georgantopoulos, I., & Fanidakis, N. 2012, MNRAS, 101 [Google Scholar]
 Krumpe, M., Miyaji, T., Coil, A. L., & Aceves, H. 2012, ApJ, 746, 1 [NASA ADS] [CrossRef] [Google Scholar]
 Krumpe, M., Miyaji, T., & Coil, A. L. 2013, Acta Polytechnica, in press [arXiv:1308.5976] [Google Scholar]
 Lidz, A., Hopkins, P. F., Cox, T. J., Hernquist, L., & Robertson, B. 2006, ApJ, 641, 41 [NASA ADS] [CrossRef] [Google Scholar]
 Lusso, E., Comastri, A., Simmons, B. D., et al. 2012, MNRAS, 425, 623 [NASA ADS] [CrossRef] [Google Scholar]
 Martini, P., & Weinberg, D. H. 2001, ApJ, 547, 12 [NASA ADS] [CrossRef] [Google Scholar]
 Merloni, A., & Heinz, S. 2008, MNRAS, 388, 1011 [NASA ADS] [Google Scholar]
 Merloni, A., Predehl, P., Becker, W., et al. 2012, eROSITA Science Book: Mapping the Structure of the Energetic Universe [arXiv:1209.3114] [Google Scholar]
 Metropolis, N., Rosenbluth, A. W., Rosenbluth, M. N., Teller, A. H., & Teller, E. 1953, J. Chem. Phys., 21, 1087 [NASA ADS] [CrossRef] [Google Scholar]
 Mountrichas, G., Georgakakis, A., Finoguenov, A., et al. 2013, MNRAS, 430, 661 [NASA ADS] [CrossRef] [Google Scholar]
 Murray, S. S., Kenter, A., Forman, W. R., et al. 2005, ApJS, 161, 1 [NASA ADS] [CrossRef] [Google Scholar]
 Predehl, P., Andritschke, R., Böhringer, H., et al. 2010, in Proc. SPIE, 7732, 773204 [Google Scholar]
 Press, W. H., Teukolsky, S. A., Vetterling, W. T., & Flannery, B. P. 1992, Numerical recipes in FORTRAN. The art of scientific computing (Cambridge: University Press) [Google Scholar]
 Shankar, F., Crocce, M., MiraldaEscudé, J., Fosalba, P., & Weinberg, D. H. 2010a, ApJ, 718, 231 [NASA ADS] [CrossRef] [Google Scholar]
 Shankar, F., Weinberg, D. H., & Shen, Y. 2010b, MNRAS, 406, 1959 [NASA ADS] [Google Scholar]
 Shankar, F., Weinberg, D. H., & MiraldaEscudé, J. 2013, MNRAS, 428, 421 [NASA ADS] [CrossRef] [Google Scholar]
 Sheth, R. K., & Tormen, G. 1999, MNRAS, 308, 119 [NASA ADS] [CrossRef] [Google Scholar]
 Sheth, R. K., Mo, H. J., & Tormen, G. 2001, MNRAS, 323, 1 [NASA ADS] [CrossRef] [Google Scholar]
 Ueda, Y., Akiyama, M., Ohta, K., & Miyaji, T. 2003, ApJ, 598, 886 [NASA ADS] [CrossRef] [Google Scholar]
 Wyithe, J. S. B., & Loeb, A. 2003, ApJ, 595, 614 [NASA ADS] [CrossRef] [Google Scholar]
 Wyithe, J. S. B., & Loeb, A. 2005, ApJ, 621, 95 [NASA ADS] [CrossRef] [Google Scholar]
 Wyithe, J. S. B., & Loeb, A. 2009, MNRAS, 395, 1607 [NASA ADS] [CrossRef] [Google Scholar]
 Xue, Y. Q., Luo, B., Brandt, W. N., et al. 2011, ApJS, 195, 10 [NASA ADS] [CrossRef] [Google Scholar]
Appendix A: Analytic fits for concordance ΛCDM halo MF and bias parameters
To facilitate a fast check of our results for those who do not have numerical routines for the halo MF and clustering bias available, we provide here analytic fits for those quantities, valid for the mass and redshift ranges relevant for this study: M_{h} ≳ 10^{12} M_{⊙}, z < 3 − 4.

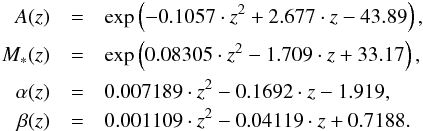

Halo MF can be approximated as (A.1)where Similarly, for the halo clustering bias, as a function of halo mass and redshift, one approximately obtains

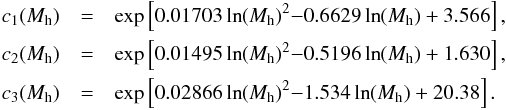

where Under the mass and redshift constraints as given above, those analytic forms provide fits to the Sheth & Tormen (1999) MF and Sheth et al. (2001) bias parameter with accuracies ~ 10% and better than 5%, respectively. In the above formulae, we have assumed that MF is measured in units of h^{3}Mpc^{3}/h^{1}M_{⊙} and halo mass in h^{1}M_{⊙}, while in the main part of our paper, we fixed the reduced Hubble parameter to h = 0.7.
Appendix B: A simple physically motivated fit to the observed hard band Xray AGN LF
The hard band Xray AGN LF can be approximated as (B.1)where f_{duty}(L_{X},z), M_{h}(L_{X},z), and are given by Eqs. (14,3), (1), and (A.1), respectively. Using the approximation for the MF from Appendix A leads to slightly different best fitting parameter values compared to the ones shown in the last row of Table 3: {c_{i}} _{i = 1...9} = {0.3654 ,0.8243,0.2402,1.002, –0.2997, 0.03216, 26.97, 0., 0.3198}, which results in χ^{2} = 47.5 for 71 degrees of freedom.
A detailed comparison of the above LF fit with the “new model” and LDDE model of Fig. 3 is shown in Fig. A.1.
All Tables
Best fitting parameter values for Models I and II. Both constrained and unconstrained cases.
Best fitting parameter values and χ^{2} values for various models, discussed in detail in the main text.
All Figures
Fig. 1 Best fitting duty cycle values f_{duty}(z_{i}) (upper panel) and power law indices Γ(z_{i}) from Eq. (1) (lower panel) in nine redshift bins, shown with red crosses. In the upper panel the power law index is assumed to be in parametric form Γ(z) = c_{4} + c_{5}z while the amplitude factors in each redshift bins are assumed to be free parameters, i.e., including M_{0} the fitting problem has 12 free parameters in total. With solid black line we show the best fitting three parameter analytic function with the detailed form as specified in the legend. In the lower panel f_{duty}(z) is fixed to the above analytic form while the power law indices in each redshift bin Γ(z_{i}) are allowed to vary freely, i.e., this time we have 13 free parameters. Solid black and gray lines show linear and quadratic polynomial approximations to best fitting Γ(z_{i}). The dotted lines and gray shaded regions represent best fit values along with 1σ intervals in case all Γ(z_{i}) and f_{duty}(z_{i}) are all allowed to be free (19 free parameters).

Open with DEXTER
In the text
Fig. 2 Marginalized 2D error ellipses representing 1σ and 2σ confidence levels along with 1D marginalized probability distributions (top panels in each of the columns) for all the free parameters of unconstrained Model II. The black dots and red crosses show the maximum likelihood points for unconstrained and constrained (i.e., f_{duty} ≤ 1) Model II, respectively.

Open with DEXTER
In the text
Fig. 3 Best fitting Xray AGN LFs in nine redshift bins along with observational data from Aird et al. (2010). In addition to our constrained Model II fits we also show the best fitting PLE, LADE, and LDDE models with the corresponding analytic forms taken from Aird et al. (2010).

Open with DEXTER
In the text
Fig. 4 Upper panel: comoving Xray AGN number densities as a function of redshift for three 2 − 10 keV band luminosity ranges as shown in the legend. The luminosity is increasing from top to bottom. Along with our constrained Model II we have also plotted the results arising from the LF models of Ueda et al. (2003) and Aird et al. (2010). Lower panel: comparison of bias parameters from the constrained Model II with the observational data from Allevato et al. (2011). The four lines assume different effective photon indices (Γ = 1.4,1.6,1.8,2.0) for the approximate transformation between soft and hard Xray bands.

Open with DEXTER
In the text
Fig. 5 Comparison of the M_{h} − L_{X} scaling relation with the observational data from Koutoulidis et al. (2012). To capture the redshift range of majority of AGN used in this analysis, we have plotted the model scaling relations for three redshifts: z = 0.5,1.0,1.5. The dotted lines with surrounding gray bands display the results from the semianalytic galaxy–AGN coevolution model of Fanidakis et al. (2012), as presented in Koutoulidis et al. (2012), showing their “hothalo” (dark gray region) and “all AGN” case, i.e., the sum of “hothalo” and “starburst” modes (light gray region). The longdashed line shows the M_{h} − L_{X} scaling one obtains once converting the amplitudeadjusted M_{h} − M_{BH} relation of Bandara et al. (2009) by using the fixed Eddington ratio f_{Edd} ≡ L_{X}/L_{Edd}(M_{BH}) = 3 × 10^{4}.

Open with DEXTER
In the text
Fig. 6 Upper panel: average L_{X} − M_{h} relations (Eq. (1)) along with 1σ uncertainties for five different redshifts as given in the legend. Middle panel: amplitudeadjusted M_{BH} − M_{h} scaling relation with 1σ uncertainty from Bandara et al. (2009). Lower panel: Eddington ratios in 2 − 10 keV band for five redshifts arising from L_{X} − M_{h} and M_{BH} − M_{h} relations given in the upper two panels.

Open with DEXTER
In the text
Fig. 7 The hard band Xray luminosities (upper panel) and SMBH efolding times in units of the Hubble time (lower panel) for various black hole masses as shown in the legend. For the low mass SMBHs at higher redshifts, where they are too faint to be constrained by the observational data, we have shown the extrapolations of the model curves with dotted lines and have omitted the corresponding 1σ uncertainty bands.

Open with DEXTER
In the text
Fig. 8 Analog of Fig. 2 with one additional parameter, c_{8} ≡ σ, describing the scatter in the lognormal distribution.

Open with DEXTER
In the text
Fig. 9 Analog of Fig. 2 with two additional parameters, c_{8} ≡ σ and c_{9} ≡ α, representing the scatter parameter in the lognormal distribution and the power law index for the L_{X}dependent f_{duty}, respectively. For comparison the contours from Fig. 8 are shown with dashed lines.

Open with DEXTER
In the text
Fig. 10 Analog of Fig. 6 for the last model in Table 3, i.e., for the model with L_{X}dependent f_{duty} and with scatter in M_{h} − L_{X} scaling relation. The solid lines surrounded by the shaded areas show distribution medians along with regions between 16% and 84% quantiles, respectively. Dotted lines represent modes of the distributions.

Open with DEXTER
In the text
Fig. 11 Clustering strength as a function of redshift for different models, as shown in legend and discussed in detail in the main text. The filled stripes cover the range of photon indices Γ = 1.4 − 2.0.

Open with DEXTER
In the text
Fig. A.1 Comparison of the LF fit from Appendix B with the “new model” and LDDE model of Fig. 3. In addition, with dotted lines we have shown the model with the lowest χ^{2} value obtained throughout this paper, i.e., the model with scatter in M_{h} − L_{X} scaling relation along with L_{X}dependent duty cycle (the last entry of Table 3).

Open with DEXTER
In the text
Current usage metrics show cumulative count of Article Views (fulltext article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 4896 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
