PORTA: A threedimensional multilevel radiative transfer code for modeling the intensity and polarization of spectral lines with massively parallel computers
^{1} Astronomical Institute ASCR, v.v.i., Ondřejov, Czech Republic
email: jiri.stepan@asu.cas.cz
^{2} Instituto de Astrofísica de Canarias, vía Láctea s/n, 38205 La Laguna, Tenerife, Spain
email: jtb@iac.es
^{3} Departamento de Astrofísica, Universidad de La Laguna (ULL), 38206 La Laguna, Tenerife, Spain
^{4} Consejo Superior de Investigaciones Científicas, Spain
Received: 19 April 2013
Accepted: 17 July 2013
The interpretation of the intensity and polarization of the spectral line radiation produced in the atmosphere of the Sun and of other stars requires solving a radiative transfer problem that can be very complex, especially when the main interest lies in modeling the spectral line polarization produced by scattering processes and the Hanle and Zeeman effects. One of the difficulties is that the plasma of a stellar atmosphere can be highly inhomogeneous and dynamic, which implies the need to solve the nonequilibrium problem of the generation and transfer of polarized radiation in realistic threedimensional (3D) stellar atmospheric models. Here we present PORTA, an efficient multilevel radiative transfer code we have developed for the simulation of the spectral line polarization caused by scattering processes and the Hanle and Zeeman effects in 3D models of stellar atmospheres. The numerical method of solution is based on the nonlinear multigrid iterative method and on a novel shortcharacteristics formal solver of the Stokesvector transfer equation which uses monotonic Bézier interpolation. Therefore, with PORTA the computing time needed to obtain at each spatial grid point the selfconsistent values of the atomic density matrix (which quantifies the excitation state of the atomic system) scales linearly with the total number of grid points. Another crucial feature of PORTA is its parallelization strategy, which allows us to speed up the numerical solution of complicated 3D problems by several orders of magnitude with respect to sequential radiative transfer approaches, given its excellent linear scaling with the number of available processors. The PORTA code can also be conveniently applied to solve the simpler 3D radiative transfer problem of unpolarized radiation in multilevel systems.
Key words: line: formation / magnetic fields / methods: numerical / polarization / radiative transfer
© ESO, 2013
1. Introduction
This paper describes a computer program we have developed for solving, in threedimensional (3D) models of stellar atmospheres, the problem of the generation and transfer of spectral line polarization taking into account anisotropic radiation pumping and the Hanle and Zeeman effects in multilevel systems. The numerical method of solution is based on a highly convergent iterative method, whose convergence rate is insensitive to the grid size, and on an accurate shortcharacteristics formal solver of the Stokesvector transfer equation that uses monotonic Bézier interpolation. A key feature of our multilevel code called PORTA (POlarized Radiative TrAnsfer) is its parallelization strategy, which allows us to speed up the numerical solution of complicated 3D problems by several orders of magnitude with respect to sequential radiative transfer approaches.
The multilevel radiative transfer problem currently solved by PORTA is the socalled nonlocal thermodynamic equilibrum (LTE) problem of the 2nd kind (Landi Degl’Innocenti & Landolfi 2004, hereafter LL04; see also Trujillo Bueno 2009), where the phenomenon of scattering in a spectral line is described as the temporal succession of statisticallyindependent events of absorption and reemission (complete frequency redistribution, or CRD). This is a formidable numerical problem that implies calculating, at each spatial grid point of the (generally magnetized) 3D stellar atmosphere model under consideration, the values of the multipolar components of the atomic density matrix corresponding to each atomic level of total angular momentum J. These elements, with K = 0,...,2J and Q = −K,...,K, quantify the overall population of each level J (), the population imbalances between its magnetic sublevels (, with K > 0), and the quantum coherence between each pair of them (, with K > 0 and Q ≠ 0). The values of these densitymatrix elements have to be consistent with the intensity, polarization, and symmetry properties of the incident radiation field generated within the medium. Finding these densitymatrix values requires solving jointly the radiative transfer (RT) equations for the Stokes parameters (I(ν,Ω) = (I,Q,U,V)^{T}, with ν and Ω the frequency and direction of propagation of the radiation beam under consideration) and the statistical equilibrium equations (SEE) for the elements. These elements, at each spatial grid point of the 3D atmospheric model and for each level J of the considered atomic model, provide a complete description of the excitation of each level J. As a result, the radiative transfer coefficients (i.e., the emission vector and the propagation matrix of the Stokesvector transfer equation) corresponding to each line transition depend on the values of the upper (J = J_{u}) and lower (J = J_{l}) line levels. Once the selfconsistent values are obtained at each point within the medium, PORTA solves the Stokesvector transfer equation to obtain the emergent Stokes profiles for any desired line transition and line of sight. Obviously, this last step is computationally cheap compared with the time needed to obtain the selfconsistent solution for the elements.
When polarization phenomena are neglected the only nonzero densitymatrix element is (proportional to the overall population of each J level) and the only nonzero Stokes parameter is the specific intensity I(ν,Ω) for each of the radiative transitions in the model atom under consideration. This nonLTE problem of the 1st kind (e.g., Mihalas 1978) is a particular case of the abovementioned nonLTE problem of the 2nd kind. In other words, the 3D multilevel radiative transfer code described here can also be applied to solve the standard nonLTE multilevel problem on which much of today’s quantitative stellar spectroscopy is based. For this reason, PORTA provides options for spectropolarimetry and for spectroscopy (see Appendix B).
An overview on 3D radiative transfer codes for unpolarized radiation can be found in Carlsson (2008). Information on numerical methods for the transfer of spectral line polarization can be found in some reviews (e.g., Trujillo Bueno 2003; Nagendra & Sampoorna 2009) and research papers (e.g., Rees et al. 1989; Paletou & FaurobertScholl 1998; Manso Sainz & Trujillo Bueno 1999, 2003, 2011; Sampoorna & Trujillo Bueno 2010; Anusha et al 2011). To the best of our knowledge this is the first time that a computer program suitable for massively parallel computers has been developed to solve the multilevel problem of the generation and transfer of spectral line polarization resulting from scattering processes and the Hanle and Zeeman effects in 3D stellar atmosphere models. The problem of the generation and transfer of spectral line polarization with partial frequency redistribution (PRD) is being increasingly considered in the literature (e.g., Sampoorna et al. 2010; Belluzzi et al. 2012), but assuming relatively simple model atoms suitable only for some resonance lines.
After presenting in Sect. 2 the formulation of the RT problem, in Sect. 3 we explain our formal solver of the 3D Stokesvector transfer equation, which is based on Auer’s (2003) suggestion of monotonic Bézier interpolation within the framework of the shortcharacteristics approach. An additional important point is the parallelization strategy we have developed for taking advantage of massively parallel computers, which we detail in Sect. 4 following our explanation of the formal solver. The iterative method we have implemented, explained in Sect. 5, is based on the nonlinear multigrid method for radiative transfer applications proposed by Fabiani Bendicho et al. (1997). We present useful benchmarks and comparisons of the multigrid iterative option of our code with another option based on the Jacobian iterative method on which onedimensional (1D) multilevel codes for solving the nonLTE problem of the 2nd kind are based (e.g., Manso Sainz & Trujillo Bueno 2003; Štěpán & Trujillo Bueno 2011). Finally, in Sect. 6 we present our conclusions with a view to future research.
We have already applied PORTA to investigate the intensity and linear polarization of some strong chromospheric lines in a model of the extended solar atmosphere resulting from stateoftheart 3D magnetohydrodynamic (MHD) simulations (e.g., Štěpán et al. 2012). However, for the benchmarks presented in this paper, whose aim is a detailed description of PORTA, we have found it more suitable to choose the 3D model atmosphere and the fivelevel atomic model detailed in Appendix A. The software and hardware tools are summarized in Appendix B.
2. The radiative transfer problem
The multilevel nonLTE problem considered here for the generation and transfer of spectral line polarization is that outlined in Sect. 3 of Štěpán & Trujillo Bueno (2011), where we assumed onedimensional (1D), planeparallel atmospheric models (see also Manso Sainz & Trujillo Bueno 2003), while the aim here is to describe the computer program we have developed for solving in Cartesian coordinates the same multilevel radiative transfer problem but in threedimensional (3D) stellar atmospheric models. As shown below, the development of a robust multilevel 3D code is not simply an incremental step with respect to the 1D case, given the need to develop and implement an accurate 3D formal solver, a highly convergent iterative scheme based on multiple grids, and a suitable parallelization strategy to take advantage of today’s massively parallel computers.
A detailed presentation of all the physics and relevant equations necessary to understand the radiation transfer problem solved in this paper can be found in Chap. 7 of LL04. Our aim here is to solve jointly the Stokesvector transfer equation (corresponding to each radiative transition in the model atom under consideration) and the statistical equilibrium and conservation equations for the multipolar components of the atomic density matrix (corresponding to each level J). We take into account the possibility of quantum coherence (or interference) between pairs of magnetic sublevels pertaining to any given J level, but neglect quantum interference between sublevels pertaining to different J levels. Neglecting Jstate interference is a very suitable approximation for modeling the linecore polarization, which is where the Hanle effect in most solar spectral lines operates (see Belluzzi & Trujillo Bueno 2011). In the absence of Jstate interference, the general number of unknowns for each level J is (2J + 1)^{2}, at each spatial grid point. We note that in the unpolarized case there is only one unknown associated to each J level (i.e., ).
In this paper we focus on the multilevel model atom (see Sects. 7.3 and 7.13c of LL04), in which quantum interference between sublevels pertaining to different J levels are neglected. However, it is important to note that the same iterative method, formal solver, and the overall logical structure of our code PORTA are very suitable for solving the same type of problem but considering other model atoms and/or magnetic field regimes (see Chap. 7 of LL04).
The emission vector and the propagation matrix of the Stokesvector transfer equation depend on the local values of the elements (with K = 0,...,2J and Q = −K,...,K) of the upper (i) and lower (j) line levels (see Sect. 7.2.b in LL04). Given an estimation of these elements for each J level at all spatial grid points, the formal solution of the Stokesvector transfer equation for each radiative transition allows us to obtain the ensuing Stokes parameters at each spatial point within the medium, for each discretized frequency and ray direction. After angle and frequency integration one can obtain the radiation field tensors (1)where φ_{ij} is the line absorption profile and the spherical irreducible tensors given in Table 5.6 of LL04, and (I_{0},I_{1},I_{2},I_{3})^{T} ≡ (I,Q,U,V)^{T} is the socalled Stokes vector. These radiation field tensors, defined for K = 0,1,2 and Q = −K,...,K, specify the symmetry properties of the radiation field that illuminates each point within the medium. These quantities are of fundamental importance because they determine the radiative rates that enter the statistical equilibrium equations (see Sect. 7.2.a in LL04). After the discretization of the spatial dependence these equations can be expressed as (2)where ℒ_{l} is a blockdiagonal matrix formed by submatrices, being the number of points of the spatial grid of resolution level l (the larger the positive integer number l the finer the grid). NL × NL is the size of each submatrix, NL being the total number of unknowns at each spatial grid point. The length of the vector ρ_{l} of unknowns and of the known vector f_{l} is . The coefficients of the blockdiagonal matrix ℒ_{l} depend on the collisional rates, which depend on the local values of the thermodynamical variables, and on the radiative rates, which depend on the radiation field tensors , whose computation requires solving the Stokesvector transfer equation for each radiative transition i → j. Since the radiative transfer coefficients depend on the unknowns the problem is nonlinear, in addition to nonlocal.
To solve this type of problem we need a fast and accurate formal solver of the Stokesvector transfer equation and a suitable iterative method capable of finding rapidly the density matrix elements ρ_{l} these that Eq. (2) is satisfied when the radiation field tensors, which appear in the blockdiagonal matrix ℒ_{l}, are calculated from such ρ_{l} elements via the solution of the Stokesvector transfer equation. The 1D multilevel code described in Appendix A of Štěpán & Trujillo Bueno (2011) is based on the DELOPAR formal solver proposed by Trujillo Bueno (2003) and on a Jacobian iterative scheme, similar to that applied by Manso Sainz & Trujillo Bueno (2003), but generalized to the case of overlapping transitions.
We turn now to explain the new formal solver we have developed for 3D Cartesian grids that is based on monotonic Bézier interpolation.
3. BESSER: Monotonic Bézier formal solver of the Stokesvector transfer equation
The transfer equation for the Stokes vector I = (I,Q,U,V)^{T} can be written (e.g., Rees et al. 1989; Trujillo Bueno 2003) (3)where τ is the optical distance along the ray under consideration (dτ = −η_{I} ds, with s the geometrical distance along the ray and η_{I} the diagonal element of the 4 × 4 propagation matrix K), S_{eff} = S − K′I being K′ = K/η_{I} − 1 (where 1 is the unit matrix and S = ϵ/η_{I}, with ϵ = (ϵ_{I},ϵ_{Q},ϵ_{U},ϵ_{V})^{T} the emission vector resulting from spontaneous emission events). The formal solution of this equation is (4)where the ray or pencil of radiation of frequency ν propagates along the direction Ω, from the upwind point M (where the Stokes vector I_{M} is assumed to be known) towards the spatial point O of interest (where the Stokes vector I_{O} is sought), and t is the optical path along the ray (measured from O to M; see Fig. 1).
The numerical solution of Eq. (4) allows us to obtain, from the current estimates of the emission vector ϵ and propagation matrix K, the Stokes parameters at each spatial grid point O within the 3D medium, for all discretized radiation frequencies and directions. We note that the unpolarized version of Eq. (4) can be easily obtained by taking I_{O} → I_{O}, I_{M} → I_{M}, S(t) → S(t), and K′(t) → 0.
3.1. The short characteristics method
Fig. 1
Shortcharacteristics in a threedimensional Cartesian rectilinear grid.

Open with DEXTER
The shortcharacteristics (SC) method was proposed by Kunasz & Auer (1988) to solve the unpolarized version of Eq. (4) for the specific intensity (see also Auer & Paletou 1994; Auer et al. 1994; Fabiani Bendicho & Trujillo Bueno 1999). Consider three consecutive spatial points M, O, and P along the ray under consideration, with M the upwind point, P the downwind point, and O the point where the Stokes I parameter is being sought, for the given frequency and ray direction (see Fig. 1). The aim of the original SC method is to solve the unpolarized version of Eq. (4) along the MO segment in order to compute the specific intensity I(ν,Ω). The original SC method is based on the approximation of parabolic interpolation of the source function S(t) between the upwind point M of the short characteristics, the grid point O, and the downwind point P (see Fig. 1). In 2D and 3D grids, the upwind and downwind points of the SC do not generally coincide with any spatial grid node and the radiation transfer quantities (i.e., the emission and absorption coefficients) have to be interpolated from the nearby 9point (biquadratic case) or 4point (bilinear case) stencils of the discrete grid points. In the unpolarized and polarized options of PORTA both biquadratic and bilinear interpolation are implemented. Bilinear interpolation is sufficient in the fine grids of today’s MHD models. The upwind specific intensity or the Stokes vector I_{M} need to be interpolated from the same grid nodes. Proper topological ordering of the grid points is therefore necessary for every direction of the short characteristics. We note that the intersection points M and P may be located on a vertical plane of the grid instead of a horizontal one.
Fig. 2
Parabolic and BESSER interpolation using the three successive points M, O, and P. Dotted line: parabolic interpolation may create a spurious extremum between points M and O. Solid line: interpolation using our BESSER method with continuous derivative at point O. The control points of the intervals, whose ycoordinates are denoted by c_{M} and c_{P}, define tangents to the Bézier splines in their endpoints. The xcoordinates of the control points are located at the center of the corresponding intervals.

Open with DEXTER
The DELO method proposed by Rees et al. (1989) can be considered a possible generalization of the scalar SC method to the radiative transfer problem of polarized radiation. That formal solver of the Stokesvector transfer equation is, however, based on linear interpolation of the source function S_{eff} between points M and O. Trujillo Bueno (2003) demonstrated that significantly more accurate solutions can be obtained by using instead a formal solver he calls DELOPAR, which is based on the choice in Eq. (4) of parabolic interpolation for S (between points M, O, and P) and linear interpolation for K′I (between points M and O). He showed that with DELOPAR the accuracy of the selfconsistent solution rapidly improves as the spatial resolution level l of the spatial grid is increased. The first version of the computer program NICOLE of Socas Navarro et al. (2000), for the synthesis and inversion of Stokes profiles induced by the Zeeman effect, used DELOPAR as the formal solver.
In smooth and/or suitably discretized model atmospheres, the DELOPAR method provides accurate results. However, in the presence of abrupt changes in the physical properties of the atmospheric model, the parabolic interpolation suffers from nonmonotonic interpolation between otherwise monotonic sequences of discrete points. Such spurious extrema of the interpolant decrease the accuracy of the solution and can also lead to unrealistic or even unphysical Stokes parameters at the grid point O under consideration (see the dotted line in Fig. 2). In addition, the parabolic interpolation may occasionally lead to the divergence of the whole numerical solution.
To overcome these difficulties, Auer (2003) suggested an interpolation based on the use of monotonic Bézier splines. Some formal solvers based on this idea have already been implemented (Koesterke et al. 2008; Hayek 2008; Štěpán & Trujillo Bueno 2012; Holzreuter & Solanki 2012; de la Cruz Rodríguez & Piskunov 2013). In this section, we describe in detail the accurate formal solver we have developed, pointing out a significant difference with the original proposal of Auer (2003). We call it BESSER (BEzier Spline SolvER).
3.2. Monotonic spline interpolation with continuous first derivative
Following Auer (2003), our BESSER algorithm is based on the use of piecewise monotonic quadratic Bézier splines. The control points of the splines can be used to preserve monotonicity of the interpolant, because the interpolant is contained in an envelope defined by the tangents of the spline in its endpoints and of the control point which is located in the intersection of these tangents (see Fig. 2). As shown below, we achieve a smooth connection of the Bézier splines in the central point O by imposing a continuous first derivative of the interpolant. This improvement over the original treatment of Auer (2003) leads to a symmetrical interpolation independently of the choice of the interpolation direction (MOP for one direction of the ray propagation or POM for the opposite direction of the ray). An additional attractive feature is that our BESSER method always provides reliable values for the diagonal of the Λoperator, i.e., in the interval [0,1), used in methods based on the Jacobi iteration.
Fig. 3
Treatment of an overshoot in the downwind interval OP by three different methods. Black solid line: BESSER implementation with continuous derivative at point O and the c_{P} overshoot correction of the control point. Crosses: piecewise monotonic quadratic Bézier spline interpolation. Solid gray line: parabolic interpolation. We note that the piecewise monotonic quadratic Bézier interpolation coincides with the parabolic interpolation in the MO segment because the overshoot in the OP interval does not affect the upwind interpolation between M and O.

Open with DEXTER
Given a quantity y (e.g., the source function) defined at three successive points x_{M}, x_{O}, and x_{P}, we use two quadratic Bézier splines to interpolate y between points M and O and between points O and P (see Fig. 2). First, we look for an optimal interpolation in the interval MO. For the sake of simplicity, we parametrize the xcoordinate in this interval by a dimensionless parameter u = (x − x_{M})/h_{M}, where h_{M} = x_{O} − x_{M}. The Bézier spline in the interval MO is a parabola passing through points M and O. The derivatives at such points are defined by the position of the control point whose ycoordinate is c_{M} (see Fig. 2). The equation for such a spline reads (Auer 2003) (5)Similarly, one can define a Bézier spline between points O and P by doing the formal changes y_{M} → y_{O}, y_{O} → y_{P}, and u = (x − x_{O})/h_{P}, where h_{P} = x_{P} − x_{O}; the ycoordinate of the ensuing control point is denoted by c_{P} (see Fig. 2).
We look for the values of c_{M} and c_{P} that satisfy the following conditions: (1) if the sequence y_{M}, y_{O}, y_{P} is monotonic, then the interpolation is monotonic in the whole interval [x_{M},x_{P}]; (2) if the sequence of y_{i} values is not monotonic, then the interpolant has the only local extremum at O; and (3) the first derivative of the interpolant at point O should be continuous. The ensuing algorithm proceeds as follows:

1.
Calculate the quantities d_{M} = (y_{O} − y_{M})/h_{M}, d_{P} = (y_{P} − y_{O})/h_{P}.

2.
If the sequence y_{M}, y_{O}, y_{P} is not monotonic (i.e., if d_{M}d_{P} ≤ 0), then set c_{M} = c_{P} = y_{O} and exit the algorithm. The derivative of the splines at point O is equal to zero, leading to a local extremum at the central point.

3.
Estimate the derivative at point O, (6)(see Eq. (7) of Auer 2003, and references therein). This derivative is equal to that provided at the same point by parabolic interpolation among points M, O, and P. Moreover, in contrast with Eq. (12) of Auer (2003), it is an expression that relates y′ (e.g., the source function derivative) linearly with the yvalues (e.g., with the source function values).

4.
Calculate the initial positions of the control points, , and ^{1}.

5.
Check that min(y_{M},y_{O}) ≤ c_{M} ≤ max(y_{M},y_{O}). If the condition is satisfied, then go to step 7, otherwise continue with step 6.

6.
If the condition in step 5 is not satisfied, then there is an overshoot of the interpolant in the interval MO. Set c_{M} = y_{M}, so that the first derivative at M is equal to zero and the overshoot is corrected. Since the value of c_{P} is not of interest for the formal solution between M and O, exit the algorithm.

7.
Check if min(y_{O},y_{P}) ≤ c_{P} ≤ max(y_{O},y_{P}). If this condition is not satisfied, then set c_{P} = y_{P} so that the overshoot in the interval OP is corrected.

8.
Calculate the new derivative at O, , using the corrected value of c_{P} calculated in step 7.

9.
Calculate a new c_{M} value to keep the derivative at O smooth. It is easy to realize that this change cannot produce an overshoot in the MO interval, hence the solution remains monotonic with a continuous derivative.
Steps 8 and 9 of the abovementioned algorithm, dealing with correction of the overshoots in the downwind interval followed by modification of the c_{M} upwind control point value, are not part of the original algorithm of Auer (2003) in which the derivative at point O can be discontinuous. We have found that it is suitable to guarantee the smoothness of the derivative, and this can be done with only a small increase in the computing time with respect to the DELOPAR method. Our BESSER interpolation is stable; that is, the interpolant varies smoothly with smooth changes of the M, O, and P points. No abrupt changes of the splines occur that could negatively affect the stability of the iterative method.
In contrast to some other formal solvers based on the idea of quadratic Bézier splines (e.g., one of the two Bezier methods discussed by de la Cruz Rodríguez & Piskunov 2013), our BESSER algorithm guarantees that a monotonic sequence of the MOP points leads to a monotonic interpolant in all situations. This fact is of critical importance in 2D and 3D grids in which τ_{MO} and τ_{OP} may differ significantly because of unpredictable intersections of the grid planes, especially if periodic boundary conditions are considered. Such large differences often lead to overshoots, unless treated by BESSER or a similarly suitable strategy. Formal solvers based on cubic Bezier splines (e.g., de la Cruz Rodríguez & Piskunov 2013) could be developed to preserve the continuity of , but they may fail to accurately interpolate quadratic functions even in fine grids when using Auer’s (2003) Eq. (12) for (see Sect. 3.4).
An alternative formal solver, which uses cubic Hermite splines, has been presented by Ibgui et al. (2013). However, the way of fixing the derivatives at the end points M and P of the SC to the values corresponding to the linear interpolation case may cause loss of accuracy of the formal solver.
3.3. Formal solution of the vectorial radiative transfer equation with BESSER

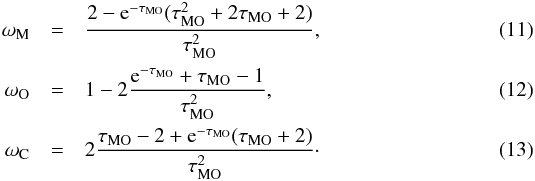

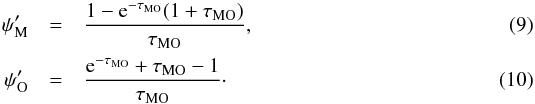

Taylor expansion of the ω_{M,O,P} coefficients for small optical path intervals.
The application of the Bézier interpolation for calculating the formal solution of Eq. (4) proceeds as follows. We assume that the Stokes components of the vectorial source function S(t) vary, between points M and O, according to Eq. (5) with the control points calculated using the BESSER algorithm described in the previous section. The term K′(t)I(t) is assumed to change linearly in the same interval, as in the DELOPAR method. The integral in Eq. (4) can then be evaluated analytically and the Stokes parameters at point O can be expressed in the form (see Trujillo Bueno 2003, for details of an analogous derivation using parabolic interpolation of S) (7)where (8)is a 4 × 4 matrix and 1 is the unit matrix. Multiplying Eq. (7) by κ gives the desired vector of Stokes parameters I_{O} at point O. The coefficients and are the usual coefficients resulting from linear interpolation, Using the substitutions h_{M} = τ_{MO} and u = 1 − t/τ_{MO} in Eq. (5), one obtains for the ω_{i} coefficients the expressions It is important to note that the accuracy of these expressions decreases as τ_{MO} ≪ 1, due to the limited precision of the floating point computer arithmetics. Therefore, for small upwind optical paths we use instead the Taylor expansion of such expressions calculated at τ_{MO} = 0 (see Table 1).
An important quantity used in Jacobibased iterative methods for the solution of nonLTE problems is the diagonal of the monochromatic Λ operator at the point O under consideration, . It can be easily calculated from Eq. (7) for I_{O}, by setting I_{M} = S_{M} = S_{P} = (0,0,0,0)^{T} and S_{O} = (1,0,0,0)^{T}. It follows that . Given that in this case the source function has a local maximum at point O, we have c_{M} = 1, and we finally arrive at (14)In contrast to the familiar parabolic solvers, no information about the interpolation coefficients in the preceding point is needed to determine the diagonal of the Λ operator at the point O under consideration. It is easy to show that , which is an important condition for the stability of the iterative method used to solve any nonLTE problem. This is particularly important for solving threedimensional problems in which the upwind point M does not generally coincide with any grid node.
We have found by numerical experimentation that the time needed to perform one Jacobi iteration using our BESSER formal solver is only ≲ 1% slower than when using instead DELOPAR, because of the need to determine the c_{M} and c_{P} values of the control points following the algorithm described in Sect. 3.2. The computation of κ and κ^{1} (see Eq. (8)), the calculation of the transfer coefficients, and their interpolation in the upwind and downwind points takes most of the computing time per iterative step.
It is also important to note that the convergence rate of multilevel iterative methods using BESSER as formal solver is virtually identical to that achieved using DELOPAR (see an example of the Jacobi method in Fig. 4).
If the atmospheric model used is sufficiently smooth and no abrupt changes of the source function are present, the accuracy of BESSER and DELOPAR are virtually identical. This is not surprising because both formal solvers produce identical results in the absence of overshoots.
Fig. 4
Each pair of curves shows, for a spatial grid of given resolution, the maximum relative change versus the iteration number using the Jacobi method with DELOPAR (dotted lines) and with BESSER (solid lines). We note that the finer the grid the slower the convergence rate, but that for any given spatial resolution both formal solvers give the same convergence rate.

Open with DEXTER
3.4. Accuracy of the BESSER formal solver
Fig. 5
Variation along the ray direction of the source function (Eq. (15)) and of the corresponding specific intensity (Eq. (17)) calculated analytically.

Open with DEXTER
To demonstrate the accuracy of our BESSER formal solver we consider the RT problem of an arbitrary ray propagating in an infinite medium having constant opacity and a source function variation along the ray direction given by the expression (for the sake of simplicity we consider the unpolarized case) (15)where the sigmoid function σ reads (16)and z is the geometrical distance along the ray, measured in units of the length scale for which Δz = Δτ, with Δz the grid spacing and Δτ the ensuing optical distance. As shown by the solid line in Fig. 5, which corresponds to d = 5 in Eq. (16), the source function exponentially rises around z = −d, reaches its maximum value around z = 0, and then exponentially decreases around z = d. Assuming I_{a}( − ∞) = 0, the analytical solution of the radiative transfer equation for the specific intensity propagating towards positive z values is (see the dotted line in Fig. 5) (17)We have calculated numerically the specific intensity for the abovementioned oneray problem by solving the radiative transfer equation in several spatial grids of increasing resolution and using various formal solvers. Our aim is to compare the accuracy of our BESSER formal solver with other shortcharacteristics methods. To this end, we use the analytical solution given by Eq. (17) to compute the maximum true error (18)among all the spatial points along the ray for which the solution has been obtained (i.e., − 12 ≤ z ≤ 12)^{2}.
Fig. 6
Maximum relative true error E(Δτ) calculated as a function of the uniform grid spacing Δτ, using different formal solvers. Solid line: our BESSER method. Dotted line: quadratic Bézier with the derivative at point O calculated using the expression given by Fritsch & Butland (1984) (see also Eq. (12) of Auer 2003). Dashed line: as in the previous method, but applying the c_{M} overshoot correction (see Eq. (11) of Auer 2003). Dasheddotted line: standard SC method with linear interpolation. Threedotteddashed line: standard SC method with parabolic interpolation.

Open with DEXTER
The formal solvers we have applied are listed in the caption of Fig. 6, which gives E(Δτ) as a function of the Δτ of the grid spacing. Surprisingly, the worst performance is that corresponding to the Bézier formal solver based on the centralpoint derivative , calculated using the weighted harmonic mean derivatives of Fritsch & Butland (1984) and ignoring the overshoot test in the upwind interval (Bezier, dotted line). If the correction to the upwind overshoot is applied, the method performs much better, at least in the coarsest grids in Fig. 6 (CBezier, dashed line). In finer grids, however, the accuracy is still lower than that of BESSER and even than that provided by the standard SC method with parabolic interpolation (dashedthreedotted line). The reason is that the estimation of the centralpoint derivative provided by Fritsch & Butland (1984) (see also Eq. (12) of Auer 2003) generally does not allow the secondorder polynomials to be interpolated exactly^{3}.
In the coarsest grids in Fig. 6, the maximum true error depends not only on the grid spacing but also on the particular position of the grid points with respect to the z = 0 position of the source function maximum. Consequently, in the region in Fig. 6 corresponding to the coarsest grids we observed an oscillatory behavior of the maximum true error. However, the overall variation of the error with Δτ remains the same independent of the particular location of the grid nodes.
4. Parallelization using the Snake Algorithm
The slowest part in the numerical computations needed for solving a nonLTE radiative transfer problem is the formal solution of the radiative transfer equation because the number of floating point operations needed to compute the radiation field at all the spatial grid points far exceeds the number of operations needed to solve the SEEs. In particular, an accurate modeling of the spectral line polarization produced by anisotropic radiation pumping (scattering line polarization) and its modification by the Hanle effect requires the use of very fine frequency and direction quadratures that increase the computing time of the formal solution.
The formal solution for computing a single Stokes parameter at any given grid point for any given frequency and ray direction typically takes about 1 μs on today’s workstations. It is easy to estimate that one formal solution for computing the four Stokes parameters in a 3D grid with 500^{3} points, 100 radiation frequencies, and 160 discrete directions will take about 90 days on the same computer. The full nonLTE solution requiring one hundred Jacobi iterations would take 25 years.
The use of powerful methods for multilevel radiative transfer applications, such as the nonlinear multigrid method proposed by Fabiani Bendicho et al. (1997), is necessary but not sufficient for doing multilevel radiative transfer calculations in realistic 3D atmospheric models resulting from stateoftheart MHD simulations. To this end, we need to use massively parallel computers, which requires a suitable parallelization of the RT code. In this section, we describe a novel algorithm for performing the numerical formal solution using multiple CPU cores. As shown below, simultaneous parallelization via domain decomposition and parallelization in the frequency domain results in a very efficient radiative transfer code that shows an optimal scaling with the number of CPU cores.
4.1. Domain decomposition
The computer memory needed tp store large model grids exceeds the capacity of the computing nodes of today’s supercomputers by at least one order of magnitude. The capacity of computers will continue to increase in the future, but the same will happen with the scale and resolution of the MHD models. It is therefore necessary to reduce the memory demands per CPU core. This can be achieved through the technique of domain decomposition, by means of which different parts of the model grid are treated simultaneously (in parallel), each running on a different CPU core. This task is nontrivial in radiative transfer because of the need to use a welldefined sequence of grid points. This complicates the treatment of radiative transfer in generally decomposed grids where different parts are to be solved simultaneously. A possible solution to this problem comes from the fact that the nonLTE problem needs to be solved by iteration and the radiation field at the domain boundaries can be fixed in every iteration using the radiation field calculated in the previous iteration. After a sufficient number of iterations, a selfconsistent solution to the problem is eventually found. The disadvantage of this approach is that fixing the boundary radiation field of the domains reduces the information flow between the domains, which leads to a scaling of the algorithm proportional to P^{2/3}, with P the number of CPU cores (Hayek 2008). In Sect. 4.4 we discuss the advantages and disadvantages of our approach.
Given a Cartesian grid with N_{x}N_{y}N_{z} discrete points, we only divide it along the zaxis into a consecutive sequence of L domains , ℓ = 1,...,L (see Fig. 7, which shows a 2D instead of a 3D grid, for simplicity). The horizontal extension of each domain is always the same, and identical to that corresponding to a serial solution of the same nonLTE problem. Each of these domains is treated by one or more CPU cores in parallel with others according to the algorithm described in the following section. The boundary layer of the successive domains and has to be taken into account in each of the domains. Ghost layers have to be included in both domains if the formal solver of the transfer equation is of parabolic accuracy and/or the multigrid method is used. This ghost layer is needed to calculate the radiation transfer coefficients at the downwind point P (see Fig. 1) when point O is in the boundary layer . We note that if the interpolation of the upwind and downwind radiation transfer coefficients is bilinear instead of biquadratic, only one ghost layer is needed for each of these domains. This is usually a good approximation given the spatial fineness of today’s MHD models. Given that the boundary layer that is common to each pair of domains has to be treated twice, the number N_{ℓ} of zpoints per domain is equal to (N_{z} − 1)/L + 1 (assuming that L is such that (N_{z} − 1)/L is an integer).
Fig. 7
Domain decomposition in the zaxis, with N_{ℓ} denoting the number of discrete heights within domain . The solid line indicates the boundary layer of the domains and , while the dashed lines indicate the ghost layers and .

Open with DEXTER
As shown below, it is possible to divide the zaxis into a large number of intervals without any serious effect on the efficiency. In the numerical experiments discussed below, we have used values as small as (N_{z} − 1)/L + 1 = 6. For a sufficient number of computing nodes, it follows that the memory requirements per domain scales as O(N_{x}N_{y}). Given the large spatial extension of the 3D stellar atmospheric models that result from today’s MHD simulations (e.g., Leenaarts et al. 2012), the domain decomposition strategy described above is very suitable for reducing to reasonable values the memory requirements per computing core.
4.2. 3D formal solution in the domaindecomposed models: the Snake Algorithm
Fig. 8
Clarification of the Snake Algorithm (SA) using an example of a formal solution with five radiation frequencies ν_{j = 1,...,5} and six directions Ω_{i = 1,...,6}, running in a domaindecomposed grid with six domains. We note that only the solution for rays Ω_{z} > 0 is shown in this figure. See the main text for details.

Open with DEXTER
In contrast to the usual 3D domain decomposition technique, it is possible to fulfill the requirement of a topologically sorted grid without the need to iterate the boundary conditions. For reasons that will become obvious below, we call it the Snake Algorithm (SA). It proceeds as follows.
The formal solution of the RT equation allows us to obtain, at each spatial grid point (i_{x},i_{y},i_{z}) of domain , the Stokes parameters for all the discretized directions and radiation frequencies (Ω_{i},ν_{j}). The total number of these points is N_{Ω}N_{ν}, where N_{Ω} denotes the number of ray directions and N_{ν} the number of radiation frequencies. Without loss of generality, let us consider the formal solution of the RT equation in domain for the directions Ω_{i} having Ω_{z} > 0 (i.e., for rays propagating along directions of increasing z, from the lower boundary of to the upper boundary of ).
For (Ω_{1},ν_{1}), we solve the RT equation starting at the lower boundary and proceeding upwards to the domain boundary layer (see Fig. 7). If the atmospheric model assumes periodic boundary conditions in the horizontal (x,y) directions, we take them into account following the strategy of Auer et al. (1994). Since the domain is not decomposed in the horizontal directions, in each of the domains our algorithm works exactly as it does in the serial solution.
Once the radiation field for (Ω_{1},ν_{1}) is known at the last plane of the domain, we start the process responsible for doing the formal solution in the next domain . In addition to the Stokes parameters, the value has to be provided to the next domain. At this point, the process starts solving the radiative transfer equation for (Ω_{1},ν_{2}), beginning again at the lower boundary. After reaching the plane, the radiative data are provided to the domain and the solution continues with (Ω_{1},ν_{3}). These steps are repeated until the radiation transfer equation is solved for all the discrete frequencies. Then, it continues in an analogous way with (Ω_{2},ν_{1}) and for all the directions with Ω_{z} > 0.
The solution in domain proceeds in an exactly analogous way. After receiving the radiation data (Ω_{1},ν_{1}) from domain , the RT equation is solved in planes , , etc., up to the layer , from which the resulting radiation field and are propagated to the grid points of domain . At a given time, each domain solves the RT equation for different (Ω_{i},ν_{j}), such that the difference between two successive processes (domains) is just one step in the discrete space of directions and frequencies. The outgoing radiation from one domain becomes the incoming radiation for the following domain. The resulting snake of length L clambers half of the parameter space of directions Ω_{z} > 0 and, after this is finished, it proceeds back in an analogous way by solving the radiative transfer problem for all Ω_{z} < 0 directions.
Figure 8 visualizes the whole process using as an example a formal solution with five radiation frequencies ν_{j = 1,...,5} and six directions Ω_{i = 1,...,6}, running in a domaindecomposed grid with six domains, each of which is indicated by a numbered rectangle. Each step of the solution in every domain corresponds to a formal solution of the RT equation for one direction and one frequency. In the next step, the snake of processes moves by one (Ω_{i},ν_{j}) point and the radiation field data are passed between the successive domains. In this example, every single process solves the RT problem in the dedicated domain which contains N/6 grid nodes. These processes parse the discrete space of directions and frequencies in the welldefined order indicated in the figure, until the whole directionfrequency space is passed through by all the processes. At the beginning and at the end of the formal solution, some of the processes are inactive, waiting for other processes to finish their work. The total number of time steps of the formal solution is 35 for the 30 directionfrequency points, which implies a speedup factor 30 × 6/35 ≈ 5.1 with respect to the serial solution. This can be easily verified by using Eq. (24) with N_{Ω} = 12 (see below).
If the domains have the same or similar N_{ℓ} values (which is easy to achieve in practice), each process (i.e., each domain) solves only the fraction 1/L of the whole radiation transfer problem. This leads, in principle, to an almost linear scaling with the number of spatial domains.
For practical reasons (i.e., optimization in the treatment of line absorption profiles, because it is not practical to store them for every grid point and ray direction), the line absorption profiles are obtained by interpolation, using a precalculated database created at the beginning of the nonLTE solution. This implies some significant reduction of memory and computing time. After calculating a line profile from the database (where the profiles are normalized to unit area), one may need to renormalize it using the chosen frequency quadrature (e.g., in the presence of Doppler shift gradients caused by macroscopic plasma motions). This only needs to be done once per direction if the loop over frequencies is the inner loop because the normalization factor only depends on direction. In summary, it is more convenient if the directions are in the outer loop and the frequencies in the inner loop of the algorithm, so that our snake parallelization strategy proceeds row by row as indicated in Fig. 8, instead of column by column.
Concerning the implementation of the algorithm, it is important to note that it is crucial to use nonblocking routines to propagate the radiation data between the successive domains. In other words, the RT calculation in domain proceeds by solving the next (Ω_{i},ν_{j}) point immediately after the lowerboundary radiation data from domain arrives. It does not have to wait for to retrieve the (Ω_{i},ν_{j − 1}) data. Consequently, the snake in Fig. 8 can temporarily become split, with two successive processes ℓ and ℓ + 1 processing nonsubsequent points in the discrete Ω × ν space (see Fig. 8). If this does not happen, the computing performance can decrease significantly because a significant amount of time is spent waiting for the synchronization of the whole grid.
4.2.1. Scaling of the algorithm
In the serial solution, the computing time needed for the formal solution of the RT equation is proportional to the total number of spatial grid points , the number of directions N_{Ω}, and the number of radiation frequencies N_{ν}. We shall denote this computing time by (19)with α a constant of proportionality. In the domaindecomposed parallel solution (still assuming that the first half of the integrations is performed along the directions having Ω_{z} > 0), the duration of the full formal solution in the whole grid is equal to the time interval between the first (Ω_{1},ν_{1}) and the last (Ω_{NΩ},ν_{Nν}) ray integrations in the domain .
Fig. 9
Speedup S(L) of the solution of the RT equation due to domain decomposition with the Snake Algorithm. The number of CPU cores on the horizontal axis is equal to the number L of spatial domains. The diagonal dotted line indicates the theoretical curve of linear scaling. The scaling of the algorithm is almost a linear function of the number of domains. The small departure from linearity is mainly due to the cost of the interprocess communication.

Open with DEXTER
Given that the number of grid nodes in domain is equal to , the time spent solving the first half of the rays in domain is (20)The process responsible for domain is waiting for the last upward ray (Ω_{NΩ/2},ν_{Nν}) to propagate through L − 1 domains to the upper grid boundary z_{Nz}. Its duration equals (21)The same time t_{b} it taken by the first downward ray (Ω_{NΩ/2 + 1},ν_{1}) to propagate from to the upper boundary of . The computing time needed for the solution of the N_{Ω}/2 downward rays in the domain is, again, equal to t_{a}.
The duration of the full formal solution in the Ldecomposed grid is, therefore, equal to T_{L} = 2(t_{a} + t_{b}). It follows from the equations above that (22)We define the speedup of the parallel solution with respect to the serial solution as (23)which, using Eqs. (19) and (22), is equal to (24)where (25)If λ ≪ 1, then the speedup in the formal solution is practically linear with the number of domains L. This is equivalent to saying that N_{Ω}N_{ν} ≫ L, i.e., to a situation in which the number of directionfrequency points is much larger than the number of domains. Given that in the transfer of polarized radiation the typical orders of magnitude of the relevant quantities are N_{Ω} ~ 10^{2}, N_{ν} ~ 10^{3}, and L ~ 10^{2}, we obtain λ ~ 10^{3}. It is easy to see from Eq. (24) that SA always accelerates the solution if N_{Ω} > 2 and L > 1.
4.3. Parallelization in the radiation frequencies
Fig. 10
Snake Algorithm applied to the problem in Fig. 8 with L = 3 and M = 5. Here, every process has a single dedicated radiation frequency, i.e., N_{m} = 1. Given the small number of directions and frequencies in this illustrative example, we have λ = 2/3 and the speedup S(LM) = 9. See the text for details.

Open with DEXTER
The radiation frequencies ν_{i = 1,...,Nν} can be grouped into M intervals, each containing the N_{m} = N_{ν}/M discrete frequencies^{4}. The Snake Algorithm can be applied in parallel to each of these frequency blocks. The only difference with respect to the algorithm described in Sect. 4.2 is that the solution in the spatial domains is only performed in a subspace of (Ω_{i},ν_{j}) in which . Since this can be done in parallel for all the M blocks, a significant reduction of the solution time can be achieved (see Fig. 10).
The domain and frequency decomposition parallelization strategies described above are performed independently of each other, in the sense that there is no need of communication between the processes treating different frequency intervals m during the formal solution. The radiation field tensors and the operator needed for the solution of the statistical equilibrium equations are only partially integrated over the line absorption profiles during the formal solution and, at the end of the whole formal solution process, are summed over the frequency intervals and synchronized among them. The time cost of this operation is negligible with respect to the time demands of the formal solution. Thanks to this orthogonality of the two independent parallelizations, it is possible to achieve a multiplicative effect of both speedup factors.
4.3.1. Scaling of the algorithm
A reduction in the number of frequencies in every domain by a factor of 1/M gives a new solution time T_{ML} which is obtained after the replacement N_{ν} → N_{ν}/M in Eq. (22). The speedup then follows as (26)where we now have (27)When λ ≪ 1 the scaling of the algorithm is virtually linear with the total number of CPU cores, P = ML. As an example, we assume a large 3D model atmosphere and a supercomputer with 10^{4} CPUs which allows for parallelization with L = 100 and M = 100. Assuming N_{Ω} = 200 and N_{ν} = 1000, we have λ ≈ 0.1 and a speedup S(ML) ≈ 0.9 × 10^{4}.
If ML ≫ 1, then Eq. (26) can be approximated by the expression (28)which immediately shows how the speedup factor depends on both the fineness of the quadratures and the number of available CPU cores. It follows that it is only possible to decrease the computing time by an additional factor of 1/2 when using more cores than (29)Given that typically N_{Ω}N_{ν} ~ 10^{5}, the power of today’s supercomputing facilities can be effectively exploited. Not surprisingly, (ML)_{optimal} corresponds to a situation in which each frequency is treated by a unique frequency band and the number of spatial domains is equal to one half of the number of rays (see Eq. (25) for N_{ν} = 1).
4.4. Advantages and disadvantages of the Snake Algorithm
The advantages and disadvantages of SA can be summarized as follows.
Disadvantages:

1.
It is only possible to decompose the grid so that L < N_{z}.

2.
If N_{x}N_{y} becomes too large, the memory requirements can be difficult to fulfill in very large atmospheric models. In the particular case of the fivelevel Ca ii model atom considered in this paper, a conservative memory limit of 2 GB per core would be reached for models with N_{x}N_{y} ≈ 1500^{2}.

3.
If the number of ray directions and frequencies is low, i.e., λ ≳ 1 in Eq. (27), the scaling properties of SA are suboptimal. However, this situation is unlikely in realistic models.

4.
It is not trivial to implement the GaussSeidel iterative method of Trujillo Bueno & Fabiani Bendicho (1995) for the smoothing part of the nonlinear multigrid iteration (see Sect. 5).

5.
There is always an overhead of communication and synchronization between the domains. This overhead can become as large as 20 % of the whole formal solution computing time for cases with N_{z}/L approaching unity, but the overhead is usually about 10 % with the hardware we have been using (see Appendix B). The relative importance of the cost of the interprocess communication increases with the number of domains, leading to a minor departure from linear scaling in the parallel solution.
Advantages:

1.
The accuracy of the solution is identical to the serial solution.The following two points follow directly from this fact.

2.
The total number of iterations needed to solve the nonLTE problem is equal to the serial solution and the convergence rate is not deteriorated as in domaindecomposition methods with iterative boundary conditions.

3.
There are no discontinuities of the errors at the boundaries of domains due to iterative boundary conditions. The error remains smooth and the application of the nonlinear multigrid method is not affected by the presence of such numerical problems.

4.
It is easy to use a partially or fully converged solution (stored in a disk file) as an initialization of a different nonLTE computation without having to worry about the radiation field at the domain boundaries^{5}. For instance, this is useful for obtaining the solution in a given 3D thermal model, but for different magnetic field choices.

5.
The scaling properties of the algorithm are almost linear with the number of CPU cores P, until P becomes comparable to N_{Ω}N_{ν}, i.e., for all cases of practical interest.

6.
Thanks to the multiplicative effect of the two independent parallelization strategies (i.e., domain decomposition and parallelization in radiation frequencies), largescale supercomputing facilities can be used with a significant improvement in the solution time.

7.
The algorithm is relatively easy to implement in practice. Existing serial RT codes can be generalized using the SA without a very serious programming effort.
Fig. 11
Speedup S(M) of the formal solution of the RT equation due to parallelization in radiation frequencies in a single spatial domain (L = 1).

Open with DEXTER
Fig. 12
Speedup S(LM) of the formal solution of the RT equation due to simultaneous parallelization in radiation frequencies and domain decomposition. Filled circles: data calculated for various values of L and M using the OCAS cluster. Diamonds: data calculated using the LaPalma supercomputer. We note that because of nonoptimal spatial and frequency decompositions (i.e., not all the CPU cores treat exactly the same number of grid points and/or frequencies), small oscillations around the nearly linear trend appear. The speedup in both data sets is normalized to the serial time T_{1} corresponding to each of the used computers.

Open with DEXTER
5. The nonlinear multigrid method
As mentioned in Sect. 2 we need a fast iterative method capable of finding rapidly the density matrix elements ρ_{l} such that Eq. (2) is satisfied when the radiative rates, which appear in the blockdiagonal matrix ℒ_{l} of Eq. (2), are calculated through the solution of the Stokesvector transfer equation when using at each spatial point the emission vector and the propagation matrix corresponding to these ρ_{l} values. A suitable method is the Jacobian iterative scheme described in Manso Sainz & Trujillo Bueno (2003) and in Appendix A of Štěpán & Trujillo Bueno (2011). As with other operator splitting methods, with this Jacobibased iterative method the convergence rate is the slower the finer the spatial grid, so that the computing time needed to obtain the selfconsistent solution scales in general as (where is the total number of spatial grid points). In order to solve complicated 3D problems in very fine grids it is convenient to apply an iterative method whose convergence rate is insensitive to the grid size, so that the computing time needed to obtain the selfconsistent solution scales as . This method is called the nonlinear multigrid method (e.g., Hackbush 1985) whose application to multilevel radiative transfer without polarization has been described in great detail by Fabiani Bendicho et al. (1997)^{6}. Here we provide only a brief overview of the nonlinear multigrid (MG) method with emphasis on the details related to our generalization to the polarized case and the parallelization strategy via domain decomposition.
5.1. Brief overview of the nonlinear MG method
As mentioned above, the aim is to find the ρ_{l} vector of density matrix values, defined in the desired fine grid of resolution level l, such that Eq. (2) is satisfied as explained above. We assume that we have a fine grid estimate such that the residual (30)is smooth^{7}. We would like to obtain a finegrid correction Δρ_{l} such that the new estimate satisfies Eq. (2): (31)Given that the problem is nonlinear (i.e., the operator ℒ_{l} depends on ) we need to make an approximation to ℒ_{l} in order to obtain a better estimate .
With the Jacobian method we simplify the operator ℒ_{l} in the same grid of resolution level l; we do this by choosing the diagonal of the Λ operator. With the nonlinear MG method we approximate the operator ℒ_{l} by forming a suitable approximation in a coarser grid of level l − 1; that is, we coarsify rather than simplify. In order to understand how we coarsify we note first that Eqs. (30) and (31) imply that (32)The residual r_{l} was assumed to be smooth, so we can map the lefthand side of Eq. (32) to a coarser grid of level l − 1 to obtain the coarsegrid equation (cf. Fabiani Bendicho et al. 1997): (33)where the linear operator ℛ is a finetocoarse or restriction operator whose application to and to r_{l} allow us to obtain directly the rhs terms. Therefore, the system of Eq. (33) is formally identical to the original system of Eq. (2), but formulated in a grid of level l − 1. After solving it with the Jacobian method explained in Appendix A of Štěpán & Trujillo Bueno (2011) we obtain the coarsegrid correction (CGC) (34)where is a coarsetofine or prolongation operator. As shown in Sect. 2.3 of Fabiani Bendicho et al. (1997) the CGC is very efficient in reducing the amplitude of the lowfrequency components of the error, but not the highfrequency components with wavelengths smaller than or similar to twice the distance between the coarse grid points. To achieve a convergent twogrid iterative scheme it is crucial to apply a number of iterations in the fine grid capable of removing the high frequency components of the error (smoothing iterations). Fabiani Bendicho et al. (1997) showed that their Multilevel GaussSeidel (MUGA) iterative method (see also Trujillo Bueno & Fabiani Bendicho 1995) has excellent smoothing capabilities in a wide range of spatial grids, but they also showed that a multilevel iterative scheme based on the Jacobi method has similar smoothing capabilities in fine grids (e.g., with grid spacings smaller than about 50 km in the case of the solar Ca ii problem outlined in Appendix A). For this reason, but mainly because the implementation of a Jacobian method for massively parallel computing is relatively straightforward, the smoothing iterations in our 3D code PORTA are done applying the Jacobian method explained in Appendix A of Štěpán & Trujillo Bueno (2011).
The previous steps correspond to a twogrid iteration: smoothing in the desired fine grid, restriction to the selected coarse grid, coarsegrid correction, prolongation to the fine grid, and smoothing in the fine grid. Threegrid and other multigrid methods can be obtained as a direct generalization of the twogrid method. The most sophisticated multigrid method is the nested multigrid method explained in Sect. 5 of Fabiani Bendicho et al. (1997). All these options are available in our PORTA code, where the grid of resolution level l − 1 is derived from the grid of resolution level l by removing half of the grid points corresponding to each axis, so that every coarsegrid node (i_{x},i_{y},i_{z})_{l − 1} coincides with some finegrid node (2i_{x},2i_{y},2i_{z})_{l} (see Fig. 13).
Fig. 13
Restriction of finegrid points (see the bottom plane) to coarsegrid ones (see the top plane). Restriction to the coarsegrid node (i,j) is performed using the data of nine finegrid nodes making up a 3 × 3 stencil, indicated by the brighter area of the bottom plane, with the central (2i,2j) grid node. See the text for details.

Open with DEXTER
5.2. Prolongation and restriction
In PORTA, two different prolongation operators are currently implemented: trilinear and tricubiccentered interpolation.
The trilinear interpolation uses the information from eight coarsegrid nodes surrounding the finegrid node. If the finegrid node is located in a plane or on a grid line formed by coarsegrid nodes, bilinear or linear interpolation is used, respectively. Finally, if the finegrid node coincides with a coarsegrid node, direct injection of the correction is applied.
Similarly, in the cubiccentered interpolation, finegrid node information is obtained by interpolation of data from 4^{3} nearby coarsegrid nodes. Bicubic or cubic interpolations, respectively, are used for finegrid nodes located at the plane or at a line connecting coarsegrid nodes. For tricubic interpolation near the boundary separating two domains of the domaindecomposed grid, data from ghost layers have to be used (see Fig. 14). According to the rules described above, interpolation of the finegrid data at the very boundary layer does not require any data from the ghost nodes.
Near the grid boundaries, that is, near the real boundary of the model where sufficient data are missing because of nonexistent outer grid nodes, we use the data from the inner grid nodes to perform the cubic interpolation (i.e., the point of interpolation is located in one of the boundary intervals of the fourpoint interpolant). For this reason, the minimum number of coarsegrid nodes per axis in a domain is limited to four if the MG method with cubic interpolation is used.
The MG method with a cubic prolongation operator generally performed better in our convergence tests. On the other hand, it is less numerically stable because it may produce unphysical extrema of the density matrix components in the fine grid. This can happen in models containing abrupt changes of the physical quantities, such as in atmospheric models resulting from today’s MHD simulations. If such a situation is encountered, it is safer to use a prolongation operator with linear accuracy or to implement a monotonitypreserving Bézier interpolation (however, we have found the liner interpolation only slightly worse than the cubic one, and so this effort does not seem to be justified).
For the restriction operator, we use the adjoint of the trilinear prolongation operator (Press et al. 2007) using the information from 3^{3} finegrid nodes surrounding the coarsegrid node (see an analogous 2D example in Fig. 13). These finegrid nodes are always available even in the domaindecomposed grids because of the presence of ghost layers. In the case of a coarsegrid node located at a nonperiodic boundary of the grid, the restriction only takes into account 2 × 3^{2} or 2^{3} nearby finegrid nodes depending on the particular grid topology.
We note that the ghost layer is the nearest layer to the domain boundary in any particular grid G_{l} of resolution level l. Therefore, the ghost layers in the grids G_{l} and G_{l − 1} correspond to layers having different coordinates z. On the other hand, the boundary layers between two successive domains and must always coincide in both discretizations G_{l} and G_{l − 1}.
Fig. 14
Illustration of the prolongation of the coarsegrid correction to the fine grid using data from the ghost layer. Solid black line: the boundary layer between the domains and . Dashed line: the ghost layer of the domain . Dotted line and the empty circle: the finegrid layer near to the domain boundary and a finegrid node. Gray lines: lines of the coarse grid. The arrows show how the data are interpolated to the finegrid node using the cubiccentered interpolation of the coarsegrid nodes data.

Open with DEXTER
Given that the formal solution of the RT equation and the solution of the statistical equilibrium equations in every domain is only performed in the real internal grid nodes, the data in the ghost layers need to be synchronized with the neighboring domains after every solution of such equations, calculation of the residuum (see Eq. (10) of Fabiani Bendicho et al. 1997), or restriction or prolongation operation.
As in the case of iterations based on the Jacobi method, the multigrid solution obtained with our parallelization strategy has exactly the same accuracy as the corresponding serial solution. The existence of domain boundaries does not destroy the highfrequency smoothing that is so crucial for the convergence of the multigrid iteration.
5.3. Convergence of the multigrid method
Fig. 15
Comparison of Jacobian and MG convergence quantified by the maximum relative change of populations between iterations R_{c}. Solid line: Jacobi iteration. Crosses: standard multigrid method with the Vcycles with two presmoothing and four postsmoothing iterations. The computational time on the horizontal axis is measured in units of one Jacobi iteration in the finest grid.

Open with DEXTER
Since the smoothing capabilities of the Jacobi iteration are inferior to the GaussSeidel iteration, one usually needs to apply more Jacobi smoothing sweeps in order to reduce the highfrequency components of the error. We have found by numerical experimentation that two presmoothing and four postsmoothing iterations in the Vcycle MG method lead to optimal convergence in our atomic and atmospheric models. Given that with the MG method the convergence error C_{e} is lower than the maximum relative change (see Eq. (19) of Fabiani Bendicho et al. 1997), it is usually sufficient to apply only two or three Vcycles to reach the convergence.
We have applied the multigrid algorithm to the fivelevel Ca ii problem described in Appendix A using a sequence of three grids: the finest grid G_{3} with 100 × 100 × 121 points, G_{2} with 50 × 50 × 61 points, and the coarsest grid G_{1} with 25 × 25 × 31 points using our domain decomposition (L = 5) and our frequency parallelization (M = 9).
In Fig. 15, we show a comparison of the convergence properties of the Jacobi and standard multigrid iteration. In comparison with the multigrid method based on GaussSeidel smoothing iterations, our multigrid method based on Jacobi smoothing iterations is slower by about a factor of three (cf. Fig. 15 of Fabiani Bendicho et al. 1997). Asymptotically, both methods are proportional to each other and the deficiency of the Jacobi smoothing sweeps can be compensated for by increasing the number of computing nodes.
Finally, we want to remark that the multigrid method is a highly convergent iterative scheme, especially suitable for obtaining the selfconsistent solution in very fine grids. However, care must be taken if the coarse grids used become too coarse to represent properly the physical reality of the transfer problem under consideration (i.e., if the number of grid points per decade of the optical depth becomes close to or smaller than unity). In this case the multigrid method may fail to converge.
6. Concluding comments
The computer program we have described in this paper, PORTA, is a powerful multilevel radiative transfer code for the simulation of the intensity and polarization of the spectral line radiation produced by scattering processes and the Hanle and Zeeman effects in 3D models of stellar atmospheres. It is based on the nonlinear multigrid method proposed by Fabiani Bendicho et al. (1997) and on a new 3D formal solver of the Stokesvector transfer equation which uses Bézier monotonic interpolation along shortcharacteristics in each radiation beam. The PORTA program can easily do Jacobi iterations in the desired spatial grid, instead of solving the nonLTE problem under consideration through the nonlinear multigrid method and has two general options: one for spectroscopy (for those interested only in the familiar intensity spectrum) and another one for spectropolarimetry (for those interested in the full diagnostic content of the spectral line radiation). The benchmarks we have carried out up to now and the first applications to spatially complex models of the extended solar atmosphere (Štěpán et al. 2012) indicate that PORTA is ready for a variety of interesting applications in solar and stellar spectroscopy and spectropolarimetry. We plan to make it available to the astrophysical community in the near future with the hope that it will facilitate new advances in solar and stellar physics.
We point out, however, that the quadratic Bezier method seems to provide reliable results in some cases of practical interest (de la Cruz Rodríguez & Piskunov 2013).
For the linear multigrid method, valid only for the twolevel atom case, see Steiner (1991).
Acknowledgments
Financial support by the Grant Agency of the Czech Republic through grant P209/12/P741, by the project RVO:67985815, as well as by the Spanish Ministry of Economy and Competitiveness through projects AYA2010–18029 (Solar Magnetism and Astrophysical Spectropolarimetry) and CONSOLIDER INGENIO CSD200900038 (Molecular Astrophysics: the Herschel and Alma Era) is gratefully acknowledged. We are also grateful to the European Union COST action MP1104 (Polarization as a Tool to Study the Solar System and Beyond) for financing shortterm scientific missions that facilitated the development of this research project. The authors acknowledge the generous computing time grants by the Spanish Supercomputing Network at the LaPalma Supercomputer, managed by the Instituto de Astrofísica de Canarias, as well as by the BSC (MareNostrum, National Supercomputing Center, Barcelona).
References
 Anusha, L. S., Nagendra, K. N., & Paletou, F. 2011, ApJ, 726, 96 [NASA ADS] [CrossRef] [Google Scholar]
 Auer, L. 2003, in Stellar Atmosphere Modeling, eds. I. Hubeny, D. Mihalas„ & K. Werner, ASP Conf. Ser., 288, 3 [Google Scholar]
 Auer, L., & Paletou, F. 1994, A&A, 285, 675 [NASA ADS] [Google Scholar]
 Auer, L., Fabiani Bendicho, P., & Trujillo Bueno, J. 1994, A&A, 292, 599 [NASA ADS] [Google Scholar]
 Belluzzi, L., & Trujillo Bueno, J. 2011, ApJ, 743, 3 [NASA ADS] [CrossRef] [Google Scholar]
 Belluzzi, L., Trujillo Bueno, J., & Štěpán, J. 2012, ApJ, 755, L2 [NASA ADS] [CrossRef] [Google Scholar]
 Belluzzi, L., Landi Degl’Innocenti, E., & Trujillo Bueno, J. 2013, A&A, 551, A84 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Carlsson, M. 2008, Phys. Scr. 2008, 014012 [Google Scholar]
 de la Cruz Rodríguez, J., & Piskunov, N. 2013, ApJ, 764, 33 [NASA ADS] [CrossRef] [Google Scholar]
 Fabiani Bendicho, P., & Trujillo Bueno, J. 1999, in Solar Polarization, eds. K. N. Nagendra, & J. O. Stenflo (Kluwer), Astrophys. Space Sci. Lib., 243, 219 [Google Scholar]
 Fabiani Bendicho, P., Trujillo Bueno, J., & Auer, L. 1997, A&A, 324, 161 [Google Scholar]
 Fontenla, J. M., Avrett, E. H., & Loeser, R. 1993, ApJ, 406, 319 [NASA ADS] [CrossRef] [Google Scholar]
 Fritsch, F. N., & Butland, J. 1984, SIAM J. Sci. Stat. Comput., 5, 300 [CrossRef] [MathSciNet] [Google Scholar]
 Hackbush, W. 1985, Multigrid methods and applications (Berlin: Springer) [Google Scholar]
 Hayek, W. 2008, Phys. Scrip., 133, 014006 [NASA ADS] [CrossRef] [Google Scholar]
 Holzreuter, R., & Solanki, S. K. 2012, A&A, 547, A46 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Ibgui, L., Hubeny, I., Lanz, T., & Stehlé, C. 2013, A&A, 549, A126 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Koesterke, L., Allen de Prieto, C., & Lambert, D. L. 2008, ApJ, 680, 764 [NASA ADS] [CrossRef] [Google Scholar]
 Kunasz, P., & Auer, L. 1988, JQSRT, 39, 67 [NASA ADS] [CrossRef] [Google Scholar]
 Landi Degl’Innocenti, E., & Landolfi, M. 2004, Polarization in Spectral Lines (Dordrecht: Kluwer) (LL04) [Google Scholar]
 Leenaarts, J., Carlsson, M., & Rouppe van der Voort, L. 2012, ApJ, 749, 136 [NASA ADS] [CrossRef] [Google Scholar]
 Manso Sainz, R., & Trujillo Bueno, J. 1999, in Solar Polarization, eds. K. N. Nagendra, & J. O. Stenflo (Kluwer) Astrophys. Space Sci. Lib., 243, 143 [Google Scholar]
 Manso Sainz, R., & Trujillo Bueno, J. 2003, in Solar Polarization, eds. J. Trujillo Bueno, & J. Sánchez Almeida, ASP Conf. Ser., 307, 251 [Google Scholar]
 Manso Sainz, R., & Trujillo Bueno, J. 2010, ApJ, 722, 1416 [NASA ADS] [CrossRef] [Google Scholar]
 Manso Sainz, R., & Trujillo Bueno, J. 2011, ApJ, 743, 12 [NASA ADS] [CrossRef] [Google Scholar]
 Mihalas, D. 1978, Stellar Atmospheres (San Francisco: Freeman and Co.) [Google Scholar]
 Nagendra, K. N., & Sampoorna, M. 2009, in Solar Polarization 5, eds. S. V. Berdyugina, K. N. Nagendra, & R. Ramelli, ASP Conf. Ser., 405, 261 [Google Scholar]
 Paletou, F., & FaurobertScholl, M. 1998, A&A, 328, 343 [NASA ADS] [Google Scholar]
 Press, W. H., Teukolsky, S. A., Vetterling, W. T., & Flannery, B. P. 2007, Numerical Recipes (New York: Cambridge University Press) [Google Scholar]
 Rees, D. E., Durrant, C. J., & Murphy, G. A. 1989, ApJ, 339, 1093 [NASA ADS] [CrossRef] [Google Scholar]
 Sampoorna, M., & Trujillo Bueno, J. 2010, ApJ, 712, 1331 [NASA ADS] [CrossRef] [Google Scholar]
 Sampoorna, M., Trujillo Bueno, J., & Landi Degl’Innocenti, E. 2010, ApJ, 722, 1269 [NASA ADS] [CrossRef] [Google Scholar]
 Socas Navarro, H., Trujillo Bueno, J., & Ruiz Cobo, B. 2000, ApJ, 530, 977 [NASA ADS] [CrossRef] [Google Scholar]
 Steiner, O. 1991, A&A, 242, 290 [NASA ADS] [Google Scholar]
 Štěpán, J., & Trujillo Bueno, J. 2011, ApJ, 732, 80 [NASA ADS] [CrossRef] [Google Scholar]
 Štěpán, J., & Trujillo Bueno, J. 2012, in The Fifth Hinode Science Meeting, eds. L. Golub, I. De Moortel, & T. Shimizu, ASP Conf. Ser., 456, 59 [Google Scholar]
 Štěpán, J., Trujillo Bueno, J., Carlsson, M., & Leenaarts, J. 2012, ApJ, 758, L43 [NASA ADS] [CrossRef] [Google Scholar]
 Trujillo Bueno, J. 2003, in Stellar Atmosphere Modeling, eds. I. Hubeny, D. Mihalas, & K. Werner, ASP Conf. Ser., 288, 551 [Google Scholar]
 Trujillo Bueno, J. 2009, in Recent Directions on Astrophysical Quantitative Spectroscopy and Radiation Hydrodynamics, eds. I. Hubeny, J. M. Stones, K. MacGregor, & K. Werner, AIP Conf. Proc., 1171, 27 [Google Scholar]
 Trujillo Bueno, J., & Fabiani Bendicho, P. 1995, ApJ, 455, 646 [NASA ADS] [CrossRef] [Google Scholar]
Appendix A: Atomic and atmospheric models
The numerical benchmarks shown in this paper result from multilevel radiative transfer computations in a 3D model of the solar atmosphere. The model atmosphere was obtained by imposing horizontal sinusoidal fluctuations of the kinetic temperature at each height in model C of Fontenla et al. (1993), hereafter FALC model, (A.1)where L_{x} = L_{y} = 2000 km are the horizontal dimensions of the domain and ΔT = 500 K is the amplitude of temperature perturbation; T_{FAL − C}(z) corresponds to the temperature at each height z in the FALC model. The vertical extent of the model is from z_{min} = −100 km to z_{max} = 2100 km.
The discretization of the spatial grid we used is N_{x} × N_{y} × N_{z} = 100 × 100 × 121 grid points, with periodic boundary conditions along the x and yaxis. In order make the model more numerically demanding, we interpolated the physical quantities of the original grid of the FALC model onto a finer grid in the z direction using an equidistant spacing of approximately 18 km. A uniform grid spacing of 20 km has been used for the x and y directions. We point out that uniform spacing is not necessary for reaching convergence with PORTA.
The atomic model is the same fivelevel Ca ii model described in Manso Sainz & Trujillo Bueno (2010), with the following spectral lines: the H (3969 Å) and K (3934 Å) UV lines and the infrared triplet (8498, 8542, and 8662 Å). The atomic level polarization created by anisotropic radiation pumping is fully taken into account, including the effects of dichroism (selective absorption of polarization components) due to the atomic polarization of the lower (metastable) levels of the infrared triplet.
The total number of discrete radiation frequencies is 505 (101 per spectral line). The angular quadrature consists of five inclination angles per octant (using Gaussian quadrature) and four azimuthal angles per octant (using the trapezoidal rule), which implies 160 ray directions.
In this paper, we illustrate the performance of PORTA through multilevel radiative transfer calculations in the 3D model of the solar atmosphere described above. We point out, however, that we have also successfully performed full multilevel computations in more complicated 3D models of the extended solar atmosphere resulting from state of the art radiation magnetohydrodynamic simulations (e.g., see Štěpán et al. 2012).
Appendix B: The software and hardware used for benchmarking
The PORTA software was written in the C programming language with parallelization treated within the Message Passing Interface (MPI) standard^{8}. The core of PORTA consists of a shared library called PORTAL, providing the radiative transfer functionality, management of the grids, and the treatment of parallelization. The second part of PORTA is a wrapper processing, in a commandline manner, with the user inputs and outputs.
The flexibility of PORTA results from the use of additional libraries (modules) making it a very flexible code suitable for possible generalizations and/or particularizations. Different atomic models and options for applications in spectroscopy and/or spectropolarimetry can be chosen using these modules. It is also possible to choose particular or limiting cases, such as the regime of scattering polarization and the Hanle effect, or the Zeeman effect regime with or without atomic level polarization, or simply to consider the case of the nonLTE problem of the 1st kind (Mihalas 1978). Moreover, the logical structure of PORTA is very suitable for future generalizations aimed at solving 3D problems with partial frequency redistribution. The software modules of PORTA are loaded on demand and provide a scalable functionality for further development of the code. We note that these modules can be written in various programming languages.
The numerical tests of PORTA presented in this paper were carried out in the following computer clusters:

1.
The Ondřejov Cluster for Astrophysical Simulations (OCAS) operated by the Astronomical Institute of the Academyof Sciences of the Czech Republic. The cluster consists of16 doublecore, 4 quadcore and4 octcore nodes (i.e., 80 CPUcores in total) with 64bit AMD OpteronCPUs @2.6 GHz interconnected viathe 4X InfiniBand network with a bandwidth of 800 MBytes/s and a latencyof 5 μs. PORTA was compiled from the source code using the PathScale compilerand the parallel functionality was provided by the OpenMPI^{9} library.

2.
Additional testing of the code using a larger number of CPUs was performed at the LaPalma supercomputer operated by the Instituto de Astrofísica de Canarias. The cluster consists of 1024 cores of 64bit IBM PowerPC 970 processors and uses a high bandwidth Myrinet network for efficient interprocess communication. We used the GNU C compiler.
We have also used the MareNostrum III supercomputer of the Barcelona Supercomputing Center (BSC), which with its 48 896 Intel Sandy Bridge processors in 3056 nodes is at present the most powerful supercomputer in Spain and holds the 29th position in the TOP500 list of fastest supercomputers in the world. In this supercomputer we had 2048 CPU cores at our disposal and using 800, 1200, and 2000 CPU cores we tested the scalability of our formal solver of the Stokesvector transfer equation for the resonance polarization problem of the hydrogen Lyα line in a 3D model atmosphere with N_{x} × N_{y} × N_{z} = 504 × 504 × 321 grid points. Using the Intel C/C++ 13.0 compiler, we found that PORTA scales almost linearly up to at least this number of CPU cores.
All Tables
Taylor expansion of the ω_{M,O,P} coefficients for small optical path intervals.
All Figures
Fig. 1
Shortcharacteristics in a threedimensional Cartesian rectilinear grid.

Open with DEXTER
In the text
Fig. 2
Parabolic and BESSER interpolation using the three successive points M, O, and P. Dotted line: parabolic interpolation may create a spurious extremum between points M and O. Solid line: interpolation using our BESSER method with continuous derivative at point O. The control points of the intervals, whose ycoordinates are denoted by c_{M} and c_{P}, define tangents to the Bézier splines in their endpoints. The xcoordinates of the control points are located at the center of the corresponding intervals.

Open with DEXTER
In the text
Fig. 3
Treatment of an overshoot in the downwind interval OP by three different methods. Black solid line: BESSER implementation with continuous derivative at point O and the c_{P} overshoot correction of the control point. Crosses: piecewise monotonic quadratic Bézier spline interpolation. Solid gray line: parabolic interpolation. We note that the piecewise monotonic quadratic Bézier interpolation coincides with the parabolic interpolation in the MO segment because the overshoot in the OP interval does not affect the upwind interpolation between M and O.

Open with DEXTER
In the text
Fig. 4
Each pair of curves shows, for a spatial grid of given resolution, the maximum relative change versus the iteration number using the Jacobi method with DELOPAR (dotted lines) and with BESSER (solid lines). We note that the finer the grid the slower the convergence rate, but that for any given spatial resolution both formal solvers give the same convergence rate.

Open with DEXTER
In the text
Fig. 5
Variation along the ray direction of the source function (Eq. (15)) and of the corresponding specific intensity (Eq. (17)) calculated analytically.

Open with DEXTER
In the text
Fig. 6
Maximum relative true error E(Δτ) calculated as a function of the uniform grid spacing Δτ, using different formal solvers. Solid line: our BESSER method. Dotted line: quadratic Bézier with the derivative at point O calculated using the expression given by Fritsch & Butland (1984) (see also Eq. (12) of Auer 2003). Dashed line: as in the previous method, but applying the c_{M} overshoot correction (see Eq. (11) of Auer 2003). Dasheddotted line: standard SC method with linear interpolation. Threedotteddashed line: standard SC method with parabolic interpolation.

Open with DEXTER
In the text
Fig. 7
Domain decomposition in the zaxis, with N_{ℓ} denoting the number of discrete heights within domain . The solid line indicates the boundary layer of the domains and , while the dashed lines indicate the ghost layers and .

Open with DEXTER
In the text
Fig. 8
Clarification of the Snake Algorithm (SA) using an example of a formal solution with five radiation frequencies ν_{j = 1,...,5} and six directions Ω_{i = 1,...,6}, running in a domaindecomposed grid with six domains. We note that only the solution for rays Ω_{z} > 0 is shown in this figure. See the main text for details.

Open with DEXTER
In the text
Fig. 9
Speedup S(L) of the solution of the RT equation due to domain decomposition with the Snake Algorithm. The number of CPU cores on the horizontal axis is equal to the number L of spatial domains. The diagonal dotted line indicates the theoretical curve of linear scaling. The scaling of the algorithm is almost a linear function of the number of domains. The small departure from linearity is mainly due to the cost of the interprocess communication.

Open with DEXTER
In the text
Fig. 10
Snake Algorithm applied to the problem in Fig. 8 with L = 3 and M = 5. Here, every process has a single dedicated radiation frequency, i.e., N_{m} = 1. Given the small number of directions and frequencies in this illustrative example, we have λ = 2/3 and the speedup S(LM) = 9. See the text for details.

Open with DEXTER
In the text
Fig. 11
Speedup S(M) of the formal solution of the RT equation due to parallelization in radiation frequencies in a single spatial domain (L = 1).

Open with DEXTER
In the text
Fig. 12
Speedup S(LM) of the formal solution of the RT equation due to simultaneous parallelization in radiation frequencies and domain decomposition. Filled circles: data calculated for various values of L and M using the OCAS cluster. Diamonds: data calculated using the LaPalma supercomputer. We note that because of nonoptimal spatial and frequency decompositions (i.e., not all the CPU cores treat exactly the same number of grid points and/or frequencies), small oscillations around the nearly linear trend appear. The speedup in both data sets is normalized to the serial time T_{1} corresponding to each of the used computers.

Open with DEXTER
In the text
Fig. 13
Restriction of finegrid points (see the bottom plane) to coarsegrid ones (see the top plane). Restriction to the coarsegrid node (i,j) is performed using the data of nine finegrid nodes making up a 3 × 3 stencil, indicated by the brighter area of the bottom plane, with the central (2i,2j) grid node. See the text for details.

Open with DEXTER
In the text
Fig. 14
Illustration of the prolongation of the coarsegrid correction to the fine grid using data from the ghost layer. Solid black line: the boundary layer between the domains and . Dashed line: the ghost layer of the domain . Dotted line and the empty circle: the finegrid layer near to the domain boundary and a finegrid node. Gray lines: lines of the coarse grid. The arrows show how the data are interpolated to the finegrid node using the cubiccentered interpolation of the coarsegrid nodes data.

Open with DEXTER
In the text
Fig. 15
Comparison of Jacobian and MG convergence quantified by the maximum relative change of populations between iterations R_{c}. Solid line: Jacobi iteration. Crosses: standard multigrid method with the Vcycles with two presmoothing and four postsmoothing iterations. The computational time on the horizontal axis is measured in units of one Jacobi iteration in the finest grid.

Open with DEXTER
In the text
Current usage metrics show cumulative count of Article Views (fulltext article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 4896 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
