Impact of internal gravity waves on the rotation profile inside premain sequence lowmass stars
^{1} Geneva Observatory, University of Geneva, Chemin des Maillettes 51, 1290 Versoix, Switzerland
email: Corinne.Charbonnel@unige.ch
^{2} IRAP, CNRS UMR 5277, Université de Toulouse, 14 Av. E. Belin, 31400 Toulouse, France
^{3} LUPM, Université Montpellier II, CNRS, UMR 5299, Place E. Bataillon, 34095 Montpellier, France
^{4} Calcul Québec, Université de Montréal (DGTIC), C.P. 6128, succ. Centreville, Montréal (Québec) H3C 3J7, Canada
Received: 11 February 2013
Accepted: 4 April 2013
Aims. We study the impact of internal gravity waves (IGW), meridional circulation, shear turbulence, and stellar contraction on the internal rotation profile and surface velocity evolution of solar metallicity lowmass premain sequence stars.
Methods. We compute a grid of rotating stellar evolution models with masses between 0.6 and 2.0 M_{⊙} taking these processes into account for the transport of angular momentum, as soon as the radiative core appears and assuming no more disklocking from that moment on. IGW generation along the PMS is computed taking Reynoldsstress and buoyancy into account in the bulk of the stellar convective envelope and convective core (when present). Redistribution of angular momentum within the radiative layers accounts for damping of prograde and retrograde IGW by thermal diffusivity and viscosity in corotation resonance.
Results. Over the whole mass range considered, IGW are found to be efficiently generated by the convective envelope and to slow down the stellar core early on the PMS. In stars more massive than ~1.6 M_{⊙}, IGW produced by the convective core also contribute to angular momentum redistribution close to the ZAMS.
Conclusions. Overall, IGW are found to significantly change the internal rotation profile of PMS lowmass stars.
Key words: stars: evolution / stars: interiors / stars: lowmass / stars: rotation
© ESO, 2013
1. Introduction
The evolution of the surface rotation of lowmass stars along the premain sequence (PMS) follows a specific path as shown by the data, both rotation periods and vsini measurements, collected in young stellar clusters (e.g. Irwin & Bouvier 2009, and references therein for a review). The rotational properties of young stars appear to result from an intricate interplay between several physical processes that affect the angular momentum gains, losses, and redistribution as the stars evolve along the PMS towards the zero age main sequence (ZAMS). These mechanisms can be roughly divided into two classes. The first ones result from the connection of the stars to their environment (magnetic and dynamic coupling to a circumstellar disk, accretion, jets, stellar and disk winds, etc.), and are particularly crucial during the T Tauri phase, when stardisk interaction is observed and expected to be strong (see, for instance, Shu et al. 1994; Matt & Pudritz 2005; Zanni & Ferreira 2013). The broad variety of possible starenvironment configurations may, in particular, explain part of the large dispersion in rotation rates of solartype stars observed along the PMS and at the arrival on the ZAMS (e.g., Stauffer et al. 1985; Irwin & Bouvier 2009).
The second class is related to stellar secular evolution and consists of the (magneto) hydrodynamical transport mechanisms that contribute to redistributing angular momentum inside the stars themselves. In the present paper we focus on exploring these internal mechanisms once the disk has dissipated and the accretion process is over, which occurs after 3–10 Myr (e.g., Haisch et al. 2001; Hartmann 2005; Hernández et al. 2008), i.e., roughly at the time when a radiative core appears in the contracting PMS stars. Our aim is to evaluate, in particular and for the first time, the interplay between internal gravity waves (IGW), meridional circulation, turbulent shear, and stellar contraction during the PMS, considering that IGW are one of the best candidate mechanisms to explain the flat angular velocity profile inside the Sun as revealed by helioseismology (Charbonnel & Talon 2005). This work is also motivated by the results of Talon & Charbonnel (2008,hereafter TC08), who showed that IGW are efficiently excited inside intermediatemass PMS stars and suggested that waves should efficiently transport angular momentum during the PMS evolution, which should affect the angular velocity profile at this phase and at the arrival on the ZAMS.
In Sect. 2 we introduce the formalism for IGW excitation and for the transport of angular momentum through the various mechanisms considered. We describe in Sect. 3 the basic assumptions for the present grid of PMS models for lowmass (0.6 to 2 M_{⊙}), solarmetallicity stars. In Sect. 4 we examine IGW generation by the convective envelope and the convective core (when present) along the PMS evolution for the whole mass range covered by the grid. In Sect. 5 we describe the impact of the various interacting transport mechanisms on the evolution of the internal rotation profile for the various stellar masses, and in Sect. 6 we briefly discuss their influence on the surface rotation velocity and lithium abundance, as well as on global stellar properties. Conclusions are presented in Sect. 7.
2. Formalism
We follow Talon & Charbonnel (2005, hereafter TC05) for the treatment of both the excitation of IGW and the transport of angular momentum and chemicals by waves, meridional circulation, and shear turbulence in hydrodynamical stellar models. We do, however, underline three main improvements over TC05 paper. First, we consider IGW generated both by the external and central convective regions (when present), while only those excited by the convective envelope were considered in our previous work. Second, the important variations in the stellar structure and of the IGW properties along the PMS (see Sect. 4 and TC08) require that we then compute the wave spectra at each evolution time step, while the main sequence computation presented in TC05 was based on the wave spectrum of the stellar model on the ZAMS. Finally, we account here for both prograde and retrograde waves in the whole radiative interior, while only the latter ones were considered previously. We recall below the formalism (i.e., relevant equations and assumptions) that is included in the evolution code STAREVOL (see TC05, TC08, and Mathis et al., in prep.).
2.1. IGW generation
In this exploratory work we apply the Goldreich et al. (1994) formalism as adapted by Kumar & Quataert (1997) to calculate the spectrum of IGW excited by Reynolds stress and buoyancy in the bulk of convective regions (see e.g. Zahn et al. 1997). We do not consider the possible effects of IGWs generated by convective overshooting plumes, since no analytical prescription is available to describe this excitation mechanism (see details and discussion in TC05). However as we see in Sect. 2.3.1, we multiply the IGW flux by a factor 2 in the transport equation in order to account for the recent results by Lecoanet & Quataert (2013). We treat the waves by assuming that they are pure gravity waves (i.e., not modified by the Coriolis acceleration) that only feel the entrainment by differential rotation.

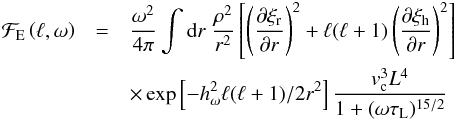

The kinetic energy flux per unit frequency is (1)with ξ_{r} and [ℓ(ℓ + 1)] ^{1/2}ξ_{h} the radial and horizontal displacement wave functions normalized to unit energy flux at the edge of the considered convection zone, v_{c} the convective velocity, L = α_{MLT}H_{P} the radial size of an energy bearing turbulent eddy, τ_{L} ≈ L/v_{c} the characteristic convective time, H_{P} the pressure scale height P/ρg, and h_{ω} the radial size of the largest eddy at depth r with characteristic frequency of ω or higher (h_{ω} = Lmin { 1,(2ωτ_{L})^{− 3/2} }). The radial and horizontal wave numbers (respectively k_{r} and k_{h}) are related by (2)where N^{2} is the BruntVäisälä frequency^{1}.
At the considered convective edge (located at radius r_{cz}), the mean flux of angular momentum carried by a monochromatic wave of spherical order ℓ and local (i.e., emission) frequency ω (m being the azimutal order), i.e., the momentum flux per unit frequency, is related to the kinetic energy flux by (3)(Goldreich & Nicholson 1989; Zahn et al. 1997). The socalled angular momentum luminosity at the considered convective edge (envelope or core) is obtained after horizontal integration (4)
2.2. IGW damping
Deposition of angular momentum (positive or negative) within the radiative layers occurs at the depth where individual monochromatic waves are eventually damped by thermal diffusivity and viscosity in corotation resonance (Goldreich & Nicholson 1989; Schatzman 1993; Zahn et al. 1997). In the present study the local momentum luminosity at a given radius r within the radiative region accounts for prograde and retrograde waves (i.e., with respectively positive and negative m values) generated by both the convective envelope and the convective core (if present), i.e., (5)where each component is given by (6)where “cz” refers to the interface between the radiative region and the corresponding convection zone (i.e., envelope or core).
The local damping rate (7)takes the mean molecular weight stratification into account (Goldreich & Nicholson 1989; Schatzman 1993; Zahn et al. 1997), as well as the thermal and the (vertical) turbulent viscosity (K_{T} and ν_{v} respectively). Here, σ is the local Dopplershifted frequency (8)with ω the wave frequency in the reference frame of the corresponding emitting convection zone that rotates with the angular velocity Ω_{cz}.
As can be seen from these expressions, angular momentum redistribution by IGW within the radiative region is dominated by lowfrequency (σ ≪ N), lowdegree waves; indeed, those penetrate deeper, and their prograde and retrograde components experience strong differential damping, as required to produce a net momentum deposition. In contrast, highdegree waves are damped closer to the convection zone (since damping ), and highfrequency waves experience less differential damping.
2.3. Global transport of angular momentum by IGW, meridional circulation, and shear turbulence
2.3.1. General equations
We assume solidbody rotation in the convective regions. In the stellar radiative regions, the evolution of angular momentum through advection by meridional circulation, diffusion by shear turbulence, and deposit or extraction by IGW follows the general expression below (e.g., Talon & Zahn 1998): (9)where U is the radial meridional circulation velocity, ν_{v} the turbulent viscosity due to differential rotation, and ρ the density. We have added a factor 2 in the last term to account for the study by Lecoanet & Quataert (2013), who predict the IGW flux due to turbulent convection to be a few to five times larger than in previous estimates by, e.g., Goldreich & Kumar (1990) and Goldreich et al. (1994). However as we see in Sect. 5.1.2, our conclusions are not sensitive to this multiplication factor.

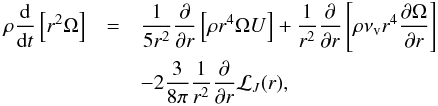

Following Decressin et al. (2009) and Mathis et al. (in prep.) we integrate Eq. (9) over an isobar enclosing the mass to obtain the expression of the total flux (loss or gain) of angular momentum carried by the considered transport processes: where the fluxes driven by meridional circulation, vertical shearinduced turbulence, and IGWs are, respectively,
2.3.2. Meridional circulation

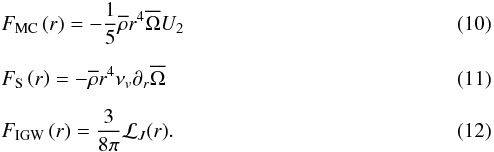

As can be seen in Eq. (9) the transport of angular momentum through meridional circulation is treated as an advective process. As in our previous studies we apply the formalism developed by Zahn (1992), Maeder & Zahn (1998) and Mathis & Zahn (2004,see also Decressin et al. 2009.
2.3.3. Shearinduced turbulence
Shearinduced turbulence is assumed to be highly anisotropic. Following TC05 we assume that the turbulent diffusion coefficient equals turbulent viscosity and use the corresponding expression given by Talon & Zahn (1997), i.e., (13)that considers the weakening effect of thermal diffusivity (K_{T}) on the thermal stratification and of horizontal turbulence (D_{h}, see below) on both the thermal and mean molecular weight stratifications.
For the treatment of horizontal turbulent viscosity, we follow Zahn (1992), again as in TC05: (14)with C_{h} = 1.
The influence of the prescriptions assumed for D_{v} and D_{h} will be investigated in a future paper.
2.4. Transport of chemicals
We treat the transport of chemical species in the radiative regions as a diffusive process through the combined action of meridional circulation and shearinduced turbulence (Chaboyer & Zahn 1992). The effective diffusion coefficient is written (15)where D_{h} is the horizontal component of the turbulent diffusivity (see Eq. (14)).
In the present study we neglect atomic diffusion, whose effects require much longer timescales to develop compared to the very short duration of the PMS phase. We also neglect possible waveinduced turbulence. Therefore the expression for the transport of chemicals (here, the mass fraction X of the element i) in the stellar radiative region writes as (see e.g. Meynet & Maeder 2000): (16)where d, and the last term accounts for nuclear destruction or production of the considered element.
3. Stellar models
3.1. Input physics and basic assumptions
We focus on the PMS evolution of solarmetallicity stars in the mass range between 0.6 and 2.0 M_{⊙}. We adopt the solar composition of Asplund et al. (2009). Opacity tables are updated accordingly both at high and low temperature respectively from OPAL and Wichita websites^{2} (see e.g. Iglesias & Rogers 1996; Ferguson et al. 2005). The mixing length parameter α_{MLT} = 1.63 is calibrated so that our standard (i.e., non rotating) 1 M_{⊙}, Z_{⊙} model fits the solar radius, effective temperature, and luminosity at the age of the sun. Convection zone bounderies are defined by the Schwarzschild criterion, and we do not account for convective overshoot.
Computations are performed with the stellar evolution code STAREVOL (see e.g. TC05, Lagarde et al. 2012). Initial models are totally convective polytropic stars, with central temperature lower than 10^{6} K (i.e., deuterium burning has not yet occurred). We follow the PMS evolution along the Hayashi track up to the arrival on the ZAMS that we define as the point where the ratio between central and surface hydrogen abundance reaches 0.998. The stellar mass is assumed to be constant during that phase (i.e., no accretion nor mass loss). For each stellar mass we compute classical models (i.e., without any transport of angular momentum nor of chemicals) as well as rotating models with and without IGW. We neglect the hydrostatic effects of the centrifugal force in all our rotating models but two; we discuss the impact of this simplification in Sect. 5. The evolution tracks of the classical models in the HertzsprungRussel diagram are shown in Fig. 1.
Fig. 1 PMS tracks in the HertzsprungRussel diagram for solar metallicity stars with initial masses between 0.6 and 2.0 M_{⊙} (classical models are shown here) and properties of the external convective layers. Colors indicate the radial extent of the convective envelope (top left panel), the temperature at its bottom (top right panel), the maximal convective flux (bottom left panel), and the thermal diffusivity below the envelope (bottom right panel). Dashed lines connect points with similar values for these quantities, and the colored axes are in cgs units. The dotted parts of the tracks correspond to the phase when the stars are still fully convective.

Open with DEXTER
Properties of the different models computed without rotation (std), with rotation but without IGW (rot), and with rotation taking into account IGW (igw).
3.2. Initial internal and surface rotation
We assume solidbody rotation while stars are fully convective (which corresponds to the dotted part of the tracks in Fig. 1) and we start computing the evolution of surface and internal rotation under the action of stellar contraction, meridional circulation, turbulence, and IGW when the radiative core appears, which happens at ages between ~0.5 and 7.5 Myr for the mass range considered (see τ(core) in Table 1), and at ~2.5 Myr for the 1.0 M_{⊙} model. At that time, most or even all lowmass stars have already lost their disks as shown by observations in very young clusters (e.g. Haisch et al. 2001; Hartmann 2005; Hernández et al. 2008). For all stellar masses, we choose the initial rotation velocity at the moment when the radiative zone appears to be equal to 5% of the critical velocity of the corresponding model (; see Table 1). This corresponds approximately to the median of the observed distribution in young open clusters (see Fig. 13 and Sect. 6 for discussion). We assume that there is no more coupling between the star and a potential disk beyond that evolution point. The surface of the star is then free to spin up, and we do not apply any magnetic braking. The influence of the initial rotation velocity, of the disk lifetime that affects the moment when a PMS star starts spinning up, as well as that of magnetic wind braking that may affect the rotation rate at the arrival on the ZAMS, will be investigated in a forthcoming paper.
Fig. 2 Same as Fig. 1, but for the properties of the convective core. Here dotted parts on the tracks indicate the phase when the convective core is not yet present.

Open with DEXTER
4. IGW generation along the PMS evolution for all grid models
The internal structure strongly changes as lowmass stars evolve along the PMS. This implies strong variations in the quantities that are relevant to IGW generation and momentum transport, as depicted in Figs. 1 for the properties of the convective envelope and 2 for the core. All quantities are given in cgs units.
Stars are first fully convective and a radiative core appears along the Hayashi track as they contract and heat (Fig. 1). The thickness of the convective envelope decreases, and the temperature at its base increases as the stars move towards higher effective temperatures. Due to central CNOburning ignition on the final approach towards the ZAMS a convective core develops (Fig. 2).
One can follow the evolution along the tracks of the maximum convective flux (F_{c} = C_{p}ρv_{c}ΔT) inside the external and central convective regions, which directly affects the energy flux associated to a given frequency (see Eq. (1)). Wave excitation is stronger when the convective length scale (ℓ_{c} = 2πr_{cz}/αH_{p}) is larger, but decreases when the turnover timescale (τ_{c} = α_{MLT}H_{p}/v_{c}) becomes too large. The combination of these two factors induces large differences in the overall efficiency of wave generation as the internal structure evolves. This is well illustrated in Fig. 3 that shows the luminosity spectrum of IGW generated by the external convection zone in the 1 M_{⊙} model at four ages on the PMS. One sees clearly that waveinduced transport is dominated by lowfrequency waves (i.e., <3.5 μHz). High degree waves at low frequencies do not contribute much to the transport of angular momentum even though their excitation flux is important: indeed they are essentially damped near the convective envelope edge. In Fig. 4 colors along the tracks indicate the net momentum luminosity ℒ_{J} (see Eq. (4)) of IGWs generated by the external and internal convective regions.
In the case of external convection, the net momentum luminosity ℒ_{J,surf} rapidly increases as the excitation of IGW strengthens up when stars evolve towards higher effective temperature, and reaches maximum values as high as 10^{39} g cm^{2} s^{2} around T_{eff} ~ 6200 K. Stars with initial masses lower than 1.3 M_{⊙} never reach this effective temperature and the corresponding ℒ_{J,surf} remains always below this maximum and shows only a monotonic increase along the PMS. On the other hand in the more massive models the convective envelope keeps shrinking in size and ℒ_{J,surf} decreases when T_{eff} increases above 6200 K. This behavior confirms TC08 findings for intermediatemass PMS stars, and is very similar to the ℒ_{J} plateau we found for Pop I and Pop II main sequence stars (Talon & Charbonnel 2003, 2004), which share very similar convective properties with PMS stars in the same T_{eff} range.
IGW are also emitted from the convective core at the end of the PMS. The more massive the star, the more the convective core expands, and the stronger the corresponding wave excitation. We note however from Fig. 4 that wave excitation by the convective core (when present) is generally much less efficient than that of the convective envelope. The ratio between ℒ_{J,core} and ℒ_{J,surf} is shown in Fig. 5 as a function of T_{eff} for the various models. For stars with masses below 1.4 M_{⊙}, ℒ_{J,core} is always ~5–6 order of magnitude lower than ℒ_{J,surf}. These two quantities reach similar orders of magnitude only very close from the ZAMS for stars more massive than 1.6 M_{⊙}. Therefore and as we shall see below, the impact of IGW on the internal rotation profile along the PMS will be dominated by the waves emitted by the convective envelope.
Fig. 3 Angular momentum luminosity at the base of the convective envelope of IGW generated by Reynoldsstress in the external convective layers as a function of emission frequency ω and degree ℓ. The color axis is in log and white areas correspond to logℒ_{J,surf} < 22. The plots are shown for the 1 M_{⊙} model at four ages along the PMS (5.8, 14, 35, and 55 Myr from top left to bottom right; the corresponding values of T_{eff} are 4277, 4357, 5560, and 5612 K).

Open with DEXTER
Fig. 4 Same as Fig. 1, but with colors indicating the total momentum flux carried by IGW generated by the convective envelope (left) and the convective core (right). Dotted lines indicate the region where the stars are fully convective (left) or have no convective core (right) so that no IGW can be generated. In the left panel the vertical dashed lines connect models where the excitation has the same value: log (Σ  ℱ_{J}(ω,l,m)  ) = 28, 30, 32, 34, 36, 38.

Open with DEXTER
Fig. 5 Ratio of the total momentum luminosity carried by IGW generated by the convective core and the convective envelope for the PMS models of various masses.

Open with DEXTER
5. Evolution of the internal rotation profile
5.1. The case of the 1 M_{⊙} star
Fig. 6 Evolution along the PMS of the rotation profile in the 1 M_{⊙} models computed with and without IGW (top and bottom respectively) as a function of relative mass fraction and radius in solar units (left and right respectively). The curves are labeled according to age. On each plot the left and right scales give Ω in μHz and in solar units respectively.

Open with DEXTER
Fig. 7 Decomposition of the total flux of angular momentum (solid black) into meridional circulation (longdashed magenta), shear turbulence (dotted blue), and IGW (shortdashed red) in the 1 M_{⊙} models computed with and without IGW (left and right panels respectively). Bold lines indicate negative values for the fluxes , , or , when angular momentum is transported towards the central regions by the corresponding mechanism; in the case of meridional circulation and of shear turbulence this corresponds respectively to clockwise currents (U_{2} > 0) and to a positive Ω gradient. The profiles are shown at three different ages along the PMS. Shaded areas correspond to convective regions.

Open with DEXTER
Fig. 8 Meridional circulation currents in the 1 M_{⊙} models computed with and without IGW (top and bottom respectively) at three different evolution ages along the PMS (14, 35, and 55 Myr from left to right)). Blue and red lines indicate clockwise (U_{2} > 0) and counterclockwise (U_{2} < 0) circulation respectively. Hatched areas correspond to convective regions.

Open with DEXTER
Figure 6 depicts the evolution along the PMS of the rotation profile inside the 1 M_{⊙} star for two cases: when angular momentum transport is operated solely by meridional circulation and shear turbulence (bottom panels), and when angular momentum deposition by internal gravity waves is taken into account in addition to the hydrodynamic processes (top panels); the rotation profile is shown at different ages as a function of both relative mass fraction and reduced radius (left and right panels respectively). The decomposition of the total flux of angular momentum into the various components driven by meridional circulation, shear turbulence, and IGW (when accounted for; see Eqs. (10)–(12) respectively) is shown in Fig. 7 at three ages along the PMS. Meridional circulation currents are shown at the same ages in Fig. 8; clockwise currents (matter flowing from the equator to the pole and resulting in deposition of angular momentum inwards) and counterclockwise ones (carrying angular momentum outwards) are drawn in blue and red respectively.
5.1.1. Transport of angular momentum by meridional circulation and shear turbulence only
When only meridional circulation and shear turbulence are accounted for, differential rotation rapidly develops inside the radiative region as the surface rotation velocity increases due to stellar contraction (Fig. 6, bottom plots). This behavior as well as the rotation profile at the arrival on the ZAMS are similar to the results of Eggenberger et al. (2012) for their rotating 1 M_{⊙} model computed with similar assumptions.
As can be seen in Fig. 7 (right plots) for this model without IGW, the transport of angular momentum is dominated by meridional circulation all along the PMS, while the contribution of shear turbulence is negligible (the flux of angular momentum by turbulence F_{V} is indeed ~2 orders of magnitude lower than the flux driven by meridional circulation F_{MC}). The number of circulation loops evolves with time (Fig. 8, bottom plots; see also Fig. 7): In the early stages (14.9 Myr, left panel), the circulation consists of a single counterclockwise current that transports matter inward along the rotational axis and outward in the equatorial plane; later on (33.5 Myr, middle panel) a clockwise loop appears in the central regions; finally an additional counterclockwise loop shows up when the convective core develops (55 Myr, right panel).
5.1.2. Impact of internal gravity waves
The evolution of the internal rotation profile changes drastically when IGW are taken into account in conjunction with meridional circulation and shear turbulence, as can be seen in Fig. 6 (top plots). As already discussed in Sect. 4, the emitted wave spectrum strongly evolves with the stellar structure along the PMS. IGW are first emitted by the receding convective envelope, and much later by the convective core when it appears during the final approach towards the zams. In the case of the 1 M_{⊙} model, IGW emitted by the convective core play actually no role since their luminosity is extremely low (see Fig. 5 and discussion in Sect. 4). Therefore the following discussion refers only to those emitted by the envelope.
In order to understand waveinduced transport, we must also focus on the important quantities for wave damping in the radiative layers, namely the BruntVäisälä frequency N^{2} and the thermal diffusivity K_{T}: for a given differential rotation within the radiative layers, lowfrequency (i.e., with ω < 3.5 μHz) and/or large degree waves that dominate the angular momentum transport are damped very efficiently close to the convective edges when is too small or when K_{T} is too large (see Eq. (7)). Figs. 9 and 14 show the radial profiles of these two quantities in the radiative layers of the 1 M_{⊙} model at various ages (see also Figs. 1 and 2 that show the variations along the evolution track of the value of K_{T} just below the convective envelope and above the convective core). At all ages N^{2} drops near the stellar center and the convective edges; in addition its value at a given depth increases with time along the PMS as a result of the stellar contraction that leads to an increase of gravity and a decrease of the pressure scale height as the star evolves. On the other hand the value of K_{T} just below the convective envelope also increases as the star contracts and move towards higher effective temperature; this implies stronger damping of all the waves (independently of their properties) closer to the convective envelope; note that K_{T} at a given depth within the star increases only slightly during the evolution. Besides, the build up of differential rotation with time within the star induces a change in the local Doppler shift frequency, which allows a different damping for waves with different frequencies and m through the term .
Let us see what these general considerations imply for the 1.0 M_{⊙} model. We start with initial solid body rotation and then follow the transport of angular momentum when the radiative layers appear. At that moment differential rotation has not yet developed, and the local frequency σ of individual waves in the very thin radiative zone is similar to their emission frequency ω at the base of the convective envelope. However slight differential rotation soon builds up as a result of stellar contraction along the Hayashi track, which induces a Doppler shift between the emission and local IGW spectra. As a consequence, lowfrequency lowdegree waves, which undergo the largest differential damping between retrogade and prograde components, soon penetrate all the way to the central regions where they deposit their negative momentum and very efficiently spin down the core whose amount of angular momentum is minute (see Fig. 6). This explains the strong positive gradient in the profile of Ω below ~0.2 R_{⊙}, while the negative gradient of Ω in the external layers results from ongoing stellar contraction. As a consequence a peak builds up in the internal rotation profile with a core spinning at lower rate than the stellar surface all along the PMS.
Fig. 9 Evolution of the BruntVäisälä frequency in the 1 M_{⊙} PMS star as a function of relative mass fraction and radius (left and right respectively). The colors correspond to the same ages as in Fig. 6. On the right plot the vertical lines indicate the total stellar radius at the corresponding ages.

Open with DEXTER
Fig. 10 Rotation profile on the ZAMS for all the stellar masses between 0.6 and 2.0 M_{⊙} in the cases without and with IGW (full black and red dotted lines respectively). In the 1 M_{⊙} panel, the blue longdashed and the green dashed lines correspond to computations made with multiplication factors for IGW luminosity of one and five respectively, all the other models with IGW being computed with a multiplication factor of two (see Eq. (9)).

Open with DEXTER
Fig. 11 Same as Fig. 7 for the 2 M_{⊙} model computed with IGW.

Open with DEXTER
We show in Fig. 7 the total flux of angular momentum carried by the waves as a function of depth within the 1 M_{⊙} model, and compare it to the contribution of meridional circulation and shear turbulence at different evolution stages. We note first that the transport of angular momentum is generally dominated by the waves in the radiative layers where they can propagate, except in the early times when meridional circulation dominates in the most external regions below the convective envelope (upper panel at 14 Myr). Since downward propagating waves are totally damped as soon as the condition Ω(r) = ω/m + Ω_{cz} is fulfilled near the corotation radius, the total flux F_{IGW} drops and remains negligible below the Ω peak. This can be clearly seen in the middle and lower panels in Fig. 7 at 35 and 55 Myr; at that time meridional circulation dominates in the regions below ~0.15 and 0.2 M_{⊙} respectively, while IGW are dominant in the outer regions. Note that the total flux of angular momentum is dominated by IGW when they are accounted for and is larger by two orders of magnitude compared to the case without IGW. Overall, IGW do shape the circulation patterns, leading to the appearance of several loops in the whole radiative region as can be seen in Figs. 7 and 8.
Let us add a final remark. As explained in Sect. 2.3.1, we have increased by a factor 2 the IGW luminosity in order to account for the results by Lecoanet & Quataert (2013) who predict the IGW flux due to turbulent convection to be a few to five times larger than in previous estimates by e.g. Goldreich & Kumar (1990) and Goldreich et al. (1994). In order to test the impact of this assumption, we have computed two additional models for the 1 M_{⊙} rotating star with multiplying factors of 1 and 5. We find that this has no impact on the conclusions, as can be seen in Fig. 10 where we plot the corresponding rotation profiles at the arrival on the ZAMS.
5.2. Impact of the stellar mass
For all the stars within the considered mass range, strong differential rotation with a fast rotating core is obtained under the combined action of stellar contraction and meridional circulation when IGW are not accounted for. Besides, in all cases IGW do breakup the stellar core, which results in a peak in Ω at r ~ 0.25 − 0.3 R_{∗} as in the 1 M_{⊙} case. This can be seen in Fig. 10 where we show the rotation profiles at the arrival on the ZAMS for all our models (black and red lines correspond respectively to the models computed without or with IGW).
Fig. 12 Same as Fig. 6 for the 2 M_{⊙} model computed with IGW.

Open with DEXTER
Let us note however that the impact of IGW is slightly different in stars more massive than ~1.6 M_{⊙}. This is illustrated for the 2 M_{⊙} star in Fig. 11 where we decompose the total flux of angular momentum within the model according to the various transport processes at three different ages, and in Fig. 12 where we follow the corresponding evolution of the radial profile of Ω. For this more massive star, IGW emitted by the convective envelope dominate during the first part of the PMS and manage to slow down the most central regions as in the 1 M_{⊙} case (top panel, Fig. 11). However those waves fade away when the convective envelope becomes too thin and are supplanted by those emitted by the convective core at the approach of the ZAMS (see Fig. 4). During that transition period (middle panel in Fig. 11), meridional circulation dominates the transport of angular momentum although shear turbulence also contributes more efficiently near the most central regions (between 0.05 and 0.1 M_{⊙}) and in the most external layers; as a result, the core slightly accelerates and eventually manages to rotate faster than the outer radiative layers, although not fast enough for the peak to be erased. Once the convective core has sufficiently developed (lower panel, Fig. 11), the IGW emitted in the central regions will start conveying angular momentum very efficiently towards the core; at that time meridional circulation remains however the dominant process in the most external radiative layers.
6. Global stellar properties, surface rotation and lithium abundance
Fig. 13 Evolution of the surface rotation rate as a function of time for the models computed with IGW. Stellar masses are indicated on the tracks. In the left panel, the theoretical predictions for the 0.9, 1, and 1.2 M_{⊙} models are compared with the observed rotational distribution for stars with estimated masses between ~0.9 and 1.1 M_{⊙} in young open clusters from Gallet & Bouvier (2013).

Open with DEXTER
Fig. 14 Diffusion coefficients associated to meridional circulation (red), horizontal and vertical turbulence (black and blue respectively). The total diffusion coefficient for the chemicals (magenta) and thermal diffusivity (cyan) are also shown. The figures correspond to the 1 M_{⊙} models with and without IGW (left and right respectively) at different evolution ages along the PMS. Hatched areas indicate the convective regions.

Open with DEXTER
We summarize in Table 1 the main properties of our models computed under various assumptions. We also include the predictions for two additional models of 1 M_{⊙} that account for the hydrostatic effects of rotation (i.e., the effects of centrifugal acceleration on effective gravity) and show in Fig. 15 all the corresponding evolution tracks for this star. We see that the rotating tracks without hydrostatic effects are hardly modified compared to the standard case, the main shift to slightly lower effective temperature and luminosity (that implies slightly longer PMS lifetime) being due to the effects of the centrifugal force and not to rotationinduced mixing. This is in agreement with the predictions by Eggenberger et al. (2012) (see also Pinsonneault et al. 1989; Martin & Claret 1996; Mendes et al. 1999). However the hydrostatic effects are modest and our general conclusions on the evolution of the internal rotation profile and on the impact of IGW are not affected by this simplification. We can also note in Table 1 that the models computed with IGW have longer PMS lifetimes than the others. This simply results from the higher total diffusion coefficient for chemicals in the deep radiative layers close to the convective core when central Hburning sets in close to the ZAMS (see Fig. 14).
As shown in Fig. 13, the evolution of surface rotation for the models with IGW accounts well for the mean rotation rates collected by Gallet & Bouvier (2013) for PMS stars in young open clusters in the considered mass range. The rotation velocity at the arrival on the ZAMS is slightly higher (by a few %; see Table 1) in this case than in rotating models without IGW, due to the different efficiency of the redistribution of angular momentum by the various transport mechanisms within the star as discussed previously. Again, the hydrostatic effects are negligible.
The surface lithium abundance at the ZAMS is not significantly different in the rotating models without and with IGW, as can be seen from Table 1. Indeed this quantity mostly depends, on one hand, on the temperature at the base of the convective envelope, which is unaffected since the evolution tracks almost superpose, and on the other hand, on the diffusion coefficient D_{eff} (Eq. (15)) in the external radiative layers shown in Fig. 14. Since the gradient of Ω in the outer part of the star is dominated by stellar contraction and is very similar in the cases with and without IGW (see Figs. 6 and 12), the resulting Li abundance at the ZAMS is unaffected. The rotating models including the hydrostatic effects have slightly higher lithium abundance on the ZAMS, in agreement with the behavior found by Eggenberger et al. (2012). In a future work we will revisit PMS Li depletion taking the influence of the disk lifetime, of the initial rotation velocity, and of magnetic braking into account.
7. Conclusions
In this paper we have analyzed the transport of angular momentum during the PMS for solarmetallicity, lowmass stars (with masses between 0.6 and 2.0 M_{⊙}) through the combined action of structural changes, meridional circulation, shear turbulence, and internal gravity waves generated by Reynoldstress and buoyancy in the stellar convective envelope and core (when present).
For all the stellar masses considered, IGW are efficiently generated by the convective envelope with a momentum luminosity that peaks around T_{eff} ~ 6200 K, as in the case of main sequence stars. These waves soon become an efficient agent for angular momentum redistribution, because they spin down the stellar core early on the PMS, while structural changes lead to a negative differential rotation in the outer stellar layers as the star contracts. On the other hand, IGW generated by the convective core close to the arrival on the ZAMS carry much less energy, except in the case of stars more massive than ~1.6 M_{⊙}. Over the whole considered mass range, IGW were found to significantly modify the internal rotation profile of PMS stars and lead to slightly higher surface rotation velocity compared to the case where only meridional circulation and shear turbulence are accounted for.
Fig. 15 Impact of rotation, IGW, and of the hydrostatic effects on the evolution track of the 1 M_{⊙} star. The square indicates the point where the radiative zone appears and internal transport of angular momentum starts.

Open with DEXTER
The exploratory results presented in this paper show the ability of IGW to efficiently extract angular momentum in the early phases of stellar evolution, as anticipated by Talon & Charbonnel (2008) and as shown by Charbonnel & Talon (2005) and Talon & Charbonnel (2005) for solartype main sequence stars. We now plan to investigate the influence of the disk lifetime, of the initial rotation velocity, and of magnetic braking during the PMS over a broader mass domain in order to compare model predictions with large data sets that are currently being collected to trace the rotational properties of young stars.
Acknowledgments
We thank F. Gallet and J. Bouvier for kindly providing data before publication and for fruitful discussions, as well as P. Eggenberger for detailed model comparisons. We thank the referee J. P. Zahn for suggestions that helped improve the manuscript. We acknowledge financial support from the Swiss National Science Foundation (FNS), from the French Programme National de Physique Stellaire (PNPS) of CNRS/INSU, and from the Agence Nationale de la Recherche (ANR) for the project TOUPIES (Towards Understanding the sPIn Evolution of Stars).
References
 Asplund, M., Grevesse, N., Sauval, A. J., & Scott, P. 2009, ARA&A, 47, 481 [NASA ADS] [CrossRef] [Google Scholar]
 Chaboyer, B., & Zahn, J.P. 1992, A&A, 253, 173 [NASA ADS] [Google Scholar]
 Charbonnel, C., & Talon, S. 2005, Science, 309, 2189 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
 Decressin, T., Mathis, S., Palacios, A., et al. 2009, A&A, 495, 271 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Eggenberger, P., Haemmerlé, L., Meynet, G., & Maeder, A. 2012, A&A, 539, A70 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Ferguson, J. W., Alexander, D. R., Allard, F., et al. 2005, ApJ, 623, 585 [NASA ADS] [CrossRef] [Google Scholar]
 Gallet, F., & Bouvier, J. 2013, A&A, submitted [Google Scholar]
 Goldreich, P., & Kumar, P. 1990, ApJ, 363, 694 [NASA ADS] [CrossRef] [Google Scholar]
 Goldreich, P., & Nicholson, P. D. 1989, ApJ, 342, 1079 [NASA ADS] [CrossRef] [Google Scholar]
 Goldreich, P., Murray, N., & Kumar, P. 1994, ApJ, 424, 466 [NASA ADS] [CrossRef] [Google Scholar]
 Haisch, Jr., K. E., Lada, E. A., & Lada, C. J. 2001, ApJ, 553, L153 [NASA ADS] [CrossRef] [Google Scholar]
 Hartmann, L. 2005, in Chondrites and the Protoplanetary Disk, eds. A. N. Krot, E. R. D. Scott, & B. Reipurth, ASP Conf. Ser., 341, 131 [Google Scholar]
 Hernández, J., Hartmann, L., Calvet, N., et al. 2008, ApJ, 686, 1195 [NASA ADS] [CrossRef] [Google Scholar]
 Iglesias, C. A., & Rogers, F. J. 1996, ApJ, 464, 943 [NASA ADS] [CrossRef] [Google Scholar]
 Irwin, J., & Bouvier, J. 2009, in IAU Symp. 258, eds. E. E. Mamajek, D. R. Soderblom, & R. F. G. Wyse, 363 [Google Scholar]
 Kumar, P., & Quataert, E. J. 1997, ApJ, 475, L143 [NASA ADS] [CrossRef] [Google Scholar]
 Lagarde, N., Decressin, T., Charbonnel, C., et al. 2012, A&A, 543, A108 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Lecoanet, D., & Quataert, E. 2013, MNRAS, 430, 2363 [NASA ADS] [CrossRef] [Google Scholar]
 Maeder, A., & Zahn, J.P. 1998, A&A, 334, 1000 [NASA ADS] [Google Scholar]
 Martin, E. L., & Claret, A. 1996, A&A, 306, 408 [NASA ADS] [Google Scholar]
 Mathis, S., & Zahn, J.P. 2004, A&A, 425, 229 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Matt, S., & Pudritz, R. E. 2005, ApJ, 632, L135 [NASA ADS] [CrossRef] [Google Scholar]
 Mendes, L. T. S., D’Antona, F., & Mazzitelli, I. 1999, A&A, 341, 174 [NASA ADS] [Google Scholar]
 Meynet, G., & Maeder, A. 2000, A&A, 361, 101 [NASA ADS] [Google Scholar]
 Pinsonneault, M. H., Kawaler, S. D., Sofia, S., & Demarque, P. 1989, ApJ, 338, 424 [NASA ADS] [CrossRef] [Google Scholar]
 Schatzman, E. 1993, A&A, 279, 431 [NASA ADS] [Google Scholar]
 Shu, F., Najita, J., Ostriker, E., et al. 1994, ApJ, 429, 781 [NASA ADS] [CrossRef] [Google Scholar]
 Stauffer, J. R., Hartmann, L. W., Burnham, J. N., & Jones, B. F. 1985, ApJ, 289, 247 [NASA ADS] [CrossRef] [Google Scholar]
 Talon, S., & Charbonnel, C. 2003, A&A, 405, 1025 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Talon, S., & Charbonnel, C. 2004, A&A, 418, 1051 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Talon, S., & Charbonnel, C. 2005, A&A, 440, 981 (TC05) [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Talon, S., & Charbonnel, C. 2008, A&A, 482, 597 (TC08) [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
 Talon, S., & Zahn, J.P. 1997, A&A, 317, 749 [Google Scholar]
 Talon, S., & Zahn, J.P. 1998, A&A, 329, 315 [NASA ADS] [Google Scholar]
 Zahn, J.P. 1992, A&A, 265, 115 [NASA ADS] [Google Scholar]
 Zahn, J.P., Talon, S., & Matias, J. 1997, A&A, 322, 320 [Google Scholar]
 Zanni, C., & Ferreira, J. 2013, A&A, 550, A99 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
