Appendix A: Estimate of the goodness of the fit for each model solution

In this Appendix we describe the calculations used to quantify the relative goodness of the fit solutions obtained between the optimum-model and another model. The method assumes that the optimum-model light curve describes reasonably well the observations and it is based on the evaluation of the standard deviation of all the models, σ, by imposing that the reduced of the optimum-solution is equal to unity. The difference between the values reached for the optimum-model and the other models then provides a measure of the relative goodness of the two solutions.

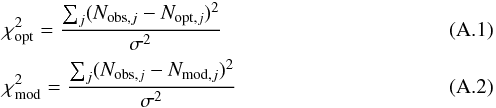

The χ2 of the optimum-model and of another model, and respectively, are defined as where Nobs,j and Nmod,j are the observed and modelled light curves respectively, and σ the standard deviation of the observed light curve. The difference between these two χ2 can be evaluated from the log-likelihood values given in Tables C.1 and D.1 as Δχ2 = −2 [ln(Lopt) − ln(Lmod)].

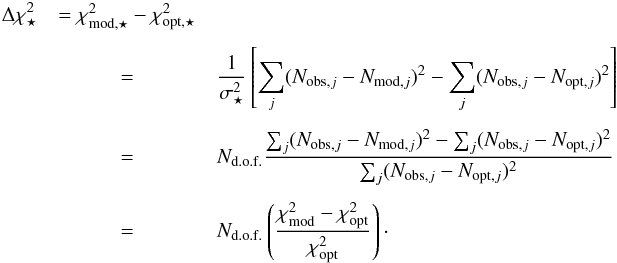

With the reduced χ2 of the optimum model set to 1, the standard deviation of the models, σ, is (A.3)

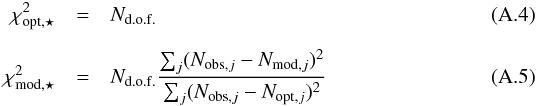

where Nd.o.f. is the number of degrees of freedom of each type of fit (41 for RQ pulsars and 81 for RL pulsars). With the model variance, the of the optimum and other models become: and their difference is (A.6)We have plotted the resulting values in Figs. 3 and 5. The 1σ, 3σ, and 5σ confidence levels plotted in these figures have been obtained from the χ2 probability density function for the appropriate number of degrees of freedom.

Appendix B: Population synthesis results from Pierbattista et al. (2012)

By synthesising a pulsar population we compared theoretical and observed distributions of observable quantities between the Fermi pulsars and the predictions of different γ-ray models. We have assumed low/intermediate and high-altitude magnetosphere emission models PC and SG, OG and OPC respectively, and core plus cone radio emission model. Full details on the population synthesis study can be found in Pierbattista et al. (2012). The plots shown in this Appendix have been obtained as additional results to the population study in Pierbattista et al. (2012) by using the original data at our disposal.

Appendix B.1: α-ζ plane

The α and ζ distributions of the visible component of the simulated population for PC, SG, OG, and OPC models are shown.

Appendix B.2: High-energy cutoff and spectral index as a function of the gap width

High energy cutoff and spectral index as a function of the width of the accelerator gap of the visible component of the simulated population for PC, SG, OG, and OPC. In disagreement with Fig. 15, no Ecut-gap width dependence is predicted from the simulations.
