Fig. 7.

Download original image

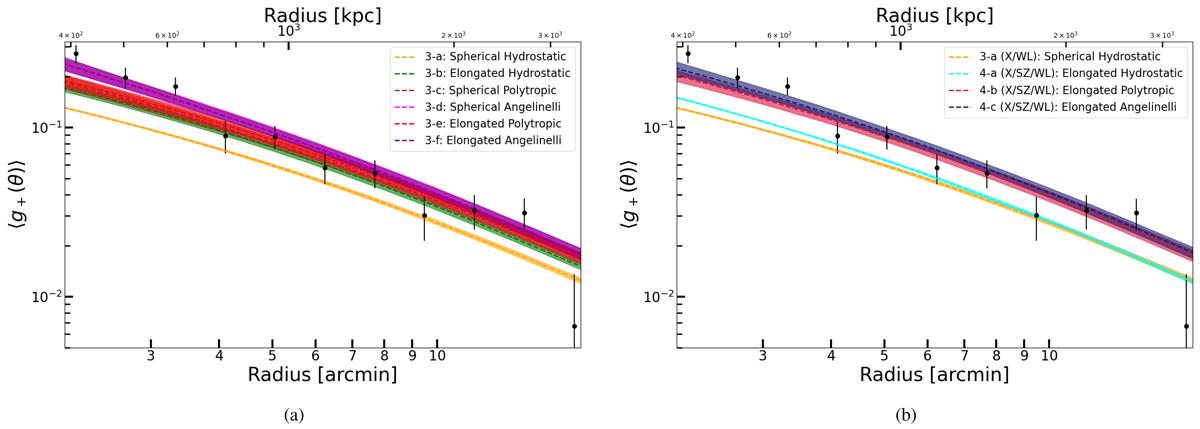

A1689 NFW joint analysis, fit to the tangential shear profile (black points). Corresponding fits to gas observables can be found in appendix. a) Joint X-ray and WL analysis results. X-ray 1D profiles (surface brightness and temperatures) as well as the tangential shear profile are fitted jointly for every PNT (Angelinelli or polytropic parameterization) and elongation combination (models 3-a through 3-f; see Sect. 4.3 and Table 2). b) joint X-ray, SZ, and WL analysis results (see Sect. 4.4). All gas observable profiles (SX, TX, Compton y) are fitted jointly with the tangential shear profile. The three joint X-ray, SZ, and WL results shown here include the elongation parameter (i.e., elongated models) and are either not integrating any non-thermal pressure (4-a hydrostatic; cyan) or one of our two models (4-b polytropic, red; 4-c Angelinelli, purple). We also display the simple joint X-ray and WL joint analysis (3-a; orange) for a visual comparison with the spherical case.
