Fig. 7.


Download original image

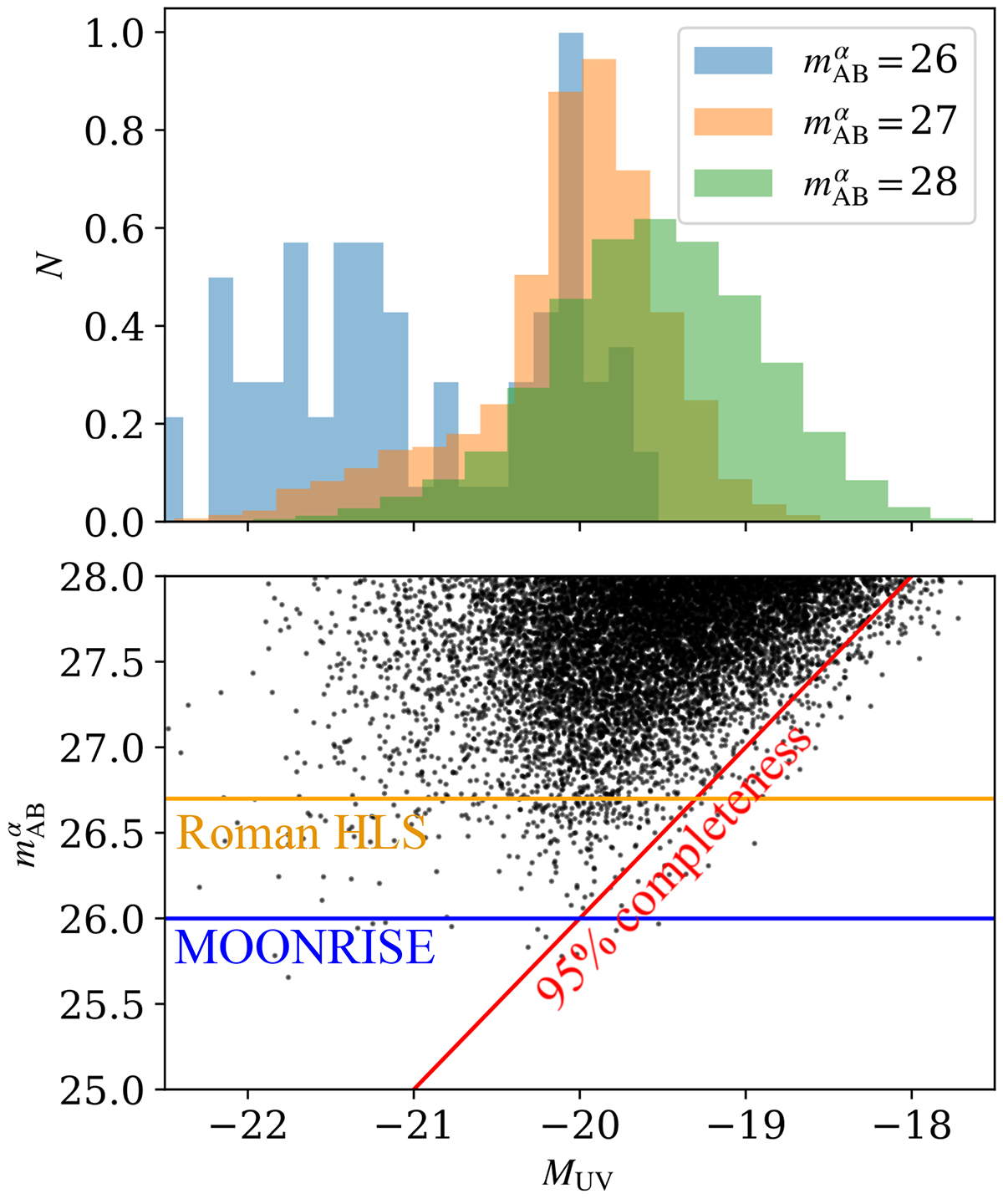

Distribution of UV continuum magnitudes (MUV) and Lyman-α band AB magnitudes ( m AB α $ m_{\mathrm {AB}}^\alpha $) of galaxies from a 1 Gpc on a side coeval cube at z = 7.2. The bottom panel includes only 10% of the galaxies in the volume, for clarity. The horizontal lines indicate the limiting magnitudes for Roman HLS and the MOONRISE survey (Maiolino et al. 2020; Wang et al. 2022), and the diagonal line corresponds to the MUV limit required for 95% completeness at a given m AB α $ m_{\mathrm {AB}}^\alpha $. The top panel shows the distributions of MUV for m AB α = ( 26 , 27 , 28 ) $ m_{\mathrm {AB}}^\alpha =(26,27,28) $ in our model. We computed the 95% completeness criterion by integrating over these distributions.
