Fig. 14


Download original image

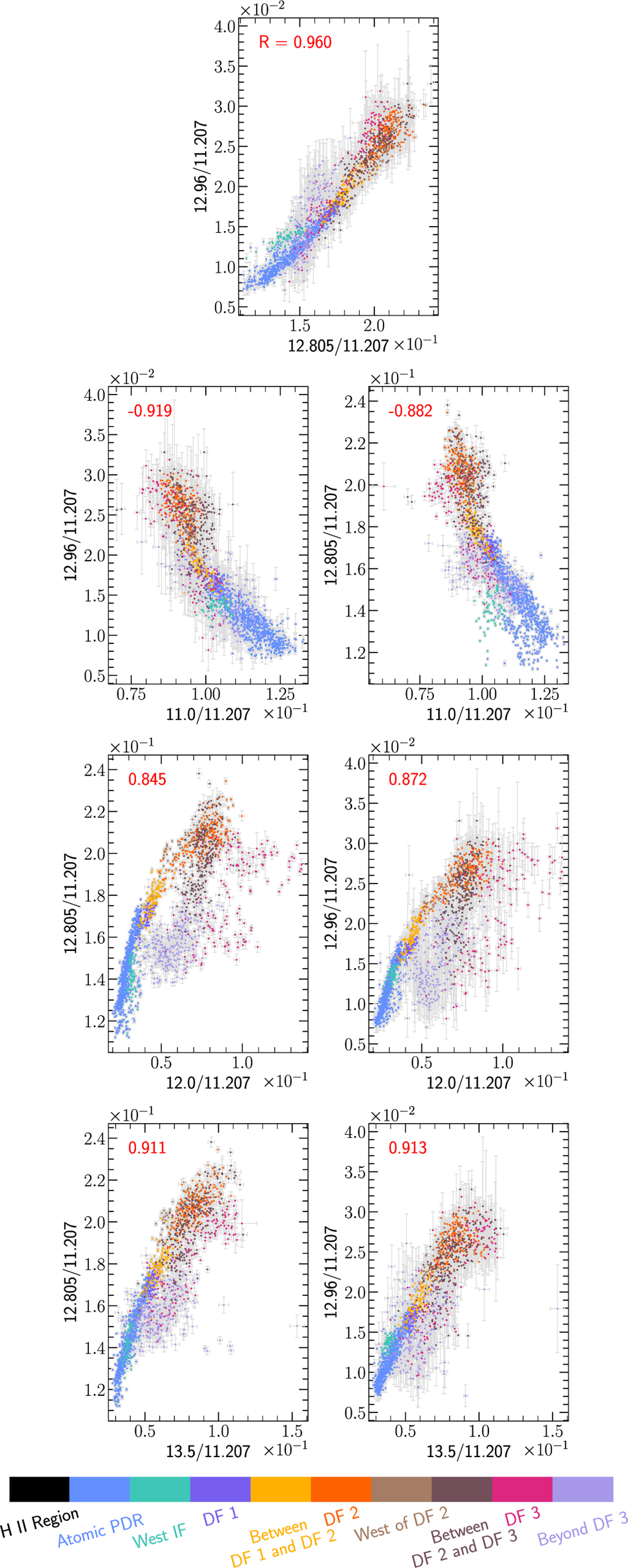

Correlation plots for the 12.805 µm and 12.96 µm components of the 12.7 µm AIB. The red text displays the value of the correlation coefficient “R” for the data points plotted. The data points are colored according to regions in the mosaic where those pixels are located, per the color bar at the bottom and the map in Fig. 9.
