Fig. 11


Download original image

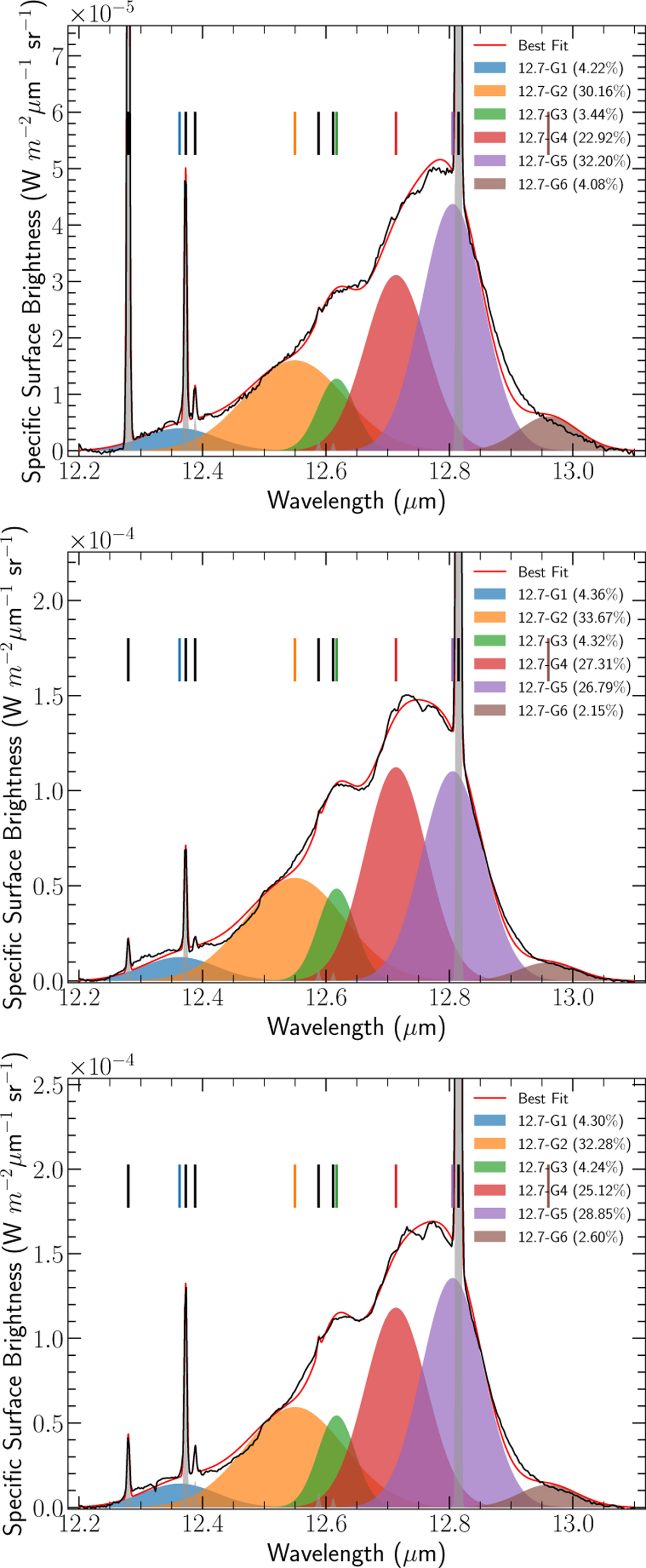

12.7 µm decomposition for three selected spaxels from DF 2 and the atomic PDR. Vertical colored lines indicate the peak positions of the six components (Table A.1). Gaussian fits for narrow lines are shown in gray, and their peak positions are marked by vertical black lines. The percent fractional contribution of the surface brightness carried by each component to the total 12.7 µm surface brightness is indicated in parentheses.
