Fig. 6

Download original image

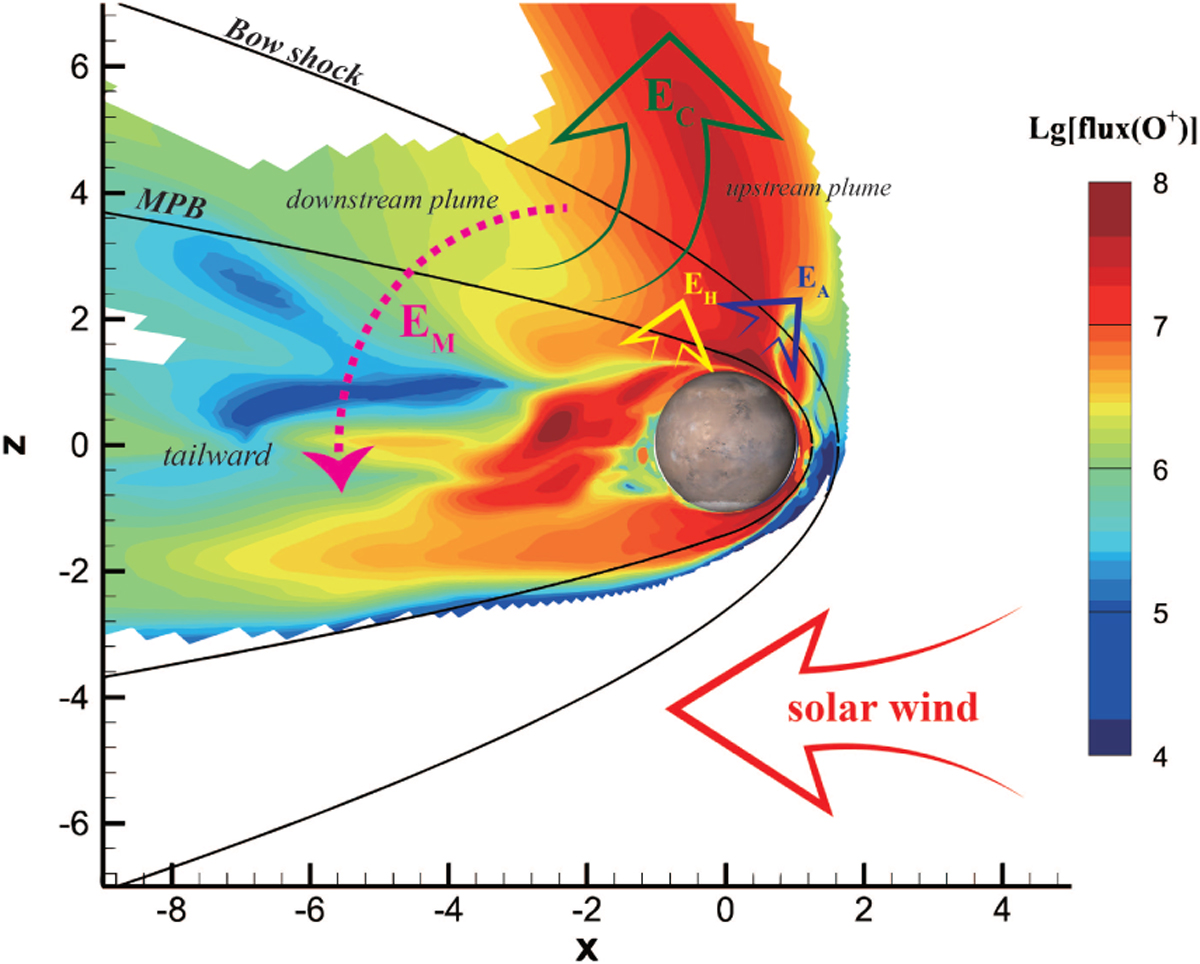

Schematic diagram of the plume escape process. The colored arrows represent the components of electromagnetic field; green indicates the convection field, yellow represents the Hall field, blue signifies the ambipolar field, and the pink dashed line represents the magnetic force field. The direction of the solar wind is indicated by the red arrow, while the color bar represents the logarithmic scale of the O+ escape flux contour.
