Fig. 3

Download original image

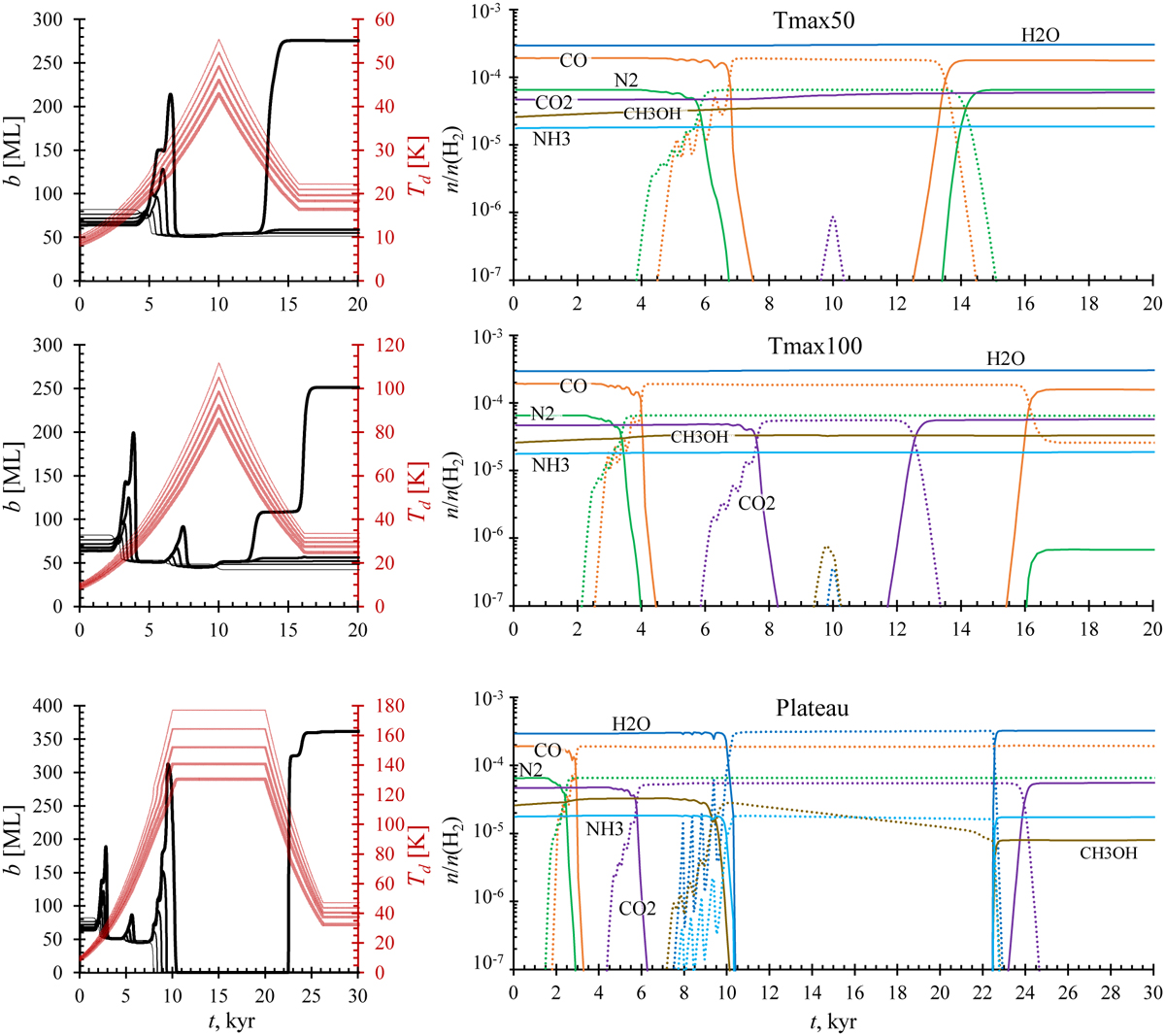

Effects of changes related to Tmax on the ice sublimation and re-freeze with models Tmax50 (top) and Tmax100 (middle) with Tmax 50 and 100 K, respectively. The bottom plots show the results from Model Plateau with tplat = 10 kyr. Left: ice thickness (black lines) and grain temperature (red; the thicker lines show larger grains). Right: n/n(H2) of major species in gas (dotted) and ice (solid lines). This is to be compared with Model Standard in Fig. 2, where Tmax = 150 K and tplat = 0. The scale changes for the secondary y-axis (Td) in the left plots.
