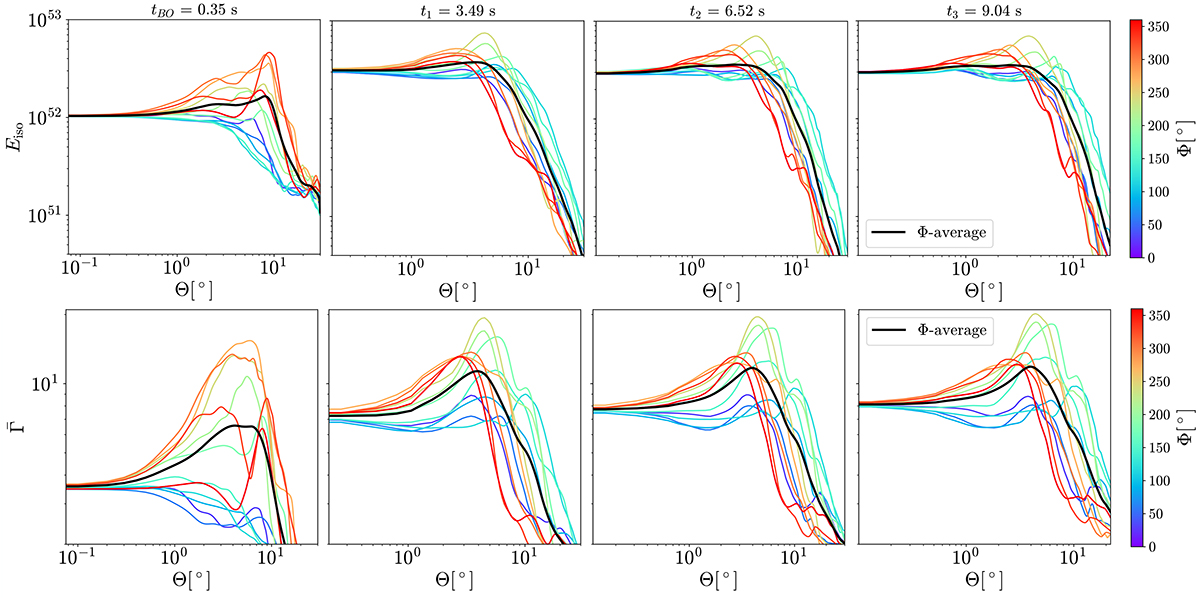

Fig. 10.

Download original image
Isotropic equivalent energy (top) and radially averaged Lorentz factor (bottom) of the jet head (see Sect. 2.3) as functions of the angular distance from the jet injection axis Θ, at four different times (after jet injection). Different colours correspond to different azimuthal angles Φ and the thick blue line represents the Φ-averaged results. All quantities are in logarithmic scale.
