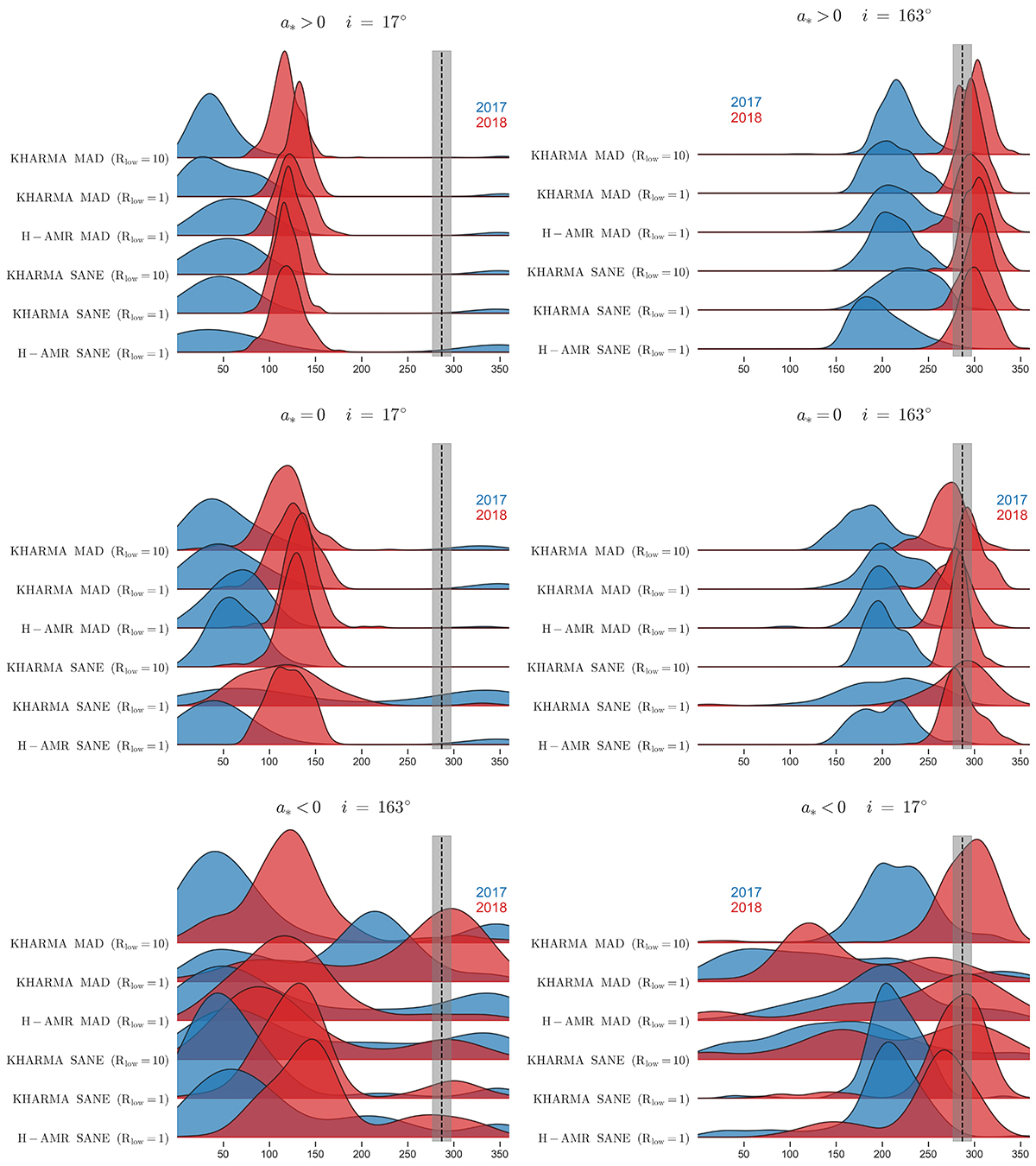

Fig. 5.

Download original image
Normalized distributions of the fitted position angle of the forward jet in selected fiducial thermal models based on the snapshot scoring with 2017 and 2018 observations, using the best-fit 10% of the images. The PA = 288° ±10° of the milliarcsecond-scale jet (Walker et al. 2018; Cui et al. 2023) is marked by the vertical dashed black line and shaded gray region. Left: Models with a black hole spin axis or a coordinate system axis (case a* = 0) pointing toward Earth. Prograde cases are shown in the top (a* > 0) and middle (a* = 0) panels, and the retrograde case (a* < 0) is shown in the bottom panel. Right: Models with a black hole spin axis or with a coordinate system axis (case a* = 0) pointing away from Earth. Prograde cases are shown in the top (a* > 0) and middle (for a* = 0 the matter angular momentum is always aligned with the coordinate axis) panels, and the retrograde case (a* < 0) is shown in the bottom panel. See text in this paper or Fig. 5 in M87* 2017 V for a description of the geometry of the black hole axis, flow rotational axis, and inclination angle.
