Fig. 11
Download original image

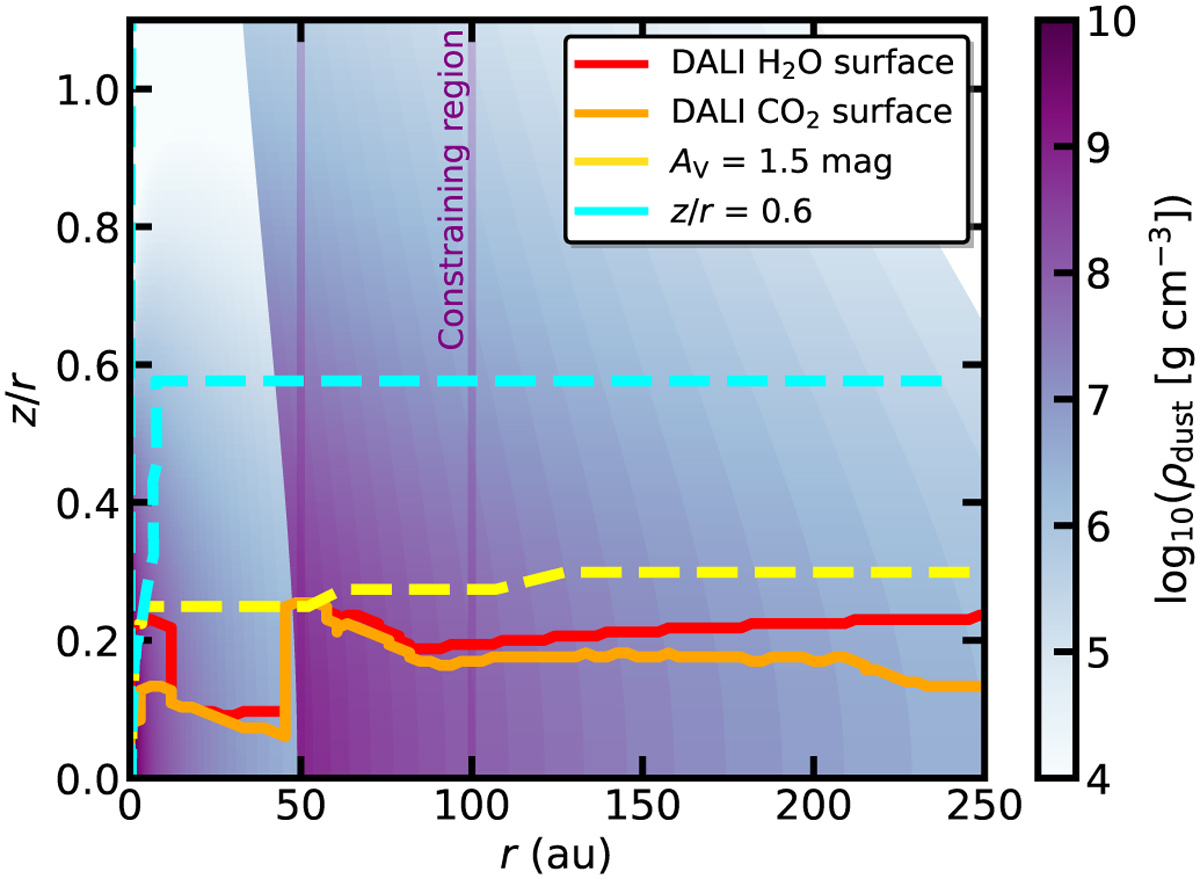

Snow surface modeled with the simplified approach of AV = 1.5 mag (yellow) and the required height (cyan). The other lines indicate the snow surfaces of H2O (red) and CO2 (orange) in DALI models with a similar physical structure. The region that is predominantly probed by our ice observations (see Fig. 6) is marked with purple lines.
