Fig. C.1

Download original image

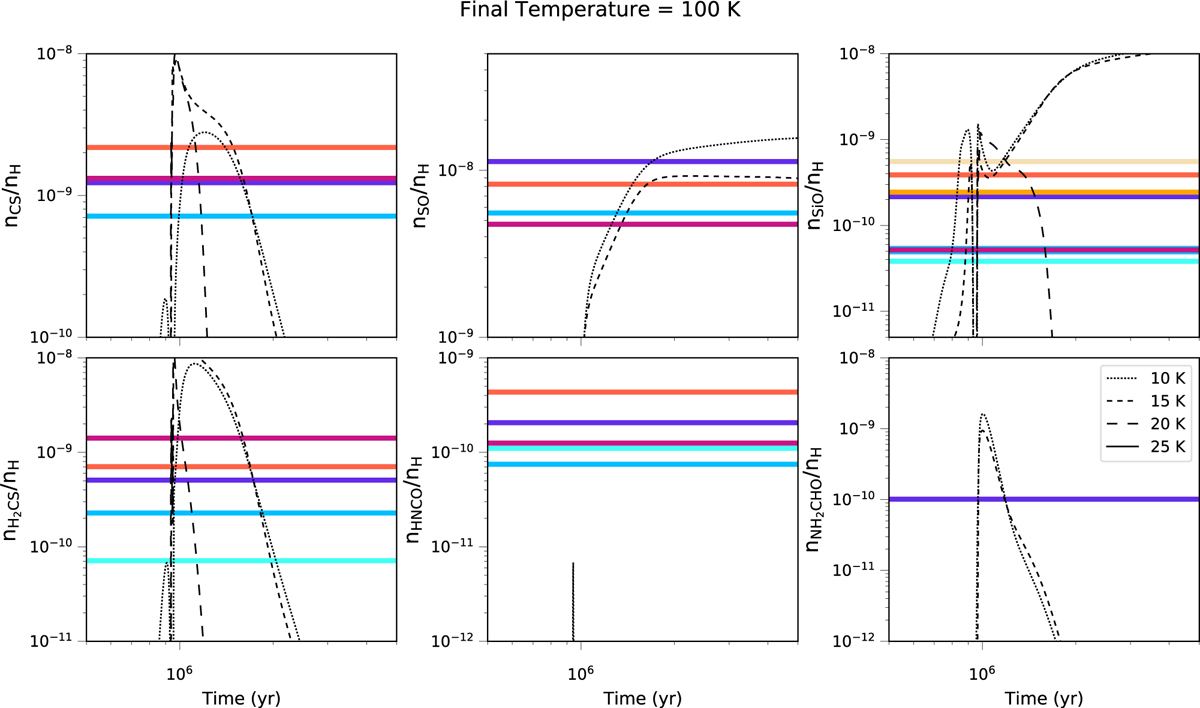

Comparisons of abundances for CS, SO, SiO, H2CS, HNCO, and NH2CHO from observations of the seven hot cores detected in the LMC and the LMC hot core models for the final hot core temperature of 100 K. The black curves show abundances over time for initial dust temperatures of 10 (dotted line), 15 (dashed curve), 20 (larger dashed curve), and 25 K (solid curve; this curve does not necessarily appear in the range of abundances in the plot). The horizontal colored line shows the single abundance value for each hot core and follows the same color code as Fig. 13 (see the text for more details).
