Fig. 11


Download original image

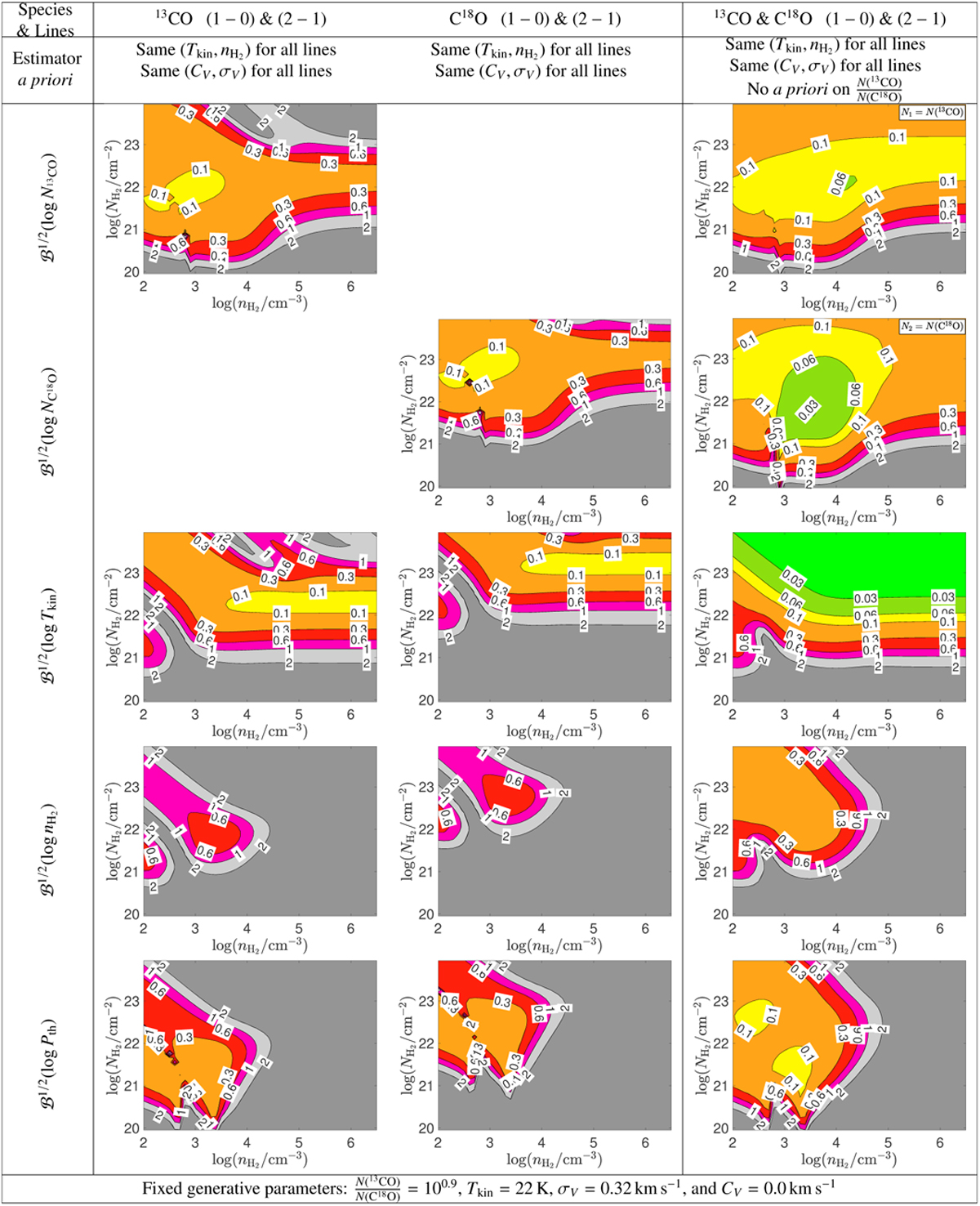

Comparison of the CRB precisions when combining the first two J transitions of one or two CO isotopologues. These reference precisions are plotted for different values of column densities (y-axes) and volume densities (x-axes). The values of the parameters that are fixed when generating the RADEX spectra are listed in the bottom row. The precision depends on the a priori knowledges that are taken into account by the estimator. These are listed in the second row. The first two columns show the precisions for a single CO isotopologue (13CO or C18O, while the last column shows the precisions when studying the 13CO and C18O isotopologues simultaneously. From top to bottom, the panels show the precisions on the 13CO and C18O column densities, kinetic temperature, volume density, and thermal pressure. The CRB precisions are color coded as listed in Table 8.
