Fig. B.1.

Download original image

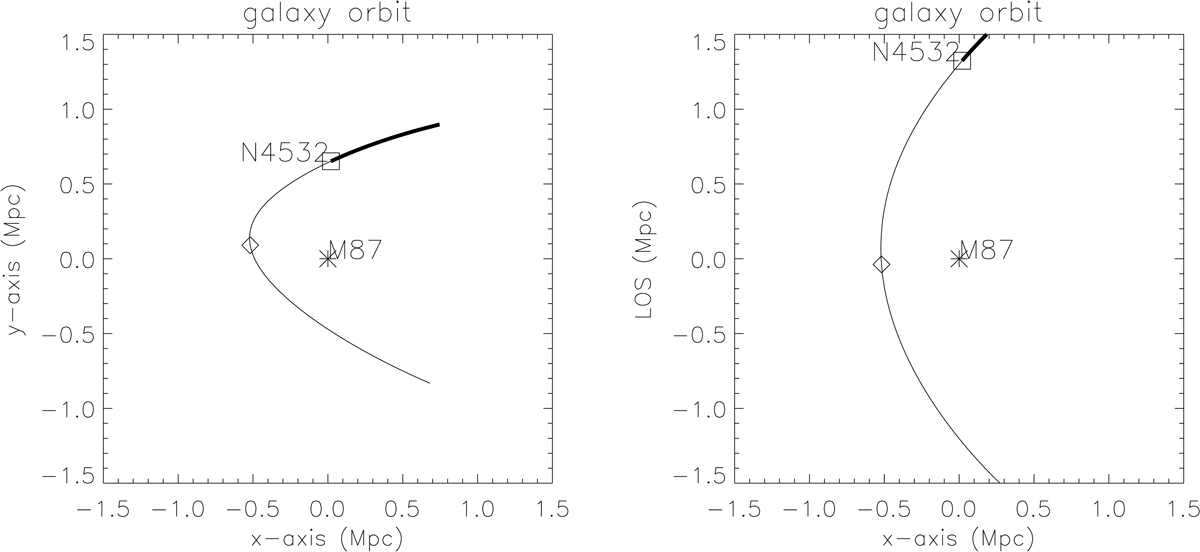

Orbit of NGC 4523 within the Virgo cluster on the plane of the sky (left panel) and on the LoS (right panel) as derived for model A. The square box gives the position of the galaxy, the star the position of the centre of the cluster (M87), the diamond the expected position at maximum ram pressure (pericentre), which will occur in 1.2 Gyr. The thick line shows the orbit in the last 1.2 Gyr. The parameters of this orbit are given in Table B.1.
