Fig. 5

Download original image

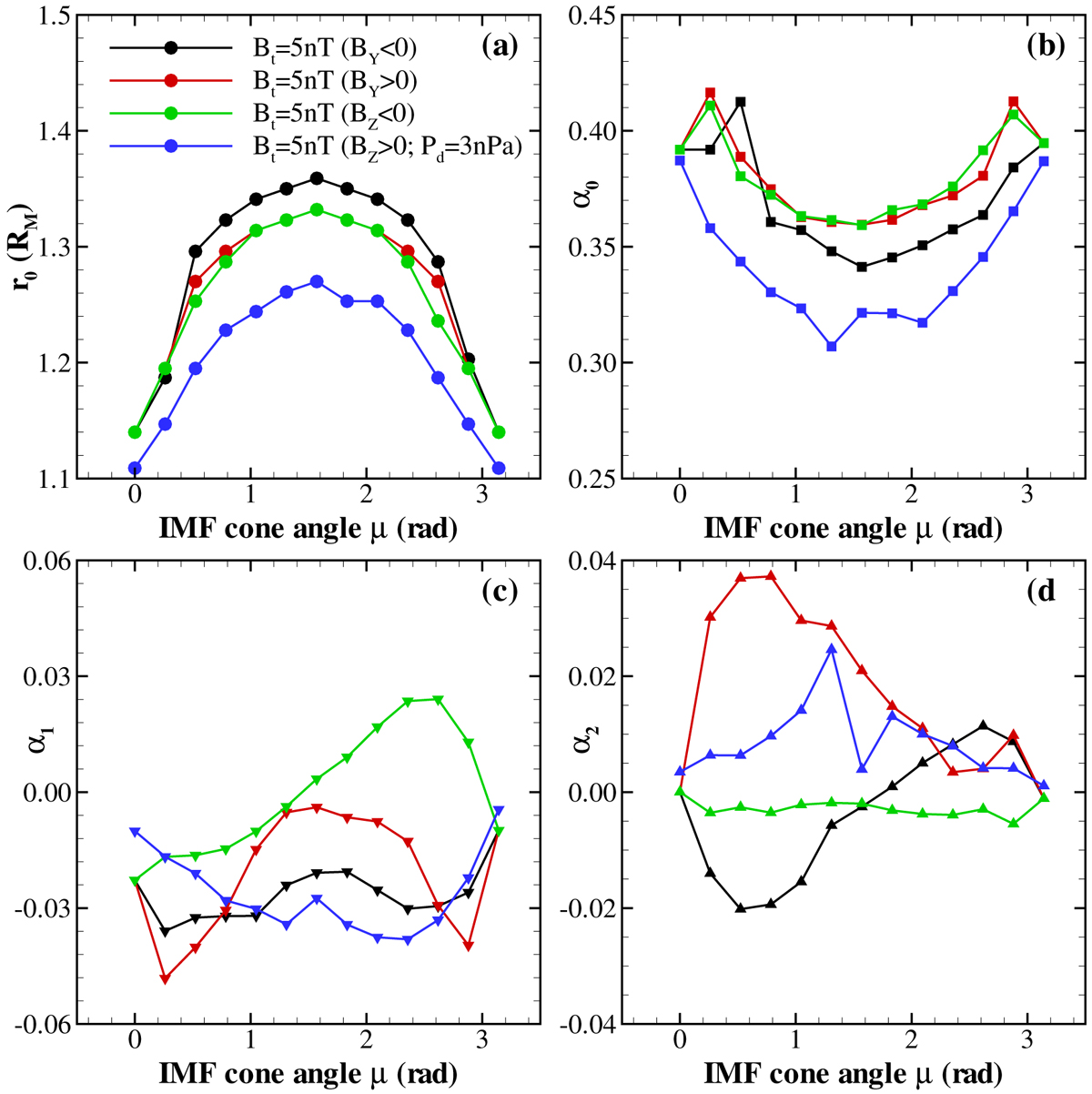

Effects of the IMF cone angle µ on the MPB parameters (same format as in Fig. 3). The colors black, red, green, and blue correspond to the µ changed by varying BX for (1) Bt = 5 nT, BY < 0, BZ = 0, Pd = 1.0 nPa (cases 192–201), (2) Bt = 5 nT, BY > 0, BZ = 0, Pd = 1.0 nPa (cases 182–191), (3) Bt = 5 nT, BZ < 0, BY = 0, Pd = 1.0 nPa (cases 235–244), and (4) Bt = 5 nT, BZ > 0, BY = 0, Pd = 3.0 nPa (cases 245–254), respectively.
