Fig. 3

Download original image

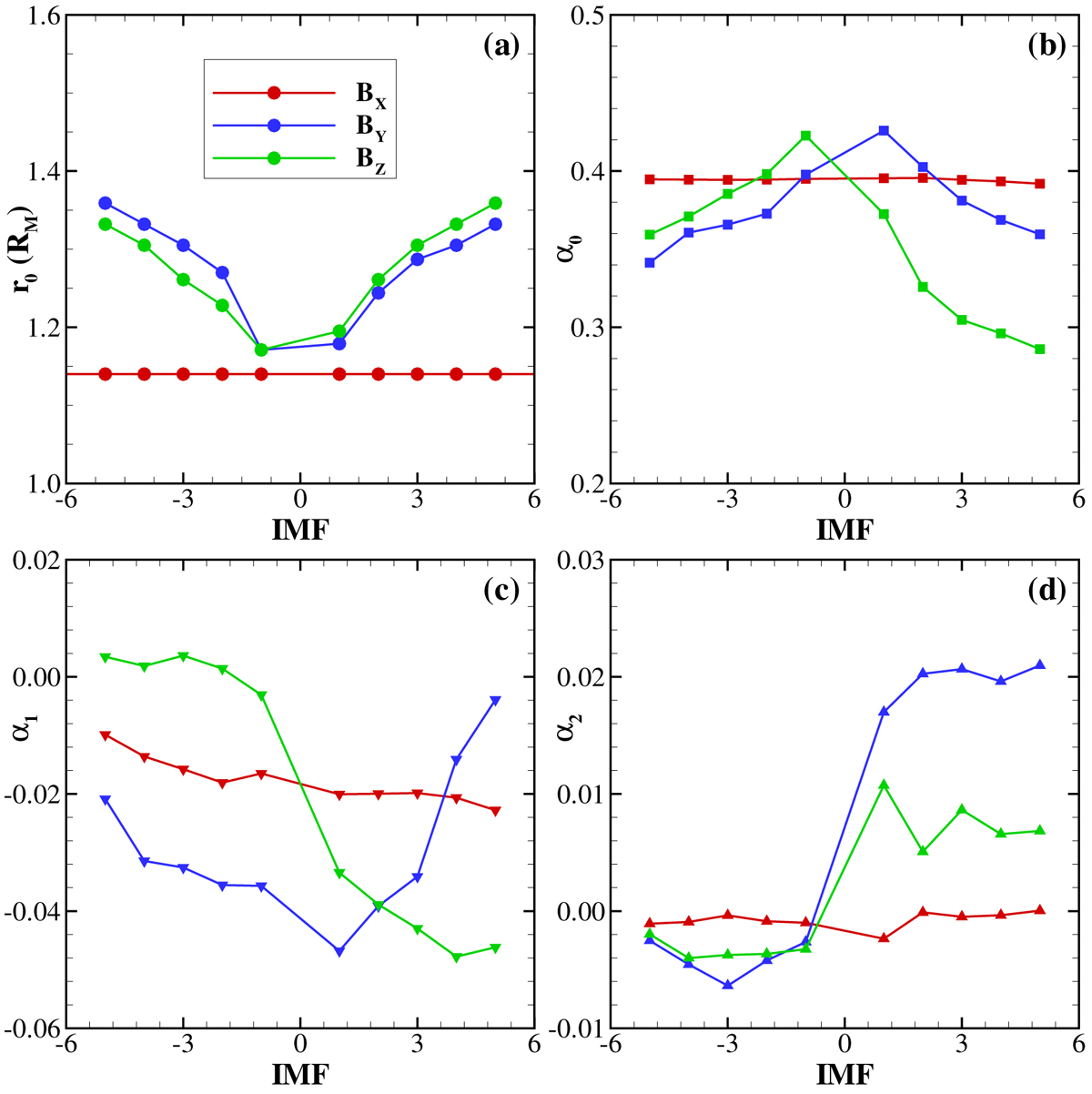

Dependence of the MPB parameters r0 (square in panel a), α0 (circle in panel b), α1 (gradient in panel c), and α2 (delta in panel d) on the intensities of the IMF components BX (red), BY (blue), and BZ (green) for Pd = 1.06 nPa (n = 4.0 cm−3, VX = −400.0 km s−1). The IMF conditions were set with one component having a nonzero value, while the two other components were null. The line segments connect adjacent points. Further details concerning the case information are listed as cases 65–94 in the supplementary document.
