Fig. 10


Download original image

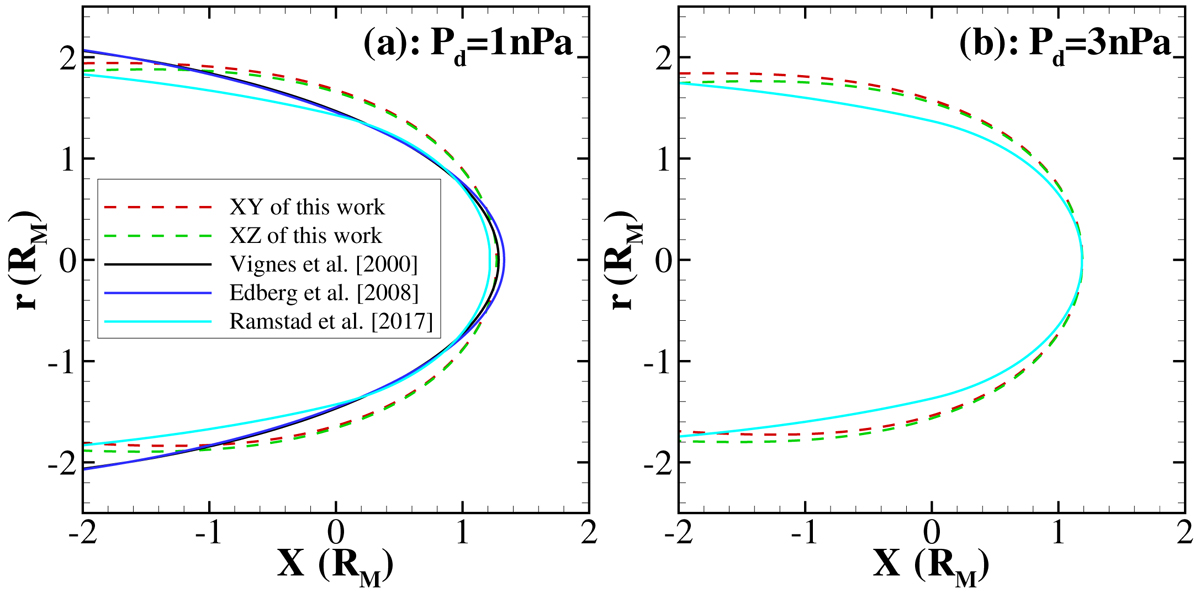

Comparison of our parametric Martian MPB model with existing empirical models. Panels a and b: models for Pd = 1 nPa (n = 4.0 cm−3, VX = −400.0 km s−1) and Pd = 3 nPa (n = 7.186 cm−3, VX = −500.0 km s−1), respectively. The IMF conditions used for our model are the same for both panels: BX = −1.6776 nT, BY = 2.4871 nT, and BZ = 0 nT. Red dashed lines and green dashed lines represent our parametric model results in the XY and XZ planes. Black, blue, and cyan solid lines show the results of Vignes et al. (2000), Edberg et al. (2008), and Ramstad et al. (2017), respectively.
