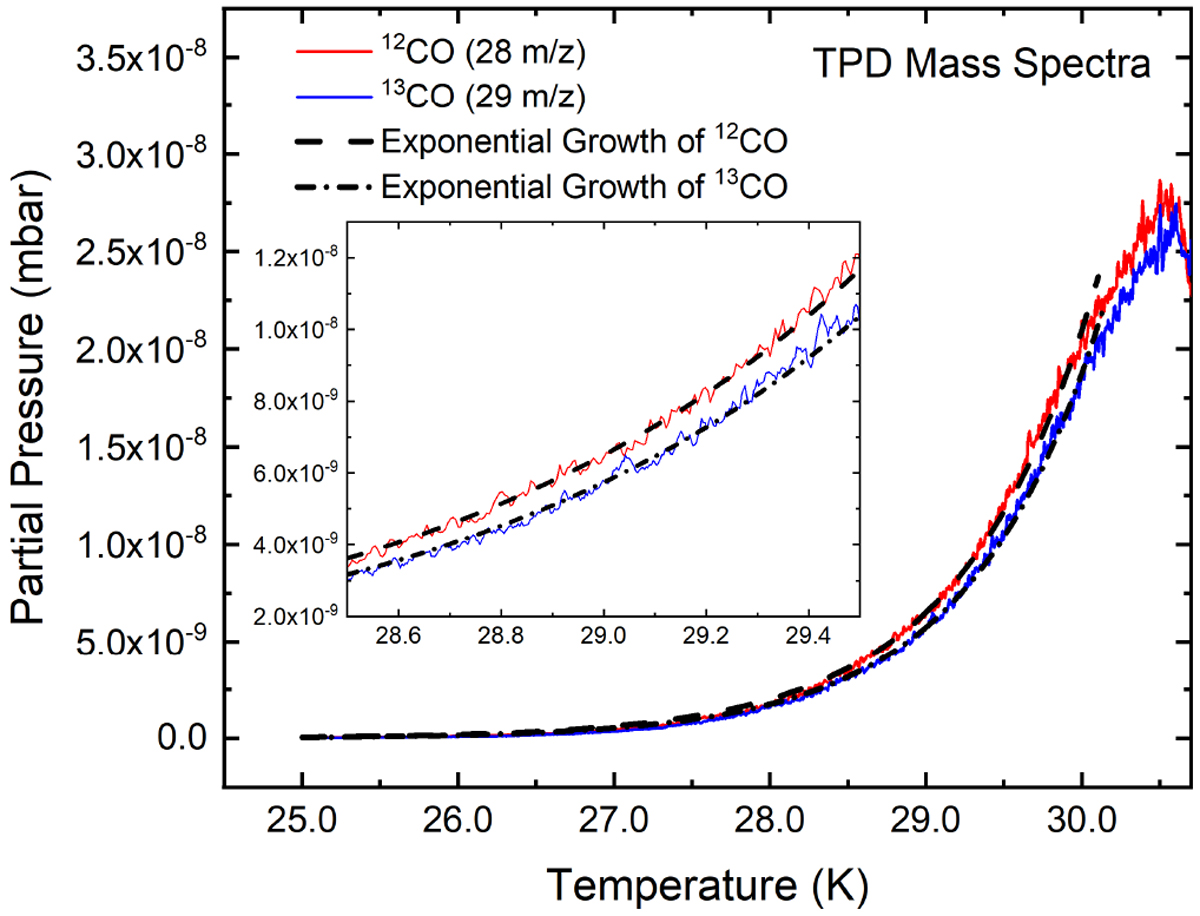

Fig. 3


Download original image

Comparison of 12CO and 13CO TPD curves,showing that 13CO desorption islower than 12CO at any given temperature, in agreement with the TID experiments (Fig. 4). The TPD curves of both isotopologues were fitted with a single exponential growth function (R2 > 0.997) to quantify the zero-order reaction behavior. Beyond 30 K, the partial pressure of CO deviates significantly from the exponential fit because at 30 K all the CO is sublimed into the gas phase and removal of gas-phase CO using conventional turbomolecular pumps is a slow process. The inset shows a zoomed-in view of the portion between 28.5 and 29.5 K.
