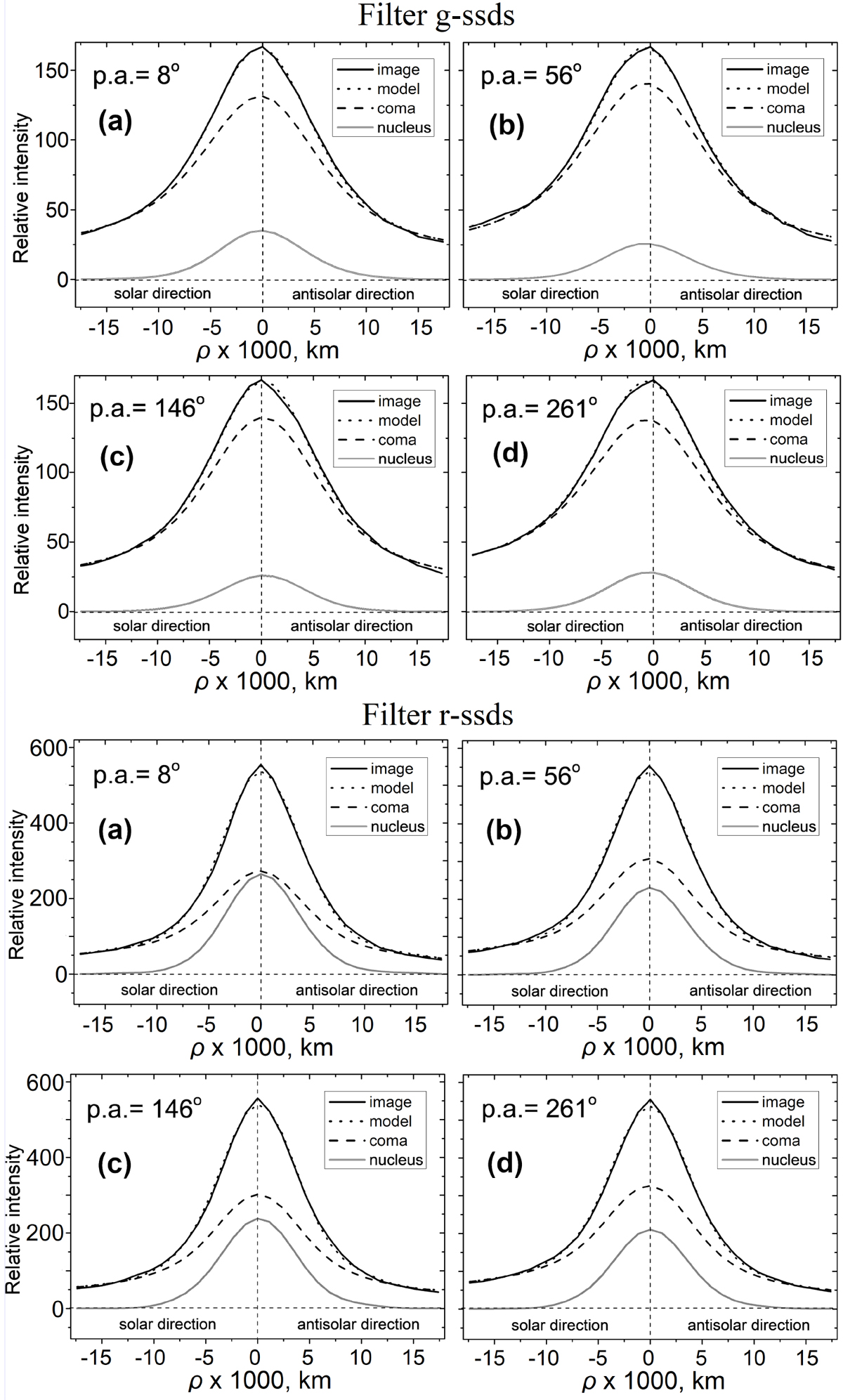

Modeled and observed brightness profiles in comet C/2011 KP36 (Spacewatch) in the g-sdss and r-sdss filters along the directions with the position angles of 8° (jet J4, plot a), 56° (coma C1, plot b), 146° (coma C2, plot c), and 261° (jet J1, plot d). The observed and modeled profiles are designated by a black solid line and a dotted line, respectively. The coma profile is shown by a dashed line, and the calculated profile for the comet nucleus by a gray solid line. Negative distance is in the solar direction, and positive distance is in the antisolar direction.
