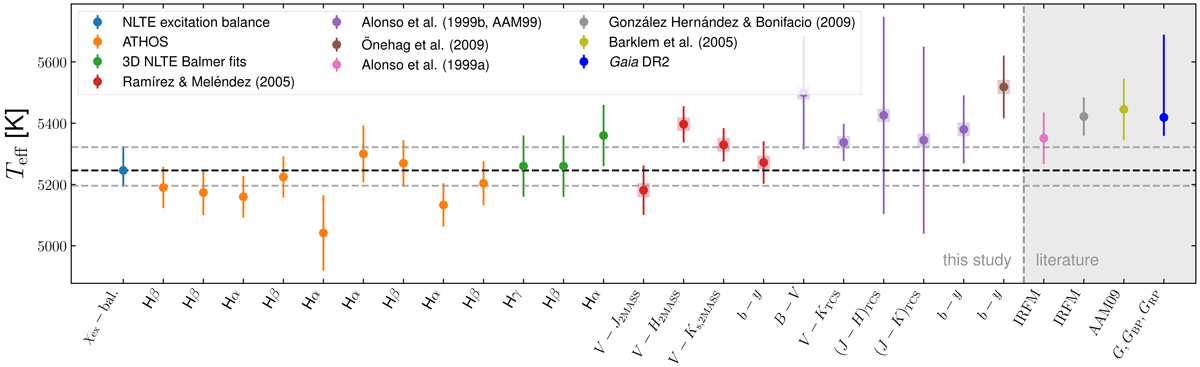

Fig. A.1.


Individual photometric and spectroscopic temperature measures for HD 20 obtained in this work. On the abscissa either the photometric color or the spectral region that was used to deduce Teff is labeled. Different colors indicate the different scales and methods employed (see legend and main text for details). For each Teff that was deduced from a color index, the negligible effect of no reddening and twice the applied reddening (E(B − V) = 0.0149 mag, Schlafly & Finkbeiner 2011) is denoted by light-colored ranges behind the circles that are barely visible. The IRFM findings for HD 20 by Alonso et al. (1999b) and González Hernández & Bonifacio (2009) are shown together with the literature values by Barklem et al. (2005) and Gaia DR2. The finally adopted temperature and its error ( K) are shown by black- and gray-dashed lines, respectively.
