Fig. 5

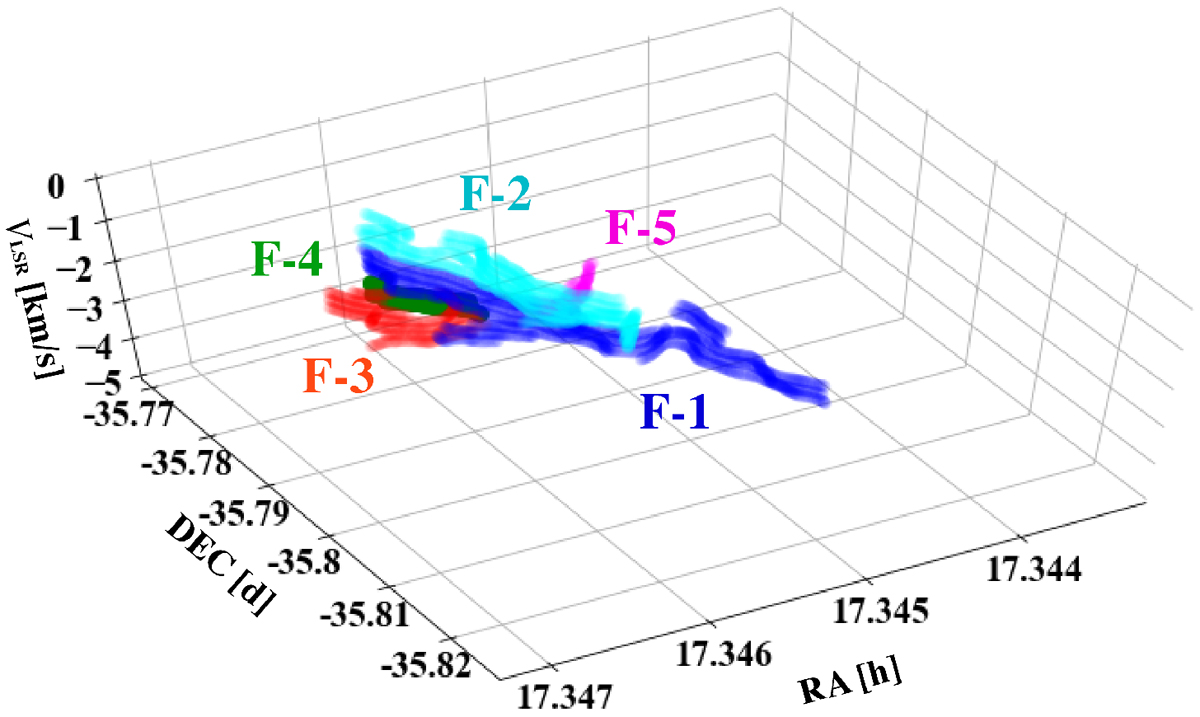

N2H+(1–0) position–position–velocity plot of the NGC 6334 filament system. Colored curves indicate the crests of the N2H+ velocity-coherent structures identified with getfilaments, after applying the post-extraction selection criteria described in Sect. 3.3.2, and using the same color coding as in Fig. 4b.
