Fig. E.1

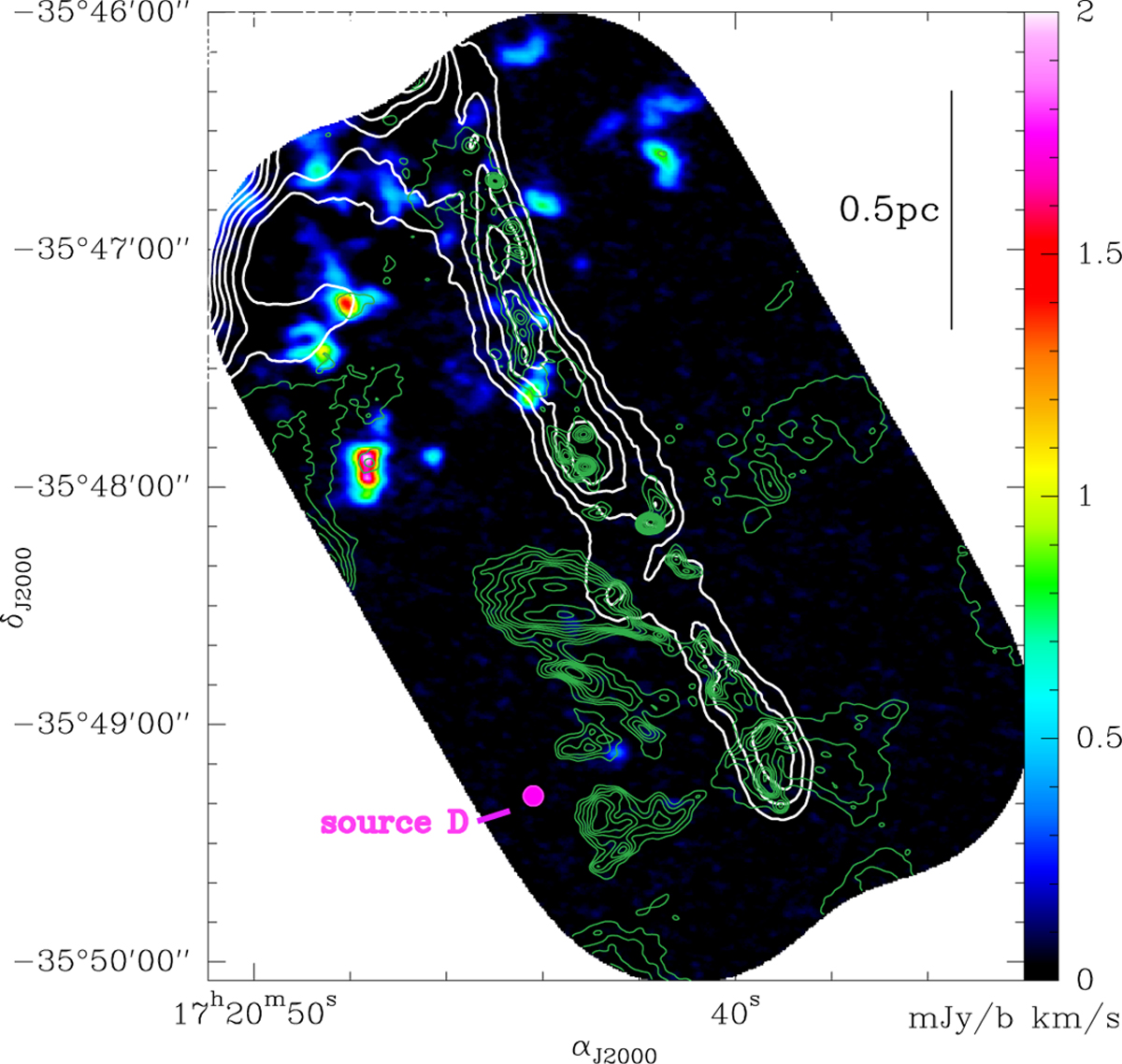

ALMA 12 m+7 m map of the N2H+(1–0) highly blue shifted emission integrated from −12 to −6 km s−1 (color scale).The superimposed white contours correspond to ArTéMiS 350 μm continuum levels of 10, 12, 14, 16, 18, and 20 Jy/8′′ -beam. Green contours of ALMA 3.1 mm continuum emission are also overlaid with levels of 2, 4, 6, 8, 10, 15, 20, 25, 30, 35, and 40σ, where 1σ = 0.2 mJy/ALMA-beam. The magenta filled circle marks the position of radio continuum source D (Rodriguez et al. 1982)associated with a compact HII region.
