Fig. 2.

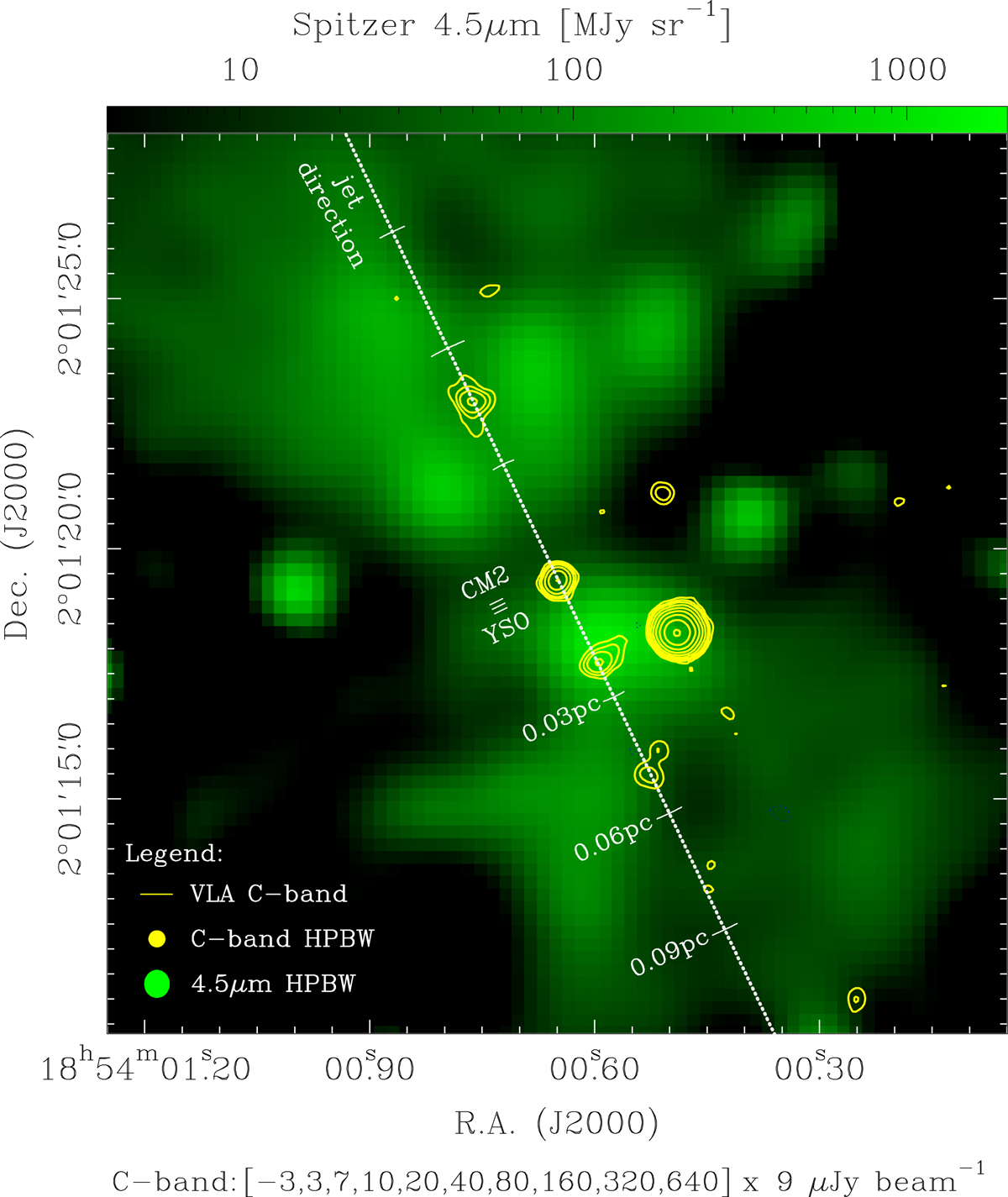

Comparison between the radio jet emission driven by source CM2 (yellow contours) and the 4.5 μm nebula imaged by Spitzer in the region (green scale). The radio continuum map is the same as in Fig. 1, together with the jet direction and ticks (dotted white line). Contour levels are indicated at the bottom. The logarithmic (green) scale of the 4.5 μm emission is drawn in the top wedge. The enhanced resolution (HPBW) of the Spitzer map is shown in the bottom left corner (see Sect. 2 for details).
