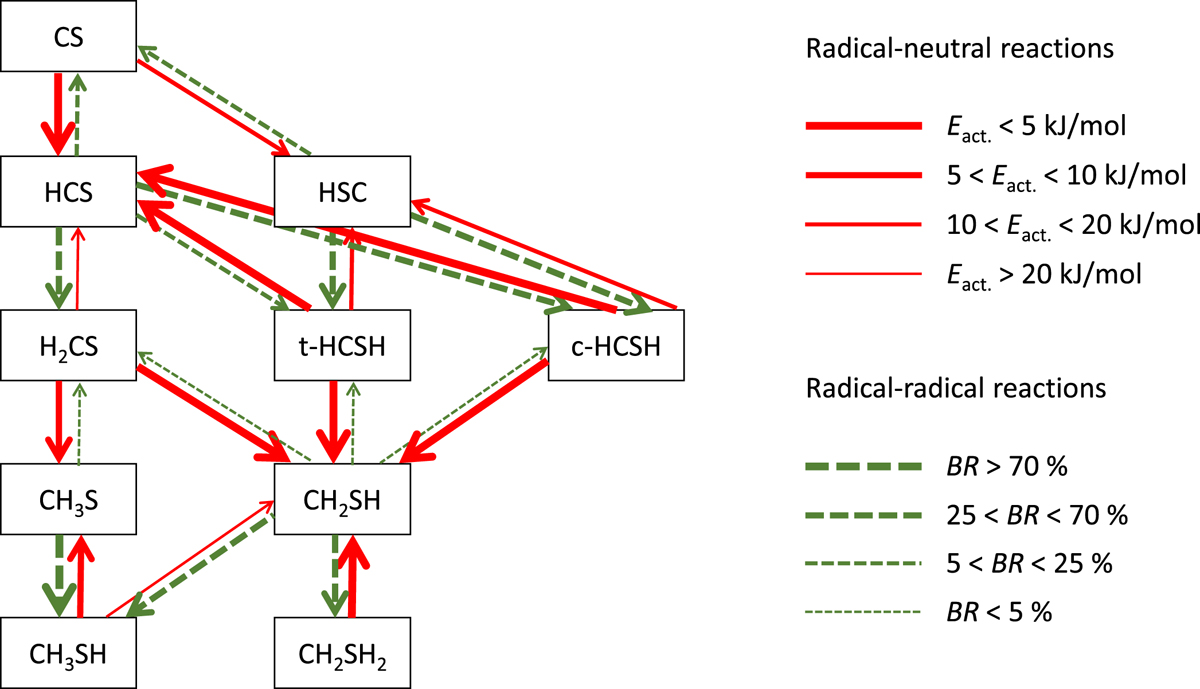

Reaction network connecting CS and CH₃SH via various intermediate H_nCS species with an indication for the relevant activation energies and branching ratios. Red solid lines indicate reactions between a radical (H) and a neutral H_nCS species (n = 0, 2, 4), for which transition states can be found connecting the two minima. Green, dashed lines, on the other hand, indicate barrierless radical-radical reactions. The thickness of the arrows corresponds to the likelihood of a particular reaction to take place.
