Fig. 6

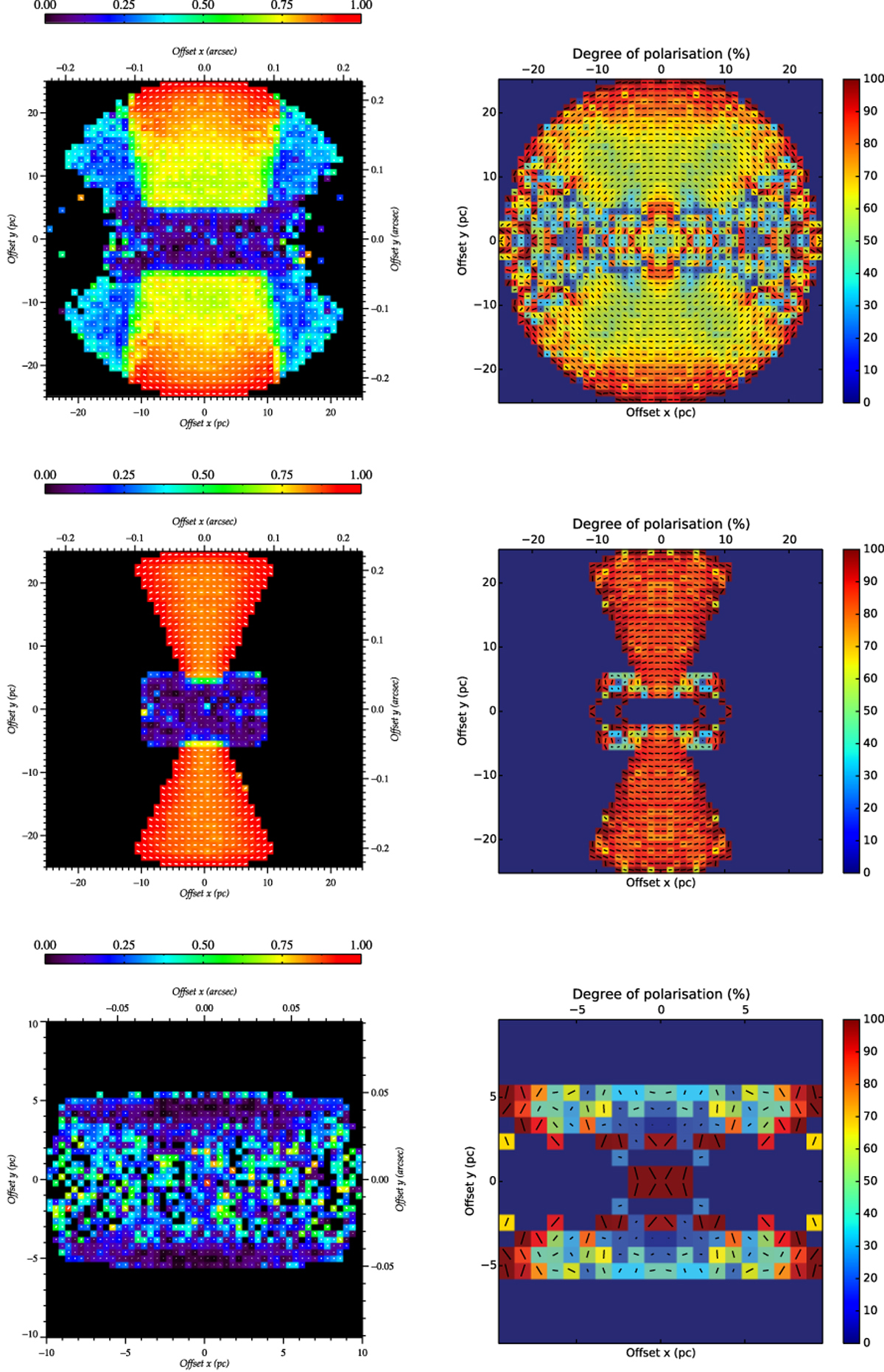

Maps of polarisation degree with an inclination angle of 90° at 800 nm for models 1, 2, and 3. The first column shows maps from STOKES; the second column corresponds to MontAGN maps (in %). The first row is for model 1, the second row for model 2, and the third row for model 3 results. Polarisation vectors are shown: their lengths are proportional to the polarisation degree and their position angles represent the polarisation angle.
