Planck 2015 results
Free Access

Fig. 2

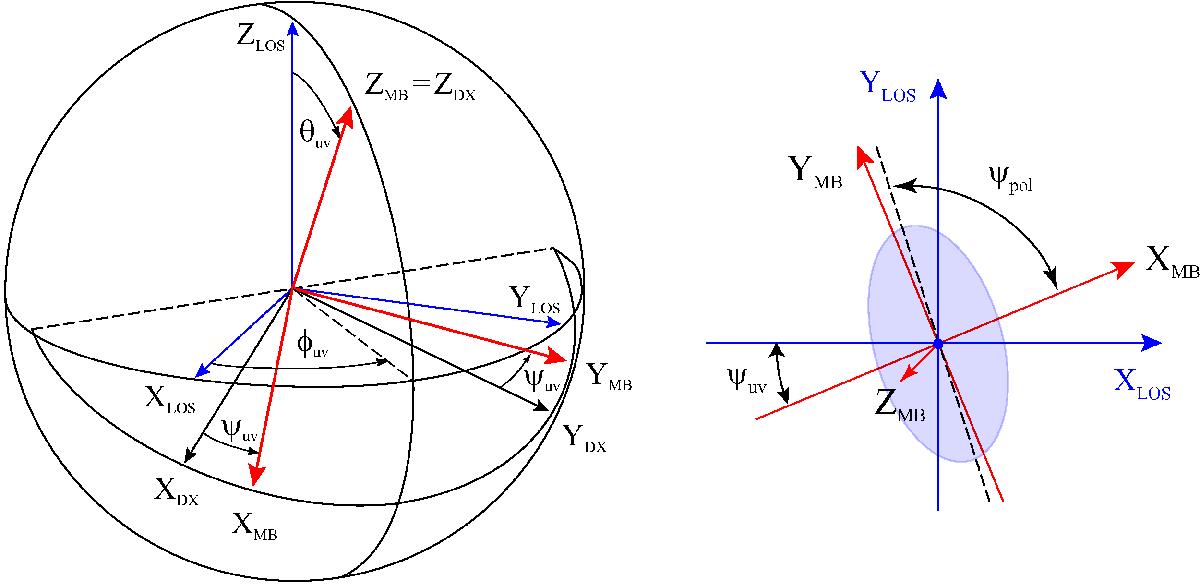

Definition of polarization angle. Left: the orientation of the main beam frame, (XYZ)MB, with respect to the line-of-sight (LOS) frame, (XYZ)LOS, is defined by the three angles θuv, φuv, and ψuv. The intermediate frame, (XYZ)DX, is the detector frame, defined by the two angles θuv and φuv. Right: the angle ψpol is defined with respect to XMB and represents the orientation of the polarization ellipse along the beam line of sight. It is very close to 0 or 90 deg for the S and M radiometers, respectively.
