Fig. 11

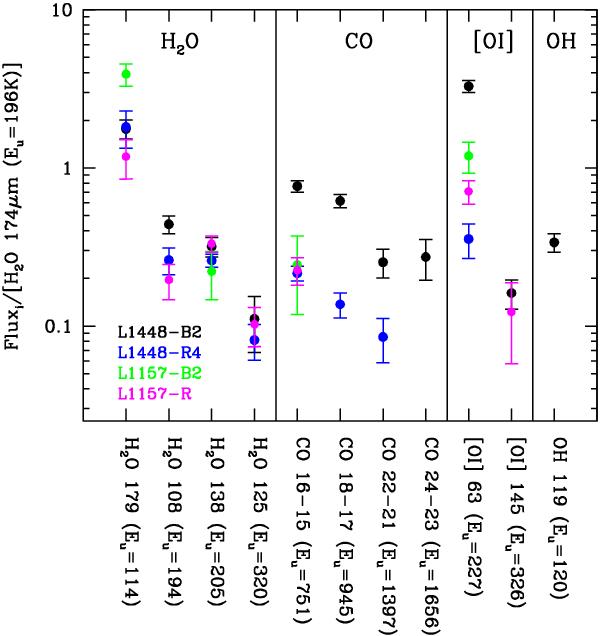

Line ratios between the H2O, CO, [Oi], and OH lines and the H2O 303 − 212 line at 174 μm at all selected shock positions. 1σ errors are indicated with errorbars.
