Fig. 10

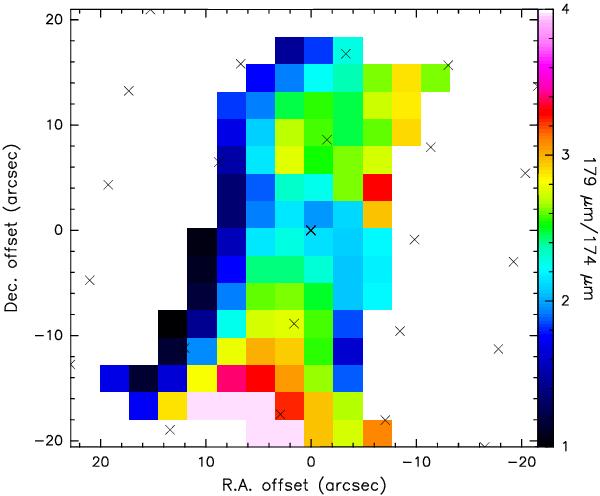

Ratio between the H2O 212 − 101 map at 179 μm and the 303 − 212 map at 174 μm for L1448-B2. The ratio is shown only above a 5σ detection level in both maps. The crosses represent the pointing of the 25 spaxels.
