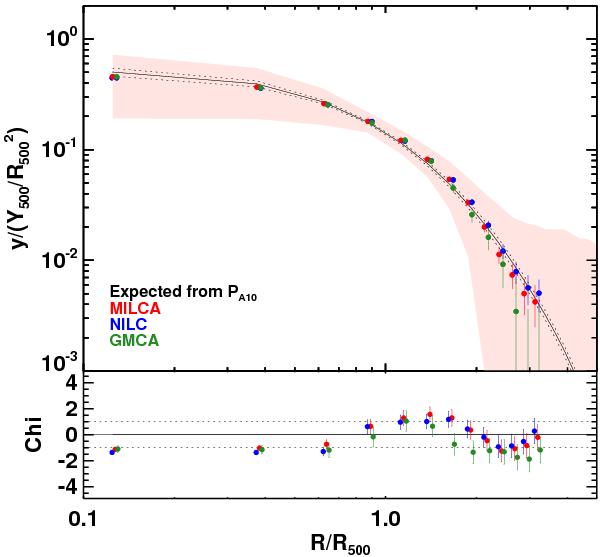

Fig. A.1

Comparison between the SZ profile reconstruction from MILCA, NILC and GMCA The comparison is presented in the form of the averaged stacked radial profile from our 62 clusters of the ESZ-XMM sample, individually scaled respectively in the x- and y-axis directions according to R500 and Φ (Eq. (12)). The light-red shaded area marks the dispersion about the average stacked profile for the MILCA method. The points within each individual profile are correlated at about the ~ 20% level (see Sect. 4.2) and the plotted errors correspond to the square root of the diagonal elements of the covariance matrix of the profile. The solid black line (labelled in the legend as “Expected from PA10”) is the average stacked profile obtained from the expected SZ individual profiles drawn from the universal pressure profile by A10, parameterised according R500 and Y500 derived from the XMM-Newton data analysis presented in Planck Collaboration (2011f). The two dotted lines indicate the associated dispersion across the sample. The bottom panel shows the value of χ at each point of the observed profiles with respect to the expectations from the universal profile of A10.
