A&A 519, A2 (2010)

Molecular gas chemistry in AGN

II. High-resolution imaging of SiO emission in NGC 1068: shocks or XDR?[*]

S. García-Burillo1 - A. Usero1 - A. Fuente1 - J. Martín-Pintado2 - F. Boone3 - S. Aalto4 - M. Krips5 - R. Neri5 - E. Schinnerer6 - L. J. Tacconi7

1 - Observatorio Astronómico Nacional (OAN)-Observatorio de Madrid, Alfonso XII 3, 28014-Madrid, Spain
2 - Centro de Astrobiología (CSIC-INTA), Ctra de Torrejón a Ajalvir, km 4, 28850 Torrejón de Ardoz, Madrid, Spain
3 - Observatoire de Paris, LERMA, 61 Av. de l'Observatoire, 75014 Paris, France
4 - Department of Radio and Space Science with Onsala Observatory, Chalmers University of Technology, 439 94 Onsala, Sweden
5 - Institut de Radio Astronomie Millimétrique (IRAM), 300 rue de la Piscine, Domaine Universitaire de Grenoble, 38406 St. Martin d'Hères, France
6 - Max-Planck-Institut für Astronomie, Königstuhl 17, 69117 Heidelberg, Germany
7 - Max-Planck-Institut für extraterrestrische Physik, Postfach 1312, 85741 Garching, Germany

Received 30 March 2010 / Accepted 7 May 2010

Abstract
Context. This paper is part of a multi-species survey of line emission from the molecular gas in the circum-nuclear disk (CND) of the Seyfert 2 galaxy NGC 1068. Unlike in other active galaxies, the intensely star-forming regions in NGC 1068 and the CND can be resolved with current instrumentation. This makes this galaxy an optimal test-bed to probe the effects of AGN on the molecular medium at $\sim $100 pc scales.
Aims. Single-dish observations have provided evidence that the abundance of silicon monoxide (SiO) in the CND of NGC 1068 is enhanced by 3-4 orders of magnitude with respect to the values typically measured in quiescent molecular gas in the Galaxy. We aim at unveiling the mechanism(s) underlying the SiO enhancement.
Methods. We have imaged the emission of the SiO(2-1) (86.8 GHz) and CN(2-1) (226.8 GHz) lines in NGC 1068 at $\sim $150 pc and 60 pc spatial resolution with the IRAM Plateau de Bure interferometer (PdBI). We have also obtained complementary IRAM 30 m observations of HNCO and methanol (CH3OH) lines. These species are known as tracers of shocks in the Galaxy.
Results. SiO is detected in a disk of $\sim $400 pc size around the AGN. SiO abundances in the CND of $\sim $ $(1{-}5)\times10^{-9}$are about 1-2 orders of magnitude above those measured in the starburst ring. The overall abundance of CN in the CND is high: $\sim $ $(0.2{-}1)\times10^{-7}$. The abundances of SiO and CN are enhanced at the extreme velocities of gas associated with non-circular motions close to the AGN (r<70 pc). On average, HNCO/SiO and CH3OH/SiO line ratios in the CND are similar to those measured in prototypical shocked regions in our Galaxy. Yet the strength and abundance of CN in NGC 1068 can be explained neither by shocks nor by photon-dominated region (PDR) chemistry. Abundances measured for CN and SiO and the correlation of CN/CO and SiO/CO ratios with hard X-ray irradiation suggest that the CND of NGC 1068 has become a giant X-ray-dominated region (XDR).
Conclusions. The extreme properties of molecular gas in the circum-nuclear molecular disk of NGC 1068 result from the interplay between different processes directly linked to nuclear activity. The results presented here highlight in particular the footprint of shocks and X-ray irradiation on the properties of molecular gas in this Seyfert. Whereas XDR chemistry offers a simple explanation for CN and SiO in NGC 1068, the relevance of shocks deserves further scrutiny. The inclusion of dust grain chemistry would help solve the controversy regarding the abundances of other molecular species, like HCN, which are under-predicted by XDR models.

Key words: galaxies: individual: NGC 1068 - galaxies: ISM - galaxies: kinematics and dynamics - galaxies: nuclei - galaxies: active - radio lines: ISM

1 Introduction

Nuclear activity and intense star formation can shape the excitation and chemistry of molecular gas in the circum-nuclear disks (CND) of galaxies. The effect of strong radiation fields (UV and X-rays) and the injection of mechanical energy (by gas outflows or jet-ISM interactions) on molecular gas properties are key ingredients in the feedback of activity. Molecular line observations can be used to study the nature of the dominant source of energy in galaxies hosting both active galactic nuclei (AGN) and intense star formation. Furthermore, nearby galaxies can serve as local templates of distant galaxies, where these phenomena can be deeply embedded.

Some of the tracers of the dense molecular gas phase, which are commonly used in extragalactic research, can be heavily affected by the feedback of AGN activity. In particular the lines of HCN (the most widely observed tracer of the dense molecular medium) appear as over-luminous in the CND of many Seyfert galaxies with respect to other tracers of the dense molecular gas (Tacconi et al. 1994; Kohno et al. 2001; Usero et al. 2004, hereafter U04; Krips et al. 2008). Doubts have thus been cast on the universality of the conversion factor between the luminosity of the HCN(1-0) line, $L_{\rm HCN(1-0)}$, and the mass of dense molecular gas in active galaxies (Graciá-Carpio et al. 2006,2008; García-Burillo et al. 2006; Krips et al. 2008). X-rays can efficiently process large column densities of molecular gas around AGNs, producing X-ray dominated regions (XDR). It has been proposed that the abundances of certain ions, radicals and molecular species, like HCN, can be enhanced in XDR (Lepp & Dalgarno 1996; Maloney et al. 1996; Meijerink & Spaans 2005; Meijerink et al. 2007). However, it is still controversial whether pure gas-phase XDR models are able to enhance HCN abundances in AGN to the level imposed by observations.

The inclusion of dust grain chemistry, not taken into account by gas-phase XDR schemes, could solve the HCN controversy in AGN by enhancing the abundance of this molecule. Besides HCN, other molecular species can also undergo significant changes in their abundances due to dust grain processing. X-rays can evaporate small ($\sim $10 Å) silicate grains (Voit 1991). This can increase the Si fraction in the gas phase and then considerably enhance the abundance of SiO in X-ray irradiated molecular gas (Martín-Pintado et al. 2000; U04; García-Burillo et al. 2008; Amo-Baladrón et al. 2009). Furthermore, mechanical sputtering of dust grains in molecular shocks is an additional source of dust grain chemistry. Large SiO abundances have been found in the nuclei of a number of non-AGN galaxies where interferometer maps have been the key to identifying large-scale molecular shocks (García-Burillo et al. 2000,2001; Usero et al. 2006).

To address the role of X-rays and shocks in shaping the chemistry of molecular gas in AGN requires a multi-species approach. Unlike SiO, other tracers of the dense molecular gas, like CN, are not expected to be highly abundant in shocks (Mitchell 1984; Fuente et al. 2005; Rodríguez-Fernández et al. 2010). However, there is a consensus supported by observations and theoretical models that the CN radical is a privileged tracer of highly ionized molecular gas, typical of photon or X-ray-dominated regions (PDR or XDR) (Boger & Sternberg 2005; Fuente et al. 1993,2008; Janssen et al. 1995; Lepp & Dalgarno 1996; Meijerink & Spaans 2005; Meijerink et al. 2007). Observations of tracers like SiO and CN can then be used to quantify the relevance of shocks and XDR chemistry in AGN. Furthermore the high-spatial resolution provided by interferometers is paramount to spatially distinguish between the different chemical environments (star formation vs AGN activity) that can coexist in a single galaxy.

NGC 1068 is the strongest nearby Seyfert 2 galaxy, and as such is a prime candidate for studying the feeding and the feedback of activity using molecular line observations. Tacconi et al. (1994) and Schinnerer et al. (2000, hereafter S00) used the Plateau de Bure Interferometer (PdBI) to map the emission of molecular gas in the central $r \sim 1.5{-}2$ kpc disk at high-resolution (1-4 $\hbox {$^{\prime \prime }$ }$) using HCN and CO lines. The CO maps spatially resolve the distribution of molecular gas in the disk, showing a prominent starburst ring (hereafter SB ring) of $\sim $1-1.5 kpc-radius, which significantly contributes to the total CO luminosity of NGC 1068 (see also Planesas et al. 1991; and Baker 2000, hereafter B00). Furthermore, CO emission is detected in a central $r \sim200$ pc CND surrounding the AGN. In contrast to CO, emission from the HCN(1-0) line, which is also spatially resolved in Tacconi et al.'s maps, arises mainly from the CND. Tacconi et al. (1994) derived a high HCN/CO intensity ratio ($\sim $1) in the CND. This is about a factor of 5-10 higher than the average ratio measured in the SB ring (Usero et al., in prep.). Radiative transfer calculations based on multi-line observations of HCN and CO showed that the abundance of HCN relative to CO was significantly enhanced in the CND: HCN/CO$~\sim~$10-3 (Sternberg et al. 1994).

Usero et al. (2004) used the IRAM 30 m telescope to observe with low to moderate spatial resolutions ($\sim $10-30 $\hbox {$^{\prime \prime }$ }$) the emission of eight molecular species in the CND of NGC 1068. The global analysis of the survey, which includes several lines of SiO, CN, HCO, H13CO+, H12CO+, HOC+, HCN, CS, and CO, indicated that the bulk of the molecular gas emission in the CND of NGC 1068 could be interpreted as coming from a giant XDR. More recently, Pérez-Beaupuits et al. (2007,2009) analyzed new single-dish data obtained for several rotational lines of HCO+, HNC, CN and HCN, and arrived at similar conclusions as U04. However, the low spatial resolution of these single-dish observations are not optimal to precisely distinguish the contributions of the starburst and the CND in NGC 1068.

We here use the high-spatial resolution ($\sim $1-3 $\hbox {$^{\prime \prime }$ }$) afforded by PdBI to map the emission of the (v=0, J=2-1) line of SiO and the N=2-1 transition of CN in the central $r \sim 1.5{-}2$ kpc disk of NGC 1068. The spatial resolution of the new observations, one order of magnitude higher than that of the 30 m survey of U04, allows us to neatly separate the emission of the SB ring from that of the CND. Furthermore, the SiO and CN PdBI maps are used together with complementary single-dish data obtained in CH3OH and HNCO lines to study the chemical differentiation inside the CND through an analysis of line ratio maps. Line ratios are interpreted with the help of one-phase large velocity gradient (LVG) models. While the emission of the different lines and species analyzed here likely comes from regions characterized by different physical conditions, the adopted one-phase approach allows us to explore the existence of overall trends in the chemical abundances of these species with a minimum set of free parameters in the fit. We explore the dependence of line ratios with the illumination of molecular gas by the X-ray AGN source. We also explore the link between shock chemistry and gas kinematics in the CND.

We describe in Sect. 2 the observations, including high-resolution SiO, CN and CO maps obtained with the PdBI, single-dish data obtained with the 30 m telescope as well as X-ray images taken by Chandra of NGC 1068. Section 3 presents the continuum maps derived at 86.8 GHz and 226.8 GHz. The distribution and kinematics of molecular gas derived from SiO and CN are described in Sects. 4 and 5. SiO and CN abundances are discussed in Sect. 6. In Sect. 7 we interpret the line ratio maps in terms of two different chemical scenarios (shocks and XDR). The main conclusions of this work are summarized in Sect. 8. We assume a distance to NGC 1068 of $D\sim14$ Mpc (Bland-Hawthorn et al. 1997); this implies a spatial scale of $\sim $70 pc/ $\hbox {$^{\prime \prime }$ }$.

2 Observations

2.1 Interferometric maps

Table 1:   Observational parameters of the SiO and CN PdBI data.

Observations of NGC 1068 were carried out with the PdBI array (Guilloteau et al. 1992) between 2004 December and 2005 February. We used the BC configurations and six antennae in dual frequency mode. We simultaneously observed the (v=0, J=2-1) line of SiO (at 86.847 GHz) and the N=2-1 transition of CN. The CN(2-1) transition is split up into 18 hyperfine lines blended around three groups (J=5/2-3/2, J=3/2-1/2 and J=3/2-3/2). We observed the two strongest groups of lines at 226.9 GHz (J=5/2-3/2) and 226.7 GHz (J=3/2-1/2), hereafter referred to as high-frequency (HF) and low-frequency (LF) CN lines, respectively. During the observations the spectral correlator was split into two halves centered at 86.800 GHz and 226.767 GHz. This choice allowed us to cover the SiO line at 3 mm and the CN lines at 1 mm. The J=1-0 line of H13CO+ (at 86.754 GHz) is simultaneously covered by the 3 mm setup. Rest frequencies were corrected for the recession velocity initially assumed to be $v_{0}(\rm HEL)=1137$ km s-1. The correlator configuration covers a bandwidth of 580 MHz for each setup, using four 160 MHz-wide units with an overlap of 20 MHz; this is equivalent to 2000 km s-1(770 km s-1) at 86.8 GHz (226.8 GHz). Observations were conducted in single pointings of sizes 56 $^{\prime\prime}$and 21 $^{\prime\prime}$at 3 mm and 1 mm, respectively, centered at $\alpha _{2000} =\rm02^{h}42^{m}40.71^{s}$ and $\delta _{2000} =- 00^{\circ }00^{\prime }47.94\hbox {$^{\prime \prime }$ }$. The latter corresponds to the nominal position of the AGN core, as determined from different VLA and VLBI radio continuum images of the galaxy (e.g., Gallimore et al. 1996). Visibilities were obtained through on-source integration times of 20  min framed by short ($\sim $2 min) phase and amplitude calibrations on the nearby quasars 0235+164 and 0336-019. The absolute flux scale in our maps was derived to a 10$\%$ accuracy based on the observations of primary calibrators whose fluxes were determined from a combined set of measurements obtained at the 30 m telescope and the PdBI array. The bandpass calibration was carried out using NRAO150 and 1749+096 and is accurate to better than 5$\%$.

The image reconstruction was done with the standard IRAM/GILDAS software (Guilloteau & Lucas 2000). We used natural weighting and no taper to generate the SiO line map with a size of 64 $\hbox {$^{\prime \prime }$ }$and 0.25 $\hbox {$^{\prime \prime }$ }$/pixel sampling; the corresponding synthesized beam is $3.5''\times 2.1''$, $\rm PA=29^{\circ }$. We also used natural weighting to generate the CN map with a size of 32 $\hbox {$^{\prime \prime }$ }$and 0.12 $\hbox {$^{\prime \prime }$ }$/pixel sampling; this enabled us to achieve a spatial resolution of $\sim $1'' ( $1.5''\times 0.8''$, $\rm PA=19^{\circ }$). The conversion factors between Jy beam-1 and K are 22 K Jy-1 beam at 86.8 GHz, and 21 K Jy-1 beam at 226.8 GHz. The point source sensitivities were derived from emission-free channels. They are 1.5 mJy beam-1 in 2.5 MHz-wide channels at 3 mm, and 7.6 mJy beam-1 in 6.25 MHz-wide channels at 1 mm. Images of the continuum emission of the galaxy were obtained by averaging those channels free of line emission at both frequency ranges. The corresponding point source sensitivities for continuum images are 0.3 mJy beam-1 at 86.8 GHz and 0.7 mJy beam-1 at 226.8 GHz.

We use the 1.8 $\hbox {$^{\prime \prime }$ }$resolution CO(1-0) interferometer maps of NGC 1068 obtained with the PdBI by S00. We list in Table 1 the relevant parameters for the SiO and CN PdBI observations presented here.

2.2 Single-dish spectra

New CH3OH and HNCO observations of the nucleus of NGC 1068 were carried out in 2006 July with the IRAM 30 m telescope at Pico de Veleta (Spain). We observed the 2k-1k group of transitions of CH3OH. This group is a blended set of four lines. Hereafter we consider the frequency of the 20-10A+ line (96.741 GHz) as velocity reference. We observed the higher frequency group of transitions of methanol at 2 mm (denoted as 3k-2k), a blended set of eight lines. The frequency of the 30-20A+ line (145.103 GHz) is taken as velocity reference. We also observed the 4 04-303 rotational transition of HNCO (hereafter designated as 4-3) at 87.925 GHz. The corresponding beam sizes of the telescope are $\sim $28 $\hbox {$^{\prime \prime }$ }$at 3 mm and 17 $\hbox {$^{\prime \prime }$ }$at 2 mm. The 3 mm and 2 mm SIS receivers of the 30 m telescope were tuned to the redshifted frequencies of the lines around $v_{0}(\rm HEL)=1137$ km s-1. The velocity range covered was $\rm 1600~km~s^{-1}$ for the 3 mm lines and $\rm 900~km~s^{-1}$ for the 2 mm lines. The wobbler switching mode was used to obtain flat baselines with a maximum beam throw of 4 $\hbox{$^\prime$ }$.

Typical system temperatures during the observations were $\sim $200 K at 3 mm and $\sim $300 K at 2 mm. All receivers were used in single side-band mode (SSB), with a high rejection of the image band. The calibration accuracy is better than 20$\%$. Pointing of the 30 m telescope was regularly checked every 1.5 h by observing a nearby continuum source; we found an average rms pointing error of 2-3 $\hbox {$^{\prime \prime }$ }$during the observations.

Throughout the paper line intensities are given in antenna temperature scale, $T_{\rm a}^*$. The $T_{\rm a}^*$ scale relates to the main beam temperature scale, $T_{\rm mb}$, by the equation $T_{\rm mb} = (F_{\rm eff}/B_{\rm eff}) T_{\rm a}^{*}$, where $F_{\rm eff}$ and $B_{\rm eff}$ are, respectively, the forward and beam efficiencies of the telescope at a given frequency. For the IRAM 30 m telescope $F_{\rm eff}/B_{\rm eff} = 1.26$ (1.48) at 86 GHz (145 GHz).

\begin{figure}
\par\includegraphics[width=7cm,clip]{14539fg1.eps}
\par\end{figure} Figure 1:

Continuum maps obtained with the PdBI towards the nucleus of NGC 1068 at 3 mm (grey scale contours: 3%, 5%, 10%, 15%, 25% to 85% in steps of 15% of the maximum = 39.8 mJy beam-1) and 1 mm (white contours: 20% to 95% in steps of 15% of the maximum = 14.2 mJy beam-1). The lowest contours correspond to $\sim $4$\sigma $ levels at both frequencies. ( $\Delta \alpha $$\Delta \delta $) - offsets are relative to the phase tracking center ( $\alpha _{2000} =\rm02^{h}42^{m}40.71^{s}$, $\delta _{2000} =- 00^{\circ }00^{\prime }47.94\hbox {$^{\prime \prime }$ }$), which coincides with the position of the AGN (filled square). Black-filled and white-filled ellipses show the beams at 3 mm ( $3.5\hbox {$^{\prime \prime }$ }\times 2.1\hbox {$^{\prime \prime }$ }$at $\rm PA=29^{\circ }$) and 1 mm ( $1.5\hbox {$^{\prime \prime }$ }\times 0.8\hbox {$^{\prime \prime }$ }$at $\rm PA=19^{\circ }$), respectively.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=8.3cm,clip]{14539fg2.eps}

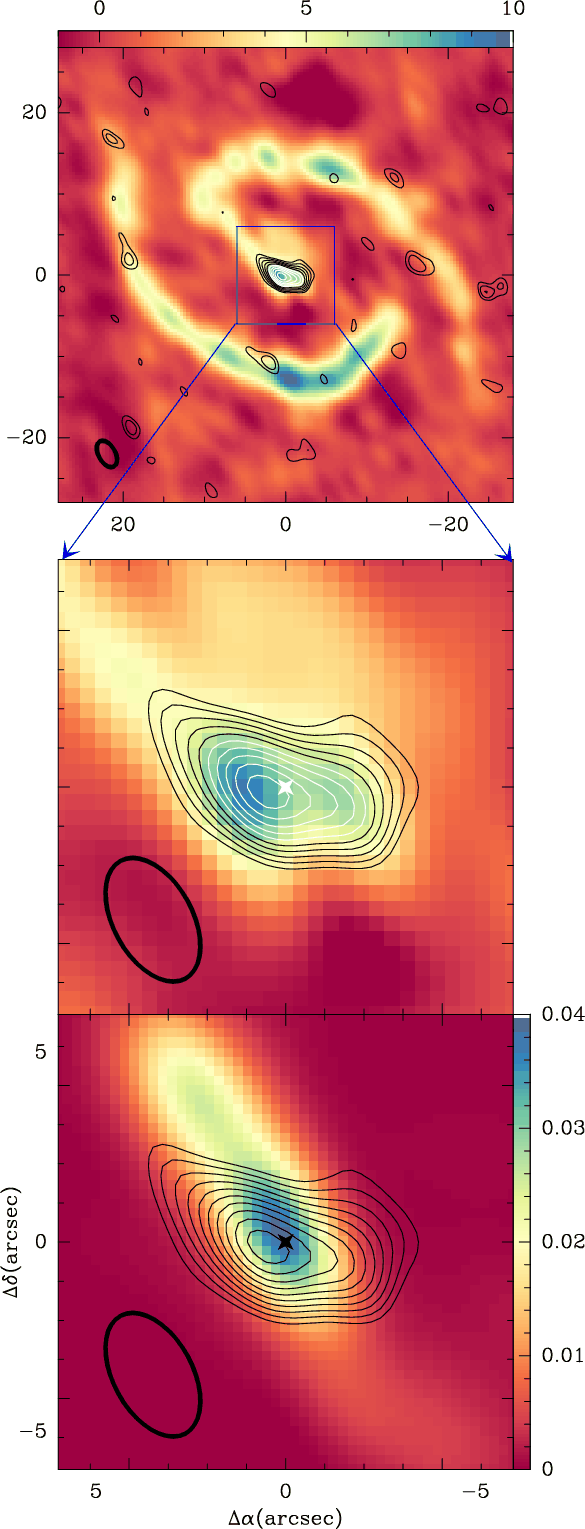

\par\end{figure} Figure 2:

a) (Upper panel) SiO integrated intensity map (contour levels are 3$\sigma $ to 12$\sigma $ in steps of 1 $\sigma =0.082$ Jy km s-1 beam-1) is overlaid on the CO(1-0) integrated intensity map of S00 (color scale as shown in units of Jy km s-1 beam-1). b) (Middle panel) The same as a), but with a zoomed view on the inner 12 $\hbox {$^{\prime \prime }$ }$around the AGN (identified by the cross). c) (Lower panel) The SiO map contours are overlaid on the 3 mm continuum map (color scale) of Fig. 1. The SiO beam is shown in all the panels by an ellipse.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=7cm,clip]{14539fg3.eps}
\end{figure} Figure 3:

CN integrated intensity map. Contour levels are 3$\sigma $, 4$\sigma $, 6$\sigma $, 9$\sigma $, 13$\sigma $ to 25$\sigma $ in steps of 6$\sigma $, with 1 $\sigma =0.4$0 Jy km s-1 beam-1. The AGN is identified by the cross and the CN beam is shown by an ellipse.

Open with DEXTER

3 Continuum maps

Figure 1 shows the continuum maps derived at 86.8 GHz and 226.8 GHz in the nucleus of NGC 1068. The morphology of the maps is similar to that described by Krips et al. (2006), who observed the continuum emission at the nearby frequencies 110 GHz and 230.5 GHz. The emission consists of a central component (AGN core), a NE elongation (jet), and a SW elongation (counter-jet). The counter-jet and the jet are only detected at 3 mm.

We used the GILDAS task UV-FIT to fit the continuum visibilities at both frequencies with a set of three point sources. Most of the flux comes from the compact source located at the position of the VLBI radio core at ( $\Delta \alpha $$\Delta\delta)\sim(0\hbox{$^{\prime\prime}$ }$, 0 $\hbox {$^{\prime \prime }$ }$). The AGN core has a flux of 39.$8\pm0$.3 mJy and 16.$0\pm0$.7 mJy at 86.8 GHz and 226.8 GHz, respectively. The NE jet component is fitted by a point source of 23.$8\pm0$.3 mJy at 86.8 GHz, located at ( $\Delta \alpha $$\Delta\delta )=(2.6\hbox{$^{\prime\prime}$ }$, 3.4 $\hbox {$^{\prime \prime }$ }$). The 3 mm counter-jet point source at ( $\Delta \alpha $$\Delta\delta)=(-1.6\hbox{$^{\prime\prime}$ }$, $-4.0\hbox{$^{\prime\prime}$ }$) has a flux of $4.7\pm0.3$ mJy. There are nevertheless hints of extended emission, mostly at 3 mm, which are not fully accounted for by the point source fitting (Krips et al. 2006). Taking into account the differences in frequency, spatial resolution and fitting functions used, the solution described above agrees with that found by Krips et al. (2006, see their Table 1 for a detailed description).

4 Molecular gas distribution

4.1 SiO distribution

Figure 2 shows the SiO(2-1) intensity map obtained by integrating the emission in velocity channels from v = 967 to 1307 km s-1. In this velocity range the line emission is detected at significant $\geq$3$\sigma $ levels on scales larger than the beam inside the PdBI field of view. We overlay the SiO(2-1) map on the CO(1-0) map of S00. The CO map fairly represents the overall molecular gas distribution in NGC 1068. Schinnerer et al. (2000) estimated that the CO PdBI map recovers $\simeq$80$\%$ of the total flux, based on the comparison between the CO flux measured by the PdBI and the flux derived from the CO maps obtained through the combination of the BIMA array and NRAO single-dish data of Helfer & Blitz (1995). For the sake of comparison, the spatial resolution of the CO(1-0) map shown in Fig. 2, originally $\sim $1.8 $\hbox {$^{\prime \prime }$ }$, was degraded to that of the SiO data. In Fig. 2 we also compare the SiO map to the morphology of the jet derived from the 3 mm continuum data.

Unlike CO, most of the total SiO emission detected inside the PdBI primary beam comes from a circum-nuclear molecular disk located around the AGN, referred to as CND. The integrated flux of SiO in the CND is $\sim $2 Jy km s-1. This is $\sim $74$\%$ of the total flux detected by U04 at 28 $\hbox {$^{\prime \prime }$ }$spatial resolution with the 30 m telescope towards the AGN. U04 estimate that $\simeq$75$\%$ of the SiO emission of their AGN spectrum comes from the CND itself, with a residual $\simeq$25$\%$ contribution from the SB ring. Taken together, these estimates indicate that the PdBI recovers practically all of the SiO flux in the CND. Little SiO emission is detected from the SB ring in the PdBI map. A few SiO clumps with sizes $\sim $beam and intensities at the 3-4$\sigma $ level are distributed along the SB ring.

The overall distribution of SiO in the CND, spatially resolved by the PdBI beam, shows an east-west elongation. The deconvolved full size of the emission at a 4$\sigma $ level is $\sim $400 pc along the east-west axis. The CND is marginally resolved along the north-south axis; the corresponding deconvolved size is $\leq$150 pc. These sizes are comparable with those derived from the higher resolution 1-0 and 2-1 CO maps of the CND published by S00, as well as with those derived from the CN(2-1) map described in Sect. 4.2. The SiO emission is slightly asymmetric around the AGN: the SiO emission peak is at ( $\Delta \alpha $$\Delta\delta ) \sim (0.5 \hbox{$^{\prime\prime}$ }$, 0 $\hbox {$^{\prime \prime }$ }$). Instead, the CO map shows a maximum at ( $\Delta \alpha $$\Delta\delta ) \sim (1.2 \hbox{$^{\prime\prime}$ }$, 0 $\hbox {$^{\prime \prime }$ }$) (see Fig. 1 of S00). The latter corresponds to the E CO knot, in the notation of S00. The E CO knot is thus shifted $\sim $50 pc east relative to the E SiO knot.

4.2 CN distribution

Both lines of CN (LF and HF, as defined in Sect. 2) are detected in the CND of NGC 1068. As expected, none of the CN lines are detected towards the SB ring, as this region is located well beyond the edge of the primary beam of the PdBI at 226.8 GHz. The HF/LF intensity ratio shows no significant spatial variation inside the CND. The average ratio, $\sim $1.7, closely agrees with the value expected in the limit of optically thin emission ( ${\rm HF/LF} \sim1.64\pm0.14$). For the remainder of this paper we will use the higher S/N ratio maps of the HF line.

Figure 3 shows the intensity map of the HF line of CN(2-1) obtained towards the CND of NGC 1068. We integrated the emission in velocity channels from v = 955 to 1277 km s-1, i.e., similar to the velocity range used to derive the SiO map. With this choice we encompass all significant line emission and at the same time avoid blending with the LF CN(2-1) line. At this spatial resolution ($\sim $1 $\hbox {$^{\prime \prime }$ }$) the overall morphology of the CND traced by CN roughly resembles that seen in CO lines. At close sight there are noticeable differences between these tracers, though. The two CN knots, connected by a bridge of emission on the northern side of the CND, lie at ( $\Delta \alpha $$\Delta\delta)\sim(0.9\hbox{$^{\prime\prime}$ }$, 0 $\hbox {$^{\prime \prime }$ }$) and ( $\Delta \alpha $$\Delta\delta)\sim(-1.7\hbox{$^{\prime\prime}$ }$, $-0.5\hbox{$^{\prime\prime}$ }$). As for SiO, the CN knot located east is significantly closer to the AGN compared to the corresponding CO knot.

5 Molecular gas kinematics

5.1 Background from previous work

The overall kinematics of molecular gas in the disk of NGC 1068 were modeled by S00 and B00. One of the scenarios advanced by S00 invokes two embedded bars: an outer oval and a nuclear bar of $\sim $17 kpc and 2.5 kpc deprojected diameters, respectively. The two bars are coupled through resonance overlapping, so that the corotation of the nuclear bar coincides with the outer inner Lindblad resonance (ILR) of the oval. The gas response inside $r\sim 5\hbox{$^{\prime\prime}$ }$ (350 pc), a region that encompasses the whole CND detected in SiO and CN, would lie between the ILRs of the nuclear bar.

Schinnerer et al. (2000) and B00 also proposed a nuclear warp model to alternatively account for the anomalous kinematics of molecular gas in the CND. The non-coplanar gas response in the nuclear region could have been caused by the interaction of the molecular disk with the jet or with the associated ionization cone. Baker's model proposes a warped molecular disk that evolves from a low inclination ( $i\sim 30^{\circ}$) at $r\sim2.5\hbox{$^{\prime\prime}$ }$ to a highly-inclined disk ( $i\sim77^{\circ}$) at $r\sim 0.5\hbox{$^{\prime\prime}$ }$. This configuration naturally explains the steep velocity gradient (high velocities) measured in the major axis position-velocity (p-v) diagram of CO at small radii ( $r\leq 2\hbox{$^{\prime\prime}$ }$). In particular, S00 favor a hybrid model where the gas response to the bar is combined with a nuclear warp. Besides being able to reasonably fit the gas kinematics, the main advantage of the hybrid solution over the pure bar model is that the first explains the asymmetric excitation of molecular gas evidenced by the remarkably different R=2-1/1-0 line ratios measured in the east and the west CO lobes. Baker (2000) argues that the east lobe with the higher R corresponds to the directly X-ray illuminated surface of a warped disk, whereas the west lobe corresponds to the back of the warped disk, characterized by a lower R. The illumination of the CND gas by X-rays may also explain the particular chemistry of molecular clouds analyzed in Sect. 6.2.

The kinematics of molecular gas in the inner $r\sim50$ pc region are also complex, as recently revealed by the 2.12 $\mu$m H2 1-0 S(1) map of Müller-Sánchez et al. (2009). These data, mostly sensitive to hot ( $T_{\rm K}\simeq10^3$ K) and moderately dense (n(H $_2)\simeq10^3$ cm-3) molecular gas, show a structure that bridges the CND and the central engine. This connection is made through highly elliptical streamers detected in H2 lines. Davies et al. (2008) used these data to study the large-scale kinematics of molecular gas in the CND itself and concluded that the whole CND is a lopsided ring in expansion (Krips et al., in prep.). The scenario of an expanding ring, first advanced by Galliano & Alloin (2002), could be linked to the onset of a nuclear warp instability.

5.2 SiO kinematics

Figure 4a shows the isovelocity contour map of the CND of NGC 1068 derived from SiO. Isovelocities were obtained using a 3$\sigma $ clipping on the data cube. The velocity centroid of SiO emission towards the AGN is $v_{\rm AGN}\sim 1122 \pm10$ km s-1 in HEL scale. Gas velocities are red ( $v>v_{\rm AGN}$) on the northwest side of the CND, while blue velocities ( $v<v_{\rm AGN}$) appear southeast. This picture is consistent with a spatially resolved rotating molecular structure. The kinematic major axis is fitted to ${\rm PA}\sim105\pm10^{\circ}$ to expand the maximum range of SiO radial velocities at the edge of the CND ( $r\simeq 2.5\hbox{$^{\prime\prime}$ }$). This solution lies within the wide range of PA values derived from the photometric fitting of the disk and, also, from the observed stellar and gas kinematics ( ${\rm PA}\sim80^{\circ}{-}125^{\circ}$, Brinks et al. 1997; Dehnen et al. 1997; S00; B00; Emsellem et al. 2006; Gerssen et al. 2006). We note that SiO isovelocities are twisted to larger position angles ( $\rm PA\sim135^{\circ}$) at smaller radii ( $r\leq 1\hbox{$^{\prime\prime}$ }$), which already suggests non-circular and/or non-coplanar motions in the CND. A similar isovelocity twist is seen in other molecular tracers, as pointed out by B00. Outside the CND, the large-scale stellar and gas kinematics indicate that the major axis of the disk is oriented east-west (Emsellem et al. 2006). We therefore adopt below PA = 90$^{\circ }$ as the best guess for the major axis orientation.

Figure 4b shows the SiO p-v diagram along the major axis. The p-v diagram is mostly symmetric for the lowest contour levels around the position of the AGN ( $\Delta x'=0\hbox {$^{\prime \prime }$ }$), and with respect to a radial velocity $v = v_{\rm sys}$(HEL $)=1140\pm10$ km s-1. We therefore adopt the first as the dynamical center and the second as the systemic velocity $v_{\rm sys}$ of the galaxy. This value of $v_{\rm sys}$ agrees well with all previous determinations of the galaxy's receding velocity ($\sim $$1137\pm3$ km s-1, e.g., de Vaucouleurs et al. 1991; Huchra et al. 1999). The highest contour levels of the p-v plot are shifted east, however; this reflects the overall east-west asymmetry of the CND described in Sect. 4.1.

The steep velocity gradient (high velocities) measured along the major axis at $r\leq 2\hbox{$^{\prime\prime}$ }$ can be interpreted at face value as a signature of rotation for a highly inclined disk. Figure 4b nevertheless confirms non-circular motions in the CND: SiO emission is detected at regions of the p-v diagram which are forbidden by circular rotation: emission in quadrants I and II of Fig. 4b can be interpreted by gas which is in apparent counter-rotation and/or moving radially outward. In either case, this can be taken as evidence that gas orbits must be either elongated, if they lie in a common plane, or, alternatively, non-coplanar[*]. Note that the detection of SiO gas in these regions cannot be explained by beam smearing effects: the deconvolved size of the emission for the velocity channels with the largest excursions into I and II ($\sim $1155 km s-1 and 1125 km s-1, respectively) is $\simeq$1.5$\times$ the beam size at $\rm PA\sim90^{\circ}$. Similar features are detected in the 0.7 $\hbox {$^{\prime \prime }$ }$resolution CO(2-1) map of S00 (Fig. 4 of S00). As discussed in Sect. 5.3, CN emission is also associated with forbidden velocities.

In the extended ILR region of the CND it is expected that the gas flow would trace the gradual transition from the x1 orbits of the nuclear bar (between corotation and the outer ILR) to the x2 orbits (between the ILRs) (e.g., Athanassoula 1992; Buta & Combes 1996). Orbits of the x2 family would thus account for most of the CO and SiO emission detected at high velocities at $r\leq 2\hbox{$^{\prime\prime}$ }$ in the major axis p-v diagrams of Fig. 5a. Contrary to SiO emission, which is mainly restricted to the CND, CO emission is detected over the SB ring ( $\Delta x'=\pm14\hbox{$^{\prime\prime}$ }$), but also in a region that connects the CND with the SB ring. A significant percentage of the CO emission on these intermediate scales ( $\Delta x'=\pm$3-8 $\hbox {$^{\prime \prime }$ }$) is detected at low velocities, i.e., at velocities significantly below the terminal limit imposed by the rotation curve at these radii (Fig. 5a). This is the kinematic signature of the gas response to the stellar potential, characterized in this region by the crowding of x1 orbits at the leading edges of the bar (S00; B00). As expected, the x1 + x2 orbit combination produces a double-peaked line-of-sight velocity distribution in the CO p-v diagram that shows the characteristic figure-of-eight trend as a function of radius where high velocities lie at small radii (Kuijken & Merrifield 1995; García-Burillo & Guélin  1995).

\begin{figure}
\par\includegraphics[width=7cm,clip]{14539fg4.eps}
\par\end{figure} Figure 4:

a) (Upper panel) SiO isovelocities contoured over false-color velocity maps. Velocities span the range [1050 km s-1, 1225 km s-1] in steps of 25 km s-1. The velocity scale is HEL. The AGN position is marked with a star. The position of the kinematic major axis derived from SiO at $\rm PA\sim $105$^{\circ }$ is indicated by the dashed line. An ellipse shows the beam. b) ( Lower panel) Position-velocity diagram of SiO along $\rm PA=90^{\circ }$. Contour levels are -3, 3, 3.75, 4.5 to 9 in steps of 1.5 mJy beam-1. The position of the AGN ( $\Delta x'=0\hbox {$^{\prime \prime }$ }$) and $v_{\rm sys}$(HEL)=1140 km s-1 are highlighted. We indicate the position of quadrants I and II discussed in the text.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=7.5cm,clip]{14539fg5a.eps}\par\vspace*{2mm}
\includegraphics[width=7.5cm,clip]{14539fg5b.eps}

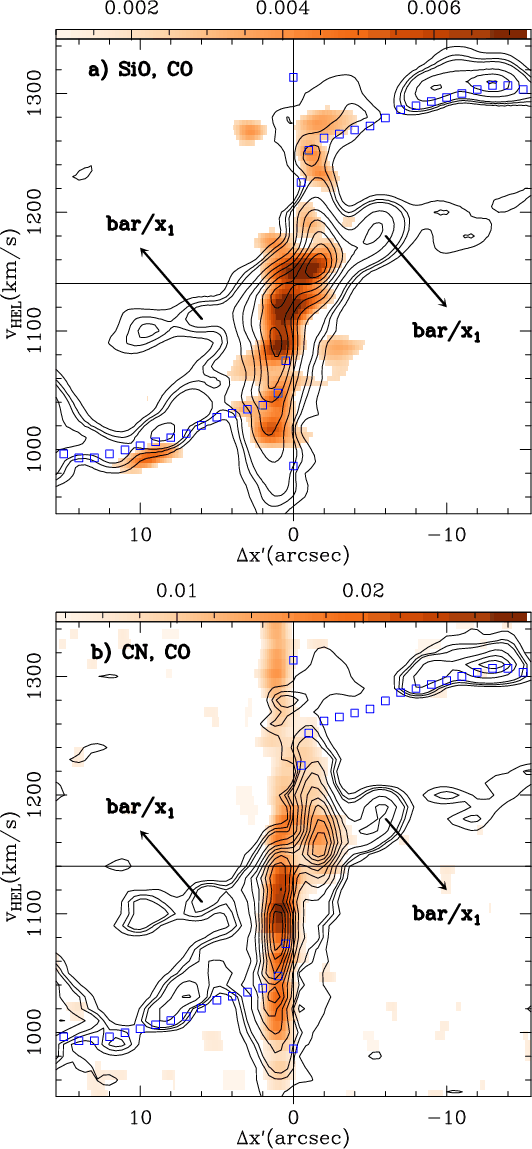

\par\end{figure} Figure 5:

a) (Upper panel) Position-velocity diagram of CO(1-0) (contours; data from S00 degraded to the resolution of SiO) and SiO(2-1) (color scale; this work) along $\rm PA=90^{\circ }$. We highlight the kinematic signature of the bar leading edges, formed by the precession of x1 orbits, seen in the low velocity CO component. We plot the projected terminal velocities (empty squares) derived from the rotation curve fitted by S00. b) (Lower panel) Same as a) but showing the position-velocity diagram of CO(1-0) (contours; data from S00) and CN(2-1) (color scale; this work), degraded to the resolution of CO, along $\rm PA=90^{\circ }$.

Open with DEXTER

In the light of the published dynamical models of NGC 1068 (S00; B00), we conclude that most of the SiO emission in the CND is associated with a region identified as the extended ILR region of the galaxy. Non-coplanar motions have alternatively been proposed to fit the CND kinematics. Nonetheless in either case (nuclear bar or nuclear warp) the high velocity emission detected in SiO is physically associated with gas lying at small radii ( $r\leq 2\hbox{$^{\prime\prime}$ }$).

\begin{figure}
\par\includegraphics[width=7cm,clip]{14539fg6.eps}
\par\end{figure} Figure 6:

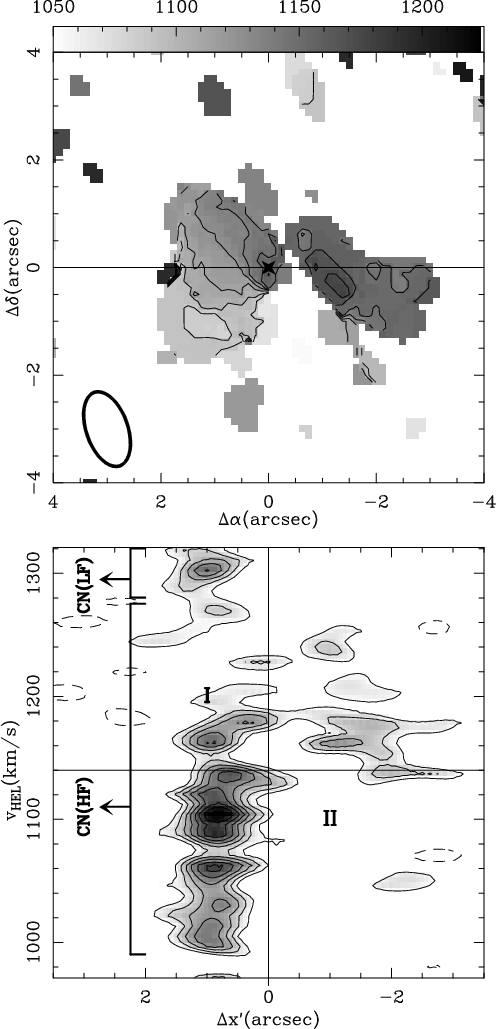

Same as Fig. 4 showing in a) (Upper panel) CN isovelocities, derived from the high frequency (HF) 2-1 transition of CN, contoured over false-color velocity maps. Velocities span the range [1025 km s-1, 1200 km s-1] in steps of 25 km s-1. Similarly, we show in b) (Lower panel) the p-v diagram of CN along the major axis at $\rm PA=90^{\circ }$. Contour levels are -15.2, 15.2, 22.8, to 68.4 in steps of 7.6 mJy beam-1. Velocities are referred to the HF 2-1 line. We highlight the range of the HF and LF lines of CN.

Open with DEXTER

5.3 CN kinematics

Figure 6a shows the isovelocity contour map of the CND of NGC 1068 derived from CN. Isovelocities were obtained with a 3$\sigma $ clipping on the data. Compared to SiO, the higher spatial resolution of the CN maps provides a sharper but more complex picture of the gas dynamics in the CND. The rotating pattern of the CN emitting gas is highly perturbed. The overall kinematics suggest an east-west orientation of the major axis. However, at close sight the PA of the major axis changes from 90$^{\circ }$ to 180$^{\circ }$ over the spatial extent of the E CN knot. In addition, isovelocities show an irregular pattern at the W CN knot. In spite of the more complex kinematics revealed by the higher resolution CN map on smaller scales, we will nevertheless assume below the same overall orientation and kinematic parameters determined from SiO. As argued in Sect. 5.2, this is a reasonable guess compatible with previous determinations based on the observed stellar and gas kinematics.

Figure 6b shows the CN p-v diagram along $\rm PA\sim90^{\circ}$. At this spatial resolution the p-v diagram shows a strong east-west asymmetry: most of the gas emission appears associated to the E knot. Similarly to SiO, CN emission is detected at regions of the p-v diagram which are forbidden by circular rotation. For CN, forbidden velocities appear mostly at quadrant I (see Fig. 6b). Due to the higher spatial resolution, the velocity gradient measured along the major axis is $\sim $a factor of two steeper in CN than in SiO. Otherwise the two molecular tracers of the CND share the same kinematic features, such as the existence of high velocity emission at small radii (for CN $r\leq 1\hbox{$^{\prime\prime}$ }$; see Fig. 6b), likely connected to x2 orbits. Like SiO, CN shows no detectable emission at low velocities on intermediate scales ( $r\geq3\hbox{$^{\prime\prime}$ }$; see Fig. 5b).

6 Molecular abundances

In Sect. 6.1 we use the average SiO/CO and SiO/H13CO+ intensity ratios measured in the CND and the SB ring to derive the global abundance of SiO in the two regions with a one-phase LVG radiative transfer model. We further analyze in Sect. 6.2 the SiO/CO and CN/CO intensity ratio patterns inside the CND, as derived from the high-resolution PdBI maps. We discuss how these patterns can be interpreted in terms of different physical/chemical properties of molecular gas in the CND.

6.1 SiO abundances in the CND and the SB ring

We estimated the average SiO/CO velocity-integrated intensity ratios ( $\langle R_{\rm SiO/CO} \rangle$) measured in the CND and the SB ring regions defined as follows. Based on the CO distribution shown in Fig. 2a, we delimit the SB ring as the region between $r\sim 10\hbox{$^{\prime\prime}$ }$ and $r\sim 20\hbox{$^{\prime\prime}$ }$ with SiO intensities >2.5$\sigma $ levels to derive integrated values. Similarly, the CND region is defined by a 2.5$\sigma $ clipping on the integrated intensities of the SiO map of Fig. 2b. Intensity units used to derive line ratios are K km s-1 with K in $T_{\rm mb}$ scale. The $\langle R_{\rm SiO/CO} \rangle$ ratios are thus equivalent to brightness temperature ratios, because the line widths for SiO and CO are comparable at this spatial resolution.

The maximum ratio in the SB ring corrected by the different primary beam attenuation factors is $\sim $ $0.004\pm0.001$, a ratio estimated from the average spectrum of the clumps detected in SiO. This is a factor of $\sim $20 lower than the corresponding ratio averaged over the CND, estimated as $\sim $ $0.08\pm0.01$. The dichotomy between the CND and the SB ring is apparent from the remarkably different $\langle R_{\rm SiO/CO} \rangle$ ratios measured in the two regions. The origin of this dichotomy could be found in the different physical conditions or, alternatively, in the different chemical properties of molecular gas in these two regions. Below we use a radiative transfer code to fit the set of available line ratios to distinguish the contribution of different factors.

6.1.1 LVG model results

To estimate the SiO abundances both in the CND and in the SB ring, we adopted a one-phase LVG approach to model the radiative transfer of the SiO emission. We used an LVG code to translate the SiO brightness temperatures into the SiO column density per velocity width ( $N_{\rm SiO}/\Delta \varv $) and the volume density of its collisional partner, H2 (n(H2)), in each cloud. We fed into the LVG code the average SiO(2-1) brightness temperature (from our PdBI observations) and the average SiO(3-2)/SiO(2-1) velocity-integrated line ratio (from U04), hereafter $\langle R_{32/21}\rangle$, measured in each target region. Provided that the 3-2 and 2-1 SiO emissions arise from the same clouds in each region, $\langle R_{32/21}\rangle$ remains independent of the unknown filling factor $\eta_{\rm f}$. To further constrain the model, the gas kinetic temperature was fixed at 50 K, as obtained by Tacconi et al. (1994) from multi-transition CO observations of the CND. This assumption is not critical, because the results barely depend on the gas temperature below, e.g., 100 K. Quite likely, 100 K is a comfortable upper limit to the average temperature of the SiO-emitting gas in a PdBI beam.

The output of the LVG code is summarized in Fig. 7. Because the filling factors are unknown the possible solutions for the CND (SB ring) clouds would lie over the corresponding $\langle R_{32/21}\rangle$ isocontour, anywhere to the right of the intersect with the CND (SB ring) SiO(2-1) isocontour (i.e., the lower $\eta_{\rm f}$, the higher $N_{\rm SiO}/\Delta \varv $ in a cloud). The loci of possible solutions become two-dimensional bands once we also consider the uncertainties in $\langle R_{32/21}\rangle$. The measured $\langle R_{32/21}\rangle$ ratios correspond to typical gas densities of $\sim $105 cm-3 in the CND, while they are about five times lower in the SB ring.

We searched for a reasonable estimate of the SiO abundance with respect to H2 (X(SiO $)\equiv N_{\rm SiO}/N_{\rm H_2}$) in the SB ring and the CND. For this we used ancillary CO observations of NGC 1068 to infer the H2 column density. A full radiative transfer approach (e.g., LVG) is impossible though in the SB ring, because multi-transition CO observations are not available in this region. Alternatively, we used the standard conversion between the CO(1-0) integrated intensities and the H2 column densities ( $N_{\rm H_2}$) given by the so called ${\cal X}$ factor in the two target regions. The ${\cal X}$ conversion factor is on the order of $\sim $ $ 2\times10^{20}$ cm-2/(km s-1) in the Milky Way (Strong et al. 1988), a value which roughly holds true for most nearby galaxies. We adopted the Galactic ${\cal X}$ value for the SB ring. It is known though that a lower ${\cal X}$ has been found in galaxy centers, where molecular clouds are subject to abnormal conditions (e.g., they are unlikely to be virialized). In particular, ${\cal X}$ in the CND of NGC 1068, could be $\sim $5 times lower than the standard value, according to the estimates of U04, a result which agrees with the findings obtained in the nuclear disks of other spiral galaxies (e.g., García-Burillo et al. 1993).

Under these assumptions, we proceeded as follows to estimate X(SiO) in the SB ring and the CND:

  • each target region is characterized by fixed $\langle R_{32/21}\rangle$ and $\langle R_{\rm SiO/CO} \rangle$ values [*], assumed to be independent of the filling factor, and by a certain ${\cal X}$;
  • The measured $\langle R_{32/21}\rangle$ allows us to calculate the SiO(2-1) brightness temperature as a function of $N_{\rm SiO}/\Delta \varv $ from the diagram in Fig. 7;
  • $N_{\rm H_2}/\Delta\varv$is proportional to the product of $\langle R_{\rm SiO/CO} \rangle$ and the SiO(2-1) brightness temperature. Thus, ultimately, X(SiO) can be expressed in terms of a certain function of $N_{\rm SiO}/\Delta \varv $ parameterized by $\langle R_{32/21}\rangle$, $\langle R_{\rm SiO/CO} \rangle$ratios and ${\cal X}$;
  • the range of values for $N_{\rm SiO}/\Delta \varv $ can be constrained. The lower limit to $N_{\rm SiO}/\Delta \varv $ corresponds to $\eta_{\rm f}=1$. On the other hand, for $\eta_{\rm f}$ arbitrarily low, the CO(1-0) brightness temperatures in a cloud would rise above the assumed kinetic temperature (50 K), which cannot occur if CO is collisionally excited. This sets an upper limit to $N_{\rm SiO}/\Delta \varv $.
The end product of this analysis is the plot in Fig. 8. There we represent X(SiO) as a function of $N_{\rm SiO}/\Delta \varv $ for the clouds in the SB ring and the CND. We explored two solutions with ${\cal X}$ equal to the standard factor and to a five times lower value in the CND. In either case, we note that the values of X(SiO) in the CND, $\sim $(1-5 $)\times10^{-9}$, are significantly boosted with respect to those typically found in Galactic dark clouds ($\la$10-12, e.g., Ziurys et al. 1989); this result calls for a mechanism of efficient dust grain processing in the CND. Note that the true SiO abundances could be even higher than our estimates if only a fraction of the CO emitting clouds were simultaneously emitting in SiO (the curves in Fig. 8 would have to be shifted upwards). We also note that X(SiO) is at least $\ga$one order of magnitude higher in the CND than in the SB ring. Actually, were ${\cal X}$ about 5 times lower in the CND than in the SB ring, the SiO abundances in the two target regions would differ by up to about two orders of magnitude.

\begin{figure}
\par\includegraphics[width=8cm,clip]{14539fg7.eps}
\end{figure} Figure 7:

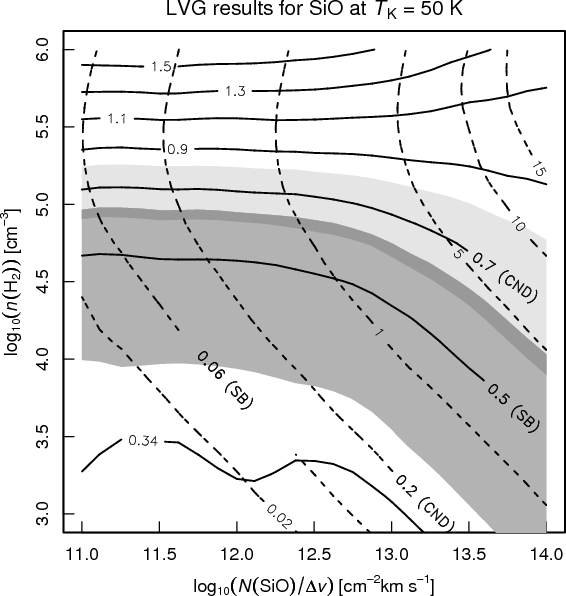

LVG results for SiO, assuming a kinetic temperature of $T_{\rm K}=50$ K. The x and y axes of the panel are, respectively, the SiO column density per velocity width ( $N_{\rm SiO}/\Delta \varv $) and the volume density of H2 molecules (n(H2)) in a cloud. The solid and dashed lines indicate constant SiO(3-2)/SiO(2-1 $)\equiv \langle R_{32/21}\rangle$line ratio and SiO(2-1) brightness temperature, respectively. The tags ``SB'' and ``CND'' identify the mean values measured in the SB ring and the CND. The $\langle R_{32/21}\rangle$ ratios within $1\sigma $ from the mean values in the CND and the SB correspond to the light- and medium-gray strips. The two strips overlap in a thinner band painted in darker gray.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=8cm,clip]{14539fg8.eps}

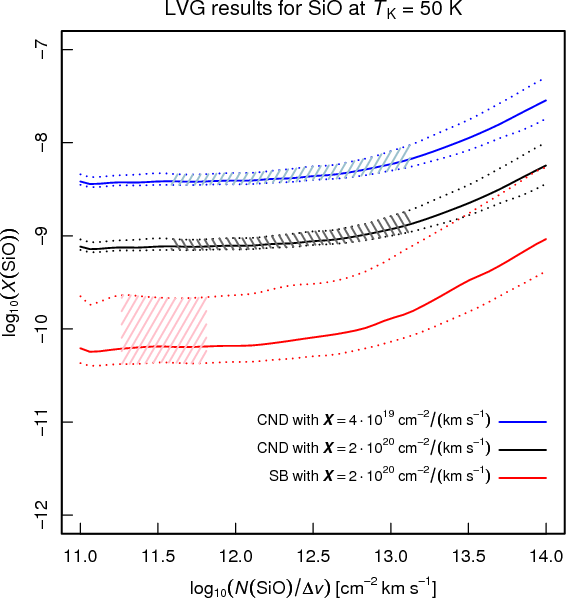

\end{figure} Figure 8:

SiO abundances estimated from the LVG model as a function of the SiO column density per velocity width ( $N_{\rm SiO}/\Delta \varv $) in a cloud (see text for details). Each blue, black or red curve is defined by three parameters: $\langle R_{32/21}\rangle$, $\langle R_{\rm SiO/CO} \rangle$and ${\cal X}$. The conditions in the SB ring are represented by the red curves and those in the CND by the others. The solid curves correspond to the measured $\langle R_{32/21}\rangle$ and the dotted ones to this value $\pm $$\sigma $ level. The SB solutions are only given for a Galactic ${\cal X}$, while in the case of the CND a five times lower ${\cal X}$ is also considered (blue). The areas where the most likely solutions lie are hatched as explained in the text. They range in $N_{\rm SiO}/\Delta \varv $ they cover is so that the CO(1-0) brightness temperature in a cloud is neither lower than the measured brightness temperature, nor higher than the gas kinetic temperature (50 K).

Open with DEXTER

\begin{figure}
\par\includegraphics[width=7.8cm,clip]{14539fg9a.eps}\hspace*{4mm...
...includegraphics[width=7.8cm,clip]{14539fg9d.eps}
\vspace*{5.5mm}

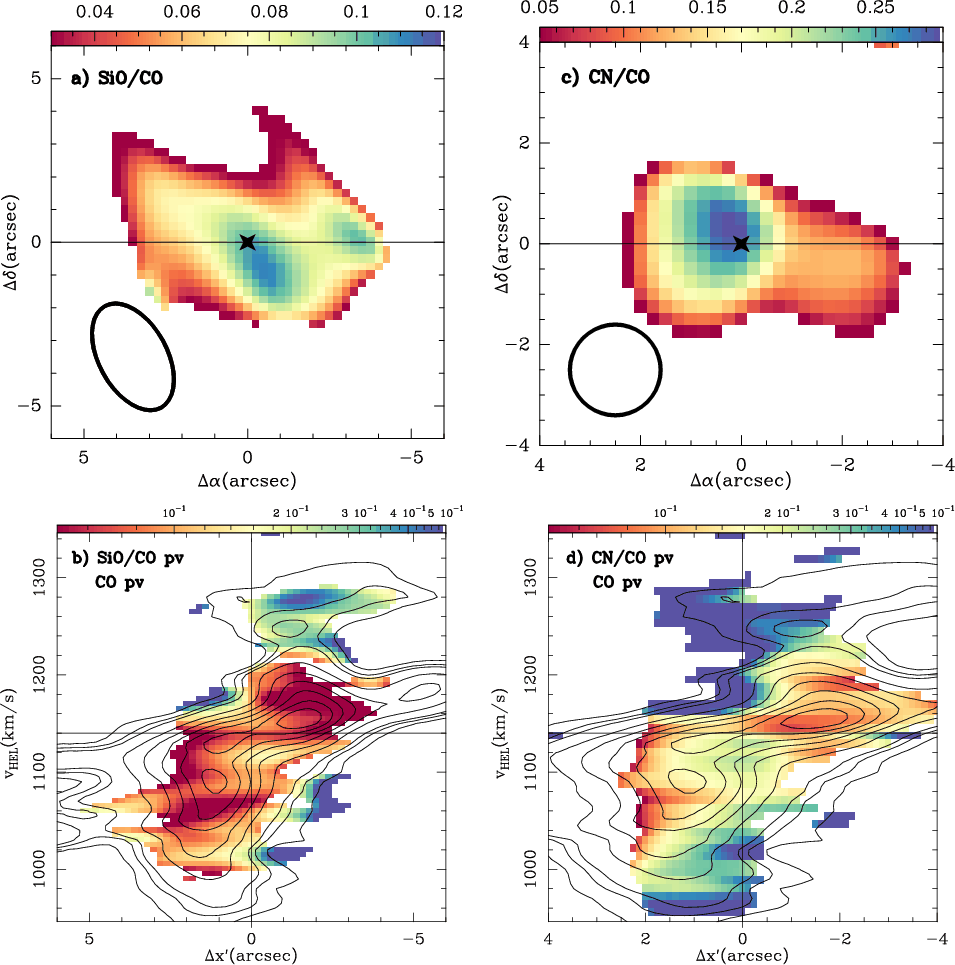

\end{figure} Figure 9:

a) ( Upper left panel) SiO(2-1)/CO(1-0) velocity-integrated intensity ratio ( $R_{\rm SiO/CO}$) (color scale) derived at the spatial resolution of SiO inside the CND. This ratio is equivalent to a brightness temperature ratio for the observed common line widths of SiO and CO. An ellipse shows the SiO beam. b) ( Lower left panel) The SiO/CO ratio is here displayed as function of velocity and spatial offset across the major axis at $\rm PA=90^{\circ }$ (SiO/CO pv). The CO pv plot is displayed in contours (CO pv). c) ( Upper right panel) Same as a) but showing here the CN(2-1)/CO(1-0) velocity-integrated intensity ratio ( $R_{\rm CN/CO}$)(color scale) derived at the spatial resolution of CO. An ellipse shows the CO beam. d) ( Lower right panel) Same as b) but adapted to compare here the CN/CO ratio along the major axis (CN/CO pv) with the corresponding CO pv plot.

Open with DEXTER

6.1.2 SiO/H13CO+ ratios

The results of the radiative transfer model described above can be compared to an alternative estimate of the abundance of SiO in the CND, based on the observed SiO/H13CO+ line ratio. The H13CO+(1-0) line, observed simultaneously with the SiO(2-1) line, was also detected in the CND of NGC 1068. Compared to SiO, the H13CO+ line is about a factor of three weaker. This ratio is significantly higher than that derived by U04, who reported a value about 1 from a 30 m spectrum of the CND. The disagreement between the PdBI and the 30 m results is an indication that compared to SiO the contamination from the SB ring in H13CO+ is more severe, and cannot be accurately estimated with the lower resolution 30 m map.

Given the weakness of H13CO+ in the CND, we omitted any discussion of the 2D morphology of the emission of this line. We nevertheless used H13CO+ to independently estimate the abundance of SiO in the CND with a LVG code to fit the global SiO(2-1)/H13CO+(1-0) intensity ratio measured in the nucleus of NGC 1068. The value of X(SiO) can be derived assuming a plausible range of physical conditions for the gas. This relies on two basic assumptions (see also the discussion in Garcia-Burillo et al. 2000; and Usero et al. 2006). First, because SiO and H13CO+ have similar dipole moments and the observed transitions have comparable upper state energies, it is plausible to assume similar physical conditions for the two species. In our case we took the CND values estimated by U04 from the multi-line 30 m survey of NGC 1068: n(H2 $)\sim10^{5}$ cm-3 and $T_{\rm K}=50$ K. As a second assumption we took a standard abundance for H13CO $^+ =2.5 \times10^{-10}$and derived X(SiO) from the SiO/H13CO+ column density ratio fitted by LVG. In our case this corresponds to a typical abundance of the main isotope X(H12CO + ) =10-8, and to an isotopic ratio [12C]/[13C$]\simeq40$, similar to the values found in the CND of our Galaxy (Wannier 1980). The derived abundance of SiO in the CND is $\sim $ $2.2\times10^{-9}$. This estimate is comfortingly close to the lower limit of the X(SiO) value derived from the LVG modeling of the SiO/CO ratios described above. This agreement confirms that the one-phase LVG approach adopted in Sect. 6.1.1 provides a reasonable estimate of the SiO molecular abundances in NGC 1068, in spite of the inherent limitations of this simplified description of the molecular ISM in this model.

We thus conclude that the dichotomy between the CND and the SB ring, regarding the measured $\langle R_{\rm SiO/CO} \rangle$ and $\langle R_{32/21}\rangle$ ratios, cannot be attributed to a comparatively higher volume density of SiO gas in the CND, but mainly to a significant enhancement of the SiO abundance in this region.

\begin{figure}
\par\includegraphics[width=7.5cm,clip]{14539fg10a.eps}\par\vspace*{2mm}
\includegraphics[width=7.5cm,clip]{14539fg10b.eps}

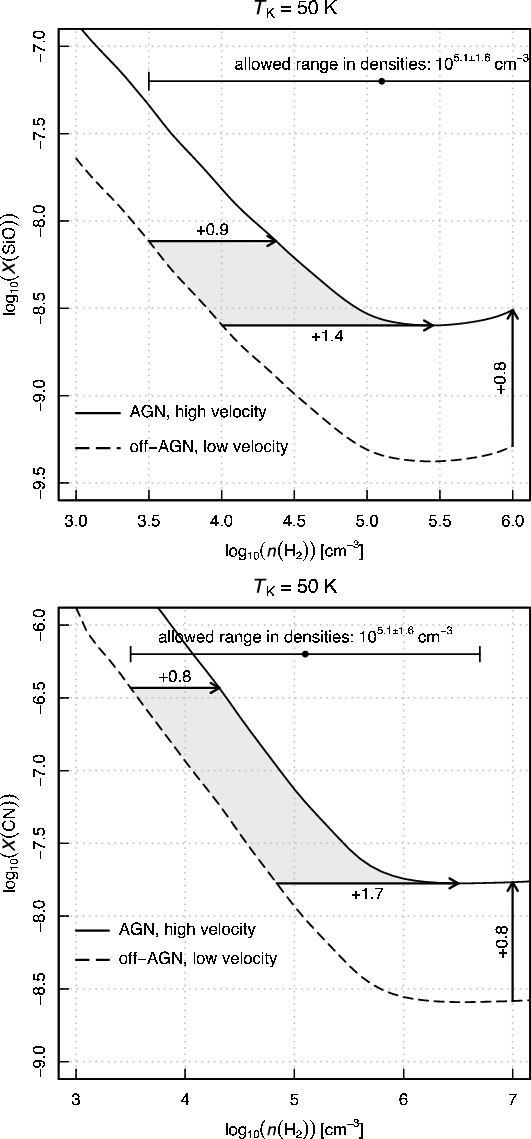

\par\end{figure} Figure 10:

a) ( Upper panel) SiO abundance as a function of gas density in the high velocity gas at the position of the AGN (solid line) and in the low velocity at the edge of the CND (dashed line). The abundances are derived from the mean SiO and CO brightness temperatures within the respective velocity windows as defined in text. The SiO abundance in the two regions can be the same only within the grey area. b) ( Lower panel) Same as a) but particularized for the density and abundance ranges for CN.

Open with DEXTER

6.2 Chemical differentiation in the CND

6.2.1 SiO abundances

Figure 9a shows the SiO(2-1)/CO(1-0) velocity-integrated intensity ratio ( $R_{\rm SiO/CO}$) in the CND, derived with a spatial resolution corresponding to that of SiO. The changes in $R_{\rm SiO/CO}$ are more significant along the major axis, where the spatial resolution is the highest. $R_{\rm SiO/CO}$ changes by about a factor of three inside the CND: it goes from a peak value of $\sim $ $0.11\pm0.01$in a region close to the AGN to a minimum of $\sim $ $0.04\pm0.02$at the eastern boundary of the CND ( $\Delta\alpha \sim +3\hbox{$^{\prime\prime}$ }$); $R_{\rm SiO/CO}$ reaches a secondary maximum ($\sim $ $0.10\pm0.01$) at the western edge of the CND ( $\Delta\alpha \sim -3\hbox{$^{\prime\prime}$ }$). This range of values confirms and significantly expands the differences in the SiO/CO ratios between the east ($\sim $0.07) and the west ($\sim $0.10) lobes of the CND, identified by U04 as coming from the blue and the red velocity components of the line profiles respectively. Figure 9b shows the SiO/CO ratio displayed here as a function of velocity and position across the major axis of the galaxy. The differences in the SiO/CO ratios, which go from $\sim $0.05 to $\sim $0.5, expand out to about one order of magnitude depending on the velocity channel and position along the major axis. Line ratios follow a regular pattern, where the highest ratios are associated with high velocities. In particular, the SiO/CO ratio is $\sim $ $0.35\pm0.05$at ${\mid}v-v_{\rm sys}{\mid} =80{-}160$ km s-1 towards the AGN and the western secondary maximum. By contrast, the corresponding average ratios at low velocities ( ${\mid} v-v_{\rm sys} {\mid} <+80$ km s-1) are about a factor of 6-7 lower ($\sim $ $0.05\pm0.01$) at the edges of the CND ( $\Delta x'=\pm$3 $\hbox {$^{\prime \prime }$ }$).

The dichotomy between the SiO/CO ratios measured at high and low velocities can be interpreted in terms of different physical conditions (i.e., different n(H2)), or alternatively as a signature of chemical differentiation (i.e., different X(SiO)) in the CND. Figure 10a shows the range of possible LVG solutions that fit the CND ratios. We explored two extreme solutions: in the first case, a common X(SiO) is assumed, whereas in the second case, we adopted a common n(H2). While physical conditions and chemical abundances in the gas are to some extent interconnected we could investigate which is the main driving cause of the reported changes in the line ratios by exploring the two extreme cases described above. We restricted H2 densities to lie within a range of values around the average density derived from the fit of the $\langle R_{32/21}\rangle$ ratio measured in the CND (n(H $_2)=10^{5.1\pm1.6}$ cm-3). With these restrictions, Fig. 10a shows that we need $\geq$one order of magnitude increase in n(H2) to fit the progression of $R_{\rm SiO/CO}$values observed from low velocities (at larger radii) to high velocities (at smaller radii). Alternatively, the scenario of a common n(H2) but different X(SiO), suggests a much wider range of solutions for the CND. In this case, X(SiO) would need to be about a factor of 5-6 higher at high velocities. Although a tenfold increase of n(H2) cannot be formally excluded based on these data[*], we note that this solution implies that the change should occur on scales of $\sim $200-300 pc ($\sim $the CND radius). This is at odds with the significantly smaller differences (about a factor of 2-5) that exist between the average densities of SiO gas detected in the SB ring and the CND, two regions more than 1 kpc apart. Therefore we can interpret the spatial variations of $\langle R_{\rm SiO/CO} \rangle$ in the CND as the likely signature of chemical differentiation. In this scenario, the abundance of SiO is significantly enhanced at high velocities (i.e., at small radii $r\leq 2\hbox{$^{\prime\prime}$ }$; see Sect. 5.2). This interpretation is supported by the correlation found between $\langle R_{\rm SiO/CO} \rangle$ and the X-ray irradiation of the CND discussed in Sect. 7.2.

6.2.2 CN abundances

Figure 9c shows the CN(2-1)/CO(1-0) velocity-integrated intensity ratio ( $R_{\rm CN/CO}$) derived in the CND with a spatial resolution corresponding to that of the CO map. The average $R_{\rm CN/CO}$ ratio in the CND is about 0.15. The changes in $R_{\rm CN/CO}$ shown in Fig. 9c are significant along the major axis. $R_{\rm CN/CO}$ changes by about a factor of three inside the CND. Similarly to the SiO/CO ratio, the maximum CN/CO value ($\sim $0.3$\pm $0.03) corresponds to a region very close to the AGN. $R_{\rm CN/CO}$ decreases to $\leq$ $0.1\pm0.04$at the edge of the CND. Figure 9d shows the CN/CO ratio here displayed as a function of velocity and position across the major axis of the galaxy. Similarly to the case of SiO discussed above, an inspection of Fig. 9d shows that the differences in the measured CN/CO ratios are boosted to reach about one order of magnitude depending on the velocity channel and position along the major axis. Line ratios follow a regular pattern, with the highest ratios associated with high velocities. Towards the AGN the highest CN/CO values ($\sim $ $0.7\pm0.09$) correspond to the high velocity component of the emission. This is in clear contrast with the corresponding values measured at low velocities ($\sim $ $0.1\pm0.02$). Following the scheme of Sect. 6.2.1 we explored two families of LVG solutions that fit the range of CN/CO ratios of the CND assuming a common X(CN) or a common n(H2). For simplicity we restricted H2 densities to lie within the same range values explored for SiO. Pérez-Beaupuits et al. (2009), based on a multi-transition CN analysis, have derived a more restricted density range (n(H $_2 )=10^{6\pm1}$ cm-3), which nevertheless lies within the range explored here. In the first scenario we need about an order of magnitude increase in n(H2) to fit the progression of ratios from low-velocities to high-velocities (see Fig. 10b). The corresponding range of solutions in the second scenario requires about a factor of 5-6 increase in X(CN). For reasons similar to those described in Sect. 6.2.1 we favor an interpretation of the spatial variations of $\langle R_{\rm CN/CO} \rangle$ in the CND in terms of chemical differentiation. The abundance of CN would be significantly enhanced at high velocities (i.e., at small radii $r\leq 1\hbox{$^{\prime\prime}$ }$; see Sect. 5.3). This interpretation is also supported by the correlation found between $\langle R_{\rm CN/CO} \rangle$ and the X-ray irradiation of the CND discussed in Sect. 7.2.

7 Molecular gas chemistry in the CND of NGC 1068

Below we consider the pros and cons of two different scenarios, shocks and XDR chemistry, regarding their ability to explain the molecular abundances measured in the CND of NGC 1068 for SiO and CN. Complementary information provided by other molecular tracers is a key for this discussion. Furthermore, we use the information extracted from the observed kinematics of the gas and the relation of the derived molecular abundances with the X ray irradiation in the CND.

7.1 Shock chemistry

To explore the prevalence of shock chemistry in the CND of NGC 1068 we used the IRAM 30 m telescope to observe a set of lines of two molecular tracers of shocks: CH3OH and HNCO. We discuss below the line ratios derived for CH3OH, HNCO, SiO and CN in NGC 1068, and compare these with the ratios derived in galactic and extragalactic templates of shock chemistry. We also analyze the potential drivers of shocks in the CND.

7.1.1 Tracers of shocks: CH3OH and HNCO

On theoretical grounds, high abundances of methanol can only be produced in gas-phase via evaporation and/or disruption of icy mantles. Fast shocks ( $v_{\rm shock}>15{-}20$ km s-1) can destroy the grain cores, liberating refractory elements like Si to the gas phase (Caselli et al. 1997; Schilke et al. 1997). By contrast, slow shocks ( $v_{\rm shock}< 10{-}15$ km s-1) are able to process the icy grain mantles, but not the grain cores (Millar et al. 1991; Charnley et al. 1995). The different location of Si-bearing material (cores) and solid-phase CH3OH (mantles) in dust grains implies that SiO and CH3OH are good tracers of fast and slow shocks, respectively. It is expected that the disruption of dust grains by slow shocks can inject grain mantle material into the molecular ISM without destroying the molecules (Bergin et al. 1998; Martín-Pintado et al. 2001). In particular, the abundance of methanol is seen to be enhanced in shocks associated with molecular outflows by more than two orders of magnitude over the values typically derived in cold molecular clouds (e.g., Bachiller & Pérez-Gutiérrez 1997; Pérez-Gutiérrez 1999). In external galaxies Meier & Turner (2005) associate over-luminous methanol lines to shocks in IC 342. The close association between SiO and CH3OH emission in IC 342 discussed by Usero et al. (2006) corroborates this picture.

Although it is still debated which is the main production mechanism of HNCO, models involving dust grain chemistry seem to be the most successful at increasing the abundances of HNCO in the gas phase. There is also supporting observational evidence that HNCO is related to shocks. In particular, Zinchenko et al. (2000) finds a good correlation between HNCO and SiO lines in dense cores of our Galaxy. Martín et al. (2008) have presented evidence of enhanced HNCO in molecular clouds suspected to suffer shocks in the Galactic Center. On larger scales, Meier & Turner (2005) interpret the large abundance of HNCO measured in the nuclear spiral structure of IC 342 as due to molecular shocks. In a later study Martín et al. (2009) observed several lines of HNCO in a sample of nearby starbursts and AGNs, concluding that molecular shocks can enhance the abundance of HNCO in galaxies. More recently, Rodríguez-Fernández et al. (2010) have reported a significant enhancement of HNCO in the bipolar outflow L1157, related to the shock chemistry at work in this prototypical young stellar object.

\begin{figure}
\par\includegraphics[width=6.5cm,clip]{14539fg11.eps}

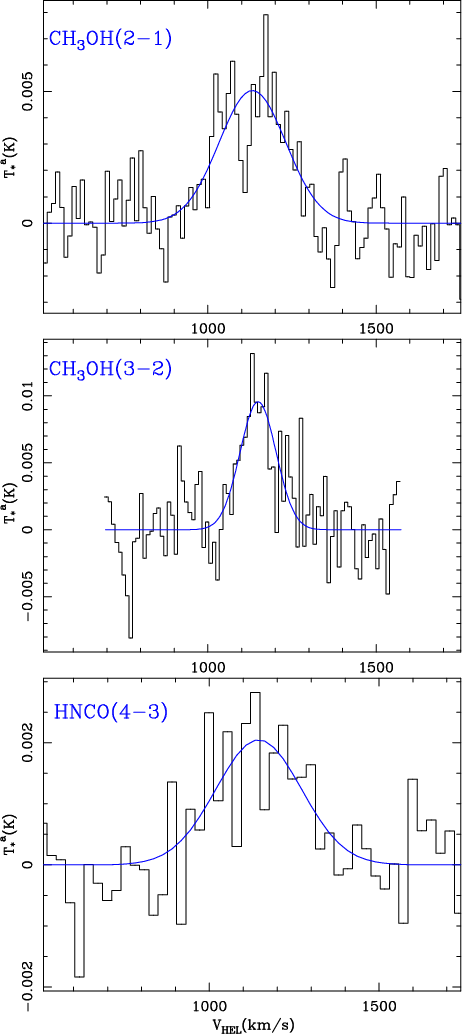

\end{figure} Figure 11:

Spectra obtained with the IRAM 30 m telescope in selected molecular line tracers of shock chemistry. We show in a) ( Upper panel) the spectra of the 2-1 line of CH3OH. Intensity scale is in $T_{\rm a}^*$ (K) units; velocities are in HEL scale (km s-1). The Gaussian fit to the spectrum is displayed in blue. b) ( Middle panel) Same as a) but for the 3-2 line of CH3OH. c) ( Lower panel) Same as a) but for the 4-3 line of HNCO.

Open with DEXTER

Table 2:   Line ratios measured in prototypical regions.

7.1.2 Tracers of shocks in NGC 1068

Figure 11 shows the spectra obtained in the 3-2 and 2-1 line of CH3OH and in the 4-3 line of HNCO towards the CND of NGC 1068 with the IRAM 30 m telescope. Emission is detected in the three lines at significant levels (S/N ratio $\sim $7-12). Within the errors the three line profiles appear centered around  $v_{\rm sys}$. Yet the 3-2 line of methanol is a factor of 2 narrower than the other two lines. This difference cannot be attributed to the $\sim $1.5$\times$ smaller beam of the CH3OH(3-2) line ($\sim $17 $\hbox {$^{\prime \prime }$ }$), as the maximum spread of velocities is already reached on the scales of the CND. By contrast this result reflects the lower excitation of methanol lines at high-velocities (likely arising in the inner CND, as shown by the SiO and CN interferometer maps). This supports the view that there is no significant increase of molecular densities at small radii on the scales of the CND (Sects. 6.2.1 and 6.2.2).

Table 2 shows the average CH3OH(2-1)/SiO(2-1), CH3OH(3-2)/SiO(3-2), HNCO(4-3)/SiO(2-1), SiO(2-1)/ CN(2-1) and CN(2-1)/HCN(1-0) line ratios in the CND of NGC 1068 in $T_{\rm mb}$ scale. We corrected the line ratios from beam dilution when necessary (single-dish observations) with the usual prescription for a point-like source, which is applicable in this context for the CND. Line ratios obtained in NGC 1068 are compared with results obtained in the molecular lobes (known as B1 and B2) of the bipolar outflow L1157 (data taken from Pérez-Gutiérrez 1999; and Nisini et al. 2007). We also list the line ratios measured in the face-on barred galaxy IC 342 when available (data taken from Hüttemeister et al. 1997; Meier & Turner 2005; and Usero et al. 2006). For L1157 we applied a correction for beam dilution assuming that the sizes of molecular emission in B1 and B2 are 18 $\hbox {$^{\prime \prime }$ }$and 30 $\hbox {$^{\prime \prime }$ }$, respectively.

As a result of this comparison we note the similarity between the ratios derived from CH3OH, HNCO and SiO lines in L1157 and NGC 1068. At face value this indicates that most of the SiO emission in the CND of NGC 1068 could be explained by fast shocks similar to those identified in the young bipolar outflow L1157. A comparison between the SiO/CN and CN/HCN ratios measured in L1157 and NGC 1068 indicates a remarkable excess of CN emission in NGC 1068, though. L1157 is the only outflow in which CN(2-1) emission has been detected in the high velocity gas associated with the bow shocks. But even for this extremely molecular-rich young outflow, the SiO/CN intensity ratio is about a factor of 10 higher than in the CND of NGC 1068. This CN excess questions the suitability of the bipolar outflow template in NGC 1068. The age dating of the most recent star-formation episode of the CND (>2- $3\times 10^8$ yrs old, Davies et al. 2010) also questions the hypothesis that shocks in NGC 1068 can be interpreted as stemming from an embedded population of young stellar objects.

Alternatively, large-scale shocks produced by cloud-cloud collisions, which are enhanced due to the complex orbital dynamics in the ILR region of the CND, could be a viable mechanism to explain the emission of SiO, CH3OH and HNCO in NGC 1068. SiO maps show the existence of perturbed kinematics of molecular gas in the CND (Sect. 5.2). The prevalence of SiO emission at high and forbidden velocities implies enhanced X(SiO) in gas following non-circular orbits. Furthermore, the line ratios discussed in Sect. 6.2.1 suggest an enhancement of SiO abundances at the extreme velocities identified in the CND. A similar link between density waves and large-scale molecular shocks has been proposed to explain the enhancement of SiO in the circum-nuclear disks of our Galaxy (Martín-Pintado et al. 1997; Hüttemeister et al. 1998; Rodríguez-Fernández et al. 2006) and of the starburst galaxies IC 342 and NGC 253 (Usero et al. 2006; García-Burillo et al. 2000). Usero et al. (2006) analyzed the large-scale molecular shocks produced in the ILR region of IC 342. Shocks in this galaxy seem to arise during cloud-cloud collisions at low velocities only after the kinetic energy associated with the density wave driven streaming motions has partly dissipated into turbulence. The comparison between IC 342 and NGC 1068 indicates that CH3OH/SiO and HNCO/SiO ratios are $\sim $a factor of two to three lower in NGC 1068. The detection of over-luminous SiO lines in NGC 1068 could be the signature of comparatively higher velocity shocks in this galaxy, possibly produced by mechanisms unrelated to density waves. Other scenarios designed to fit the CND kinematics, in particular those invoking a jet-ISM interaction, which would give rise to a nuclear warp and, eventually, to an expanding ring, could produce faster molecular shocks in NGC 1068.

Gallimore et al. (1996) analyzed the morphology and spectral index of the NGC 1068 jet and concluded that the radio plasma may have been diverted at a shock interface with the molecular ISM close to the AGN (knot C at $r\sim 30{-}40$ pc). Molecular shocks in the CND could have propagated around the jet-ISM working surface. The H2 line map published by Davies et al. (2008; see also Müller-Sánchez et al. 2009) reveals a strongly perturbed velocity field at a region located just 0.5-1 $\hbox {$^{\prime \prime }$ }$(35-70 pc) north of the AGN. The enhanced SiO abundances derived at high velocities ``close'' to the AGN may well be the signature of this jet-ISM interaction. Nevertheless, that SiO gas is detected elsewhere in the CND suggests that shocks would be at work on larger scales, either driven by an expanding ring or by the perturbed kinematics at the ILR region. But whereas shock chemistry can explain the strength and the line ratios of the different molecular shock tracers detected in NGC 1068, it is not a valid explanation for the measured CN abundances.

The discrepancies mentioned above motivate the search of a framework different to shock chemistry that would be able to simultaneously account for the high molecular abundances of SiO and CN measured in NGC 1068 (Sect. 7.2).

\begin{figure}
\par\includegraphics[width=17cm,clip]{14539fg12.eps}

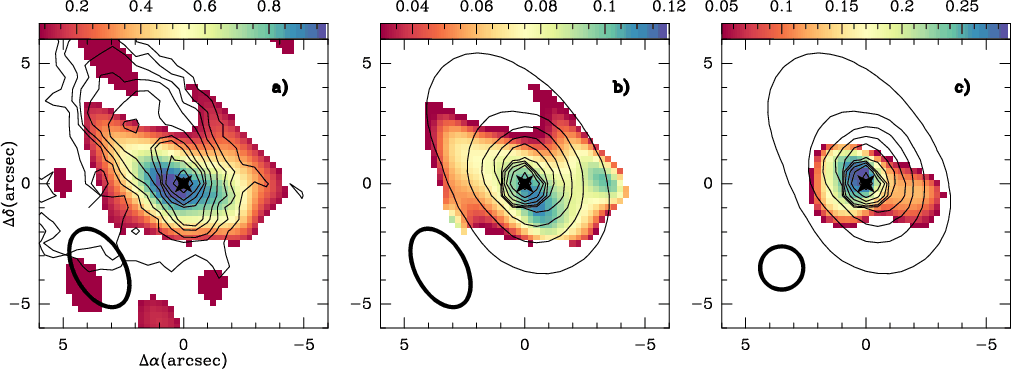

\end{figure} Figure 12:

a) ( Left panel) Chandra X-ray image of NGC 1068 (contours: 15, 30, 50, 100, 200, 400, 600, 1000, 2000 and 3000 counts) obtained in the 0.25-7.5 keV band by Young et al. (2001) is overlaid on the PdBI SiO map (color scale in units of Jy km s-1 beam-1). b) ( Middle panel) The X-ray image obtained in the 6-8 keV band by Ogle et al. (2003) (contours: 0.2, 0.5, 1, 2, 4, 8, 15, 25, 40, 80 and 100 counts) is overlaid on the SiO(2-1)/CO(1-0) brightness temperature ratio (color scale) at the SiO spatial resolution. c) ( Right panel) Same as b) but with the X-ray image obtained in the 6-8 keV band overlaid on the CN(2-1)/CO(1-0) ratio (color scale) at the CO spatial resolution. Ellipses show beams of SiO and CO as in Fig. 9.

Open with DEXTER

7.2 X-ray chemistry

We describe below the main properties of X-ray emission in NGC 1068, with a particular emphasis on the morphology, energetics and origin of hard X-ray emission in the CND (Sect. 7.2.1). We further discuss the observational evidence for X-ray chemistry in the nucleus of NGC 1068, and how the SiO and CN data specifically fit into this picture (Sect. 7.2.2).

7.2.1 X-ray emission in NGC 1068

We superpose in Fig. 12a the subarcsec resolution X-ray image of NGC 1068 obtained in the 0.25-7.50 keV band with Chandra (contours) on the SiO map (color scale). The X-ray image has been taken from the 3.2 s frame time data published by Young et al. (2001). The 0.25-7.50 keV band image incorporates the contribution from soft to hard X-rays and includes both continuum and line emission. The morphology of the X-ray image reveals spatially resolved emission distributed in a compact yet spatially resolved component located on the AGN, and an elongated source that extends to the northeast, similarly to the inner radio jet of the galaxy. The northeast elongation of X-ray emission contrasts with the overall east-west elongation seen in the CND molecular material detected in SiO and CN. Lower level X-ray emission is detected outside the inner 12 $\hbox{$^{\prime\prime}$ }\times 12\hbox{$^{\prime\prime}$ }$field of view (FOV) displayed in Fig. 12a. This outer emission takes the shape of a complex spiral-like structure that extends out to $r\sim 30{-}40\hbox{$^{\prime\prime}$ }$ (see Young et al. 2001 for a detailed description). The brightest region in X-ray emission corresponds with the compact AGN source. The X-ray peak coincides with the highest SiO/CO and CN/CO intensity ratios measured in the CND (panels c and d). The contributions to the X-ray luminosity in the 0.25-7.50 keV band are known to be multiple (line and continuum emission, as well as emission from neutral and ionized material), and therefore the link between the molecular line ratios and the ``bolometric'' X-ray flux, if any, is not easily interpretable. As argued below, by restricting the study to the hard X-ray band the interpretation is facilitated.

Figure 12 (panels b and c) shows the superposition of the hard X-ray image obtained in the 6-8 keV band by Chandra (in contours) on the SiO/CO and CN/CO ratio maps (color scale). The X-ray map was obtained by applying an adaptive smoothing[*] on the Chandra archive NGC 1068 data available in this wave-band. This image is virtually identical to the hard X-ray map originally published and discussed by Ogle et al. (2003; see also Young et al. 2001). Emission in this band is dominated by the Fe I K$\alpha$ line, with a non-negligible contribution from Fe XXV and scattered neutral and ionized continuum reflection (Ogle et al. 2003). An analysis of the 4-10 keV continuum observed with ASCA in NGC 1068 led Iwasawa et al. (1997) to conclude that most of the hard X-ray flux comes from reflection by cold neutral gas. The strong emission detected in the Fe I K$\alpha$ line in NGC 1068, a line generated by fluorescence in neutral cold molecular clouds, corroborates this picture. Therefore the 6-8 keV band image allows us to directly probe to what extent molecular gas in the CND of NGC 1068 is pervaded and processed by X-rays, without a significant contamination from other sources to the X-ray emission.

\begin{figure}
\par\includegraphics[width=12cm,clip]{14539fg13.eps}

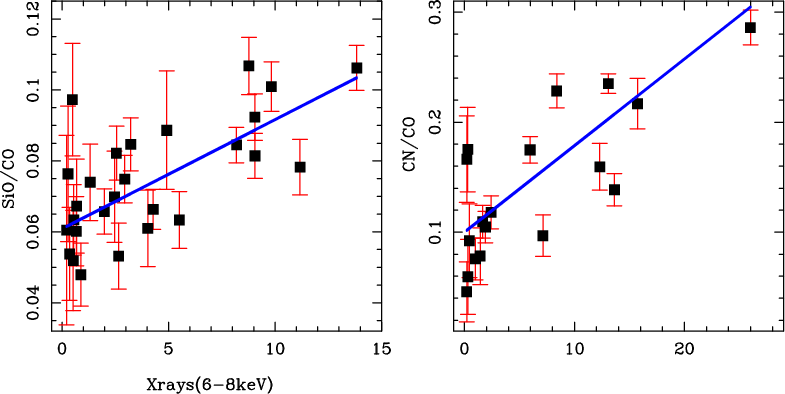

\par\end{figure} Figure 13:

a) ( Left panel) The SiO(2-1)/CO(1-0) brightness temperature ratio versus the X-ray flux in the 6-8 keV band. The straight line represents the best fit to the points taking into account uncertainties visualized by the errorbars. The coefficient of determination of the regression is r2=0.6. b) ( Right panel) Same as a) but showing the CN(2-1)/CO(1-0) ratio. The coefficient of determination of the regression is r2=0.7.

Open with DEXTER
The hard X-ray emission in the inner 12 $\hbox{$^{\prime\prime}$ }\times 12\hbox{$^{\prime\prime}$ }$FOV shown in Fig. 12b,c is spatially resolved. Young et al. (2001) confirmed the reality of this extended component and concluded that the latter cannot be attributed to scattering by the telescope PSF. The compact source, located on the AGN, is surrounded by lower-level emission that pervades the molecular material of the CND out to $r\sim 2{-}3\hbox{$^{\prime\prime}$ }$. This low-level emission shows a northeast protrusion beyond the CND extent, which aligns with the radio jet. The hard X-ray peak coincides within the errors with the highest SiO/CO and CN/CO intensity ratios measured in the CND, interpreted in Sect. 6.2 in terms of a chemical enhancement (higher abundances) of SiO and CN. The picture of a correlation between X(SiO), X(CN) and the degree of X-ray irradiation of molecular gas is further illustrated in Fig. 13. There we plotted the SiO/CO and CN/CO ratios derived in Sect. 6.2 versus the X-ray flux measured with a 0.5 $\hbox {$^{\prime \prime }$ }$grid over the CND and a common spatial resolution dictated in each case by the largest beam. Within an admittedly large scatter, Fig. 13 provides tentative evidence of a correlation. The correlation is tighter in the case of CN: the corresponding coefficients of determination of the linear regressions are r2=0.7 for CN and r2=0.6 for SiO. Based on the larger range of molecular line ratios derived when high and low velocities are separately analyzed (Sect. 6.2), we speculate that the correlations of Fig. 13 would have been found to be tighter if the spectral resolution of X-ray observations had allowed us to kinematically distinguish between the two components.

7.2.2 X-ray chemistry in NGC 1068

The CND of NGC 1068 has the basic ingredients to become a giant XDR. First, the nucleus of this Seyfert 2 is a strong X-ray emitter. The intrinsic luminosity in the hard X-ray band has been estimated to be about 10 43-1044 erg s-1 (e.g., Iwasawa et al. 1997; Maloney 1997; Colbert et al. 2002). Furthermore, the central engine of NGC 1068 is surrounded by a massive ($\sim $ $5\times 10^{7}~M_{\odot}$) circum-nuclear molecular disk of $\sim $200 pc radius. Thus, most of the molecular mass of the CND lies at a radius of about 100 pc where the expected hard X-ray flux is about 10-100 erg cm-2 s-1. This puts the molecular CND of NGC 1068 among the category of strongly irradiated XDRs (Meijerink et al. 2007). As argued in Sect. 7.2.1, the hard X-ray image of NGC 1068 provides direct evidence that molecular gas in the CND is pervaded by X-rays. We therefore expect that the chemistry of molecular gas in the CND should show the footprints of X-ray processing predicted on theoretical grounds. As discussed below, there are specific predictions regarding SiO and CN.

Gas-phase models that analyze the chemistry of X-ray irradiated molecular gas foresee high abundances for CN, similar to those measured in the CND of NGC 1068: X(CN$)\sim$ a few 10 -8-10-7 (Lepp & Dalgarno 1996; Meijerink & Spaans 2005; Meijerink et al. 2007). The abundance of CN is enhanced in XDR mainly as a result of the higher ionization degree of the gas. For similar reasons, there is a theoretical basis supporting the enhancement of CN in PDR environments (e.g.; Boger & Sternberg 2005; Fuente et al. 1993,2008; Janssen et al. 1995). However, based on the age estimated for the most recent star formation episode taking place in the CND(>2- $3\times 10^8$ yrs old, Davies et al. 2010), and considering that the UV radiation from young massive stars should dominate the feedback in a starburst, we can safely discard PDR chemistry as the origin for the high abundances of CN in the CND of NGC 1068. As argued in Sect. 7.1.2, shocks can also be rejected as an explanation for CN abundances.

The recent gas-phase models of Meijerink et al. (2007) foresee a significant enhancement of SiO in strongly irradiated ($\sim $10-100 erg cm-2 s-1) high density ($\geq$105 cm-3) XDRs, i.e., in a regime similar to the XDR environment of NGC 1068 where we measure X(SiO$)\sim$ a few 10 -9-10-8. In particular, Meijerink et al. (2007) predict that the SiO(1-0)/CO(1-0) ratio can reach a value of $\sim $0.10 assuming a standard depletion for silicon in gas phase. This closely agrees with the average SiO(2-1)/CO(1-0) ratio observed in NGC 1068 ($\sim $0.08), assuming that the typical SiO(2-1)/SiO(1-0) ratios should be $\sim $1. The latter is an educated guess considering the physical conditions of SiO gas in the CND.

In addition to the predictions of gas-phase chemistry, Voit (1991) has proposed that the abundance of silicon monoxide could also be boosted due to dust grain processing by X-rays. These can evaporate small ($\sim $10 Å) silicate grains and increase the Si fraction in gas phase, leading to a considerable enhancement of SiO in X-ray irradiated molecular gas (Martín-Pintado et al. 2000; U04; García-Burillo et al. 2008; Amo-Baladrón et al. 2009). This scenario has been invoked by Martín-Pintado et al. (2000) and Amo-Baladrón et al. (2009) to account for the correlation between the abundance of SiO and the equivalent width of the Fe K$\alpha$ fluorescence line in the Sgr A and Sgr B molecular cloud complexes of the Galactic Center. For the Galactic Center, pure gas-phase XDR models have difficulties in reproducing the observed SiO abundances, unless an X-ray outburst is assumed to have taken place in Sgr A* 300 yr ago. By contrast, current gas-phase XDR models successfully reproduce the SiO abundances derived in NGC 1068 without resorting to dust grain chemistry. Nonetheless, the inclusion of dust grain chemistry, likely linked to the mechanical heating of the molecular ISM, would help solve the controversy regarding the abundances of species like HCN and HNC, under-predicted by XDR schemes (García-Burillo et al. 2008; Loenen et al. 2008; Pérez-Beaupuits et al. 2009). Actually, while CN is overly produced in gas-phase XDR models, HCN is under-produced with respect to the level required by observations in AGNs. In addition to mechanical heating, the evaporation of dust grain mantles in dense hot environments like those likely prevailing in the nuclear disks of AGN, has been invoked as a mechanism responsible of enhancing HCN abundances (Lintott & Viti 2006).

Other lines of evidence support the existence of an XDR in the CND. The low HCO+/HOC+ ratios measured by U04 can be explained only if molecular clouds have the high ionization degrees typical of XDR: X(e $^- ) \sim 10 ^{-6}{-}10^{-4}$. Furthermore, the excitation of the 2.12 $\mu$m H2 rovibrational emission lines detected in the CND (Rotaciuc et al. 1991; Blietz et al. 1994; Galliano & Alloin 2002; Müller-Sánchez et al. 2009) has been interpreted to be dominated by X-ray emission (e.g., see discussion in Maloney 1997; and Galliano & Alloin 2002)

8 Summary and conclusions

We used the high spatial resolution and sensitivity capabilities of the PdBI to map the emission of the (v=0, J=2-1) line of SiO and the N=2-1 transition of CN in the disk of the Seyfert 2 galaxy NGC 1068. The spatial resolution of these observations ($\sim $1-3 $\hbox {$^{\prime \prime }$ }$) allowed us to separate the emission of the SB ring from that of the CND. The PdBI SiO and CN data together with available PdBI CO maps of the galaxy were complemented by single-dish data obtained with the IRAM 30 m telescope in SiO, CH3OH and HNCO lines to probe the physical and chemical properties of molecular gas in the CND through an analysis of line ratios.

We summarize below the main results obtained in this work:

  • Unlike the CO lines, which show strong emission in the SB ring, most of the SiO emission detected inside the PdBI primary beam comes from a circum-nuclear molecular disk (CND) located around the AGN. The dichotomy between the CND and the SB ring is reflected in the remarkably different $\langle R_{\rm SiO/CO} \rangle$ ratios measured in the two regions. Large velocity gradient models implemented to fit line ratios indicate that the average abundance of SiO in the CND, $\langle X($SiO$)\rangle[$CND $]\sim(1{-}5)\times10^{-9}$, is about one to two orders of magnitude higher than that measured in the SB ring.

  • Similarly to CO, the SiO CND, of about 400 pc deconvolved size, shows an asymmetric double peak structure oriented east-west. The eastern knot corresponds to the SiO emission peak. However, CO and SiO emissions show differences at the scales of the CND. The SiO/CO velocity-integrated intensity ratio changes by about a factor of three inside the CND, reaching a peak ratio of $\sim $0.10-0.12 towards the AGN and the western knot.

  • The overall SiO kinematics in the CND are consistent with a rotating structure. But there is evidence that the CND rotating pattern is distorted by non-circular and/or non-coplanar motions. Compared to CO, SiO emission at small radii ( $r\leq 2 \hbox{$^{\prime\prime}$ }=140$ pc) stands out at extreme velocities that are not accounted for by circular rotation. The highest SiO/CO brightness temperature ratios in the CND are associated with the high velocities seen towards the AGN and the western knot. We interpret the spatial variations of the SiO/CO ratio in the CND as the likely signature of chemical differentiation. In this scenario the abundance of SiO is significantly enhanced at high velocities out to X(SiO $)\sim(0.3{-}1.5)\times10^{-8}$.

  • CN emission is also detected in a CND around the AGN. The size and morphology of the CND seen in CN are similar to those found in SiO. The overall abundance of CN in the CND is high: $\langle X($CN$)\rangle[$CND $]\sim(0.2{-}1)\times10^{-7}$. The CN/CO velocity-integrated intensity ratio changes by about a factor of three inside the CND and reaches a peak value of $\sim $0.30 towards the AGN. CN maps also show distorted kinematics that cannot be explained by circular rotation. The abundance of CN is significantly enhanced at high velocities, detected towards the AGN, out to X(CN $)\sim (0.8{-}4)\times10^{-7}$. The emission detected in CN at extreme velocities is physically associated with gas lying at small radii ( $r\leq 1 \hbox{$^{\prime\prime}$ }=70$ pc).

  • Different models have been proposed to account for the kinematics of molecular gas in the CND. Large-scale shocks produced by cloud-cloud collisions in the ILR region of the NGC 1068 nuclear bar can explain the distorted kinematics and enhanced SiO abundances in the CND. The hypothesis of a jet-ISM interaction, driving the large-scale expansion of the molecular ring, can also explain shocks. Independent evidence of shocks is provided by the detection of CH3OH and HNCO. Line ratios involving these tracers and SiO in the CND are similar to those measured in prototypical shocked regions in our Galaxy. Yet the strength and abundance of CN in NGC 1068 can be explained neither by shocks nor by PDR chemistry. Alternatively, the high global abundances measured for CN and SiO, which agree with the theoretical predictions of XDR models, and the conspicuous correlation of CN/CO and SiO/CO ratios with the irradiation of hard X-rays, suggest that the CND of NGC 1068 has become a giant X-ray-dominated region.

The extreme properties of molecular gas in the circum-nuclear disk of NGC 1068 result from the interplay between several processes directly linked to nuclear activity. The results presented in this paper highlight in particular the footprint of shocks and X-ray irradiation on the properties of molecular gas in this Seyfert. Whereas XDR chemistry offers a simple explanation for CN and SiO in NGC 1068, the relevance of shocks deserves further scrutiny, however. In particular, sub-arcsecond spatial resolution observations, to be done at higher frequencies and in clear-cut molecular tracers, will be paramount to locate the occurrence of shocks in the CND and determine the gas mass and energies involved in the process. Increasing the spatial resolution at millimeter and sub-millimeter wavelengths will also be a key to explore in detail the correlation between molecular abundances and X-ray irradiation, tentatively identified in this work. Furthermore, increasing the number of molecular line transitions observed with high-spatial resolution will allow us to fit the different line ratios with multi-phase radiative transfer schemes. These are a better description of the multi-phase nature of the molecular ISM in galaxies. In particular, these models will properly take into account that the emission of different lines can arise from regions characterized by very different densities and kinetic temperatures.

Acknowledgements
We acknowledge the IRAM staff from the Plateau de Bure and from Grenoble for carrying out the observations and help provided during the data reduction. We heartily thank Andrew Baker for making available his PhD thesis work and for the helpful discussions and comments on our paper. S.G.B. and A.F. acknowledge support from MICIN within program CONSOLIDER INGENIO 2010, under grant ``Molecular Astrophysics: The Herschel and ALMA Era - ASTROMOL'' (Ref. CSD2009-00038).

References

  1. Amo-Baladrón, M. A., Martín-Pintado, J., Morris, M. R., Muno, M. P., & Rodríguez-Fernández, N. J. 2009, ApJ, 694, 943 [NASA ADS] [CrossRef] [Google Scholar]
  2. Athanassoula, E. 1992, MNRAS, 259, 345 [NASA ADS] [CrossRef] [Google Scholar]
  3. Bachiller, R., & Pérez-Gutiérrez, M. 1997, ApJ, 487, L93 [NASA ADS] [CrossRef] [Google Scholar]
  4. Baker, A. J. 2000, Ph.D. Thesis [Google Scholar]
  5. Bergin, E. A., Neufeld, D. A., & Melnick, G. J. 1998, ApJ, 499, 777 [NASA ADS] [CrossRef] [MathSciNet] [Google Scholar]
  6. Bland-Hawthorn, J., Gallimore, J. F., Tacconi, L. J., et al. 1997, Ap&SS, 248, 9 [NASA ADS] [CrossRef] [Google Scholar]
  7. Blietz, M., Cameron, M., Drapatz, S., et al. 1994, ApJ, 421, 92 [NASA ADS] [CrossRef] [Google Scholar]
  8. Boger, G. I., & Sternberg, A. 2005, ApJ, 632, 302 [NASA ADS] [CrossRef] [Google Scholar]
  9. Brinks, E., Skillman, E. D., Terlevich, R. J., & Terlevich, E. 1997, Ap&SS, 248, 23 [NASA ADS] [CrossRef] [Google Scholar]
  10. Buta, R., & Combes, F. 1996, Fund. Cosmic Phys., 17, 95 [NASA ADS] [Google Scholar]
  11. Caselli, P., Hartquist, T. W., & Havnes, O. 1997, A&A, 322, 296 [NASA ADS] [Google Scholar]
  12. Charnley, S. B., Kress, M. E., Tielens, A. G. G. M., & Millar, T. J. 1995, ApJ, 448, 232 [NASA ADS] [CrossRef] [Google Scholar]
  13. Colbert, E. J. M., Weaver, K. A., Krolik, J. H., Mulchaey, J. S., & Mushotzky, R. F. 2002, ApJ, 581, 182 [NASA ADS] [CrossRef] [Google Scholar]
  14. Davies, R., Genzel, R., Tacconi, L., Sánchez, F. M., & Sternberg, A. 2008, Mapping the Galaxy and Nearby Galaxies, 144 [CrossRef] [Google Scholar]
  15. Davies, R. I., Hicks, E., Schartmann, M., et al. 2010, IAU Symp., 267, 283 [NASA ADS] [Google Scholar]
  16. Dehnen, W., Bland-Hawthorn, J., Quirrenbach, A., & Cecil, G. N. 1997, Ap&SS, 248, 33 [NASA ADS] [CrossRef] [Google Scholar]
  17. de Vaucouleurs, G., de Vaucouleurs, A., Corwin, H. G., Jr., et al. 1991, Third Reference Catalogue of Bright Galaxies [Google Scholar]
  18. Emsellem, E., Fathi, K., Wozniak, H., et al. 2006, MNRAS, 365, 367 [NASA ADS] [CrossRef] [Google Scholar]
  19. Fuente, A., Martin-Pintado, J., Cernicharo, J., & Bachiller, R. 1993, A&A, 276, 473 [NASA ADS] [Google Scholar]
  20. Fuente, A., Rizzo, J. R., Caselli, P., Bachiller, R., & Henkel, C. 2005, A&A, 433, 535 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  21. Fuente, A., García-Burillo, S., Usero, A., et al. 2008, A&A, 492, 675 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  22. Galliano, E., & Alloin, D. 2002, A&A, 393, 43 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  23. Gallimore, J. F., Baum, S. A., O'Dea, C. P., & Pedlar, A. 1996, ApJ, 458, 136 [NASA ADS] [CrossRef] [Google Scholar]
  24. García-Burillo, S., & Guélin, M. 1995, A&A, 299, 657 [NASA ADS] [Google Scholar]
  25. García-Burillo, S., & Martín-Pintado, J. 2001, The Promise of the Herschel Space Observatory, 460, 163 [NASA ADS] [Google Scholar]
  26. García-Burillo, S., Guélin, M., & Cernicharo, J. 1993, A&A, 274, 123 [NASA ADS] [Google Scholar]
  27. García-Burillo, S., Martín-Pintado, J., Fuente, A., & Neri, R. 2000, A&A, 355, 499 [NASA ADS] [Google Scholar]
  28. García-Burillo, S., Martín-Pintado, J., Fuente, A., & Neri, R. 2001, ApJ, 563, L27 [NASA ADS] [CrossRef] [Google Scholar]
  29. García-Burillo, S., Graciá-Carpio, J., Guélin, M., et al. 2006, ApJ, 645, L17 [NASA ADS] [CrossRef] [Google Scholar]
  30. García-Burillo, S., Combes, F., Usero, A., & Graciá-Carpio, J. 2008, J. Phys. Conf. Ser., 131, 012031 [NASA ADS] [CrossRef] [Google Scholar]
  31. Gerssen, J., Allington-Smith, J., Miller, B. W., Turner, J. E. H., & Walker, A. 2006, MNRAS, 365, 29 [NASA ADS] [CrossRef] [Google Scholar]
  32. Graciá-Carpio, J., García-Burillo, S., Planesas, P., & Colina, L. 2006, ApJ, 640, L135 [NASA ADS] [CrossRef] [Google Scholar]
  33. Graciá-Carpio, J., García-Burillo, S., Planesas, P., Fuente, A., & Usero, A. 2008, A&A, 479, 703 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  34. Guilloteau, S., & Lucas, R. 2000, in Imaging at Radio through Submillimeter Wavelengths, ed. J. G. Mangum, & S. J. E. Radford, ASP Conf. Ser., 299 [Google Scholar]
  35. Guilloteau, S., Delannoy, J., Downes, D., et al. 1992, A&A, 262, 624 [NASA ADS] [Google Scholar]
  36. Helfer, T. T., & Blitz, L. 1995, ApJ, 450, 90 [NASA ADS] [CrossRef] [Google Scholar]
  37. Huchra, J. P., Vogeley, M. S., & Geller, M. J. 1999, ApJS, 121, 287 [NASA ADS] [CrossRef] [Google Scholar]
  38. Hüttemeister, S., Mauersberger, R., & Henkel, C. 1997, A&A, 326, 59 [NASA ADS] [Google Scholar]
  39. Hüttemeister, S., Dahmen, G., Mauersberger, R., et al. 1998, A&A, 334, 646 [NASA ADS] [Google Scholar]
  40. Iwasawa, K., Fabian, A. C., & Matt, G. 1997, MNRAS, 289, 443 [NASA ADS] [CrossRef] [Google Scholar]
  41. Jansen, D. J., van Dishoeck, E. F., Black, J. H., Spaans, M., & Sosin, C. 1995, A&A, 302, 223 [NASA ADS] [Google Scholar]
  42. Kohno, K., Matsushita, S., Vila-Vilaró, B., et al. 2001, The Central Kiloparsec of Starbursts and AGN: The La Palma Connection, 249, 672 [NASA ADS] [Google Scholar]
  43. Krips, M., Eckart, A., Neri, R., et al. 2006, A&A, 446, 113 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  44. Krips, M., Neri, R., García-Burillo, S., et al. 2008, ApJ, 677, 262 [NASA ADS] [CrossRef] [Google Scholar]
  45. Kuijken, K., & Merrifield, M. R. 1995, ApJ, 443, L13 [NASA ADS] [CrossRef] [Google Scholar]
  46. Lepp, S., & Dalgarno, A. 1996, A&A, 306, L21 [NASA ADS] [Google Scholar]
  47. Lintott, C., & Viti, S. 2006, ApJ, 646, L37 [NASA ADS] [CrossRef] [Google Scholar]
  48. Loenen, A. F., Spaans, M., Baan, W. A., & Meijerink, R. 2008, A&A, 488, L5 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  49. Maloney, P. R. 1997, Ap&SS, 248, 105 [NASA ADS] [CrossRef] [Google Scholar]
  50. Maloney, P. R., Hollenbach, D. J., & Tielens, A. G. G. M. 1996, ApJ, 466, 561 [NASA ADS] [CrossRef] [Google Scholar]
  51. Martín, S., Requena-Torres, M. A., Martín-Pintado, J., & Mauersberger, R. 2008, ApJ, 678, 245 [NASA ADS] [CrossRef] [Google Scholar]
  52. Martín, S., Martín-Pintado, J., & Mauersberger, R. 2009, ApJ, 694, 610 [NASA ADS] [CrossRef] [Google Scholar]
  53. Martín-Pintado, J., de Vicente, P., Fuente, A., & Planesas, P. 1997, ApJ, 482, L45 [NASA ADS] [CrossRef] [Google Scholar]
  54. Martín-Pintado, J., de Vicente, P., Rodríguez-Fernández, N. J., et al. 2000, A&A, 356, L5 [NASA ADS] [Google Scholar]
  55. Martín-Pintado, J., Rizzo, J. R., de Vicente, P., Rodríguez-Fernández, N. J., & Fuente, A. 2001, ApJ, 548, L65 [NASA ADS] [CrossRef] [Google Scholar]
  56. Meier, D. S., & Turner, J. L. 2005, ApJ, 618, 259 [NASA ADS] [CrossRef] [Google Scholar]
  57. Meijerink, R., & Spaans, M. 2005, A&A, 436, 397 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  58. Meijerink, R., Spaans, M., & Israel, F. P. 2007, A&A, 461, 793 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  59. Millar, T. J., Herbst, E., & Charnley, S. B. 1991, ApJ, 369, 147 [NASA ADS] [CrossRef] [Google Scholar]
  60. Mitchell, G. F. 1984, ApJS, 54, 81 [NASA ADS] [CrossRef] [Google Scholar]
  61. Müller-Sánchez, F., Davies, R. I., Genzel, R., et al. 2009, ApJ, 691, 749 [NASA ADS] [CrossRef] [Google Scholar]
  62. Nisini, B., Codella, C., Giannini, T., et al. 2007, A&A, 462, 163 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  63. Ogle, P. M., Brookings, T., Canizares, C. R., Lee, J. C., & Marshall, H. L. 2003, A&A, 402, 849 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  64. Pérez-Beaupuits, J. P., Aalto, S., & Gerebro, H. 2007, A&A, 476, 177 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  65. Pérez-Beaupuits, J. P., Spaans, M., van der Tak, F. F. S., et al. 2009, A&A, 503, 459 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  66. Pérez-Gutiérrez, M. J. P. 1999, Ph.D. Thesis, Universidad Complutense de Madrid (UCM) [Google Scholar]
  67. Planesas, P., Scoville, N., & Myers, S. T. 1991, ApJ, 369, 364 [NASA ADS] [CrossRef] [Google Scholar]
  68. Rodríguez-Fernández, N. J., Combes, F., Martín-Pintado, J., Wilson, T. L., & Apponi, A. 2006, A&A, 455, 963 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  69. Rodríguez-Fernández, N., Tafalla, M., Gueth, F., & Bachiller, R. 2010, A&A, 516, A98 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  70. Rotaciuc, V., Krabbe, A., Cameron, M., et al. 1991, ApJ, 370, L23 [NASA ADS] [CrossRef] [Google Scholar]
  71. Schilke, P., Walmsley, C. M., Pineau des Forets, G., & Flower, D. R. 1997, A&A, 321, 293 [NASA ADS] [Google Scholar]
  72. Schinnerer, E., Eckart, A., Tacconi, L. J., Genzel, R., & Downes, D. 2000, ApJ, 533, 850 [NASA ADS] [CrossRef] [Google Scholar]
  73. Sternberg, A., & Dalgarno, A. 1995, ApJS, 99, 565 [NASA ADS] [CrossRef] [Google Scholar]
  74. Sternberg, A., Genzel, R., & Tacconi, L. 1994, ApJ, 436, L131 [NASA ADS] [CrossRef] [Google Scholar]
  75. Strong, A. W., Bloemen, J. B. G. M., Dame, T. M., et al. 1988, A&A, 207, 1 [NASA ADS] [Google Scholar]
  76. Tacconi, L. J., Genzel, R., Blietz, M., et al. 1994, ApJ, 426, L77 [NASA ADS] [CrossRef] [Google Scholar]
  77. Usero, A., García-Burillo, S., Fuente, A., Martín-Pintado, J., & Rodríguez-Fernández, N. J. 2004, A&A, 419, 897 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  78. Usero, A., García-Burillo, S., Martín-Pintado, J., Fuente, A., & Neri, R. 2006, A&A, 448, 457 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  79. Voit, G. M. 1991, ApJ, 379, 122 [NASA ADS] [CrossRef] [Google Scholar]
  80. Wannier, P. G. 1980, ARA&A, 18, 399 [NASA ADS] [CrossRef] [Google Scholar]
  81. Young, A. J., Wilson, A. S., & Shopbell, P. L. 2001, ApJ, 556, 6 [NASA ADS] [CrossRef] [Google Scholar]
  82. Zinchenko, I., Henkel, C., & Mao, R. Q. 2000, A&A, 361, 1079 [NASA ADS] [Google Scholar]
  83. Ziurys, L. M., Friberg, P., & Irvine, W. M. 1989, ApJ, 343, 201 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]

Footnotes

... XDR?[*]
Based on observations carried out with the IRAM Plateau de Bure Interferometer. IRAM is supported by INSU/CNRS (France), MPG (Germany) and IGN (Spain).
... non-coplanar[*]
In this context a combination of elongated and non-coplanar orbits cannot be excluded.
... values[*]
As for $\langle R_{32/21}\rangle$, we adopt for $\langle R_{\rm SiO/CO} \rangle$ the average values measured in the SB and the CND.
... data[*]
A high-resolution $\langle R_{32/21}\rangle$ map would be required to quantitatively probe SiO density changes inside the CND.
... smoothing[*]
Using version 4.1 of CIAO package.

All Tables

Table 1:   Observational parameters of the SiO and CN PdBI data.

Table 2:   Line ratios measured in prototypical regions.

All Figures

  \begin{figure}
\par\includegraphics[width=7cm,clip]{14539fg1.eps}
\par\end{figure} Figure 1:

Continuum maps obtained with the PdBI towards the nucleus of NGC 1068 at 3 mm (grey scale contours: 3%, 5%, 10%, 15%, 25% to 85% in steps of 15% of the maximum = 39.8 mJy beam-1) and 1 mm (white contours: 20% to 95% in steps of 15% of the maximum = 14.2 mJy beam-1). The lowest contours correspond to $\sim $4$\sigma $ levels at both frequencies. ( $\Delta \alpha $$\Delta \delta $) - offsets are relative to the phase tracking center ( $\alpha _{2000} =\rm02^{h}42^{m}40.71^{s}$, $\delta _{2000} =- 00^{\circ }00^{\prime }47.94\hbox {$^{\prime \prime }$ }$), which coincides with the position of the AGN (filled square). Black-filled and white-filled ellipses show the beams at 3 mm ( $3.5\hbox {$^{\prime \prime }$ }\times 2.1\hbox {$^{\prime \prime }$ }$at $\rm PA=29^{\circ }$) and 1 mm ( $1.5\hbox {$^{\prime \prime }$ }\times 0.8\hbox {$^{\prime \prime }$ }$at $\rm PA=19^{\circ }$), respectively.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.3cm,clip]{14539fg2.eps}
\par\end{figure} Figure 2:

a) (Upper panel) SiO integrated intensity map (contour levels are 3$\sigma $ to 12$\sigma $ in steps of 1 $\sigma =0.082$ Jy km s-1 beam-1) is overlaid on the CO(1-0) integrated intensity map of S00 (color scale as shown in units of Jy km s-1 beam-1). b) (Middle panel) The same as a), but with a zoomed view on the inner 12 $\hbox {$^{\prime \prime }$ }$around the AGN (identified by the cross). c) (Lower panel) The SiO map contours are overlaid on the 3 mm continuum map (color scale) of Fig. 1. The SiO beam is shown in all the panels by an ellipse.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7cm,clip]{14539fg3.eps}
\end{figure} Figure 3:

CN integrated intensity map. Contour levels are 3$\sigma $, 4$\sigma $, 6$\sigma $, 9$\sigma $, 13$\sigma $ to 25$\sigma $ in steps of 6$\sigma $, with 1 $\sigma =0.4$0 Jy km s-1 beam-1. The AGN is identified by the cross and the CN beam is shown by an ellipse.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7cm,clip]{14539fg4.eps}
\par\end{figure} Figure 4:

a) (Upper panel) SiO isovelocities contoured over false-color velocity maps. Velocities span the range [1050 km s-1, 1225 km s-1] in steps of 25 km s-1. The velocity scale is HEL. The AGN position is marked with a star. The position of the kinematic major axis derived from SiO at $\rm PA\sim $105$^{\circ }$ is indicated by the dashed line. An ellipse shows the beam. b) ( Lower panel) Position-velocity diagram of SiO along $\rm PA=90^{\circ }$. Contour levels are -3, 3, 3.75, 4.5 to 9 in steps of 1.5 mJy beam-1. The position of the AGN ( $\Delta x'=0\hbox {$^{\prime \prime }$ }$) and $v_{\rm sys}$(HEL)=1140 km s-1 are highlighted. We indicate the position of quadrants I and II discussed in the text.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7.5cm,clip]{14539fg5a.eps}\par\vspace*{2mm}
\includegraphics[width=7.5cm,clip]{14539fg5b.eps}
\par\end{figure} Figure 5:

a) (Upper panel) Position-velocity diagram of CO(1-0) (contours; data from S00 degraded to the resolution of SiO) and SiO(2-1) (color scale; this work) along $\rm PA=90^{\circ }$. We highlight the kinematic signature of the bar leading edges, formed by the precession of x1 orbits, seen in the low velocity CO component. We plot the projected terminal velocities (empty squares) derived from the rotation curve fitted by S00. b) (Lower panel) Same as a) but showing the position-velocity diagram of CO(1-0) (contours; data from S00) and CN(2-1) (color scale; this work), degraded to the resolution of CO, along $\rm PA=90^{\circ }$.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7cm,clip]{14539fg6.eps}
\par\end{figure} Figure 6:

Same as Fig. 4 showing in a) (Upper panel) CN isovelocities, derived from the high frequency (HF) 2-1 transition of CN, contoured over false-color velocity maps. Velocities span the range [1025 km s-1, 1200 km s-1] in steps of 25 km s-1. Similarly, we show in b) (Lower panel) the p-v diagram of CN along the major axis at $\rm PA=90^{\circ }$. Contour levels are -15.2, 15.2, 22.8, to 68.4 in steps of 7.6 mJy beam-1. Velocities are referred to the HF 2-1 line. We highlight the range of the HF and LF lines of CN.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8cm,clip]{14539fg7.eps}
\end{figure} Figure 7:

LVG results for SiO, assuming a kinetic temperature of $T_{\rm K}=50$ K. The x and y axes of the panel are, respectively, the SiO column density per velocity width ( $N_{\rm SiO}/\Delta \varv $) and the volume density of H2 molecules (n(H2)) in a cloud. The solid and dashed lines indicate constant SiO(3-2)/SiO(2-1 $)\equiv \langle R_{32/21}\rangle$line ratio and SiO(2-1) brightness temperature, respectively. The tags ``SB'' and ``CND'' identify the mean values measured in the SB ring and the CND. The $\langle R_{32/21}\rangle$ ratios within $1\sigma $ from the mean values in the CND and the SB correspond to the light- and medium-gray strips. The two strips overlap in a thinner band painted in darker gray.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8cm,clip]{14539fg8.eps}
\end{figure} Figure 8:

SiO abundances estimated from the LVG model as a function of the SiO column density per velocity width ( $N_{\rm SiO}/\Delta \varv $) in a cloud (see text for details). Each blue, black or red curve is defined by three parameters: $\langle R_{32/21}\rangle$, $\langle R_{\rm SiO/CO} \rangle$and ${\cal X}$. The conditions in the SB ring are represented by the red curves and those in the CND by the others. The solid curves correspond to the measured $\langle R_{32/21}\rangle$ and the dotted ones to this value $\pm $$\sigma $ level. The SB solutions are only given for a Galactic ${\cal X}$, while in the case of the CND a five times lower ${\cal X}$ is also considered (blue). The areas where the most likely solutions lie are hatched as explained in the text. They range in $N_{\rm SiO}/\Delta \varv $ they cover is so that the CO(1-0) brightness temperature in a cloud is neither lower than the measured brightness temperature, nor higher than the gas kinetic temperature (50 K).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7.8cm,clip]{14539fg9a.eps}\hspace*{4mm...
...includegraphics[width=7.8cm,clip]{14539fg9d.eps}
\vspace*{5.5mm}
\end{figure} Figure 9:

a) ( Upper left panel) SiO(2-1)/CO(1-0) velocity-integrated intensity ratio ( $R_{\rm SiO/CO}$) (color scale) derived at the spatial resolution of SiO inside the CND. This ratio is equivalent to a brightness temperature ratio for the observed common line widths of SiO and CO. An ellipse shows the SiO beam. b) ( Lower left panel) The SiO/CO ratio is here displayed as function of velocity and spatial offset across the major axis at $\rm PA=90^{\circ }$ (SiO/CO pv). The CO pv plot is displayed in contours (CO pv). c) ( Upper right panel) Same as a) but showing here the CN(2-1)/CO(1-0) velocity-integrated intensity ratio ( $R_{\rm CN/CO}$)(color scale) derived at the spatial resolution of CO. An ellipse shows the CO beam. d) ( Lower right panel) Same as b) but adapted to compare here the CN/CO ratio along the major axis (CN/CO pv) with the corresponding CO pv plot.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7.5cm,clip]{14539fg10a.eps}\par\vspace*{2mm}
\includegraphics[width=7.5cm,clip]{14539fg10b.eps}
\par\end{figure} Figure 10:

a) ( Upper panel) SiO abundance as a function of gas density in the high velocity gas at the position of the AGN (solid line) and in the low velocity at the edge of the CND (dashed line). The abundances are derived from the mean SiO and CO brightness temperatures within the respective velocity windows as defined in text. The SiO abundance in the two regions can be the same only within the grey area. b) ( Lower panel) Same as a) but particularized for the density and abundance ranges for CN.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=6.5cm,clip]{14539fg11.eps}
\end{figure} Figure 11:

Spectra obtained with the IRAM 30 m telescope in selected molecular line tracers of shock chemistry. We show in a) ( Upper panel) the spectra of the 2-1 line of CH3OH. Intensity scale is in $T_{\rm a}^*$ (K) units; velocities are in HEL scale (km s-1). The Gaussian fit to the spectrum is displayed in blue. b) ( Middle panel) Same as a) but for the 3-2 line of CH3OH. c) ( Lower panel) Same as a) but for the 4-3 line of HNCO.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=17cm,clip]{14539fg12.eps}
\end{figure} Figure 12:

a) ( Left panel) Chandra X-ray image of NGC 1068 (contours: 15, 30, 50, 100, 200, 400, 600, 1000, 2000 and 3000 counts) obtained in the 0.25-7.5 keV band by Young et al. (2001) is overlaid on the PdBI SiO map (color scale in units of Jy km s-1 beam-1). b) ( Middle panel) The X-ray image obtained in the 6-8 keV band by Ogle et al. (2003) (contours: 0.2, 0.5, 1, 2, 4, 8, 15, 25, 40, 80 and 100 counts) is overlaid on the SiO(2-1)/CO(1-0) brightness temperature ratio (color scale) at the SiO spatial resolution. c) ( Right panel) Same as b) but with the X-ray image obtained in the 6-8 keV band overlaid on the CN(2-1)/CO(1-0) ratio (color scale) at the CO spatial resolution. Ellipses show beams of SiO and CO as in Fig. 9.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=12cm,clip]{14539fg13.eps}
\par\end{figure} Figure 13:

a) ( Left panel) The SiO(2-1)/CO(1-0) brightness temperature ratio versus the X-ray flux in the 6-8 keV band. The straight line represents the best fit to the points taking into account uncertainties visualized by the errorbars. The coefficient of determination of the regression is r2=0.6. b) ( Right panel) Same as a) but showing the CN(2-1)/CO(1-0) ratio. The coefficient of determination of the regression is r2=0.7.

Open with DEXTER
In the text


Copyright ESO 2010

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
