Fig. 6

Fig. 6 Refer to the following caption and surrounding text.

Download original image

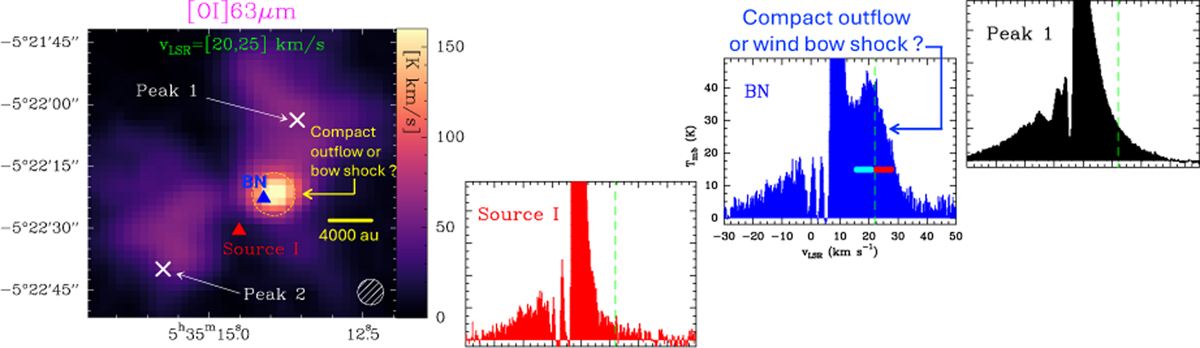

Possible compact outflow or wind bow shock around BN star. Left: spatial distribution of the redshifted [O I] 63 µm emission in the vLSR range from +20 to +25 km s−1. This map (in RA and Dec) shows extended emission following the wide-angle H2 outflow and a possible spatially unresolved outflow around BN, revealed as a distinct broad spectral component. Right: [O I] 63 µm spectra toward Source I (red), BN (blue), and Peak 1 (black). Only the blue spectrum shows the broad spectral feature around the LSR velocity of BN (dashed green line).
